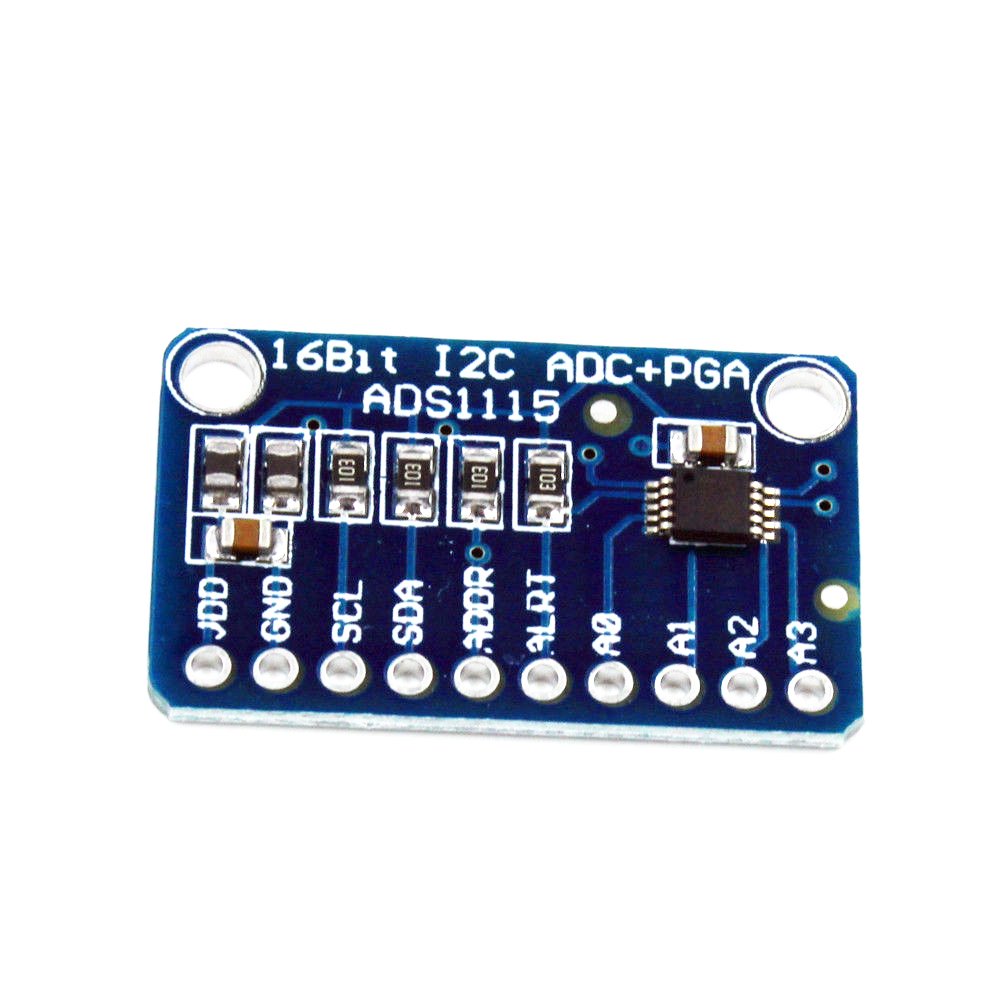

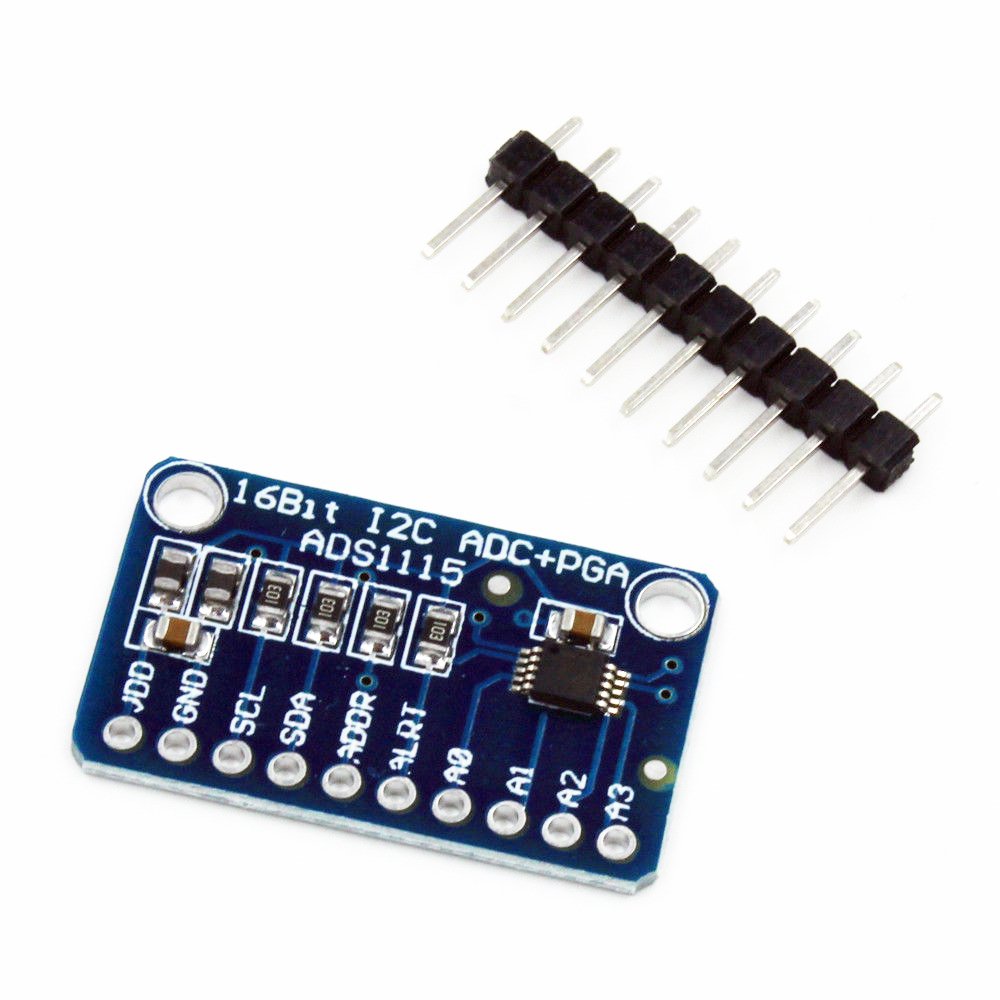

{"id":7903240159412,"title":"HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi","handle":"hiletgo-ads1115-16-bit-16-byte-4-channel-i2c-iic-analog-to-digital-adc-pga-converter-with-programmable-gain-amplifier-high-precision-adc-converter-development-board-for-arduino-raspberry-pi","description":"\u003ch3\u003eHiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: For microcontrollers without an analog-to-digital converter or\nwhen you want a higher-precision ADC, the ADS1115 provides 16-bit precision at\n3300 samples\/second over I2C. The chip can be configured as 4 single-ended\ninput channels, or two differential channels. As a nice bonus, it even\nincludes a programmable gain amplifier, up to x16, to help boost up smaller\nsingle\/differential signals to the full range. The chip's fairly small so it\ncomes on a breakout board with ferrites to keep the AVDD and AGND quiet.\nInterfacing is done via I2C. Simply connect GND to ground, VDD to your logic\npower supply, and SCL\/SDA to your microcontroller's I2C port and run the\nexample code to start reading data. Parameters: ADC Bit rate: 16 Bit Interface\nType: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 Input voltage: 2.0v-5.5v Channel\ninput voltage : 0-VDD Continuous Mode: Only 150?A Single-Shot Mode: Auto Shut\nDown Programmable data rate: 8sps-860sps Input range programmed control, 7\ntypes input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ +\n1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit\naddresses between 0x48-0x4B Package Included: 1 ADS1115 16 Bit 4 Channel\nAnalog-to-Digital ADC Converter 1 Pin Header\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh precision ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter\u003c\/li\u003e\n \u003cli\u003eAn easy to use I2C ADC Converter, with Programmable Gain Amplifier\u003c\/li\u003e\n \u003cli\u003eEspecially a good tool for Raspberry Pi that doesn't come with analog GPIO pins\u003c\/li\u003e\n \u003cli\u003eWide voltage supply range: 2.0V to 5.5V, operate in a comparator mode which is helpful for maintaining accuracy\u003c\/li\u003e\n \u003cli\u003eSingle-Shot Mode: Auto Shut Down; Programmable data rate: 8sps-860sps\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-12-24T12:58:36+11:00","created_at":"2024-12-24T01:18:00+11:00","vendor":"HiLetgo","type":"Signal Converters","tags":["industrial_Aug2024_update"],"price":9200,"price_min":9200,"price_max":9200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43776157286580,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01DLHKMO2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi","public_title":null,"options":["Default Title"],"price":9200,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-1062-A","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B01DLHKMO2.jpg?v=1735025020","\/\/auspowers.com\/cdn\/shop\/files\/61oCnuFUUoL.jpg?v=1734963483","\/\/auspowers.com\/cdn\/shop\/files\/710jmzKZjSL.jpg?v=1734963483","\/\/auspowers.com\/cdn\/shop\/files\/7167sw2rcuL.jpg?v=1734963482","\/\/auspowers.com\/cdn\/shop\/files\/61nOqaXPULL.jpg?v=1734963482","\/\/auspowers.com\/cdn\/shop\/files\/71VvbI7PM0L.jpg?v=1734963483","\/\/auspowers.com\/cdn\/shop\/files\/61ts-_uwk0L_a51b5bb5-b6ed-4f86-8a33-56d0c8cf0912.jpg?v=1734963482"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B01DLHKMO2.jpg?v=1735025020","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31087223931060,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B01DLHKMO2.jpg?v=1735025020"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B01DLHKMO2.jpg?v=1735025020","width":1000},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548142772,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oCnuFUUoL.jpg?v=1734963483"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oCnuFUUoL.jpg?v=1734963483","width":1000},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548175540,"position":3,"preview_image":{"aspect_ratio":1.983,"height":1010,"width":2003,"src":"\/\/auspowers.com\/cdn\/shop\/files\/710jmzKZjSL.jpg?v=1734963483"},"aspect_ratio":1.983,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/710jmzKZjSL.jpg?v=1734963483","width":2003},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548208308,"position":4,"preview_image":{"aspect_ratio":2.254,"height":1010,"width":2277,"src":"\/\/auspowers.com\/cdn\/shop\/files\/7167sw2rcuL.jpg?v=1734963482"},"aspect_ratio":2.254,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/7167sw2rcuL.jpg?v=1734963482","width":2277},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548241076,"position":5,"preview_image":{"aspect_ratio":1.603,"height":1010,"width":1619,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61nOqaXPULL.jpg?v=1734963482"},"aspect_ratio":1.603,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61nOqaXPULL.jpg?v=1734963482","width":1619},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548273844,"position":6,"preview_image":{"aspect_ratio":2.88,"height":889,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71VvbI7PM0L.jpg?v=1734963483"},"aspect_ratio":2.88,"height":889,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71VvbI7PM0L.jpg?v=1734963483","width":2560},{"alt":"[Australia - AusPower] - HiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi ","id":31085548306612,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ts-_uwk0L_a51b5bb5-b6ed-4f86-8a33-56d0c8cf0912.jpg?v=1734963482"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ts-_uwk0L_a51b5bb5-b6ed-4f86-8a33-56d0c8cf0912.jpg?v=1734963482","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High precision ADC Converter Development Board for Arduino Raspberry Pi\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: For microcontrollers without an analog-to-digital converter or\nwhen you want a higher-precision ADC, the ADS1115 provides 16-bit precision at\n3300 samples\/second over I2C. The chip can be configured as 4 single-ended\ninput channels, or two differential channels. As a nice bonus, it even\nincludes a programmable gain amplifier, up to x16, to help boost up smaller\nsingle\/differential signals to the full range. The chip's fairly small so it\ncomes on a breakout board with ferrites to keep the AVDD and AGND quiet.\nInterfacing is done via I2C. Simply connect GND to ground, VDD to your logic\npower supply, and SCL\/SDA to your microcontroller's I2C port and run the\nexample code to start reading data. Parameters: ADC Bit rate: 16 Bit Interface\nType: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 Input voltage: 2.0v-5.5v Channel\ninput voltage : 0-VDD Continuous Mode: Only 150?A Single-Shot Mode: Auto Shut\nDown Programmable data rate: 8sps-860sps Input range programmed control, 7\ntypes input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ +\n1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit\naddresses between 0x48-0x4B Package Included: 1 ADS1115 16 Bit 4 Channel\nAnalog-to-Digital ADC Converter 1 Pin Header\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh precision ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter\u003c\/li\u003e\n \u003cli\u003eAn easy to use I2C ADC Converter, with Programmable Gain Amplifier\u003c\/li\u003e\n \u003cli\u003eEspecially a good tool for Raspberry Pi that doesn't come with analog GPIO pins\u003c\/li\u003e\n \u003cli\u003eWide voltage supply range: 2.0V to 5.5V, operate in a comparator mode which is helpful for maintaining accuracy\u003c\/li\u003e\n \u003cli\u003eSingle-Shot Mode: Auto Shut Down; Programmable data rate: 8sps-860sps\u003c\/li\u003e\n \u003c\/ul\u003e"}
