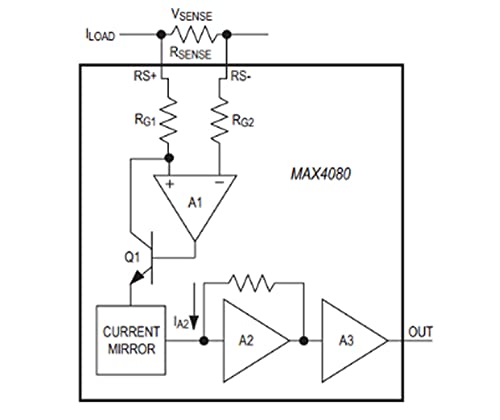

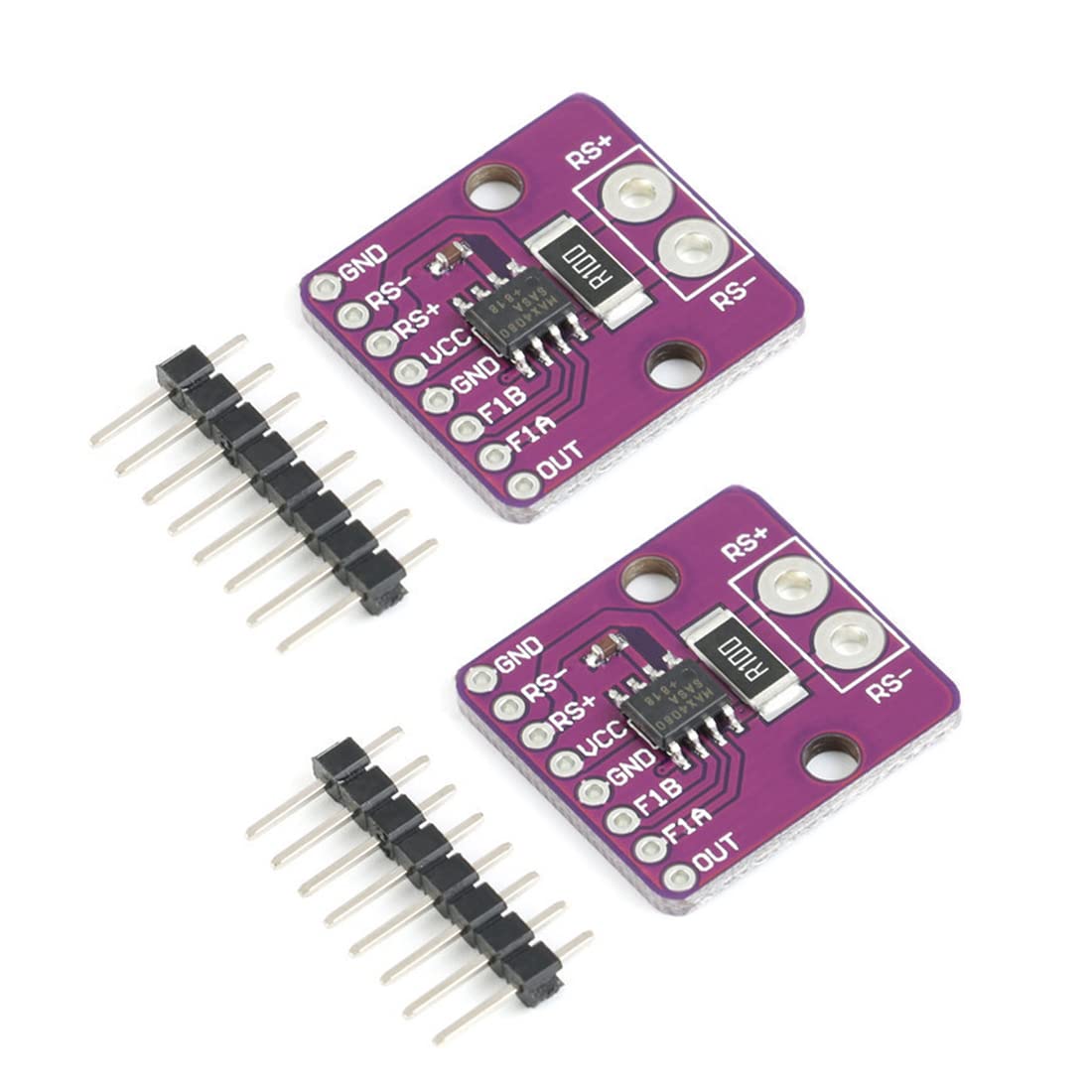

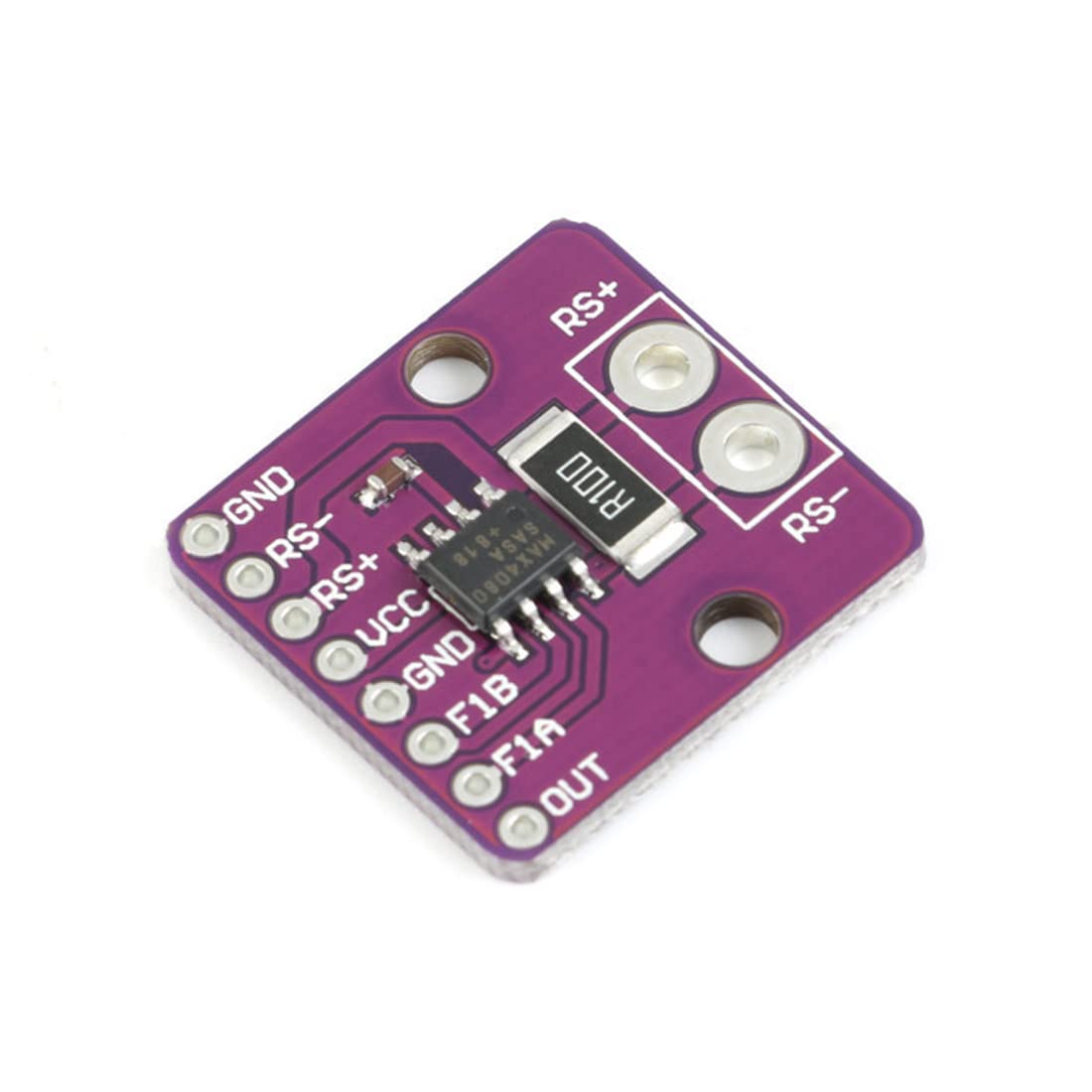

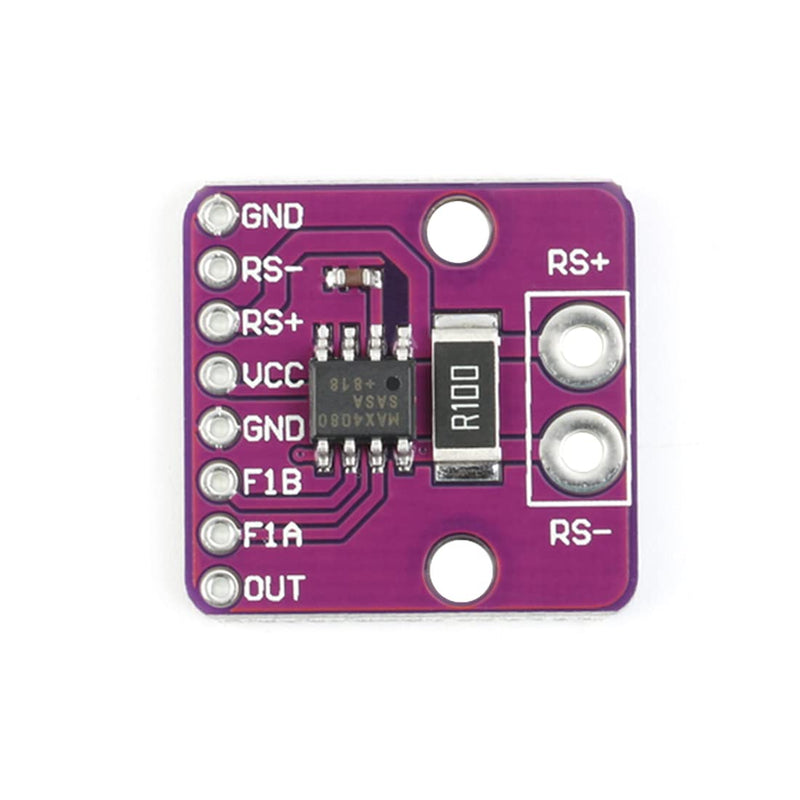

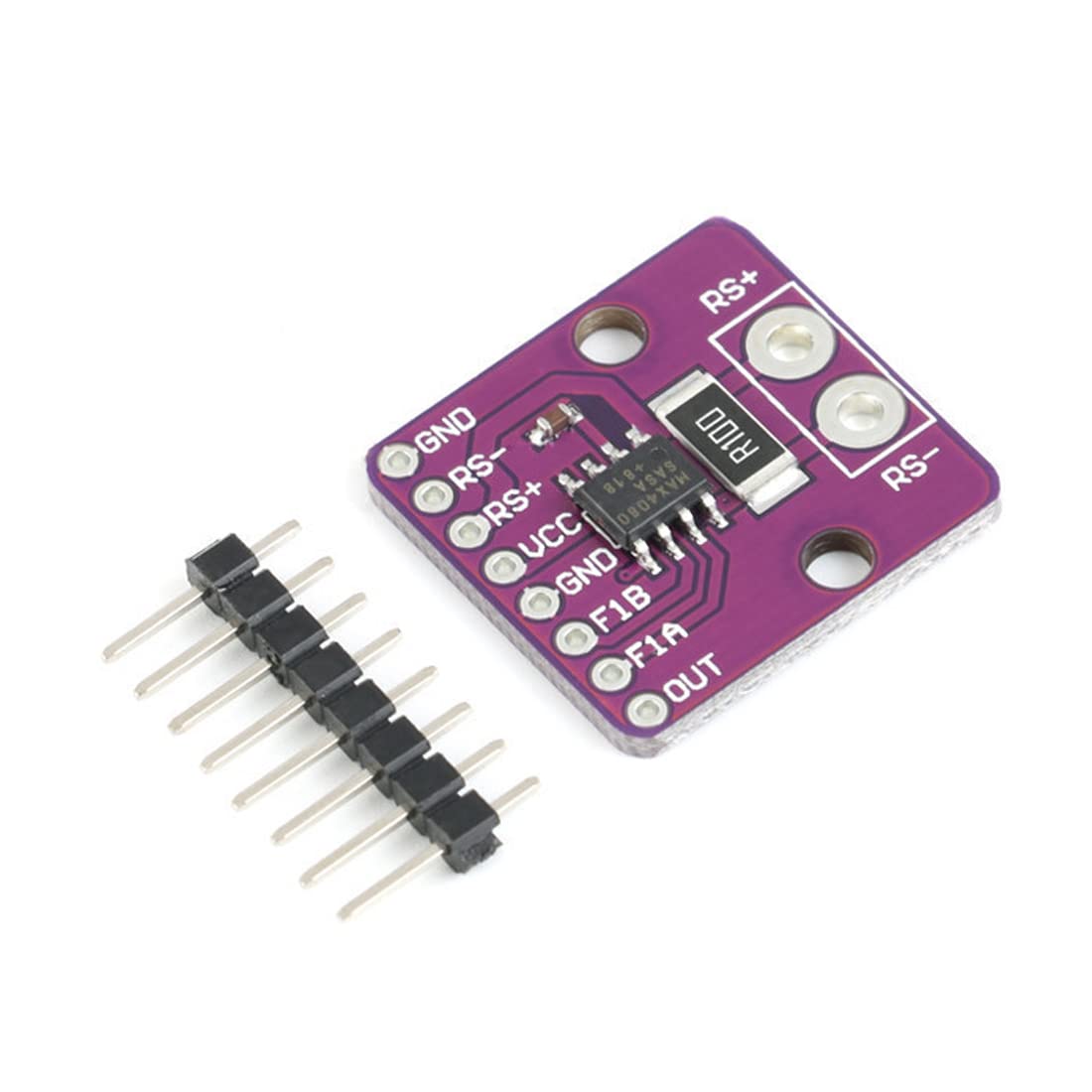

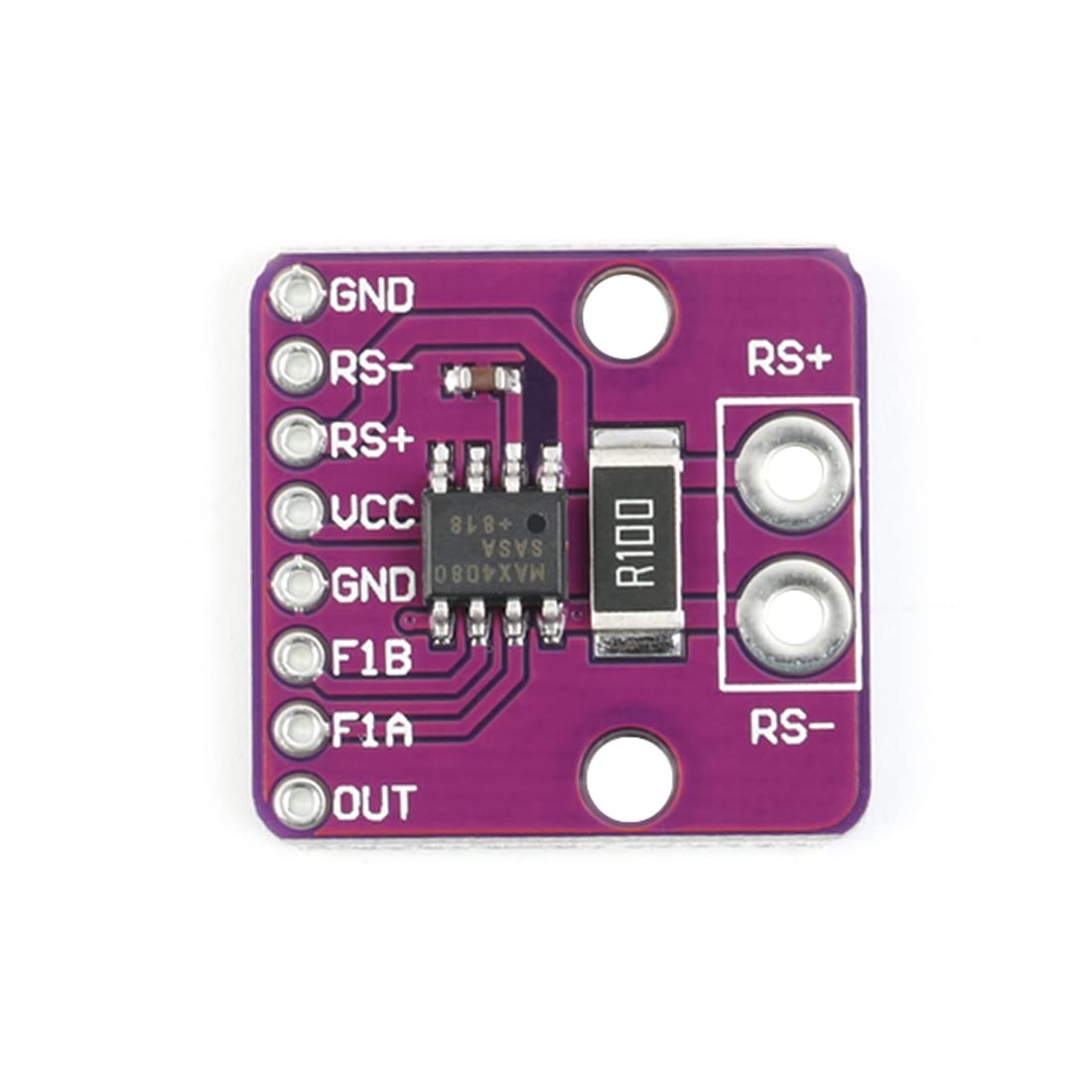

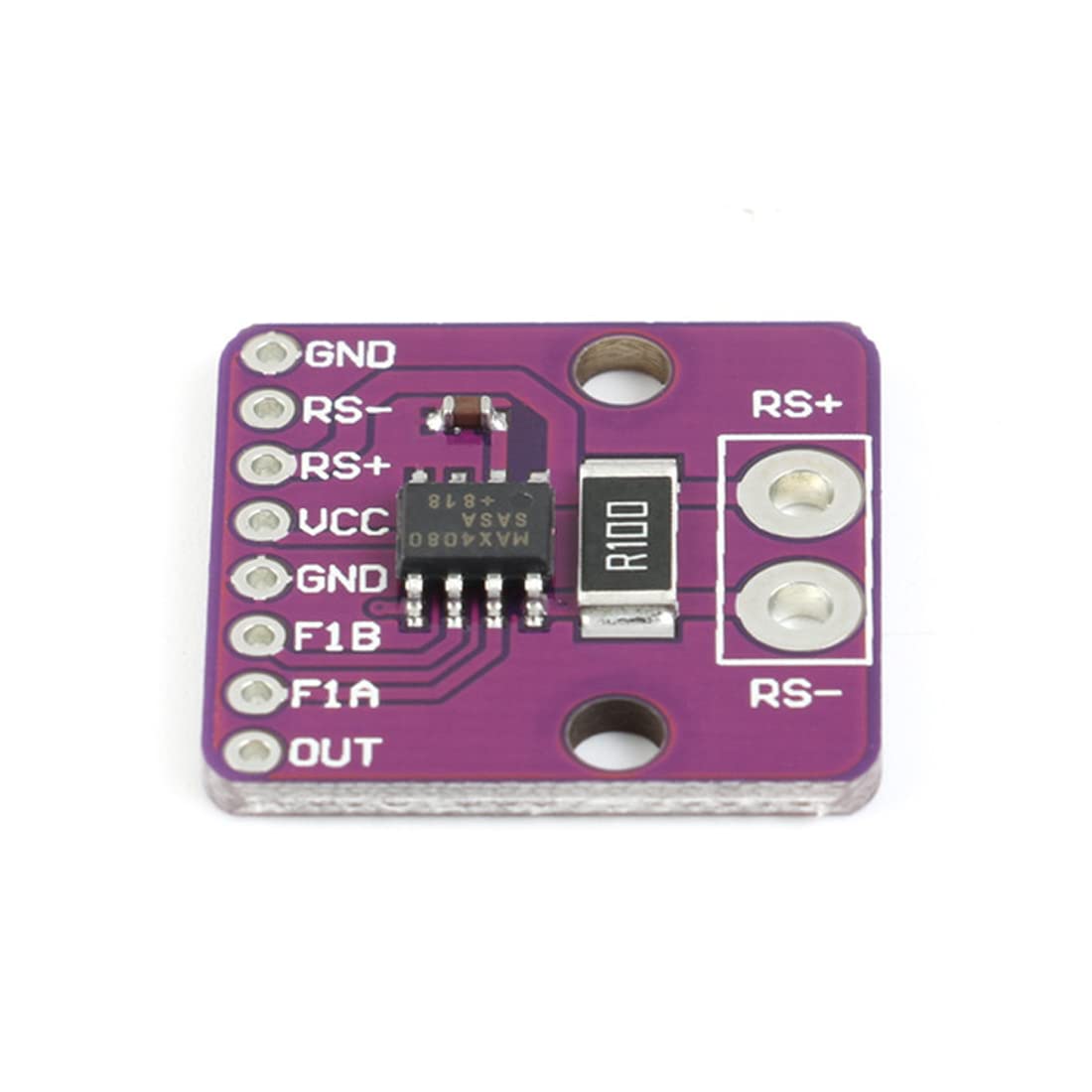

{"id":7811413770420,"title":"HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source","handle":"hiletgo-2pcs-max4080sasa-current-module-current-sensor-amplifier-high-accuracy-highly-integrated-voltage-current-source","description":"\u003ch3\u003eHiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: MAX4080 is a high-side current-Sensor amplifiers with an input\nvoltage range of 4.5V to 76V, making them ideal for telecom, automotive,\nbackplane, and other systems that require tight monitoring of high-voltage\ncurrents. Parameters: Common mode input voltage range: 4.5V to 76V Maximum\nworking current: 190uA Full scale accuracy: ±0.1% Low input offset voltage:\n100?V Independent working power supply voltage: 4.5V to 76V Pin Definition:\nRS+: positive terminal of external Sensor resistor RS-: negative terminal of\nexternal Sensor resistor VCC: Positive power supply OUT: Conversion voltage\noutput FIA, FIB: MAX4080 chip used by the module, no connection Applications:\n48V Telecom and Backplane Current Detection Car (12V, 24V or 42V battery)\nAvalanche photodiode and PIN diode current monitoringb Two-way motor control\nGeneral purpose system \/ board level current sensing Power management system\nPrecision high voltage current source Package included: 2 MAX4080SASA Current\nSensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMAX4080 are a high-side current-Sensor amplifiers with an input voltage range of 4.5V to 76V\u003c\/li\u003e\n \u003cli\u003eMAX4080's single output pin continuously monitors the entire charge-to-discharge process without additional polarity output.\u003c\/li\u003e\n \u003cli\u003eMAX4080 offer users a highly integrated, simple, accurate, and compact current sensing solution.\u003c\/li\u003e\n \u003cli\u003eThree different gains (5V\/V, 20V\/V, 60V\/V, chip silkscreen suffixes are indicated by F, T, S respectively) support user select external Sensor resistors and it's easy to set the full-scale current and proportional output voltage.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-08T09:39:14+10:00","created_at":"2024-08-06T04:25:31+10:00","vendor":"HiLetgo","type":"Current Sensors","tags":["industrial_Aug2024_update"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43457318355124,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09KLS4LCH","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source","public_title":null,"options":["Default Title"],"price":10700,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-1715","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09KLS4LCH.jpg?v=1775744648","\/\/auspowers.com\/cdn\/shop\/files\/51Fi3OpHfYL.jpg?v=1722882344","\/\/auspowers.com\/cdn\/shop\/files\/51O04I1WxPL.jpg?v=1722882344","\/\/auspowers.com\/cdn\/shop\/files\/514Y9pvcQsL.jpg?v=1722882344","\/\/auspowers.com\/cdn\/shop\/files\/51zf81QcicL.jpg?v=1722882344","\/\/auspowers.com\/cdn\/shop\/files\/31WGwEQpsxL.jpg?v=1722882344","\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_1e8139a9-0775-4b9a-aaf5-207d7fe72632.jpg?v=1722882344"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09KLS4LCH.jpg?v=1775744648","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736418996,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09KLS4LCH.jpg?v=1775744648"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09KLS4LCH.jpg?v=1775744648","width":1100},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736451764,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Fi3OpHfYL.jpg?v=1722882344"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Fi3OpHfYL.jpg?v=1722882344","width":1100},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736484532,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51O04I1WxPL.jpg?v=1722882344"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51O04I1WxPL.jpg?v=1722882344","width":1100},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736517300,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/514Y9pvcQsL.jpg?v=1722882344"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/514Y9pvcQsL.jpg?v=1722882344","width":1100},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736550068,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51zf81QcicL.jpg?v=1722882344"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51zf81QcicL.jpg?v=1722882344","width":1100},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736582836,"position":6,"preview_image":{"aspect_ratio":1.19,"height":420,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31WGwEQpsxL.jpg?v=1722882344"},"aspect_ratio":1.19,"height":420,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31WGwEQpsxL.jpg?v=1722882344","width":500},{"alt":"[Australia - AusPower] - HiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source ","id":30570736615604,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_1e8139a9-0775-4b9a-aaf5-207d7fe72632.jpg?v=1722882344"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_1e8139a9-0775-4b9a-aaf5-207d7fe72632.jpg?v=1722882344","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo 2pcs MAX4080SASA Current Module Current Sensor Amplifier High Accuracy Highly Integrated Voltage Current Source\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: MAX4080 is a high-side current-Sensor amplifiers with an input\nvoltage range of 4.5V to 76V, making them ideal for telecom, automotive,\nbackplane, and other systems that require tight monitoring of high-voltage\ncurrents. Parameters: Common mode input voltage range: 4.5V to 76V Maximum\nworking current: 190uA Full scale accuracy: ±0.1% Low input offset voltage:\n100?V Independent working power supply voltage: 4.5V to 76V Pin Definition:\nRS+: positive terminal of external Sensor resistor RS-: negative terminal of\nexternal Sensor resistor VCC: Positive power supply OUT: Conversion voltage\noutput FIA, FIB: MAX4080 chip used by the module, no connection Applications:\n48V Telecom and Backplane Current Detection Car (12V, 24V or 42V battery)\nAvalanche photodiode and PIN diode current monitoringb Two-way motor control\nGeneral purpose system \/ board level current sensing Power management system\nPrecision high voltage current source Package included: 2 MAX4080SASA Current\nSensor Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMAX4080 are a high-side current-Sensor amplifiers with an input voltage range of 4.5V to 76V\u003c\/li\u003e\n \u003cli\u003eMAX4080's single output pin continuously monitors the entire charge-to-discharge process without additional polarity output.\u003c\/li\u003e\n \u003cli\u003eMAX4080 offer users a highly integrated, simple, accurate, and compact current sensing solution.\u003c\/li\u003e\n \u003cli\u003eThree different gains (5V\/V, 20V\/V, 60V\/V, chip silkscreen suffixes are indicated by F, T, S respectively) support user select external Sensor resistors and it's easy to set the full-scale current and proportional output voltage.\u003c\/li\u003e\n \u003c\/ul\u003e"}
