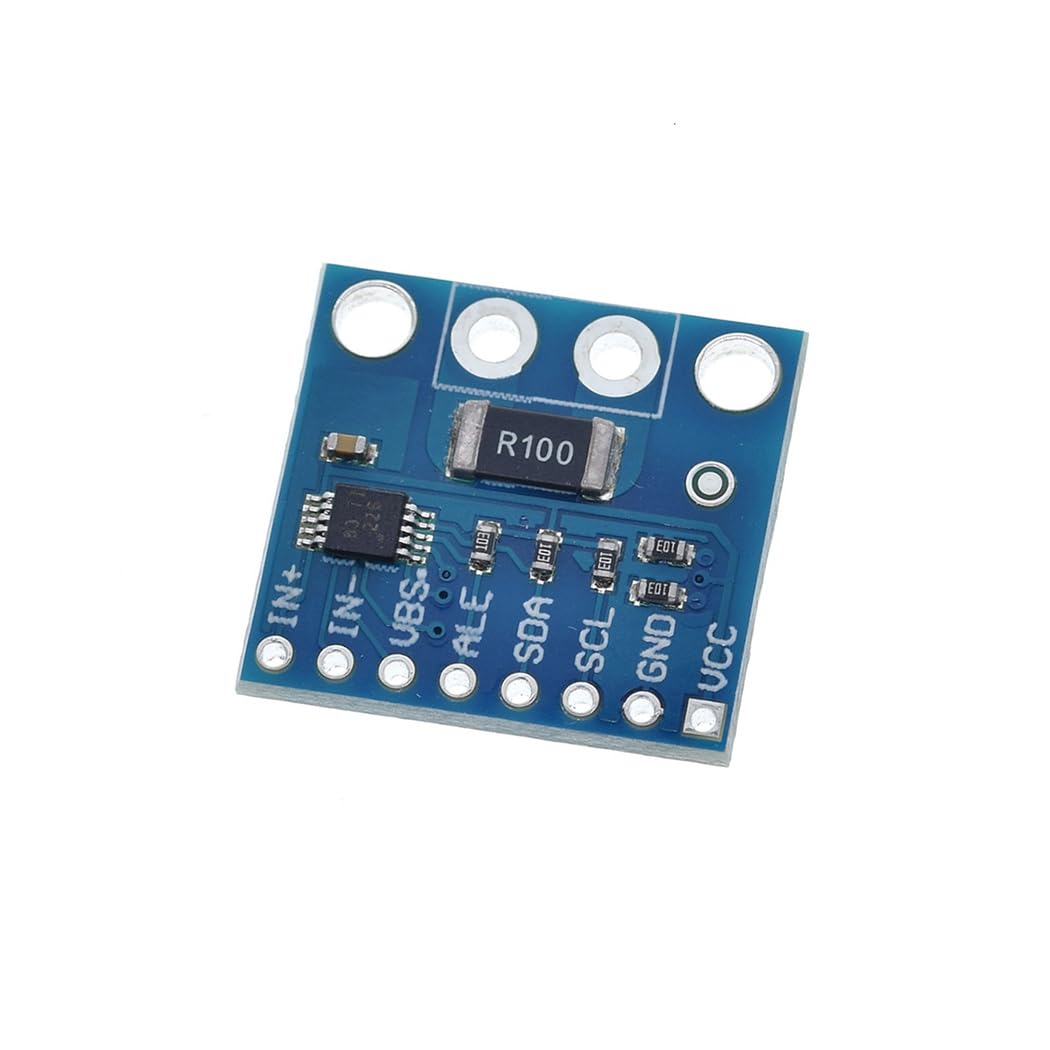

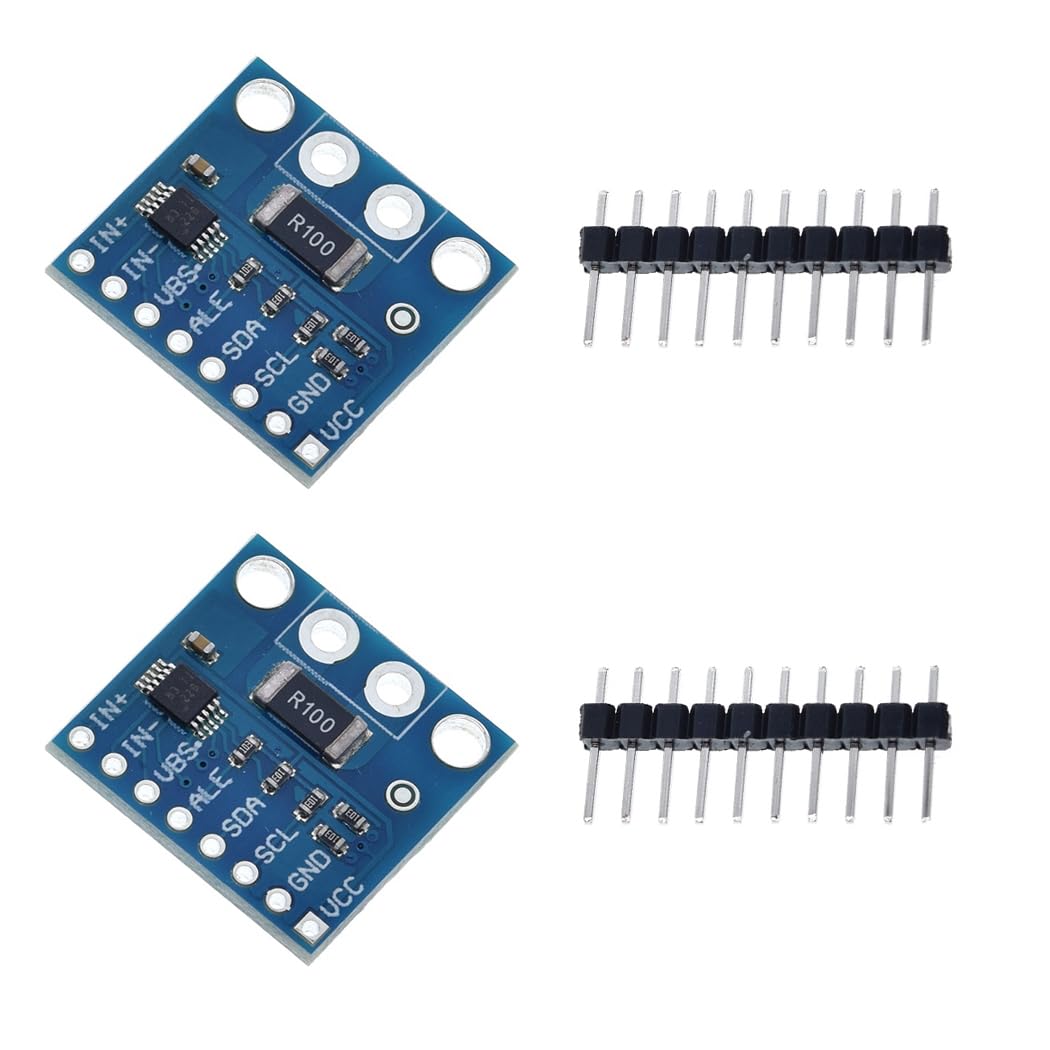

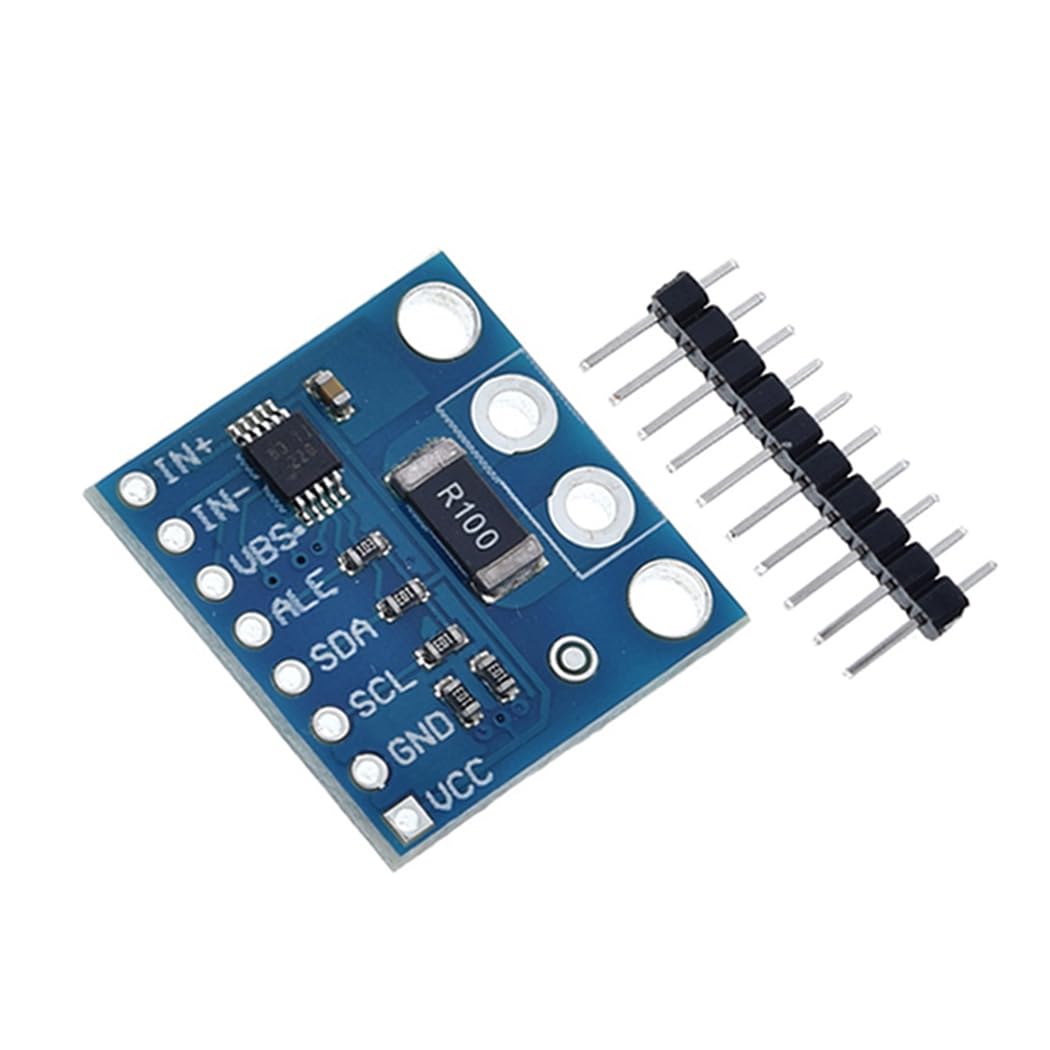

{"id":7811415441588,"title":"HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function","handle":"hiletgo-2pcs-ina226-iic-i2c-bi-directional-current-monitoring-sensor-power-monitor-sensor-module-with-alarm-function","description":"\u003ch3\u003eHiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Voltage: 0-36 V Reports Current, Voltage, and Power High Accuracy:\n0.1% Gain Error (Max) 10 ?V Offset (Max) Configurable Averaging Options 16\nProgrammable Addresses Operates from 2.7-V to 5.5-V Power Supply 10-Pin, DGS\n(VSSOP) Package Pin out: VBUS: bus voltage input SDA\/SCL: IIC bus data and\nclock signal lines ALERT: Multi-function alarm output A0\/A1: IIC address line\nIN+\/IN-: non-inverting analog input, inverting analog input Description: The\nINA226 is a current shunt and power monitor with an I2C or SMBUS compatible\ninterface. The device monitors both a shunt voltage drop and bussupply\nvoltage. Programmable calibration value,conversion times, and averaging,\ncombined with aninternal multiplier, enable direct readouts of current\ninamperes and power in watts. The INA226 senses current on common-mode bus\nvoltages that can vary from 0 V to 36 V, independent of the supply voltage.\nThe device operates from a single 2.7-V to 5.5-V supply, drawing a typical of\n330?A of supply current. The device is specified over the operating\ntemperature range between –40°C and125°C and features up to 16 programmable\naddresses on the I2C-compatible interface. Package included: 2 INA226 IIC\nI2C Bi-Directional Current Monitoring Sensors\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eINA226 IIC I2C Bi-Directional Current Monitoring Sensor\u003c\/li\u003e\n \u003cli\u003eCan be applied to Servers, Telecom Equipment, Power Management, Battery Chargers and Power Supplies\u003c\/li\u003e\n \u003cli\u003eHigh accuracy, 16 programmable addresses, 10-Pin, DGS (VSSOP) Package\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-08T09:38:54+10:00","created_at":"2024-08-06T04:28:32+10:00","vendor":"HiLetgo","type":"Current Sensors","tags":["industrial_Aug2024_update"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43457320976564,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CDWXB8PG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function","public_title":null,"options":["Default Title"],"price":11400,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-1791","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CDWXB8PG.jpg?v=1775744665","\/\/auspowers.com\/cdn\/shop\/files\/51uTvsmb25L.jpg?v=1722882524","\/\/auspowers.com\/cdn\/shop\/files\/51SusDGziML.jpg?v=1722882524","\/\/auspowers.com\/cdn\/shop\/files\/51Bcwstz4-L.jpg?v=1722882524","\/\/auspowers.com\/cdn\/shop\/files\/51BHV-8c_EL.jpg?v=1722882524","\/\/auspowers.com\/cdn\/shop\/files\/61LH9lgKSXL.jpg?v=1722882525","\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_407c37a8-2cc3-4e26-91f8-67e00e508a1d.jpg?v=1722882525"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CDWXB8PG.jpg?v=1775744665","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570744938676,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CDWXB8PG.jpg?v=1775744665"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CDWXB8PG.jpg?v=1775744665","width":1050},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570744971444,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51uTvsmb25L.jpg?v=1722882524"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51uTvsmb25L.jpg?v=1722882524","width":1050},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570745004212,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51SusDGziML.jpg?v=1722882524"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51SusDGziML.jpg?v=1722882524","width":1050},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570745036980,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Bcwstz4-L.jpg?v=1722882524"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Bcwstz4-L.jpg?v=1722882524","width":1050},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570745069748,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51BHV-8c_EL.jpg?v=1722882524"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51BHV-8c_EL.jpg?v=1722882524","width":1050},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570745102516,"position":6,"preview_image":{"aspect_ratio":1.727,"height":579,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61LH9lgKSXL.jpg?v=1722882525"},"aspect_ratio":1.727,"height":579,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61LH9lgKSXL.jpg?v=1722882525","width":1000},{"alt":"[Australia - AusPower] - HiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function ","id":30570745135284,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_407c37a8-2cc3-4e26-91f8-67e00e508a1d.jpg?v=1722882525"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51_Du5sRIiL_407c37a8-2cc3-4e26-91f8-67e00e508a1d.jpg?v=1722882525","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo 2pcs INA226 IIC I2C Bi-Directional Current Monitoring Sensor Power Monitor Sensor Module with Alarm Function\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Voltage: 0-36 V Reports Current, Voltage, and Power High Accuracy:\n0.1% Gain Error (Max) 10 ?V Offset (Max) Configurable Averaging Options 16\nProgrammable Addresses Operates from 2.7-V to 5.5-V Power Supply 10-Pin, DGS\n(VSSOP) Package Pin out: VBUS: bus voltage input SDA\/SCL: IIC bus data and\nclock signal lines ALERT: Multi-function alarm output A0\/A1: IIC address line\nIN+\/IN-: non-inverting analog input, inverting analog input Description: The\nINA226 is a current shunt and power monitor with an I2C or SMBUS compatible\ninterface. The device monitors both a shunt voltage drop and bussupply\nvoltage. Programmable calibration value,conversion times, and averaging,\ncombined with aninternal multiplier, enable direct readouts of current\ninamperes and power in watts. The INA226 senses current on common-mode bus\nvoltages that can vary from 0 V to 36 V, independent of the supply voltage.\nThe device operates from a single 2.7-V to 5.5-V supply, drawing a typical of\n330?A of supply current. The device is specified over the operating\ntemperature range between –40°C and125°C and features up to 16 programmable\naddresses on the I2C-compatible interface. Package included: 2 INA226 IIC\nI2C Bi-Directional Current Monitoring Sensors\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eINA226 IIC I2C Bi-Directional Current Monitoring Sensor\u003c\/li\u003e\n \u003cli\u003eCan be applied to Servers, Telecom Equipment, Power Management, Battery Chargers and Power Supplies\u003c\/li\u003e\n \u003cli\u003eHigh accuracy, 16 programmable addresses, 10-Pin, DGS (VSSOP) Package\u003c\/li\u003e\n \u003c\/ul\u003e"}
