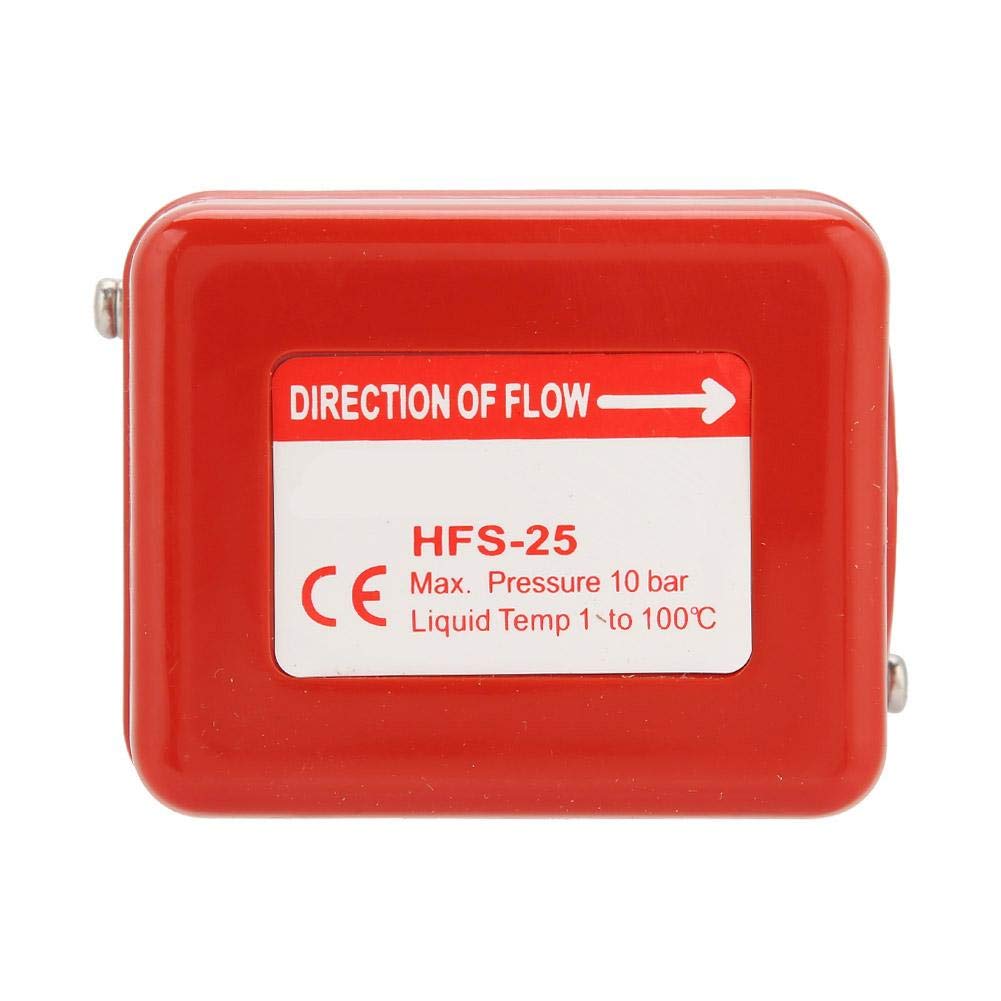

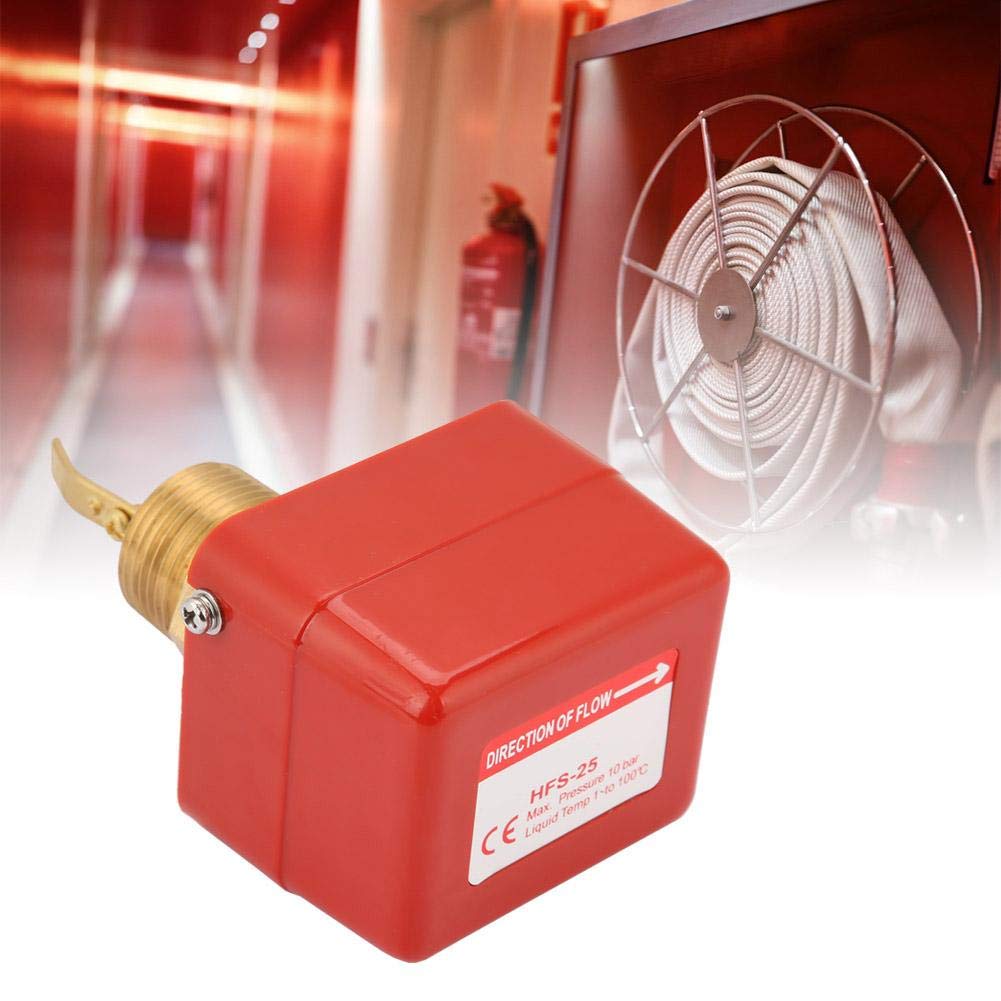

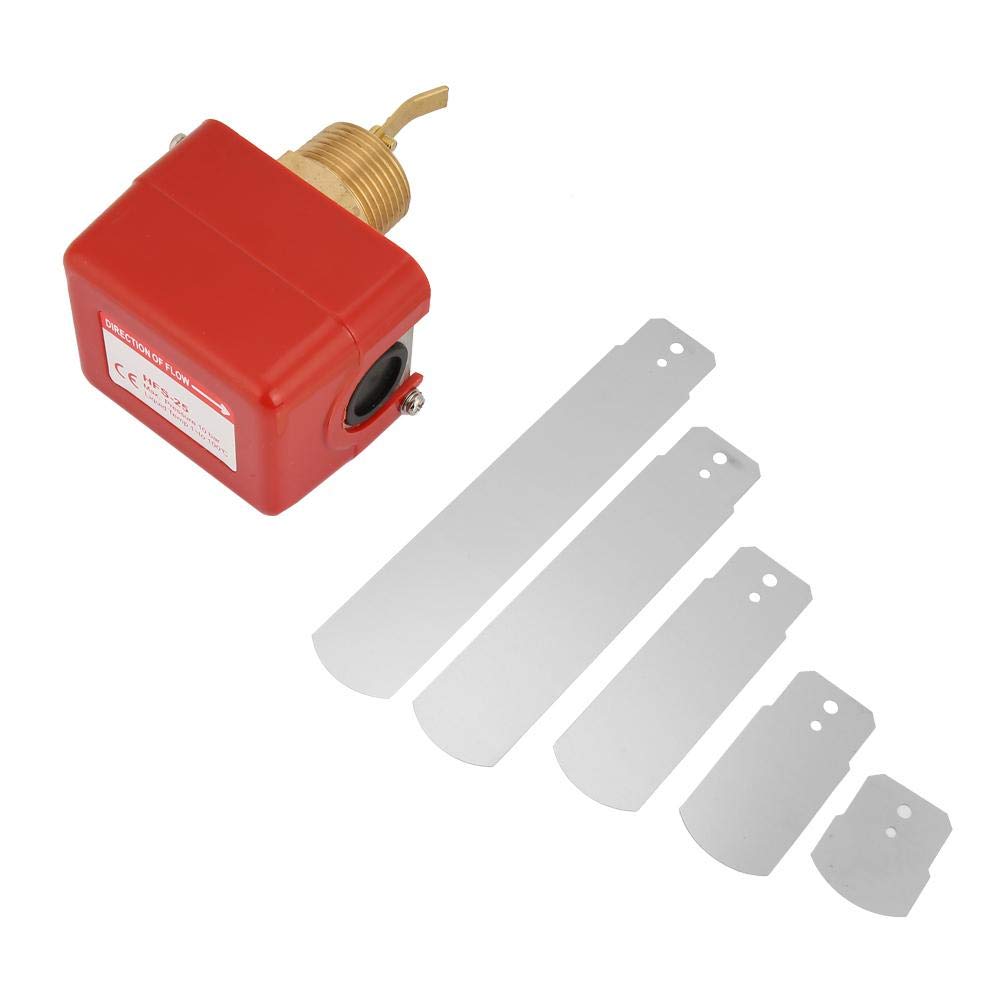

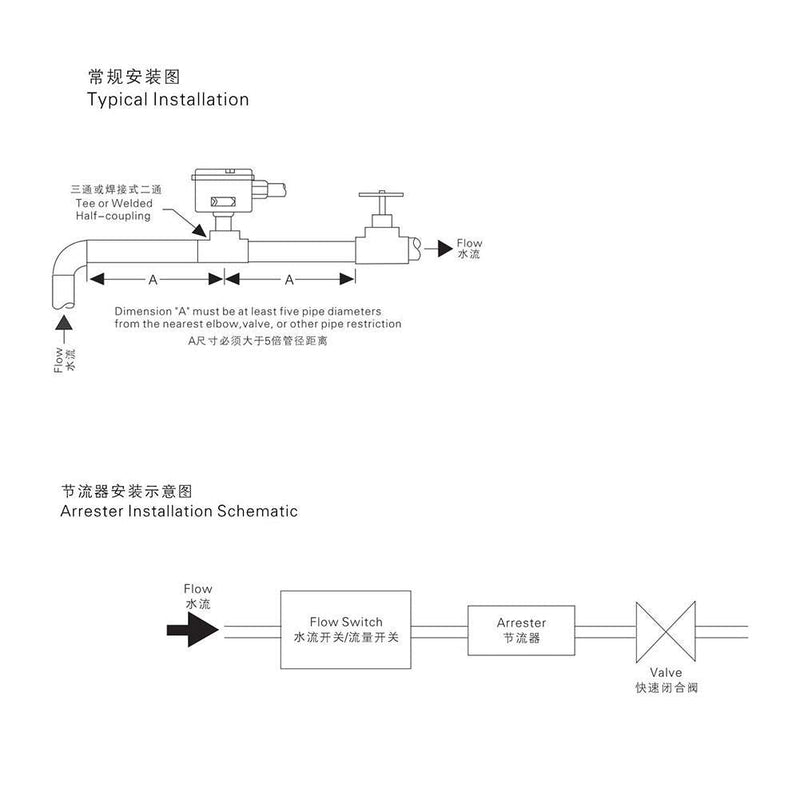

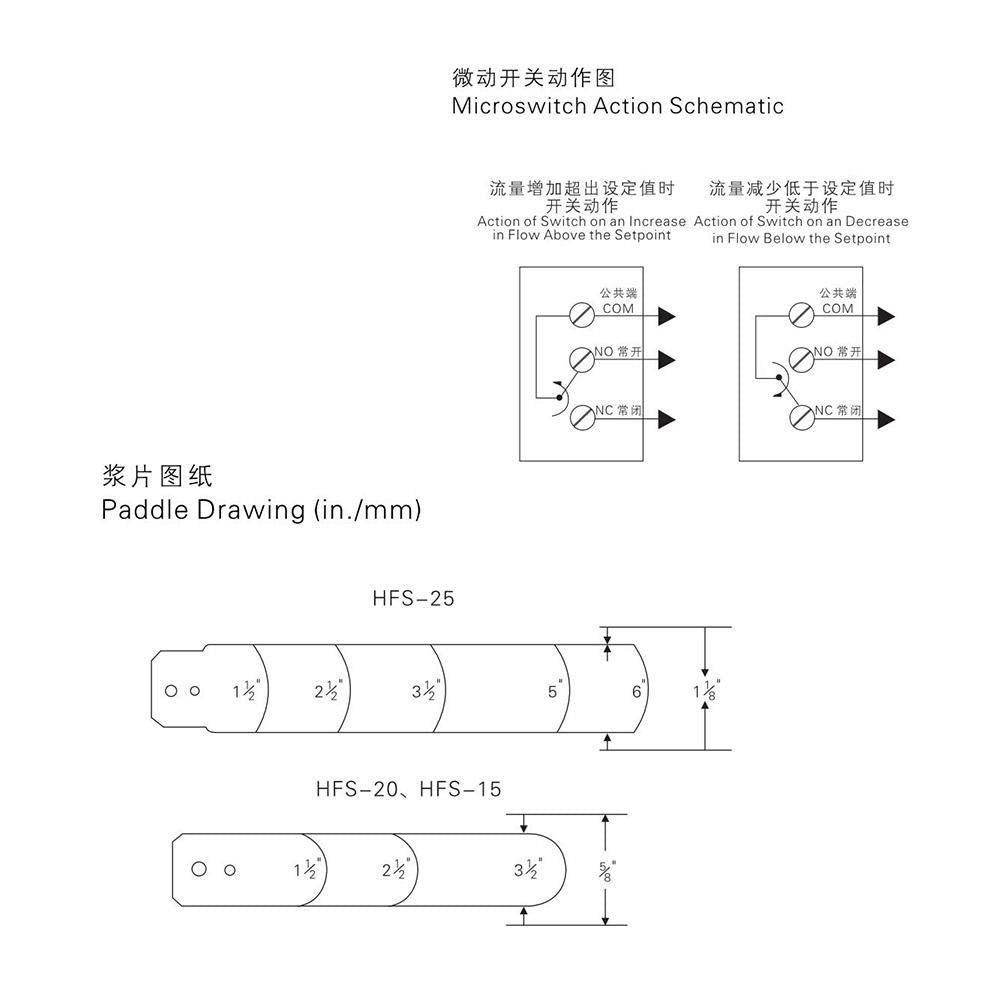

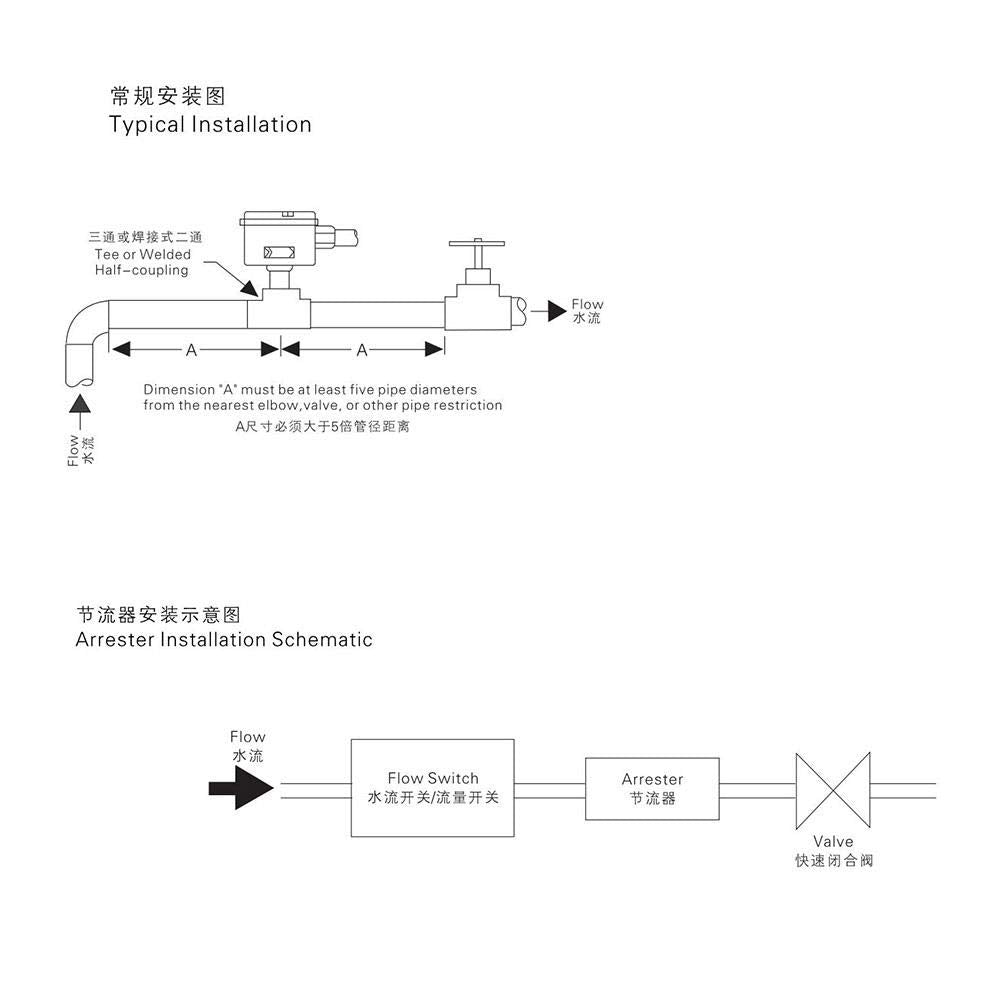

{"id":7842177450164,"title":"HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V","handle":"hfs-25-water-switch-paddle-control-spdt-contacts-partial-stainless-steel-type-1-connector-1-0mpa-6-380v","description":"\u003ch3\u003eHFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model: HFS-25 Voltage: 6-380V Control mode: Paddle Switch type:\nSPDT Material: 304 stainless steel body, copper connector, phosphor bronze\nbellows Connector: 1\" \/ 25mm .working pressure: 1.0MPa Ambient temperature:\n0~60? Liquid temperature: -10~100?(Fluid without icing) life: 1000000 times\nMicroswitch Voltage: 220VAC Microswitch Current: 15A Weight: Approx.416g\/\n14.7oz Package List: 1 Water Switch 5 Paddle 1 User manual Installation\nmethod: 1. Open the switch 2. The switch has been set at minimum rate. Turn\nthe adjusting screw counterclockwise to increase the setting value. 3. Press\nthe target to check whether the micro switch can work normally. Excessive\nclockwise rotation of the adjusting screw may to the failure of the switch. 4.\nAfter the installation, please press the lever of the switch several times to\ncheck. If there is no \"click\" sound, turn the adjusting screw counterclockwise\nuntil there is \"click\" sound. 5. The adjustment screw of lacquer seal is only\nused for the first time to adjust the state of switch. Please do not change or\nadjust it. 6. Observe three operating cycles to ensure that the switch and the\nsystem to which it is connected are operating properly and cover the switch\nenclosure promptly.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLiquid Flowing State -- It is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene, and other liquids that have no corrosive effect on copper.\u003c\/li\u003e\n \u003cli\u003eSPDT Contact Switch -- When rate exceeds set value, fluid drives blade and micro switch, the SPDT contact can connect a circuit and disconnect other circuit.\u003c\/li\u003e\n \u003cli\u003ePaddle Control Mode -- Paddle Water Switch. Model: HFS-25. Voltage: 6-380V. Control mode: Paddle. Switch type: SPDT. Connector: 1\" \/ 25mm\u003c\/li\u003e\n \u003cli\u003eAdjustable Control -- control value is adjustable, repeat action point is stable. grade is IP54, the microswitch contact life is up to 100,000 times\u003c\/li\u003e\n \u003cli\u003eSuitable for Application -- for water treatment system, central air conditioning, water cooling unit. Liquid temperature: -10~100C(Fluid without icing)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T14:02:30+10:00","created_at":"2024-09-07T16:19:58+10:00","vendor":"Walfront","type":"Flow Switches","tags":["industrial_Aug2024_update"],"price":18400,"price_min":18400,"price_max":18400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43564340543668,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B089KNWPQW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V","public_title":null,"options":["Default Title"],"price":18400,"weight":425,"compare_at_price":null,"inventory_management":"shopify","barcode":"Walfrontf9g2ahb367","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B089KNWPQW.jpg?v=1775748880","\/\/auspowers.com\/cdn\/shop\/files\/61zUNgW2PiL_4e3f1945-540c-47e6-8702-99b949efdf24.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/61jFW3pfosL_35f7bc8d-7f60-4ee3-8fa2-bafd9192bb8a.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51tFetYIwWL.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51wpDRrhwiL_3299ffb3-7197-4562-9f03-ff9e110501b0.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51wc0wlEuGL_dcbac878-4b09-4de7-b513-5e61a841fc97.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51qiwAd5gYL_fc17a5c4-5afe-4b16-86a1-8e651aaa4660.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51pEsXb4vXL_ac25e42c-3e29-4d67-8f0a-df4740e5ec93.jpg?v=1725690001","\/\/auspowers.com\/cdn\/shop\/files\/51Q2Yll5r9L_f5d6a019-c970-4683-bef9-bdaf5a6d54a4.jpg?v=1725690001"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B089KNWPQW.jpg?v=1775748880","options":["Title"],"media":[{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870199476,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B089KNWPQW.jpg?v=1775748880"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B089KNWPQW.jpg?v=1775748880","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870232244,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zUNgW2PiL_4e3f1945-540c-47e6-8702-99b949efdf24.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zUNgW2PiL_4e3f1945-540c-47e6-8702-99b949efdf24.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870265012,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61jFW3pfosL_35f7bc8d-7f60-4ee3-8fa2-bafd9192bb8a.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61jFW3pfosL_35f7bc8d-7f60-4ee3-8fa2-bafd9192bb8a.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870297780,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51tFetYIwWL.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51tFetYIwWL.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870330548,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51wpDRrhwiL_3299ffb3-7197-4562-9f03-ff9e110501b0.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51wpDRrhwiL_3299ffb3-7197-4562-9f03-ff9e110501b0.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870363316,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51wc0wlEuGL_dcbac878-4b09-4de7-b513-5e61a841fc97.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51wc0wlEuGL_dcbac878-4b09-4de7-b513-5e61a841fc97.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870396084,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51qiwAd5gYL_fc17a5c4-5afe-4b16-86a1-8e651aaa4660.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51qiwAd5gYL_fc17a5c4-5afe-4b16-86a1-8e651aaa4660.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870428852,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51pEsXb4vXL_ac25e42c-3e29-4d67-8f0a-df4740e5ec93.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51pEsXb4vXL_ac25e42c-3e29-4d67-8f0a-df4740e5ec93.jpg?v=1725690001","width":1001},{"alt":"[Australia - AusPower] - HFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V ","id":30728870461620,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q2Yll5r9L_f5d6a019-c970-4683-bef9-bdaf5a6d54a4.jpg?v=1725690001"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Q2Yll5r9L_f5d6a019-c970-4683-bef9-bdaf5a6d54a4.jpg?v=1725690001","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHFS-25 Water Switch Paddle Control SPDT Contacts Partial Stainless Steel Type 1\" Connector 1.0MPa 6-380V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Model: HFS-25 Voltage: 6-380V Control mode: Paddle Switch type:\nSPDT Material: 304 stainless steel body, copper connector, phosphor bronze\nbellows Connector: 1\" \/ 25mm .working pressure: 1.0MPa Ambient temperature:\n0~60? Liquid temperature: -10~100?(Fluid without icing) life: 1000000 times\nMicroswitch Voltage: 220VAC Microswitch Current: 15A Weight: Approx.416g\/\n14.7oz Package List: 1 Water Switch 5 Paddle 1 User manual Installation\nmethod: 1. Open the switch 2. The switch has been set at minimum rate. Turn\nthe adjusting screw counterclockwise to increase the setting value. 3. Press\nthe target to check whether the micro switch can work normally. Excessive\nclockwise rotation of the adjusting screw may to the failure of the switch. 4.\nAfter the installation, please press the lever of the switch several times to\ncheck. If there is no \"click\" sound, turn the adjusting screw counterclockwise\nuntil there is \"click\" sound. 5. The adjustment screw of lacquer seal is only\nused for the first time to adjust the state of switch. Please do not change or\nadjust it. 6. Observe three operating cycles to ensure that the switch and the\nsystem to which it is connected are operating properly and cover the switch\nenclosure promptly.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLiquid Flowing State -- It is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene, and other liquids that have no corrosive effect on copper.\u003c\/li\u003e\n \u003cli\u003eSPDT Contact Switch -- When rate exceeds set value, fluid drives blade and micro switch, the SPDT contact can connect a circuit and disconnect other circuit.\u003c\/li\u003e\n \u003cli\u003ePaddle Control Mode -- Paddle Water Switch. Model: HFS-25. Voltage: 6-380V. Control mode: Paddle. Switch type: SPDT. Connector: 1\" \/ 25mm\u003c\/li\u003e\n \u003cli\u003eAdjustable Control -- control value is adjustable, repeat action point is stable. grade is IP54, the microswitch contact life is up to 100,000 times\u003c\/li\u003e\n \u003cli\u003eSuitable for Application -- for water treatment system, central air conditioning, water cooling unit. Liquid temperature: -10~100C(Fluid without icing)\u003c\/li\u003e\n \u003c\/ul\u003e"}
