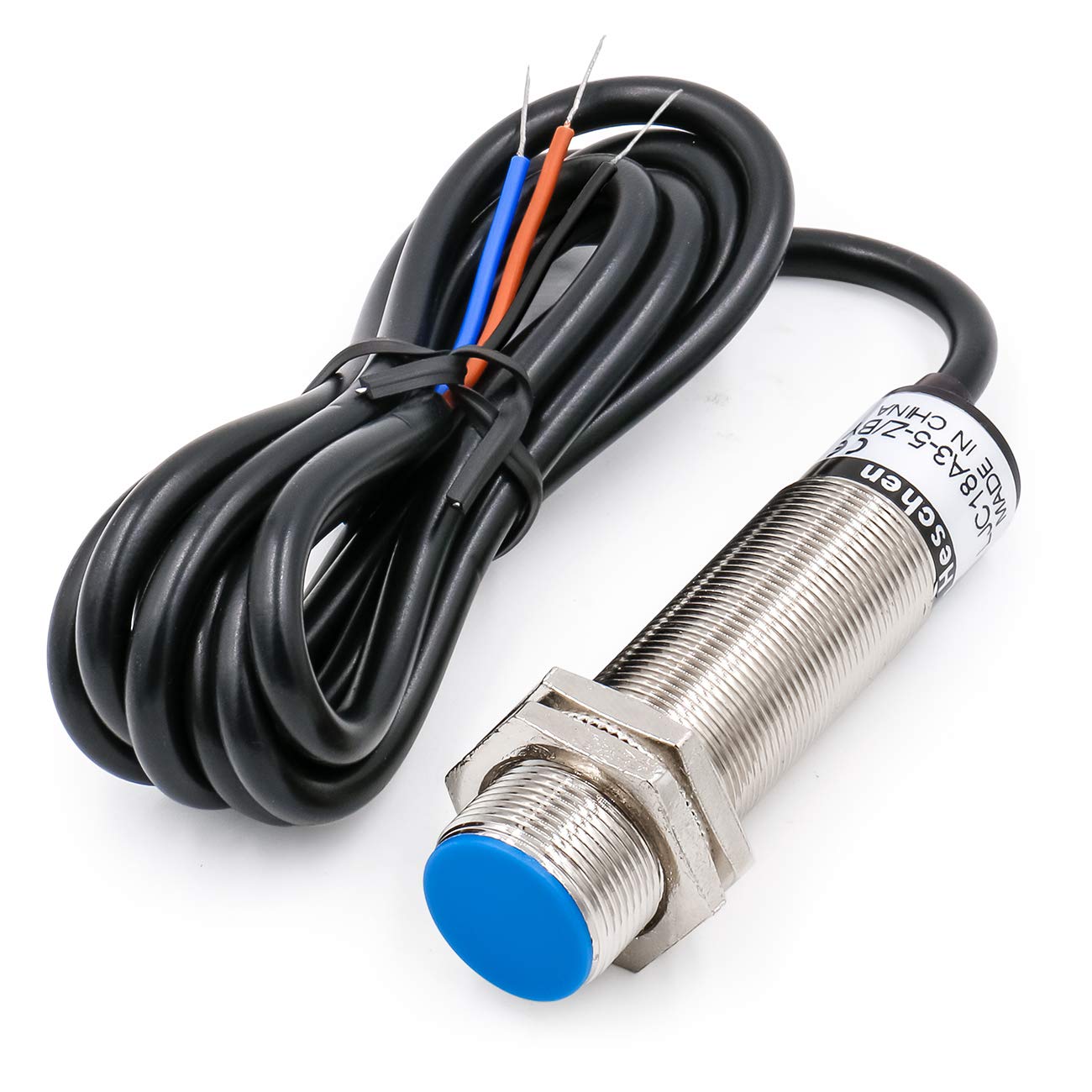

{"id":8013225459892,"title":"Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","handle":"heschen-m18-capacitive-proximity-sensor-switch-shield-type-ljc18a3-5-z-by-detection-5mm-10-30vdc-200ma-pnp-normally-openno-3-wires","description":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\r\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\r\nbelow.Comsuption Current:13mA below.Control Output: 200mA below.Loop\r\nProtection :reversal connection protection,surge absorption,load short-circuit\r\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\r\nindividually-30～＋65℃(no freeze ,no drew ) ,During\r\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\r\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\r\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\r\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\r\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\r\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\r\ndetection distance.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\r\n \u003cli\u003eDetecting Distance: 5mm10%; Set distance:0-4mm\u003c\/li\u003e\r\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Screen Shield Type\u003c\/li\u003e\r\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\r\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T20:08:00+11:00","created_at":"2025-12-07T20:07:57+11:00","vendor":"Heschen","type":"Capacitive","tags":["industrial_selected_Nov2025"],"price":8500,"price_min":8500,"price_max":8500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102890684596,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07XKDXFPY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires","public_title":null,"options":["Default Title"],"price":8500,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"670534183885","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/719yfW-JcUL.jpg?v=1765098479","\/\/auspowers.com\/cdn\/shop\/files\/61HGhBlpPUL.jpg?v=1765098480","\/\/auspowers.com\/cdn\/shop\/files\/61cIi8alXDL.jpg?v=1765098479","\/\/auspowers.com\/cdn\/shop\/files\/6105nw-yQ2L.jpg?v=1765098479","\/\/auspowers.com\/cdn\/shop\/files\/61-Xh4cz-mL_63473058-9ceb-47c5-af73-523fae254ab2.jpg?v=1765098479","\/\/auspowers.com\/cdn\/shop\/files\/71YVA0fFhUL.jpg?v=1765098479","\/\/auspowers.com\/cdn\/shop\/files\/61QTa1rOs0L_df8ed90a-2bd8-440b-ba19-820268b64d0c.jpg?v=1765098480"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/719yfW-JcUL.jpg?v=1765098479","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956455092,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/719yfW-JcUL.jpg?v=1765098479"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/719yfW-JcUL.jpg?v=1765098479","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956487860,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HGhBlpPUL.jpg?v=1765098480"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HGhBlpPUL.jpg?v=1765098480","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956520628,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61cIi8alXDL.jpg?v=1765098479"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61cIi8alXDL.jpg?v=1765098479","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956553396,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6105nw-yQ2L.jpg?v=1765098479"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6105nw-yQ2L.jpg?v=1765098479","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956586164,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61-Xh4cz-mL_63473058-9ceb-47c5-af73-523fae254ab2.jpg?v=1765098479"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61-Xh4cz-mL_63473058-9ceb-47c5-af73-523fae254ab2.jpg?v=1765098479","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956618932,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71YVA0fFhUL.jpg?v=1765098479"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71YVA0fFhUL.jpg?v=1765098479","width":1300},{"alt":"[Australia - AusPower] - Heschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires ","id":32452956651700,"position":7,"preview_image":{"aspect_ratio":0.75,"height":1702,"width":1276,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61QTa1rOs0L_df8ed90a-2bd8-440b-ba19-820268b64d0c.jpg?v=1765098480"},"aspect_ratio":0.75,"height":1702,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61QTa1rOs0L_df8ed90a-2bd8-440b-ba19-820268b64d0c.jpg?v=1765098480","width":1276}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen M18 Capacitive Proximity Sensor Switch Shield Type LJC18A3-5-Z\/BY Detection 5mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDetection Object:Can detect any dielectric.Delay Distance:10% below of the\r\ndetection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10%\r\nbelow.Comsuption Current:13mA below.Control Output: 200mA below.Loop\r\nProtection :reversal connection protection,surge absorption,load short-circuit\r\nprotection.Ambient Temperature \u0026amp; Humidity:During operation , storage :\r\nindividually-30～＋65℃(no freeze ,no drew ) ,During\r\noperation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above (\r\nDC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V\r\n50\/60Hz 1 min. between charging part and shell.Temperature Influence :\r\nTemperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature\r\nrange-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5%\r\nrated supply voltage range,at rated supply voltage value ,inside ± 10 %\r\ndetection distance.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMounting Hole Diameter: 18mm\u003c\/li\u003e\r\n \u003cli\u003eDetecting Distance: 5mm10%; Set distance:0-4mm\u003c\/li\u003e\r\n \u003cli\u003eOutput Type: PNP Normally Open(NO), Screen Shield Type\u003c\/li\u003e\r\n \u003cli\u003eCurrent Output: 200mA; Working Voltage: 10-30 VDC\u003c\/li\u003e\r\n \u003cli\u003eDetection Object:Can detect any dielectric\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
