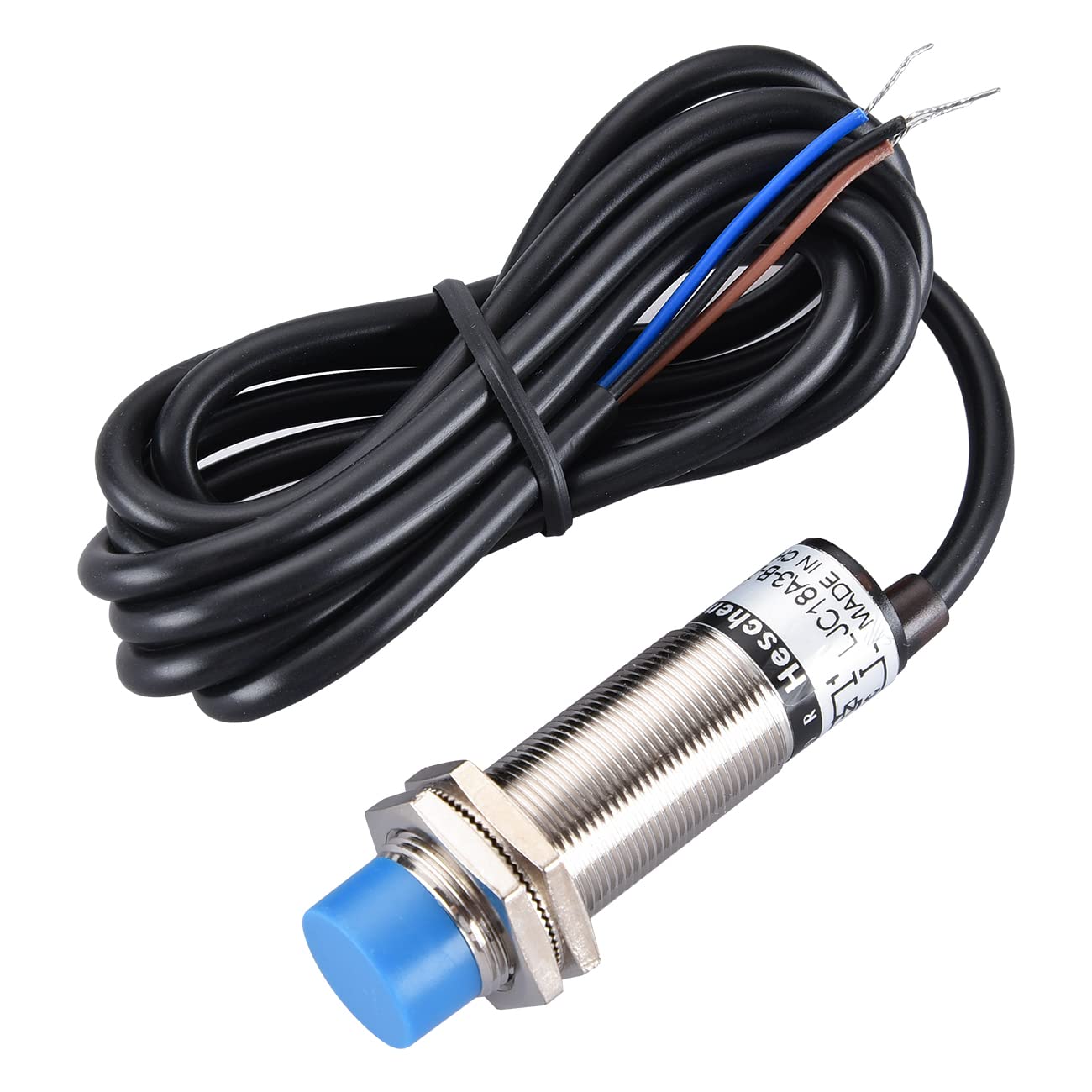

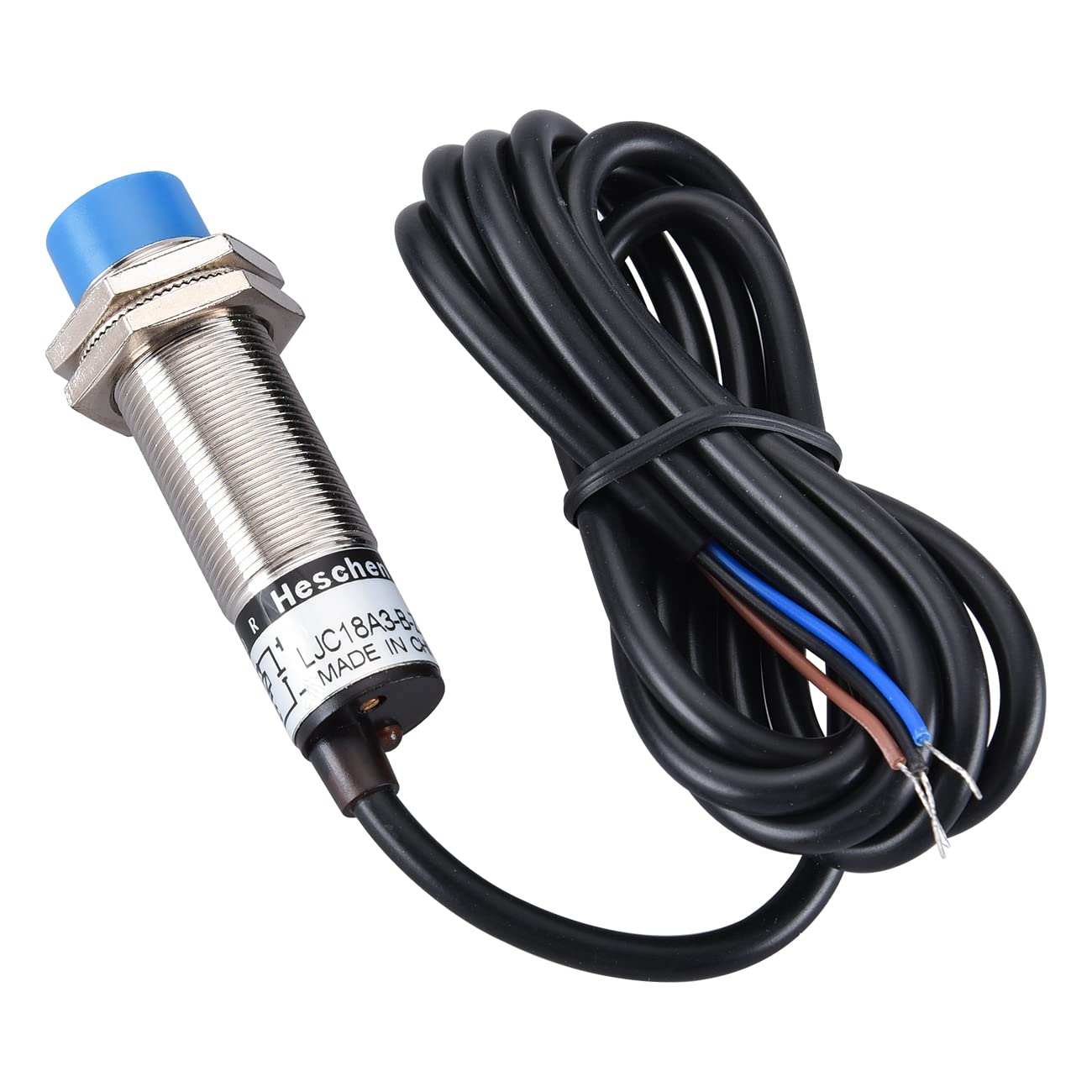

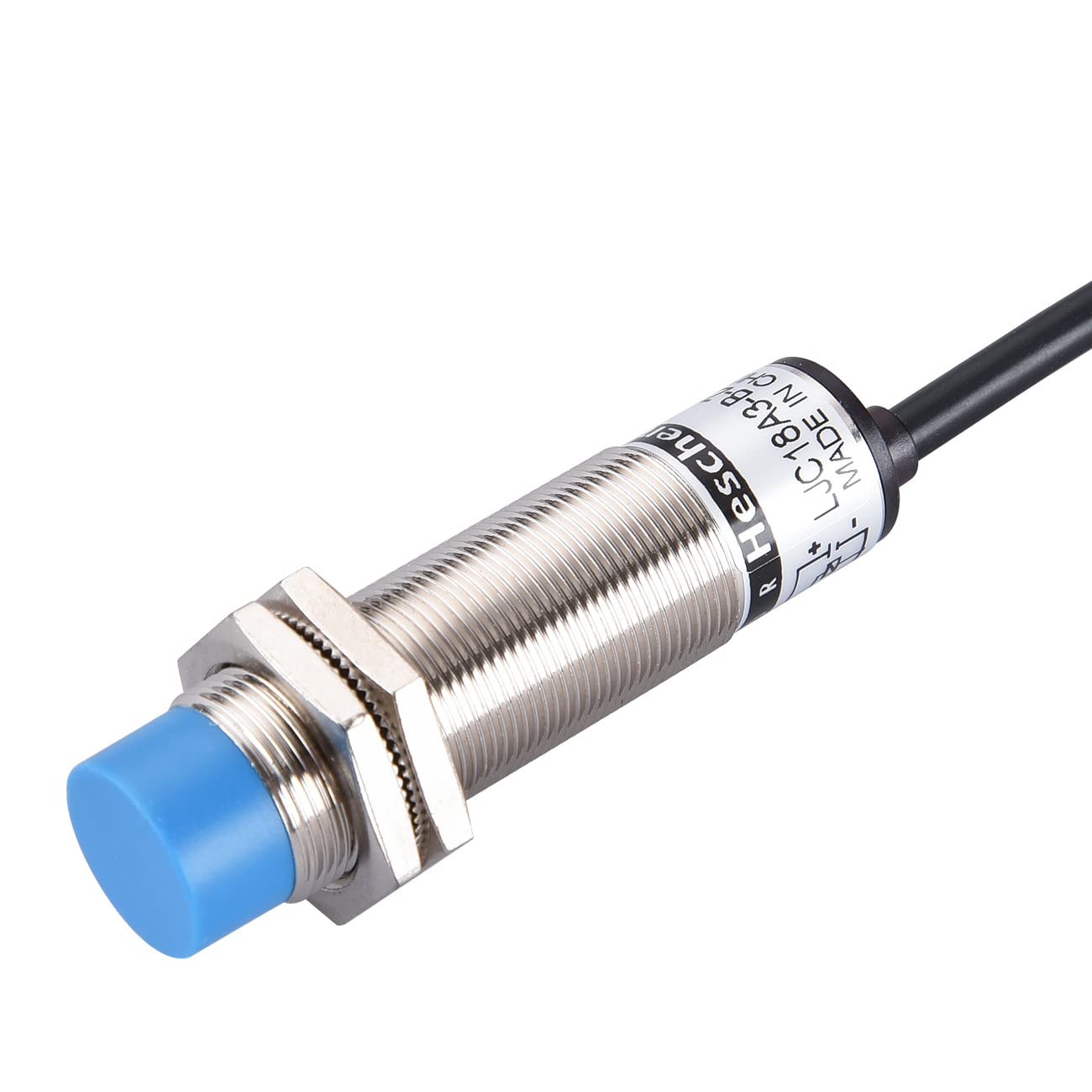

Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/AY Detection 10mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires
Heschen M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/AY Detection 10mm 10-30VDC 200mA PNP Normally Closed(NC) 3 Wires
The LJC18A3 capacitive proximity sensor switch used widely in automatic control industry for detecting, controlling, and noncontact switching. It will send a signal when close to the plastic, glass, metal etc.
Product Features

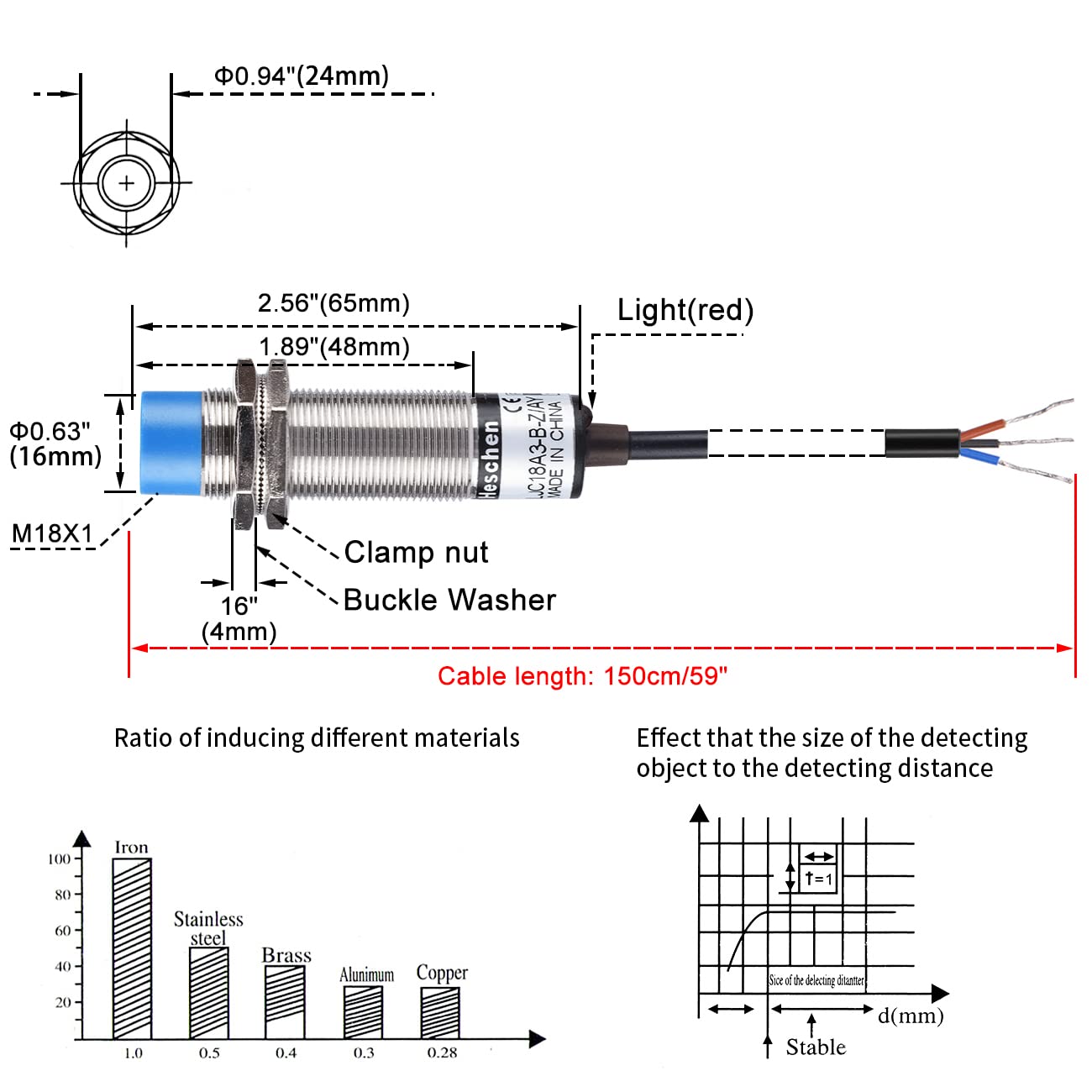

- Mounting Hole Diameter: 18mm

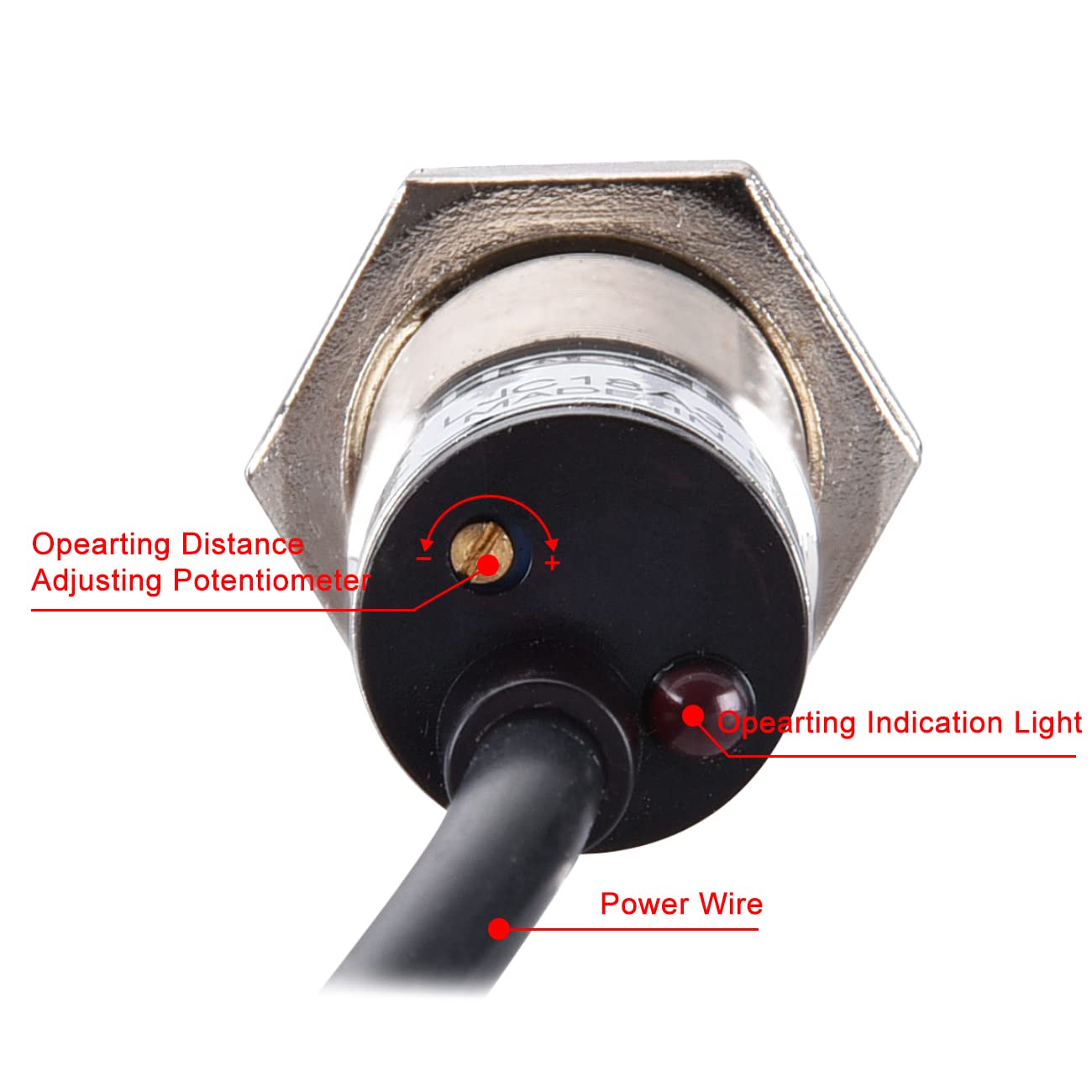

- Detecting Distance: 10mm10%; Set distance:0-8mm

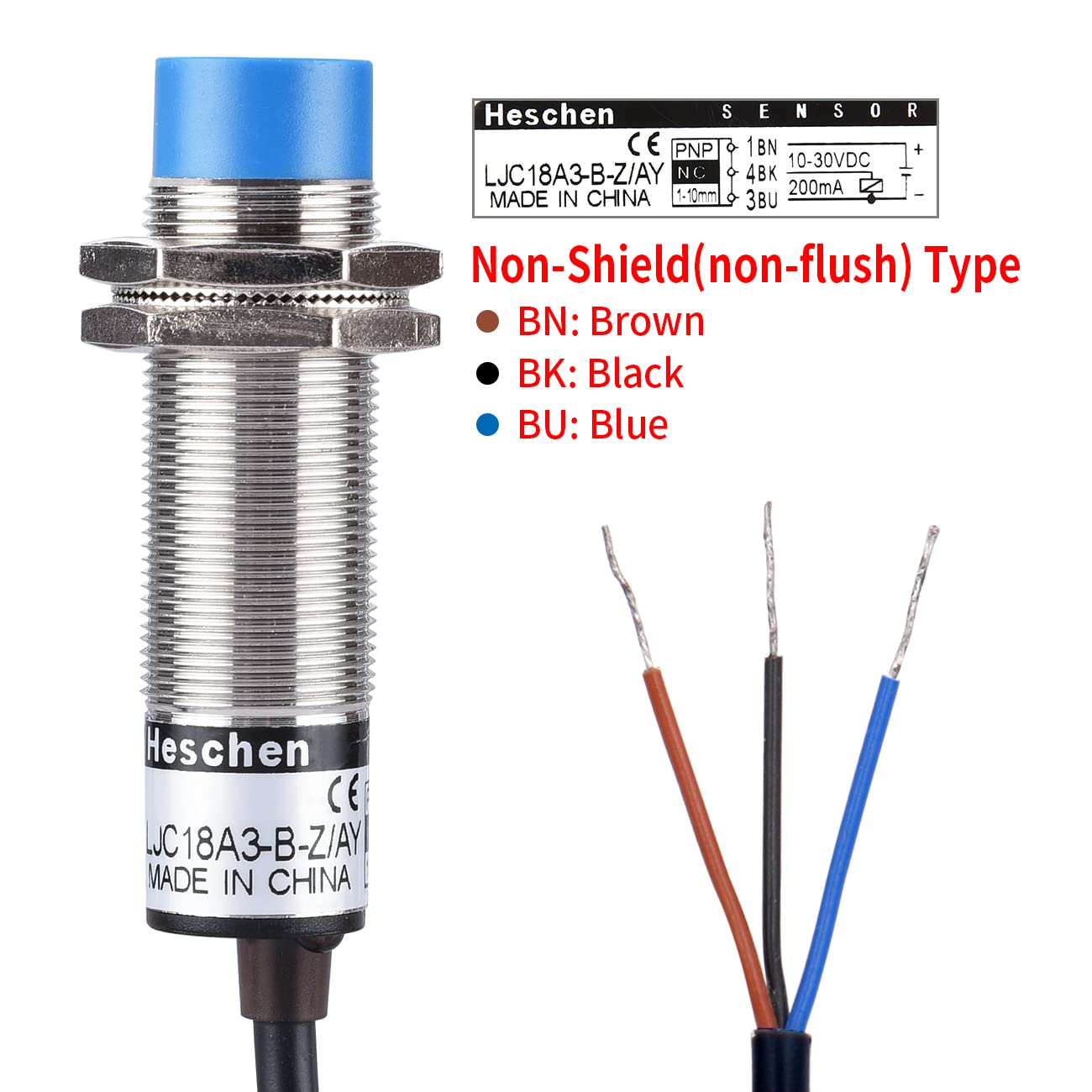

- Output Type: PNP Normally Closed(NC); Non-Shield Type
- Current Output: 200mA; Working Voltage: 10-30 VDC
- Detect Object: Can Detect Any Dielectric
