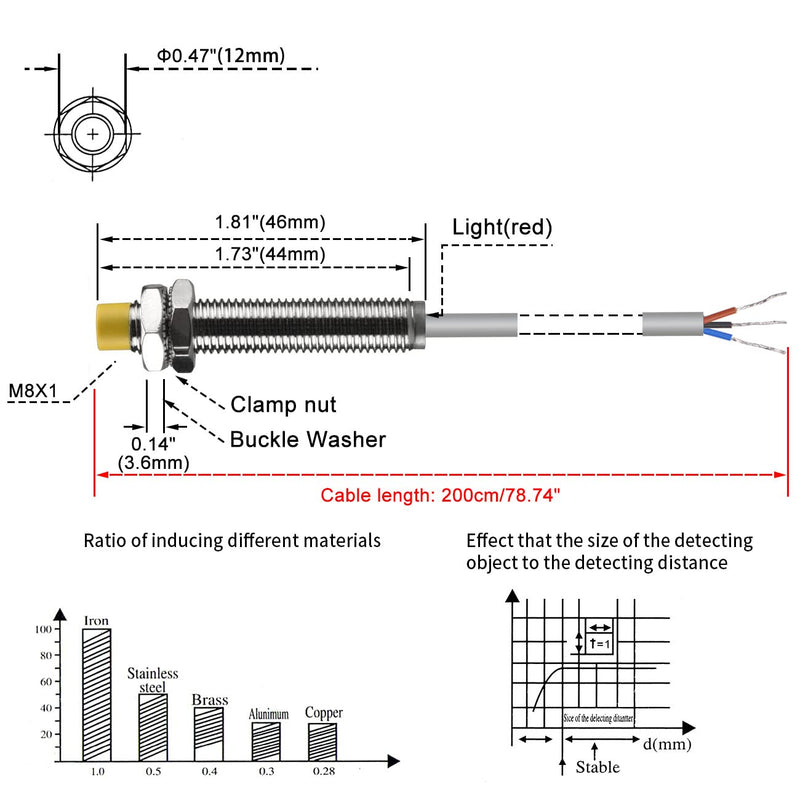

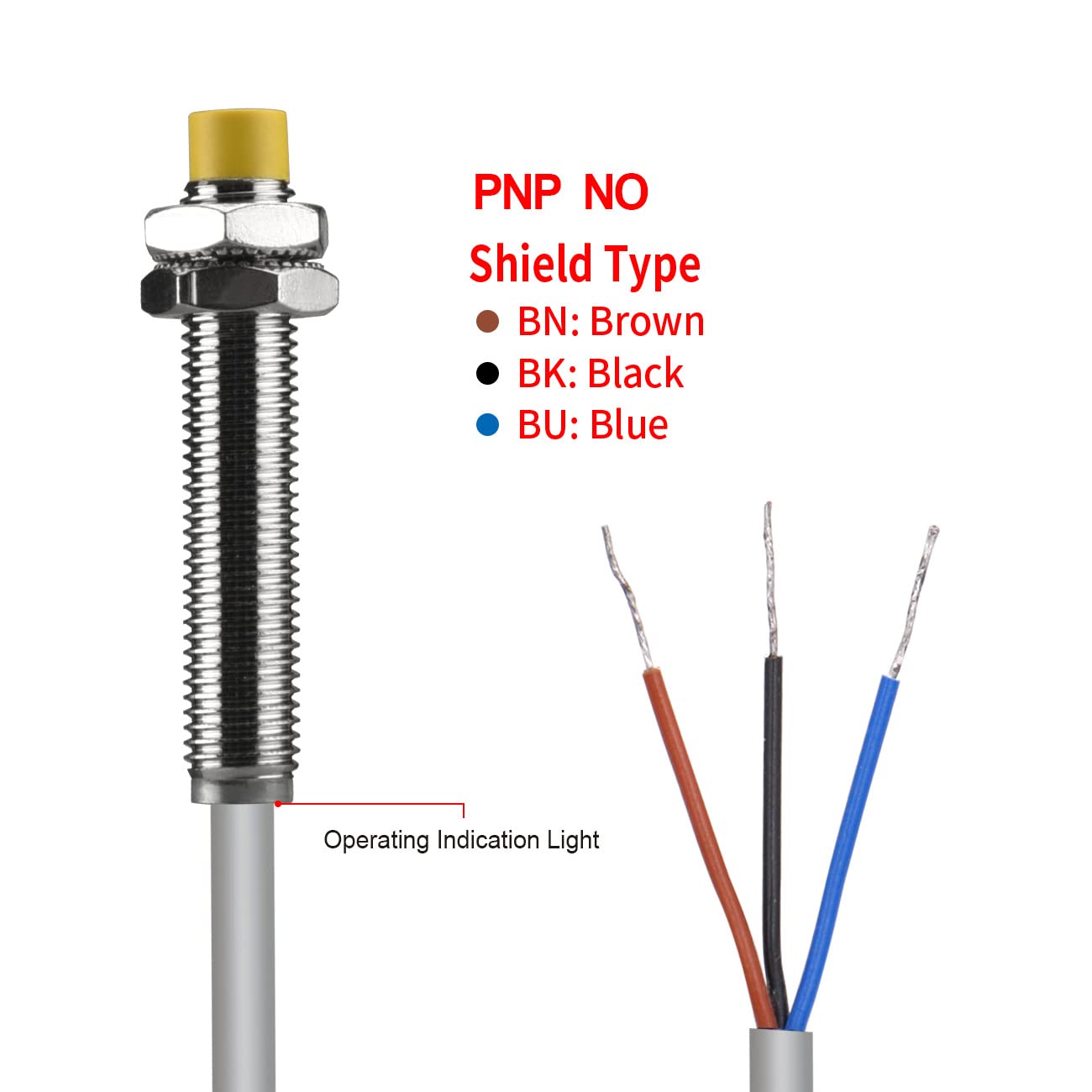

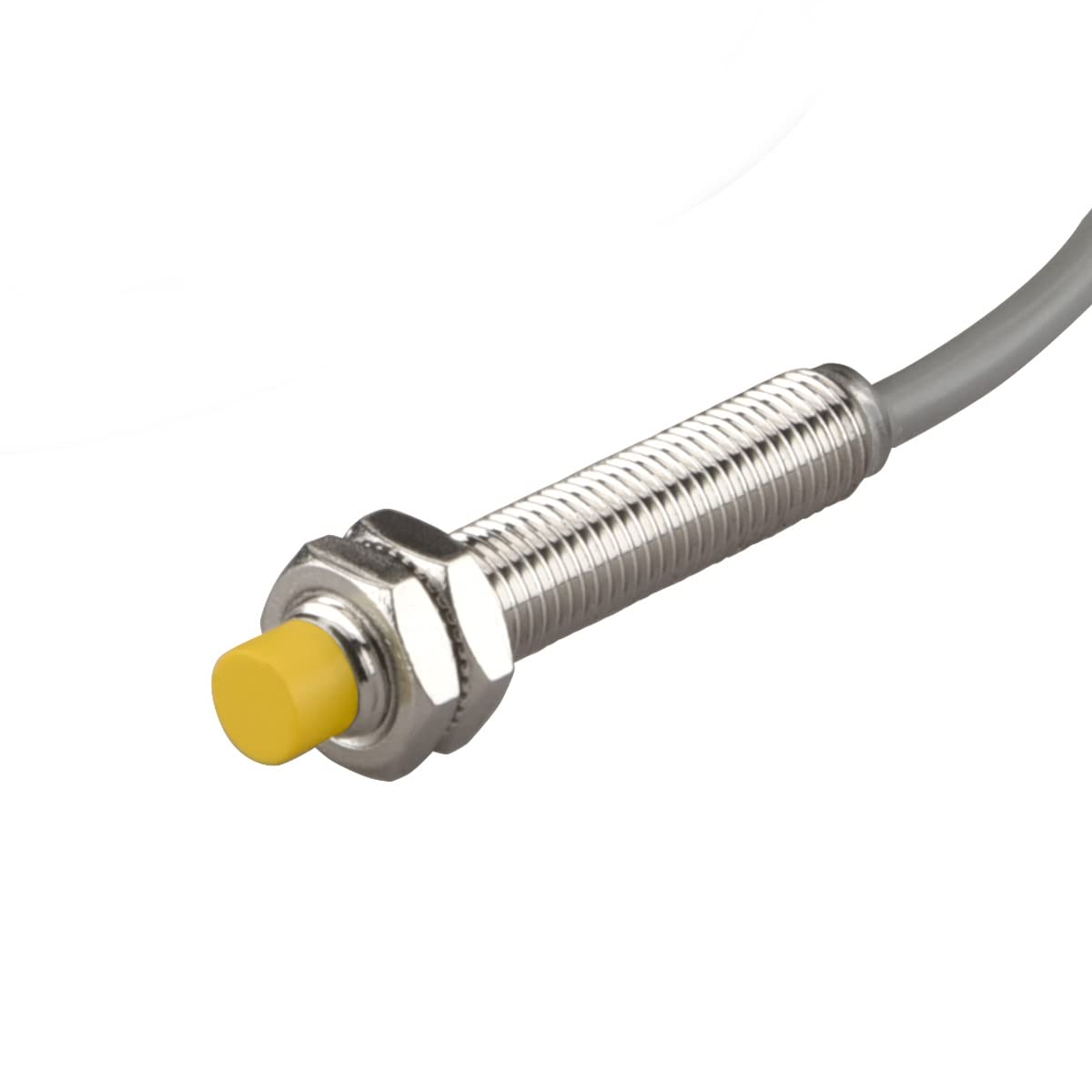

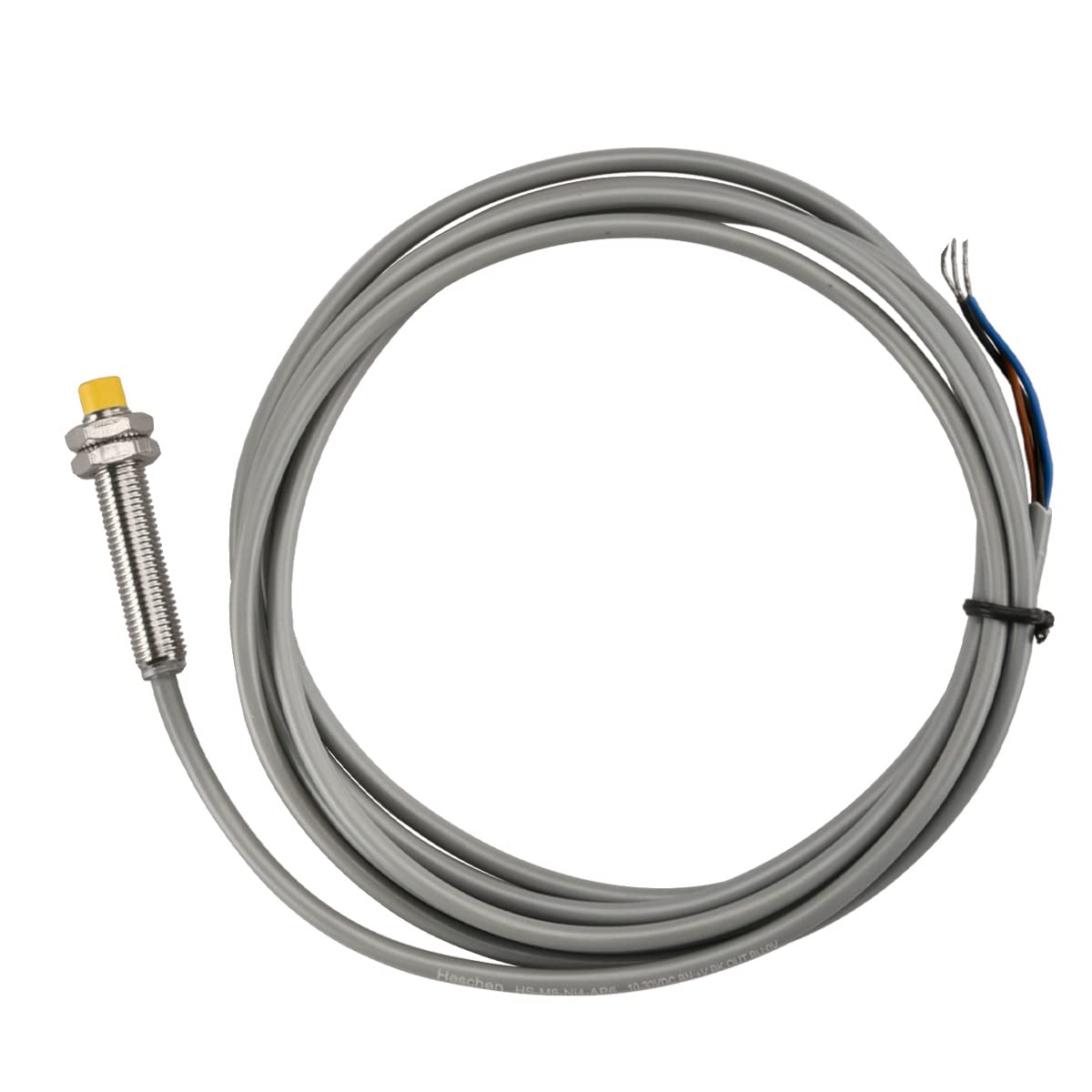

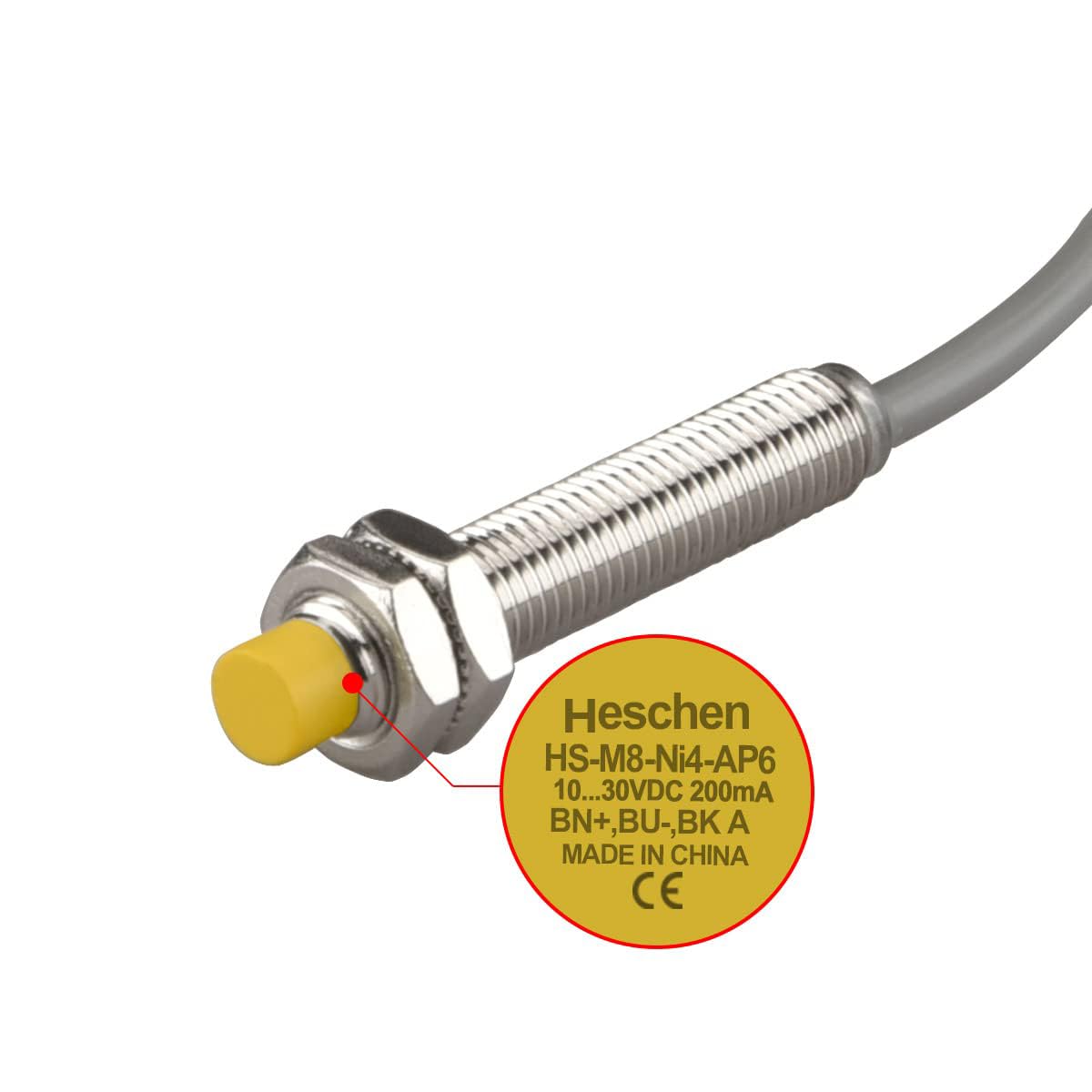

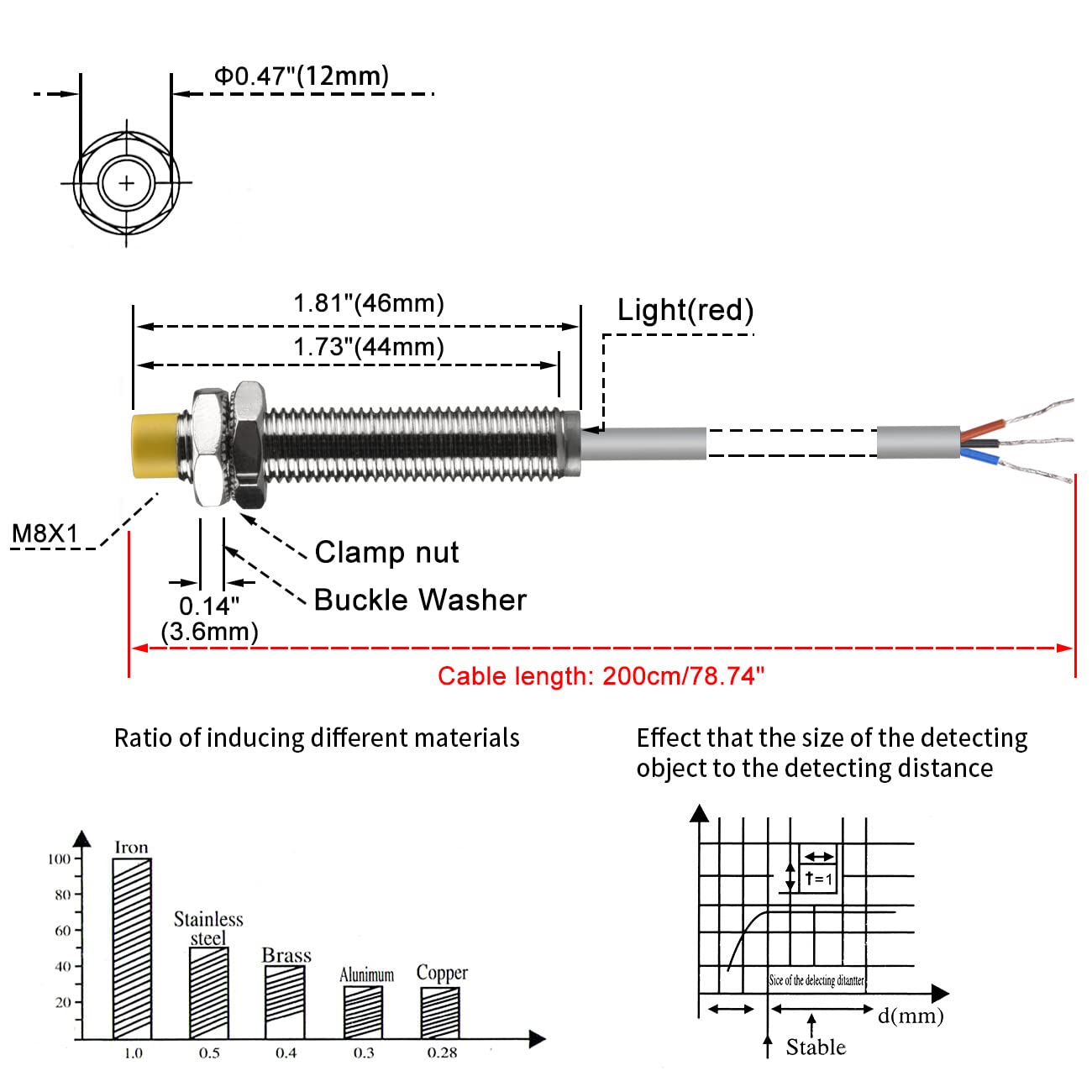

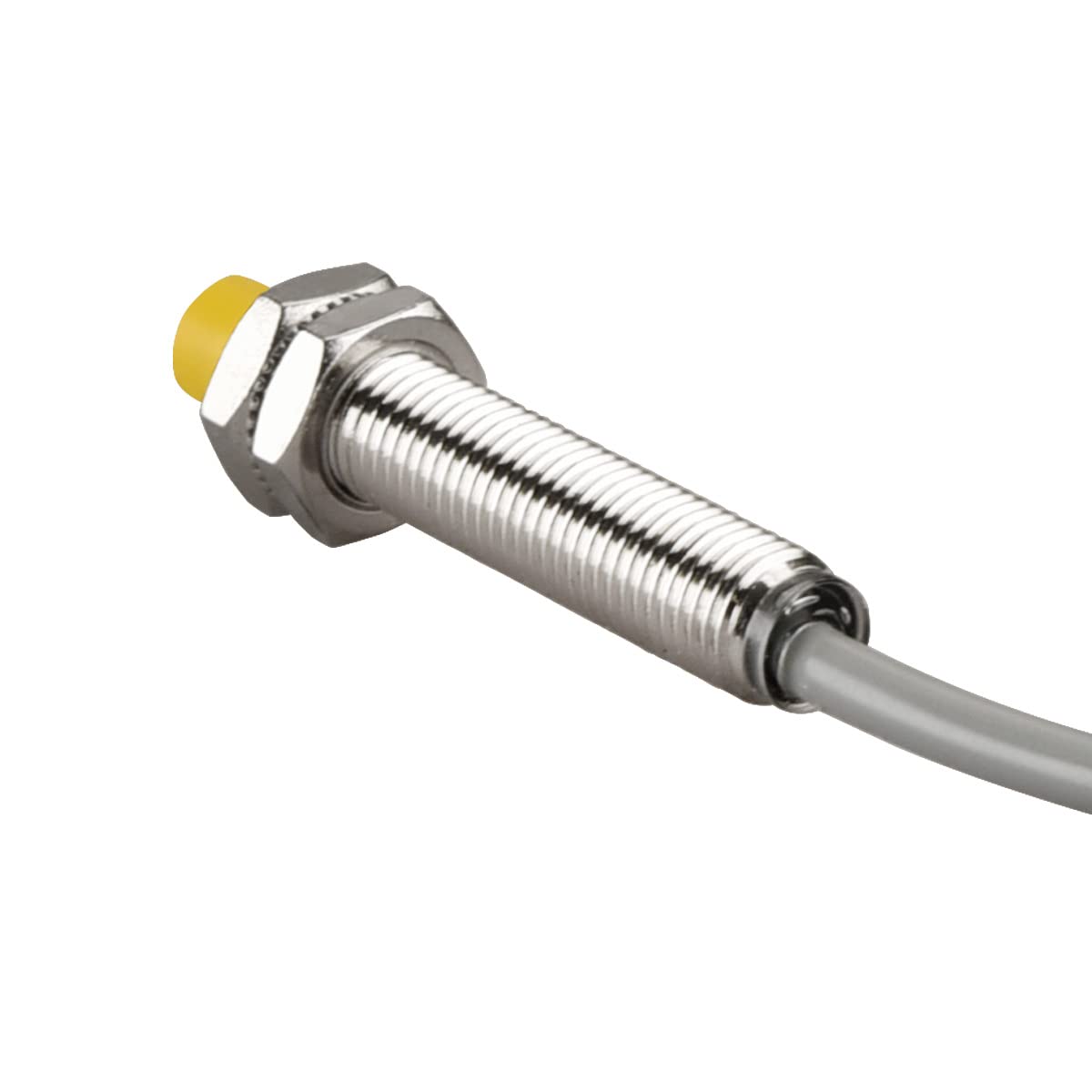

{"id":8013224018100,"title":"Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE","handle":"heschen-4mm-inductive-proximity-sensor-switch-hs-m8-ni4-ap6-non-built-in-cylindrical-type-dc10-30v-200ma-pnp-no-normally-open-3-wire-ce","description":"\u003ch3\u003eHeschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCharacteristic parameter: Delay distance: 10% below the detection distance.\r\nDetection object: magnetic metal (the detection distance decreases when it is\r\nnon-magnetic metal) Consumption current: 13mA below Control output: 200mA\r\nbelow Loop protection: reverse connection protection, surge absorption,\r\ncharging short circuit protection. Ambient Temperature and Humidity: -30~+65℃;\r\n35~95%RH Isolation impedance: 50Mohm above (megameter DC500) between the\r\ncharging part and the housing. Withstand voltage: AC1000V 50\/60Hz 1min between\r\ncharging part and housing. Temperature influence: temperature range -30~65℃ to\r\n23℃, ±15% detection distance. Temperature range -25~60℃ to 23℃, ±10% detection\r\ndistance. Voltage influence: within the nominal supply voltage range of ±15%,\r\nto the value of the rated supply voltage, within the detection distance of\r\n±10%. Protection structure: IP67 Material: (Housing: Nickel-plated brass),\r\n(Detection surface: ABS)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNominal operating distance: 4mm; Make sure the distance (mm): 0-3.2mm\u003c\/li\u003e\r\n \u003cli\u003eSwitching function: PNP, normally open (NO)\u003c\/li\u003e\r\n \u003cli\u003eOperating voltage: 10-30V; Operating current: 0-200mA; Output type: 3 wires\u003c\/li\u003e\r\n \u003cli\u003eCable length: 200cm\/78.7\"; Installation method: not built-in\u003c\/li\u003e\r\n \u003cli\u003eDetection object: magnetic metal (the detection distance decreases when it is non-magnetic metal)\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T20:05:23+11:00","created_at":"2025-12-07T20:05:20+11:00","vendor":"Heschen","type":"Inductive","tags":["industrial_selected_Nov2025"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102887866548,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09CMBDN84","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE","public_title":null,"options":["Default Title"],"price":10700,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"HS-M8-Ni4-AP6","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09CMBDN84.jpg?v=1775782642","\/\/auspowers.com\/cdn\/shop\/files\/51Ngo9PtWKL.jpg?v=1765098322","\/\/auspowers.com\/cdn\/shop\/files\/41AJVd_RwGL.jpg?v=1765098322","\/\/auspowers.com\/cdn\/shop\/files\/51Vn6MwOYFL.jpg?v=1765098322","\/\/auspowers.com\/cdn\/shop\/files\/51b4uDcQ2tL.jpg?v=1765098322","\/\/auspowers.com\/cdn\/shop\/files\/61GIwa8_lHL.jpg?v=1765098322","\/\/auspowers.com\/cdn\/shop\/files\/71fKQLzDrTL.jpg?v=1765098322"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09CMBDN84.jpg?v=1775782642","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947116212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09CMBDN84.jpg?v=1775782642"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09CMBDN84.jpg?v=1775782642","width":1200},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947148980,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Ngo9PtWKL.jpg?v=1765098322"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Ngo9PtWKL.jpg?v=1765098322","width":1200},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947181748,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41AJVd_RwGL.jpg?v=1765098322"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41AJVd_RwGL.jpg?v=1765098322","width":1200},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947214516,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Vn6MwOYFL.jpg?v=1765098322"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Vn6MwOYFL.jpg?v=1765098322","width":1200},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947247284,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51b4uDcQ2tL.jpg?v=1765098322"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51b4uDcQ2tL.jpg?v=1765098322","width":1300},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947280052,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61GIwa8_lHL.jpg?v=1765098322"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61GIwa8_lHL.jpg?v=1765098322","width":1300},{"alt":"[Australia - AusPower] - Heschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE ","id":32452947312820,"position":7,"preview_image":{"aspect_ratio":0.75,"height":2560,"width":1920,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71fKQLzDrTL.jpg?v=1765098322"},"aspect_ratio":0.75,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71fKQLzDrTL.jpg?v=1765098322","width":1920}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeschen 4mm Inductive Proximity Sensor Switch, HS-M8-Ni4-AP6, Non-Built-in, Cylindrical Type, DC10-30V 200mA, PNP NO (Normally Open), 3 Wire, CE\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCharacteristic parameter: Delay distance: 10% below the detection distance.\r\nDetection object: magnetic metal (the detection distance decreases when it is\r\nnon-magnetic metal) Consumption current: 13mA below Control output: 200mA\r\nbelow Loop protection: reverse connection protection, surge absorption,\r\ncharging short circuit protection. Ambient Temperature and Humidity: -30~+65℃;\r\n35~95%RH Isolation impedance: 50Mohm above (megameter DC500) between the\r\ncharging part and the housing. Withstand voltage: AC1000V 50\/60Hz 1min between\r\ncharging part and housing. Temperature influence: temperature range -30~65℃ to\r\n23℃, ±15% detection distance. Temperature range -25~60℃ to 23℃, ±10% detection\r\ndistance. Voltage influence: within the nominal supply voltage range of ±15%,\r\nto the value of the rated supply voltage, within the detection distance of\r\n±10%. Protection structure: IP67 Material: (Housing: Nickel-plated brass),\r\n(Detection surface: ABS)\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNominal operating distance: 4mm; Make sure the distance (mm): 0-3.2mm\u003c\/li\u003e\r\n \u003cli\u003eSwitching function: PNP, normally open (NO)\u003c\/li\u003e\r\n \u003cli\u003eOperating voltage: 10-30V; Operating current: 0-200mA; Output type: 3 wires\u003c\/li\u003e\r\n \u003cli\u003eCable length: 200cm\/78.7\"; Installation method: not built-in\u003c\/li\u003e\r\n \u003cli\u003eDetection object: magnetic metal (the detection distance decreases when it is non-magnetic metal)\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
