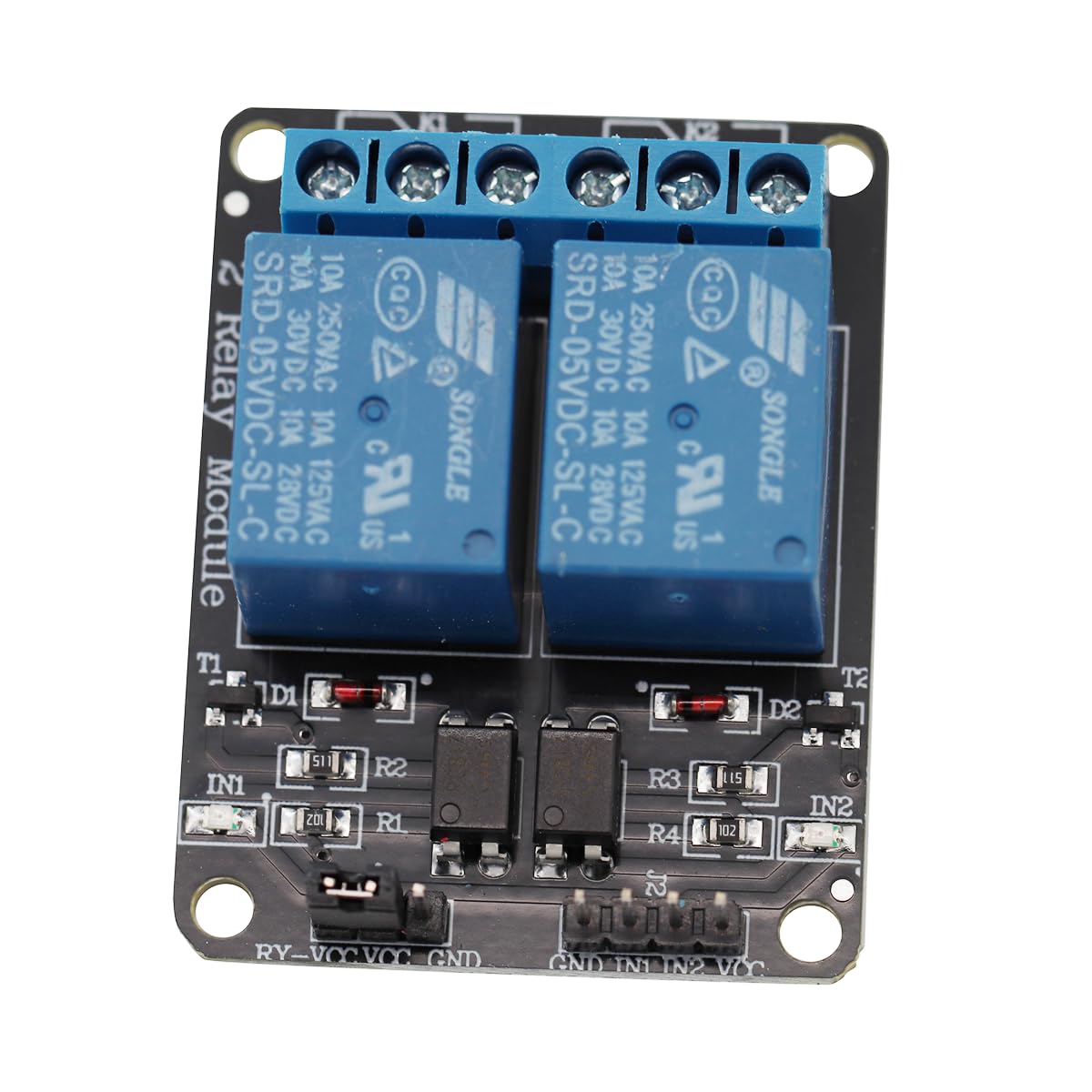

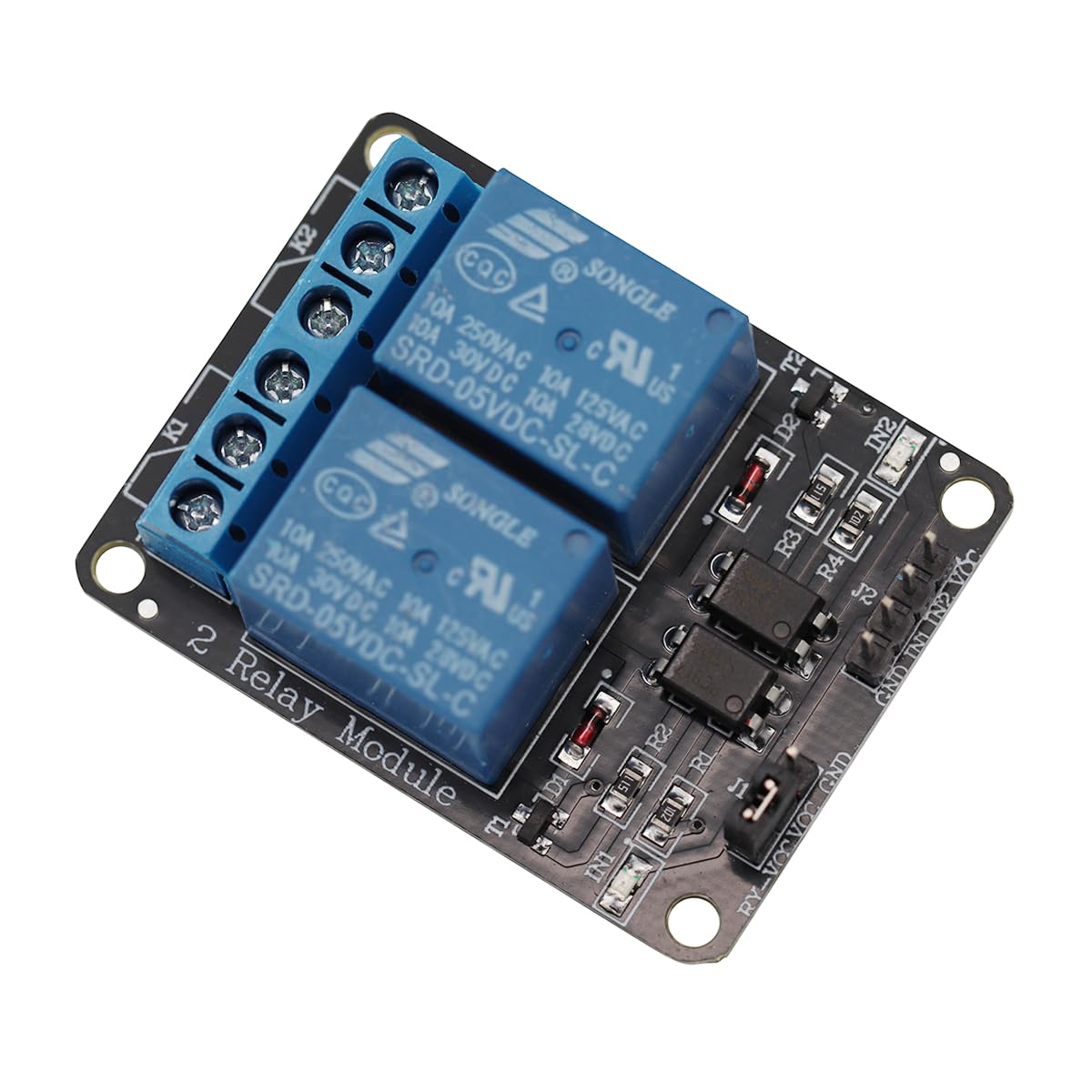

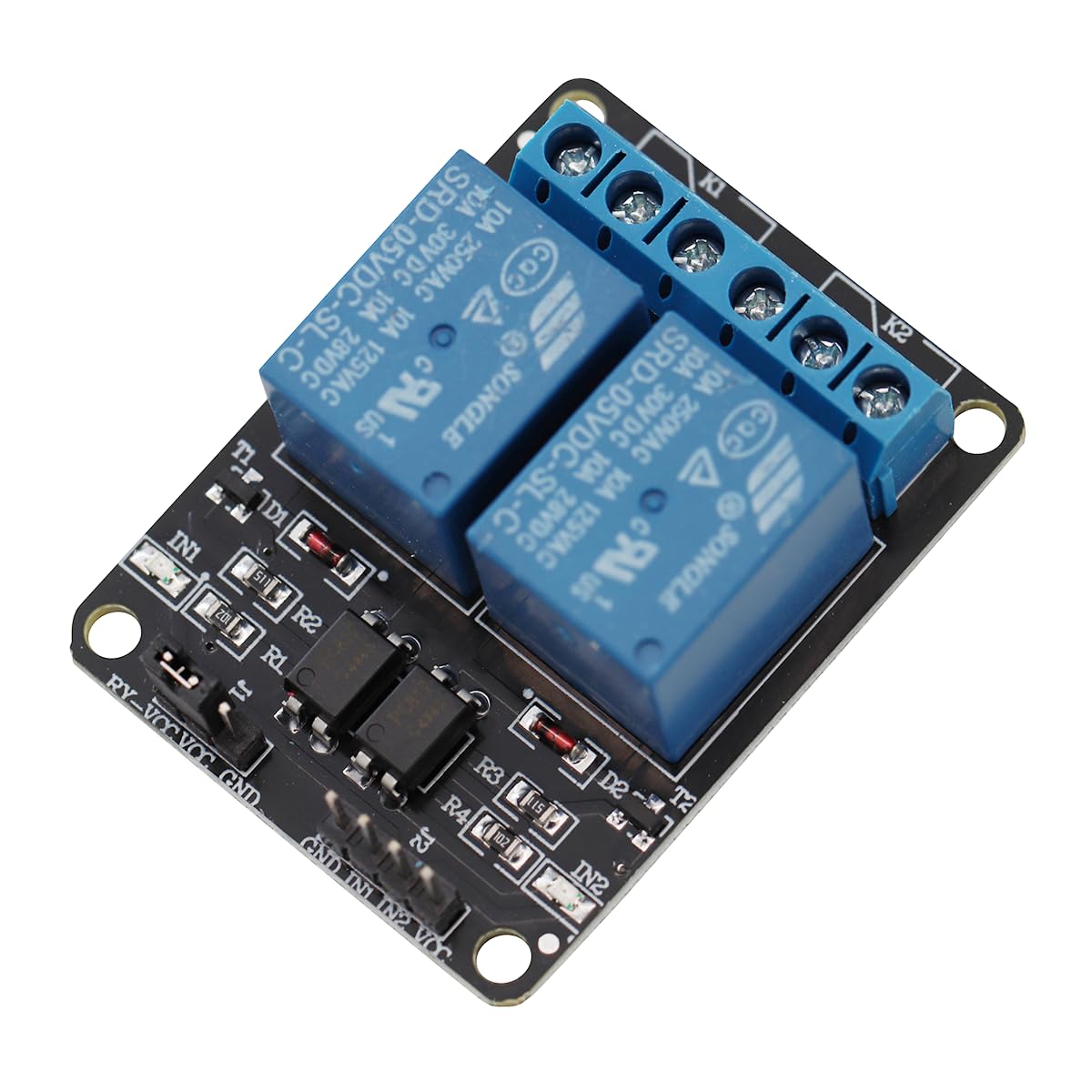

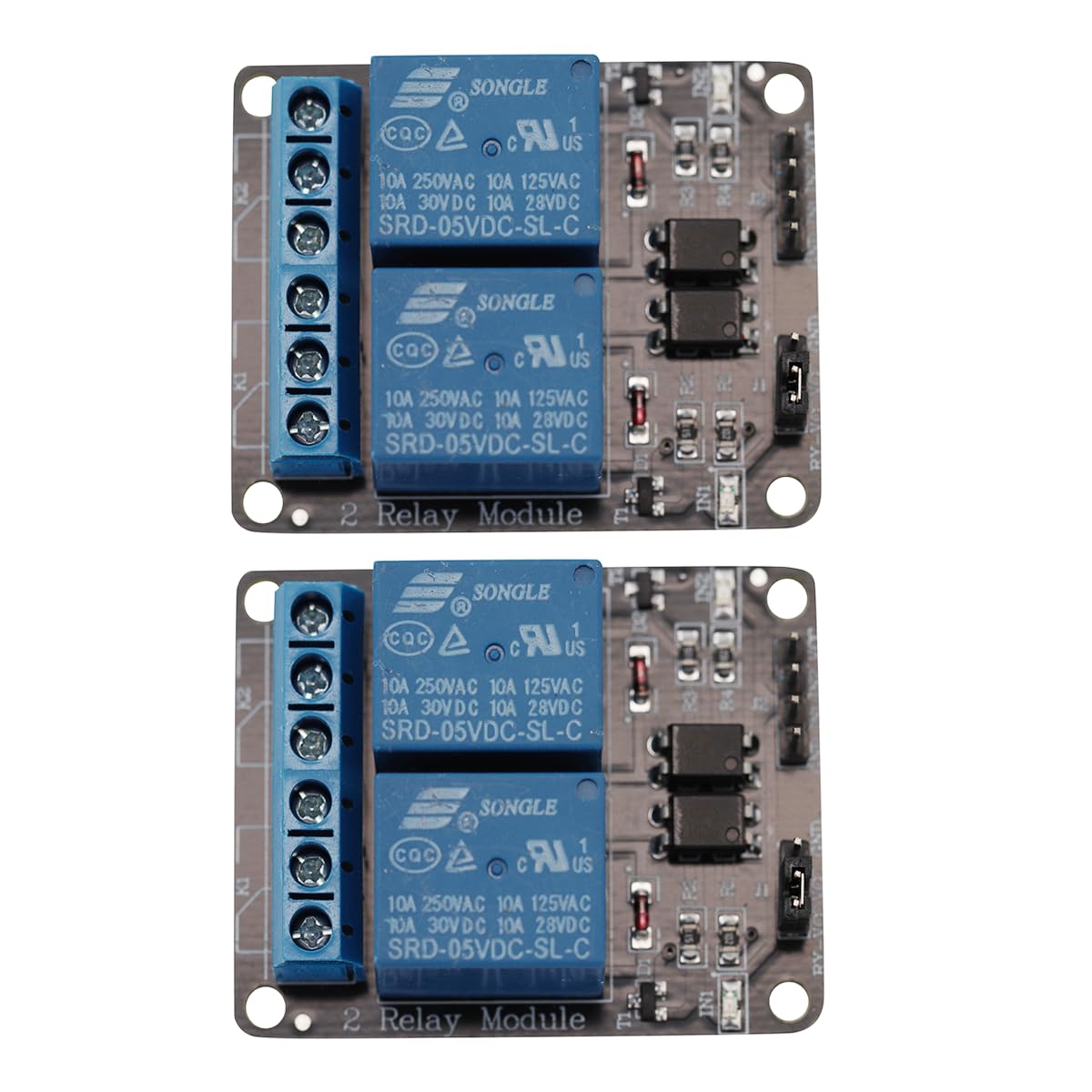

{"id":7993418940596,"title":"Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2)","handle":"heevhas-2-channel-relay-module-with-optocoupler-low-level-trigger-mcu-expansion-board-5v-10a-for-arm-pic-avr-pack-of-2","description":"\u003ch3\u003eHeevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: 1. Relay type: toggle switch. 2.Supply Voltage (VCC): 5V\nNumber of relays: 2. 4. Control current: 15-20 mA. Product size: 50.5 x 38.5 x\n18.5 mm. 6. PCB colour: black. 7. Around the board there are 4 mounting screw\nholes with a hole diameter of 3.1 mm, which is convenient for installation and\nattachment. 8. Optocoupler insulation, good anti-interference performance. 9.\nVCC is the system power supply and JD_VCC is the relay power supply. Simply\ninsert the jumper cap. 10. The relays used can switch up to AC 250V 10A or DC\n30V 10A. Features: Can be controlled directly via a microcontroller\noptocoupler inputs. Status LEDs for relay output, low level retracts, high\nlevel releases. The status indicator lights up when retracted and goes off\nwhen released. Can be controlled directly with 5V from the microcontroller.\nYou can mount the relay on a small PCB board and it can withstand high current\nup to 10 A. Widely used for household appliance, office machine, audio,\nequipment, automotive, etc. The relay acts as a switch, is often used in IoT\nprojects to control lights and other electronic devices. Wiring (Please note:\ndo not connect upside down): IN1, IN2: relay control connections VCC: power\nsupply system positive GND: power supply system negative. JD-VCC: relay power\nsupply Package includes: 2 x DC 5 V 2 channel relay module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-quality relay: this 5V 2-channel relay module with optocouplers is perfect for controlling up to 2 devices with larger current. Single Pole Switch One common connection, a normally open connector and a normally closed connector.\u003c\/li\u003e\n \u003cli\u003eSafe, reliable, low power consumption: the 2-channel relay module is equipped with transistors, diodes and optocouplers to switch higher loads safely, reliably and with little power. The module is also equipped with generously sized relays to reliably perform many switching operations.\u003c\/li\u003e\n \u003cli\u003e5V 2 Channel Relay Interface BoardEach requires 15-20mA driver current; Supply voltage: 5V DC; Equipped with high current relay, AC 250V 10A, DC 30V 10A; Size: 50.5mm x 38.5mm x 18.5mm.\u003c\/li\u003e\n \u003cli\u003eIndicator light indicates the operating status: LED indicator for relay output status, low level retracts, high level releases. The status indicator lights up when retracted and goes off when released.\u003c\/li\u003e\n \u003cli\u003eApplications: The relay acts as a switch, is often used in IoT projects to control lights and other electronic devices.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-30T15:39:47+10:00","created_at":"2025-09-30T15:39:43+10:00","vendor":"Heevhas","type":"Relays","tags":["industryDE_Sep2025"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44055732912308,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DQY1Q16L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2)","public_title":null,"options":["Default Title"],"price":9900,"weight":57,"compare_at_price":null,"inventory_management":"shopify","barcode":"X153","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61MlIbI665L.jpg?v=1759210786","\/\/auspowers.com\/cdn\/shop\/files\/61vFPA_GdfL.jpg?v=1759210786","\/\/auspowers.com\/cdn\/shop\/files\/61A-TNXm4ML.jpg?v=1759210786","\/\/auspowers.com\/cdn\/shop\/files\/616yyVzFzGL.jpg?v=1759210786","\/\/auspowers.com\/cdn\/shop\/files\/61AGUIqMl1L.jpg?v=1759210786","\/\/auspowers.com\/cdn\/shop\/files\/51mhB9DftPL.jpg?v=1759210786"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61MlIbI665L.jpg?v=1759210786","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830330036,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61MlIbI665L.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61MlIbI665L.jpg?v=1759210786","width":1200},{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830362804,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61vFPA_GdfL.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61vFPA_GdfL.jpg?v=1759210786","width":1200},{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830395572,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61A-TNXm4ML.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61A-TNXm4ML.jpg?v=1759210786","width":1200},{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830428340,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616yyVzFzGL.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616yyVzFzGL.jpg?v=1759210786","width":1200},{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830461108,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61AGUIqMl1L.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61AGUIqMl1L.jpg?v=1759210786","width":1200},{"alt":"[Australia - AusPower] - Heevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2) ","id":32222830493876,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51mhB9DftPL.jpg?v=1759210786"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51mhB9DftPL.jpg?v=1759210786","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHeevhas 2 Channel Relay Module with Optocoupler Low Level Trigger MCU Expansion Board 5V 10A for ARM PIC AVR (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical data: 1. Relay type: toggle switch. 2.Supply Voltage (VCC): 5V\nNumber of relays: 2. 4. Control current: 15-20 mA. Product size: 50.5 x 38.5 x\n18.5 mm. 6. PCB colour: black. 7. Around the board there are 4 mounting screw\nholes with a hole diameter of 3.1 mm, which is convenient for installation and\nattachment. 8. Optocoupler insulation, good anti-interference performance. 9.\nVCC is the system power supply and JD_VCC is the relay power supply. Simply\ninsert the jumper cap. 10. The relays used can switch up to AC 250V 10A or DC\n30V 10A. Features: Can be controlled directly via a microcontroller\noptocoupler inputs. Status LEDs for relay output, low level retracts, high\nlevel releases. The status indicator lights up when retracted and goes off\nwhen released. Can be controlled directly with 5V from the microcontroller.\nYou can mount the relay on a small PCB board and it can withstand high current\nup to 10 A. Widely used for household appliance, office machine, audio,\nequipment, automotive, etc. The relay acts as a switch, is often used in IoT\nprojects to control lights and other electronic devices. Wiring (Please note:\ndo not connect upside down): IN1, IN2: relay control connections VCC: power\nsupply system positive GND: power supply system negative. JD-VCC: relay power\nsupply Package includes: 2 x DC 5 V 2 channel relay module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-quality relay: this 5V 2-channel relay module with optocouplers is perfect for controlling up to 2 devices with larger current. Single Pole Switch One common connection, a normally open connector and a normally closed connector.\u003c\/li\u003e\n \u003cli\u003eSafe, reliable, low power consumption: the 2-channel relay module is equipped with transistors, diodes and optocouplers to switch higher loads safely, reliably and with little power. The module is also equipped with generously sized relays to reliably perform many switching operations.\u003c\/li\u003e\n \u003cli\u003e5V 2 Channel Relay Interface BoardEach requires 15-20mA driver current; Supply voltage: 5V DC; Equipped with high current relay, AC 250V 10A, DC 30V 10A; Size: 50.5mm x 38.5mm x 18.5mm.\u003c\/li\u003e\n \u003cli\u003eIndicator light indicates the operating status: LED indicator for relay output status, low level retracts, high level releases. The status indicator lights up when retracted and goes off when released.\u003c\/li\u003e\n \u003cli\u003eApplications: The relay acts as a switch, is often used in IoT projects to control lights and other electronic devices.\u003c\/li\u003e\n \u003c\/ul\u003e"}
