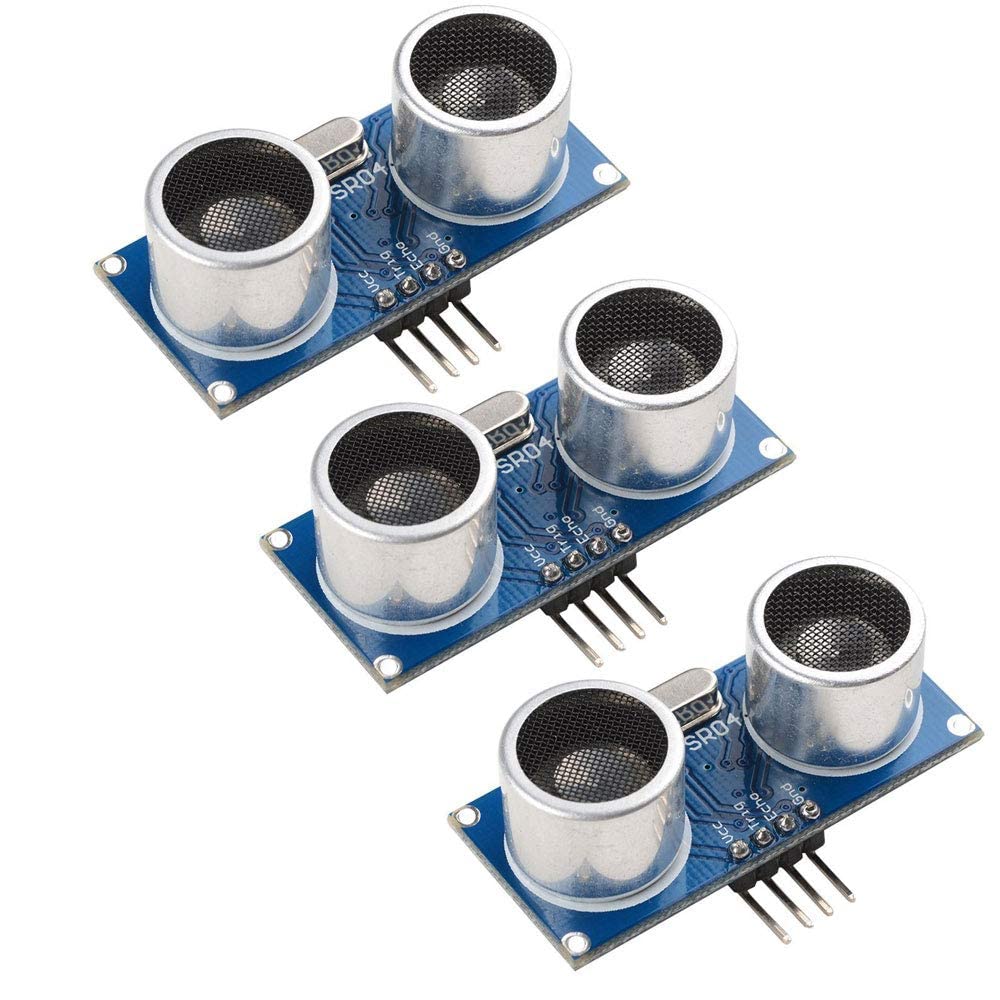

{"id":8115221856436,"title":"HC-SR04 Ultrasonic Sensor Distance Sensor Ultrasonic Module Pack of 3 | Maneuver ring module removal sensor, ultrasonic module, distance sensor, maneuver ring module, distance sensor for Arduino","handle":"hc-sr04-ultrasonic-sensor-distance-sensor-ultrasonic-module-pack-of-3-manoeuvring-module-removal-sensor-ultrasonic-module-distance-sensor-manoeuvring-module-distance-sensor-for-arduino","description":"\u003ch3\u003eHC-SR04 Ultrasonic Sensor Distance Sensor Ultrasonic Module Pack of 3 | Maneuverring module removal sensor, ultrasonic module, distance sensor, manoeuvring module, distance sensor for Arduino\u003c\/h3\u003e \u003cp id=\"b\"\u003eCharacteristics: The HC-SR04 ultrasonic distance measuring module provides a non-contact distance measurement function from 2 cm to 400 cm and a high distance accuracy of up to 3 mm. Module consisting of ultrasonic transmitter, receiver and control circuit. Basic working principle: 1. Use the IO mouth Trig trigger distance, at least 10 US signals with high level; 2. The module automatically sends eight 40 kHz square waves and automatically detects whether a signal is returned. 3. I returned the signal, through the IO mouth, Echo output a high level, the duration of the high level is the time of the ultrasonic wave from start to return. 4. Distance = test (high level time sound speed (340 m\/s)) \/ 2; Operating voltage: DC 5 V. Operating current: less than 2 mA. Operating frequency: 40 Hz. Maximum range: 450 cm. Minimum range: 2cm. Measuring point: 15 degrees. Input trigger signal: 10US TTL pulse Echo signal output: output of the TTL level signal, proportional to the range. Document link: Box contents: 3 x 4 Pin Ultrasonic Distance Meter Module HC-SR04 for Arduino\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIntegrated MCU STC15W104: Uses the MCU STC15W104 with built-in clock so no external quartz oscillator is required\u003c\/li\u003e \u003cli\u003eTechnical specifications: Power supply 5V DC, quiescent current below 2mA, effective angle below 15, detection distance 2cm to 500cm, resolution 0.3cm\u003c\/li\u003e \u003cli\u003eDistance calculation: test distance calculated from high time speed of sound (340m\/s) divided by 2\u003c\/li\u003e \u003cli\u003eEasy connection mode: ports for VCC, trig(T), echo(R) and GND allow easy integration\u003c\/li\u003e \u003cli\u003eAnti Reverse Pin Socket: equipped with an anti reverse pin socket, making the wiring much tighter and more convenient\u003c\/li\u003e \u003cli\u003ePackage Content The kit includes 3 pieces HC-SR04 ultrasonic sensors with 4 pin connector for Arduino projects\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2026-09-02T11:37:56+10:00","created_at":"2026-09-01T23:24:55+10:00","vendor":"Aihasd","type":"Ultrasonic Proximity Sensors","tags":["industrial_DE_Aug2026"],"price":9900,"price_min":9900,"price_max":9900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374941466804,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B00W3GRUZC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HC-SR04 Ultrasonic Sensor Distance Sensor Ultrasonic Module Pack of 3 | Maneuver ring module removal sensor, ultrasonic module, distance sensor, maneuver ring module, distance sensor for Arduino","public_title":null,"options":["Default Title"],"price":9900,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"70981866387-1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B00W3GRUZC_eb713d8a-3cc2-4da3-904d-95d237fd6f75.jpg?v=1788269097","\/\/auspowers.com\/cdn\/shop\/files\/616EKCGksSL_a18e4945-48ee-4b12-8888-cc2964d956b3.jpg?v=1788269097","\/\/auspowers.com\/cdn\/shop\/files\/610jISLVL5L.jpg?v=1788269097","\/\/auspowers.com\/cdn\/shop\/files\/61xVcB_yoL_84c6c459-b86a-4e5f-879f-09dc5b4ee89d.jpg?v=1788269098","\/\/auspowers.com\/cdn\/shop\/files\/617lVMOCMNL_50859e78-d462-4162-8376-5a59d2942850.jpg?v=1788269097"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B00W3GRUZC_eb713d8a-3cc2-4da3-904d-95d237fd6f75.jpg?v=1788269097","options":["Title"],"media":[{"alt":null,"id":33272832295092,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B00W3GRUZC_eb713d8a-3cc2-4da3-904d-95d237fd6f75.jpg?v=1788269097"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B00W3GRUZC_eb713d8a-3cc2-4da3-904d-95d237fd6f75.jpg?v=1788269097","width":1000},{"alt":null,"id":33272832327860,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616EKCGksSL_a18e4945-48ee-4b12-8888-cc2964d956b3.jpg?v=1788269097"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616EKCGksSL_a18e4945-48ee-4b12-8888-cc2964d956b3.jpg?v=1788269097","width":1000},{"alt":null,"id":33272832360628,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/610jISLVL5L.jpg?v=1788269097"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/610jISLVL5L.jpg?v=1788269097","width":1000},{"alt":null,"id":33272832393396,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61xVcB_yoL_84c6c459-b86a-4e5f-879f-09dc5b4ee89d.jpg?v=1788269098"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61xVcB_yoL_84c6c459-b86a-4e5f-879f-09dc5b4ee89d.jpg?v=1788269098","width":1000},{"alt":null,"id":33272832426164,"position":5,"preview_image":{"aspect_ratio":2.057,"height":680,"width":1399,"src":"\/\/auspowers.com\/cdn\/shop\/files\/617lVMOCMNL_50859e78-d462-4162-8376-5a59d2942850.jpg?v=1788269097"},"aspect_ratio":2.057,"height":680,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/617lVMOCMNL_50859e78-d462-4162-8376-5a59d2942850.jpg?v=1788269097","width":1399}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHC-SR04 Ultrasonic Sensor Distance Sensor Ultrasonic Module Pack of 3 | Maneuverring module removal sensor, ultrasonic module, distance sensor, manoeuvring module, distance sensor for Arduino\u003c\/h3\u003e \u003cp id=\"b\"\u003eCharacteristics: The HC-SR04 ultrasonic distance measuring module provides a non-contact distance measurement function from 2 cm to 400 cm and a high distance accuracy of up to 3 mm. Module consisting of ultrasonic transmitter, receiver and control circuit. Basic working principle: 1. Use the IO mouth Trig trigger distance, at least 10 US signals with high level; 2. The module automatically sends eight 40 kHz square waves and automatically detects whether a signal is returned. 3. I returned the signal, through the IO mouth, Echo output a high level, the duration of the high level is the time of the ultrasonic wave from start to return. 4. Distance = test (high level time sound speed (340 m\/s)) \/ 2; Operating voltage: DC 5 V. Operating current: less than 2 mA. Operating frequency: 40 Hz. Maximum range: 450 cm. Minimum range: 2cm. Measuring point: 15 degrees. Input trigger signal: 10US TTL pulse Echo signal output: output of the TTL level signal, proportional to the range. Document link: Box contents: 3 x 4 Pin Ultrasonic Distance Meter Module HC-SR04 for Arduino\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eIntegrated MCU STC15W104: Uses the MCU STC15W104 with built-in clock so no external quartz oscillator is required\u003c\/li\u003e \u003cli\u003eTechnical specifications: Power supply 5V DC, quiescent current below 2mA, effective angle below 15, detection distance 2cm to 500cm, resolution 0.3cm\u003c\/li\u003e \u003cli\u003eDistance calculation: test distance calculated from high time speed of sound (340m\/s) divided by 2\u003c\/li\u003e \u003cli\u003eEasy connection mode: ports for VCC, trig(T), echo(R) and GND allow easy integration\u003c\/li\u003e \u003cli\u003eAnti Reverse Pin Socket: equipped with an anti reverse pin socket, making the wiring much tighter and more convenient\u003c\/li\u003e \u003cli\u003ePackage Content The kit includes 3 pieces HC-SR04 ultrasonic sensors with 4 pin connector for Arduino projects\u003c\/li\u003e\n\u003c\/ul\u003e"}
