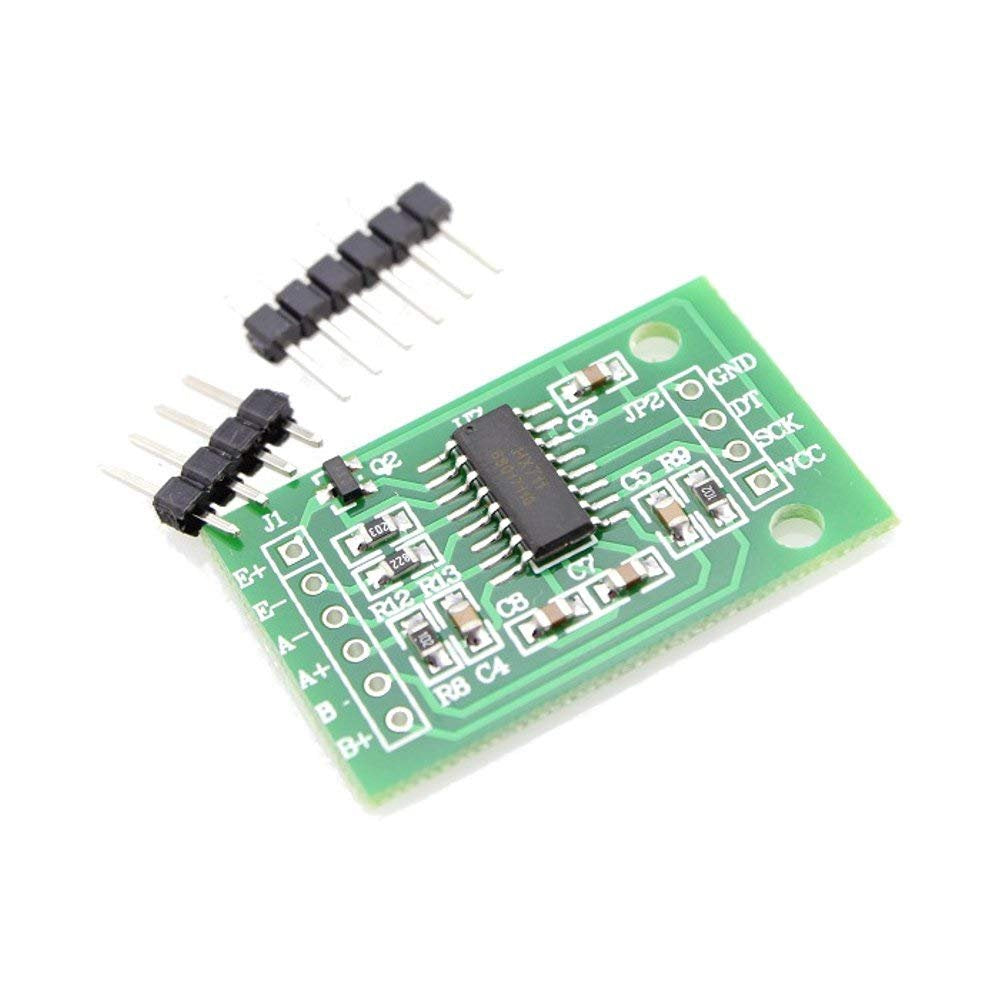

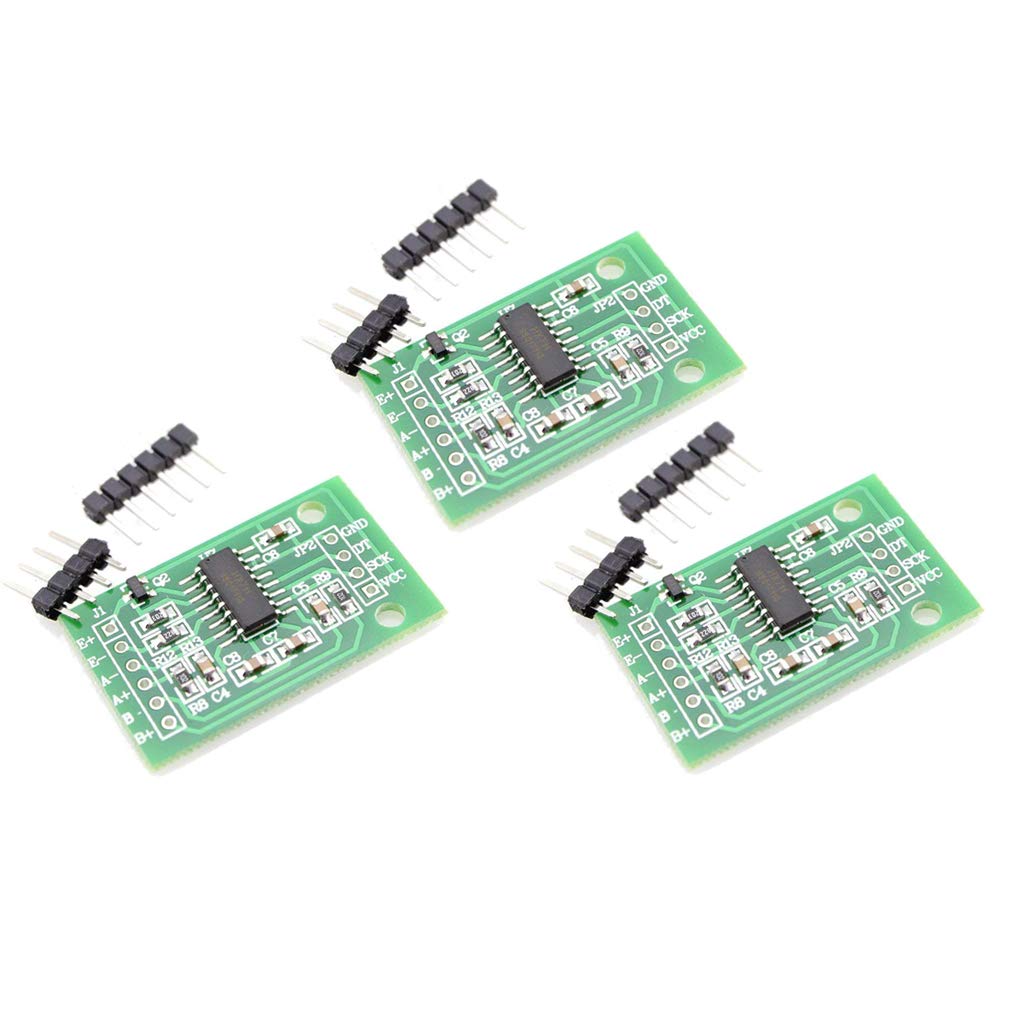

{"id":8115268059316,"title":"Hailege HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor Pack of 3","handle":"hailege-hx711-weighing-sensor-dual-channel-24-bit-precision-a-d-module-pressure-sensor-pack-of-3","description":"\u003ch3\u003eHailege HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor Pack of 3\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This module uses 24 high precision A\/D converter chip hx711. It\nis a specially designed for the high precision electronic scale design, with\ntwo analog input channel, the internal integration of 128 times the\nprogrammable gain amplifier. Theinput circuit can be configured to provide a\nbridge type pressure bridge (such as pressure, weighing sensor mode), is of\nhigh precision, low cost is an ideal sampling front-end module. Features: Two\nselectable differential input channels On-chip active low noise PGA with\nselectable gain of 32, 64 and 128 On-chip power supply regulator for load-\ncell and ADC analogue power supply On-chip oscillator requiring no external\ncomponent with optional external crystal On-chip power-on-reset. Simple\ndigital control and serial interface: pin-driven controls, no programming\nneeded. Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz\nsupply rejection. Current consumption including on-chip analog power supply\nregulator: normal operation \u0026lt;1.5mA, power down \u0026lt;1uA. Operation supply voltage\nrange: 2.6 ~ 5.5V. Operation temperature range: -40 ~ +85°. This module uses\n24 high-precision A\/D converter chip HX711, is designed for high-precision\nelectronic scale and design, with two analogue channel input, the internal\nintegration of a gain programmable amplifier 128. Input circuit can be\nconfigured to provide an electrical bridge bridge voltage (such as pressure,\nweight) sensor model is an ideal high-precision, low-cost sampling front-end\nmodule. Package includes: 3 HX711 Weighing Sensor Dual-Channel 24 Bit\nPrecision A\/D Module Pressure Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith a 24 high-precision A \/ D converter chip HX711\u003c\/li\u003e\n \u003cli\u003eHX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor\u003c\/li\u003e\n \u003cli\u003eThe input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:20:02+10:00","created_at":"2026-09-01T23:41:39+10:00","vendor":"Hailege","type":"Acceleration Sensors","tags":["industrial_DE_Aug2026"],"price":9700,"price_min":9700,"price_max":9700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374988193972,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Y1GY5SZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor Pack of 3","public_title":null,"options":["Default Title"],"price":9700,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0464","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y1GY5SZ.jpg?v=1788270101","\/\/auspowers.com\/cdn\/shop\/files\/61U9J3warwL.jpg?v=1788270101","\/\/auspowers.com\/cdn\/shop\/files\/417v9S10DzL.jpg?v=1788270101","\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_f5f1d34b-3b45-4ca8-bb12-5a4ed16f76bf.jpg?v=1788270101"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y1GY5SZ.jpg?v=1788270101","options":["Title"],"media":[{"alt":null,"id":33273123438772,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y1GY5SZ.jpg?v=1788270101"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y1GY5SZ.jpg?v=1788270101","width":1010},{"alt":null,"id":33273123471540,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61U9J3warwL.jpg?v=1788270101"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61U9J3warwL.jpg?v=1788270101","width":1000},{"alt":null,"id":33273123504308,"position":3,"preview_image":{"aspect_ratio":0.998,"height":500,"width":499,"src":"\/\/auspowers.com\/cdn\/shop\/files\/417v9S10DzL.jpg?v=1788270101"},"aspect_ratio":0.998,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/417v9S10DzL.jpg?v=1788270101","width":499},{"alt":null,"id":33273123537076,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_f5f1d34b-3b45-4ca8-bb12-5a4ed16f76bf.jpg?v=1788270101"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_f5f1d34b-3b45-4ca8-bb12-5a4ed16f76bf.jpg?v=1788270101","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor Pack of 3\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This module uses 24 high precision A\/D converter chip hx711. It\nis a specially designed for the high precision electronic scale design, with\ntwo analog input channel, the internal integration of 128 times the\nprogrammable gain amplifier. Theinput circuit can be configured to provide a\nbridge type pressure bridge (such as pressure, weighing sensor mode), is of\nhigh precision, low cost is an ideal sampling front-end module. Features: Two\nselectable differential input channels On-chip active low noise PGA with\nselectable gain of 32, 64 and 128 On-chip power supply regulator for load-\ncell and ADC analogue power supply On-chip oscillator requiring no external\ncomponent with optional external crystal On-chip power-on-reset. Simple\ndigital control and serial interface: pin-driven controls, no programming\nneeded. Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz\nsupply rejection. Current consumption including on-chip analog power supply\nregulator: normal operation \u0026lt;1.5mA, power down \u0026lt;1uA. Operation supply voltage\nrange: 2.6 ~ 5.5V. Operation temperature range: -40 ~ +85°. This module uses\n24 high-precision A\/D converter chip HX711, is designed for high-precision\nelectronic scale and design, with two analogue channel input, the internal\nintegration of a gain programmable amplifier 128. Input circuit can be\nconfigured to provide an electrical bridge bridge voltage (such as pressure,\nweight) sensor model is an ideal high-precision, low-cost sampling front-end\nmodule. Package includes: 3 HX711 Weighing Sensor Dual-Channel 24 Bit\nPrecision A\/D Module Pressure Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWith a 24 high-precision A \/ D converter chip HX711\u003c\/li\u003e\n \u003cli\u003eHX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor\u003c\/li\u003e\n \u003cli\u003eThe input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module.\u003c\/li\u003e\n \u003c\/ul\u003e"}
