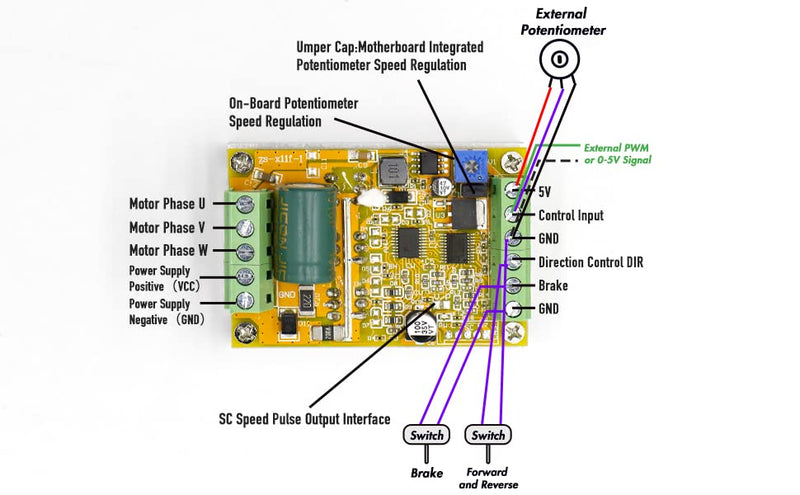

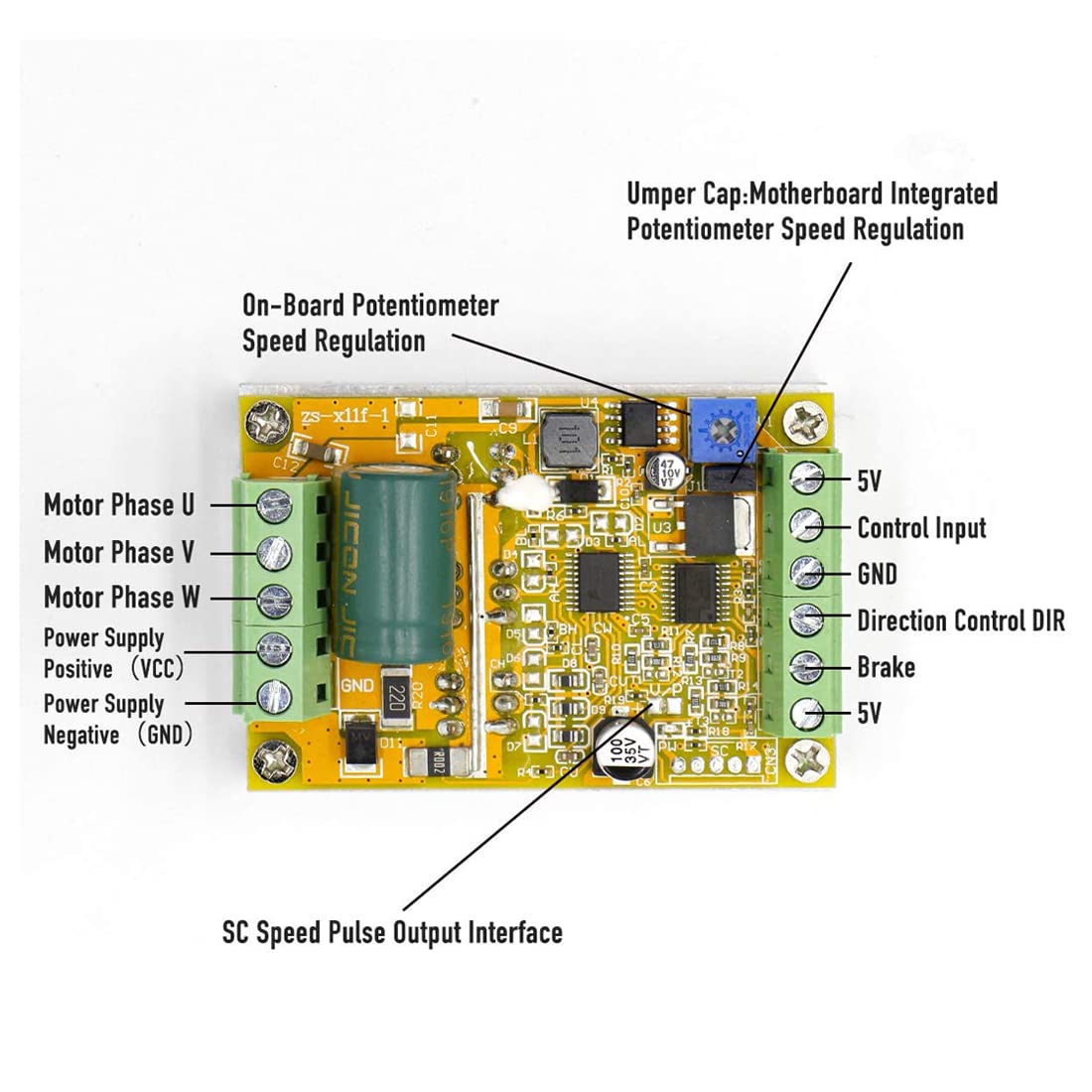

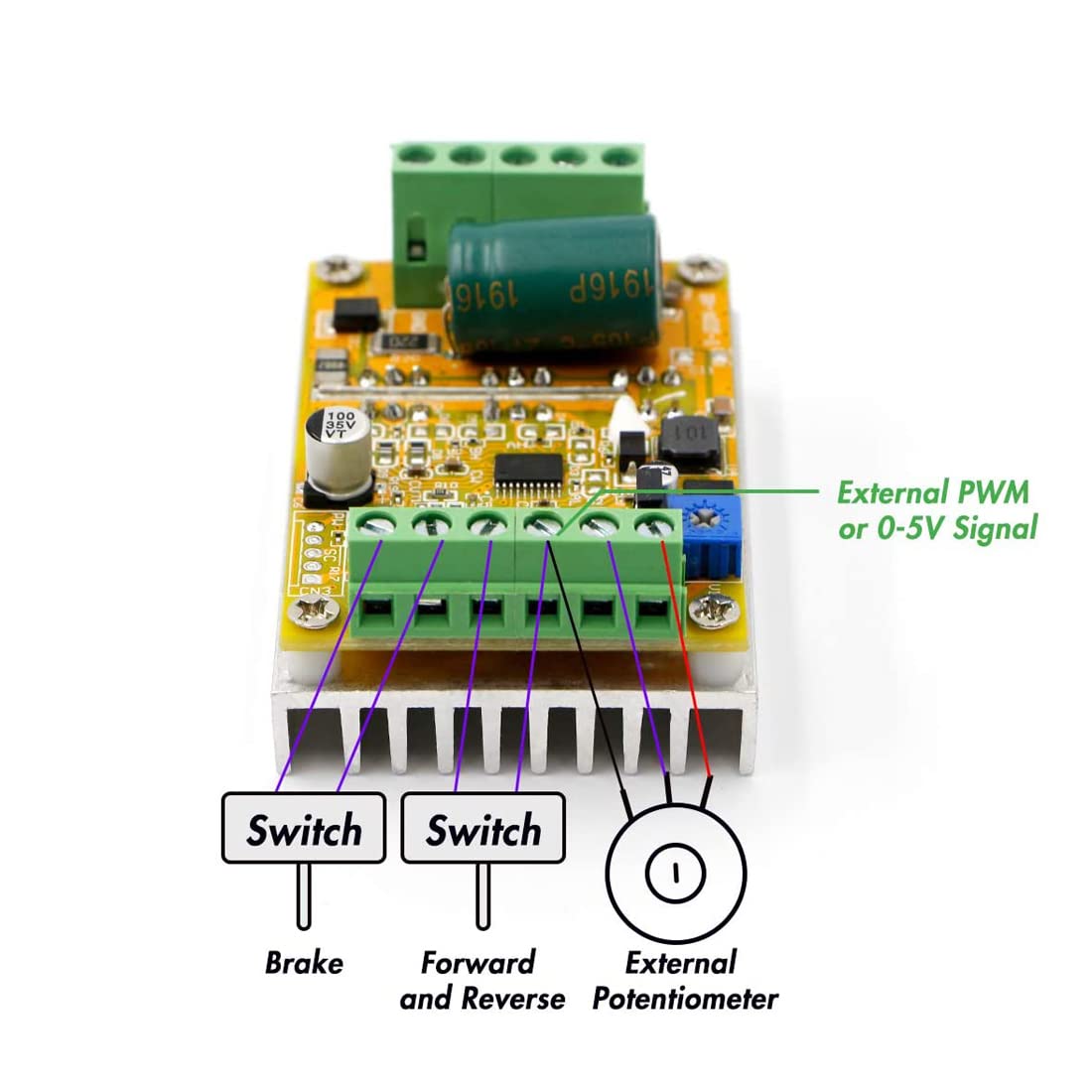

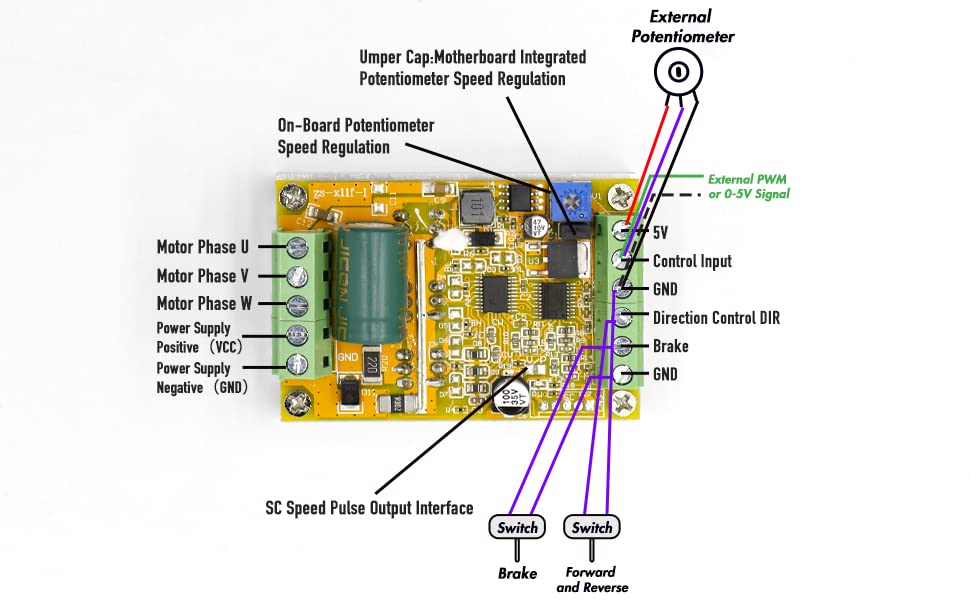

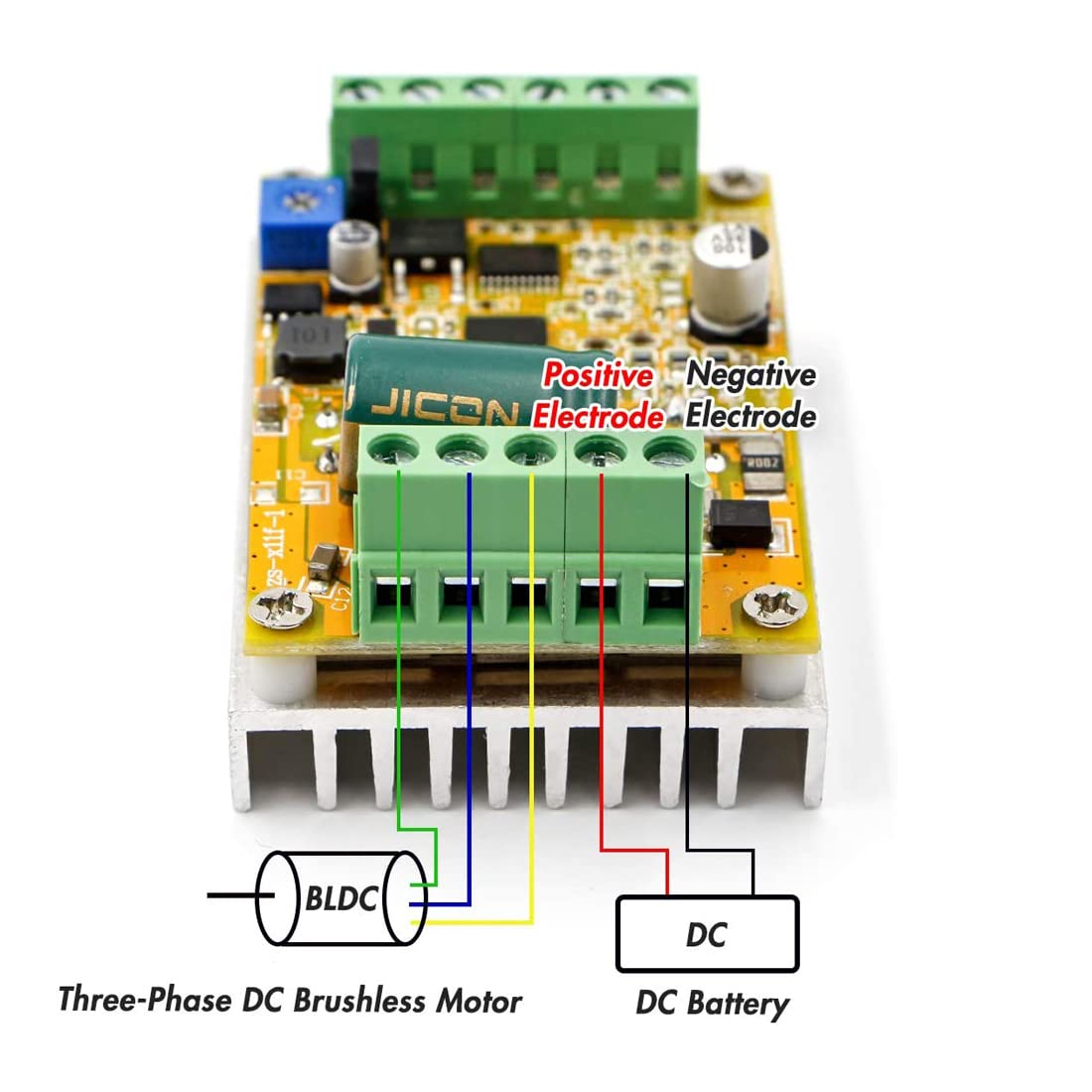

{"id":7991567188148,"title":"Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V","handle":"hailege-380w-pwm-dc-brushless-electric-motor-speed-controller-with-hall-less-6-5-50v","description":"\u003ch3\u003eHailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInterface: 1. UVW phase line output connected to motor. 2.5V GND The\nmotherboard comes with 5V (current does not exceed 100MA) 3. VCC GND main\npower supply (external DC power supply). 4. SC speed pulse signal output (only\nleave the interface without technical support). 5. DIR forward and reverse\ncontrol (can be connected externally). 6. Brake control (can be connected\nexternally). 7.0-5V PWM speed control signal dual input (the onboard\npotentiometer can also be used to adjust the speed of the external 0-5V analog\nPWM duty cycle signal dual input speed control) Description: Overcurrent\nprotection: no (need to connect an external fuse) Locked-rotor protection: Yes\n(the current will automatically drop after the locked rotor). Over-temperature\nprotection: Yes (if the temperature exceeds 100 degrees, the power is reduced\nby half). The connection of V\/P short contact is that the PWM signal input\neffectively recognizes the true PMW signal to support the 3.3V system, and the\nPMW signal needs to be input from the two ports of the terminal (PWM GND) When\nthe V\/P short contact is disconnected, the 0-5V analog signal input is valid\n(the factory default is disconnected). During analogue input, you can use the\nonboard voltage potentiometer to adjust the speed. If you want to connect 0\n-5V analog signal input, you must remove the jumper cap on the board to cut\noff the potentiometer voltage divider signal, and then input 0-5V analog\nsignal from the two ports of the terminal (0-5 GND), the highest voltage\nshould not exceed 5V Note: This drive is a DC Three Phase Brushless control\nboard, the motor needs a hall to work properly, only applicable to electrical\nangle 120 degrees. Package includes: 1 x 380 W 6.5-50 V PWM DC brushless\nelectric motor speed controller.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e380W 6.5-50V PWM DC Brushless Electric Motor Speed Controller\u003c\/li\u003e\n \u003cli\u003eHigh power 380W DC three-phase high-speed brushless sensorless controller\u003c\/li\u003e\n \u003cli\u003eFull SMD process,stable performance,humanized design, interface all adopts terminal blocks.\u003c\/li\u003e\n \u003cli\u003eMaximum power: 380 W\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 6.5-50V; Drive current: Rated 16A, 30A under cooling\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:10:14+10:00","created_at":"2025-09-23T00:10:10+10:00","vendor":"Hailege","type":"Motor Speed Controllers","tags":["industryDE_Sep2025"],"price":17800,"price_min":17800,"price_max":17800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047724904628,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0B775GX24","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V","public_title":null,"options":["Default Title"],"price":17800,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1659","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0B775GX24.jpg?v=1775767238","\/\/auspowers.com\/cdn\/shop\/files\/51RDBeBbf1L.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/61YZrz89oQL.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/615hR6-CJ8L.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/618gR79pzzL.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/61-hdGiRKxL.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/51LzSvOnmkL.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/61o57hwNyTL.jpg?v=1758550213","\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_7584ad5a-e98a-41ff-943f-715339335249.jpg?v=1758550213"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B775GX24.jpg?v=1775767238","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519262388,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B775GX24.jpg?v=1775767238"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0B775GX24.jpg?v=1775767238","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519295156,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51RDBeBbf1L.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51RDBeBbf1L.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519327924,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61YZrz89oQL.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61YZrz89oQL.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519360692,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/615hR6-CJ8L.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/615hR6-CJ8L.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519393460,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/618gR79pzzL.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/618gR79pzzL.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519426228,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61-hdGiRKxL.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61-hdGiRKxL.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519458996,"position":7,"preview_image":{"aspect_ratio":1.617,"height":600,"width":970,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51LzSvOnmkL.jpg?v=1758550213"},"aspect_ratio":1.617,"height":600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51LzSvOnmkL.jpg?v=1758550213","width":970},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519491764,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61o57hwNyTL.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61o57hwNyTL.jpg?v=1758550213","width":1100},{"alt":"[Australia - AusPower] - Hailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V ","id":32184519524532,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_7584ad5a-e98a-41ff-943f-715339335249.jpg?v=1758550213"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_7584ad5a-e98a-41ff-943f-715339335249.jpg?v=1758550213","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 380W PWM DC Brushless Electric Motor Speed Controller with Hall-Less 6.5-50V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInterface: 1. UVW phase line output connected to motor. 2.5V GND The\nmotherboard comes with 5V (current does not exceed 100MA) 3. VCC GND main\npower supply (external DC power supply). 4. SC speed pulse signal output (only\nleave the interface without technical support). 5. DIR forward and reverse\ncontrol (can be connected externally). 6. Brake control (can be connected\nexternally). 7.0-5V PWM speed control signal dual input (the onboard\npotentiometer can also be used to adjust the speed of the external 0-5V analog\nPWM duty cycle signal dual input speed control) Description: Overcurrent\nprotection: no (need to connect an external fuse) Locked-rotor protection: Yes\n(the current will automatically drop after the locked rotor). Over-temperature\nprotection: Yes (if the temperature exceeds 100 degrees, the power is reduced\nby half). The connection of V\/P short contact is that the PWM signal input\neffectively recognizes the true PMW signal to support the 3.3V system, and the\nPMW signal needs to be input from the two ports of the terminal (PWM GND) When\nthe V\/P short contact is disconnected, the 0-5V analog signal input is valid\n(the factory default is disconnected). During analogue input, you can use the\nonboard voltage potentiometer to adjust the speed. If you want to connect 0\n-5V analog signal input, you must remove the jumper cap on the board to cut\noff the potentiometer voltage divider signal, and then input 0-5V analog\nsignal from the two ports of the terminal (0-5 GND), the highest voltage\nshould not exceed 5V Note: This drive is a DC Three Phase Brushless control\nboard, the motor needs a hall to work properly, only applicable to electrical\nangle 120 degrees. Package includes: 1 x 380 W 6.5-50 V PWM DC brushless\nelectric motor speed controller.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e380W 6.5-50V PWM DC Brushless Electric Motor Speed Controller\u003c\/li\u003e\n \u003cli\u003eHigh power 380W DC three-phase high-speed brushless sensorless controller\u003c\/li\u003e\n \u003cli\u003eFull SMD process,stable performance,humanized design, interface all adopts terminal blocks.\u003c\/li\u003e\n \u003cli\u003eMaximum power: 380 W\u003c\/li\u003e\n \u003cli\u003eWorking voltage: 6.5-50V; Drive current: Rated 16A, 30A under cooling\u003c\/li\u003e\n \u003c\/ul\u003e"}
