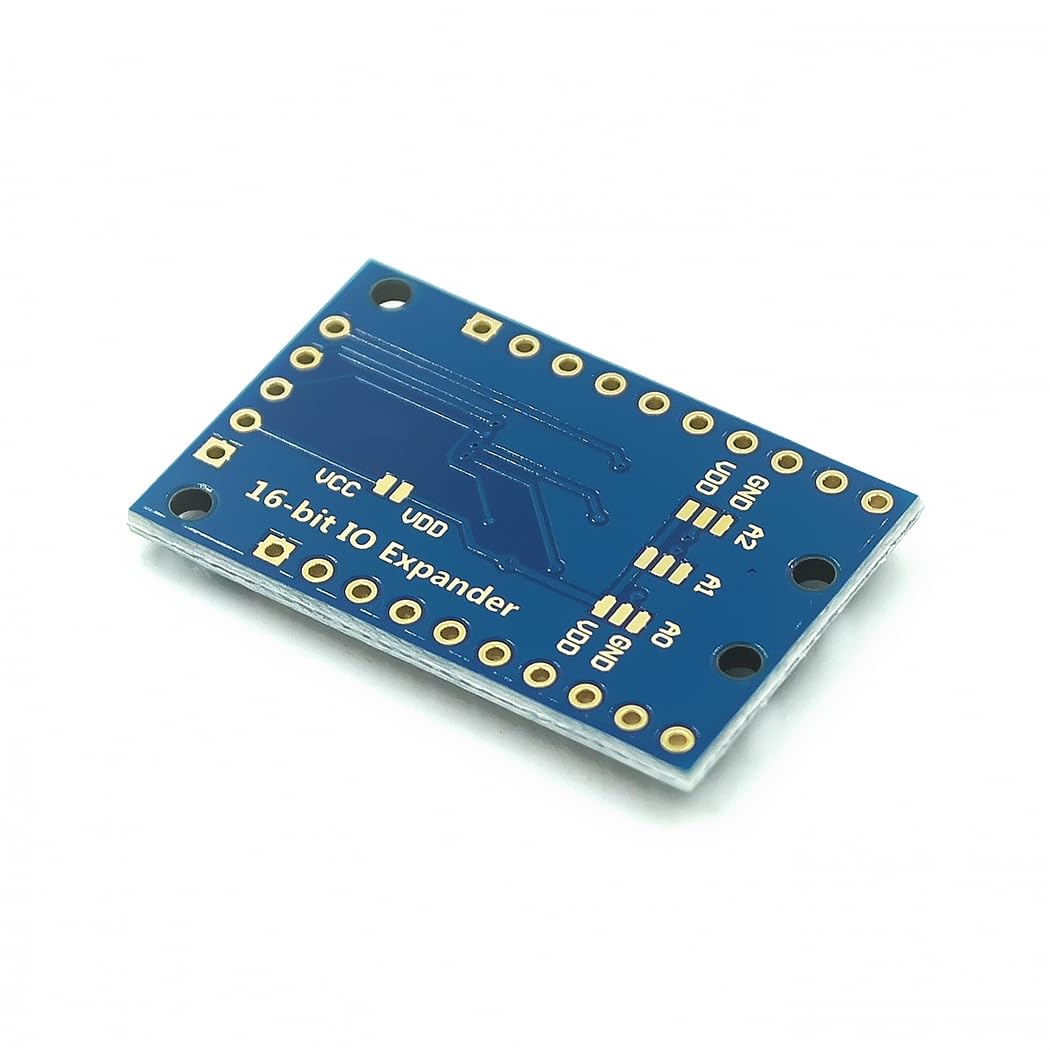

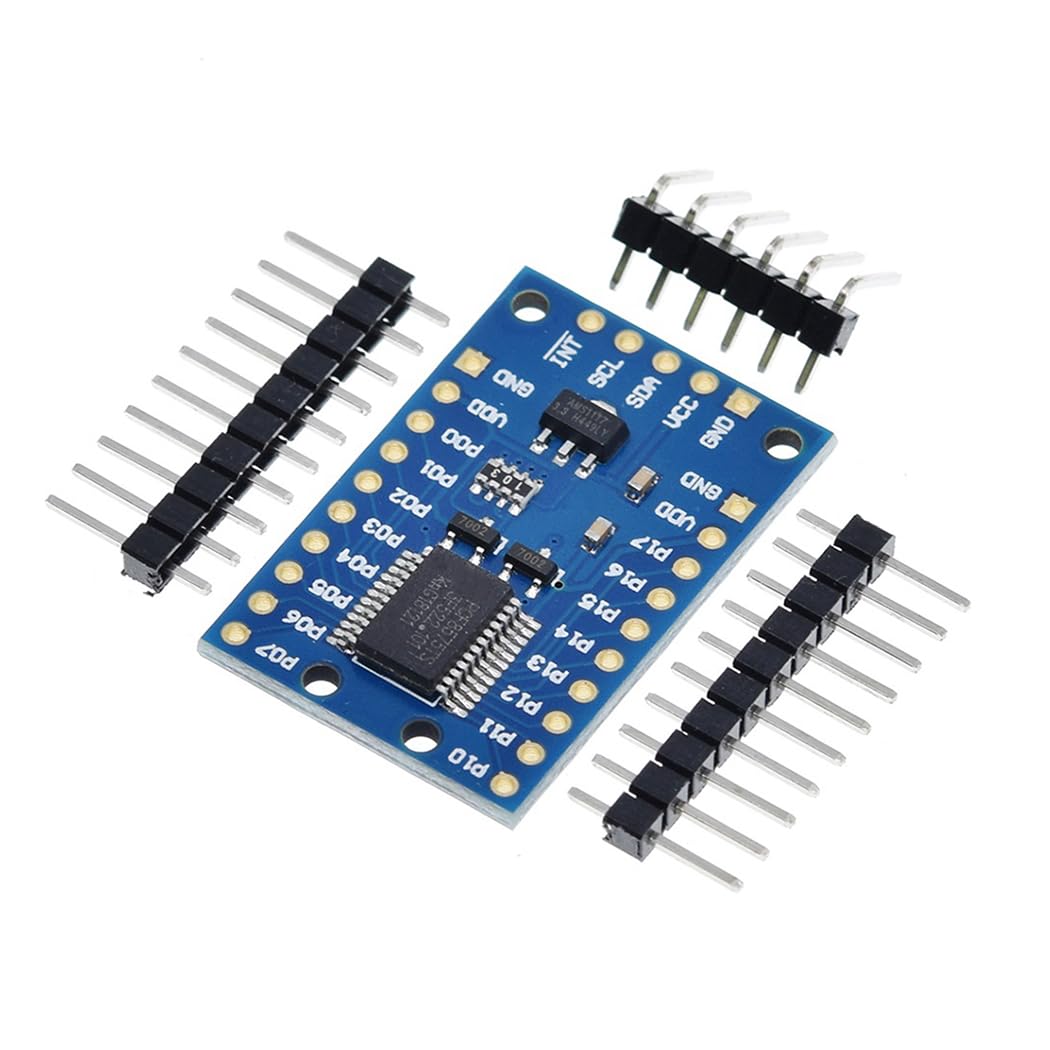

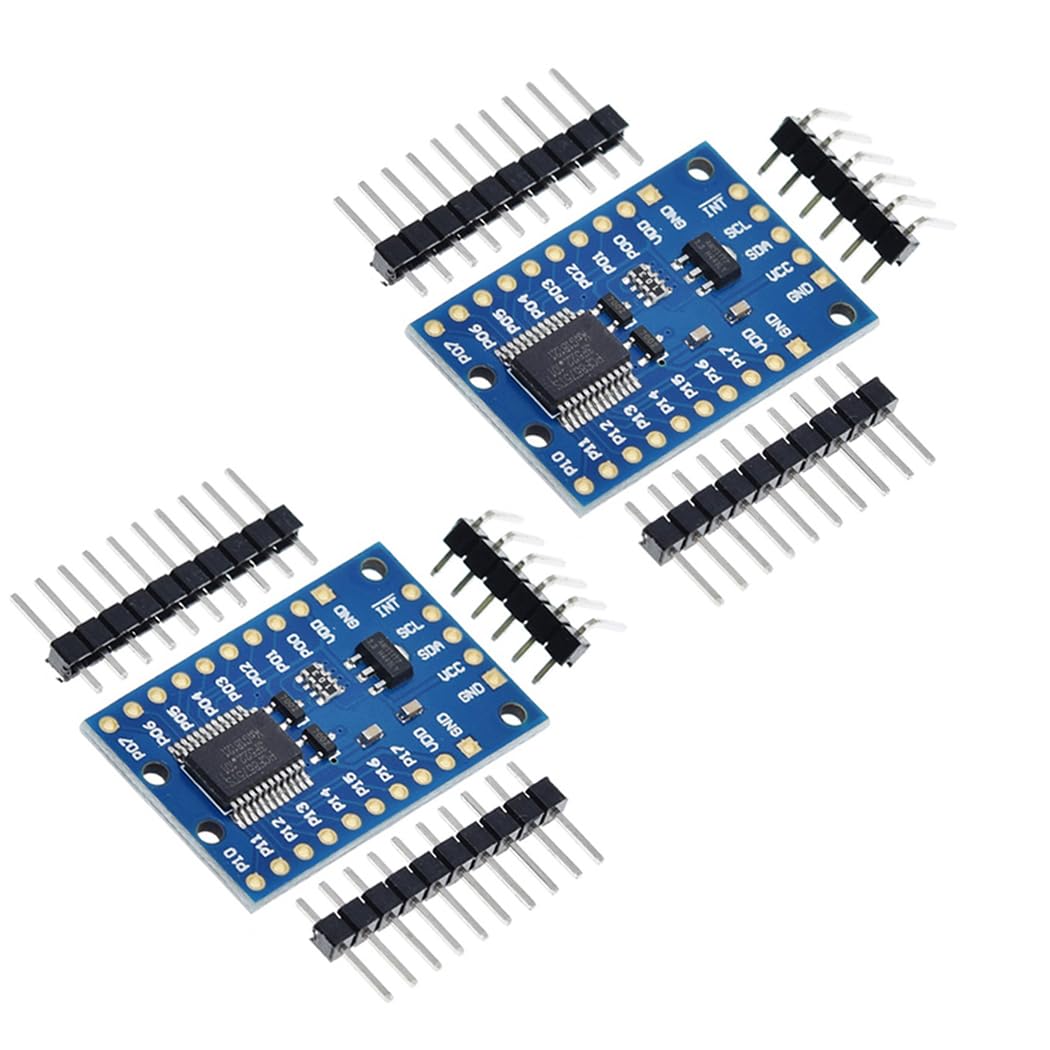

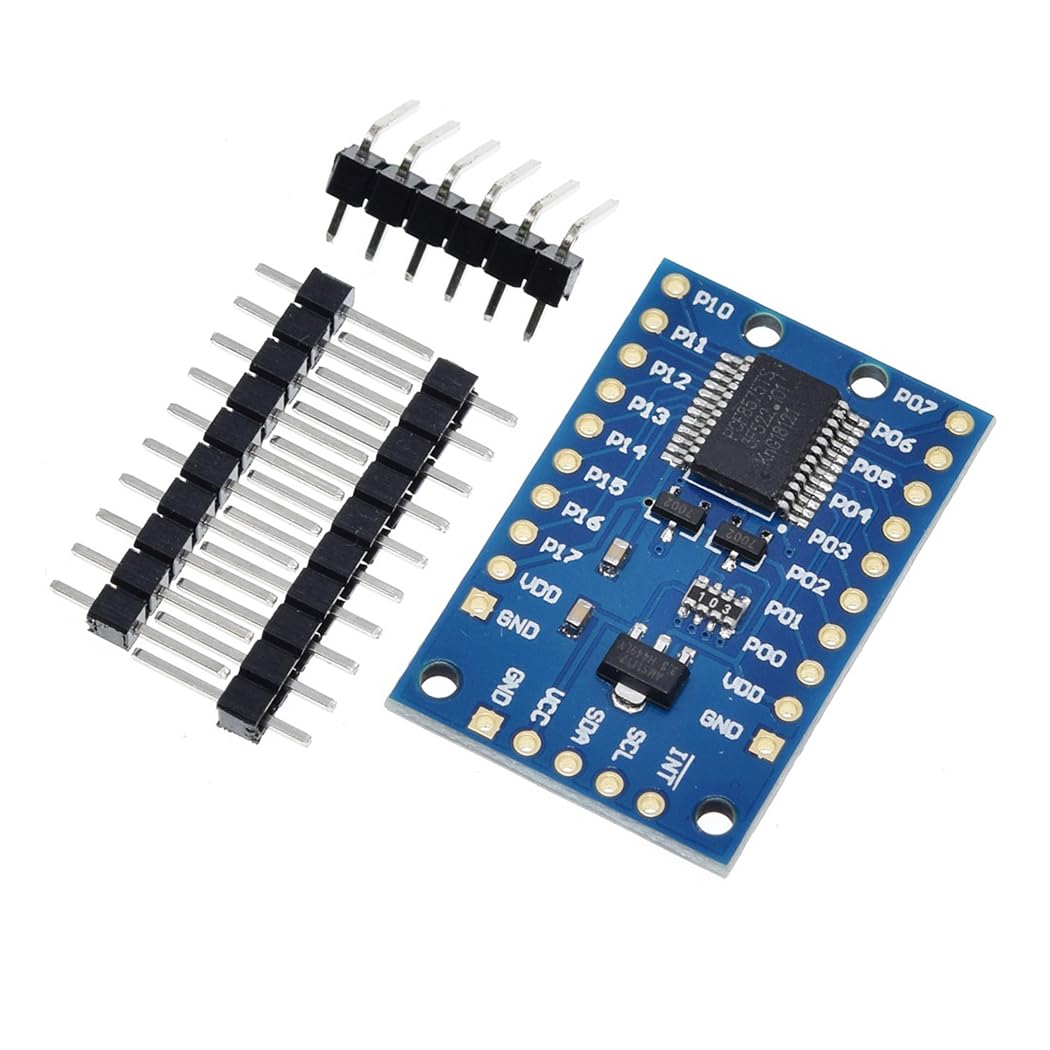

{"id":7991570333876,"title":"Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield","handle":"hailege-2pcs-pcf8575-io-expansion-board-16-bit-smbus-i-o-ports-iic-i2c-16-io-ports-i-o-extension-shield","description":"\u003ch3\u003eHailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescriptions: Have you run out of I\/O pins? This great module allows the user\nto expand up to 16 I\/O with only two I\/O to control! The PCF8575 is controlled\nvia an I2C interface and features 16-bit quasi-bi-directional input\/output\npins. If you do not solder the VCC VDD pad, the PCF8575 level is 3.3V. When\nyou solder it, the level at VCC is the same. Features: Main chip: PCF8575\nWorking voltage: 2.5 - 5.5 V DC. Working current: 100 mA (max). I2C Address:\n0x20 (default), can be changed by soldering the A1 and A2 selection pads. 16\nindividually addressable pins Each pin can be configured for input or output.\nOpen drain interrupt output pin for input change interrupt Ideal for UNO R3\nand other MCUs to control simple relay, buzzer, button, LED, etc. Box\ncontents: 2 x PCF8575 IO Expansion Cards\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e16 IO ports, with 16 individual pins\u003c\/li\u003e\n \u003cli\u003ePCF8575 I\/O Expansion Card I\/O Expansion Shield I2C IIC\u003c\/li\u003e\n \u003cli\u003eIdeal for UNO R3 and other MCUs to control simple relay, buzzer, button, LED, etc.\u003c\/li\u003e\n \u003cli\u003eOpen drain interrupt output pin for input change interrupt\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:16:49+10:00","created_at":"2025-09-23T00:16:46+10:00","vendor":"Hailege","type":"IO Modules","tags":["industryDE_Sep2025"],"price":11400,"price_min":11400,"price_max":11400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047732244660,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CJY29GSQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield","public_title":null,"options":["Default Title"],"price":11400,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-1813","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0CJY29GSQ.jpg?v=1775767382","\/\/auspowers.com\/cdn\/shop\/files\/61nUkVwKEDL.jpg?v=1758550608","\/\/auspowers.com\/cdn\/shop\/files\/61NpoC5yEsL.jpg?v=1758550609","\/\/auspowers.com\/cdn\/shop\/files\/51BJe8bt9oL.jpg?v=1758550609","\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_e3980596-b779-4ebd-9de0-6fdaf20de115.jpg?v=1758550608"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CJY29GSQ.jpg?v=1775767382","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield ","id":32184538464436,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CJY29GSQ.jpg?v=1775767382"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0CJY29GSQ.jpg?v=1775767382","width":1050},{"alt":"[Australia - AusPower] - Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield ","id":32184538497204,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61nUkVwKEDL.jpg?v=1758550608"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61nUkVwKEDL.jpg?v=1758550608","width":1050},{"alt":"[Australia - AusPower] - Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield ","id":32184538529972,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61NpoC5yEsL.jpg?v=1758550609"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61NpoC5yEsL.jpg?v=1758550609","width":1050},{"alt":"[Australia - AusPower] - Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield ","id":32184538562740,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51BJe8bt9oL.jpg?v=1758550609"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51BJe8bt9oL.jpg?v=1758550609","width":1050},{"alt":"[Australia - AusPower] - Hailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield ","id":32184538595508,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_e3980596-b779-4ebd-9de0-6fdaf20de115.jpg?v=1758550608"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_e3980596-b779-4ebd-9de0-6fdaf20de115.jpg?v=1758550608","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 2pcs PCF8575 IO Expansion Board 16 Bit SMBus I\/O Ports IIC I2C 16 IO Ports I\/O Extension Shield\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescriptions: Have you run out of I\/O pins? This great module allows the user\nto expand up to 16 I\/O with only two I\/O to control! The PCF8575 is controlled\nvia an I2C interface and features 16-bit quasi-bi-directional input\/output\npins. If you do not solder the VCC VDD pad, the PCF8575 level is 3.3V. When\nyou solder it, the level at VCC is the same. Features: Main chip: PCF8575\nWorking voltage: 2.5 - 5.5 V DC. Working current: 100 mA (max). I2C Address:\n0x20 (default), can be changed by soldering the A1 and A2 selection pads. 16\nindividually addressable pins Each pin can be configured for input or output.\nOpen drain interrupt output pin for input change interrupt Ideal for UNO R3\nand other MCUs to control simple relay, buzzer, button, LED, etc. Box\ncontents: 2 x PCF8575 IO Expansion Cards\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e16 IO ports, with 16 individual pins\u003c\/li\u003e\n \u003cli\u003ePCF8575 I\/O Expansion Card I\/O Expansion Shield I2C IIC\u003c\/li\u003e\n \u003cli\u003eIdeal for UNO R3 and other MCUs to control simple relay, buzzer, button, LED, etc.\u003c\/li\u003e\n \u003cli\u003eOpen drain interrupt output pin for input change interrupt\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
