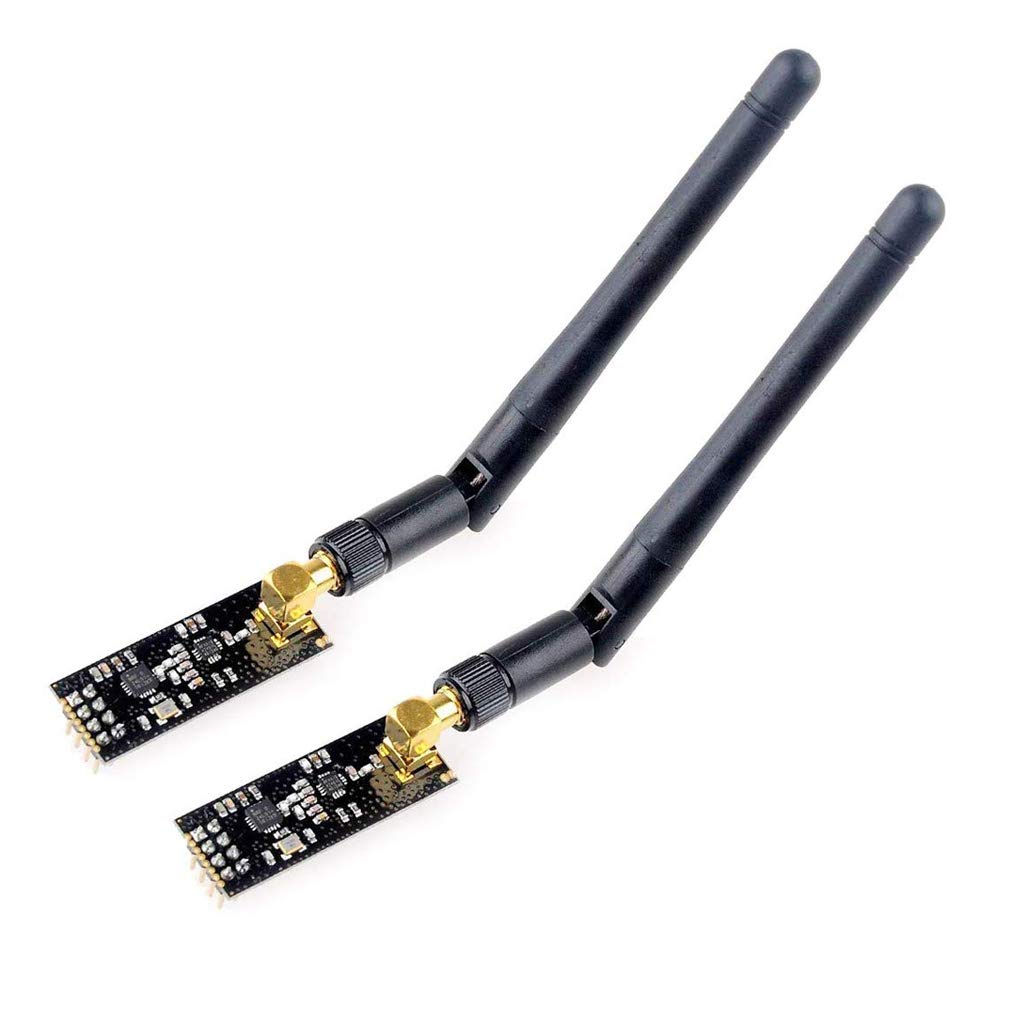

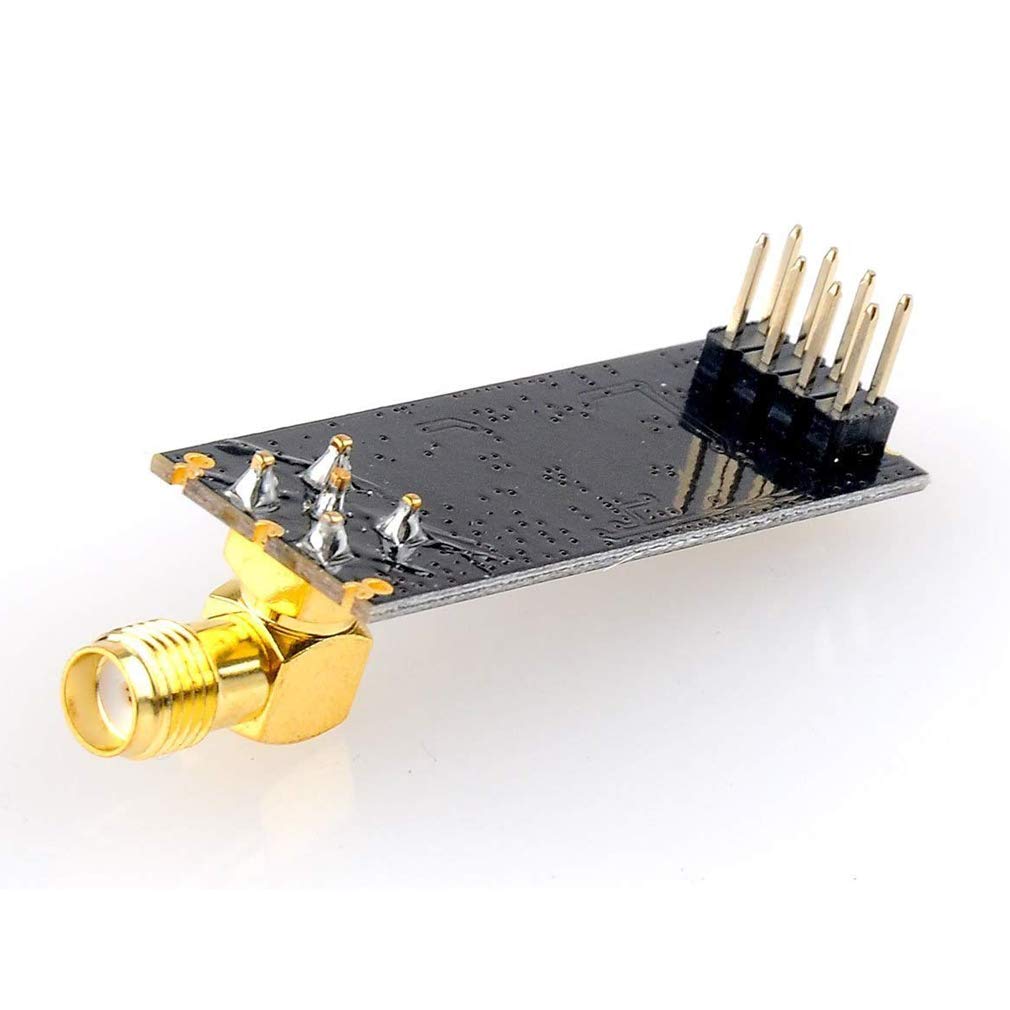

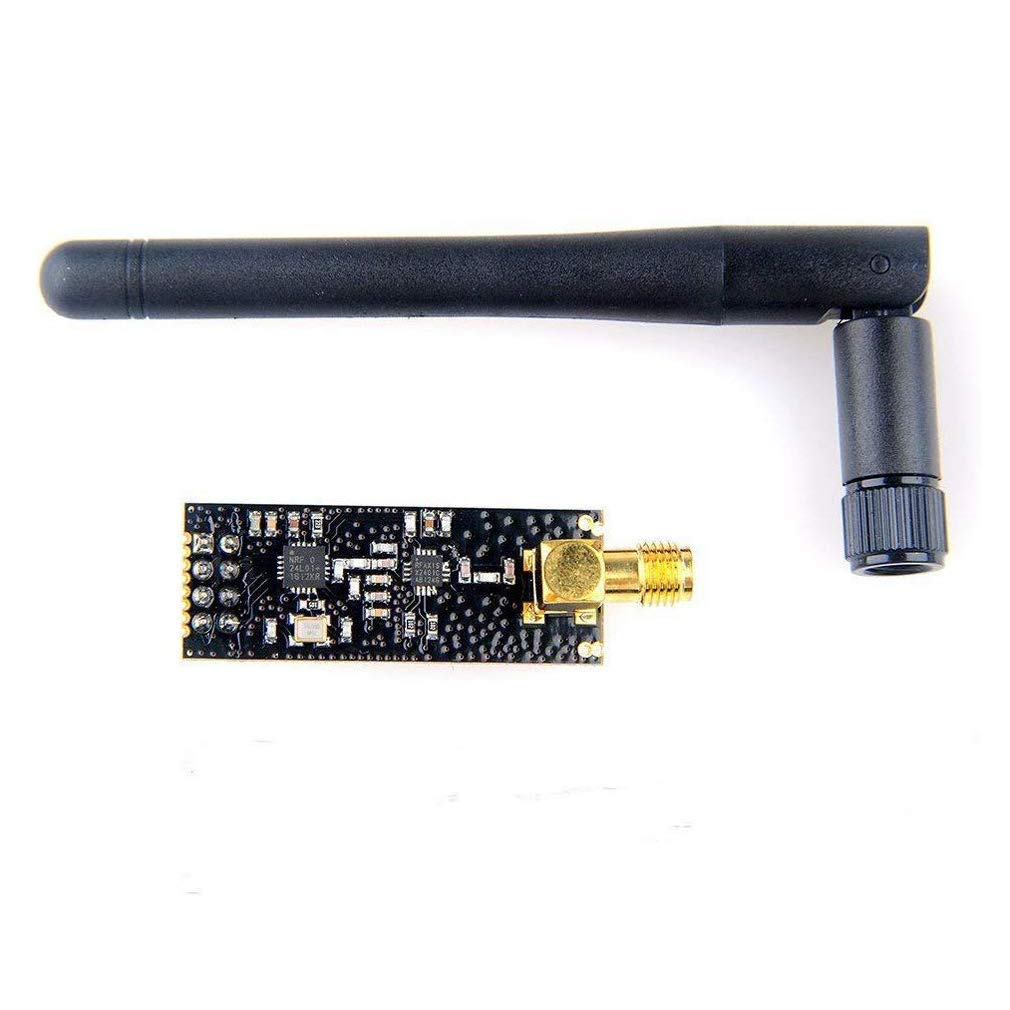

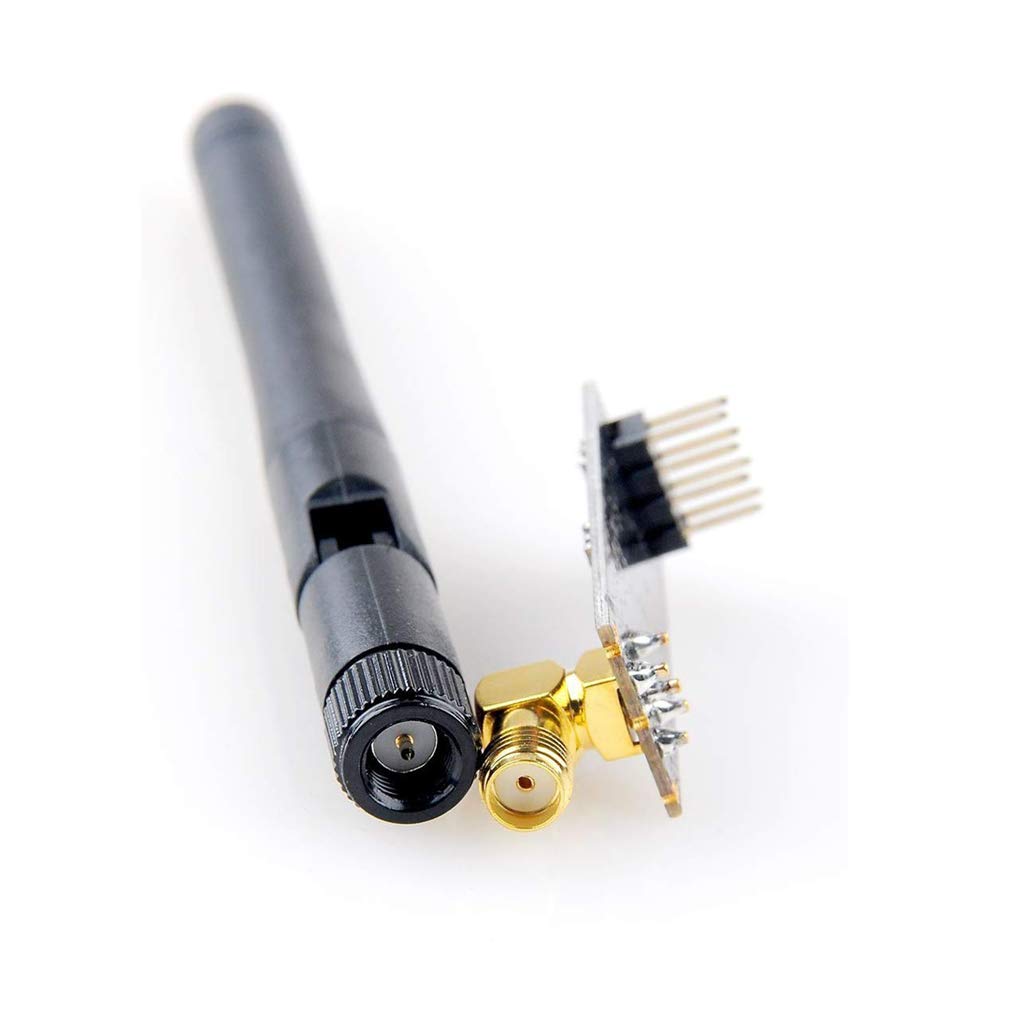

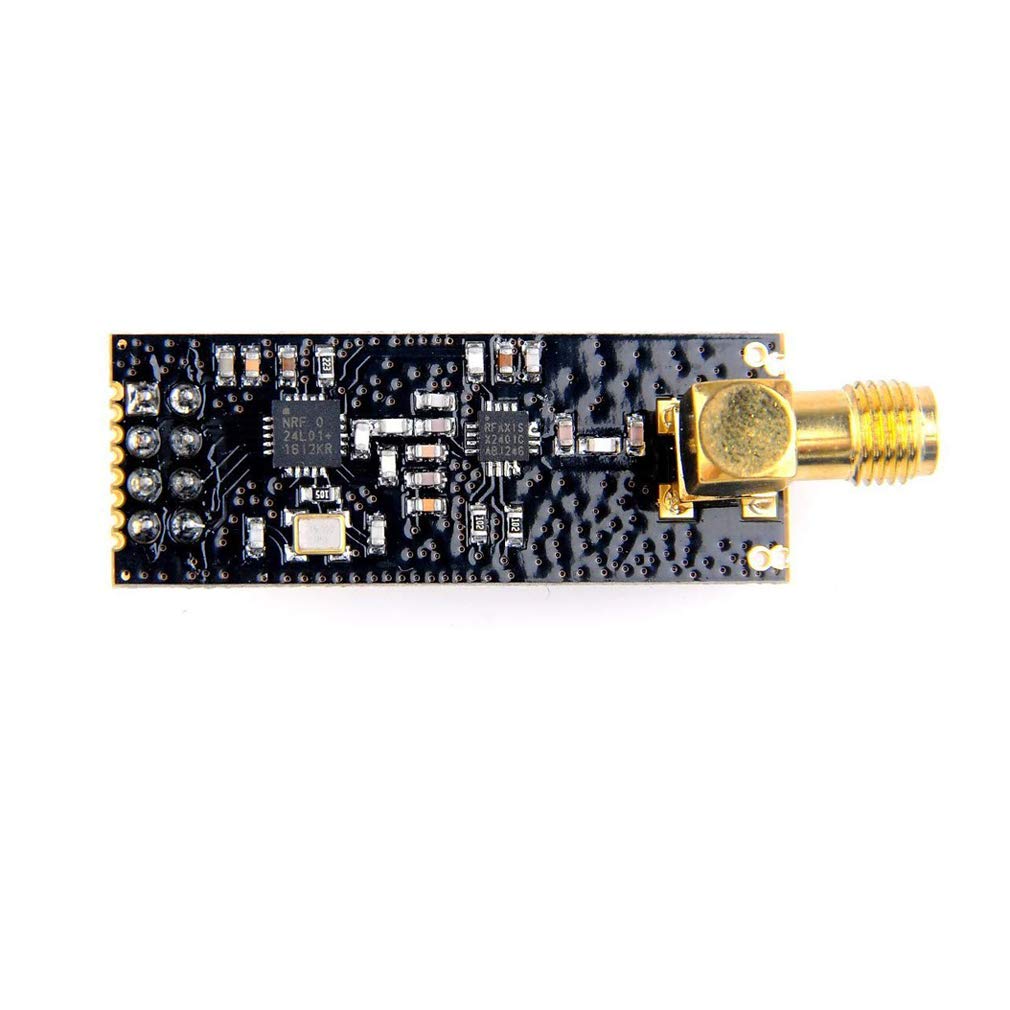

{"id":7993424478388,"title":"Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible","handle":"hailege-2pcs-nrf24l01-pa-lna-wireless-transceiver-rf-transceiver-module-with-sma-antenna-2-4g-1100m-compatible","description":"\u003ch3\u003eHailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The Addicore nRF24L01 is a 2.4GHz ISM band transceiver. The\ntransceiver consists of a fully integrated frequency synthesizer, a power\namplifier, a crystal oscillator, a demodulator, a modulator and an advanced\nShockBurst protocol engine. A host microcontroller can communicate and\nconfigure the nRF24L01+ via a 4-pin serial peripheral interface (SPI). The\nconfiguration tabs are accessible via the SPI connection. Configurable\nparameters include the frequency channel (125 selectable channels), output\npower and data rate (data rates: 250 kbps, 1 Mbps and 2 Mbps). The module has\n5V tolerant inputs that allow direct connection of SPI pins to the. Internal\nfiltering results in high margins in compliance with RF regulatory standards.\nThe radio of the module uses Gaussian Frequency Shift Keying Modulation (GFSK)\nas well as the fast Automatic Gain Control (AGC). Specification: Frequency:\n2.4 GHz ~ 2.5 GHz. Operating voltage: 3 ~ 3.6 V max. . Current: 115mA Multi-\nfrequency: 125 frequency. Supports up to six channels of data reception Box\ncontents: 2 x NRF24L01 + PA + LNA wireless transceiver RF transceiver. Module\n2 x SMA antenna\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNRF24L01P + PA + LNA radio module operates in the license-free 2.4G ISM band, point-to-point applications can also form a star network.\u003c\/li\u003e\n \u003cli\u003ePowerful wireless data transfer chip NRF24L01+, an increase of high-performance PA and LNA chips, RF switches, bandpass filters and other professional bi-directional RF power amplifiers, greatly extending the effective communication distance.\u003c\/li\u003e\n \u003cli\u003eIn the RF part of a large number of optimized matching debuggings, which make the highest transmission efficiency, the smallest harmonic, the NRF24L01P + PA + LNA radio module to external radios to achieve the least radio frequency interference, but also not prone to interference from other devices, extremely large improve the stability of work.\u003c\/li\u003e\n \u003cli\u003eCustomers only need to add one MCU to control NRF24L01P + PA + LNA via the SPI port and wireless module to complete the design of the ultra-long range wireless data transmission system. You don't have to worry about the research and development of RF parts, dramatically reduce the research and development costs and shorten the research and development cycle.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-30T15:50:08+10:00","created_at":"2025-09-30T15:50:05+10:00","vendor":"Hailege","type":"Interfaces","tags":["industryDE_Sep2025"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44055744348340,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07Y4ZLPTJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible","public_title":null,"options":["Default Title"],"price":13000,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0781","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y4ZLPTJ.jpg?v=1775773218","\/\/auspowers.com\/cdn\/shop\/files\/61COdU0iooL.jpg?v=1759211408","\/\/auspowers.com\/cdn\/shop\/files\/61_V4-84v3L.jpg?v=1759211408","\/\/auspowers.com\/cdn\/shop\/files\/514X_AqPCmL.jpg?v=1759211408","\/\/auspowers.com\/cdn\/shop\/files\/51fZzYaTnoL.jpg?v=1759211407","\/\/auspowers.com\/cdn\/shop\/files\/61LGd1GHRfL.jpg?v=1759211408","\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_84107440-760c-4a19-b0cf-c758fda9520b.jpg?v=1759211408"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y4ZLPTJ.jpg?v=1775773218","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222989975732,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y4ZLPTJ.jpg?v=1775773218"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07Y4ZLPTJ.jpg?v=1775773218","width":1010},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990008500,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61COdU0iooL.jpg?v=1759211408"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61COdU0iooL.jpg?v=1759211408","width":1010},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990041268,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61_V4-84v3L.jpg?v=1759211408"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61_V4-84v3L.jpg?v=1759211408","width":1010},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990074036,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/514X_AqPCmL.jpg?v=1759211408"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/514X_AqPCmL.jpg?v=1759211408","width":1010},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990106804,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51fZzYaTnoL.jpg?v=1759211407"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51fZzYaTnoL.jpg?v=1759211407","width":1010},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990139572,"position":6,"preview_image":{"aspect_ratio":1.564,"height":702,"width":1098,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61LGd1GHRfL.jpg?v=1759211408"},"aspect_ratio":1.564,"height":702,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61LGd1GHRfL.jpg?v=1759211408","width":1098},{"alt":"[Australia - AusPower] - Hailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible ","id":32222990172340,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_84107440-760c-4a19-b0cf-c758fda9520b.jpg?v=1759211408"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_84107440-760c-4a19-b0cf-c758fda9520b.jpg?v=1759211408","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 2pcs NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Module with SMA Antenna 2.4G 1100m Compatible\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The Addicore nRF24L01 is a 2.4GHz ISM band transceiver. The\ntransceiver consists of a fully integrated frequency synthesizer, a power\namplifier, a crystal oscillator, a demodulator, a modulator and an advanced\nShockBurst protocol engine. A host microcontroller can communicate and\nconfigure the nRF24L01+ via a 4-pin serial peripheral interface (SPI). The\nconfiguration tabs are accessible via the SPI connection. Configurable\nparameters include the frequency channel (125 selectable channels), output\npower and data rate (data rates: 250 kbps, 1 Mbps and 2 Mbps). The module has\n5V tolerant inputs that allow direct connection of SPI pins to the. Internal\nfiltering results in high margins in compliance with RF regulatory standards.\nThe radio of the module uses Gaussian Frequency Shift Keying Modulation (GFSK)\nas well as the fast Automatic Gain Control (AGC). Specification: Frequency:\n2.4 GHz ~ 2.5 GHz. Operating voltage: 3 ~ 3.6 V max. . Current: 115mA Multi-\nfrequency: 125 frequency. Supports up to six channels of data reception Box\ncontents: 2 x NRF24L01 + PA + LNA wireless transceiver RF transceiver. Module\n2 x SMA antenna\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNRF24L01P + PA + LNA radio module operates in the license-free 2.4G ISM band, point-to-point applications can also form a star network.\u003c\/li\u003e\n \u003cli\u003ePowerful wireless data transfer chip NRF24L01+, an increase of high-performance PA and LNA chips, RF switches, bandpass filters and other professional bi-directional RF power amplifiers, greatly extending the effective communication distance.\u003c\/li\u003e\n \u003cli\u003eIn the RF part of a large number of optimized matching debuggings, which make the highest transmission efficiency, the smallest harmonic, the NRF24L01P + PA + LNA radio module to external radios to achieve the least radio frequency interference, but also not prone to interference from other devices, extremely large improve the stability of work.\u003c\/li\u003e\n \u003cli\u003eCustomers only need to add one MCU to control NRF24L01P + PA + LNA via the SPI port and wireless module to complete the design of the ultra-long range wireless data transmission system. You don't have to worry about the research and development of RF parts, dramatically reduce the research and development costs and shorten the research and development cycle.\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
