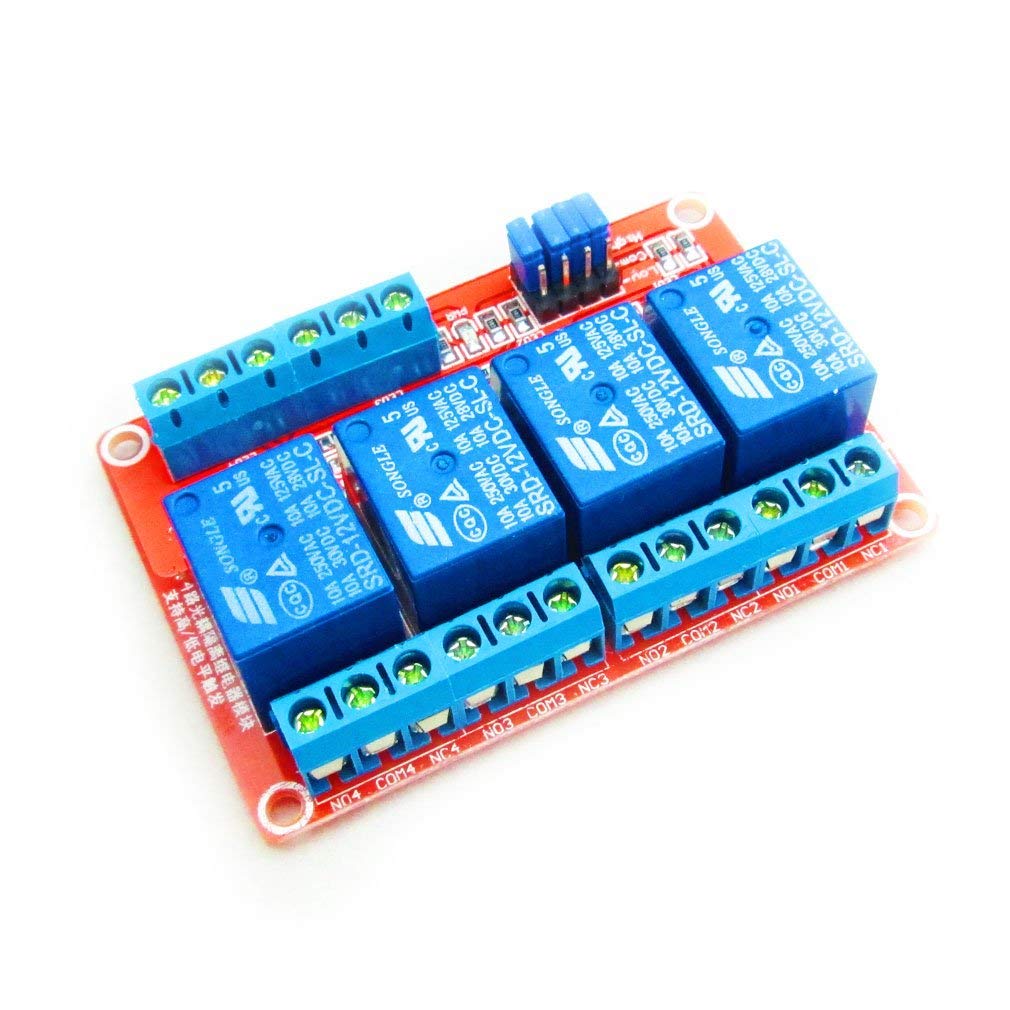

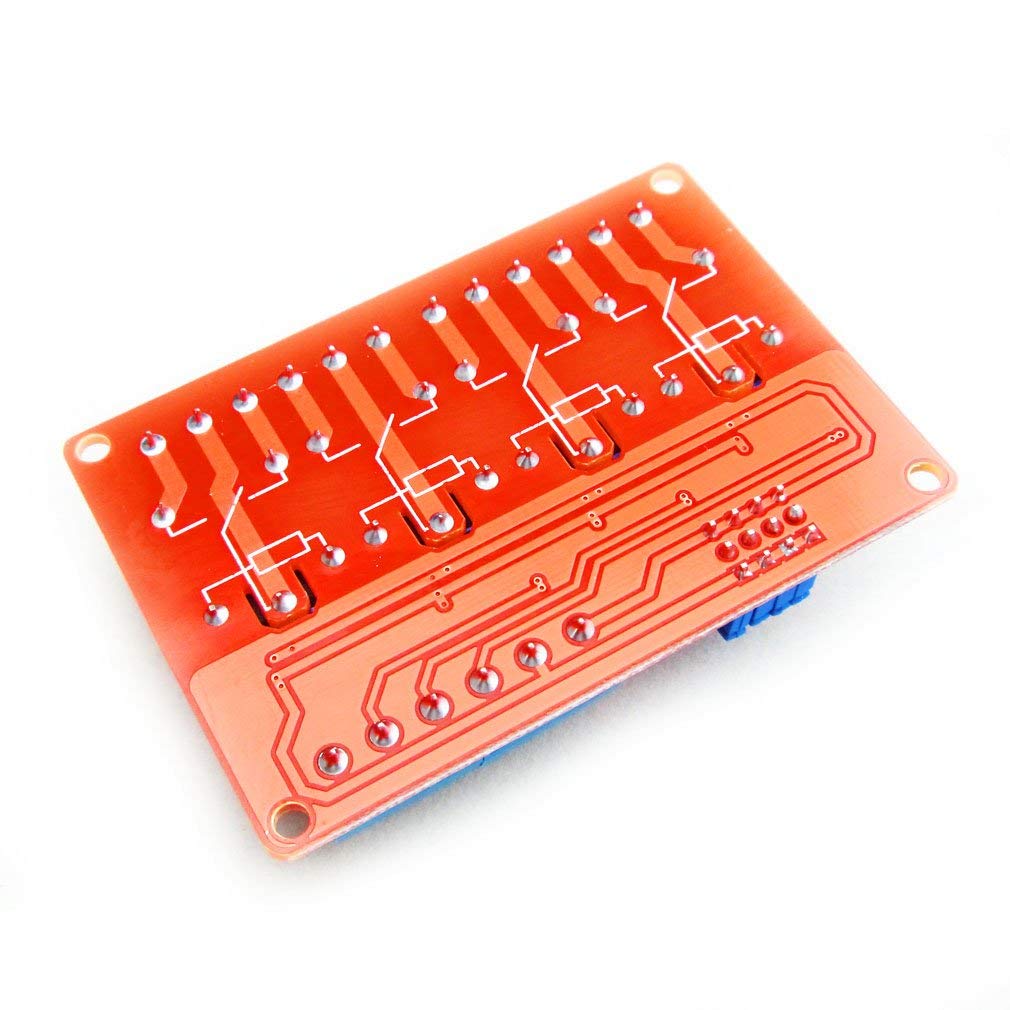

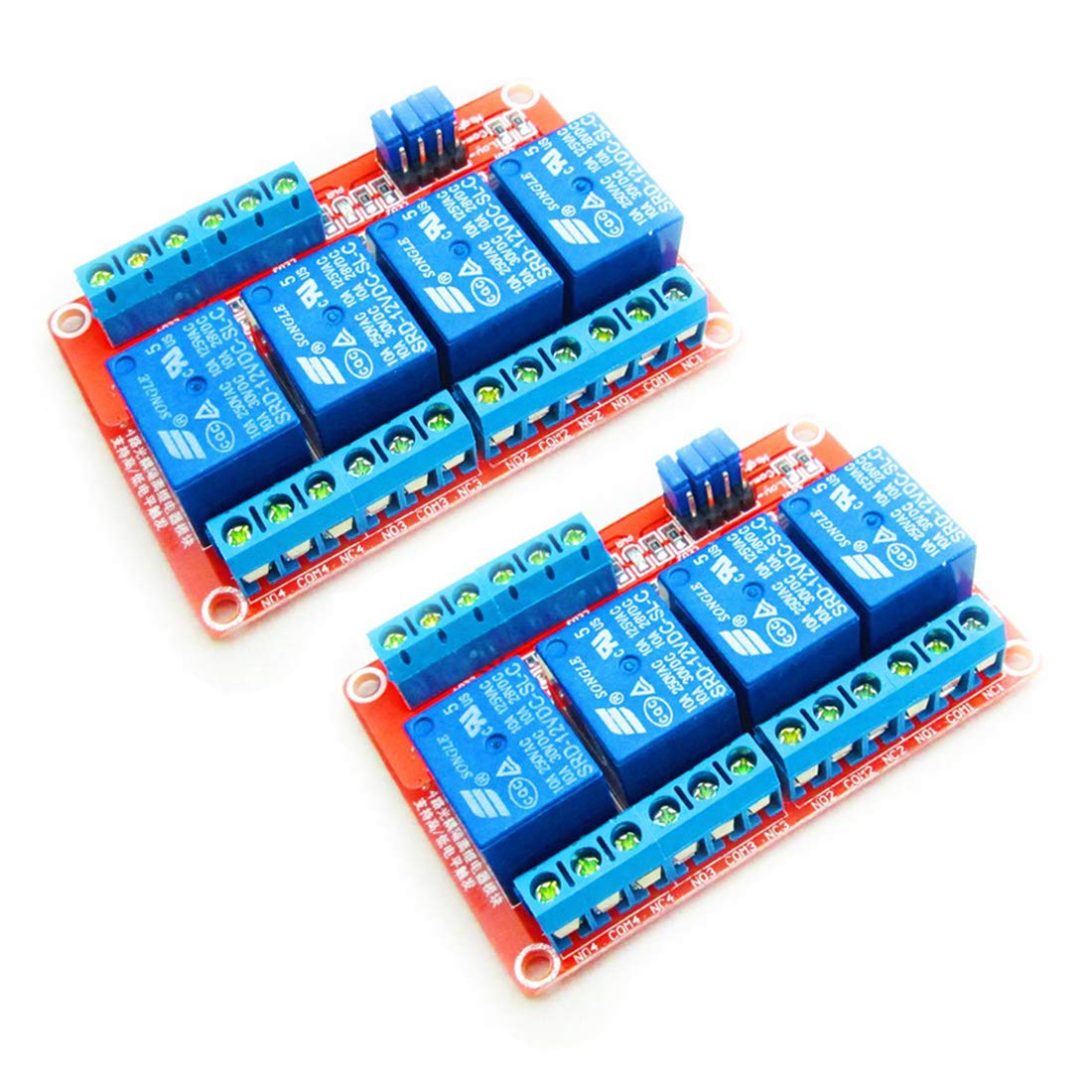

{"id":8115321536692,"title":"Hailege 2pcs 12V 4 Channel Relay Module with OPTO Isolated Support High and Low Level Trigger","handle":"hailege-2pcs-12v-4-channel-relay-module-with-opto-isolated-support-high-and-low-level-trigger","description":"\u003ch3\u003eHailege 2pcs 12V 4 Channel Relay Module with OPTO Isolated Support High and Low Level Trigger\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. The module uses original quality relay, normally open\ninterfaces. Maximum load: AC 250V\/10A, DC 30V\/10A. 2. Use of SMD optocoupler\ninsulation, drive capability, stable performance; tripping current 5mA; 3. The\nmodule voltage is 12V. 4. Each path module can be set high or low, triggered\nby a jumper. 5. Fault-tolerant design, even if the control line is\ninterrupted, the relay will not work; 6. The power indicator (green), the\nstatus indicator 4 relays (red). 7. Interface design human, all interfaces can\nbe connected directly via terminal wiring cable, very practical 8. Module\nsize: 73 mm x 50 mm x 18.5 mm (L x W x H). 9. Has four mounting screw holes,\nhole 3.1 mm, 67 mm x 44.5 mm. Grid interface: 1. DC +: positive power supply\n(voltage required by the relay, there are 5 V, 9 V, 12 V and 24 V selection).\n2. DC-: negative circuit. 3. IN1-IN4: Any path based on the settings, can be\nhigh or low to the corresponding Relay outputs to control. : a 12-line\ninterface, the interface can be connected directly to all lines, user-friendly\n1. NO1 - NO4: NO of the relay interfaces, relay before the free relay after\npull, short-circuited with COM 2. COM1 - COM4 Common Interface Relays 3. NC1 -\nNC4: normally closed relay interface relay relay recently short-circuited with\nCOM, free after pulling Choice of high and low trigger: 1. S1-S4 to direct a\nway -4 road high and low trigger selection; 2. With low short circuit, the\ntriggering of the corresponding relay is low, while the upper end of the short\ncircuit high trigger. included. Package includes: 2 x 12 V 4-channel relay\nmodule OPTO insulated high and low level trigger\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUse of SMD optocoupler insulation\u003c\/li\u003e\n \u003cli\u003e12V 4-channel relay module with OPTO insulated support for high and low level triggers\u003c\/li\u003e\n \u003cli\u003eHigh and low level triggers\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:00:01+10:00","created_at":"2026-09-02T00:02:37+10:00","vendor":"Hailege","type":"Electromechanical Relays","tags":["industrial_DE_Aug2026"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375046946996,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XYV8PKV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 2pcs 12V 4 Channel Relay Module with OPTO Isolated Support High and Low Level Trigger","public_title":null,"options":["Default Title"],"price":11800,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0371","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07XYV8PKV.jpg?v=1788271359","\/\/auspowers.com\/cdn\/shop\/files\/61QR34LKFRL.jpg?v=1788271359","\/\/auspowers.com\/cdn\/shop\/files\/61lg0drdkNL_882226a8-07ef-44fc-848c-a7f131b1c7ea.jpg?v=1788271359","\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_533e0f62-9456-4ab7-9fdb-f16c255d1eda.jpg?v=1788271359"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XYV8PKV.jpg?v=1788271359","options":["Title"],"media":[{"alt":null,"id":33273459146932,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XYV8PKV.jpg?v=1788271359"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XYV8PKV.jpg?v=1788271359","width":1100},{"alt":null,"id":33273459179700,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61QR34LKFRL.jpg?v=1788271359"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61QR34LKFRL.jpg?v=1788271359","width":1010},{"alt":null,"id":33273459212468,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61lg0drdkNL_882226a8-07ef-44fc-848c-a7f131b1c7ea.jpg?v=1788271359"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61lg0drdkNL_882226a8-07ef-44fc-848c-a7f131b1c7ea.jpg?v=1788271359","width":1010},{"alt":null,"id":33273459245236,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_533e0f62-9456-4ab7-9fdb-f16c255d1eda.jpg?v=1788271359"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51c0Ga4AmdL_533e0f62-9456-4ab7-9fdb-f16c255d1eda.jpg?v=1788271359","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 2pcs 12V 4 Channel Relay Module with OPTO Isolated Support High and Low Level Trigger\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 1. The module uses original quality relay, normally open\ninterfaces. Maximum load: AC 250V\/10A, DC 30V\/10A. 2. Use of SMD optocoupler\ninsulation, drive capability, stable performance; tripping current 5mA; 3. The\nmodule voltage is 12V. 4. Each path module can be set high or low, triggered\nby a jumper. 5. Fault-tolerant design, even if the control line is\ninterrupted, the relay will not work; 6. The power indicator (green), the\nstatus indicator 4 relays (red). 7. Interface design human, all interfaces can\nbe connected directly via terminal wiring cable, very practical 8. Module\nsize: 73 mm x 50 mm x 18.5 mm (L x W x H). 9. Has four mounting screw holes,\nhole 3.1 mm, 67 mm x 44.5 mm. Grid interface: 1. DC +: positive power supply\n(voltage required by the relay, there are 5 V, 9 V, 12 V and 24 V selection).\n2. DC-: negative circuit. 3. IN1-IN4: Any path based on the settings, can be\nhigh or low to the corresponding Relay outputs to control. : a 12-line\ninterface, the interface can be connected directly to all lines, user-friendly\n1. NO1 - NO4: NO of the relay interfaces, relay before the free relay after\npull, short-circuited with COM 2. COM1 - COM4 Common Interface Relays 3. NC1 -\nNC4: normally closed relay interface relay relay recently short-circuited with\nCOM, free after pulling Choice of high and low trigger: 1. S1-S4 to direct a\nway -4 road high and low trigger selection; 2. With low short circuit, the\ntriggering of the corresponding relay is low, while the upper end of the short\ncircuit high trigger. included. Package includes: 2 x 12 V 4-channel relay\nmodule OPTO insulated high and low level trigger\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eUse of SMD optocoupler insulation\u003c\/li\u003e\n \u003cli\u003e12V 4-channel relay module with OPTO insulated support for high and low level triggers\u003c\/li\u003e\n \u003cli\u003eHigh and low level triggers\u003c\/li\u003e\n \u003cli\u003eWe offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.\u003c\/li\u003e\n \u003c\/ul\u003e"}
