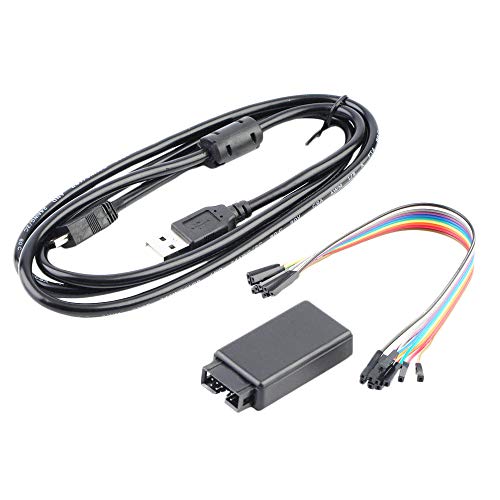

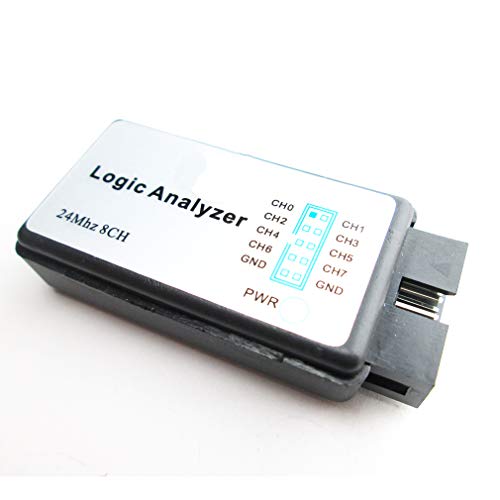

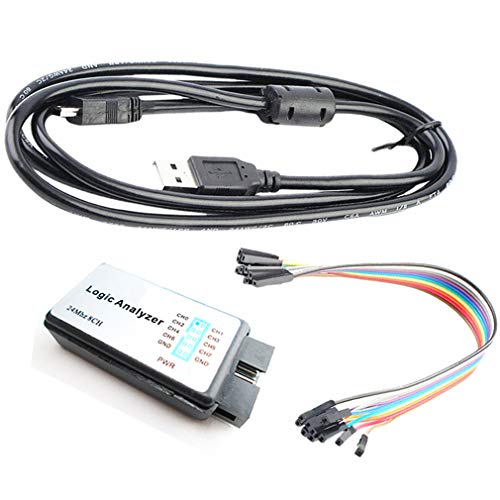

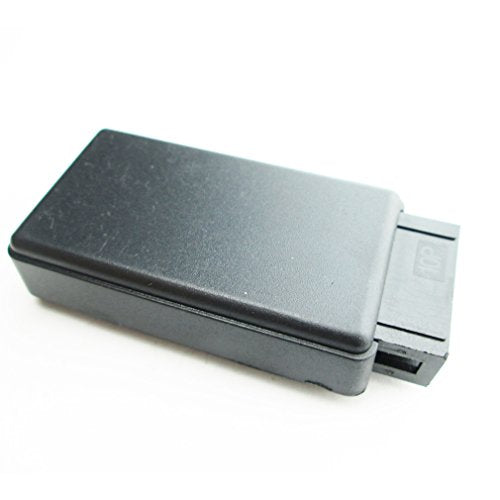

{"id":8115202621620,"title":"Hailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM","handle":"hailege-24mhz-8ch-usb-logic-analyzer-device-with-emi-ferrite-ring-usb-cable-24mhz-8-channel-uart-iic-spi-debug-arm-fpga-m100-scm","description":"\u003ch3\u003eHailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8\nChannel UART IIC SPI Debug ARM FPGA M100 SCM Sampling rate up to: 24 MHz, can\nbe 24 MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz,\n100KHz, 50KHz, 25KHz; The logic for each channel sampling rate of 24M\/s.\nGeneral applications around 10M, enough to cope with a variety of occasions;\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nhigh voltage: 2.0V to 5.25V. Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz. Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz). Packing Included: 1 x logic analyzer. 1 x\nUSB cable. 1 x Dupont wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e24MHz 8CH Logic Analyzer Device UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/li\u003e\n \u003cli\u003eThe logic analyzer for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; 8-channel\u003c\/li\u003e\n \u003cli\u003eSampling rate up to: 24 MHz, can be 24 MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e\n \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003cli\u003eInput impedance: 1Mohm || 10pF (typical, approximate); Crystal: +\/-20ppm, 24MHz\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T11:45:04+10:00","created_at":"2026-09-01T23:08:33+10:00","vendor":"Hailege","type":"Logic Analysers","tags":["industrial_DE_Aug2026"],"price":18100,"price_min":18100,"price_max":18100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374921380020,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07XQCRR6R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM","public_title":null,"options":["Default Title"],"price":18100,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"H-1-0015","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1788268115","\/\/auspowers.com\/cdn\/shop\/files\/41PRfXF3evL_bff37769-2e90-41a2-94d2-4782a63f378a.jpg?v=1788268115","\/\/auspowers.com\/cdn\/shop\/files\/41ebe-aOsNL.jpg?v=1788268115","\/\/auspowers.com\/cdn\/shop\/files\/412jFx63UIL.jpg?v=1788268115"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1788268115","options":["Title"],"media":[{"alt":null,"id":33272714002612,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1788268115"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07XQCRR6R.jpg?v=1788268115","width":500},{"alt":null,"id":33272714035380,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41PRfXF3evL_bff37769-2e90-41a2-94d2-4782a63f378a.jpg?v=1788268115"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41PRfXF3evL_bff37769-2e90-41a2-94d2-4782a63f378a.jpg?v=1788268115","width":500},{"alt":null,"id":33272714068148,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41ebe-aOsNL.jpg?v=1788268115"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41ebe-aOsNL.jpg?v=1788268115","width":500},{"alt":null,"id":33272714100916,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/412jFx63UIL.jpg?v=1788268115"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/412jFx63UIL.jpg?v=1788268115","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHailege 24MHz 8CH USB Logic Analyzer Device With EMI Ferrite Ring USB Cable 24MHz 8 Channel UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8\nChannel UART IIC SPI Debug ARM FPGA M100 SCM Sampling rate up to: 24 MHz, can\nbe 24 MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz,\n100KHz, 50KHz, 25KHz; The logic for each channel sampling rate of 24M\/s.\nGeneral applications around 10M, enough to cope with a variety of occasions;\nInput voltage range: -0.5V to 5.25V Input Low Voltage: -0.5V to 0.8V Input\nhigh voltage: 2.0V to 5.25V. Works with 5V, 3.3V, 2.5V, 2.0V systems. May work\nwith 1.8V but not recommended. Input impedance: 1Mohm || 10pF (typical,\napproximate) Crystal: +\/-20ppm, 24MHz. Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz). Packing Included: 1 x logic analyzer. 1 x\nUSB cable. 1 x Dupont wire\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e24MHz 8CH Logic Analyzer Device UART IIC SPI Debug ARM FPGA M100 SCM\u003c\/li\u003e\n \u003cli\u003eThe logic analyzer for each channel sampling rate of 24M\/s. General applications around 10M, enough to cope with a variety of occasions; 8-channel\u003c\/li\u003e\n \u003cli\u003eSampling rate up to: 24 MHz, can be 24 MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;\u003c\/li\u003e\n \u003cli\u003eInput voltage range: -0.5V to 5.25V; Input Low Voltage: -0.5V to 0.8V; Input High Voltage: 2.0V to 5.25V\u003c\/li\u003e\n \u003cli\u003eInput impedance: 1Mohm || 10pF (typical, approximate); Crystal: +\/-20ppm, 24MHz\u003c\/li\u003e\n \u003c\/ul\u003e"}
