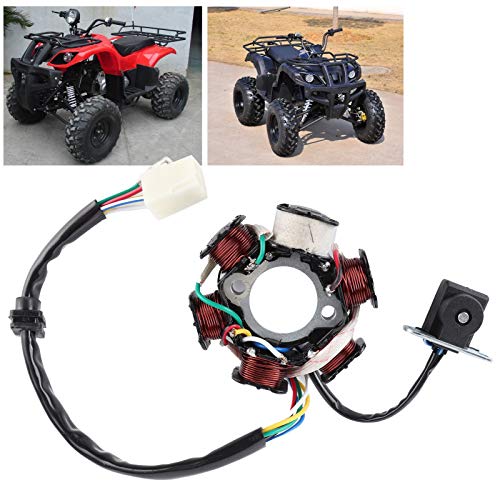

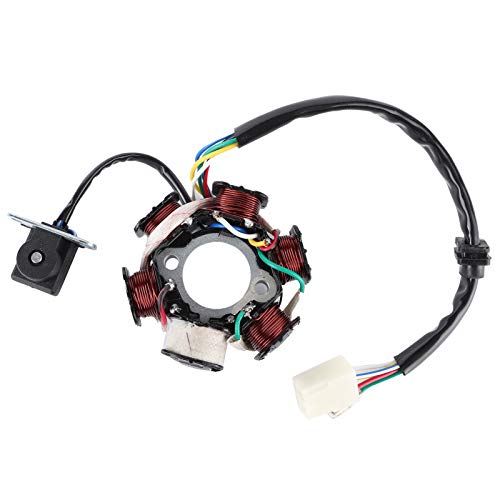

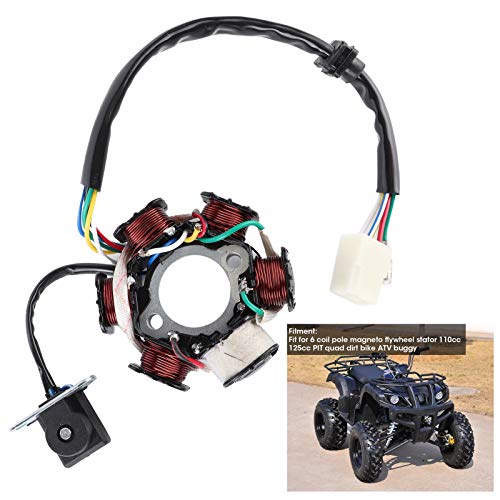

{"id":8115301384372,"title":"GY6 Stator Coil C11060 – 6-pole Magneto Ignition Coil for 110cc 125cc Quad Dirt Bike ATV – Replacement Part Copper Winding","handle":"gy6-statorspule-c11060-6-polige-magneto-zundspule-fur-110cc-125cc-quad-dirt-bike-atv-ersatzteil-kupferwicklung","description":"\u003ch3\u003eGY6 Stator Coil C11060 – 6-Pole Magneto Ignition Coil for 110cc 125cc Quad Dirt Bike ATV – Replacement Part Copper Winding\u003c\/h3\u003e \u003cp id=\"b\"\u003eTechnical Specifications - Type: 6-pole magneto stator coil (alternator \u0026amp; ignition) - Model: GY6 C11060 (replacement for OEM C11060, C110-60) - Number of poles: 6 (for 6-pole flywheel) - Coil wire: Pure copper wire (no aluminum) - Resistance (ignition coil): approx. 120–180 ohms (depending on temperature) - Resistance (charging coil): approx. 0.5–1.2 ohms - Cable output: 2 wires (usually blue\/white, green) + ground eyelet - Compatible engines: GY6 50cc No – only for 110cc and 125cc (6-pole) Variant) - Compatible vehicles: PIT Dirt Bike, Quad, ATV, Buggy with GY6 110\/125cc, 6-pole magneto - Dimensions (mounting holes): 32 mm spacing (center to center) - Weight: approx. 230 g Scope of delivery - 1 x GY6 stator coil C11060 (complete with cables) Important notes - This part ONLY fits the 6-pole magneto flywheel – not the 8-pole or 11-pole version. Count the poles on the old flywheel. - Disconnect the battery before installation. - Check the wiring harness: On some vehicles, the order of the wires must be adjusted. - After installation, test the spark: Remove the spark plug, touch the ground, start the engine – a blue spark is good. - Not a replacement for a defective CDI unit – if there is no spark despite a new stator, check the CDI. - Not suitable for water-damaged engines – dry them beforehand. - Installation only with a cold engine. Installation tip (step by step): 1. Unscrew the old engine cover (left). 2. Remove the magneto flywheel using a puller. 3. Loosen the two screws of the old stator coil (Torx or Phillips). 4. Install the new stator coil in the same position – pay attention to the cutout for the cable channel. 5. Route the cables so that they do not touch the flywheel. 6. Install the flywheel and replace the cover. 7. Start the engine. Is it running rough? Check the pole gap (0.3 mm clearance between the coil core and the magnet). 8. Retighten the screws after 100 operating hours. \u003c\/p\u003e\u003cp\u003e \u003c\/p\u003e\u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eNo spark? Then the stator is often defective: Replace the old coil if your engine does not start, sputters, or does not charge the battery. Our GY6 stator coil brings back the ignition. Perfectly suited for 6-pole magneto flywheels: Designed for GY6 engines with 6 coil poles. Compatible with 110cc and 125cc pit bikes, ATVs, dirt bikes, and buggies. Please check your model beforehand. Copper winding instead of aluminum: Many cheap parts use thin aluminum wire; we use copper. Better conductivity, less heat generation, and a longer lifespan under off-road conditions. Installation in 20 minutes, no special tools required: Unscrew the old stator, attach the new one (2 screws). Ensure the cables are correctly aligned, and you're done. Save yourself the expensive workshop visit. Direct replacement for C11060 and similar numbers: This magneto-stator replaces OEM parts with the numbers C11060, C11060, and many GY6 coils. Scope of delivery: 1 stator including cable and connector.\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2026-09-02T11:07:29+10:00","created_at":"2026-09-01T23:55:47+10:00","vendor":"BOROCO","type":"Coils","tags":["industrial_DE_Aug2026"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375022239924,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0GRR81Q44","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GY6 Stator Coil C11060 – 6-pole Magneto Ignition Coil for 110cc 125cc Quad Dirt Bike ATV – Replacement Part Copper Winding","public_title":null,"options":["Default Title"],"price":16500,"weight":320,"compare_at_price":null,"inventory_management":"shopify","barcode":"BOROCOytua3kzqoe","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0GRR81Q44.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/513jHWyE-gL.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/51Wgw-1518L.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/41UMtFn0Z-L.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/41hBot5nqVL.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/415lToelNOL.jpg?v=1788270949","\/\/auspowers.com\/cdn\/shop\/files\/31gACUPGZ0L.jpg?v=1788270949"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0GRR81Q44.jpg?v=1788270949","options":["Title"],"media":[{"alt":null,"id":33273332662452,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0GRR81Q44.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0GRR81Q44.jpg?v=1788270949","width":500},{"alt":null,"id":33273332695220,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/513jHWyE-gL.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/513jHWyE-gL.jpg?v=1788270949","width":500},{"alt":null,"id":33273332727988,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Wgw-1518L.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Wgw-1518L.jpg?v=1788270949","width":500},{"alt":null,"id":33273332760756,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41UMtFn0Z-L.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41UMtFn0Z-L.jpg?v=1788270949","width":500},{"alt":null,"id":33273332793524,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41hBot5nqVL.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41hBot5nqVL.jpg?v=1788270949","width":500},{"alt":null,"id":33273332826292,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/415lToelNOL.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/415lToelNOL.jpg?v=1788270949","width":500},{"alt":null,"id":33273332859060,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31gACUPGZ0L.jpg?v=1788270949"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31gACUPGZ0L.jpg?v=1788270949","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGY6 Stator Coil C11060 – 6-Pole Magneto Ignition Coil for 110cc 125cc Quad Dirt Bike ATV – Replacement Part Copper Winding\u003c\/h3\u003e \u003cp id=\"b\"\u003eTechnical Specifications - Type: 6-pole magneto stator coil (alternator \u0026amp; ignition) - Model: GY6 C11060 (replacement for OEM C11060, C110-60) - Number of poles: 6 (for 6-pole flywheel) - Coil wire: Pure copper wire (no aluminum) - Resistance (ignition coil): approx. 120–180 ohms (depending on temperature) - Resistance (charging coil): approx. 0.5–1.2 ohms - Cable output: 2 wires (usually blue\/white, green) + ground eyelet - Compatible engines: GY6 50cc No – only for 110cc and 125cc (6-pole) Variant) - Compatible vehicles: PIT Dirt Bike, Quad, ATV, Buggy with GY6 110\/125cc, 6-pole magneto - Dimensions (mounting holes): 32 mm spacing (center to center) - Weight: approx. 230 g Scope of delivery - 1 x GY6 stator coil C11060 (complete with cables) Important notes - This part ONLY fits the 6-pole magneto flywheel – not the 8-pole or 11-pole version. Count the poles on the old flywheel. - Disconnect the battery before installation. - Check the wiring harness: On some vehicles, the order of the wires must be adjusted. - After installation, test the spark: Remove the spark plug, touch the ground, start the engine – a blue spark is good. - Not a replacement for a defective CDI unit – if there is no spark despite a new stator, check the CDI. - Not suitable for water-damaged engines – dry them beforehand. - Installation only with a cold engine. Installation tip (step by step): 1. Unscrew the old engine cover (left). 2. Remove the magneto flywheel using a puller. 3. Loosen the two screws of the old stator coil (Torx or Phillips). 4. Install the new stator coil in the same position – pay attention to the cutout for the cable channel. 5. Route the cables so that they do not touch the flywheel. 6. Install the flywheel and replace the cover. 7. Start the engine. Is it running rough? Check the pole gap (0.3 mm clearance between the coil core and the magnet). 8. Retighten the screws after 100 operating hours. \u003c\/p\u003e\u003cp\u003e \u003c\/p\u003e\u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eNo spark? Then the stator is often defective: Replace the old coil if your engine does not start, sputters, or does not charge the battery. Our GY6 stator coil brings back the ignition. Perfectly suited for 6-pole magneto flywheels: Designed for GY6 engines with 6 coil poles. Compatible with 110cc and 125cc pit bikes, ATVs, dirt bikes, and buggies. Please check your model beforehand. Copper winding instead of aluminum: Many cheap parts use thin aluminum wire; we use copper. Better conductivity, less heat generation, and a longer lifespan under off-road conditions. Installation in 20 minutes, no special tools required: Unscrew the old stator, attach the new one (2 screws). Ensure the cables are correctly aligned, and you're done. Save yourself the expensive workshop visit. Direct replacement for C11060 and similar numbers: This magneto-stator replaces OEM parts with the numbers C11060, C11060, and many GY6 coils. Scope of delivery: 1 stator including cable and connector.\u003c\/li\u003e\n\u003c\/ul\u003e"}
