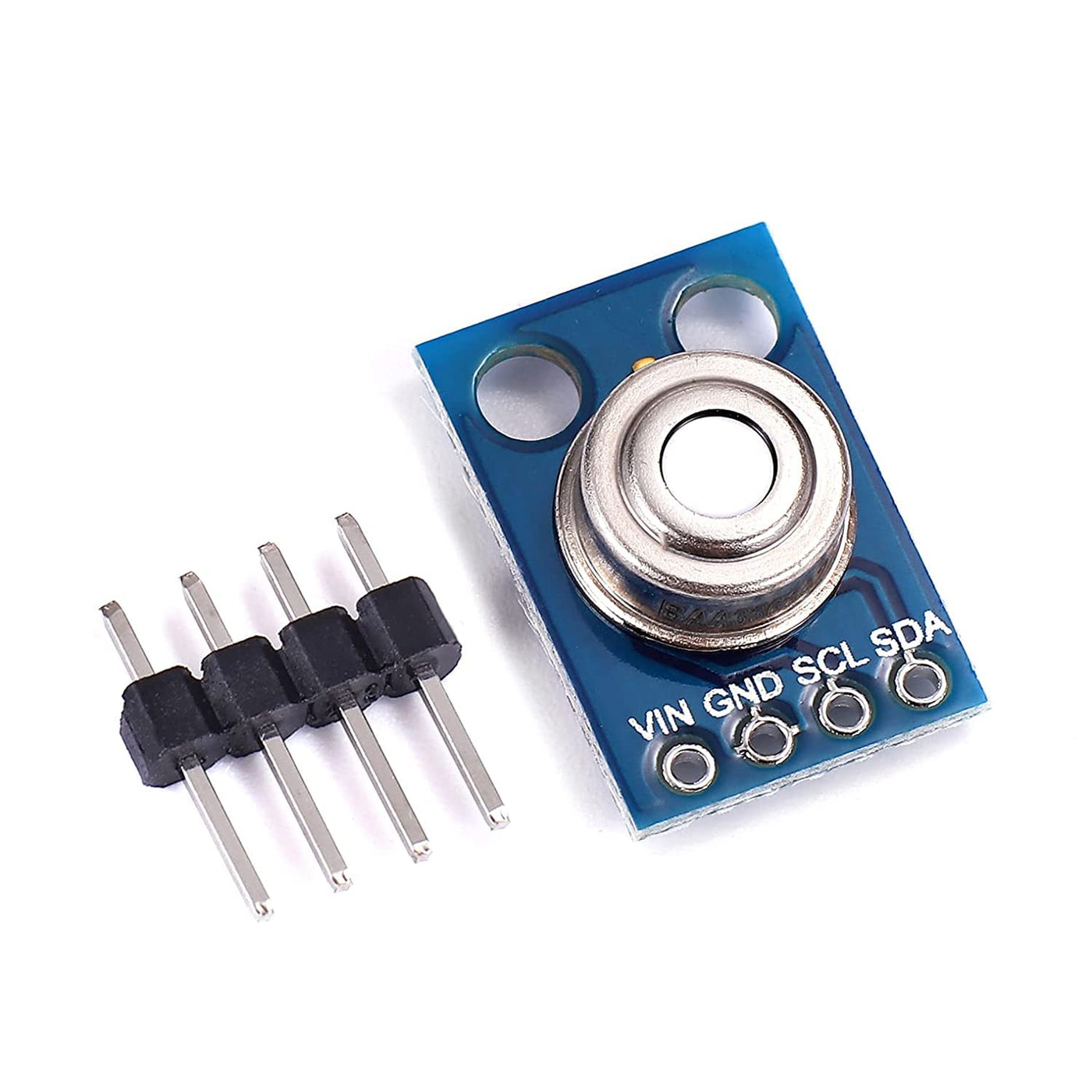

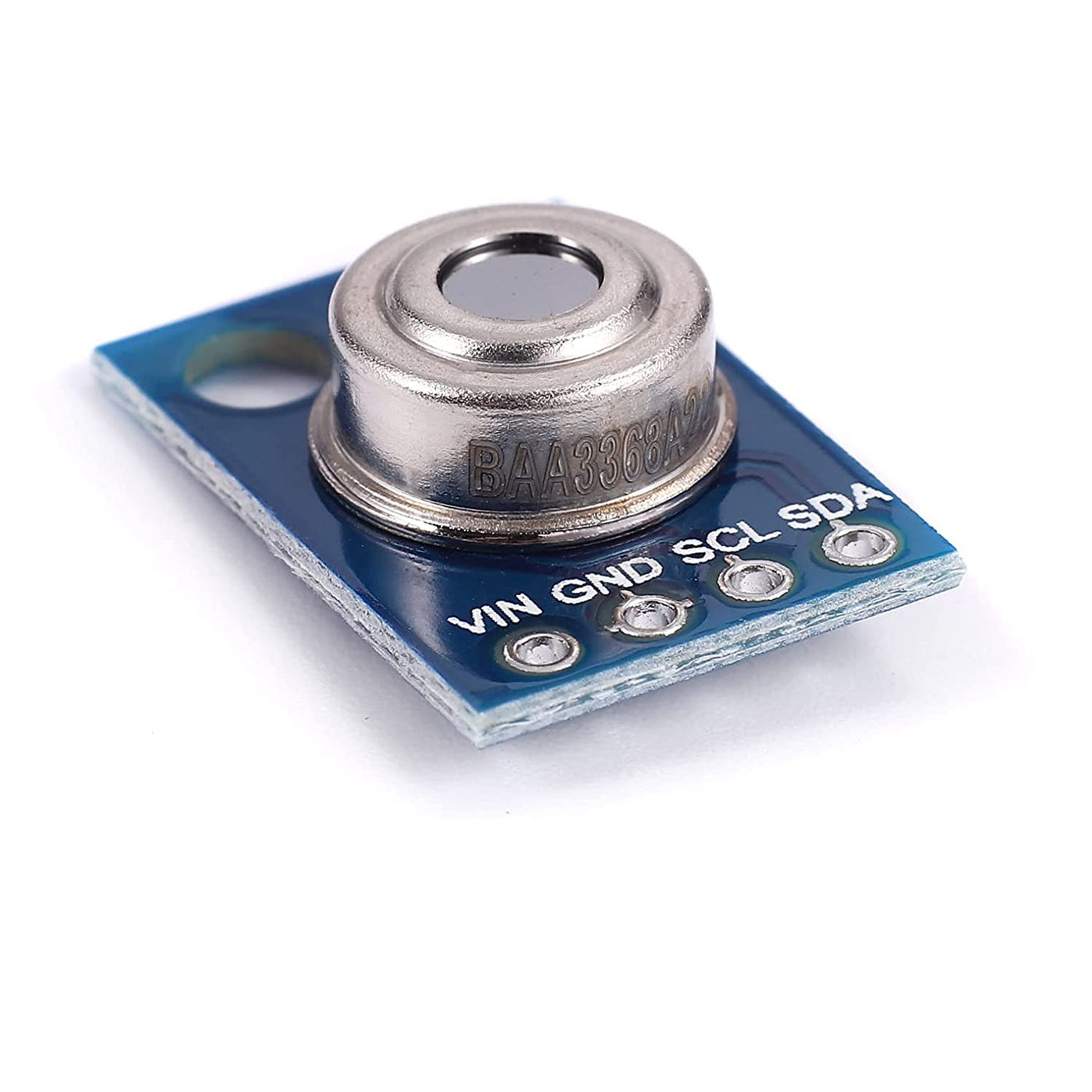

{"id":8034533048500,"title":"GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial","handle":"gy-906-mlx90614-mlx90614esf-non-contact-ir-infrared-temperature-sensor-module-iic-i2c-serial","description":"\u003ch3\u003eGY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSmall size, low cost Mounted on a breakout board with two types of pins 10k Pull up resistors for the I2C interface with optional solder jumpers Easy to integrate Factory calibrated in wide temperature range: -40…+125°C for sensor temperature and -70…+380°C for object temperature. High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration Measurement resolution of 0.02°C Single and dual zone versions SMBus compatible digital interface Customizable PWM output for continuousreading Simple adaptation for 8…16V applications Sleep mode for reduced power consumption Different package options for applications andmeasurements versatility Automotive grade Applications Examples: High precision non-contact temperaturemeasurements Thermal Comfort sensor for Mobile AirConditioning control system Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging Automotive blind angle detection Industrial temperature control of moving parts Temperature control in printers and copiers Home appliances with temperature control Healthcare Livestock monitoring Movement detection Multiple zone temperature control – up to 127sensors can be read via common 2 wires Thermal relay \/ alert Body temperature measurement Package included: 1 MLX90614 Infrared Temperature Sensor Module NOTE:Please contact us if you need the Datasheet.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMLX90614 is an infrared thermometer for non-contact temperature measurements.\u003c\/li\u003e\r\n \u003cli\u003eBoth the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can.\u003c\/li\u003e\r\n \u003cli\u003eIntegrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.\u003c\/li\u003e\r\n \u003cli\u003eThe thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02C.\u003c\/li\u003e\r\n \u003cli\u003eThe user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120C, with an output resolution of 0.14C.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:13:18+11:00","created_at":"2026-02-28T20:13:15+11:00","vendor":"KNACRO","type":"Temperature Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154581942452,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09QYC9DLV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial","public_title":null,"options":["Default Title"],"price":14500,"weight":5,"compare_at_price":null,"inventory_management":"shopify","barcode":"5.5-40V) Step Down to 3.3V","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09QYC9DLV.jpg?v=1775787902","\/\/auspowers.com\/cdn\/shop\/files\/61t9BNYubQL.jpg?v=1772269998","\/\/auspowers.com\/cdn\/shop\/files\/61So_m1bLyL.jpg?v=1772269998","\/\/auspowers.com\/cdn\/shop\/files\/41Tvegnz84L.jpg?v=1772269998"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09QYC9DLV.jpg?v=1775787902","options":["Title"],"media":[{"alt":"[Australia - AusPower] - GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial ","id":32724413382836,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09QYC9DLV.jpg?v=1775787902"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09QYC9DLV.jpg?v=1775787902","width":1500},{"alt":"[Australia - AusPower] - GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial ","id":32724413415604,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61t9BNYubQL.jpg?v=1772269998"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61t9BNYubQL.jpg?v=1772269998","width":1500},{"alt":"[Australia - AusPower] - GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial ","id":32724413448372,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61So_m1bLyL.jpg?v=1772269998"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61So_m1bLyL.jpg?v=1772269998","width":1500},{"alt":"[Australia - AusPower] - GY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial ","id":32724413481140,"position":4,"preview_image":{"aspect_ratio":1.215,"height":409,"width":497,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Tvegnz84L.jpg?v=1772269998"},"aspect_ratio":1.215,"height":409,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Tvegnz84L.jpg?v=1772269998","width":497}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGY-906 MLX90614 MLX90614ESF Non Contact IR Infrared Temperature Sensor Module IIC I2C Serial\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSmall size, low cost Mounted on a breakout board with two types of pins 10k Pull up resistors for the I2C interface with optional solder jumpers Easy to integrate Factory calibrated in wide temperature range: -40…+125°C for sensor temperature and -70…+380°C for object temperature. High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration Measurement resolution of 0.02°C Single and dual zone versions SMBus compatible digital interface Customizable PWM output for continuousreading Simple adaptation for 8…16V applications Sleep mode for reduced power consumption Different package options for applications andmeasurements versatility Automotive grade Applications Examples: High precision non-contact temperaturemeasurements Thermal Comfort sensor for Mobile AirConditioning control system Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging Automotive blind angle detection Industrial temperature control of moving parts Temperature control in printers and copiers Home appliances with temperature control Healthcare Livestock monitoring Movement detection Multiple zone temperature control – up to 127sensors can be read via common 2 wires Thermal relay \/ alert Body temperature measurement Package included: 1 MLX90614 Infrared Temperature Sensor Module NOTE:Please contact us if you need the Datasheet.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMLX90614 is an infrared thermometer for non-contact temperature measurements.\u003c\/li\u003e\r\n \u003cli\u003eBoth the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can.\u003c\/li\u003e\r\n \u003cli\u003eIntegrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.\u003c\/li\u003e\r\n \u003cli\u003eThe thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02C.\u003c\/li\u003e\r\n \u003cli\u003eThe user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120C, with an output resolution of 0.14C.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
