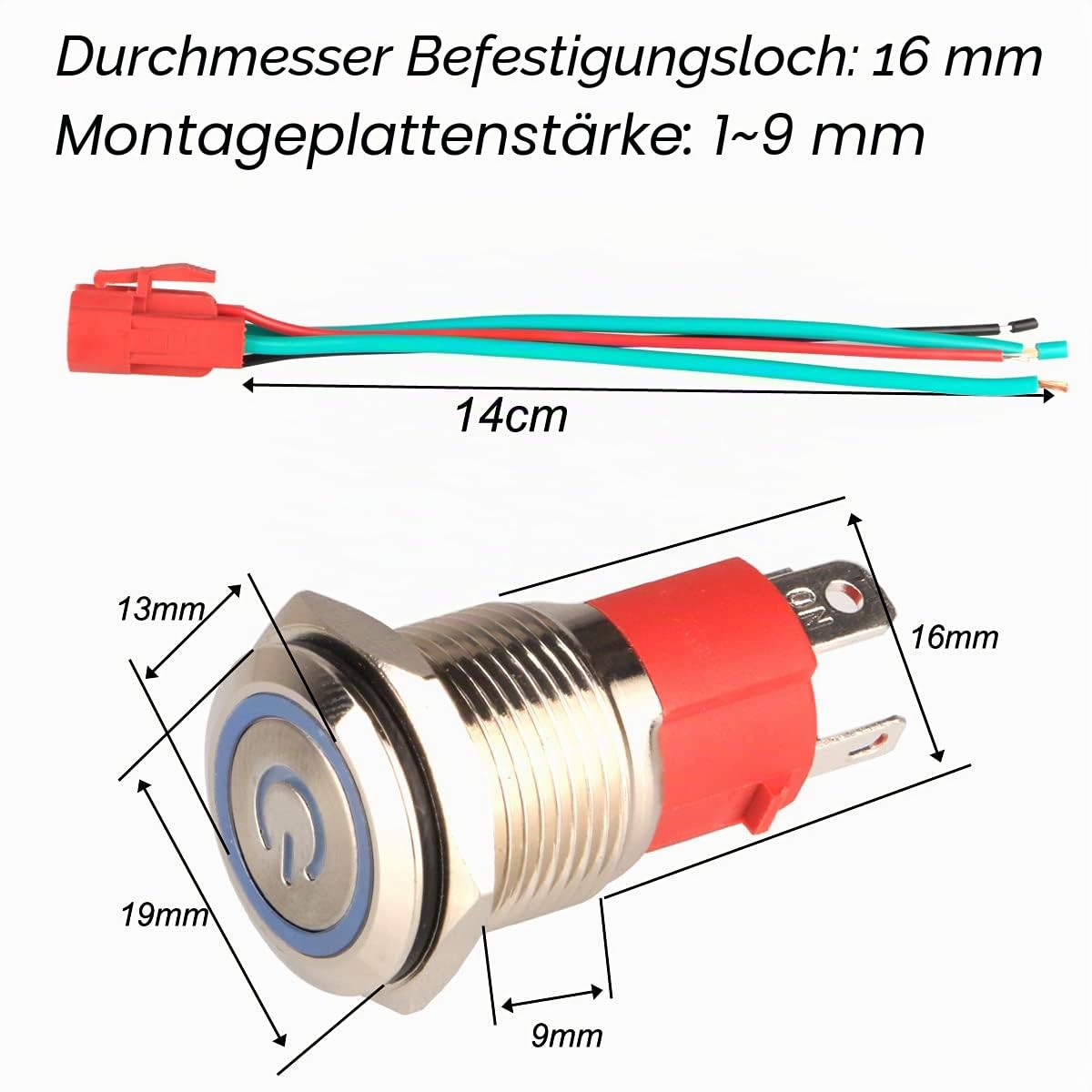

{"id":8115144589492,"title":"GUUZI 220V-230V\/15A Self-Locking Push Button Switch NO Waterproof White LED Light Illuminated 16 mm Metal Power Start Push Button with Socket Plug Cable White 220V\/230V snap-in switch","handle":"guuzi-220v-230v-15a-self-locking-push-button-switch-no-waterproof-white-led-light-illuminated-16-mm-metal-power-start-push-button-with-socket-plug-cable-white-220-v-230-v-snap-in-switch","description":"\u003ch3\u003eGUUZI 220V-230V\/15A Self-Locking Push Button Switch NO Waterproof White LED Light Illuminated 16 mm Metal Power Start Push Button with Socket Plug Cable\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct name: 16 mm LED push button switch. Maximum power of the switch: 15A\/220V-230V. LED Color: White Material: nickel-plated brass + stainless steel. Head shape: flat head. Head Diameter: 19mm Mounting Hole Size: 16mm Max. Plate thickness: 11 mm. Switch combination: Normally open Connector type: 4 pins, with female connector wire. Operation type: self-locking Protection grade: IP65, IK10. Operating temperature: -20°C to +55°C. Contact resistance: ≤50mΩ Insulation resistance: ≥1000mΩ Mechanical life: \u0026gt;500,000 times Electrical life: \u0026gt;50,000 times Package includes: 1 x LED push button switch made of metal. 1 x switching socket plug. 1 x O ring Important: The user manual is not included, please refer to the connection diagrams from the photo on this website. However, if you encounter any problems during operation, please feel free to contact us. We will reply to you within 24 hours. Note: 1. These switches come with a rubber O-ring that makes them splash proof, but they cannot be submerged in water. 2. For the push button switch of the wiring clamp, please do your best to complete the soldering within 3 seconds. 3. Please allow 1-3mm error due to manual measurement. Thank you for your understanding. 4. We strive to provide our customers with good products and excellent after-sales service. If you have any problem, please feel free to contact us. We will solve all problems for you.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLatching switch: Press it OP; Press it OFF again; Contact configuration: 1NO1NC; Protection grade: IP65, IK10. This switch maximum usage current: 15 A.\u003c\/li\u003e \u003cli\u003eThis switch uses continuous current: 10A. LED light rated voltage and current: 220V-230V\/10mA.\u003c\/li\u003e \u003cli\u003ePanel mounting hole diameter: 16 mm, max. Panel thickness:11mm, IP65 waterproof protection can be used in wet or dusty environment.\u003c\/li\u003e \u003cli\u003eContact configuration: 1NO, shell material: metal material; mechanical life: 1000,000 cycles; electrical life: 200,000 cycles.\u003c\/li\u003e \u003cli\u003ePush button starter switch comes with cable clamp with female plug, does not need to be soldered, makes your work simple and easy! The LED light can always be turned on or only when the device is working, it depends on how you connect the cable.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2026-09-02T12:05:11+10:00","created_at":"2026-09-01T22:48:33+10:00","vendor":"Guuzi","type":"Push Button Switches","tags":["industrial_DE_Aug2026"],"price":10900,"price_min":10900,"price_max":10900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374860267700,"title":"White 220 V\/230 V snap-in switch","option1":"White 220 V\/230 V snap-in switch","option2":null,"option3":null,"sku":"de-B097MMYNTL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GUUZI 220V-230V\/15A Self-Locking Push Button Switch NO Waterproof White LED Light Illuminated 16 mm Metal Power Start Push Button with Socket Plug Cable White 220V\/230V snap-in switch - White 220 V\/230 V snap-in switch","public_title":"White 220 V\/230 V snap-in switch","options":["White 220 V\/230 V snap-in switch"],"price":10900,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"781509947224","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B097MMYNTL.jpg?v=1788266915","\/\/auspowers.com\/cdn\/shop\/files\/61ck_IH7aAL.jpg?v=1788266915","\/\/auspowers.com\/cdn\/shop\/files\/61L7QNFWVnL.jpg?v=1788266915","\/\/auspowers.com\/cdn\/shop\/files\/61OH61qNzlL.jpg?v=1788266915","\/\/auspowers.com\/cdn\/shop\/files\/61rujulBdzL.jpg?v=1788266915","\/\/auspowers.com\/cdn\/shop\/files\/51loAMrISVL.jpg?v=1788266915"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B097MMYNTL.jpg?v=1788266915","options":["Colour Name"],"media":[{"alt":null,"id":33272368234676,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B097MMYNTL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B097MMYNTL.jpg?v=1788266915","width":1200},{"alt":null,"id":33272368267444,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ck_IH7aAL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ck_IH7aAL.jpg?v=1788266915","width":1100},{"alt":null,"id":33272368300212,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61L7QNFWVnL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61L7QNFWVnL.jpg?v=1788266915","width":1200},{"alt":null,"id":33272368332980,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61OH61qNzlL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61OH61qNzlL.jpg?v=1788266915","width":1200},{"alt":null,"id":33272368365748,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61rujulBdzL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61rujulBdzL.jpg?v=1788266915","width":1100},{"alt":null,"id":33272368398516,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51loAMrISVL.jpg?v=1788266915"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51loAMrISVL.jpg?v=1788266915","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGUUZI 220V-230V\/15A Self-Locking Push Button Switch NO Waterproof White LED Light Illuminated 16 mm Metal Power Start Push Button with Socket Plug Cable\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct name: 16 mm LED push button switch. Maximum power of the switch: 15A\/220V-230V. LED Color: White Material: nickel-plated brass + stainless steel. Head shape: flat head. Head Diameter: 19mm Mounting Hole Size: 16mm Max. Plate thickness: 11 mm. Switch combination: Normally open Connector type: 4 pins, with female connector wire. Operation type: self-locking Protection grade: IP65, IK10. Operating temperature: -20°C to +55°C. Contact resistance: ≤50mΩ Insulation resistance: ≥1000mΩ Mechanical life: \u0026gt;500,000 times Electrical life: \u0026gt;50,000 times Package includes: 1 x LED push button switch made of metal. 1 x switching socket plug. 1 x O ring Important: The user manual is not included, please refer to the connection diagrams from the photo on this website. However, if you encounter any problems during operation, please feel free to contact us. We will reply to you within 24 hours. Note: 1. These switches come with a rubber O-ring that makes them splash proof, but they cannot be submerged in water. 2. For the push button switch of the wiring clamp, please do your best to complete the soldering within 3 seconds. 3. Please allow 1-3mm error due to manual measurement. Thank you for your understanding. 4. We strive to provide our customers with good products and excellent after-sales service. If you have any problem, please feel free to contact us. We will solve all problems for you.\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eLatching switch: Press it OP; Press it OFF again; Contact configuration: 1NO1NC; Protection grade: IP65, IK10. This switch maximum usage current: 15 A.\u003c\/li\u003e \u003cli\u003eThis switch uses continuous current: 10A. LED light rated voltage and current: 220V-230V\/10mA.\u003c\/li\u003e \u003cli\u003ePanel mounting hole diameter: 16 mm, max. Panel thickness:11mm, IP65 waterproof protection can be used in wet or dusty environment.\u003c\/li\u003e \u003cli\u003eContact configuration: 1NO, shell material: metal material; mechanical life: 1000,000 cycles; electrical life: 200,000 cycles.\u003c\/li\u003e \u003cli\u003ePush button starter switch comes with cable clamp with female plug, does not need to be soldered, makes your work simple and easy! The LED light can always be turned on or only when the device is working, it depends on how you connect the cable.\u003c\/li\u003e \u003c\/ul\u003e"}
