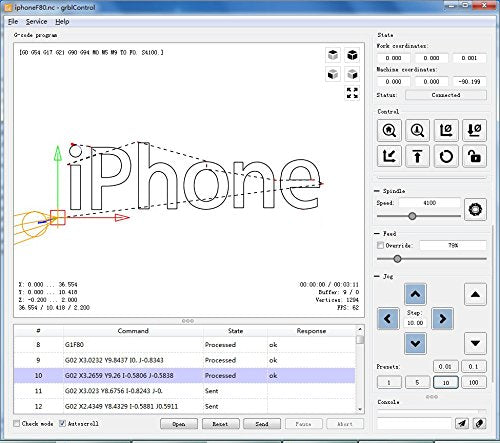

{"id":8089181585588,"title":"GRBL 1.1f CNC Controller 3-Axis CNC Router Machine Control Board for CNC 3018 Pro 3018 Max 3018Pro-M Milling Machine","handle":"grbl-1-1f-cnc-controller-3-axis-cnc-router-machine-control-board-for-cnc-3018-pro-3018-max-3018pro-m-milling-machine","description":"\u003ch3\u003eGRBL 1.1f CNC Controller 3-Axis CNC Router Machine Control Board for CNC 3018 Pro 3018 Max 3018Pro-M Milling Machine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage include: 1x Upgraded 3 Axis GRBL 1.1 Control Board 1x USB cable\nSpecification: Connection: USB (USB-CH340) Input voltage: 24VDC (only support\n24VDC input) Control software: GRBL control (candle), Universal Gcode Sender\nMaster chip atmel 328P (arduino nano) Spindle drive chip: MOSFET\nrecommendation 24V DC, current : within 10A Spindle PWM speed: Support Support\nstepper motor: Maximum current of 2A or less, is recommended within 1.5A and\nadditional heat (any nema17 or nema23 stepper motor) Support system: Windows\nXP \/ Win 7 \/ Win 8 \/ Win 10 (32\/64 can be), Linux Power Interface: 5.5-2.5mm\nDC interface Newly added functional ports: Add emergency stop button port,\nprobe port, XYZ limit port and add the power button switch. Limit\nswitch\/Probe\/Estop port: 2-pin port Module connection port: 3-pin port Spindle\nconnection port: 2-pin port\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModel: Upgraded 3 Axis GRBL 1.1f USB Port GRBL Control Board. Input voltage: 24VDC\u003c\/li\u003e\n \u003cli\u003eSupport Software: GRBL Contol, Candle(3 axis), UGS(Universal Gcode Sender). Support System: Windows XP\/7\/8\/10, Linux\u003c\/li\u003e\n \u003cli\u003eApplications: The control board can be used with the 1310,1610-PRO, 3018, 3018 PRO and 3018 MAX cnc engraving machine\u003c\/li\u003e\n \u003cli\u003eStepper Motor Drive: A4988. Spindle power: 150W. Input voltage: 24V (12-24V). Maximum current of 2A or less is recommended within 1.5A and additional heat (Any stepper motor Nema17, Nema23)\u003c\/li\u003e\n \u003cli\u003eSupport XYZ 3-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface \" + s-\")\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-24T14:30:14+10:00","created_at":"2026-07-21T20:38:36+10:00","vendor":"MYSWEETY","type":"3D Printer Controllers","tags":["home_industrial_July2026"],"price":15700,"price_min":15700,"price_max":15700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44288849412276,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07S2R59N6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GRBL 1.1f CNC Controller 3-Axis CNC Router Machine Control Board for CNC 3018 Pro 3018 Max 3018Pro-M Milling Machine","public_title":null,"options":["Default Title"],"price":15700,"weight":143,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07S2R59N6.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/71cUuDDftfL.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/717r3XeGPsL.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/71_zu0e59dL.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/613VdJCdm-L.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/51Nesy3GbvL.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/61oiwEKQ4UL.jpg?v=1784630319","\/\/auspowers.com\/cdn\/shop\/files\/61ixNOFSpJL.jpg?v=1784630319"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07S2R59N6.jpg?v=1784630319","options":["Title"],"media":[{"alt":null,"id":33132745523380,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07S2R59N6.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07S2R59N6.jpg?v=1784630319","width":1000},{"alt":null,"id":33132745556148,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71cUuDDftfL.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71cUuDDftfL.jpg?v=1784630319","width":1000},{"alt":null,"id":33132745588916,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/717r3XeGPsL.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/717r3XeGPsL.jpg?v=1784630319","width":1200},{"alt":null,"id":33132745621684,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71_zu0e59dL.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71_zu0e59dL.jpg?v=1784630319","width":1000},{"alt":null,"id":33132745654452,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/613VdJCdm-L.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/613VdJCdm-L.jpg?v=1784630319","width":1000},{"alt":null,"id":33132745687220,"position":6,"preview_image":{"aspect_ratio":1.129,"height":443,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Nesy3GbvL.jpg?v=1784630319"},"aspect_ratio":1.129,"height":443,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Nesy3GbvL.jpg?v=1784630319","width":500},{"alt":null,"id":33132745719988,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61oiwEKQ4UL.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61oiwEKQ4UL.jpg?v=1784630319","width":1000},{"alt":null,"id":33132745752756,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ixNOFSpJL.jpg?v=1784630319"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ixNOFSpJL.jpg?v=1784630319","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGRBL 1.1f CNC Controller 3-Axis CNC Router Machine Control Board for CNC 3018 Pro 3018 Max 3018Pro-M Milling Machine\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage include: 1x Upgraded 3 Axis GRBL 1.1 Control Board 1x USB cable\nSpecification: Connection: USB (USB-CH340) Input voltage: 24VDC (only support\n24VDC input) Control software: GRBL control (candle), Universal Gcode Sender\nMaster chip atmel 328P (arduino nano) Spindle drive chip: MOSFET\nrecommendation 24V DC, current : within 10A Spindle PWM speed: Support Support\nstepper motor: Maximum current of 2A or less, is recommended within 1.5A and\nadditional heat (any nema17 or nema23 stepper motor) Support system: Windows\nXP \/ Win 7 \/ Win 8 \/ Win 10 (32\/64 can be), Linux Power Interface: 5.5-2.5mm\nDC interface Newly added functional ports: Add emergency stop button port,\nprobe port, XYZ limit port and add the power button switch. Limit\nswitch\/Probe\/Estop port: 2-pin port Module connection port: 3-pin port Spindle\nconnection port: 2-pin port\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eModel: Upgraded 3 Axis GRBL 1.1f USB Port GRBL Control Board. Input voltage: 24VDC\u003c\/li\u003e\n \u003cli\u003eSupport Software: GRBL Contol, Candle(3 axis), UGS(Universal Gcode Sender). Support System: Windows XP\/7\/8\/10, Linux\u003c\/li\u003e\n \u003cli\u003eApplications: The control board can be used with the 1310,1610-PRO, 3018, 3018 PRO and 3018 MAX cnc engraving machine\u003c\/li\u003e\n \u003cli\u003eStepper Motor Drive: A4988. Spindle power: 150W. Input voltage: 24V (12-24V). Maximum current of 2A or less is recommended within 1.5A and additional heat (Any stepper motor Nema17, Nema23)\u003c\/li\u003e\n \u003cli\u003eSupport XYZ 3-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface \" + s-\")\u003c\/li\u003e\n \u003c\/ul\u003e"}
