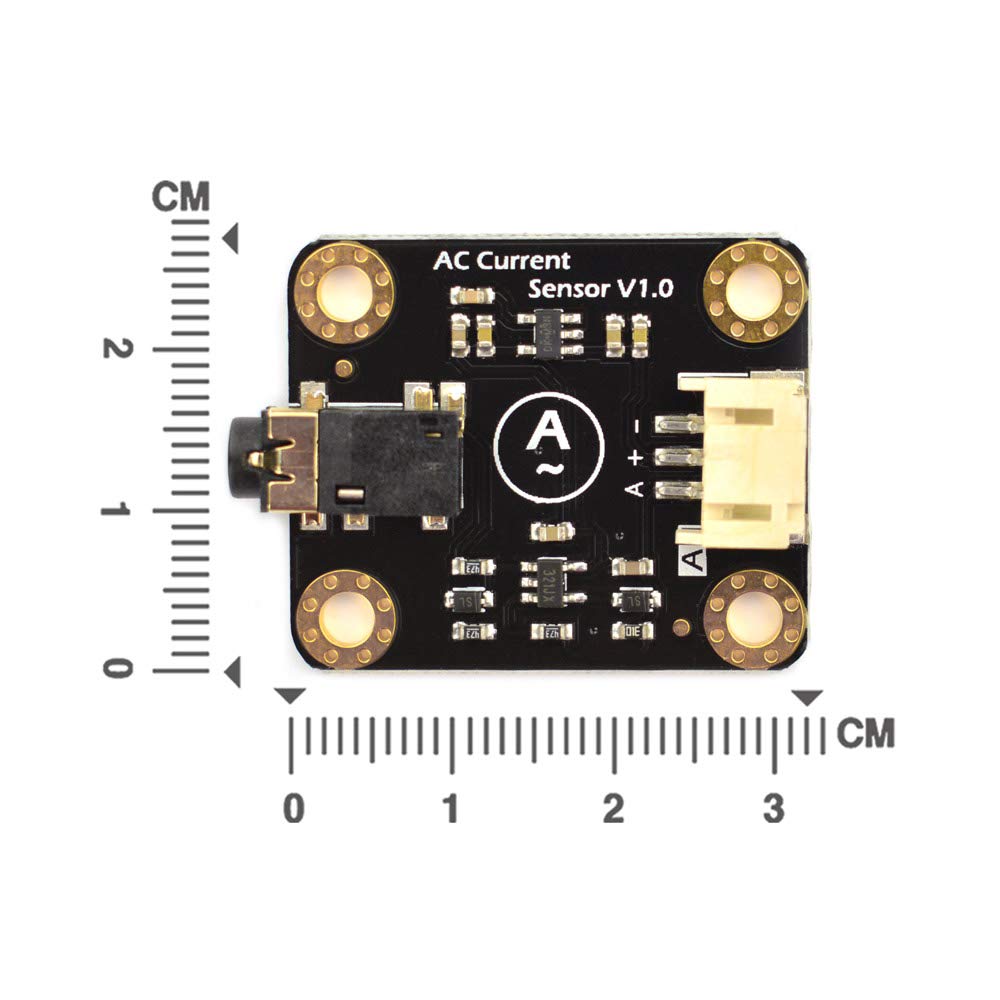

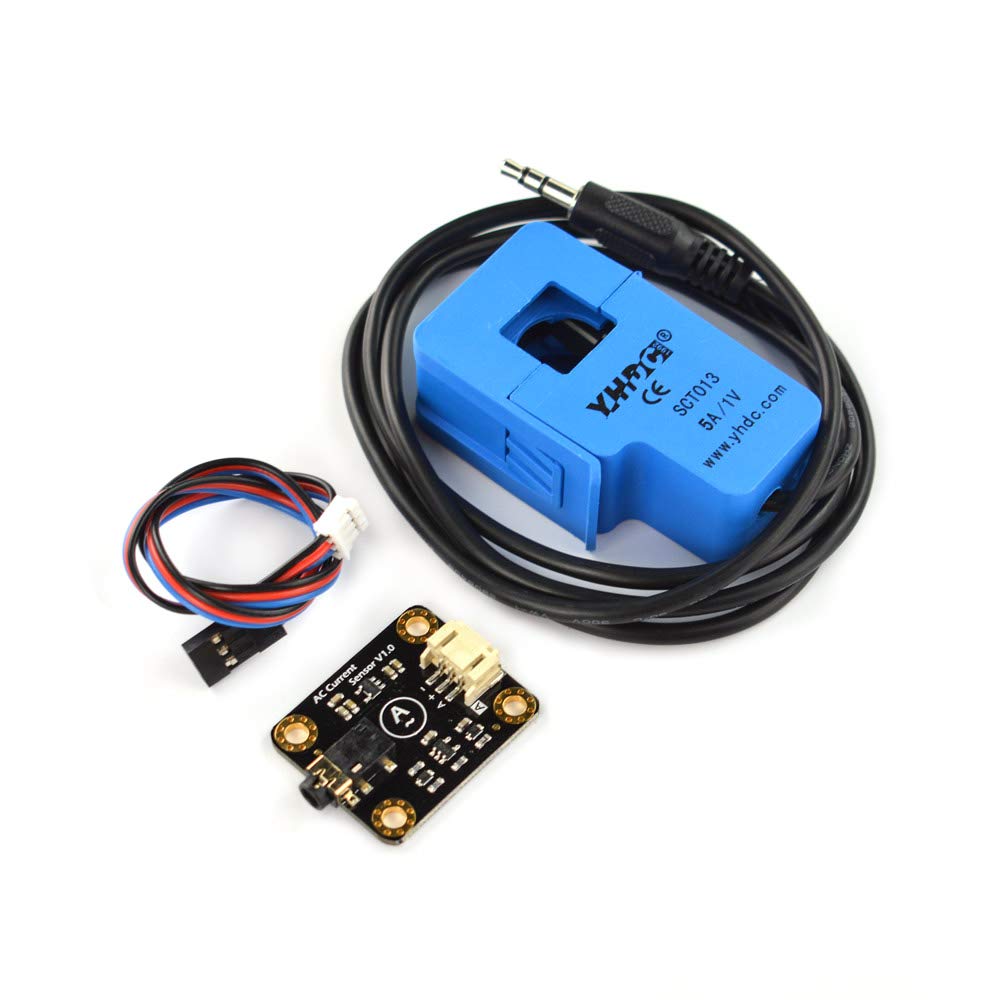

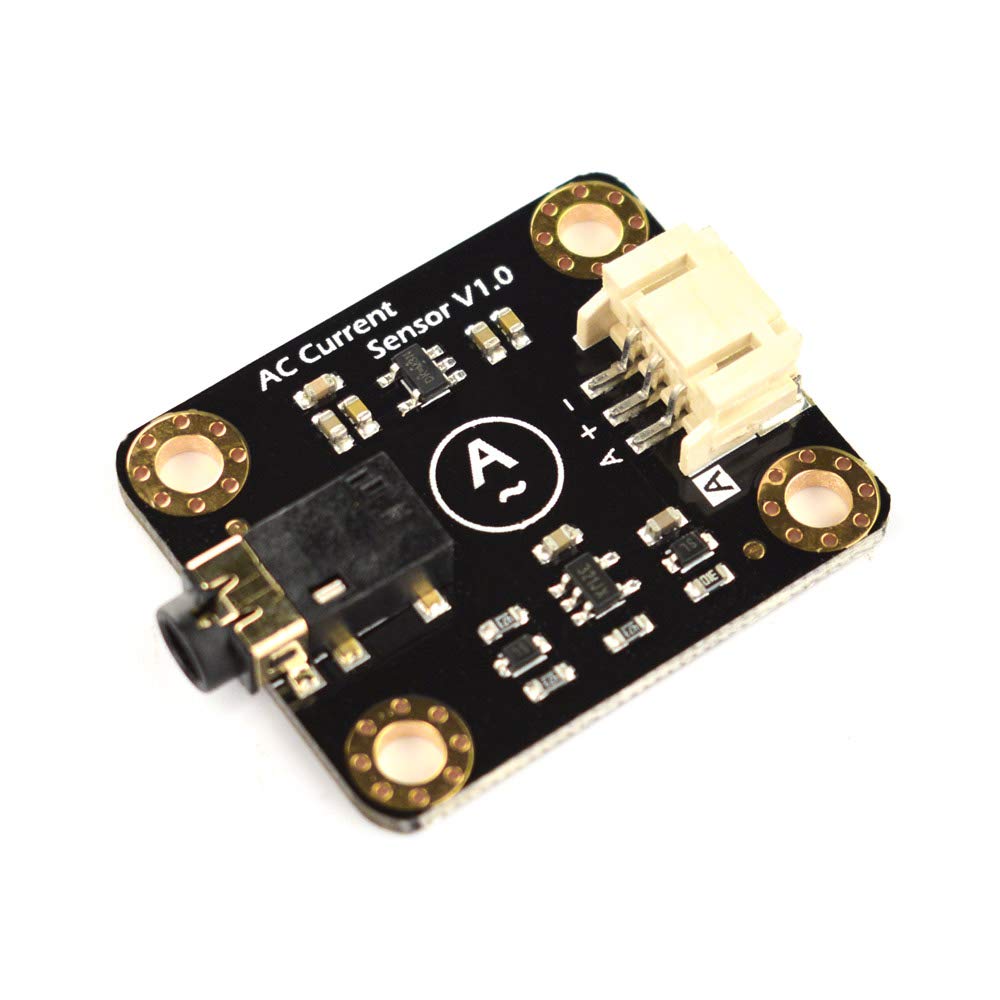

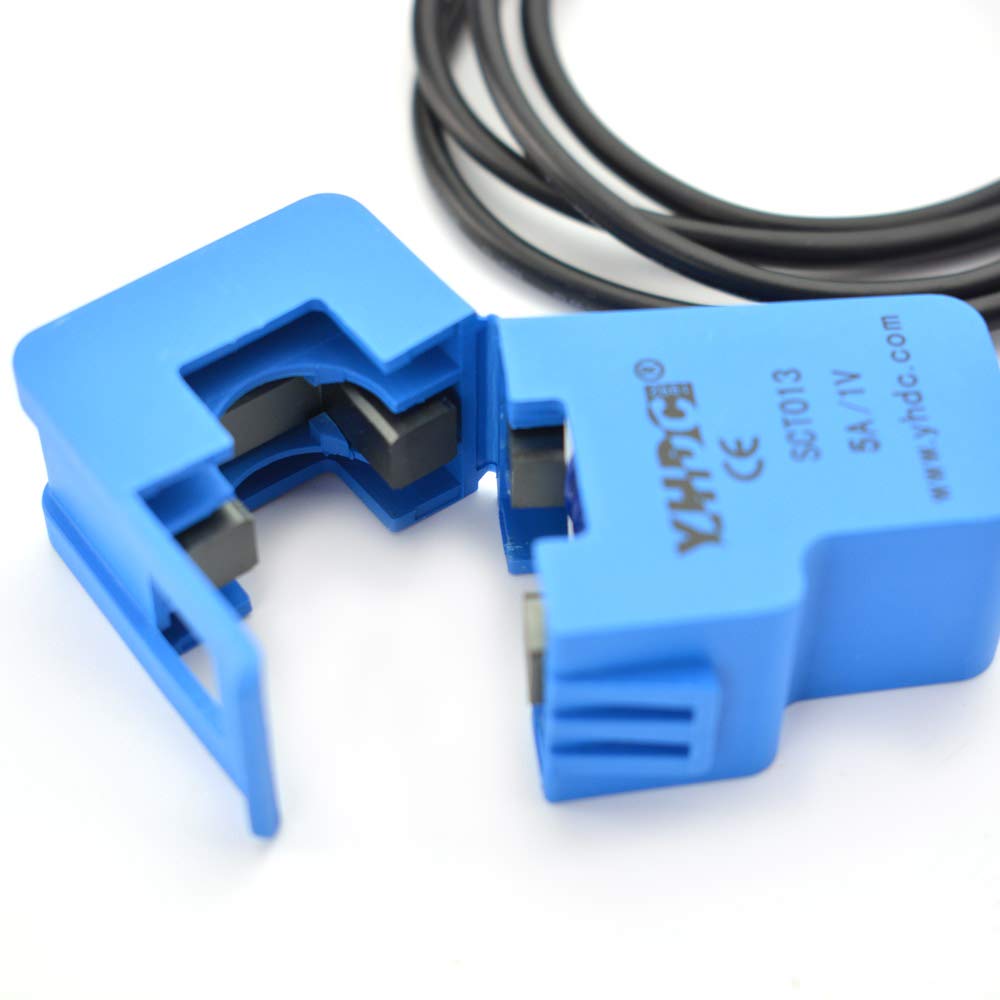

{"id":8050998640820,"title":"Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a","handle":"gravity-analog-current-sensor-5a-ac-current-signal-conversion-module-and-open-type-transformer-probe-included-non-contact-measurement-5a","description":"\u003ch3\u003eGravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDFRobot Gravity: Analog AC Current Sensor (5A) Introduction When you want to\r\nmeasure the AC current, are you still having trouble cutting the wires, wiring\r\nor soldering. Gravity: Analog AC Current Sensor comes to the rescue,\r\neliminating the need to cut wires or reconnect circuits. Specifications AC\r\nCurrent Signal Conversion Module Input Voltage (VCC): 3.3V-5.5V Interface:\r\nGravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC) AC Voltage Input\r\nRange: 0-1V (AC RMS) Relative Error: ±4% Dimension: 32 × 27 mm \/1.26 × 1.06 in\r\nWeight: 5 g Open Type AC Transformer Probe AC Current Range: 0-5 A Signal\r\nOutput (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range\r\n0-5A Accuracy: ±1% Non-linearity: ≤±0.2% Frequency Range: 50Hz ~ 1kHz Cable\r\nLength: 1 m Working Temperature: -25 ℃ ~ +70 ℃ Opening Size: 13 × 13 mm \/ 0.51\r\n× 0.51 in Weight: 50 g Shipping list AC Current Signal Conversion Module x1\r\nOpen Type AC Transformer Probe (5A) x1 Gravity-3P Analog Sensor Cable x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSimply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value.\u003c\/li\u003e\r\n \u003cli\u003eThe analog output is designed to be compatible with 3V3\/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.\u003c\/li\u003e\r\n \u003cli\u003eFeatures: Non-contact measurement, high safety; Multiple ranges for various measurement scenarios; Compatible with 3V3\/5V micro-controller\u003c\/li\u003e\r\n \u003cli\u003eApplications: AC motor automatic monitoring, Lighting and electrical equipment measurement\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-05T17:48:19+10:00","created_at":"2026-05-05T17:48:15+10:00","vendor":"DFROBOT","type":"Current Sensors","tags":["industrial_April2026"],"price":13900,"price_min":13900,"price_max":13900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44215389094068,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07Y8G2BYB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a","public_title":null,"options":["Default Title"],"price":13900,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"SEN0287","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07Y8G2BYB.jpg?v=1777994617","\/\/auspowers.com\/cdn\/shop\/files\/61PbbW0r9HL.jpg?v=1777967298","\/\/auspowers.com\/cdn\/shop\/files\/61bP5dqg5gL.jpg?v=1777967298","\/\/auspowers.com\/cdn\/shop\/files\/51U1vBS9cXL.jpg?v=1777967297","\/\/auspowers.com\/cdn\/shop\/files\/51NlpfiafQL.jpg?v=1777967297","\/\/auspowers.com\/cdn\/shop\/files\/61VN3tXk0nL.jpg?v=1777967298"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07Y8G2BYB.jpg?v=1777994617","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235687092,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07Y8G2BYB.jpg?v=1777994617"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07Y8G2BYB.jpg?v=1777994617","width":1000},{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235719860,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61PbbW0r9HL.jpg?v=1777967298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61PbbW0r9HL.jpg?v=1777967298","width":1000},{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235752628,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61bP5dqg5gL.jpg?v=1777967298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61bP5dqg5gL.jpg?v=1777967298","width":1000},{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235785396,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51U1vBS9cXL.jpg?v=1777967297"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51U1vBS9cXL.jpg?v=1777967297","width":1000},{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235818164,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51NlpfiafQL.jpg?v=1777967297"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51NlpfiafQL.jpg?v=1777967297","width":1000},{"alt":"[Australia - AusPower] - Gravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement 5a ","id":32914235850932,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61VN3tXk0nL.jpg?v=1777967298"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61VN3tXk0nL.jpg?v=1777967298","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGravity: Analog Current Sensor (5A) - AC Current Signal Conversion Module and Open Type Transformer Probe Included - Non-contact Measurement\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDFRobot Gravity: Analog AC Current Sensor (5A) Introduction When you want to\r\nmeasure the AC current, are you still having trouble cutting the wires, wiring\r\nor soldering. Gravity: Analog AC Current Sensor comes to the rescue,\r\neliminating the need to cut wires or reconnect circuits. Specifications AC\r\nCurrent Signal Conversion Module Input Voltage (VCC): 3.3V-5.5V Interface:\r\nGravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC) AC Voltage Input\r\nRange: 0-1V (AC RMS) Relative Error: ±4% Dimension: 32 × 27 mm \/1.26 × 1.06 in\r\nWeight: 5 g Open Type AC Transformer Probe AC Current Range: 0-5 A Signal\r\nOutput (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range\r\n0-5A Accuracy: ±1% Non-linearity: ≤±0.2% Frequency Range: 50Hz ~ 1kHz Cable\r\nLength: 1 m Working Temperature: -25 ℃ ~ +70 ℃ Opening Size: 13 × 13 mm \/ 0.51\r\n× 0.51 in Weight: 50 g Shipping list AC Current Signal Conversion Module x1\r\nOpen Type AC Transformer Probe (5A) x1 Gravity-3P Analog Sensor Cable x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSimply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value.\u003c\/li\u003e\r\n \u003cli\u003eThe analog output is designed to be compatible with 3V3\/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.\u003c\/li\u003e\r\n \u003cli\u003eFeatures: Non-contact measurement, high safety; Multiple ranges for various measurement scenarios; Compatible with 3V3\/5V micro-controller\u003c\/li\u003e\r\n \u003cli\u003eApplications: AC motor automatic monitoring, Lighting and electrical equipment measurement\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
