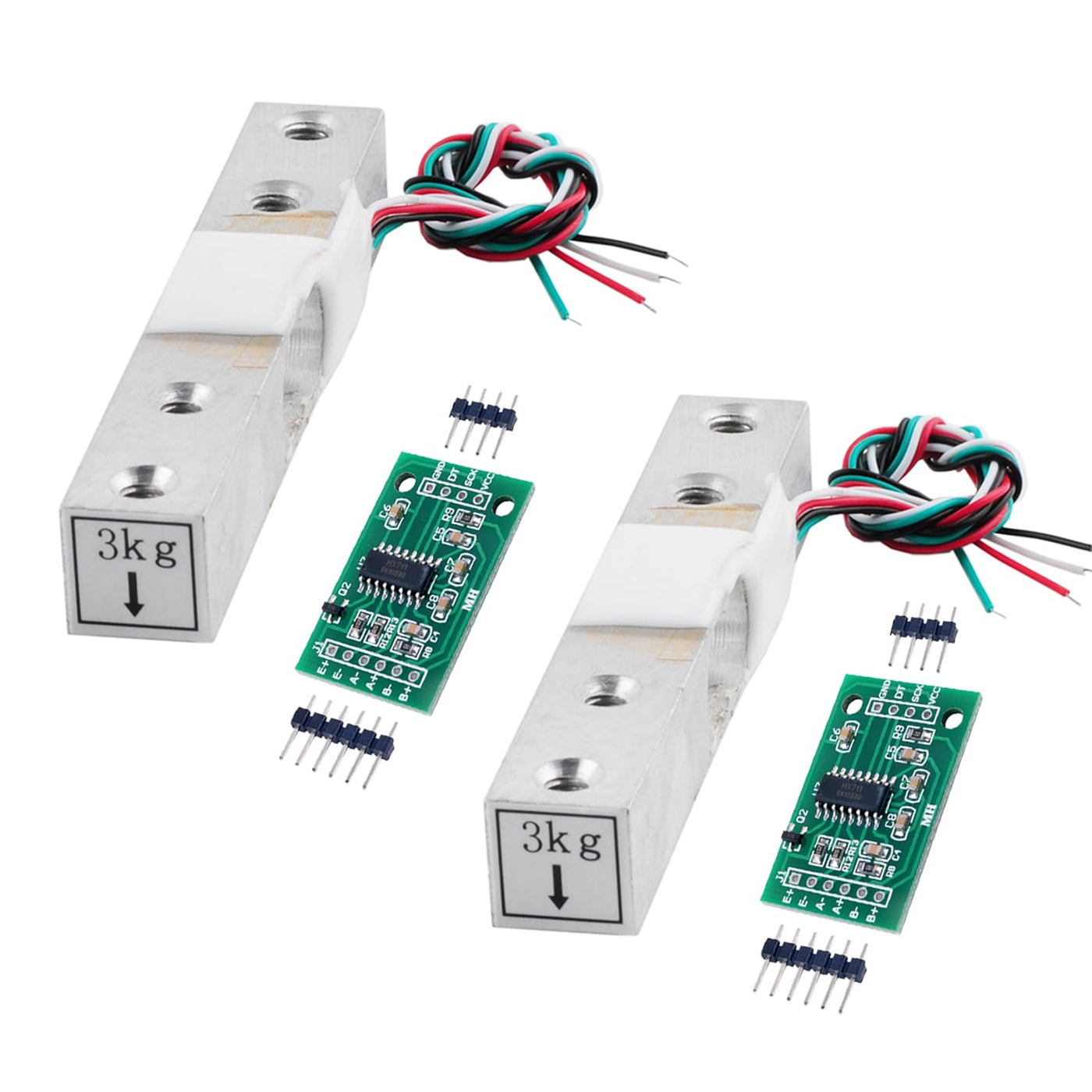

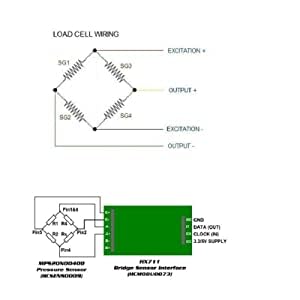

{"id":7991565975732,"title":"Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets)","handle":"geekstory-3-kg-digital-load-cell-weight-sensor-hx711-ad-weighing-sensor-module-high-precision-for-arduino-diy-electronic-portable-kitchen-scale-2-sets","description":"\u003ch3\u003eGeekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHX711 AD Weight Module This module uses 24 high precision A\/D converter chip\nhx711. It is a specially designed for the high precision electronic scale\ndesign with two analog input channelthe internal integration of 128 times the\nprogrammable gain amplifier. The input circuit can be configured to provide a\nbridge type pressure bridge (such as pressureweighing sensor mode)is of high\nprecisionlow cost is an ideal sampling front-end module. Features: Two\nselectable differential input channels On-chip active low noise PGA with\nselectable gain of 3264 and 128 On-chip power supply regulator for load-cell\nand ADC analogue power supply On-chip oscillator requiring no external\ncomponent with optional external crystal On-chip power-on-reset. Simple\ndigital control and serial interface: pin-driven controlsno programming needed\nSimultaneous 50 and 60Hz supply rejection Current consumption including on-\nchip analog power supply regulator: normal operation \u0026lt;1. 5 mApower down \u0026lt;1 uA.\nOperation supply voltage range: 2.6 - 5.5V. Operating Temperature Range:-20\ndegree to +85 degree Document link:\n\n 3 kg load cell. Four leads, easy\nto use 5-10V drive voltage applied, the force is directly output as a voltage\nchange signal. Dimensions: 12.7 mm x 12. 7 mm x 80 mm. Sensor through the\nscrew hole at one end fixed and the other end to keep floating state, applying\ngravity following the direction indicated by label Particular attention must\nnot directly push the white plastic cover part, so as not to damage the sensor\nConnection: Red to E+ Black to E Green to A+ White to A- Package includes: 2 x\nHX711 AD modules. 2 x 3 kg load cells\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eYou will receive 2 x 3 kg load cells + 2 x HX711 AD module\u003c\/li\u003e\n \u003cli\u003eThis HX711 module uses 24 high precision A\/D converter chips hx711. It is a specially designed for the high-precision electronic scale with two analogue input channels the internal integration of 128 times the programmable amplifier\u003c\/li\u003e\n \u003cli\u003eYou need to connect the load cell to the HX711 module as follows: Red to E+, Black to E, Green to A+, White to A-\u003c\/li\u003e\n \u003cli\u003eLoad cell: 4 lines, easy to use, plus 5-10V drive voltage, direct output as voltage signal due to force changes. Easy Digital Control \u0026amp; Serial Interface - Pin controlled control, no programming required. Works for Arduino and Raspberry Pi\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:08:09+10:00","created_at":"2025-09-23T00:08:05+10:00","vendor":"Geekstory","type":"Balance Accessories","tags":["industryDE_Sep2025"],"price":12800,"price_min":12800,"price_max":12800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047722545332,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DGD1NNRX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets)","public_title":null,"options":["Default Title"],"price":12800,"weight":72,"compare_at_price":null,"inventory_management":"shopify","barcode":"FZ2268X2+FZ0728X2","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61o2exa5_tL.jpg?v=1758550088","\/\/auspowers.com\/cdn\/shop\/files\/61XbjJ5QYPL_79e34341-49c9-4d0f-80bc-3d1ad4ab6e9c.jpg?v=1758550088","\/\/auspowers.com\/cdn\/shop\/files\/61kbaF2iMiL_7e2bd8f9-a228-4dcb-a5ef-5c49ad407d30.jpg?v=1758550088","\/\/auspowers.com\/cdn\/shop\/files\/61W3S-zfFIL_45d42094-326b-4e28-b378-9afca3728b41.jpg?v=1758550088","\/\/auspowers.com\/cdn\/shop\/files\/21bIBgaFOqL.jpg?v=1758550088","\/\/auspowers.com\/cdn\/shop\/files\/71LTSblo0XL_d0d5932d-f982-40ae-99ba-d33a0008dc9d.jpg?v=1758550088"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61o2exa5_tL.jpg?v=1758550088","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184512938164,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61o2exa5_tL.jpg?v=1758550088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61o2exa5_tL.jpg?v=1758550088","width":1600},{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184512970932,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61XbjJ5QYPL_79e34341-49c9-4d0f-80bc-3d1ad4ab6e9c.jpg?v=1758550088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61XbjJ5QYPL_79e34341-49c9-4d0f-80bc-3d1ad4ab6e9c.jpg?v=1758550088","width":1600},{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184513003700,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61kbaF2iMiL_7e2bd8f9-a228-4dcb-a5ef-5c49ad407d30.jpg?v=1758550088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61kbaF2iMiL_7e2bd8f9-a228-4dcb-a5ef-5c49ad407d30.jpg?v=1758550088","width":1600},{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184513036468,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61W3S-zfFIL_45d42094-326b-4e28-b378-9afca3728b41.jpg?v=1758550088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61W3S-zfFIL_45d42094-326b-4e28-b378-9afca3728b41.jpg?v=1758550088","width":1600},{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184513069236,"position":5,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/auspowers.com\/cdn\/shop\/files\/21bIBgaFOqL.jpg?v=1758550088"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/21bIBgaFOqL.jpg?v=1758550088","width":300},{"alt":"[Australia - AusPower] - Geekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets) ","id":32184513102004,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71LTSblo0XL_d0d5932d-f982-40ae-99ba-d33a0008dc9d.jpg?v=1758550088"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71LTSblo0XL_d0d5932d-f982-40ae-99ba-d33a0008dc9d.jpg?v=1758550088","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGeekstory 3 kg Digital Load Cell Weight Sensor + HX711 AD Weighing Sensor Module High Precision for Arduino DIY Electronic Portable Kitchen Scale (2 Sets)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHX711 AD Weight Module This module uses 24 high precision A\/D converter chip\nhx711. It is a specially designed for the high precision electronic scale\ndesign with two analog input channelthe internal integration of 128 times the\nprogrammable gain amplifier. The input circuit can be configured to provide a\nbridge type pressure bridge (such as pressureweighing sensor mode)is of high\nprecisionlow cost is an ideal sampling front-end module. Features: Two\nselectable differential input channels On-chip active low noise PGA with\nselectable gain of 3264 and 128 On-chip power supply regulator for load-cell\nand ADC analogue power supply On-chip oscillator requiring no external\ncomponent with optional external crystal On-chip power-on-reset. Simple\ndigital control and serial interface: pin-driven controlsno programming needed\nSimultaneous 50 and 60Hz supply rejection Current consumption including on-\nchip analog power supply regulator: normal operation \u0026lt;1. 5 mApower down \u0026lt;1 uA.\nOperation supply voltage range: 2.6 - 5.5V. Operating Temperature Range:-20\ndegree to +85 degree Document link:\n\n 3 kg load cell. Four leads, easy\nto use 5-10V drive voltage applied, the force is directly output as a voltage\nchange signal. Dimensions: 12.7 mm x 12. 7 mm x 80 mm. Sensor through the\nscrew hole at one end fixed and the other end to keep floating state, applying\ngravity following the direction indicated by label Particular attention must\nnot directly push the white plastic cover part, so as not to damage the sensor\nConnection: Red to E+ Black to E Green to A+ White to A- Package includes: 2 x\nHX711 AD modules. 2 x 3 kg load cells\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eYou will receive 2 x 3 kg load cells + 2 x HX711 AD module\u003c\/li\u003e\n \u003cli\u003eThis HX711 module uses 24 high precision A\/D converter chips hx711. It is a specially designed for the high-precision electronic scale with two analogue input channels the internal integration of 128 times the programmable amplifier\u003c\/li\u003e\n \u003cli\u003eYou need to connect the load cell to the HX711 module as follows: Red to E+, Black to E, Green to A+, White to A-\u003c\/li\u003e\n \u003cli\u003eLoad cell: 4 lines, easy to use, plus 5-10V drive voltage, direct output as voltage signal due to force changes. Easy Digital Control \u0026amp; Serial Interface - Pin controlled control, no programming required. Works for Arduino and Raspberry Pi\u003c\/li\u003e\n \u003c\/ul\u003e"}
