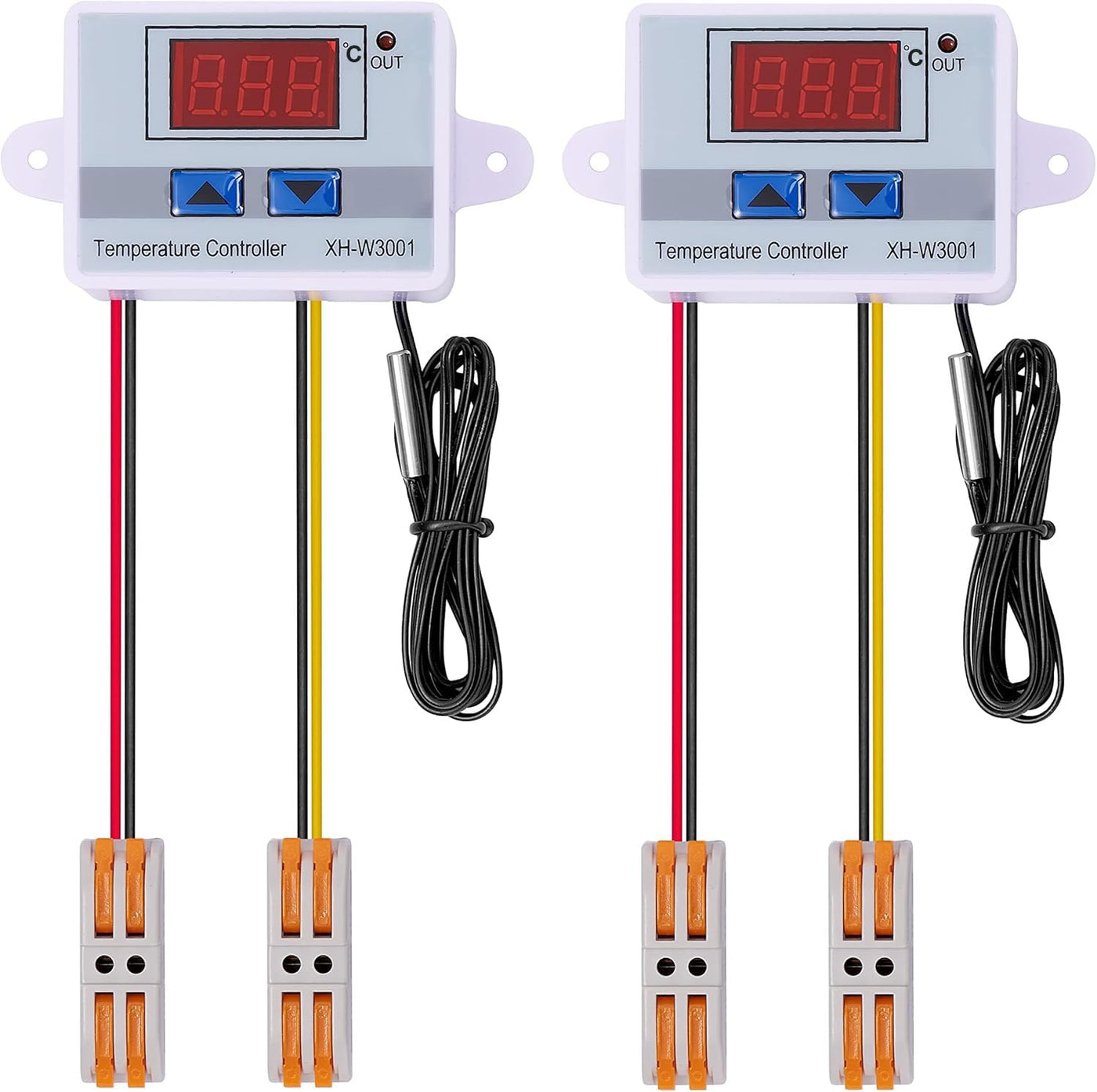

Gebildet XH-W3001Mini 2-Piece Digital LED Temperature Control Module with Quick Connection, Thermostat Switch with Waterproof Sensor Probe, Programmable Heating/Cooling Thermostat from 50 to 110 Degrees (12 V) 12 V
Gebildet XH-W3001Mini 2-Piece Digital LED Temperature Control Module with Quick Connection, Thermostat Switch with Waterproof Sensor Probe, Programmable Heating/Cooling Thermostat from 50 to 110 Degrees (12 V)

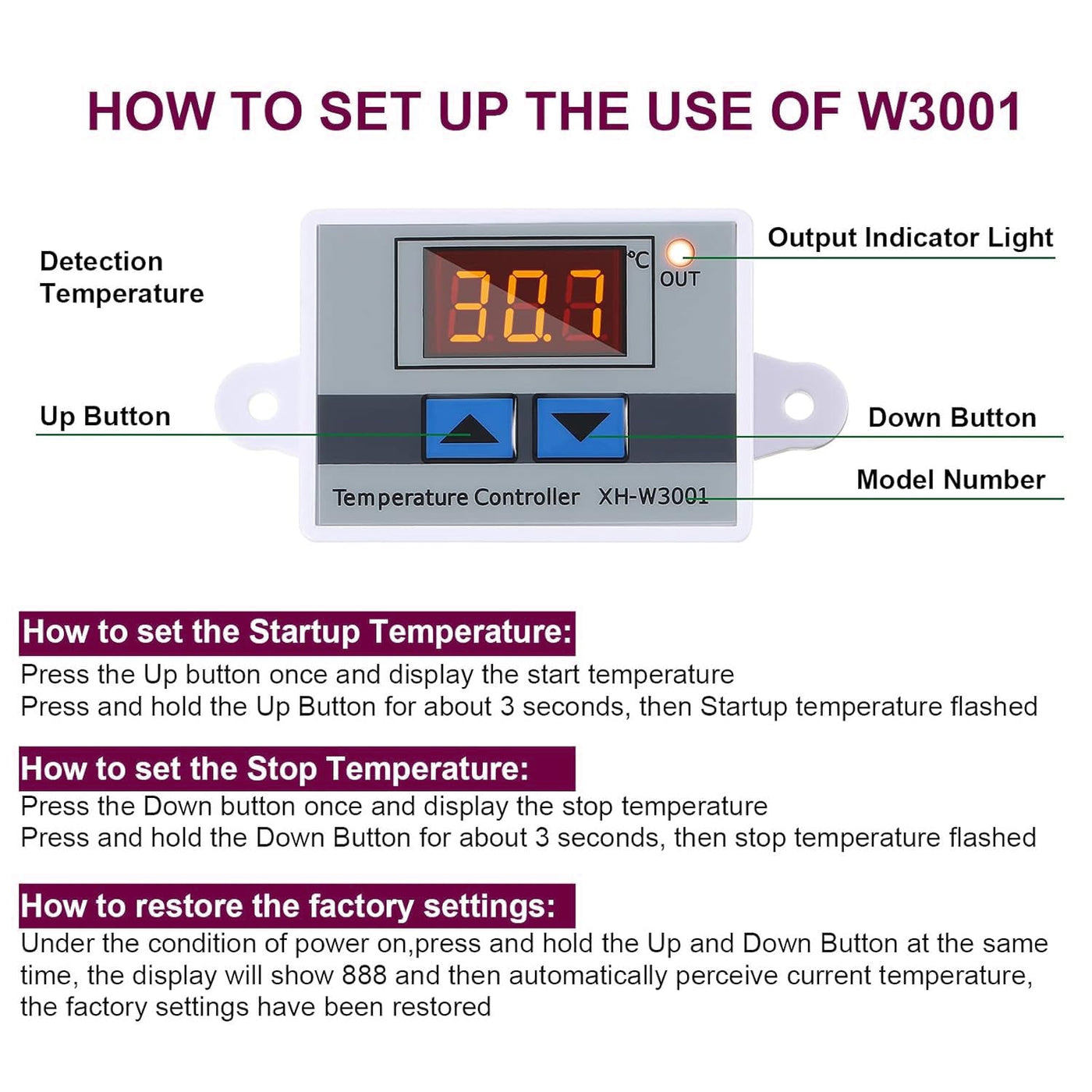

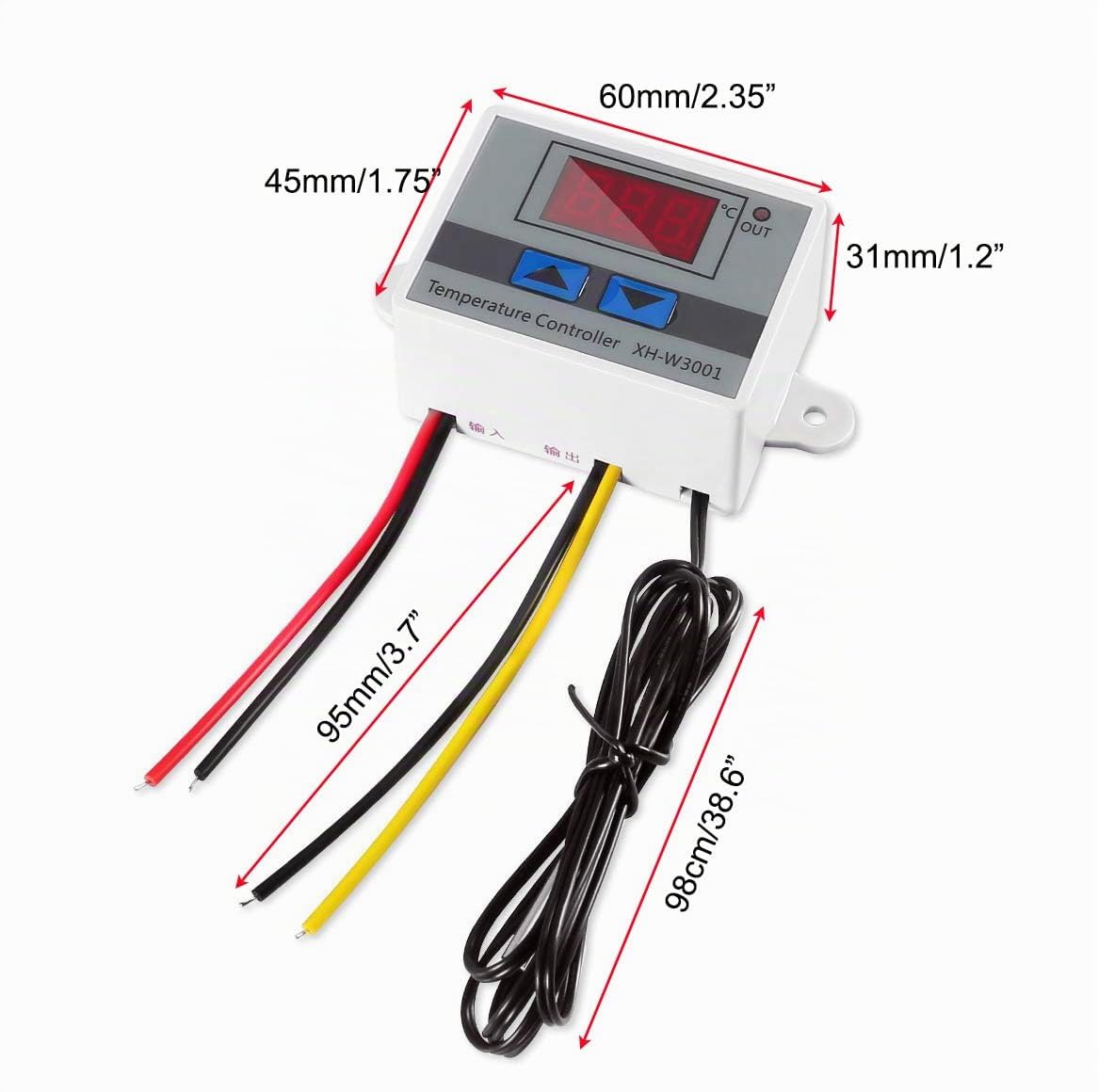

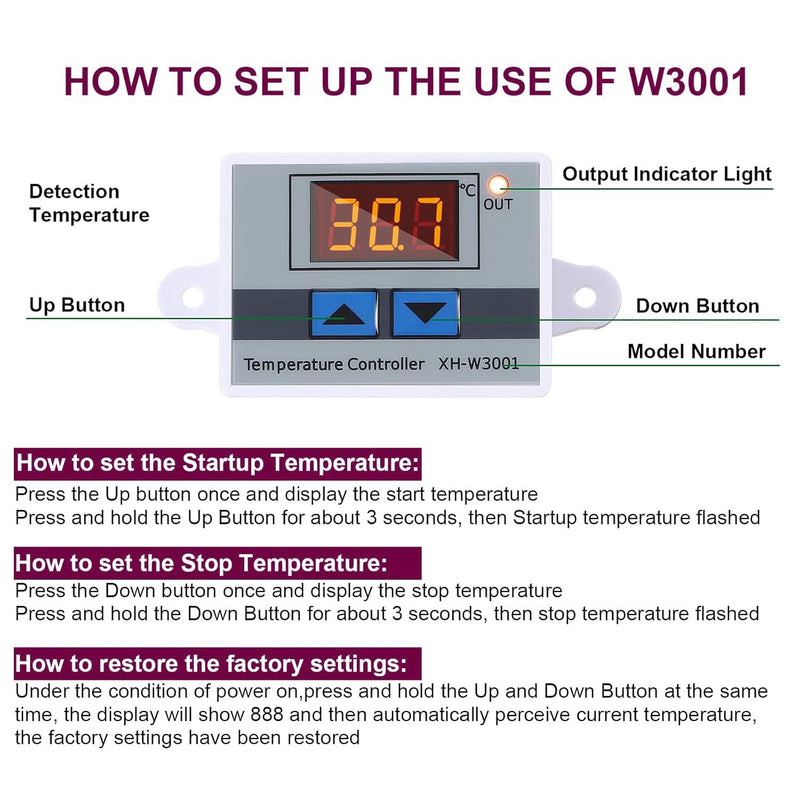

12V Digital LED Temperature Controller, Thermostat Control Switch, NTC 10K Probe Functions: 1. LED Indicator: The bright digital tube is clearly visible and clearly shows whether it is used during the day or at night. 2. The sensor can be replaced as desired using the 2P connector. If you need to use other probes, you can replace them as desired. 3. Not only exquisite and beautiful, but also 1.8mm ultra-thick design, high mechanical strength, good electrical performance. 4. High value for money, stainless steel case, resin sealing, waterproof. Our probe is electrically insulated so you can use it safely. Specification: Name: Microcomputer temperature controller Model: XH-W3001. Temperature measurement and control range: -50 to 110 degrees Celsius. Measuring accuracy: +/- 0.2 degrees Celsius. Control accuracy: +/- 0.1 degrees Celsius. Measurement input: NTC 10K L = 1M waterproof probe. Output type: Direct output (input/output sync) Output current: 10A (MAX) Installation distance: 73 mm/2.87 inches (opening 4 mm/0.15 inches). Appearance size: 60 x 45 x 31 mm/2.36 x 1.77 x 1.22 in. Item weight: 50 g / 1.6 oz. Use: 1:Press the "UP" button to display the start temperature. 2:Press the "UP" button until the temperature indicator flashes. Press the "UP" or "Down" button to adjust the starting temperature value. 3:Press the "Down" button to display the stop temperature. 4:Press the "Down" button until the temperature indicator flashes. Press the "UP" or "Down" button to adjust the stop temperature value. Package includes: 2 x W3001 Digital Thermostat Module 2 x temperature probe sensors. 4 x quick connectors.
Product Features
- Super Material: The W3001 intelligent thermostat has a flame retardant housing, is environmentally friendly and high safe, strong impact resistant, heat and cold resistant, anti-aging, sturdy and durable, and is your housekeeper by your side for temperature control.

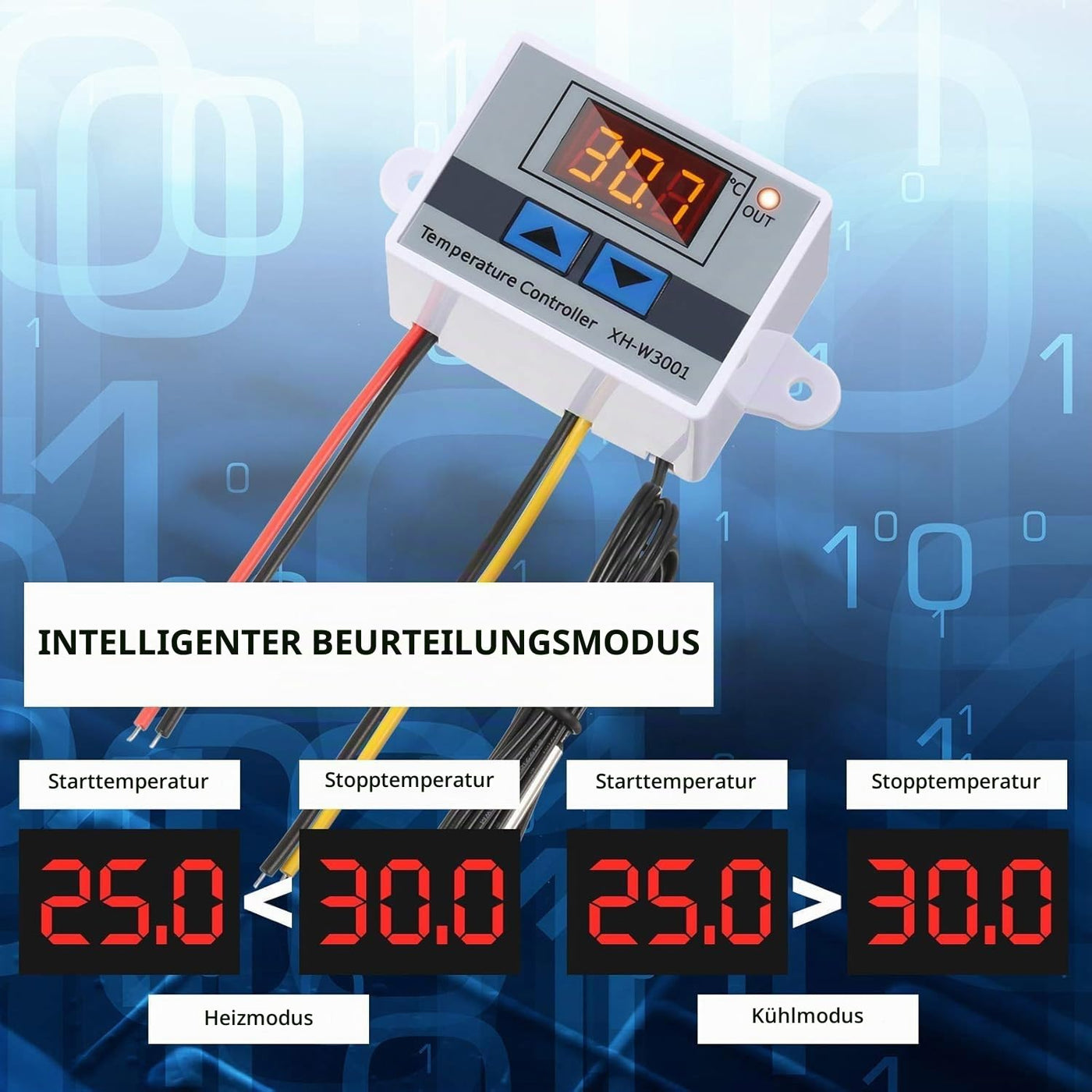

- Two Working ModesThis digital LED temperature controller module has 2 operating modes: heating (starting temperature is lower than stop temperature), cooling (starting temperature is higher than stop temperature). Range from -50C to 110C. High temperature control accuracy of 0.1C
- Waterproof Probe: Equipped with a 1 meter long NTC10K probe, easy to use. The probe is made of stainless steel, is waterproof and can last for a long time
- Easy Operation & High EfficiencyThis digital temperature controller with display is easy to use to set start temperature, stop temperature, corrected temperature port and delayed start. The LED indicator can display the current output status; the digital indicator tube can display the measured temperature. With mounting screw hole, convenient to install and attach. Small size, low power consumption, fast response
- Wide range of applications: widely used in heating, ventilation and air conditioning technology, dehumidifiers, test and testing equipment, automobiles, automatic control, weather station, humidity controller and other related temperature detection and control systems
