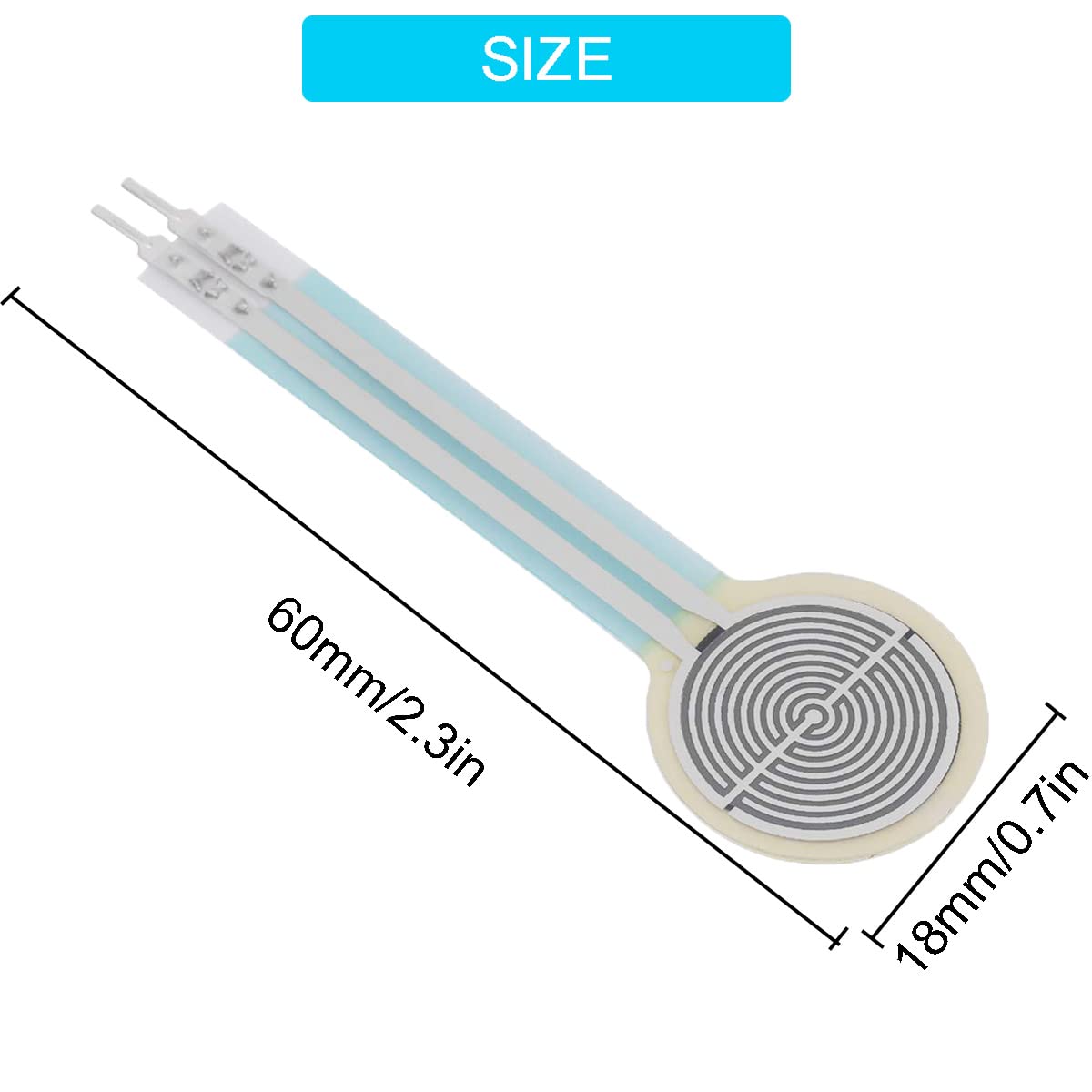

{"id":8034526331060,"title":"FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32","handle":"fsr402-thin-film-pressure-sensor-resistance-pressure-linear-voltage-conversion-module-with-connecting-cable-for-arduino-51-mcu-stm32","description":"\u003ch3\u003eFSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct description FSR402: Sensing range: 0.5\"\" Output signal: Passive\r\nvariable to hold Pressure range: 0.1kg-10kg Capacity: 30g-1.5kg Pressure\r\naction mode: soft touch pressing Resistance when not triggered: \u0026lt;10ohm\r\nResistance range: 1K-10K ohm Response time: \u0026lt;10ms Lifetime (life):\u0026gt; 10 m\r\nletters actuations Size: Length: 60mm \/ 2.36\"\" Width: 19mm \/ 0.75\"\" Linear\r\nvoltage conversion module: Conversion accuracy: ±0.01V Feedback resistance\r\nadjustment range: 0-300k Adjustable potentiometer rotation angle: 260°, ±20°\r\nsize:1432mm Power supply: 3.3-5V Output voltage range: 0-3.3V Features: (1)\r\nHigh output linearity (2) High measurement sensitivity (3) The output\r\nmagnification is adjustable, suitable for various types of sensors (4)\r\nCompatible with 5V, 3.3V measurement system Package Includes: 1 x\r\nFSR402(RP-C18.3-LT) Thin film pressure sensor 1 x Linear voltage conversion\r\nmodule 1 x 10 pin female to female connecting cable\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eWorking principle: This pressure sensor converts the pressure applied in the thin film area of the FSR sensor into the change of resistance value, so as to obtain pressure information.\u003c\/li\u003e\r\n \u003cli\u003eLinear voltage conversion module: It has the characteristics of high output linearity and high measurement sensitivity; the output magnification is adjustable, and it is suitable for various types of sensors.\u003c\/li\u003e\r\n \u003cli\u003eFSR402: The sensor is light, thin and resistant to bending, high sensitivity, long life, and has dual functions of waterproof and pressure sensitivity\u003c\/li\u003e\r\n \u003cli\u003ePurpose: It can be used in the end gripper of the manipulator to sense the presence or absence of gripping objects, the foot of the bionic robot to walk on the ground, and has a wide range of applications.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T20:00:36+11:00","created_at":"2026-02-28T20:00:33+11:00","vendor":"DKARDU","type":"Pressure Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154568671412,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09KNBP45N","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32","public_title":null,"options":["Default Title"],"price":9800,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"JK-US-275","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09KNBP45N.jpg?v=1775787571","\/\/auspowers.com\/cdn\/shop\/files\/61I5NQz8sXL.jpg?v=1772269236","\/\/auspowers.com\/cdn\/shop\/files\/51Jau5f9ZsL.jpg?v=1772269235","\/\/auspowers.com\/cdn\/shop\/files\/51rOQuxuYSL.jpg?v=1772269235","\/\/auspowers.com\/cdn\/shop\/files\/61ldYHim4rL.jpg?v=1772269235","\/\/auspowers.com\/cdn\/shop\/files\/61H8uLS7rpL.jpg?v=1772269236","\/\/auspowers.com\/cdn\/shop\/files\/619lZjF7rzL.jpg?v=1772269235"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09KNBP45N.jpg?v=1775787571","options":["Title"],"media":[{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371734708,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09KNBP45N.jpg?v=1775787571"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09KNBP45N.jpg?v=1775787571","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371767476,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61I5NQz8sXL.jpg?v=1772269236"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61I5NQz8sXL.jpg?v=1772269236","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371800244,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Jau5f9ZsL.jpg?v=1772269235"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Jau5f9ZsL.jpg?v=1772269235","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371833012,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51rOQuxuYSL.jpg?v=1772269235"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51rOQuxuYSL.jpg?v=1772269235","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371865780,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ldYHim4rL.jpg?v=1772269235"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ldYHim4rL.jpg?v=1772269235","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371898548,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61H8uLS7rpL.jpg?v=1772269236"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61H8uLS7rpL.jpg?v=1772269236","width":1200},{"alt":"[Australia - AusPower] - FSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32 ","id":32724371931316,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/619lZjF7rzL.jpg?v=1772269235"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/619lZjF7rzL.jpg?v=1772269235","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFSR402 Thin Film Pressure Sensor Resistance Pressure + Linear Voltage Conversion Module,with Connecting Cable for arduino 51 MCU STM32\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct description FSR402: Sensing range: 0.5\"\" Output signal: Passive\r\nvariable to hold Pressure range: 0.1kg-10kg Capacity: 30g-1.5kg Pressure\r\naction mode: soft touch pressing Resistance when not triggered: \u0026lt;10ohm\r\nResistance range: 1K-10K ohm Response time: \u0026lt;10ms Lifetime (life):\u0026gt; 10 m\r\nletters actuations Size: Length: 60mm \/ 2.36\"\" Width: 19mm \/ 0.75\"\" Linear\r\nvoltage conversion module: Conversion accuracy: ±0.01V Feedback resistance\r\nadjustment range: 0-300k Adjustable potentiometer rotation angle: 260°, ±20°\r\nsize:1432mm Power supply: 3.3-5V Output voltage range: 0-3.3V Features: (1)\r\nHigh output linearity (2) High measurement sensitivity (3) The output\r\nmagnification is adjustable, suitable for various types of sensors (4)\r\nCompatible with 5V, 3.3V measurement system Package Includes: 1 x\r\nFSR402(RP-C18.3-LT) Thin film pressure sensor 1 x Linear voltage conversion\r\nmodule 1 x 10 pin female to female connecting cable\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eWorking principle: This pressure sensor converts the pressure applied in the thin film area of the FSR sensor into the change of resistance value, so as to obtain pressure information.\u003c\/li\u003e\r\n \u003cli\u003eLinear voltage conversion module: It has the characteristics of high output linearity and high measurement sensitivity; the output magnification is adjustable, and it is suitable for various types of sensors.\u003c\/li\u003e\r\n \u003cli\u003eFSR402: The sensor is light, thin and resistant to bending, high sensitivity, long life, and has dual functions of waterproof and pressure sensitivity\u003c\/li\u003e\r\n \u003cli\u003ePurpose: It can be used in the end gripper of the manipulator to sense the presence or absence of gripping objects, the foot of the bionic robot to walk on the ground, and has a wide range of applications.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
