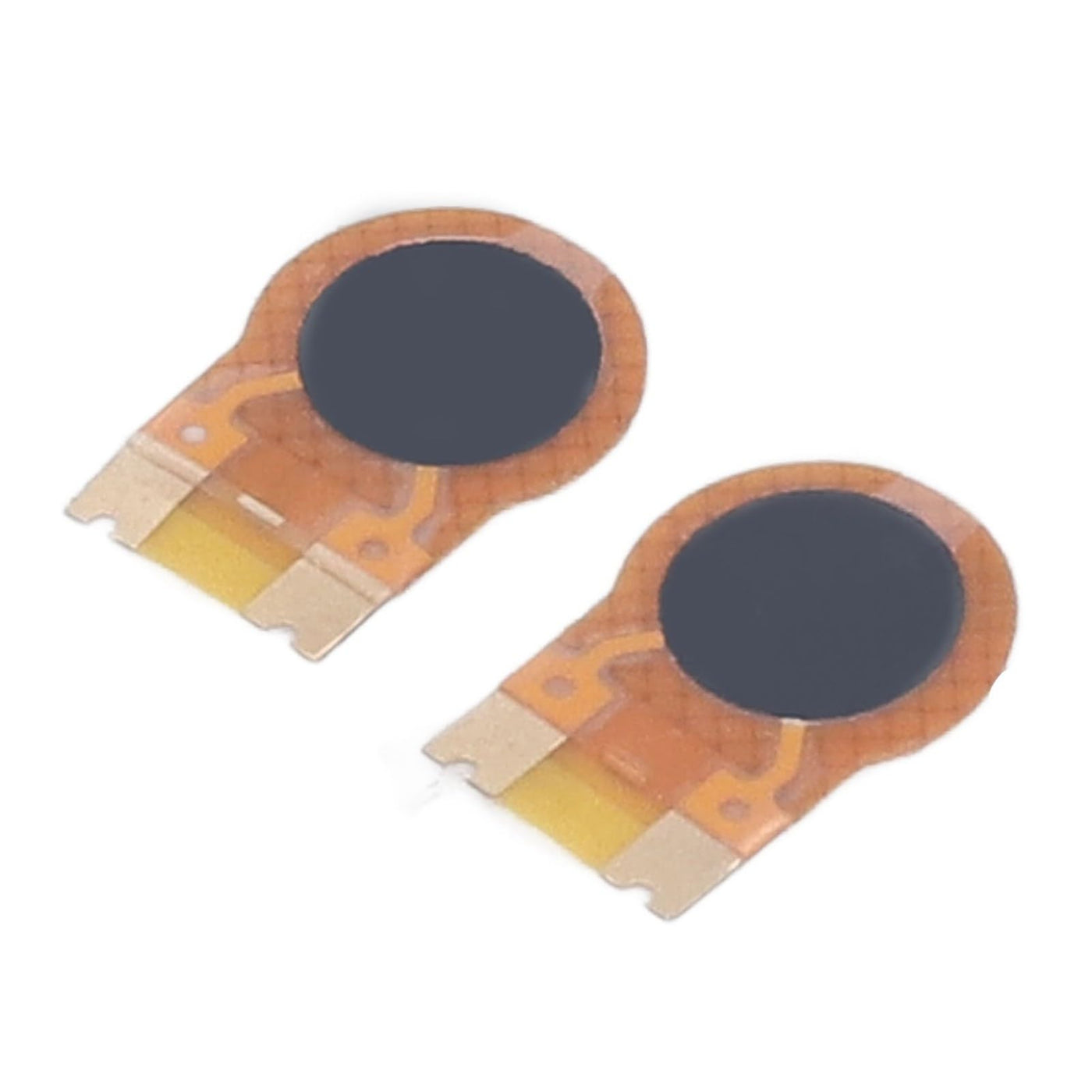

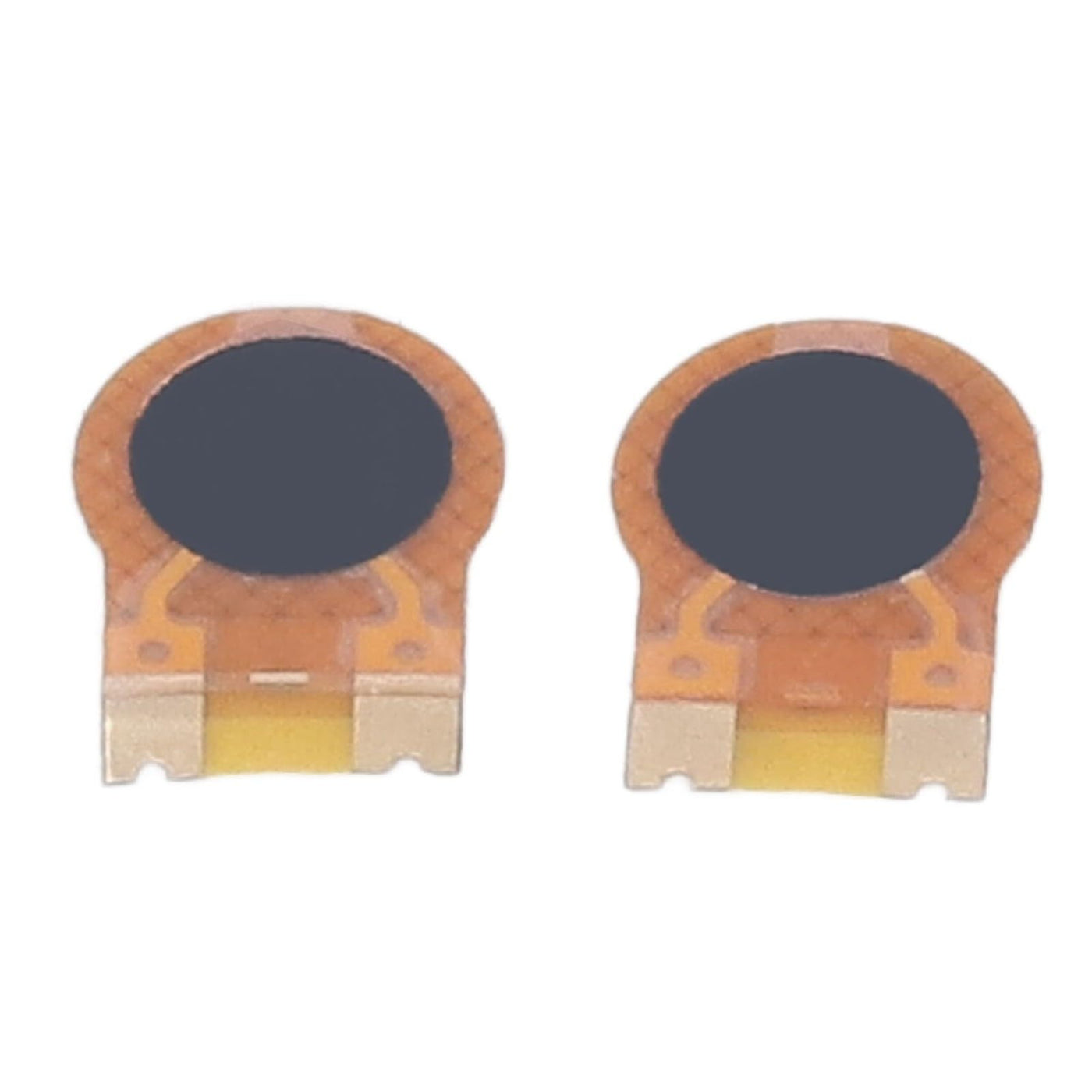

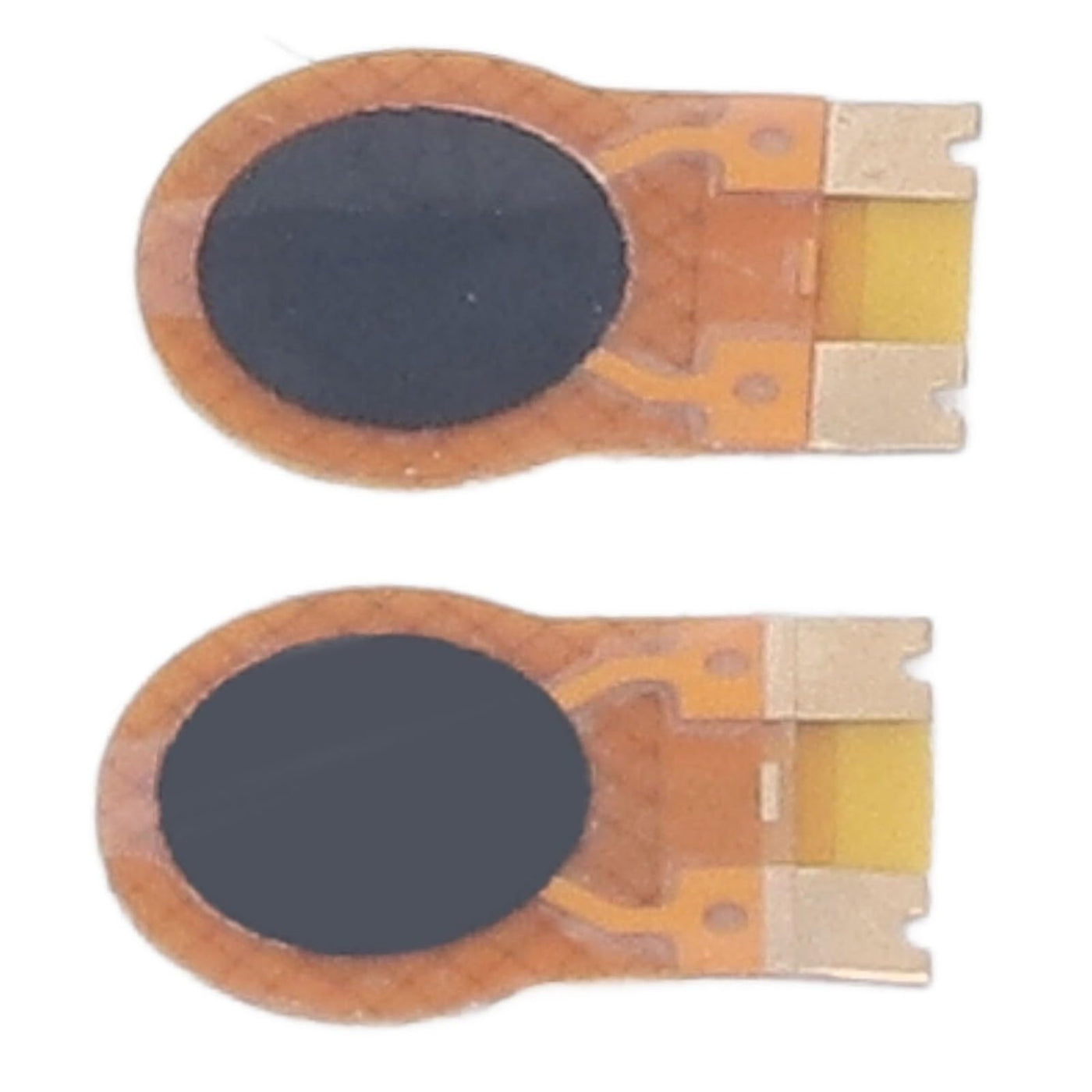

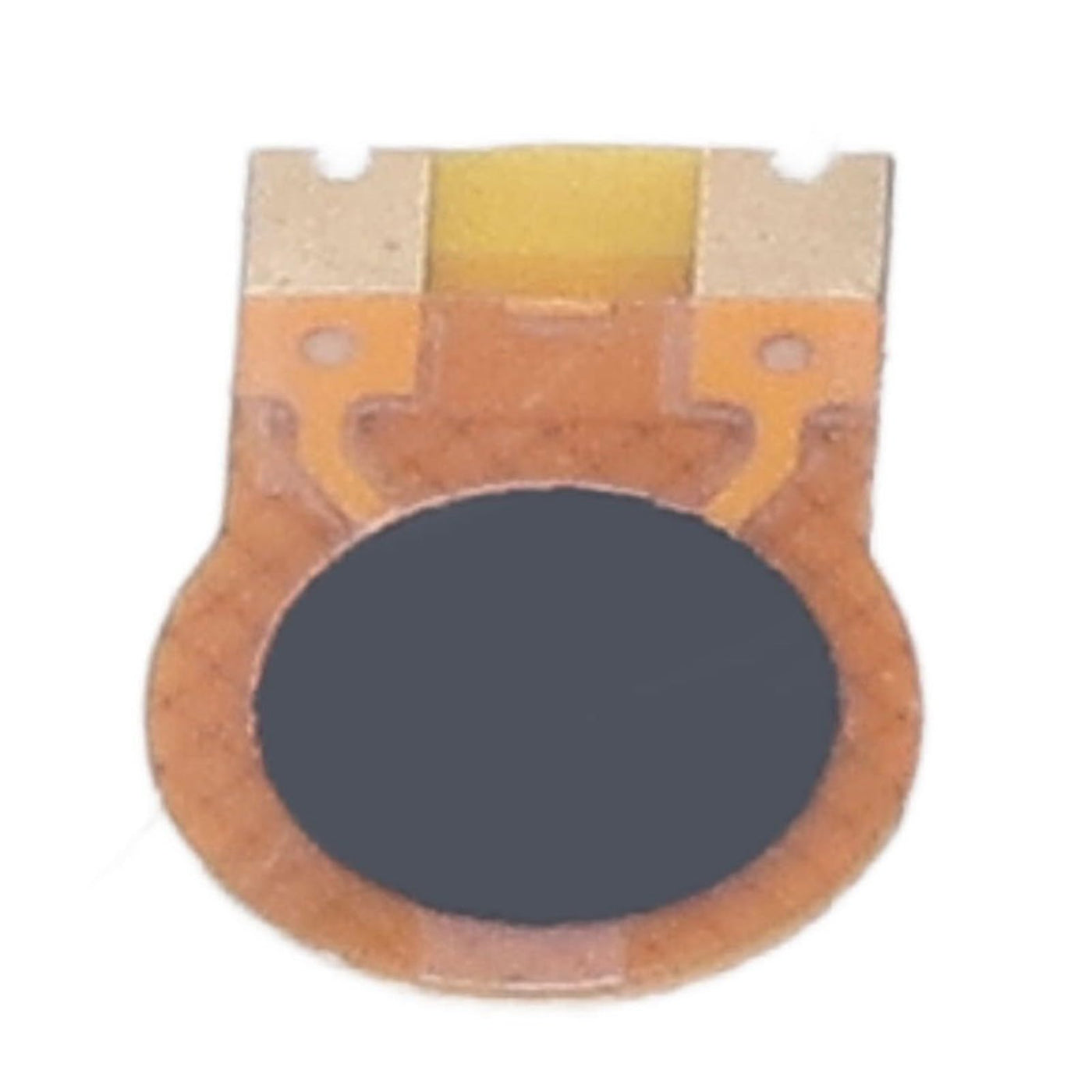

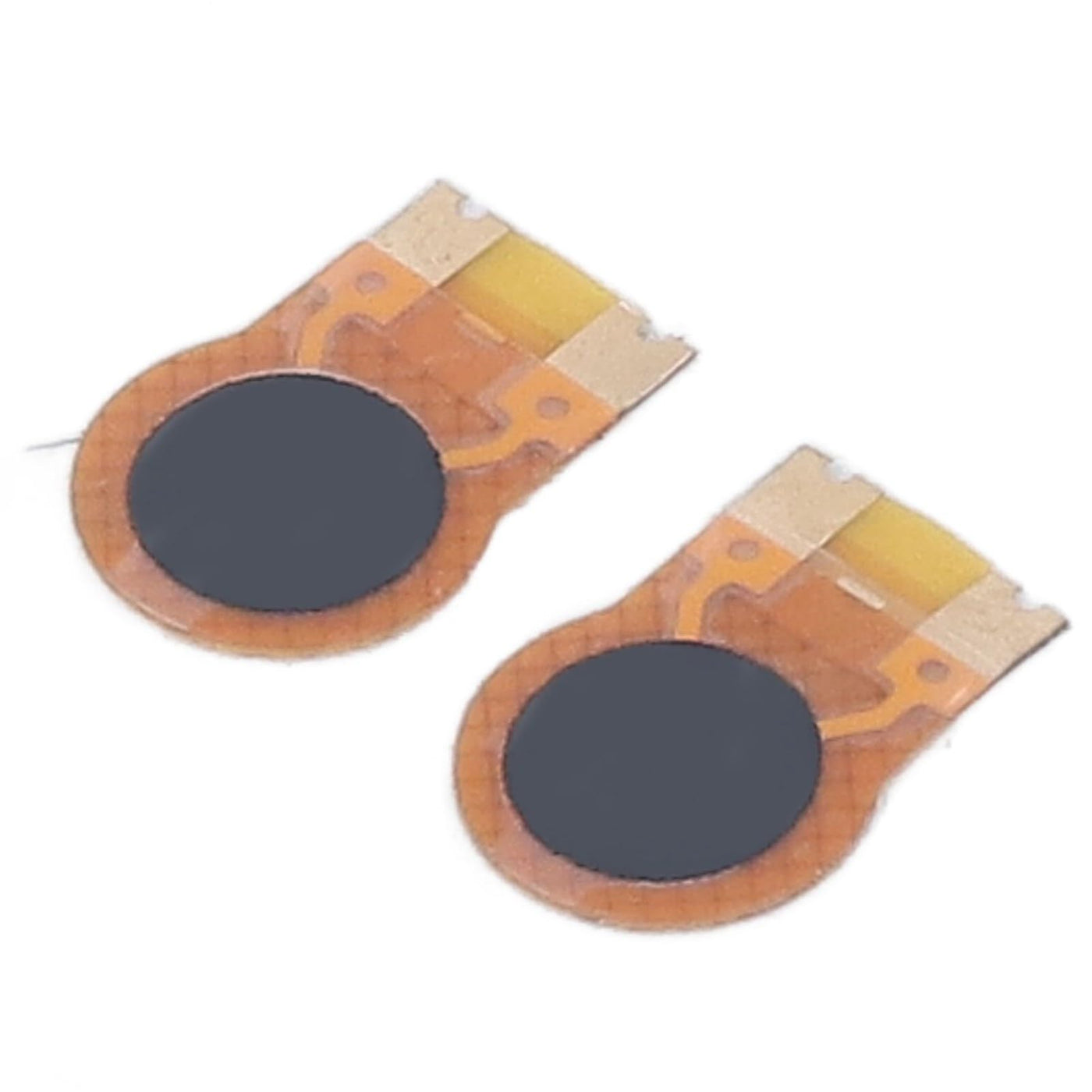

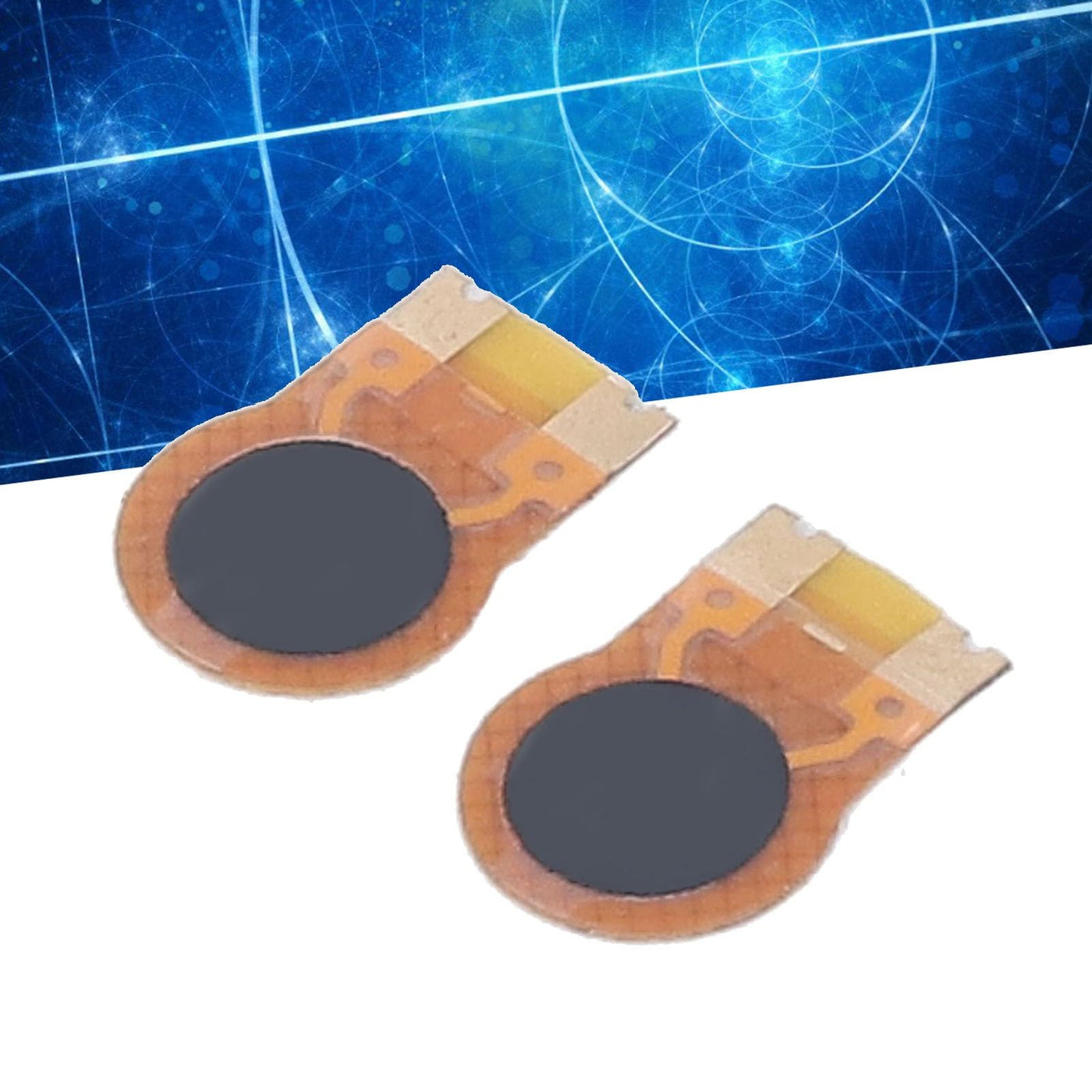

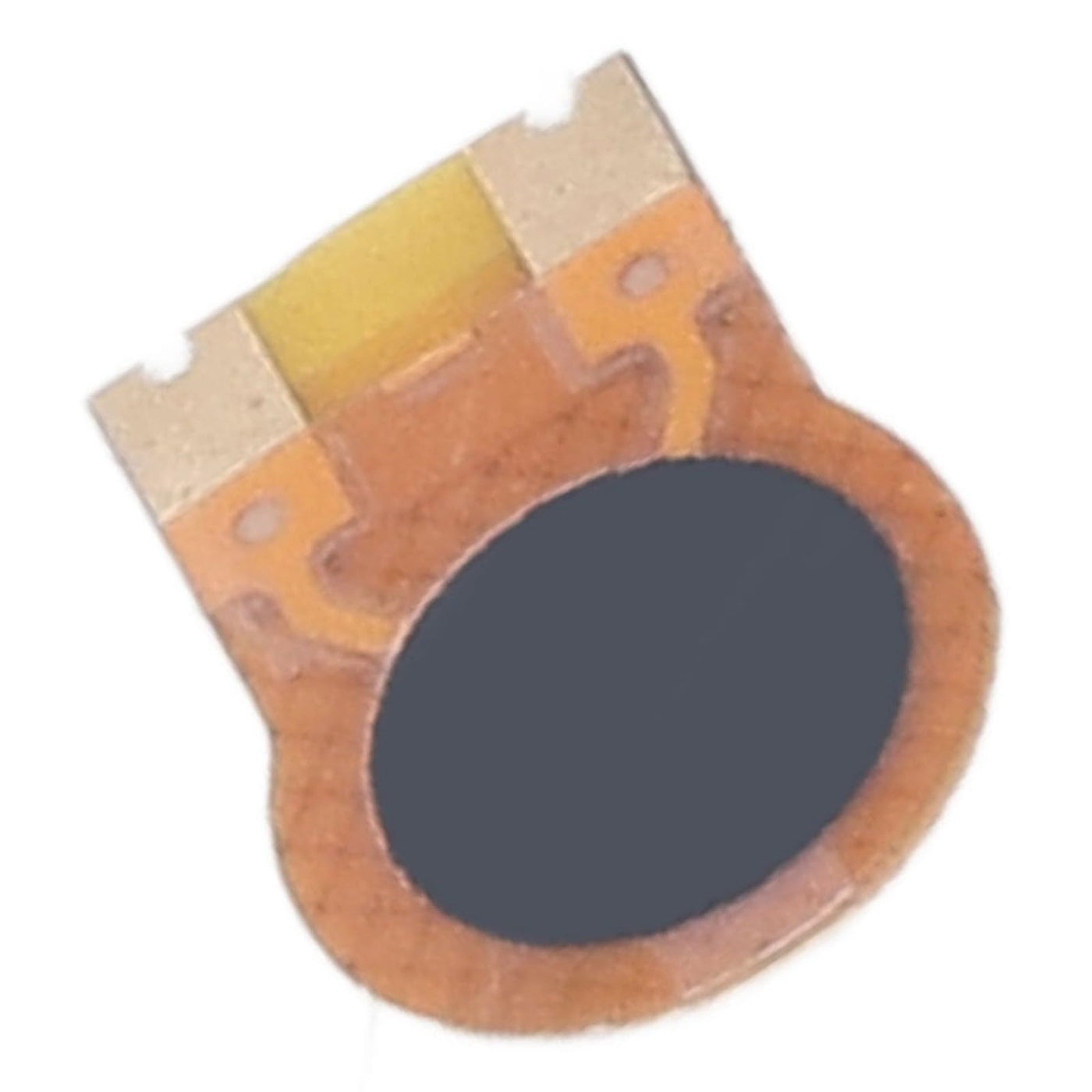

{"id":8034365276340,"title":"Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg","handle":"force-sensitive-resistor-pressure-sensor-2pcs-thin-film-polyester-for-static-and-dynamic-force-measurement-5g-2kg","description":"\u003ch3\u003eForce Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Thin Film Pressure Sensor Mode: RF C7.6 L11 LF\r\nMaterial: Polyester, FPC Basic Parameters: Thickness: Approx. 0.25mm \/ 0.01in\r\nwith rear ADH Driving Force: Approx. 2 g \/ 0.1 oz, Res less than or equal to\r\n500 Κ Ω Pressure Range: Approx. 5g to 2kg \/ 0.2oz to 4.4lb Mode of Action of\r\nPressure: pressing Resistance When not Triggered: Greater than 10M Ω\r\nActivation Time: Less than 10mS packing list: 2 x Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePRODUCT INFORMATION: A resistive sensor is a flexible thin film sensor whose value decreases with the increase of pressure acting on the sensing area.\u003c\/li\u003e\r\n \u003cli\u003eOPERATING PRINCIPLE: A single sensing zone sensor is equivalent to a port variable resistor whose value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is jointly determined by the pressure and equipment parameter setting.\u003c\/li\u003e\r\n \u003cli\u003eFINE WORKMANSHIP: The sensor is composed of polyester film with excellent comprehensive mechanical properties, strong conductivity FPC material, and nanoscale pressure sensitive material. The top layer is a flexible film and a composite pressure sensitive layer on top, while the bottom layer is a flexible film and a composite conductive circuit on top.\u003c\/li\u003e\r\n \u003cli\u003eUSE DETAILS: Two are bonded and isolated from the sensing area through double sided tape( not included). When the sensing area is under pressure, the lines that are disconnected from each other at the bottom layer will conduct through the top layer of the pressure sensitive layer, and the output value of the port will change with the pressure.\u003c\/li\u003e\r\n \u003cli\u003eEXCELLENT PERFORMANCE: Film pressure sensor has static and dynamic pressure sensing and quick response speed, has long durability and lifespan.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-27T17:30:50+11:00","created_at":"2026-02-27T17:30:46+11:00","vendor":"Walfront","type":"Pressure Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154124239028,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CFG6WRTX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg","public_title":null,"options":["Default Title"],"price":10800,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"WALFRONTisv38borga","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CFG6WRTX.jpg?v=1775786072","\/\/auspowers.com\/cdn\/shop\/files\/71FFc2Q4rdL.jpg?v=1772173849","\/\/auspowers.com\/cdn\/shop\/files\/51FVZewDt_L.jpg?v=1772173849","\/\/auspowers.com\/cdn\/shop\/files\/61f7xYRd4SL.jpg?v=1772173848","\/\/auspowers.com\/cdn\/shop\/files\/61sKNusSW7L.jpg?v=1772173848","\/\/auspowers.com\/cdn\/shop\/files\/51LNTiOpiZL.jpg?v=1772173848","\/\/auspowers.com\/cdn\/shop\/files\/51s1ex0_QTL.jpg?v=1772173849","\/\/auspowers.com\/cdn\/shop\/files\/51yTxnCnfcL.jpg?v=1772173849","\/\/auspowers.com\/cdn\/shop\/files\/51g26biYJ5L.jpg?v=1772173848"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFG6WRTX.jpg?v=1775786072","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519037108,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFG6WRTX.jpg?v=1775786072"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFG6WRTX.jpg?v=1775786072","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519069876,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71FFc2Q4rdL.jpg?v=1772173849"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71FFc2Q4rdL.jpg?v=1772173849","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519102644,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51FVZewDt_L.jpg?v=1772173849"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51FVZewDt_L.jpg?v=1772173849","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519135412,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61f7xYRd4SL.jpg?v=1772173848"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61f7xYRd4SL.jpg?v=1772173848","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519168180,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61sKNusSW7L.jpg?v=1772173848"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61sKNusSW7L.jpg?v=1772173848","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519200948,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51LNTiOpiZL.jpg?v=1772173848"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51LNTiOpiZL.jpg?v=1772173848","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519233716,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51s1ex0_QTL.jpg?v=1772173849"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51s1ex0_QTL.jpg?v=1772173849","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519266484,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51yTxnCnfcL.jpg?v=1772173849"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51yTxnCnfcL.jpg?v=1772173849","width":1601},{"alt":"[Australia - AusPower] - Force Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg ","id":32720519299252,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51g26biYJ5L.jpg?v=1772173848"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51g26biYJ5L.jpg?v=1772173848","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eForce Sensitive Resistor Pressure Sensor 2PCS Thin Film Polyester for Static and Dynamic Force Measurement 5g-2kg\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Item Type: Thin Film Pressure Sensor Mode: RF C7.6 L11 LF\r\nMaterial: Polyester, FPC Basic Parameters: Thickness: Approx. 0.25mm \/ 0.01in\r\nwith rear ADH Driving Force: Approx. 2 g \/ 0.1 oz, Res less than or equal to\r\n500 Κ Ω Pressure Range: Approx. 5g to 2kg \/ 0.2oz to 4.4lb Mode of Action of\r\nPressure: pressing Resistance When not Triggered: Greater than 10M Ω\r\nActivation Time: Less than 10mS packing list: 2 x Sensor\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003ePRODUCT INFORMATION: A resistive sensor is a flexible thin film sensor whose value decreases with the increase of pressure acting on the sensing area.\u003c\/li\u003e\r\n \u003cli\u003eOPERATING PRINCIPLE: A single sensing zone sensor is equivalent to a port variable resistor whose value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is jointly determined by the pressure and equipment parameter setting.\u003c\/li\u003e\r\n \u003cli\u003eFINE WORKMANSHIP: The sensor is composed of polyester film with excellent comprehensive mechanical properties, strong conductivity FPC material, and nanoscale pressure sensitive material. The top layer is a flexible film and a composite pressure sensitive layer on top, while the bottom layer is a flexible film and a composite conductive circuit on top.\u003c\/li\u003e\r\n \u003cli\u003eUSE DETAILS: Two are bonded and isolated from the sensing area through double sided tape( not included). When the sensing area is under pressure, the lines that are disconnected from each other at the bottom layer will conduct through the top layer of the pressure sensitive layer, and the output value of the port will change with the pressure.\u003c\/li\u003e\r\n \u003cli\u003eEXCELLENT PERFORMANCE: Film pressure sensor has static and dynamic pressure sensing and quick response speed, has long durability and lifespan.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
