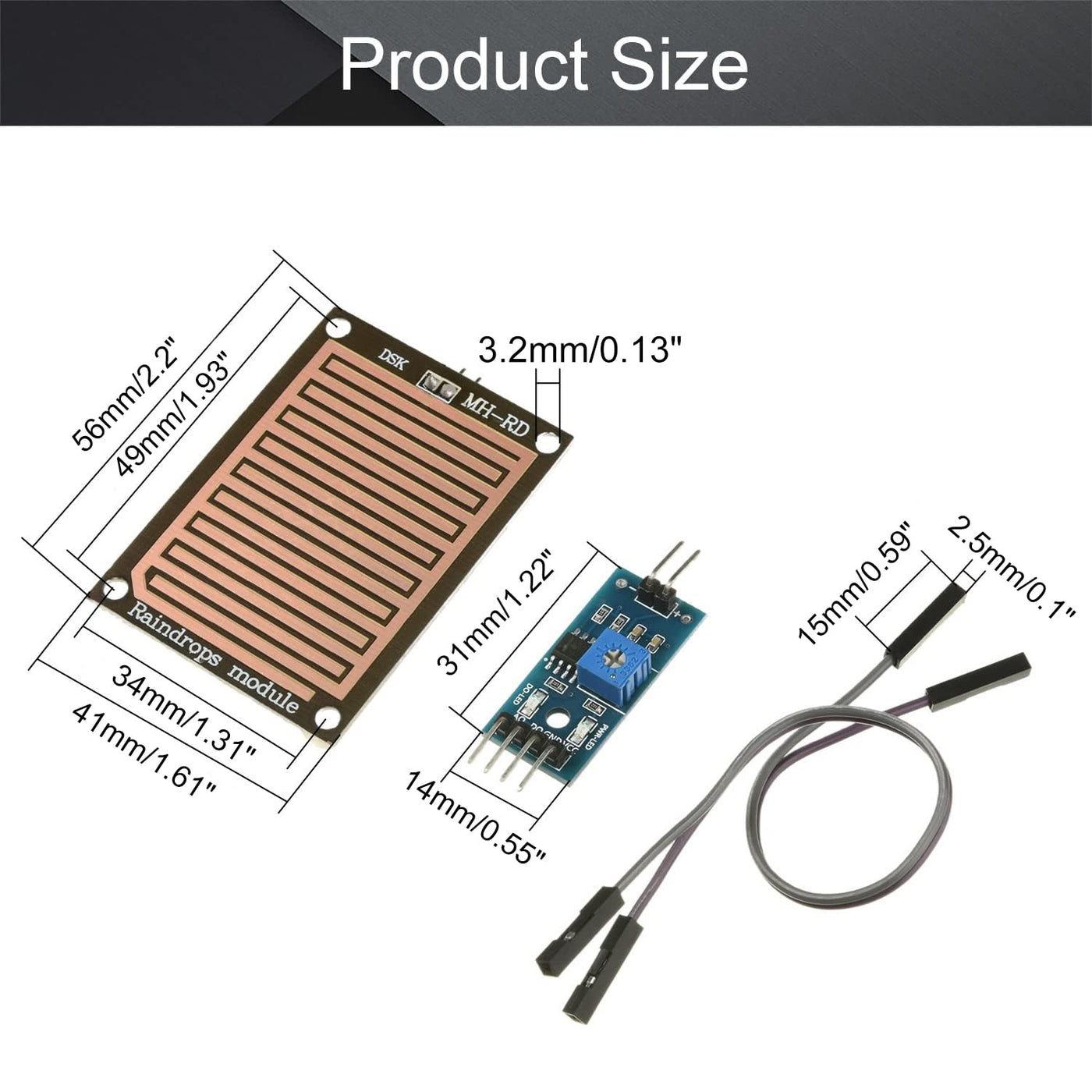

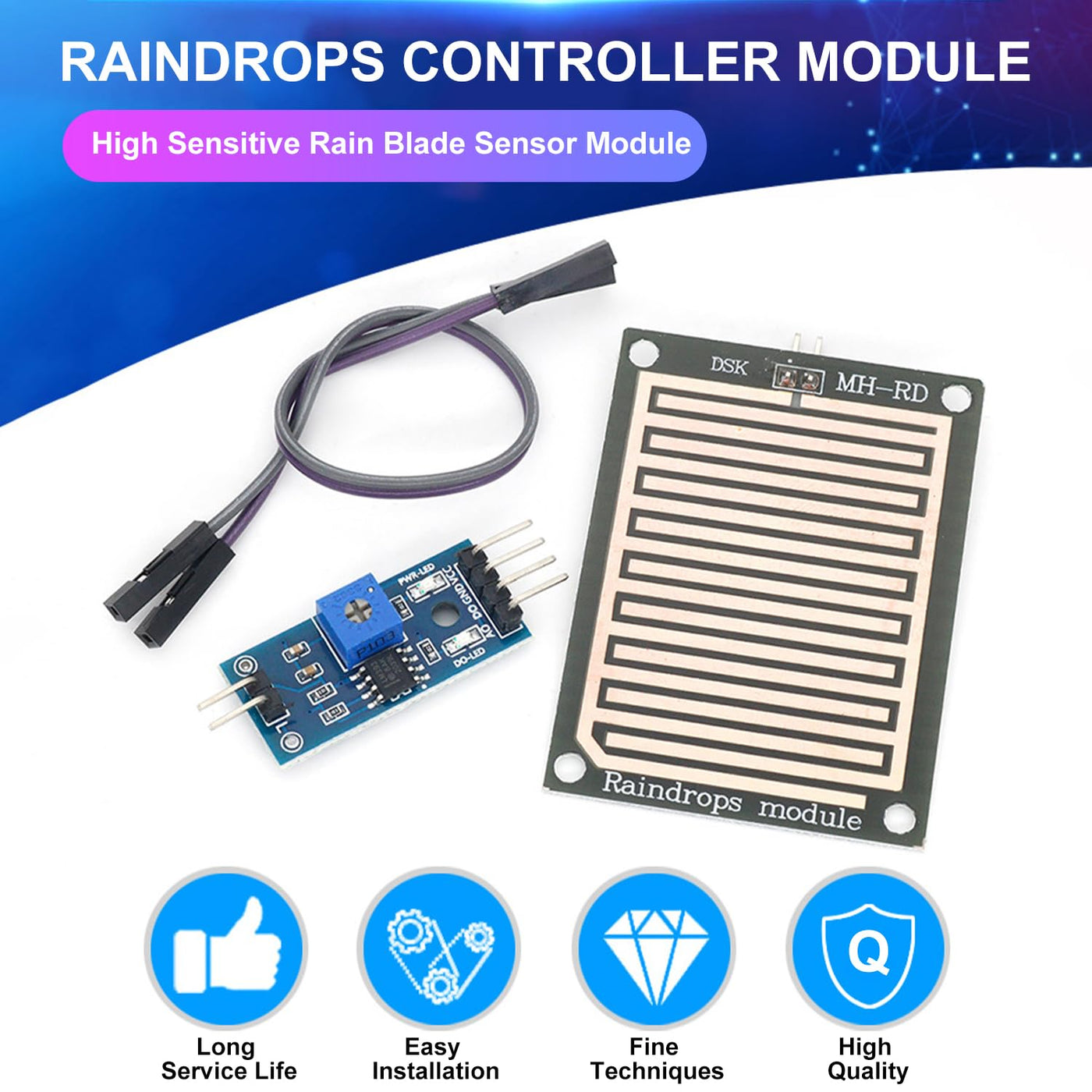

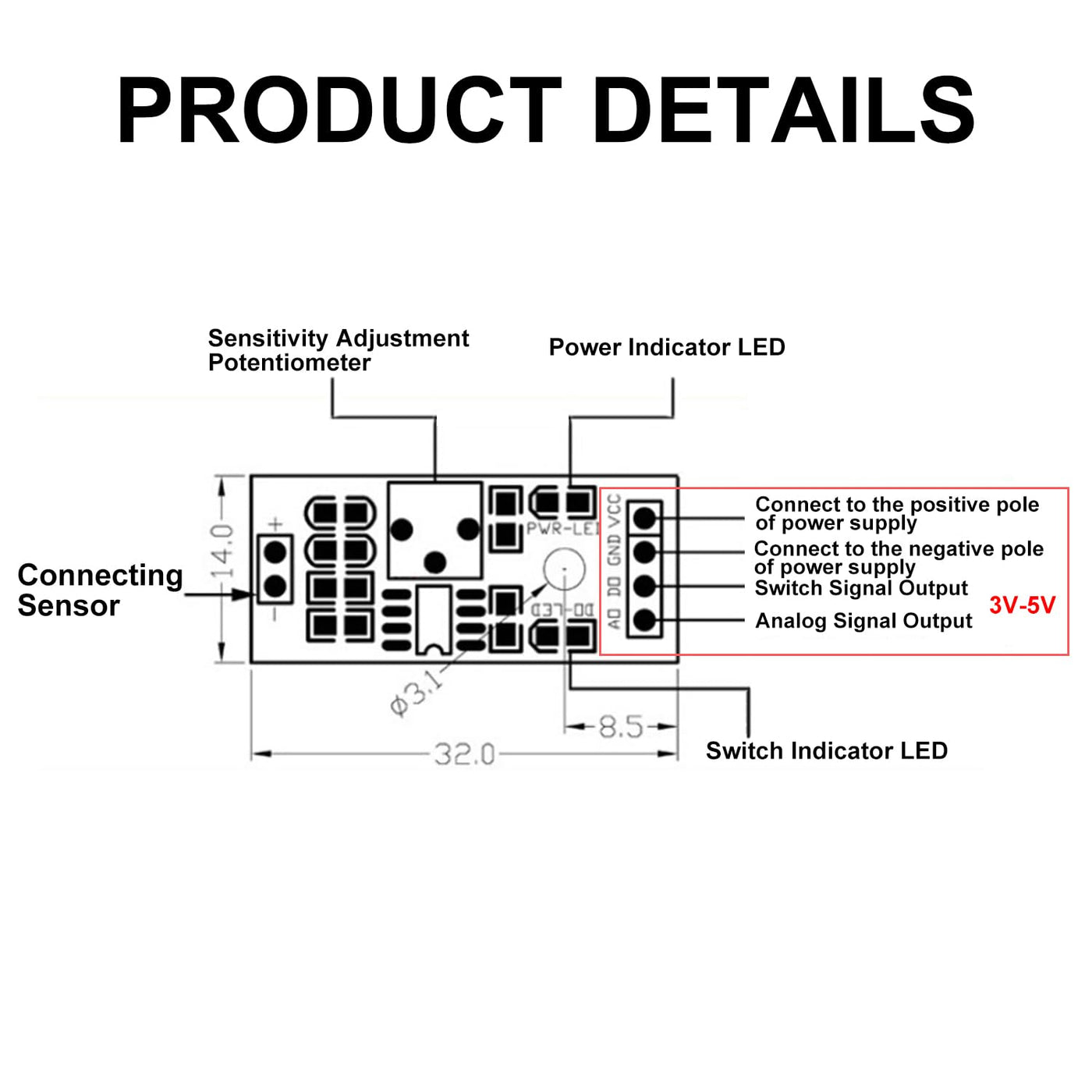

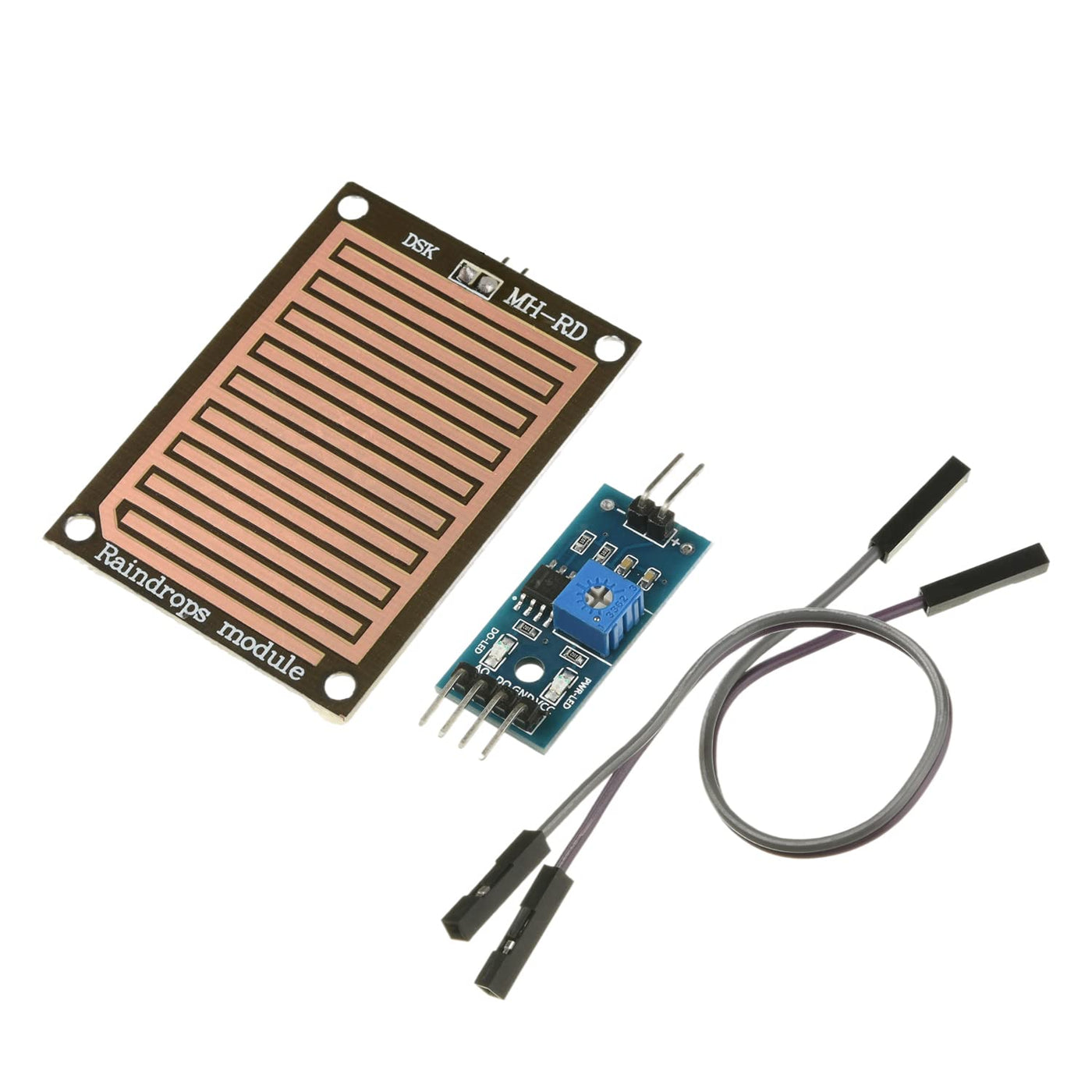

{"id":8034521710772,"title":"Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino","handle":"fielect-raindrops-module-raindrop-detection-sensor-humidity-rain-weather-sensitivity-monitoring-for-arduino","description":"\u003ch3\u003eFielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct IntroductionConnect a 5V power supply, the power indicator light is\r\non, and when there are no water droplets on the induction board, the DO output\r\nis at a high level, and the switch indicator light is off. Drip a drop of\r\nwater, the DO output is at a low level, the switch indicator light is on,\r\nbrush off the water droplets on top, and return to the output high level\r\nstate. AO analog output can be connected to the AD port of the microcontroller\r\nto detect the amount of rainfall falling on it. DOTTL digital output can also\r\nbe connected to a microcontroller to detect rain. Product Features1. The\r\nsensor is made of high-quality FR-04 double-sided material, with a large area\r\nof 5 4CM. The surface is treated with nickel plating, which has superior\r\nperformance in terms of oxidation resistance, conductivity, and lifespan2.\r\nComparator output, clean signal, good waveform, strong driving ability, over\r\n15mA3. Equipped with potentiometer to adjust sensitivity4. Working voltage\r\n3.3V-5V5. Output format: Digital switch output (0-1) and analog AO voltage\r\noutput6. Equipped with fixed bolt holes for easy installation7. Module size:\r\n3.2 1.4CM8. Using a wide voltage LM393 comparator Product ApplicationArduino\r\nrobot kit, raindrops, rain sensors, can be used for monitoring various weather\r\nconditions, and converted into digital signals and AO outputs Product\r\nContentElectronic Module + Sensor + Potentiometer\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMaterial- The sensor is made of high-quality FR-04 double-sided material. The surface is treated with nickel plating, which has superior performance in terms of oxidation resistance, conductivity, and service life.\u003c\/li\u003e\r\n \u003cli\u003eAdvantage- When there is no water droplet on the sensor board, the DO output is high level, the switch indicator light is off.\u003c\/li\u003e\r\n \u003cli\u003eFeature- Comparator output with clean signal, good waveform and more than 15mA strong driving ability. Output form: digital switching output (0 and 1) and analog AO voltage output.\u003c\/li\u003e\r\n \u003cli\u003eApplication- This module can be used in Arduino robot kit, raindrops, rain sensors, can be used for monitoring various weather conditions, and converted into digital signals and AO outputs.\u003c\/li\u003e\r\n \u003cli\u003ePackage Included- Electronic Module + Sensor + Potentiometer\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T19:52:39+11:00","created_at":"2026-02-28T19:52:36+11:00","vendor":"Fielect","type":"Temperature Probes \u0026 Sensors","tags":["industrial_selected_Nov2025"],"price":8500,"price_min":8500,"price_max":8500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154559791284,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08HGFY45D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino","public_title":null,"options":["Default Title"],"price":8500,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"888143169231","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08HGFY45D.jpg?v=1775787352","\/\/auspowers.com\/cdn\/shop\/files\/71onZtqHDKL.jpg?v=1772268758","\/\/auspowers.com\/cdn\/shop\/files\/71-nCVtiy_L.jpg?v=1772268758","\/\/auspowers.com\/cdn\/shop\/files\/61TgaZvHMyL.jpg?v=1772268758","\/\/auspowers.com\/cdn\/shop\/files\/71Rc9FSPAAL.jpg?v=1772268758","\/\/auspowers.com\/cdn\/shop\/files\/71aYMb6kGYL.jpg?v=1772268758","\/\/auspowers.com\/cdn\/shop\/files\/61W63dUAJdL.jpg?v=1772268759"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08HGFY45D.jpg?v=1775787352","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320354484,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08HGFY45D.jpg?v=1775787352"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08HGFY45D.jpg?v=1775787352","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320387252,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71onZtqHDKL.jpg?v=1772268758"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71onZtqHDKL.jpg?v=1772268758","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320420020,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71-nCVtiy_L.jpg?v=1772268758"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71-nCVtiy_L.jpg?v=1772268758","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320452788,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61TgaZvHMyL.jpg?v=1772268758"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61TgaZvHMyL.jpg?v=1772268758","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320485556,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Rc9FSPAAL.jpg?v=1772268758"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Rc9FSPAAL.jpg?v=1772268758","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320518324,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71aYMb6kGYL.jpg?v=1772268758"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71aYMb6kGYL.jpg?v=1772268758","width":1500},{"alt":"[Australia - AusPower] - Fielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino ","id":32724320551092,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61W63dUAJdL.jpg?v=1772268759"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61W63dUAJdL.jpg?v=1772268759","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFielect Raindrops Module Raindrop Detection Sensor Humidity Rain Weather Sensitivity Monitoring for Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct IntroductionConnect a 5V power supply, the power indicator light is\r\non, and when there are no water droplets on the induction board, the DO output\r\nis at a high level, and the switch indicator light is off. Drip a drop of\r\nwater, the DO output is at a low level, the switch indicator light is on,\r\nbrush off the water droplets on top, and return to the output high level\r\nstate. AO analog output can be connected to the AD port of the microcontroller\r\nto detect the amount of rainfall falling on it. DOTTL digital output can also\r\nbe connected to a microcontroller to detect rain. Product Features1. The\r\nsensor is made of high-quality FR-04 double-sided material, with a large area\r\nof 5 4CM. The surface is treated with nickel plating, which has superior\r\nperformance in terms of oxidation resistance, conductivity, and lifespan2.\r\nComparator output, clean signal, good waveform, strong driving ability, over\r\n15mA3. Equipped with potentiometer to adjust sensitivity4. Working voltage\r\n3.3V-5V5. Output format: Digital switch output (0-1) and analog AO voltage\r\noutput6. Equipped with fixed bolt holes for easy installation7. Module size:\r\n3.2 1.4CM8. Using a wide voltage LM393 comparator Product ApplicationArduino\r\nrobot kit, raindrops, rain sensors, can be used for monitoring various weather\r\nconditions, and converted into digital signals and AO outputs Product\r\nContentElectronic Module + Sensor + Potentiometer\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMaterial- The sensor is made of high-quality FR-04 double-sided material. The surface is treated with nickel plating, which has superior performance in terms of oxidation resistance, conductivity, and service life.\u003c\/li\u003e\r\n \u003cli\u003eAdvantage- When there is no water droplet on the sensor board, the DO output is high level, the switch indicator light is off.\u003c\/li\u003e\r\n \u003cli\u003eFeature- Comparator output with clean signal, good waveform and more than 15mA strong driving ability. Output form: digital switching output (0 and 1) and analog AO voltage output.\u003c\/li\u003e\r\n \u003cli\u003eApplication- This module can be used in Arduino robot kit, raindrops, rain sensors, can be used for monitoring various weather conditions, and converted into digital signals and AO outputs.\u003c\/li\u003e\r\n \u003cli\u003ePackage Included- Electronic Module + Sensor + Potentiometer\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
