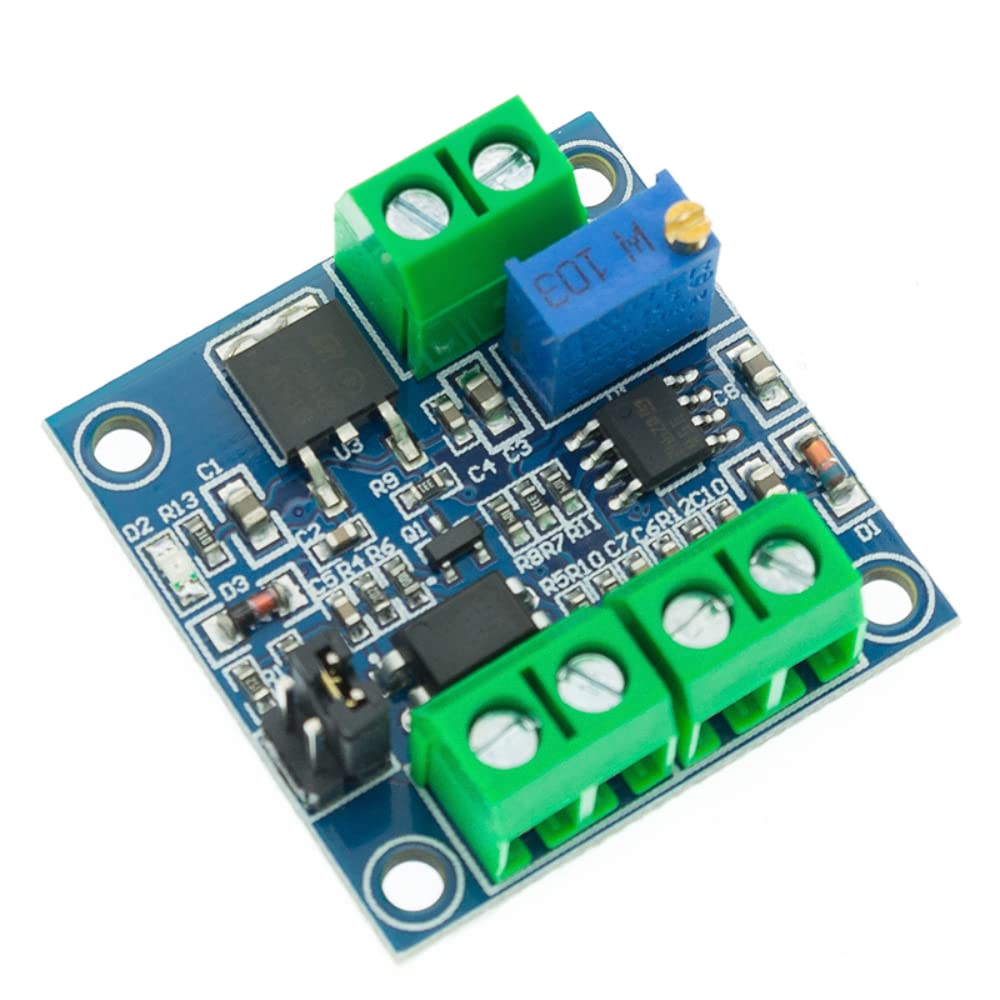

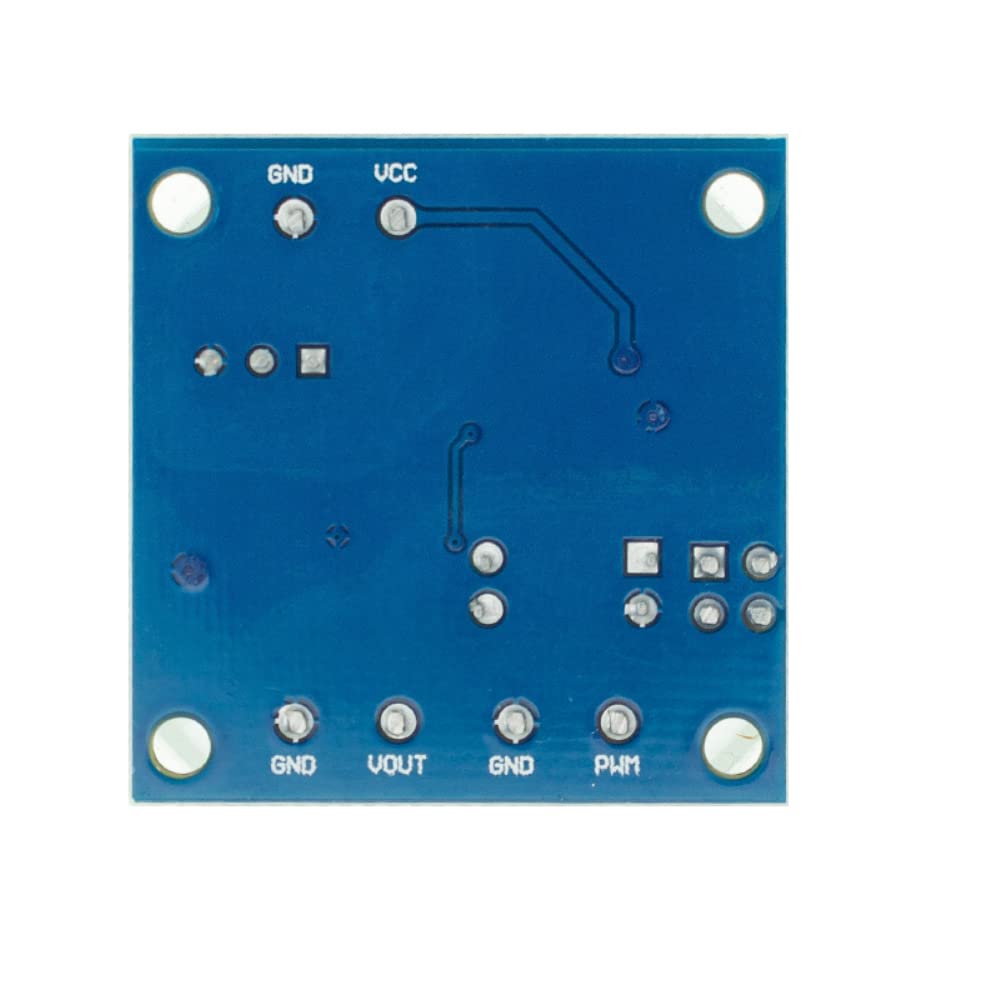

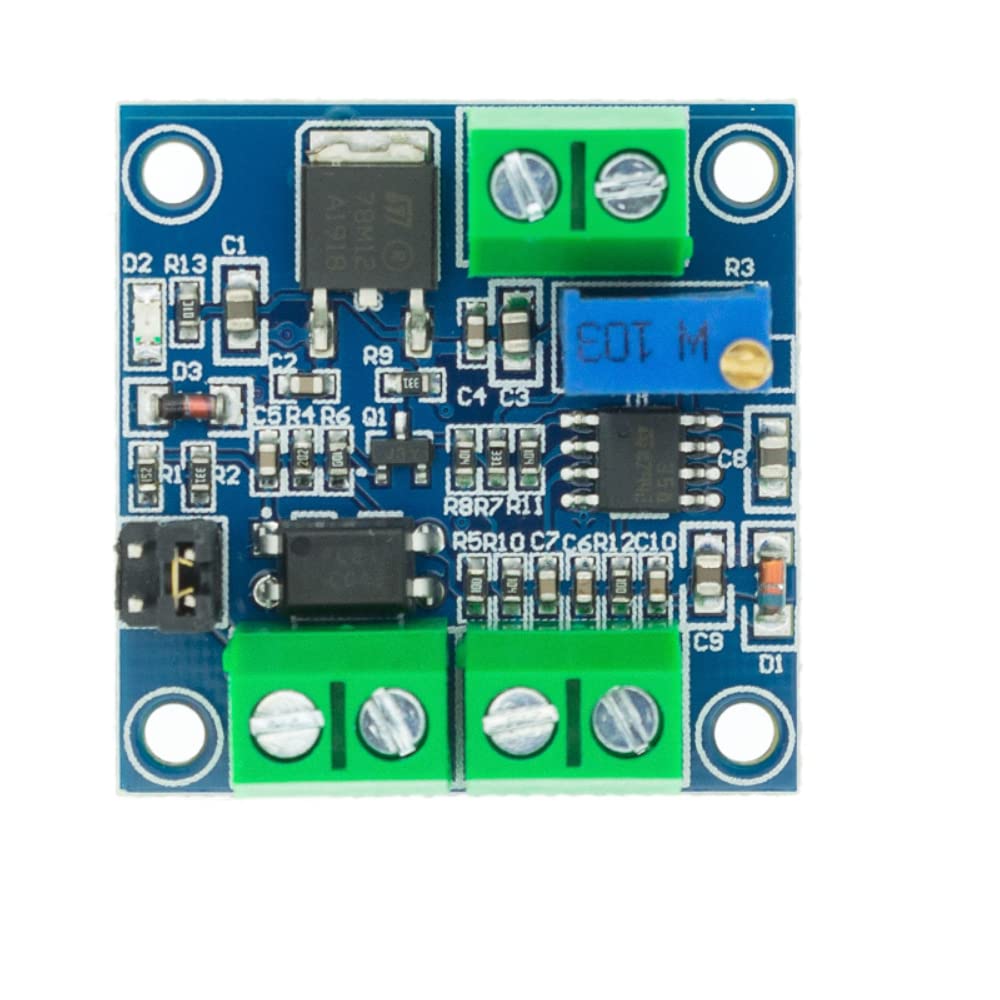

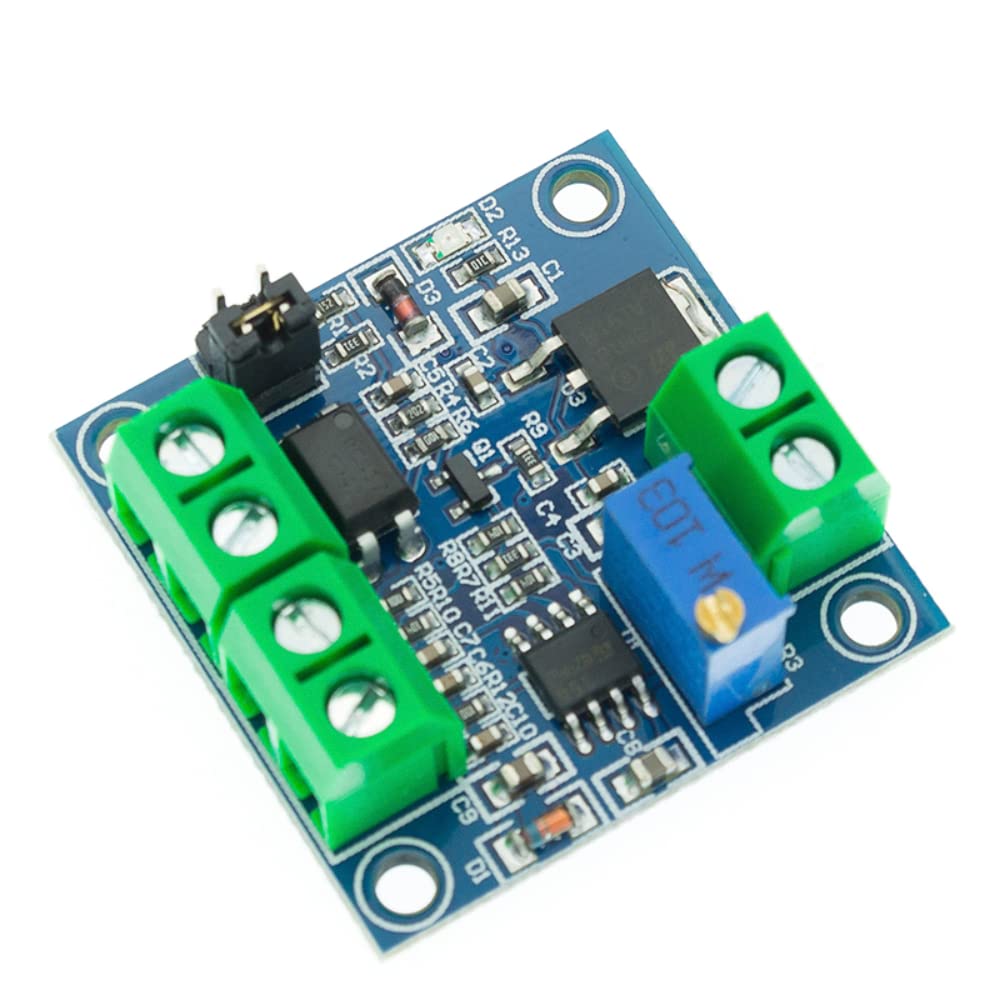

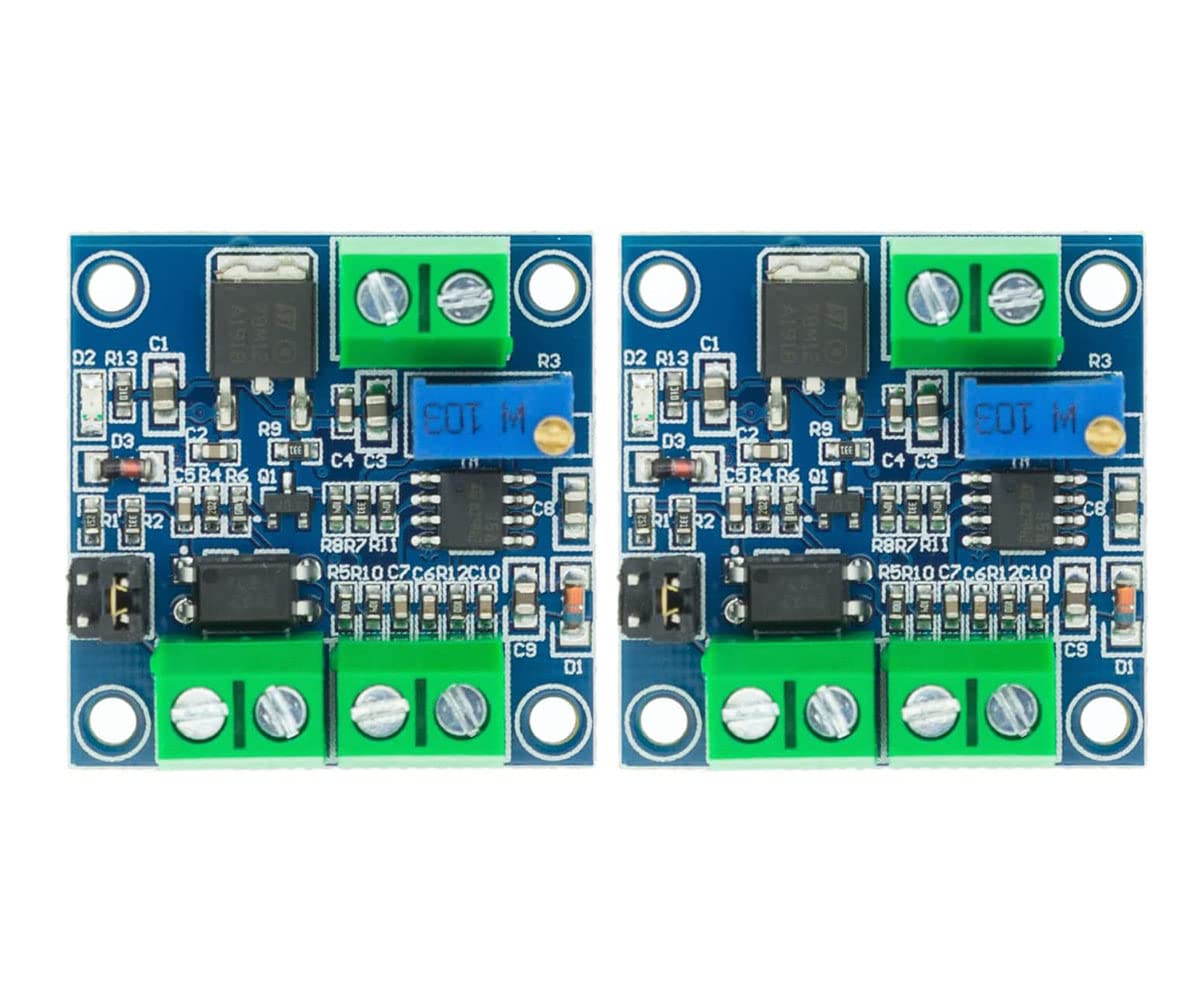

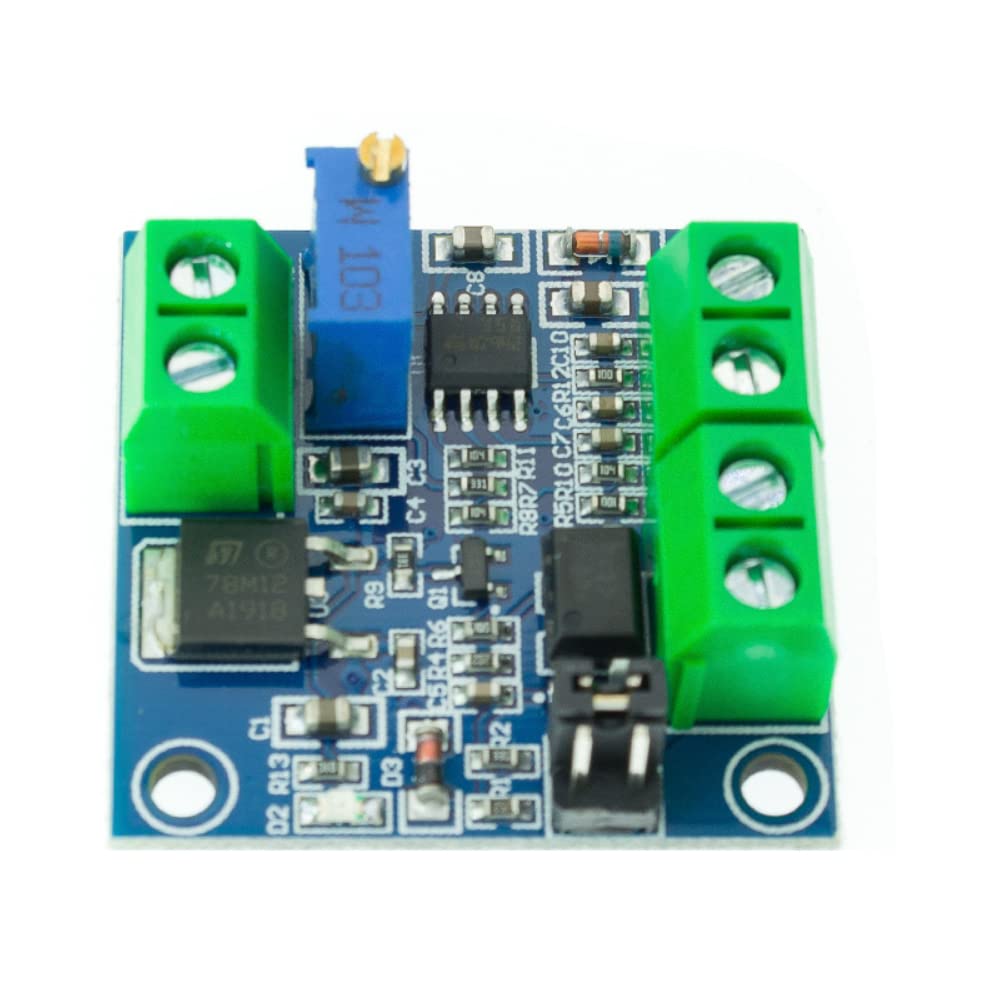

{"id":7991812915380,"title":"Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage","handle":"fasizi-2-x-pwm-rotary-voltage-module-0-100-pwm-rotation-to-0v-10v-voltage","description":"\u003ch3\u003eFasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe LM358-PWM2V PWM rotary voltage module can convert PWM signals into analog\nsignals from 0 to 10V. Can be used in the PLC or other industrial panel switch\nsignal interfaces. By adjusting the PWM duty ratios to adjust the output\nvoltage. Module size is small, easy to apply to different places. Module\nworking voltage: DC 12V-30V (power requirement: more than 100mA). PWM signal\nreception frequency range: 1KHZ-3KHZ; PWM signal input level range: Feng value\nfrom 4.5V to 10V level, jump needle at 5V. The class level signal mainly used\nfor conventional industrial control cards (e.g. MACH3 boards), 5V CPU\ninterface. Fengfeng value between 12 and 24V level, jump needle at 24V, the\nclass level signal mainly for traditional PLC interface. PWM conversion range\n0% - 100% PWM conversion 0 to 10 V. Permissible error 5% VCC: working power\n12V-30V. GND: working power. PWM: input PWM signal positive pole. GND: the\ninput signal is negative end. VOUT: 0 to 10 V output voltage. GND: Output\nVoltage Instructions:After power on, there is no input signal, the output is\n0V.Electricity for the first time, it is best to do calibration debugging:\nfind a 50% power on cycle of access to the PWM signal, GND, according to the\nrelative amplitude jump needle. Frequency in 1 kHz - 3 kHz, VOUT is measured\nwith a multimeter, GNN. D two connectors, the table display at about 5 V,\nadjust the potentiometer on the board, set says in 5.00 V on the multimeter.\nThe calibration is your pulse signal and the corresponding relationship of the\nmodule. If the frequency changes, there may be an offset, the corresponding\nrelationship must be calibrated. Output voltage can be adjusted by adjusting\nthe duty cycle. Package includes: 2 x Fasizi PWM turn voltage module\n0%-100%PWM turn to 0V-10V voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEasy to use, can transition to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eModule is small, portable and easy to use.\u003c\/li\u003e\n \u003cli\u003eMCU embedded technology\u003c\/li\u003e\n \u003cli\u003ePWM signal reception frequency range: 1KHZ-3KHZ;\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:54:28+10:00","created_at":"2025-09-24T01:54:24+10:00","vendor":"Fasizi","type":"Motor Speed Controllers","tags":["industryDE_Sep2025"],"price":10600,"price_min":10600,"price_max":10600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048643522740,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09Z28KRQP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage","public_title":null,"options":["Default Title"],"price":10600,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"798339959884","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z28KRQP.jpg?v=1775769746","\/\/auspowers.com\/cdn\/shop\/files\/61zkr2txNbL.jpg?v=1758642867","\/\/auspowers.com\/cdn\/shop\/files\/61gr8FRAgHL.jpg?v=1758642867","\/\/auspowers.com\/cdn\/shop\/files\/61Dx3oHkbTL.jpg?v=1758642867","\/\/auspowers.com\/cdn\/shop\/files\/5144_2ZGz1L.jpg?v=1758642867","\/\/auspowers.com\/cdn\/shop\/files\/51ghJFLSuyL.jpg?v=1758642867"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z28KRQP.jpg?v=1775769746","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409296564,"position":1,"preview_image":{"aspect_ratio":1.2,"height":1000,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z28KRQP.jpg?v=1775769746"},"aspect_ratio":1.2,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B09Z28KRQP.jpg?v=1775769746","width":1200},{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409329332,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zkr2txNbL.jpg?v=1758642867"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zkr2txNbL.jpg?v=1758642867","width":1000},{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409362100,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61gr8FRAgHL.jpg?v=1758642867"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61gr8FRAgHL.jpg?v=1758642867","width":1000},{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409394868,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Dx3oHkbTL.jpg?v=1758642867"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Dx3oHkbTL.jpg?v=1758642867","width":1000},{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409427636,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/5144_2ZGz1L.jpg?v=1758642867"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/5144_2ZGz1L.jpg?v=1758642867","width":1000},{"alt":"[Australia - AusPower] - Fasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage ","id":32189409460404,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51ghJFLSuyL.jpg?v=1758642867"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51ghJFLSuyL.jpg?v=1758642867","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eFasizi 2 x PWM Rotary Voltage Module 0%-100% PWM Rotation to 0V-10V Voltage\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe LM358-PWM2V PWM rotary voltage module can convert PWM signals into analog\nsignals from 0 to 10V. Can be used in the PLC or other industrial panel switch\nsignal interfaces. By adjusting the PWM duty ratios to adjust the output\nvoltage. Module size is small, easy to apply to different places. Module\nworking voltage: DC 12V-30V (power requirement: more than 100mA). PWM signal\nreception frequency range: 1KHZ-3KHZ; PWM signal input level range: Feng value\nfrom 4.5V to 10V level, jump needle at 5V. The class level signal mainly used\nfor conventional industrial control cards (e.g. MACH3 boards), 5V CPU\ninterface. Fengfeng value between 12 and 24V level, jump needle at 24V, the\nclass level signal mainly for traditional PLC interface. PWM conversion range\n0% - 100% PWM conversion 0 to 10 V. Permissible error 5% VCC: working power\n12V-30V. GND: working power. PWM: input PWM signal positive pole. GND: the\ninput signal is negative end. VOUT: 0 to 10 V output voltage. GND: Output\nVoltage Instructions:After power on, there is no input signal, the output is\n0V.Electricity for the first time, it is best to do calibration debugging:\nfind a 50% power on cycle of access to the PWM signal, GND, according to the\nrelative amplitude jump needle. Frequency in 1 kHz - 3 kHz, VOUT is measured\nwith a multimeter, GNN. D two connectors, the table display at about 5 V,\nadjust the potentiometer on the board, set says in 5.00 V on the multimeter.\nThe calibration is your pulse signal and the corresponding relationship of the\nmodule. If the frequency changes, there may be an offset, the corresponding\nrelationship must be calibrated. Output voltage can be adjusted by adjusting\nthe duty cycle. Package includes: 2 x Fasizi PWM turn voltage module\n0%-100%PWM turn to 0V-10V voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEasy to use, can transition to fine tuning potentiometer.\u003c\/li\u003e\n \u003cli\u003eBy short circuit, select the PWM signal input level range.\u003c\/li\u003e\n \u003cli\u003eModule is small, portable and easy to use.\u003c\/li\u003e\n \u003cli\u003eMCU embedded technology\u003c\/li\u003e\n \u003cli\u003ePWM signal reception frequency range: 1KHZ-3KHZ;\u003c\/li\u003e\n \u003c\/ul\u003e"}
