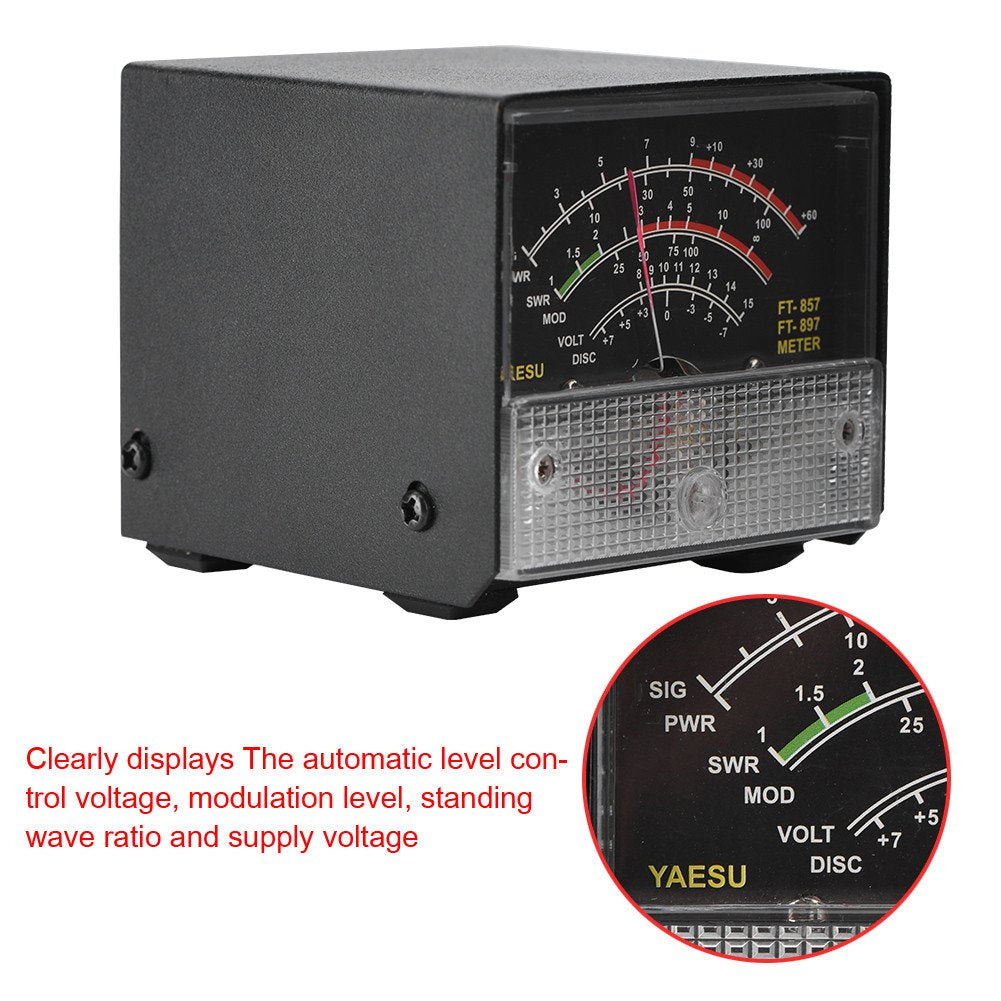

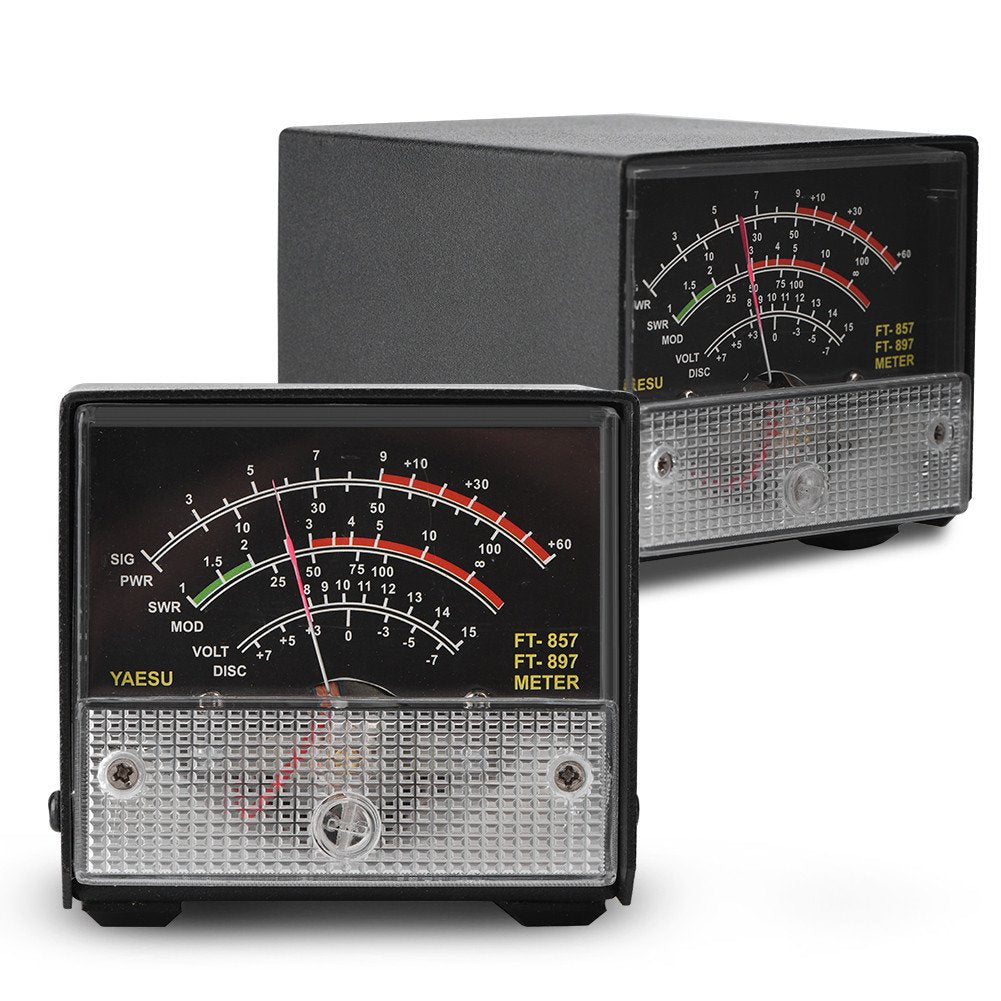

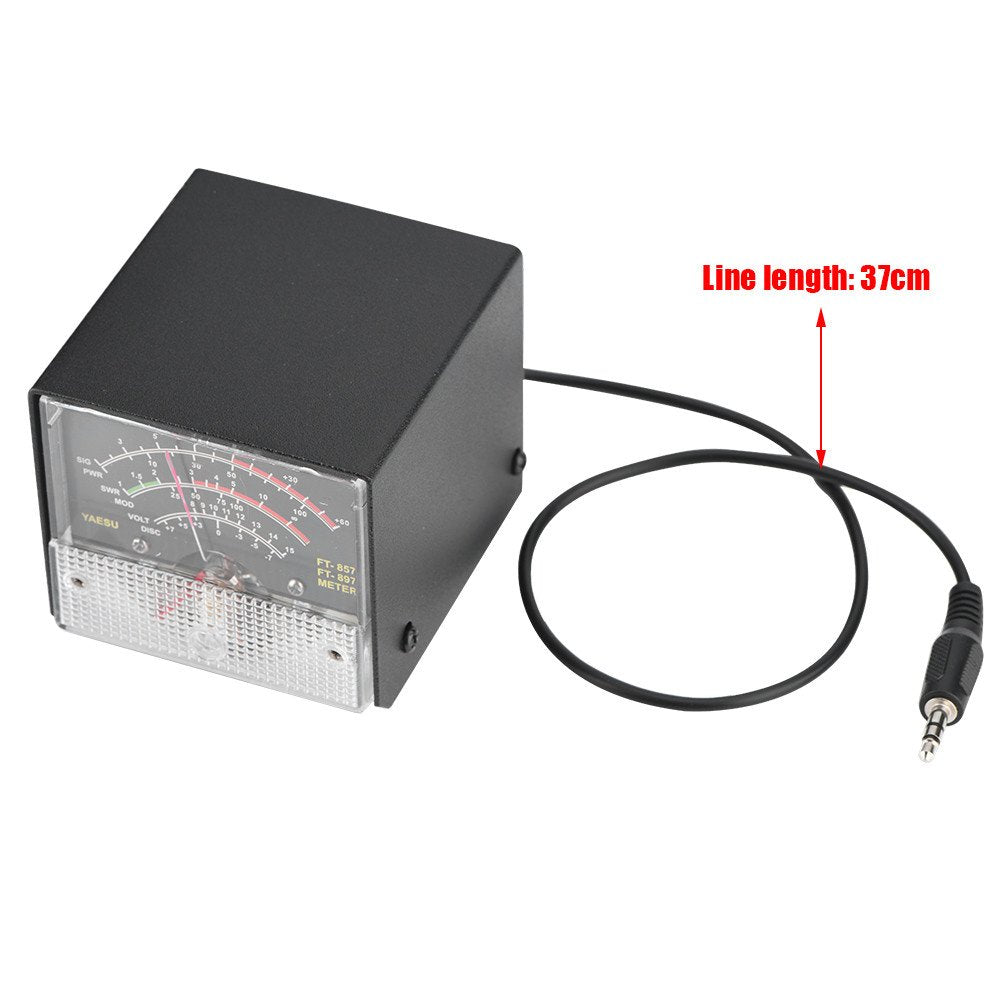

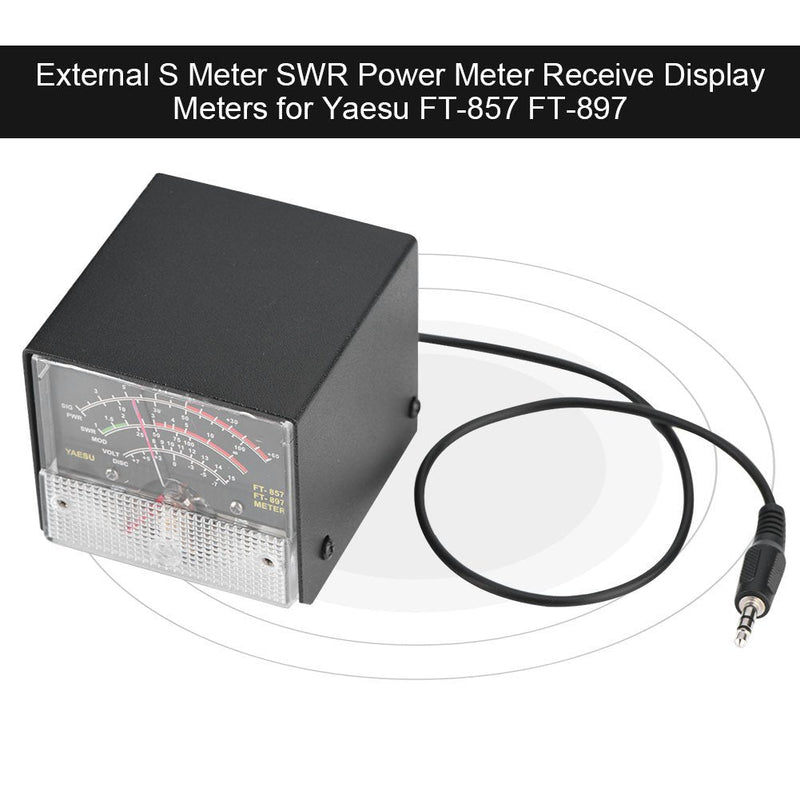

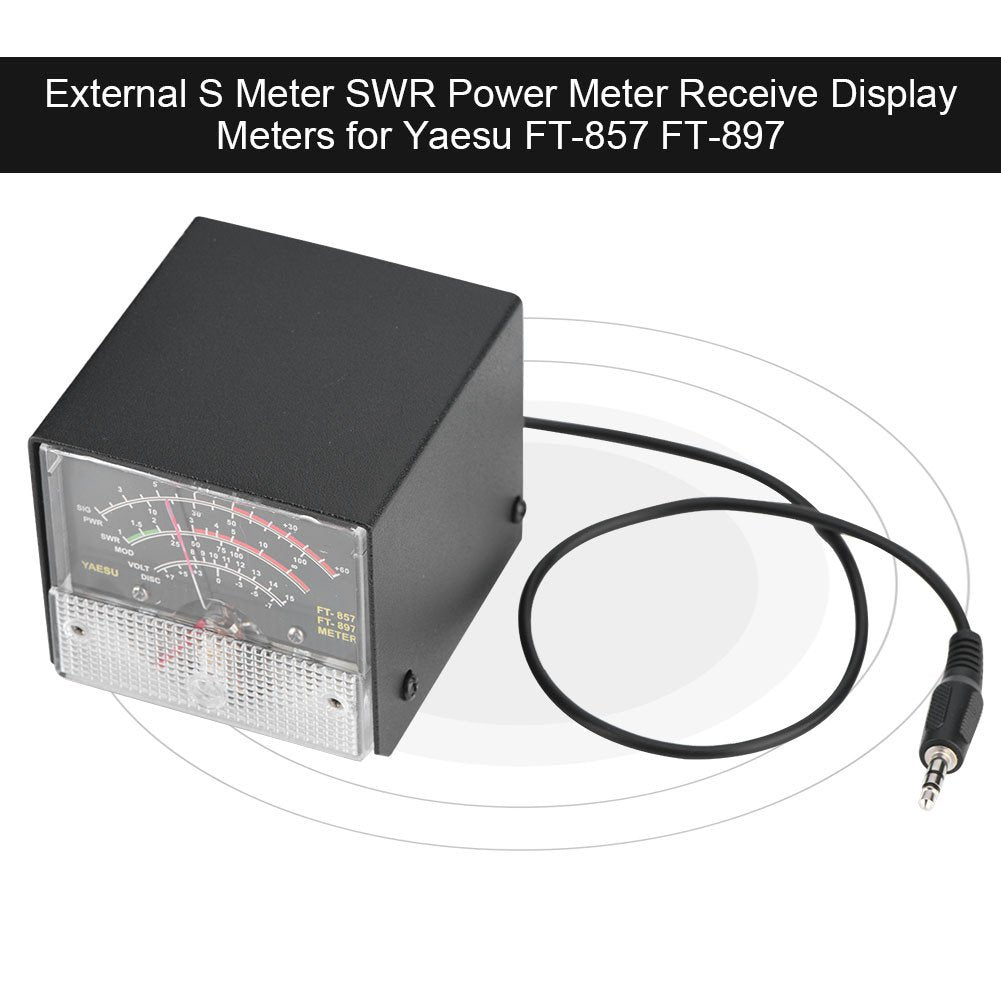

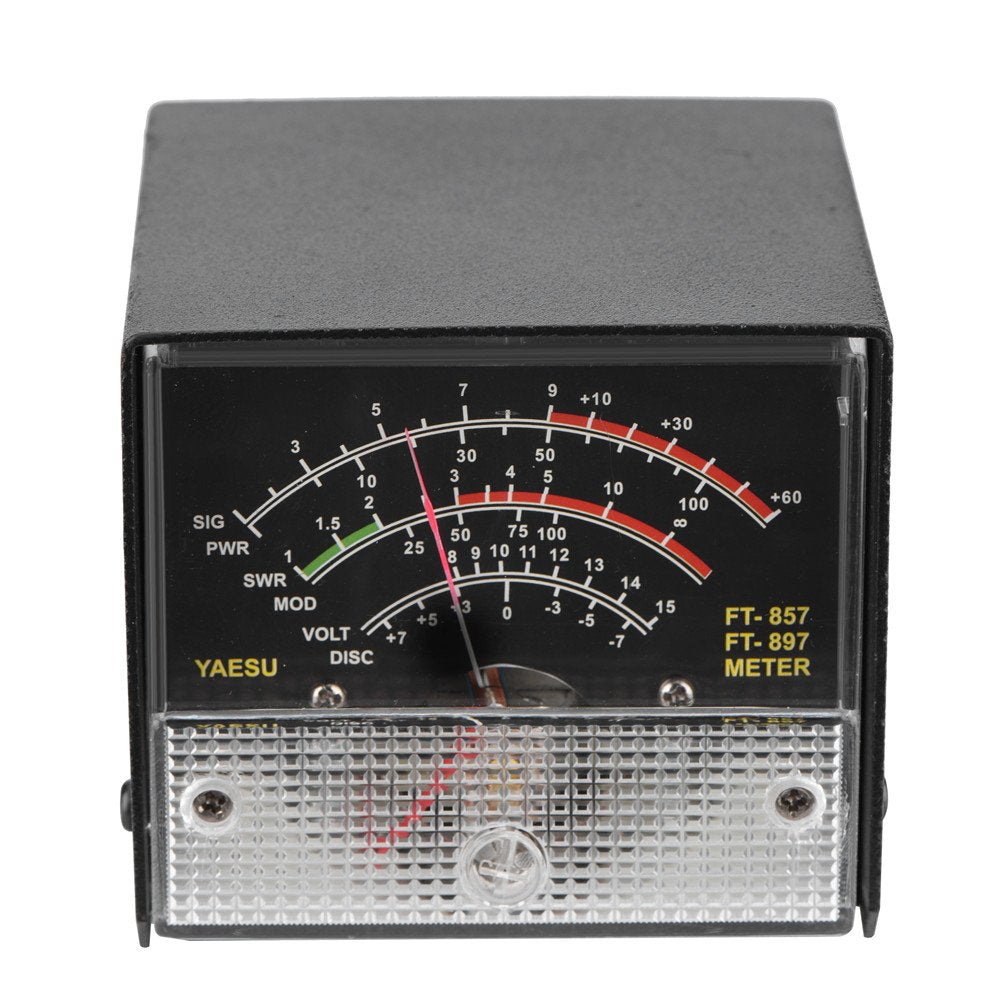

{"id":7889046208692,"title":"External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897","handle":"external-s-meter-swr-power-meter-receive-display-multi-function-expansion-meter-for-yaesu-ft-857-ft-897","description":"\u003ch3\u003eExternal S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage List: 1 External S Meter Display Meters for Yaesu FT-857\/FT-897\nFT-857D\u0026amp; FT-897D external header display setting method: Receive Display\nSettings 1. press (FUNC) key to enter the setup menu, enable the extended\nmenu. 2. rotate (SELECT) to call up the setup menu item No-061(MTR ARX SEL).\n3. rotate (DIAL) to select an external instrument display: -SIG: the input\nsignal strength display -CTR: Discriminator Center Meter -VLT: battery voltage\n-N \/ A: blank -FS: buckle in the instrument 1mA full scale output signal\ncalibration standard external instruments -OFF: Turn off the meter. 4. press\n(FUNC) button to save the settings and exit the setup menu. Emission Display\nSettings 1. press (FUNC) key to enter the setup menu, enable the extended\nmenu. 2. rotate (SELECT) to call up the setup menu item No-061 (MTR ARX SEL).\n3. rotate (DIAL) to select an external instrument display: -PWR: transmit\npower display -ALC: Automatic Level Control voltage display -MOD: Modulation\nLevel Display -SWR: SWR display -VLT: Display Supply Voltage -N \/ A: blank\n-OFF: Turn off the meter. Calibration method is as follows 1. press (FUNC) key\nto enter the setup menu, enable the extended menu. 2. rotate (SELECT) to call\nup the setup menu item No-060 (MTR ARX SEL). 3. rotate (DIAL) to select FS. 4.\nwith a small flathead screwdriver to adjust the calibration adjustment hole\nrear, so the header pointer to full scale. 5. the calibration is complete!\nNote: The instrument has been calibrated delivery, but do not preclude the\nbumps transit results in a static pointer is not zero, in this case the\ninstrument can be adjusted at the mask-side self-zeroing screws appear black.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e","published_at":"2024-11-19T09:48:51+11:00","created_at":"2024-11-18T23:11:56+11:00","vendor":"Serounder","type":"Power Meters","tags":["industrial_Aug2024_update"],"price":18300,"price_min":18300,"price_max":18300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43724897386676,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B083SDHP6R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897","public_title":null,"options":["Default Title"],"price":18300,"weight":308,"compare_at_price":null,"inventory_management":"shopify","barcode":"738602642082","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B083SDHP6R.jpg?v=1732000801","\/\/auspowers.com\/cdn\/shop\/files\/61MrtBEN9WL.jpg?v=1731931918","\/\/auspowers.com\/cdn\/shop\/files\/71FfQQb8eqL.jpg?v=1731931918","\/\/auspowers.com\/cdn\/shop\/files\/61WfjXyW_EL.jpg?v=1731931918","\/\/auspowers.com\/cdn\/shop\/files\/71nKvSTWizL.jpg?v=1731931918"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B083SDHP6R.jpg?v=1732000801","options":["Title"],"media":[{"alt":"[Australia - AusPower] - External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897 ","id":30978464284852,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B083SDHP6R.jpg?v=1732000801"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B083SDHP6R.jpg?v=1732000801","width":1001},{"alt":"[Australia - AusPower] - External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897 ","id":30976016122036,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61MrtBEN9WL.jpg?v=1731931918"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61MrtBEN9WL.jpg?v=1731931918","width":1001},{"alt":"[Australia - AusPower] - External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897 ","id":30976016154804,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71FfQQb8eqL.jpg?v=1731931918"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71FfQQb8eqL.jpg?v=1731931918","width":1001},{"alt":"[Australia - AusPower] - External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897 ","id":30976016187572,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WfjXyW_EL.jpg?v=1731931918"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WfjXyW_EL.jpg?v=1731931918","width":1001},{"alt":"[Australia - AusPower] - External S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897 ","id":30976016220340,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71nKvSTWizL.jpg?v=1731931918"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71nKvSTWizL.jpg?v=1731931918","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eExternal S Meter SWR Power Meter Receive Display Multi-Function Expansion Meter for Yaesu FT-857\/ FT-897\u003c\/h3\u003e\n\u003cp id=\"b\"\u003ePackage List: 1 External S Meter Display Meters for Yaesu FT-857\/FT-897\nFT-857D\u0026amp; FT-897D external header display setting method: Receive Display\nSettings 1. press (FUNC) key to enter the setup menu, enable the extended\nmenu. 2. rotate (SELECT) to call up the setup menu item No-061(MTR ARX SEL).\n3. rotate (DIAL) to select an external instrument display: -SIG: the input\nsignal strength display -CTR: Discriminator Center Meter -VLT: battery voltage\n-N \/ A: blank -FS: buckle in the instrument 1mA full scale output signal\ncalibration standard external instruments -OFF: Turn off the meter. 4. press\n(FUNC) button to save the settings and exit the setup menu. Emission Display\nSettings 1. press (FUNC) key to enter the setup menu, enable the extended\nmenu. 2. rotate (SELECT) to call up the setup menu item No-061 (MTR ARX SEL).\n3. rotate (DIAL) to select an external instrument display: -PWR: transmit\npower display -ALC: Automatic Level Control voltage display -MOD: Modulation\nLevel Display -SWR: SWR display -VLT: Display Supply Voltage -N \/ A: blank\n-OFF: Turn off the meter. Calibration method is as follows 1. press (FUNC) key\nto enter the setup menu, enable the extended menu. 2. rotate (SELECT) to call\nup the setup menu item No-060 (MTR ARX SEL). 3. rotate (DIAL) to select FS. 4.\nwith a small flathead screwdriver to adjust the calibration adjustment hole\nrear, so the header pointer to full scale. 5. the calibration is complete!\nNote: The instrument has been calibrated delivery, but do not preclude the\nbumps transit results in a static pointer is not zero, in this case the\ninstrument can be adjusted at the mask-side self-zeroing screws appear black.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e"}
