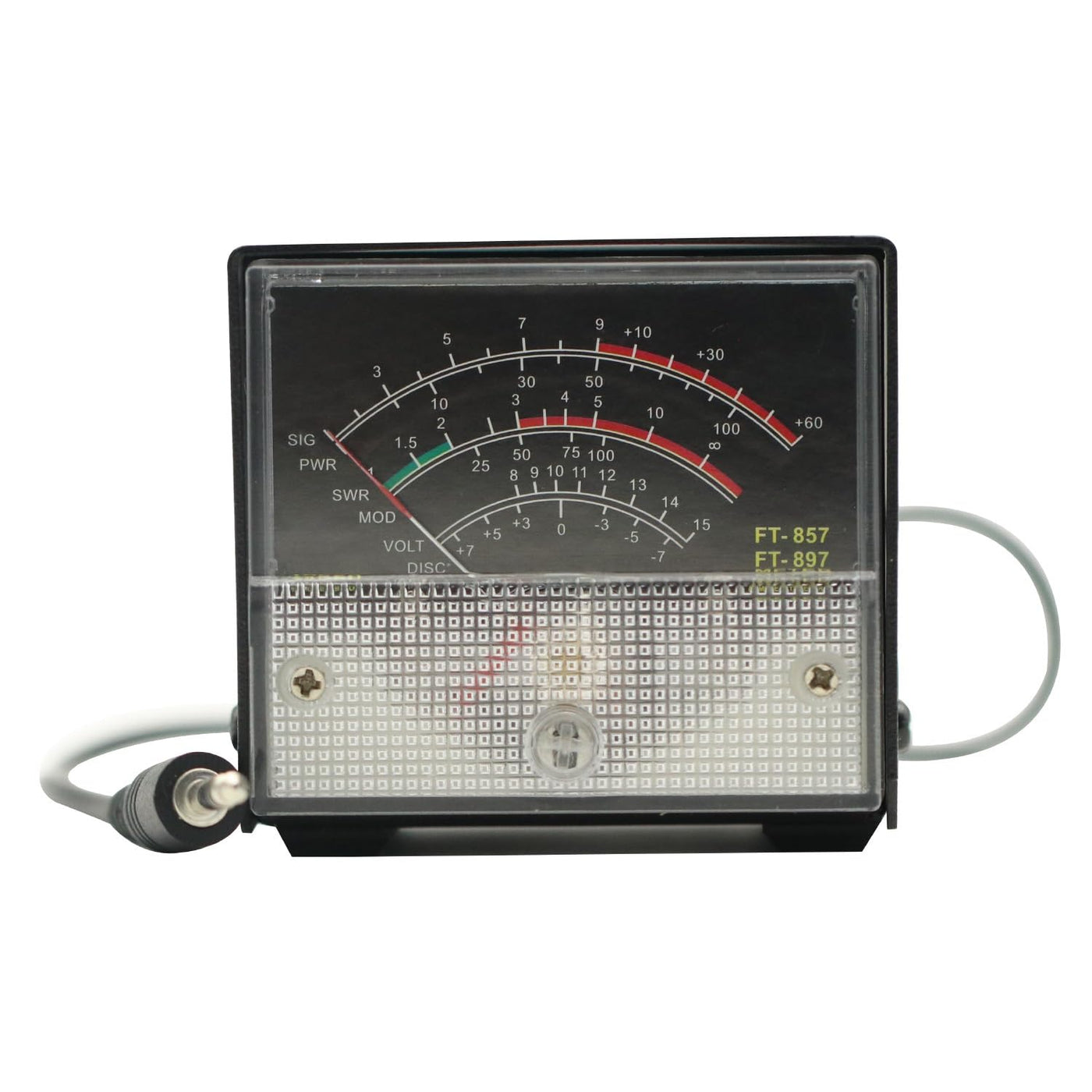

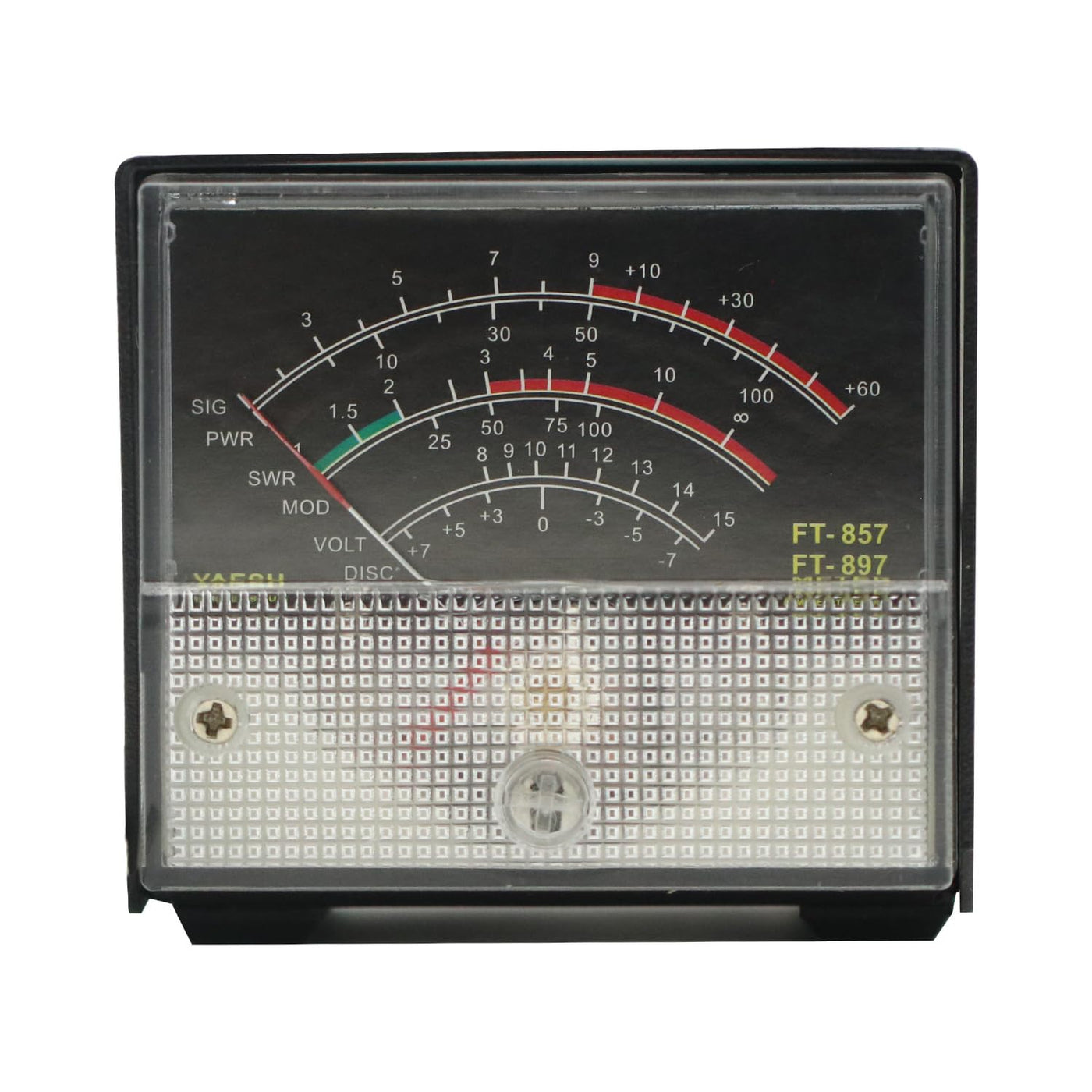

{"id":8002472804532,"title":"External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897","handle":"external-s-meter-swr-power-meter-display-wave-meter-for-yaesu-ft-857-ft-897","description":"\u003ch3\u003eExternal S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe meter has been calibrated at the time of shipment (if calibration is\r\nrequired), the calibration method is as follows1, Long press [FUNC] key to\r\nenter the setup menu and enable the extended menu.2、Rotate [SELECT] to call up\r\nthe setup menu item No-060 [MTR ARX SEL].3, Rotate [DIAL] to select\r\nFS.4、Adjust the calibration adjustment hole at the rear with a small one\r\nscrewdriver to make the meter head pointer point to full scale.5、Calibration\r\nis complete!If you can't find menu 60 and 61, it's the radio hiding these 2\r\nmenus. Long press the F key to open the menu settings, set the No. 1 menu to\r\nON, press the F key to exit and save!Receive display setting1、Long press\r\n[FUNC] key to enter the setting menu, enable the extended menu.2、Rotate\r\n[SELECT] to call up the setting menu item No-060 [MTR ARX SEL].3、Rotate [DIAL]\r\nto select the external meter display content:-SIG:Display input signal\r\nstrength-CTR:Discriminator Center Meter-VLT:Display battery\r\nvoltage.-N\/A:blank-FS: Calibrate the external meter by outputting a standard\r\nsignal of 1mA full scale at the meter socket.-OFF: Turn off the meter.4.Long\r\npress [FUNC] key to save the setting and exit the setting menu.Transmit\r\ndisplay setting1、Long press [FUNC] key to enter the setting menu and enable\r\nthe extended menu.2、Rotate [SELECT] to call up the setup menu item No-061 [MTR\r\nATX SEL].3、Rotate [DIAL] to select the external meter display content:-PWR:\r\nDisplays transmit power-ALC: Display the automatic level control voltage.-MOD:\r\ndisplay modulation level-SWR: Display VSWR.-VLT: Display the power supply\r\nvoltage.-N\/A:blank-OFF:Turn off the meter.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eExternal S meter \/SWR \/ Power Meter display wave meter For Yaesu FT-857 FT-897\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-11-06T02:47:32+11:00","created_at":"2025-11-06T02:47:28+11:00","vendor":"GODIYMODULES","type":"Multi Testers","tags":["industrial_selected_Nov2025"],"price":15800,"price_min":15800,"price_max":15800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44080087171252,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DCBFGKNQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897","public_title":null,"options":["Default Title"],"price":15800,"weight":320,"compare_at_price":null,"inventory_management":"shopify","barcode":"Black-SWR857-001","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DCBFGKNQ.jpg?v=1775776543","\/\/auspowers.com\/cdn\/shop\/files\/61vtgeLuWHL.jpg?v=1762357651","\/\/auspowers.com\/cdn\/shop\/files\/51h2dp3FurL.jpg?v=1762357652","\/\/auspowers.com\/cdn\/shop\/files\/61WyM7RmikL.jpg?v=1762357651","\/\/auspowers.com\/cdn\/shop\/files\/71-B3ZqFaQL.jpg?v=1762357651"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DCBFGKNQ.jpg?v=1775776543","options":["Title"],"media":[{"alt":"[Australia - AusPower] - External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897 ","id":32343418699956,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DCBFGKNQ.jpg?v=1775776543"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DCBFGKNQ.jpg?v=1775776543","width":1500},{"alt":"[Australia - AusPower] - External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897 ","id":32343418732724,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61vtgeLuWHL.jpg?v=1762357651"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61vtgeLuWHL.jpg?v=1762357651","width":1500},{"alt":"[Australia - AusPower] - External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897 ","id":32343418765492,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51h2dp3FurL.jpg?v=1762357652"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51h2dp3FurL.jpg?v=1762357652","width":1500},{"alt":"[Australia - AusPower] - External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897 ","id":32343418798260,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WyM7RmikL.jpg?v=1762357651"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WyM7RmikL.jpg?v=1762357651","width":1500},{"alt":"[Australia - AusPower] - External S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897 ","id":32343418831028,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71-B3ZqFaQL.jpg?v=1762357651"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71-B3ZqFaQL.jpg?v=1762357651","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eExternal S Meter\/SWR\/Power Meter Display Wave Meter for Yaesu FT-857 FT-897\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe meter has been calibrated at the time of shipment (if calibration is\r\nrequired), the calibration method is as follows1, Long press [FUNC] key to\r\nenter the setup menu and enable the extended menu.2、Rotate [SELECT] to call up\r\nthe setup menu item No-060 [MTR ARX SEL].3, Rotate [DIAL] to select\r\nFS.4、Adjust the calibration adjustment hole at the rear with a small one\r\nscrewdriver to make the meter head pointer point to full scale.5、Calibration\r\nis complete!If you can't find menu 60 and 61, it's the radio hiding these 2\r\nmenus. Long press the F key to open the menu settings, set the No. 1 menu to\r\nON, press the F key to exit and save!Receive display setting1、Long press\r\n[FUNC] key to enter the setting menu, enable the extended menu.2、Rotate\r\n[SELECT] to call up the setting menu item No-060 [MTR ARX SEL].3、Rotate [DIAL]\r\nto select the external meter display content:-SIG:Display input signal\r\nstrength-CTR:Discriminator Center Meter-VLT:Display battery\r\nvoltage.-N\/A:blank-FS: Calibrate the external meter by outputting a standard\r\nsignal of 1mA full scale at the meter socket.-OFF: Turn off the meter.4.Long\r\npress [FUNC] key to save the setting and exit the setting menu.Transmit\r\ndisplay setting1、Long press [FUNC] key to enter the setting menu and enable\r\nthe extended menu.2、Rotate [SELECT] to call up the setup menu item No-061 [MTR\r\nATX SEL].3、Rotate [DIAL] to select the external meter display content:-PWR:\r\nDisplays transmit power-ALC: Display the automatic level control voltage.-MOD:\r\ndisplay modulation level-SWR: Display VSWR.-VLT: Display the power supply\r\nvoltage.-N\/A:blank-OFF:Turn off the meter.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eExternal S meter \/SWR \/ Power Meter display wave meter For Yaesu FT-857 FT-897\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
