Emerson 120-106131 DC Power Solenoid, 12V, 80 Amp 1 Count (Pack of 1)

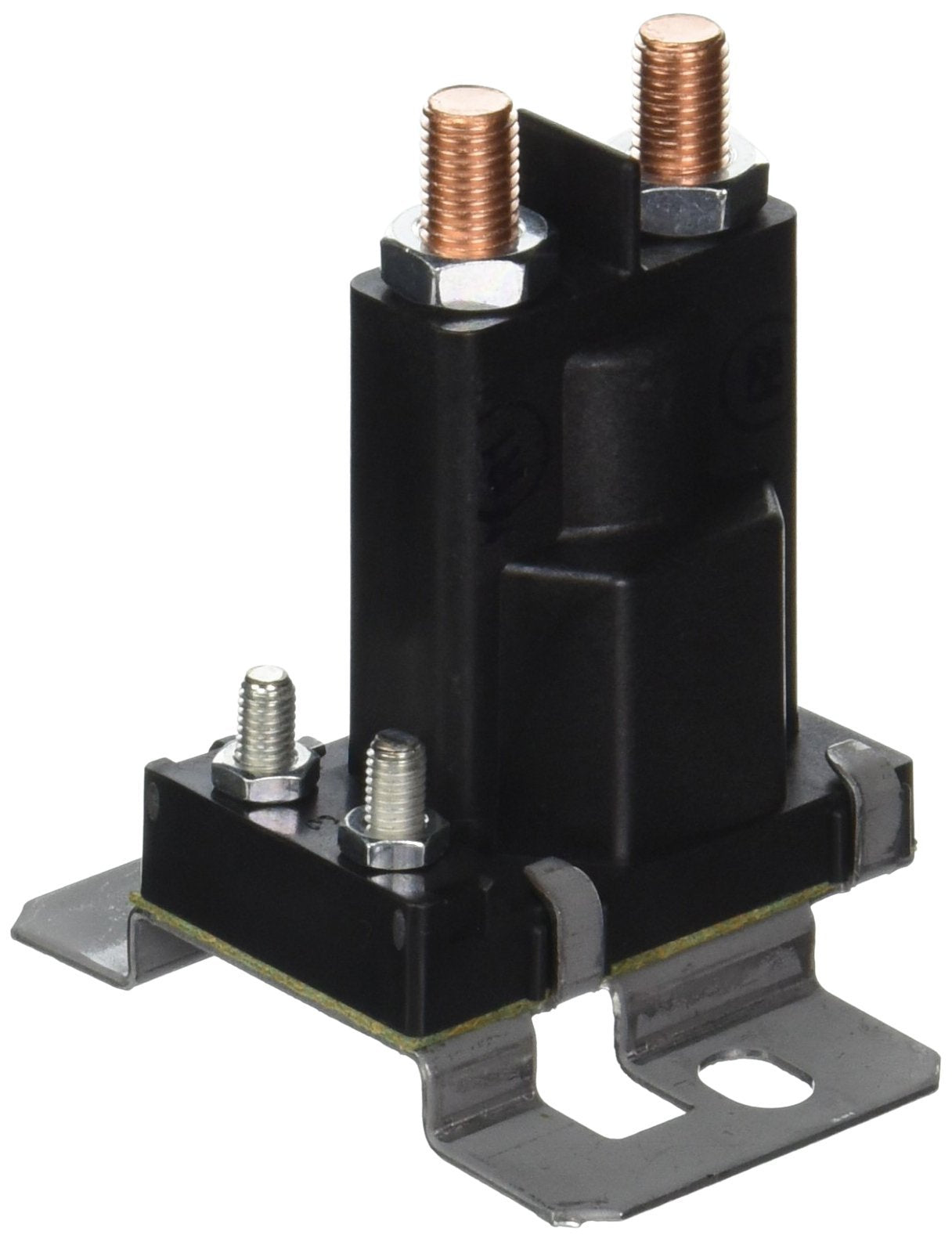

Emerson 120-106131 DC Power Solenoid, 12V, 80 Amp
The White-Rodgers 120-106131 12V DC Solenoid features SPNO terminal, and intermittent duty cycling with contact rating of 80 Amps and an inrush of 400 Amps. Temperature range: -20 degrees to +150 degrees F. Water resistant and dust resistant.
Product Features
- Intermittent duty cycle - 30 seconds "ON" maximum and 6 minutes "OFF
- Capable of handling low and high current requirements
- Versatile mounting and termination; recommended mounting is coil terminals up or horizontal
- Case is isolated from bracket
