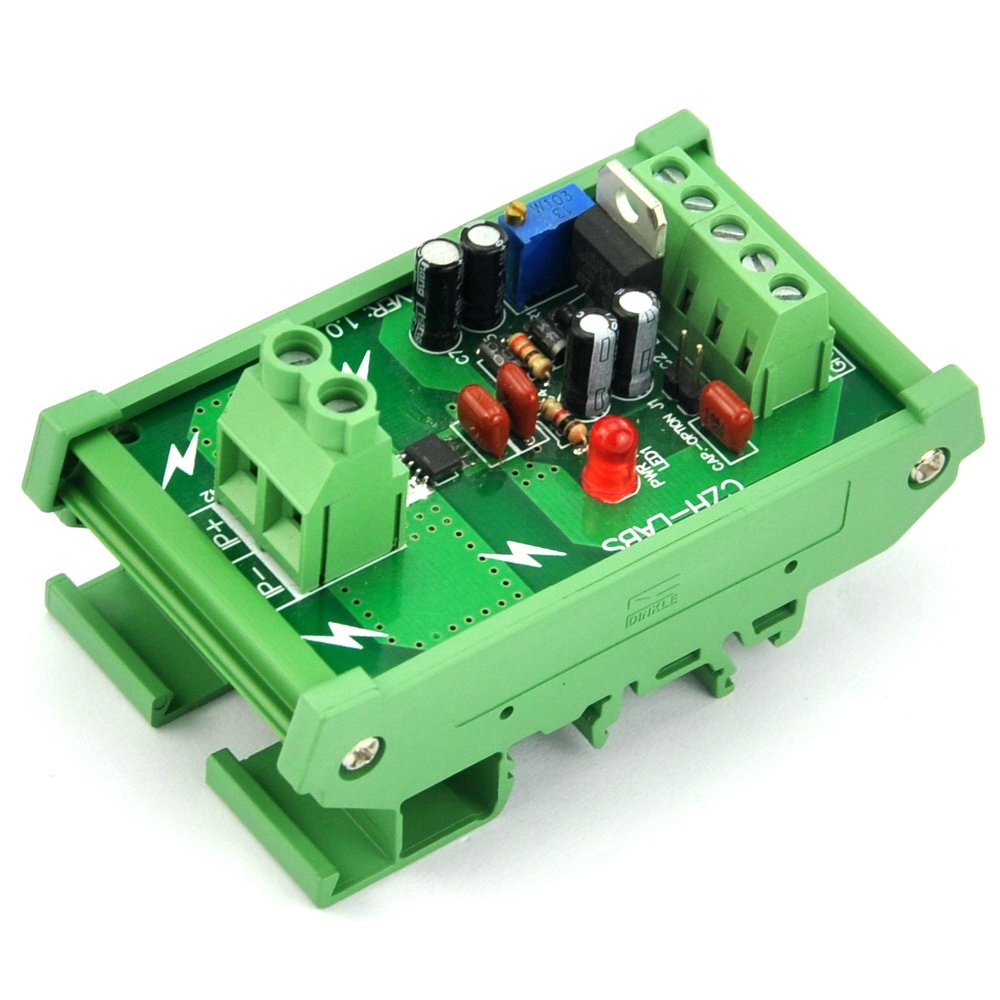

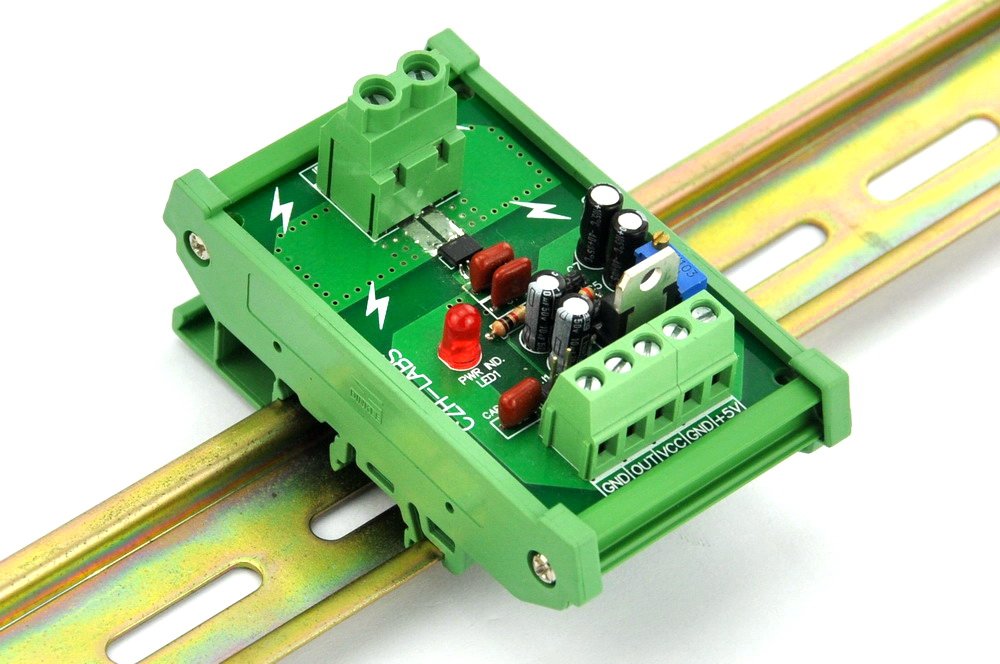

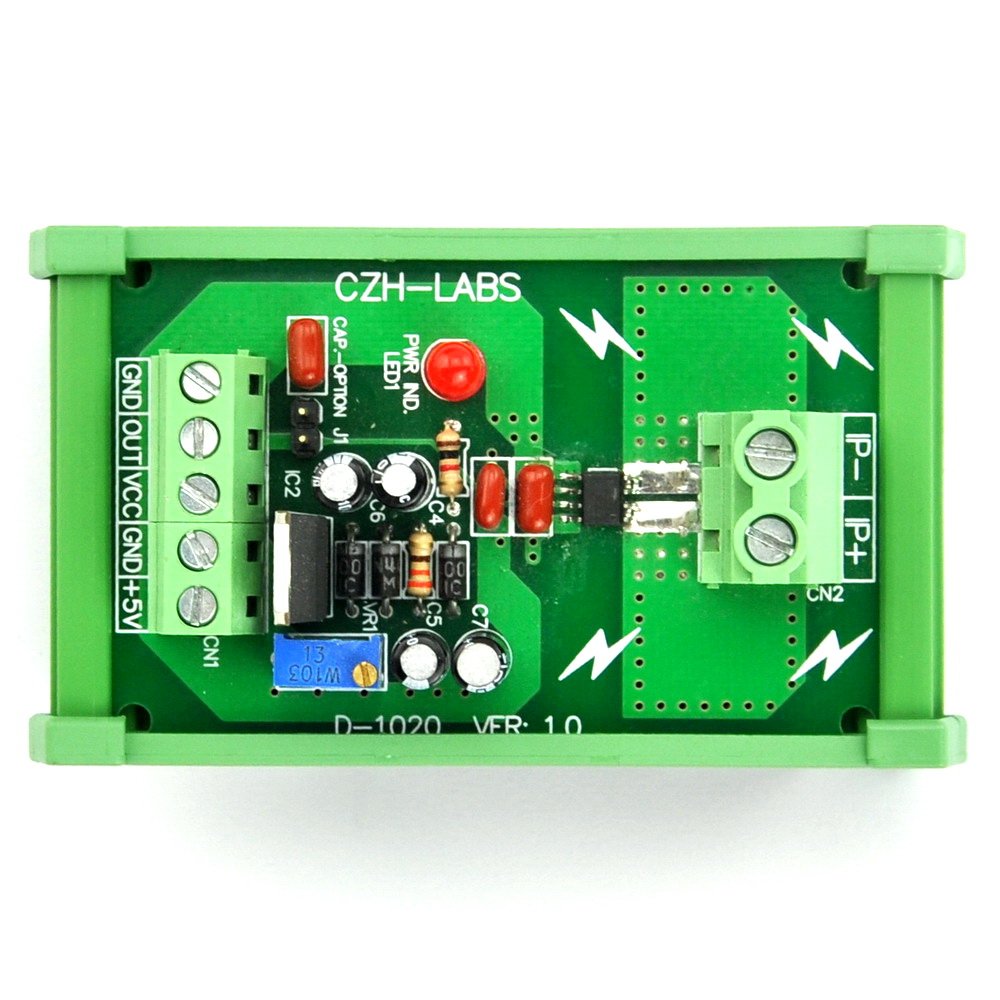

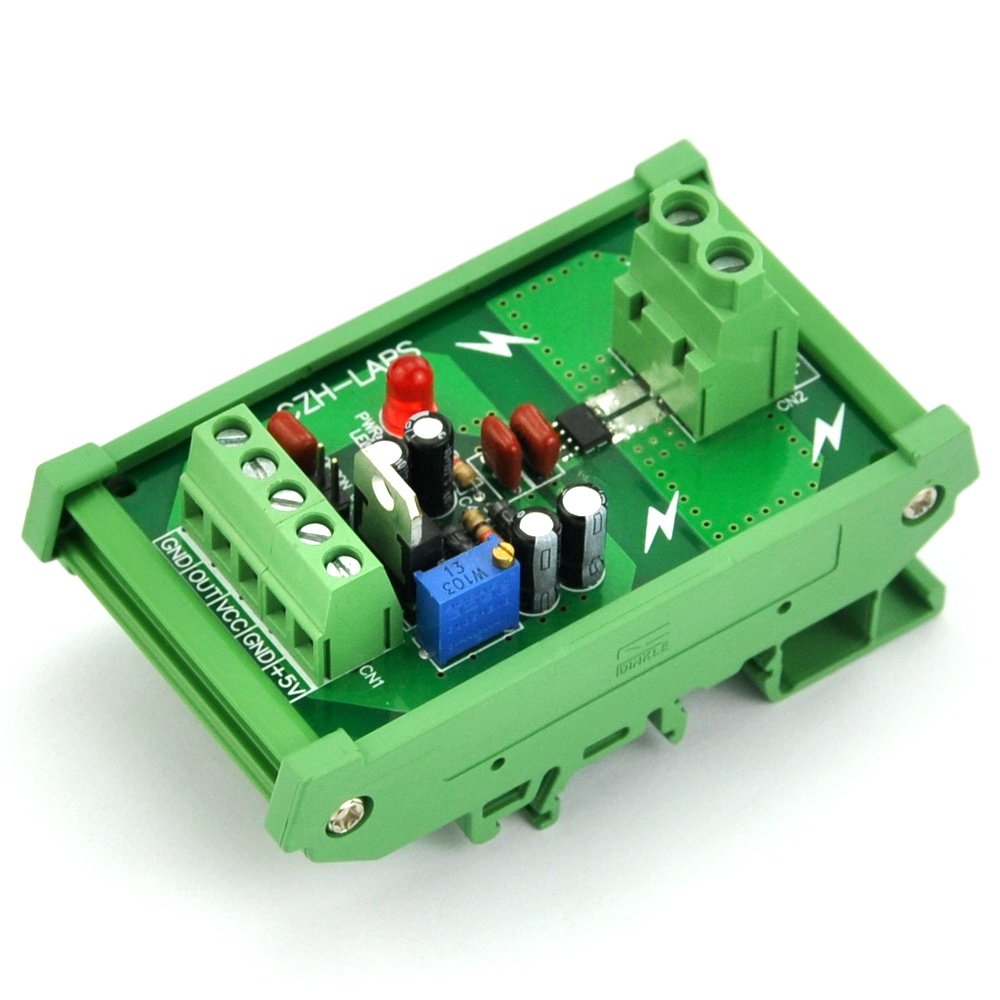

{"id":8051006111924,"title":"Electronics-Salon DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712 (+\/-5Amp) +\/-5Amp","handle":"electronics-salon-din-rail-mount-ac-dc-current-sensor-module-based-on-acs712-5amp-5amp","description":"\u003ch3\u003eElectronics-Salon DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712 (+\/-5Amp)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDatasheet: \r\nitem provides economical and precise solutions for AC or DC current sensing in\r\nindustrial, commercial, and communications systems. Typical applications\r\ninclude motor control, load detection and management, switched-mode power\r\nsupplies, and overcurrent fault protection. The device is not intended for\r\nautomotive applications. Output voltage proportional to AC or DC currents.\r\nHigh quality PCB housing\/carrier, DIN rail mountable - for width 35 \/ 32 \/\r\n15mm rails. DIN mount case can be taken apart for panel mount use. FR-4 fiber\r\nglass PCB, dual copper layers.Electrical Parameters: Load Maximum Current:\r\n+\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80\r\nkHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated\r\n5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLoad Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).\u003c\/li\u003e\r\n \u003cli\u003eThe item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.\u003c\/li\u003e\r\n \u003cli\u003eOutput voltage proportional to AC or DC currents.\u003c\/li\u003e\r\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-05T18:01:20+10:00","created_at":"2026-05-05T18:01:17+10:00","vendor":"CZH-LABS","type":"Current Sensors","tags":["industrial_April2026"],"price":14000,"price_min":14000,"price_max":14000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44215403872436,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B012A1N0PS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712 (+\/-5Amp) +\/-5Amp","public_title":null,"options":["Default Title"],"price":14000,"weight":70,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-D1020T Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B012A1N0PS.jpg?v=1777994913","\/\/auspowers.com\/cdn\/shop\/files\/61xVV21FeJL.jpg?v=1777968079","\/\/auspowers.com\/cdn\/shop\/files\/71T8UuqCyAL.jpg?v=1777968079","\/\/auspowers.com\/cdn\/shop\/files\/61BEzLs2rZL.jpg?v=1777968079","\/\/auspowers.com\/cdn\/shop\/files\/51DEhg4L6QL.jpg?v=1777968079","\/\/auspowers.com\/cdn\/shop\/files\/51h3h12TWRL.jpg?v=1777968079","\/\/auspowers.com\/cdn\/shop\/files\/61Z9FRf8dML.jpg?v=1777968079"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B012A1N0PS.jpg?v=1777994913","options":["Title"],"media":[{"alt":null,"id":32914295029940,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B012A1N0PS.jpg?v=1777994913"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B012A1N0PS.jpg?v=1777994913","width":1000},{"alt":null,"id":32914295062708,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61xVV21FeJL.jpg?v=1777968079"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61xVV21FeJL.jpg?v=1777968079","width":1000},{"alt":null,"id":32914295095476,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71T8UuqCyAL.jpg?v=1777968079"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71T8UuqCyAL.jpg?v=1777968079","width":1000},{"alt":null,"id":32914295128244,"position":4,"preview_image":{"aspect_ratio":1.506,"height":664,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61BEzLs2rZL.jpg?v=1777968079"},"aspect_ratio":1.506,"height":664,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61BEzLs2rZL.jpg?v=1777968079","width":1000},{"alt":null,"id":32914295161012,"position":5,"preview_image":{"aspect_ratio":2.924,"height":342,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51DEhg4L6QL.jpg?v=1777968079"},"aspect_ratio":2.924,"height":342,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51DEhg4L6QL.jpg?v=1777968079","width":1000},{"alt":null,"id":32914295193780,"position":6,"preview_image":{"aspect_ratio":3.03,"height":330,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51h3h12TWRL.jpg?v=1777968079"},"aspect_ratio":3.03,"height":330,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51h3h12TWRL.jpg?v=1777968079","width":1000},{"alt":null,"id":32914295226548,"position":7,"preview_image":{"aspect_ratio":1.488,"height":672,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Z9FRf8dML.jpg?v=1777968079"},"aspect_ratio":1.488,"height":672,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Z9FRf8dML.jpg?v=1777968079","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon DIN Rail Mount AC\/DC Current Sensor Module, Based on ACS712 (+\/-5Amp)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDatasheet: \r\nitem provides economical and precise solutions for AC or DC current sensing in\r\nindustrial, commercial, and communications systems. Typical applications\r\ninclude motor control, load detection and management, switched-mode power\r\nsupplies, and overcurrent fault protection. The device is not intended for\r\nautomotive applications. Output voltage proportional to AC or DC currents.\r\nHigh quality PCB housing\/carrier, DIN rail mountable - for width 35 \/ 32 \/\r\n15mm rails. DIN mount case can be taken apart for panel mount use. FR-4 fiber\r\nglass PCB, dual copper layers.Electrical Parameters: Load Maximum Current:\r\n+\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80\r\nkHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated\r\n5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eLoad Maximum Current: +\/-5Amp, +\/-20Amp and +\/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).\u003c\/li\u003e\r\n \u003cli\u003eThe item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.\u003c\/li\u003e\r\n \u003cli\u003eOutput voltage proportional to AC or DC currents.\u003c\/li\u003e\r\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
