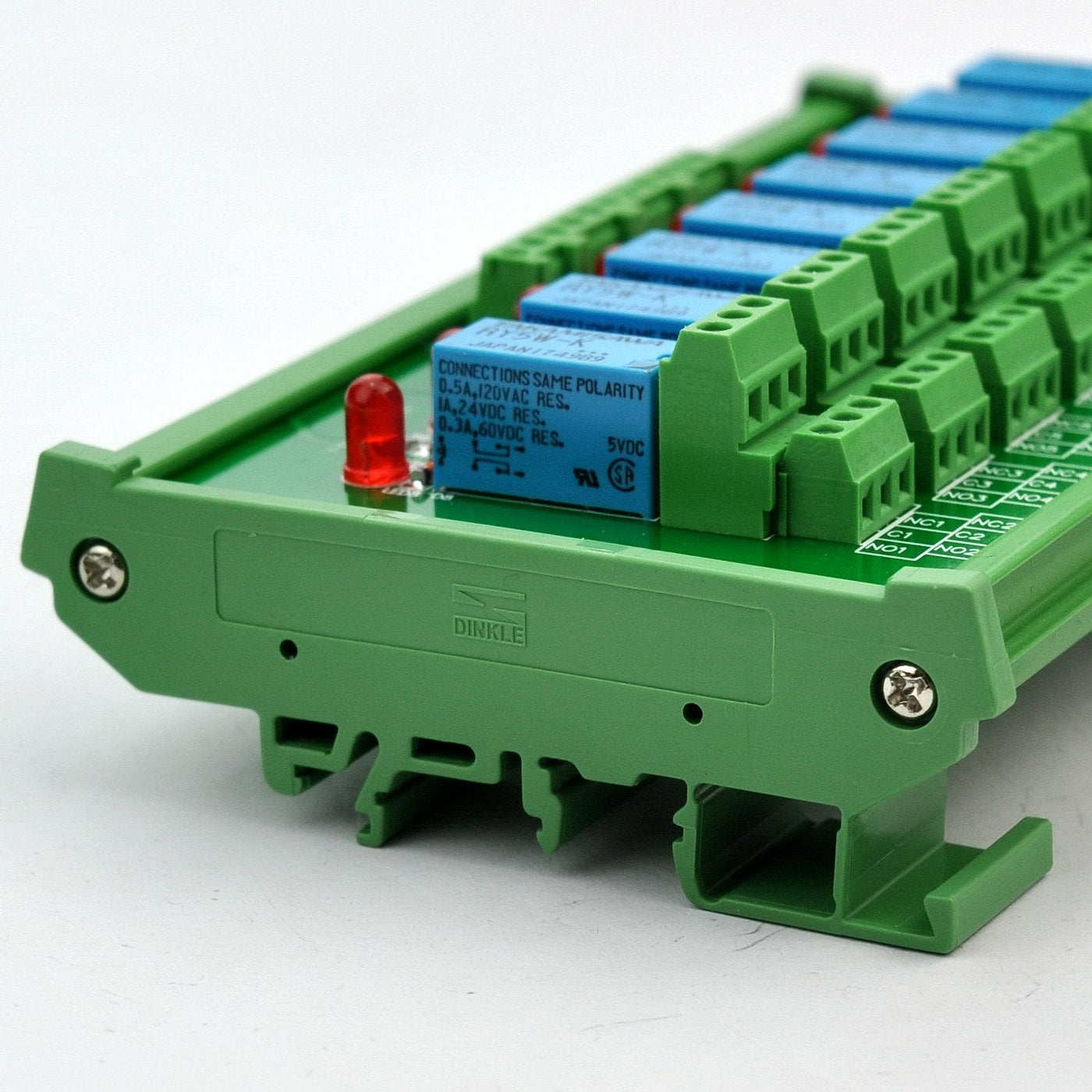

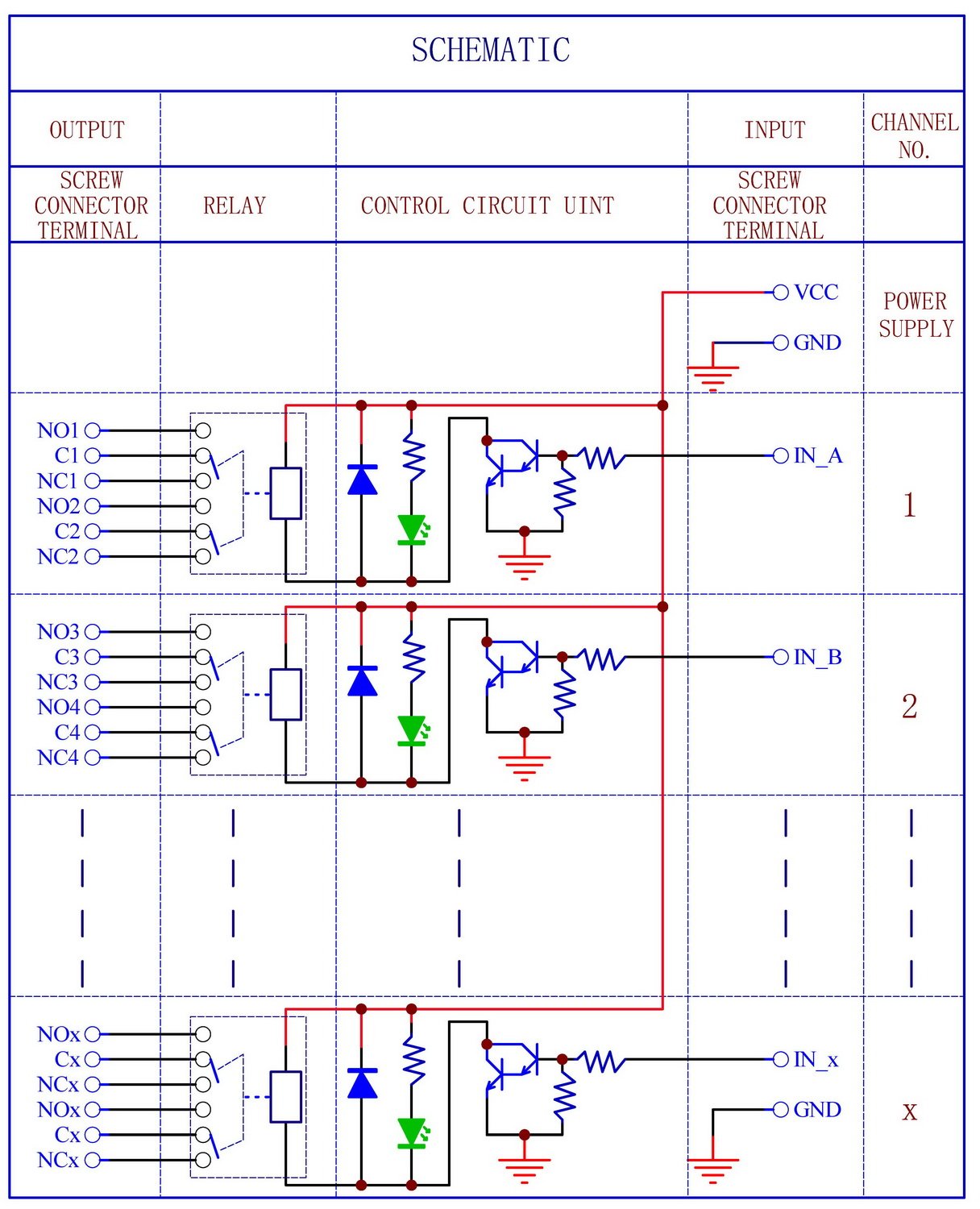

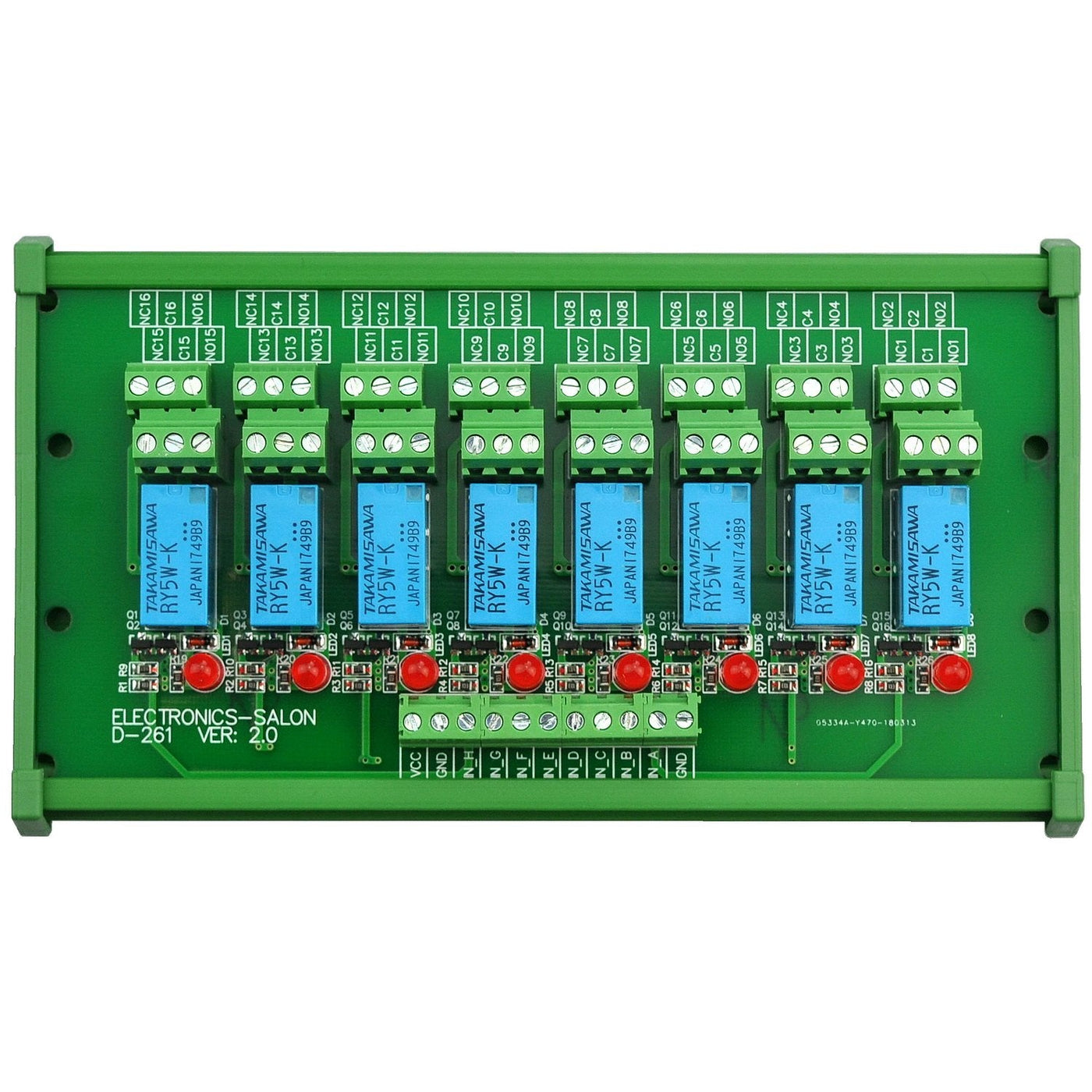

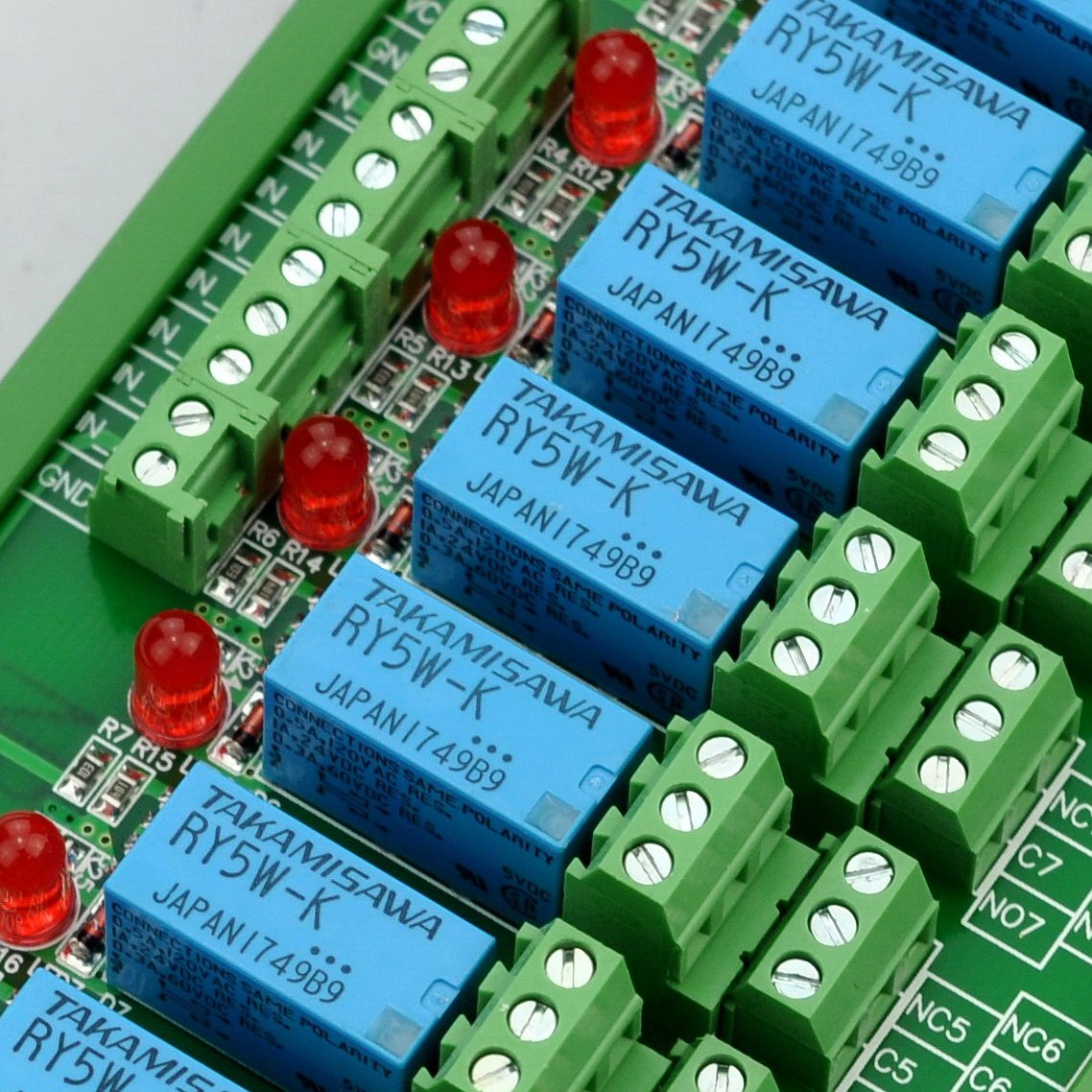

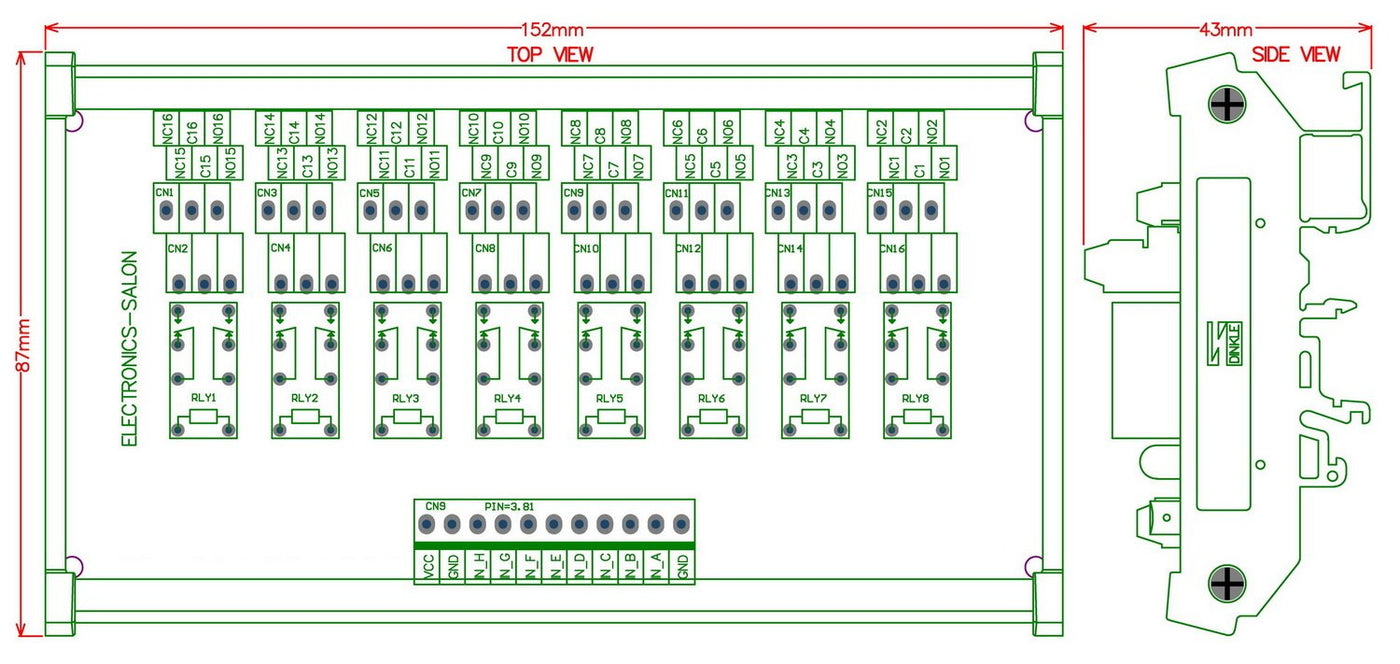

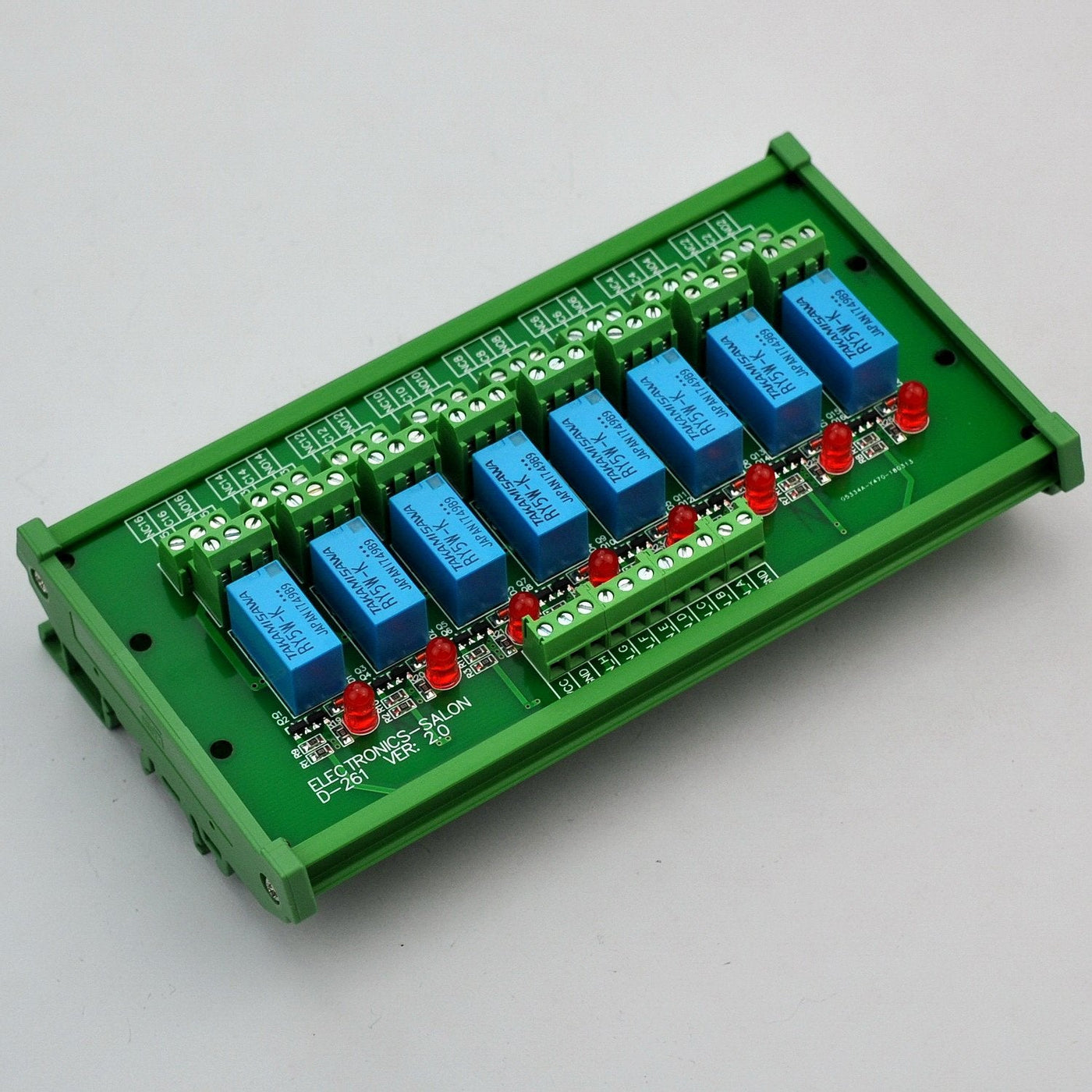

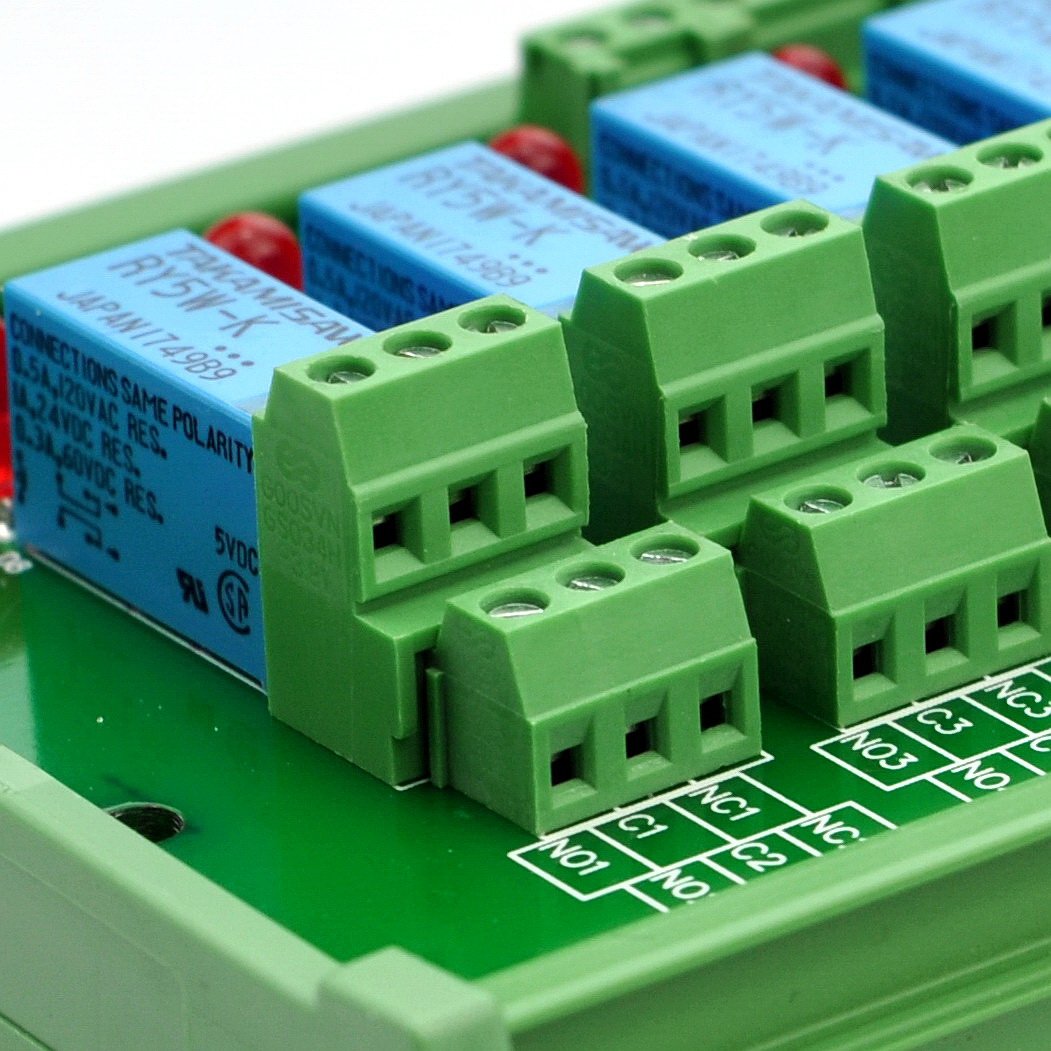

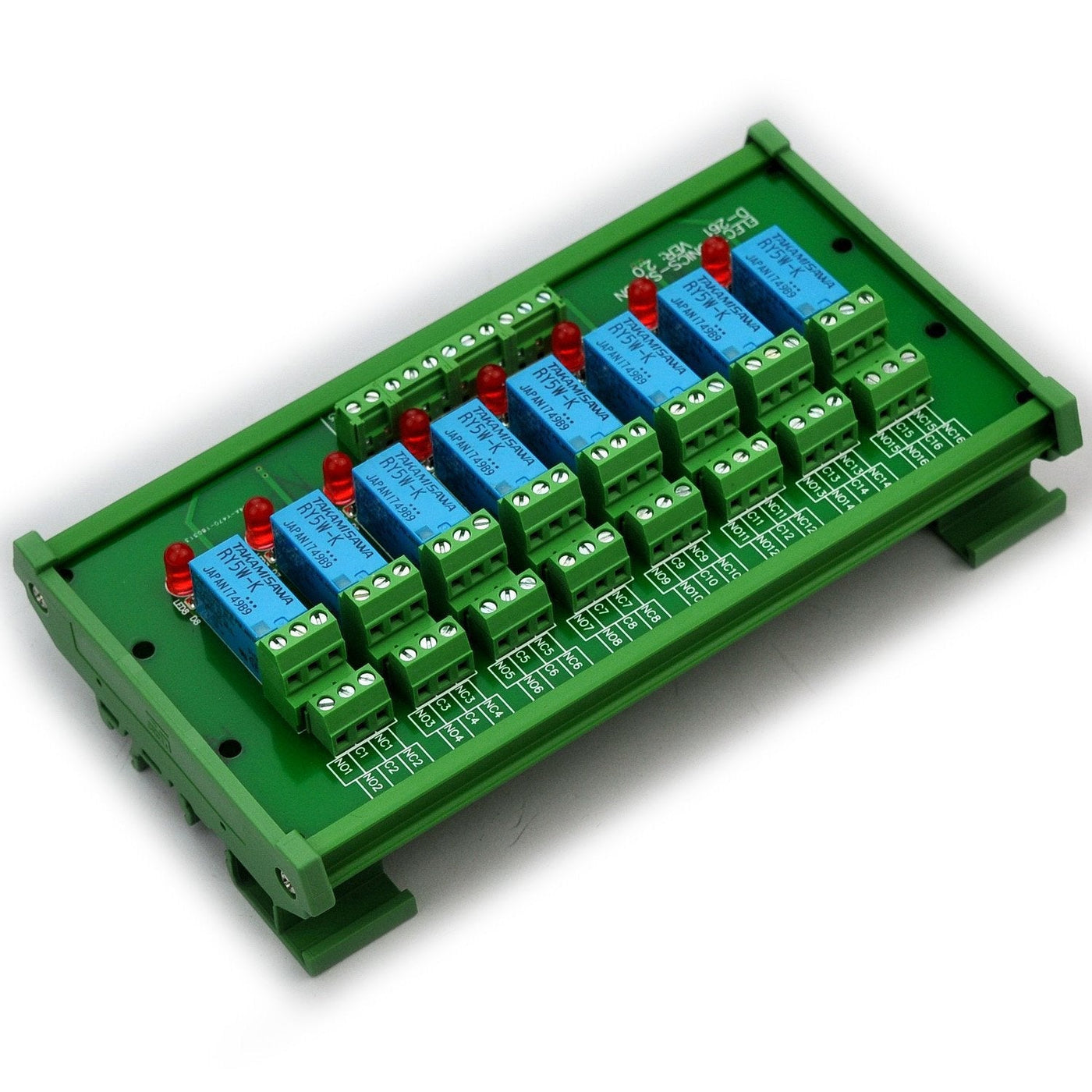

{"id":7165751722164,"title":"Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V","handle":"electronics-salon-din-rail-mount-8-dpdt-signal-relay-interface-module-operating-voltage-dc-5v-operating-voltage-dc-5v","description":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDIN Rail Mount 8 Channel DPDT Signal Relay Interface Module, DC 5V Version.\nRY5W-K high quality signal relays, LED indicator for each relay channel.\nDarlington transistors circuit driving relay, improve the reliability of\naction. DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon\nmaterial DIN rail mount carrier (not China low quality carrier), can support\nwidth 35mm \/ 32mm \/ 15mm rail. FR-4 fiber glass dual layers PCB. Pitch 3.81mm\n\/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\",\nMetric M2 slotted screw. External dimensions: 152 x 87 x 43mm(L x W x H).\nOperating Voltage: DC 5V. Input control signal voltage: 0V - 0.5Vdc, low\nlevel, relay not action. 2.5V - 24Vdc, high level, relay action. Input control\nsignal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA. 20V:\n1.9mARelay Spec: Relay Part Number: RY5W-K. Contact Material: Gold Overlay\nSilver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire connection\nand PCB size: VCC: Power supply input. GND: Power supply ground and control\nsignal ground. IN-X: Control signal input, Low: relay not action, High: relay\naction. COM \/ NO \/ NC: Control signal state low, the relay OFF, COM - NO\ndisconnected, COM - NC connected. Control signal stage high, the relay ON, COM\n- NO connected, COM - NC disconnected.This is a very simple module board, no\npaper specifications, any questions, feel free to tell me. Datasheet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDIN Rail Mount 8 Channel DPDT Signal Relay Interface Module, DC 5V Version\u003c\/li\u003e\n \u003cli\u003eRYxxW-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\n \u003cli\u003eDIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail. FR-4 fiber glass dual layers PCB.\u003c\/li\u003e\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-23T05:29:13+10:00","created_at":"2022-06-23T05:29:22+10:00","vendor":"Electronics-Salon","type":"IO Modules","tags":["industrial"],"price":27400,"price_min":27400,"price_max":27400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41600577863860,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07CJ5Z4FV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V","public_title":null,"options":["Default Title"],"price":27400,"weight":249,"compare_at_price":null,"inventory_management":null,"barcode":"6954525554552","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07CJ5Z4FV.jpg?v=1655967568","\/\/auspowers.com\/cdn\/shop\/products\/81rsPhbmD7L.jpg?v=1655926162","\/\/auspowers.com\/cdn\/shop\/products\/81YAbVhYadL.jpg?v=1655926162","\/\/auspowers.com\/cdn\/shop\/products\/81Kit9iOtdL.jpg?v=1655926162","\/\/auspowers.com\/cdn\/shop\/products\/81RXjwEPdgL.jpg?v=1655926163","\/\/auspowers.com\/cdn\/shop\/products\/71JtLiWWtsL.jpg?v=1655926163","\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_2482e28c-627b-4c56-a970-1ff8837282bc.jpg?v=1655926163","\/\/auspowers.com\/cdn\/shop\/products\/71SdM72hj9L_197fb20c-f7cd-4b82-b2ec-8f44910112c4.jpg?v=1655926163"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07CJ5Z4FV.jpg?v=1655967568","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26257043325108,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07CJ5Z4FV.jpg?v=1655967568"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07CJ5Z4FV.jpg?v=1655967568","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809330356,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81rsPhbmD7L.jpg?v=1655926162"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81rsPhbmD7L.jpg?v=1655926162","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809363124,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81YAbVhYadL.jpg?v=1655926162"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81YAbVhYadL.jpg?v=1655926162","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809395892,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81Kit9iOtdL.jpg?v=1655926162"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81Kit9iOtdL.jpg?v=1655926162","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809428660,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1138,"width":1138,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81RXjwEPdgL.jpg?v=1655926163"},"aspect_ratio":1.0,"height":1138,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81RXjwEPdgL.jpg?v=1655926163","width":1138},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809461428,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1051,"width":1051,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71JtLiWWtsL.jpg?v=1655926163"},"aspect_ratio":1.0,"height":1051,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71JtLiWWtsL.jpg?v=1655926163","width":1051},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809494196,"position":7,"preview_image":{"aspect_ratio":0.811,"height":1500,"width":1216,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_2482e28c-627b-4c56-a970-1ff8837282bc.jpg?v=1655926163"},"aspect_ratio":0.811,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_2482e28c-627b-4c56-a970-1ff8837282bc.jpg?v=1655926163","width":1216},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V) Operating Voltage: DC 5V ","id":26249809526964,"position":8,"preview_image":{"aspect_ratio":2.11,"height":711,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71SdM72hj9L_197fb20c-f7cd-4b82-b2ec-8f44910112c4.jpg?v=1655926163"},"aspect_ratio":2.11,"height":711,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71SdM72hj9L_197fb20c-f7cd-4b82-b2ec-8f44910112c4.jpg?v=1655926163","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 8 DPDT Signal Relay Interface Module. (Operating Voltage: DC 5V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDIN Rail Mount 8 Channel DPDT Signal Relay Interface Module, DC 5V Version.\nRY5W-K high quality signal relays, LED indicator for each relay channel.\nDarlington transistors circuit driving relay, improve the reliability of\naction. DIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon\nmaterial DIN rail mount carrier (not China low quality carrier), can support\nwidth 35mm \/ 32mm \/ 15mm rail. FR-4 fiber glass dual layers PCB. Pitch 3.81mm\n\/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\",\nMetric M2 slotted screw. External dimensions: 152 x 87 x 43mm(L x W x H).\nOperating Voltage: DC 5V. Input control signal voltage: 0V - 0.5Vdc, low\nlevel, relay not action. 2.5V - 24Vdc, high level, relay action. Input control\nsignal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA. 20V:\n1.9mARelay Spec: Relay Part Number: RY5W-K. Contact Material: Gold Overlay\nSilver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire connection\nand PCB size: VCC: Power supply input. GND: Power supply ground and control\nsignal ground. IN-X: Control signal input, Low: relay not action, High: relay\naction. COM \/ NO \/ NC: Control signal state low, the relay OFF, COM - NO\ndisconnected, COM - NC connected. Control signal stage high, the relay ON, COM\n- NO connected, COM - NC disconnected.This is a very simple module board, no\npaper specifications, any questions, feel free to tell me. Datasheet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDIN Rail Mount 8 Channel DPDT Signal Relay Interface Module, DC 5V Version\u003c\/li\u003e\n \u003cli\u003eRYxxW-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\n \u003cli\u003eDIN rail mount carrier: High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail. FR-4 fiber glass dual layers PCB.\u003c\/li\u003e\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
