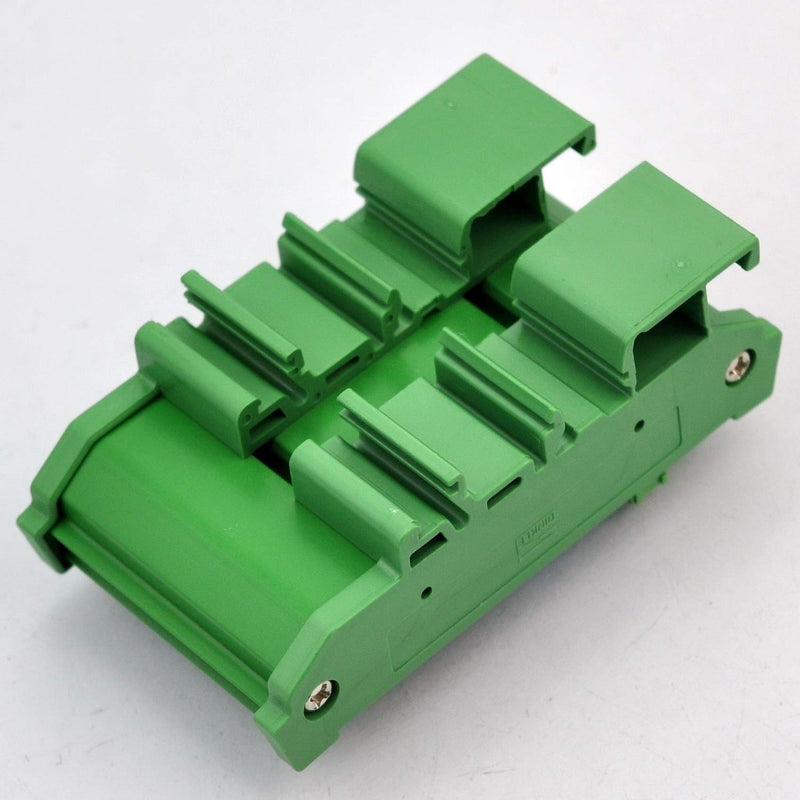

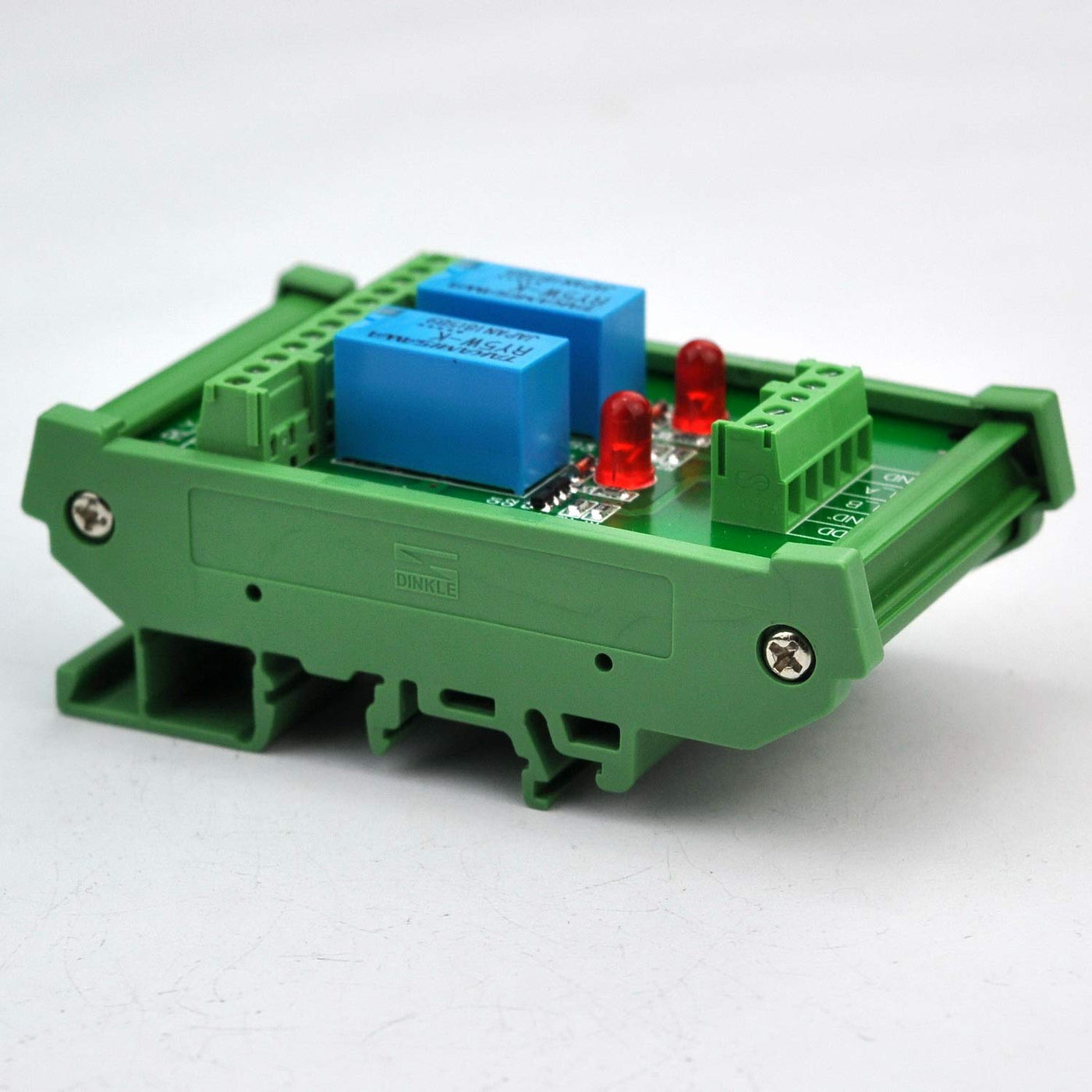

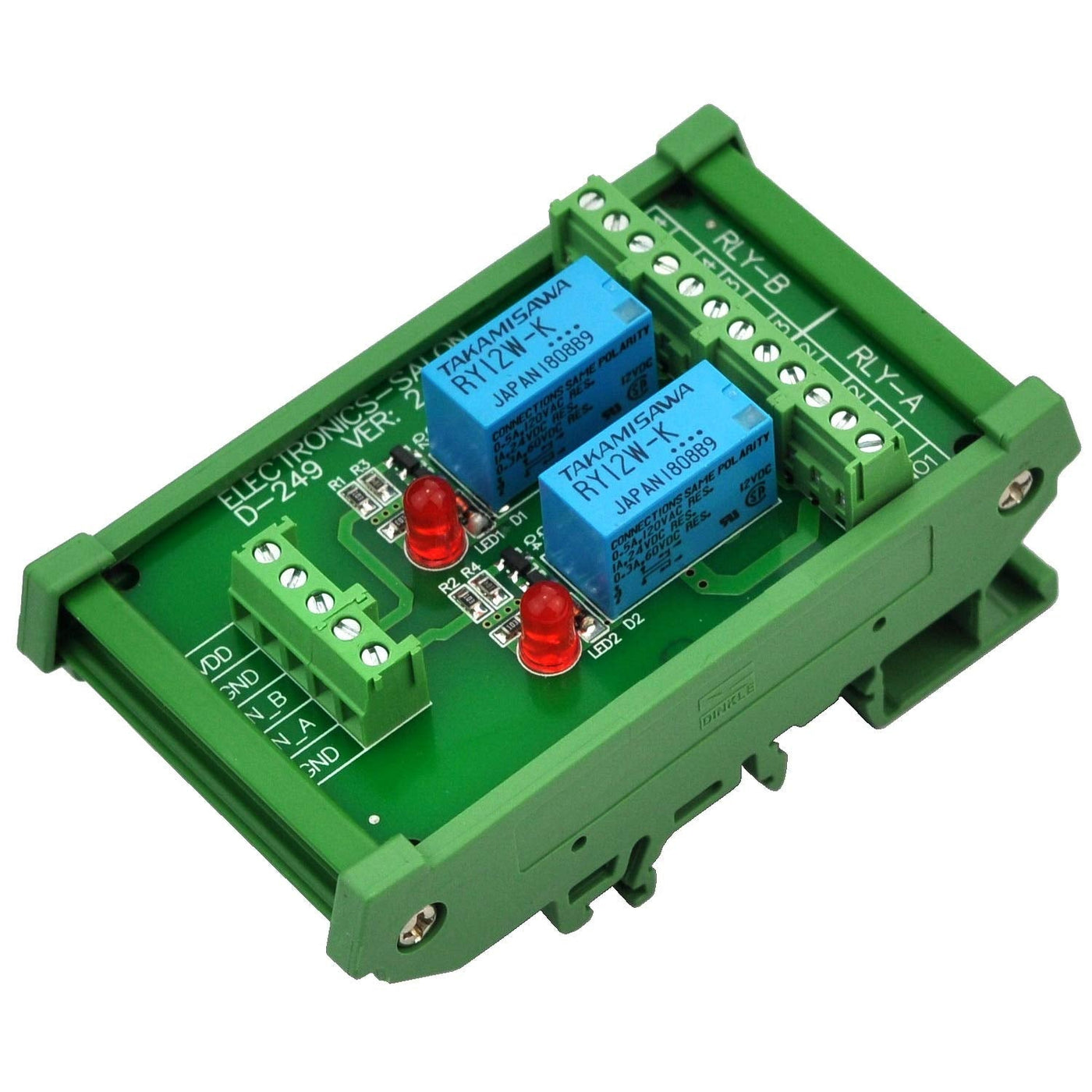

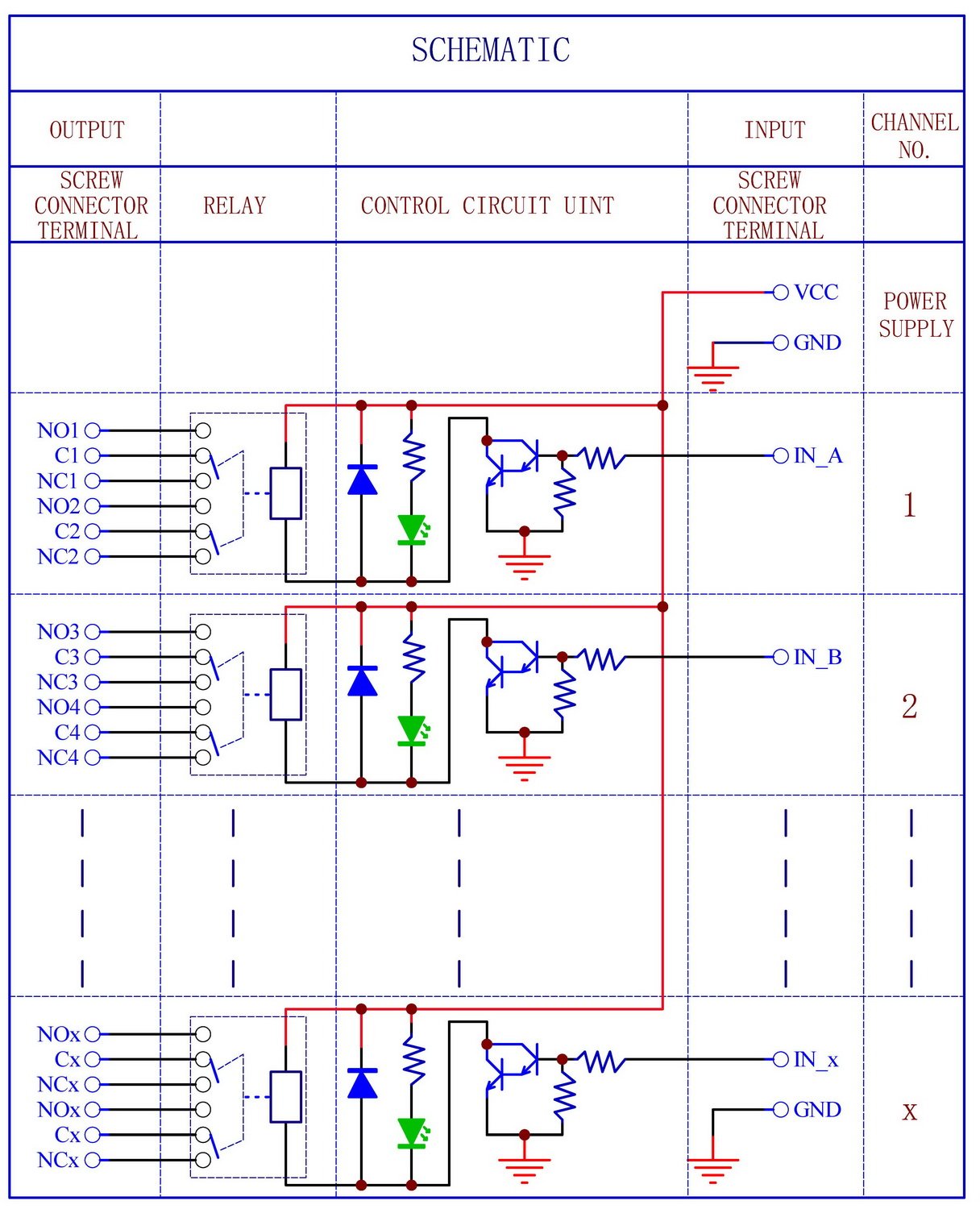

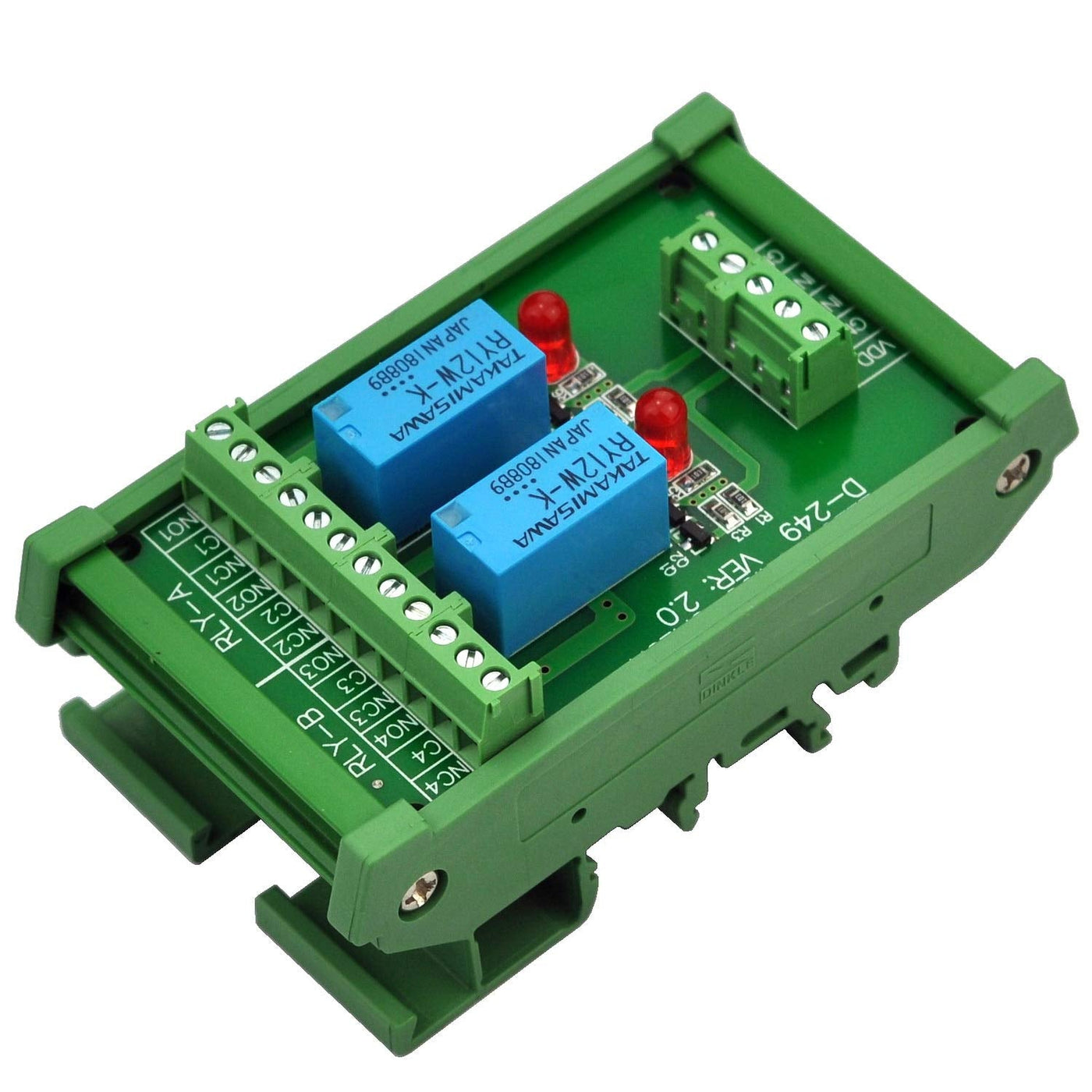

{"id":7169984626868,"title":"Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version.","handle":"electronics-salon-din-rail-mount-2-dpdt-signal-relay-interface-module-dc-12v-version","description":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAugust-21, 2018, upgrade to version 2.02 DPDT signal relay module. TAKAMISAWA\nRY12W-K high quality relays, switch contact material - gold overlay silver-\npalladium. Darlington transistor circuits drive relay coil, LED indicator for\neach relay channel. High quality screw terminal block. FR-4 fiber glass PCB,\ndual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount\ncarrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm\nrail, and the carrier can be taken apart for panel mount use.Operating Voltage\n\/ Current (VCC): 8.5 to 15.6VDC \/ 60mA(at 12VDC). Control signal voltage\n(IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level),\nrelay action.Output (relay switch) contact rating for each switch: For AC,\n120VAC \/ 0.5Amp For DC, 24 VDC \/ 1.0AmpExternal dimensions: L49.5mm x W87mm x\nH38.5mm. PCB dimensions: L47.35mm x W72.5mm x H14.1mmThe item no paper\nspecifications, before buy please download the PDF datasheet: https:\/\/images-\nna.ssl-images-amazon.com\/images\/I\/91SnxaAOOnL.pdf\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 DPDT signal relay module. TAKAMISAWA RY12W-K high quality relays, switch contact material - gold overlay silver-palladium.\u003c\/li\u003e\n \u003cli\u003eDarlington transistor circuits drive relay coil, LED indicator for each relay channel.\u003c\/li\u003e\n \u003cli\u003eHigh quality screw terminal block. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-26T19:44:18+10:00","created_at":"2022-06-26T19:44:26+10:00","vendor":"Electronics-Salon","type":"IO Modules","tags":["industrial"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41609519726772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00M7U9C5A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version.","public_title":null,"options":["Default Title"],"price":14900,"weight":100,"compare_at_price":null,"inventory_management":null,"barcode":"6921407335462","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B00M7U9C5A.jpg?v=1656312142","\/\/auspowers.com\/cdn\/shop\/products\/71ICZsK8M8L.jpg?v=1656236666","\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_14eb03c5-c610-49b8-9017-f356b4550494.jpg?v=1656236666","\/\/auspowers.com\/cdn\/shop\/products\/81bLjzboc4L_ca157728-112b-4eb4-929c-c607573f57ad.jpg?v=1656236666","\/\/auspowers.com\/cdn\/shop\/products\/81oUXVtc2hL_abcb2129-693c-4f80-ad27-f52a3f231040.jpg?v=1656236666","\/\/auspowers.com\/cdn\/shop\/products\/719fe1mC-lL_3afc015d-c2cc-46c7-a568-0072fadf43f4.jpg?v=1656236666","\/\/auspowers.com\/cdn\/shop\/products\/61y1BeJdeUL_316063d4-bbbc-4124-93d9-e98013d7e5d1.jpg?v=1656236666"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B00M7U9C5A.jpg?v=1656312142","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26304878149812,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B00M7U9C5A.jpg?v=1656312142"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B00M7U9C5A.jpg?v=1656312142","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925131956,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ICZsK8M8L.jpg?v=1656236666"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ICZsK8M8L.jpg?v=1656236666","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925164724,"position":3,"preview_image":{"aspect_ratio":0.811,"height":1500,"width":1216,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_14eb03c5-c610-49b8-9017-f356b4550494.jpg?v=1656236666"},"aspect_ratio":0.811,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_14eb03c5-c610-49b8-9017-f356b4550494.jpg?v=1656236666","width":1216},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925197492,"position":4,"preview_image":{"aspect_ratio":1.066,"height":2000,"width":2131,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81bLjzboc4L_ca157728-112b-4eb4-929c-c607573f57ad.jpg?v=1656236666"},"aspect_ratio":1.066,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81bLjzboc4L_ca157728-112b-4eb4-929c-c607573f57ad.jpg?v=1656236666","width":2131},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925230260,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81oUXVtc2hL_abcb2129-693c-4f80-ad27-f52a3f231040.jpg?v=1656236666"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81oUXVtc2hL_abcb2129-693c-4f80-ad27-f52a3f231040.jpg?v=1656236666","width":2000},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925263028,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/719fe1mC-lL_3afc015d-c2cc-46c7-a568-0072fadf43f4.jpg?v=1656236666"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/719fe1mC-lL_3afc015d-c2cc-46c7-a568-0072fadf43f4.jpg?v=1656236666","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version. ","id":26294925295796,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61y1BeJdeUL_316063d4-bbbc-4124-93d9-e98013d7e5d1.jpg?v=1656236666"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61y1BeJdeUL_316063d4-bbbc-4124-93d9-e98013d7e5d1.jpg?v=1656236666","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon DIN Rail Mount 2 DPDT Signal Relay Interface Module, DC 12V Version.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAugust-21, 2018, upgrade to version 2.02 DPDT signal relay module. TAKAMISAWA\nRY12W-K high quality relays, switch contact material - gold overlay silver-\npalladium. Darlington transistor circuits drive relay coil, LED indicator for\neach relay channel. High quality screw terminal block. FR-4 fiber glass PCB,\ndual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount\ncarrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm\nrail, and the carrier can be taken apart for panel mount use.Operating Voltage\n\/ Current (VCC): 8.5 to 15.6VDC \/ 60mA(at 12VDC). Control signal voltage\n(IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level),\nrelay action.Output (relay switch) contact rating for each switch: For AC,\n120VAC \/ 0.5Amp For DC, 24 VDC \/ 1.0AmpExternal dimensions: L49.5mm x W87mm x\nH38.5mm. PCB dimensions: L47.35mm x W72.5mm x H14.1mmThe item no paper\nspecifications, before buy please download the PDF datasheet: https:\/\/images-\nna.ssl-images-amazon.com\/images\/I\/91SnxaAOOnL.pdf\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e2 DPDT signal relay module. TAKAMISAWA RY12W-K high quality relays, switch contact material - gold overlay silver-palladium.\u003c\/li\u003e\n \u003cli\u003eDarlington transistor circuits drive relay coil, LED indicator for each relay channel.\u003c\/li\u003e\n \u003cli\u003eHigh quality screw terminal block. FR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eTaiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for panel mount use.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
