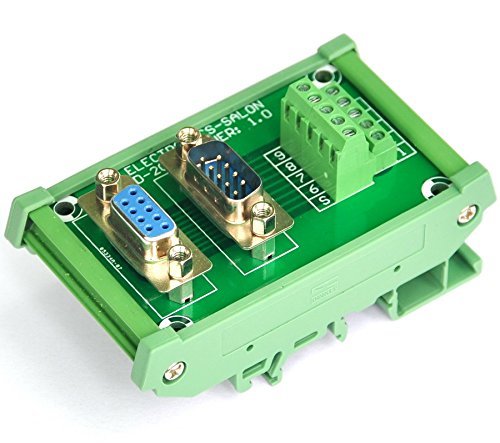

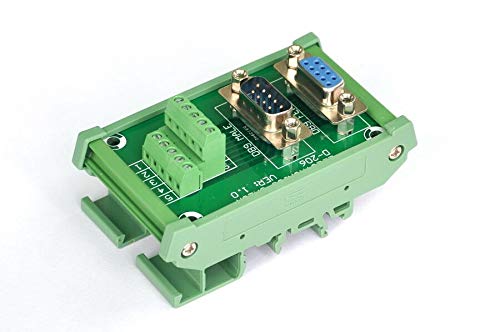

Electronics-Salon DB9 D-SUB DIN Rail Mount Interface Module, DSUB Male/Female Breakout Board.

In Stock. Leaves warehouse within 2 - 3 business days

$134.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Electronics-Salon DB9 D-SUB DIN Rail Mount Interface Module, DSUB Male/Female Breakout Board.

Din Rail Mount DB9 Interface Module. Male and Female DB9 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 49.5 x 43mm(W x L x H). PCB dimensions: 72 x 47.35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3.81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.

Product Features

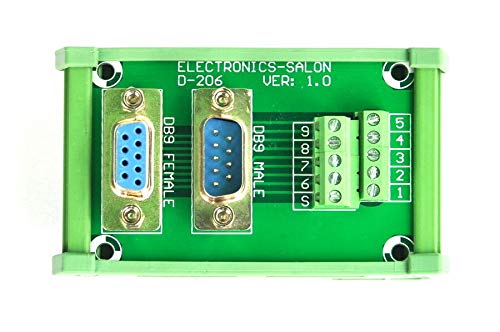

  • Male and Female DB9 connectors.
  • Screw terminal block.

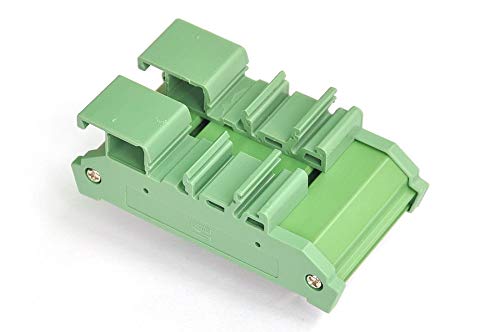

  • Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use.

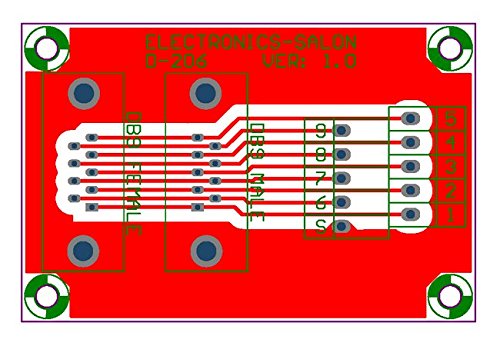

  • High quality PCB carrier. FR-4 fiber glass PCB.

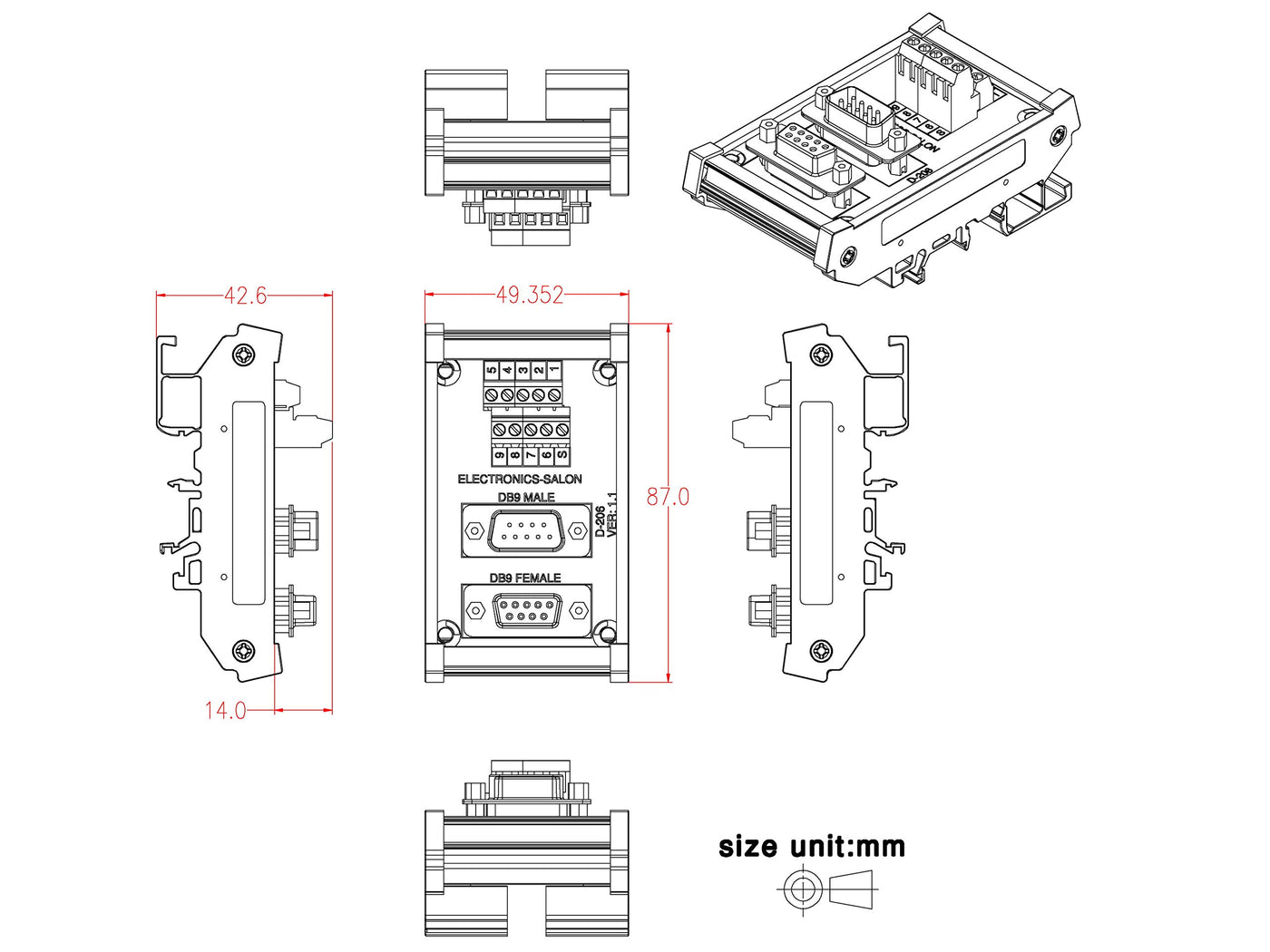

  • External dimensions: 87 x 49.5 x 43mm(W x L x H). PCB dimensions: 72 x 47.35mm(W x L).
