Electronics-Salon DB37 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.
Electronics-Salon DB37 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.

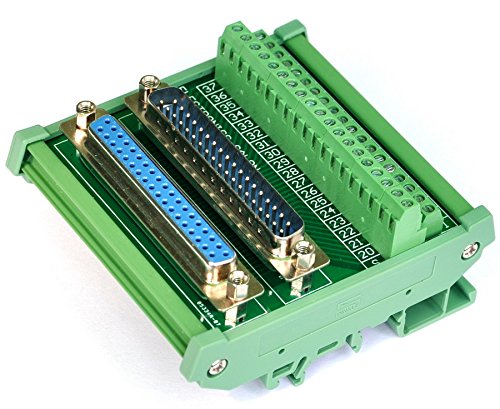

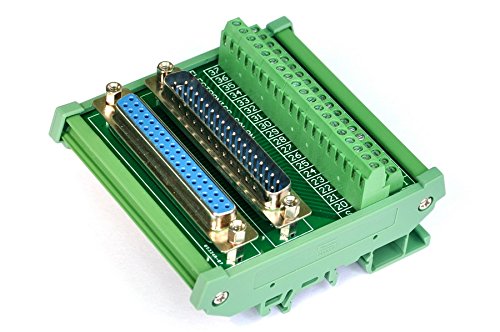

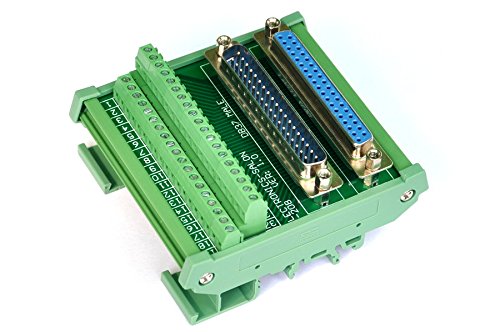

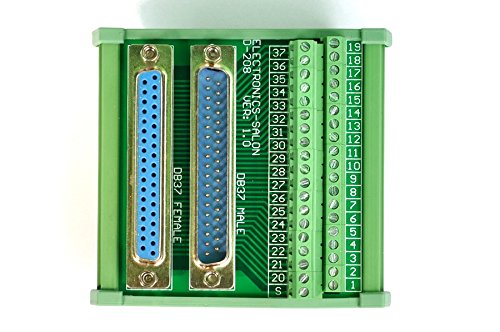

Din Rail Mount DB37 Interface Module. Male and Female DB37 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 80 x 43mm(W x L x H). PCB dimensions: 72 x 77.35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3.81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
Product Features
- Male and Female DB37 connectors. Screw terminal block.
- Din rail mountable - for width 35 / 32 / 15mm rails.

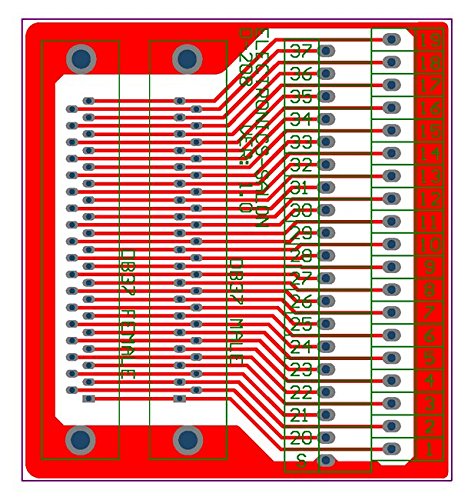

- High quality PCB carrier. FR-4 fiber glass PCB.

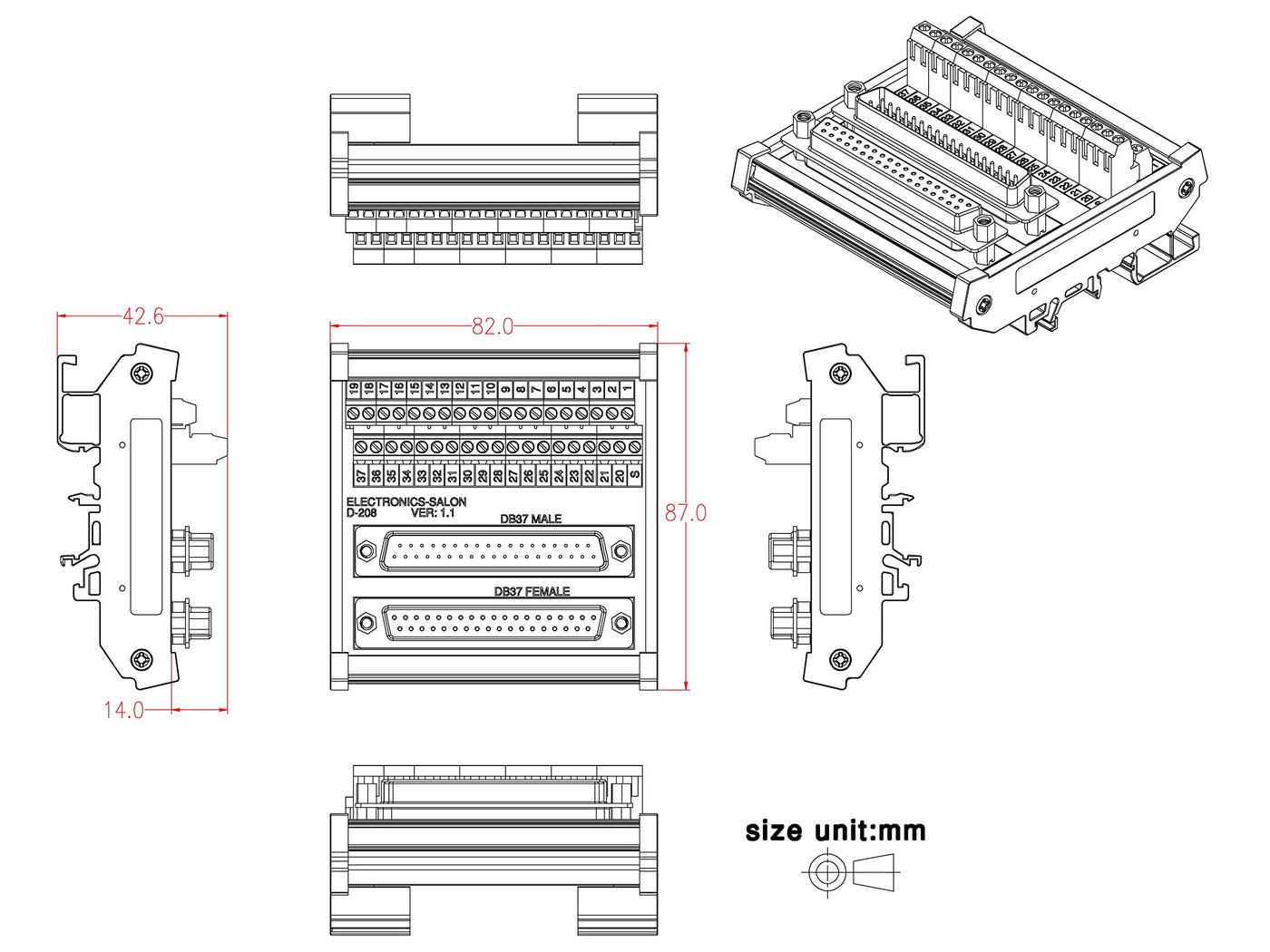

- External dimensions: 87 x 80 x 43mm(W x L x H). PCB dimensions: 72 x 77.35mm(W x L).
