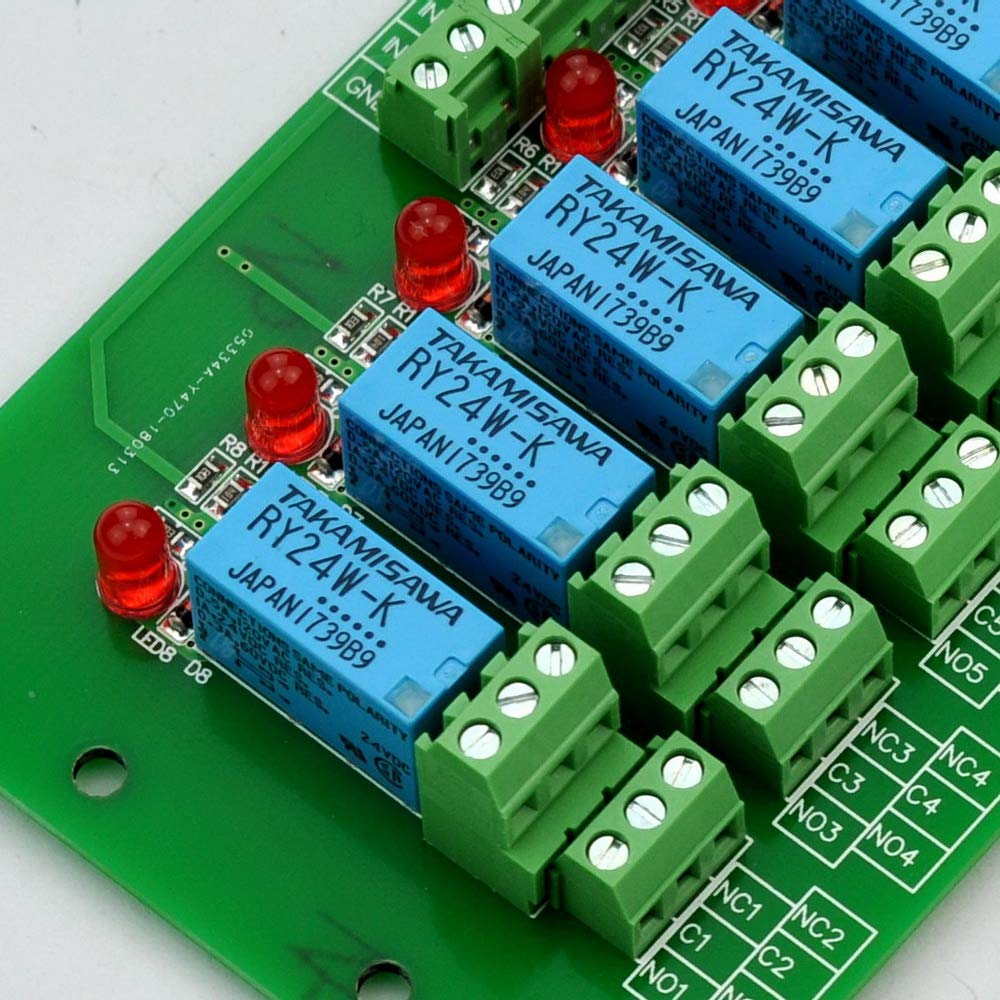

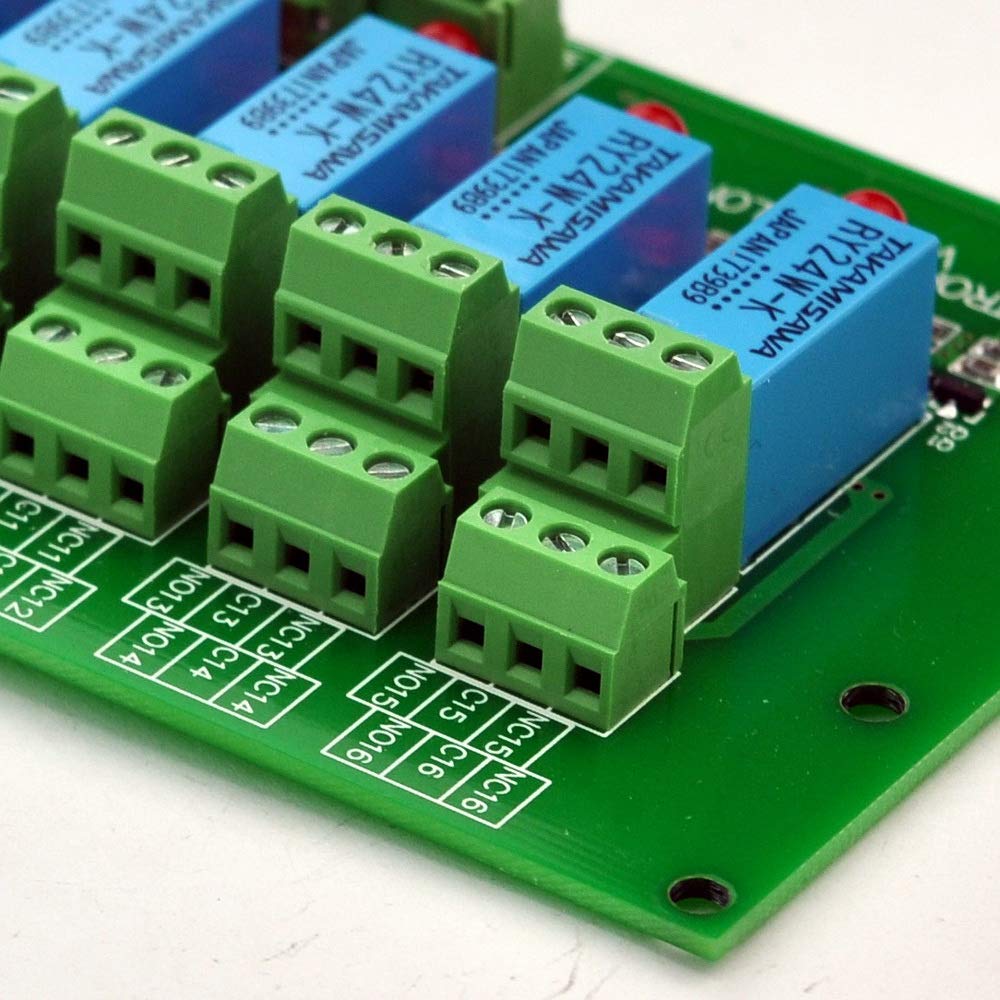

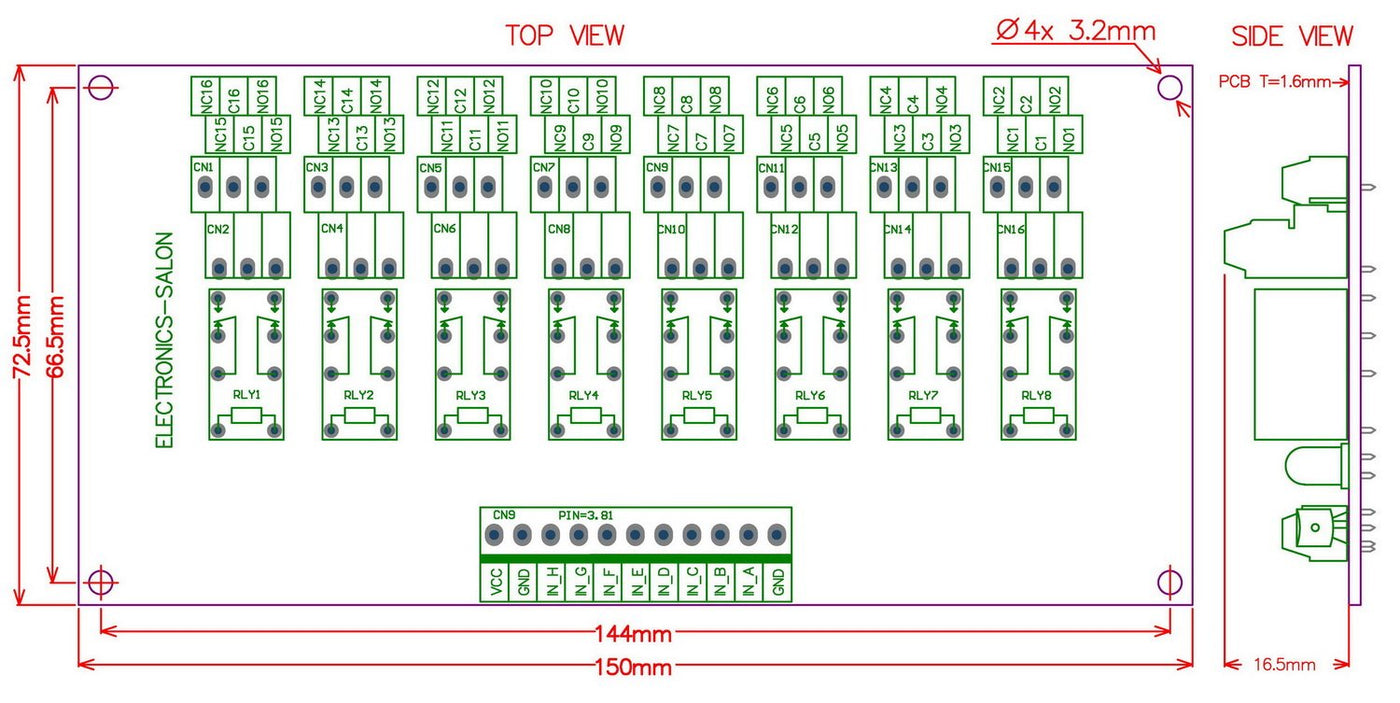

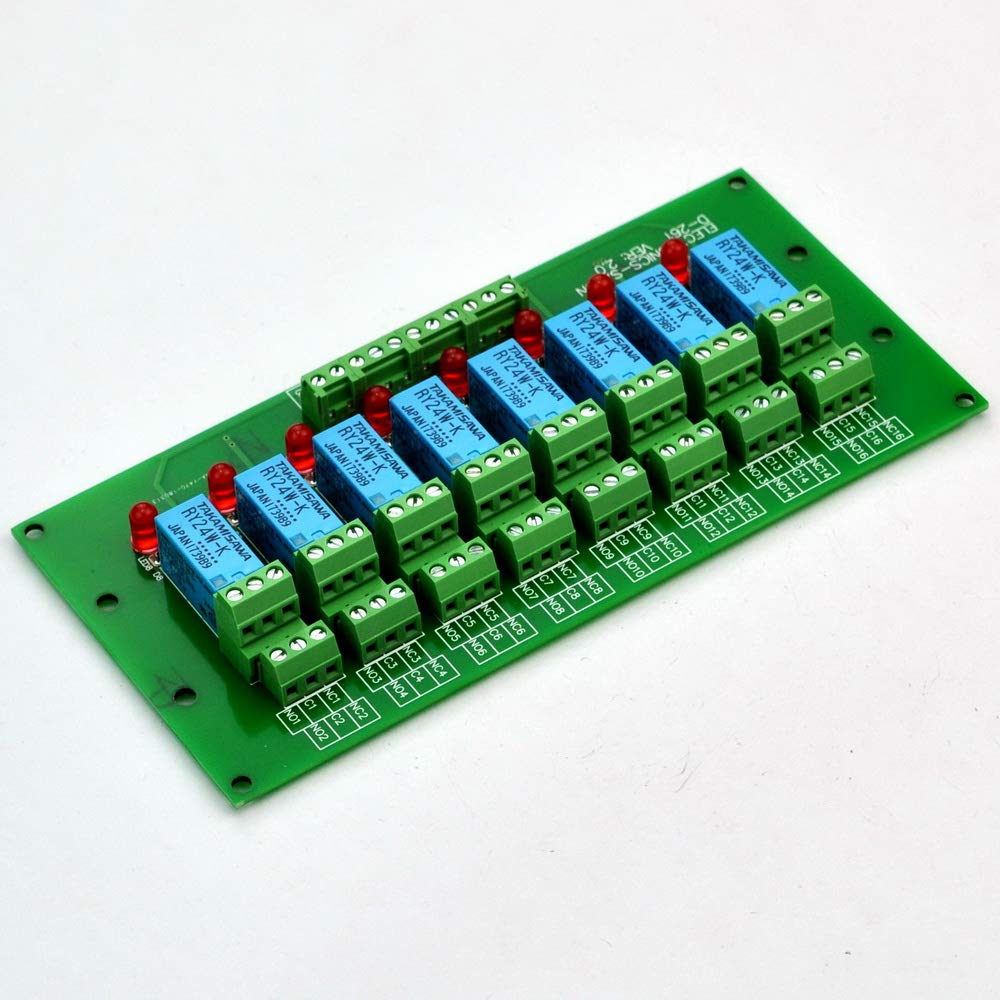

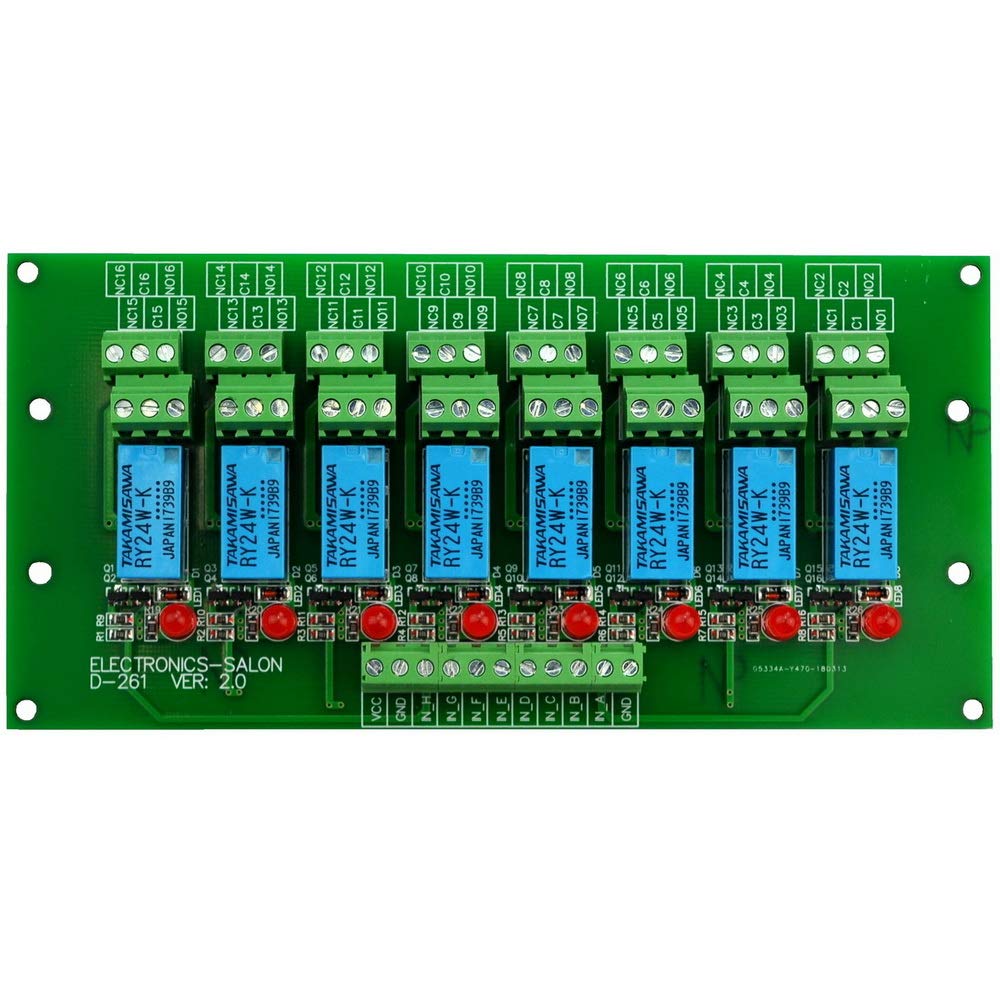

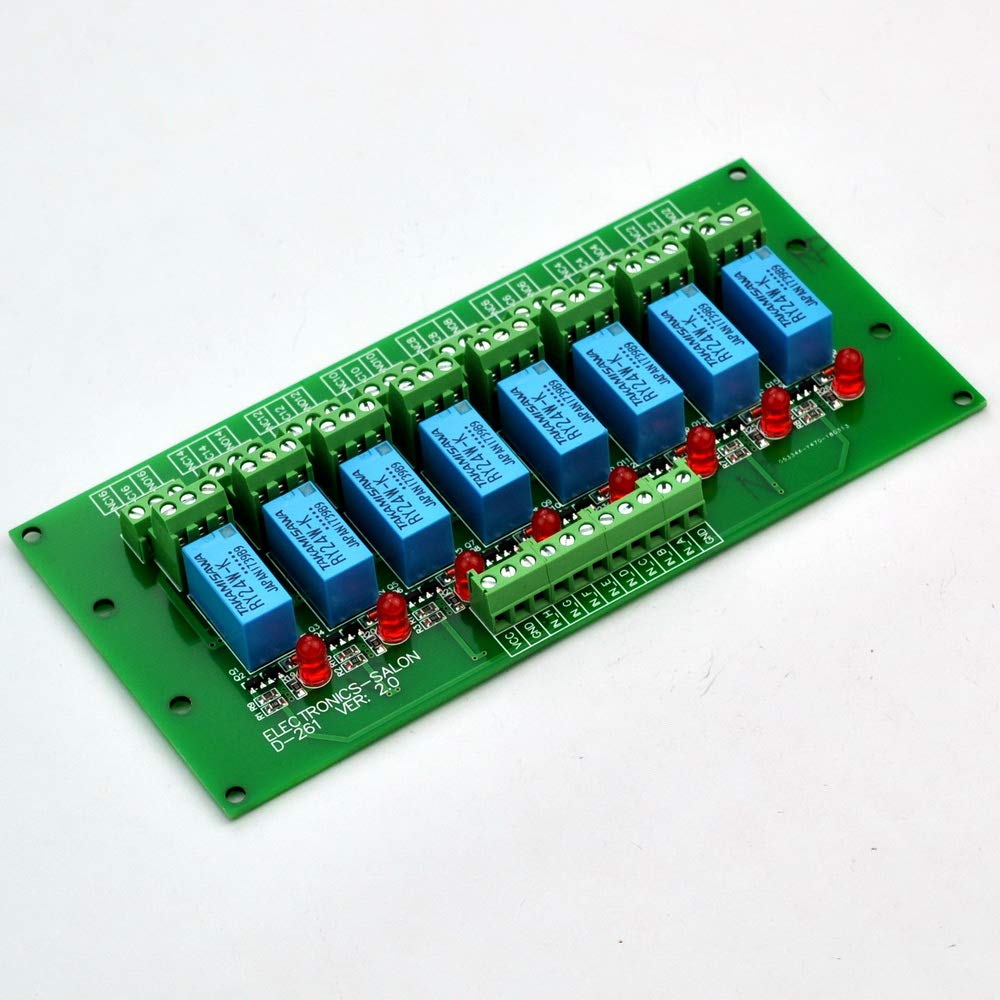

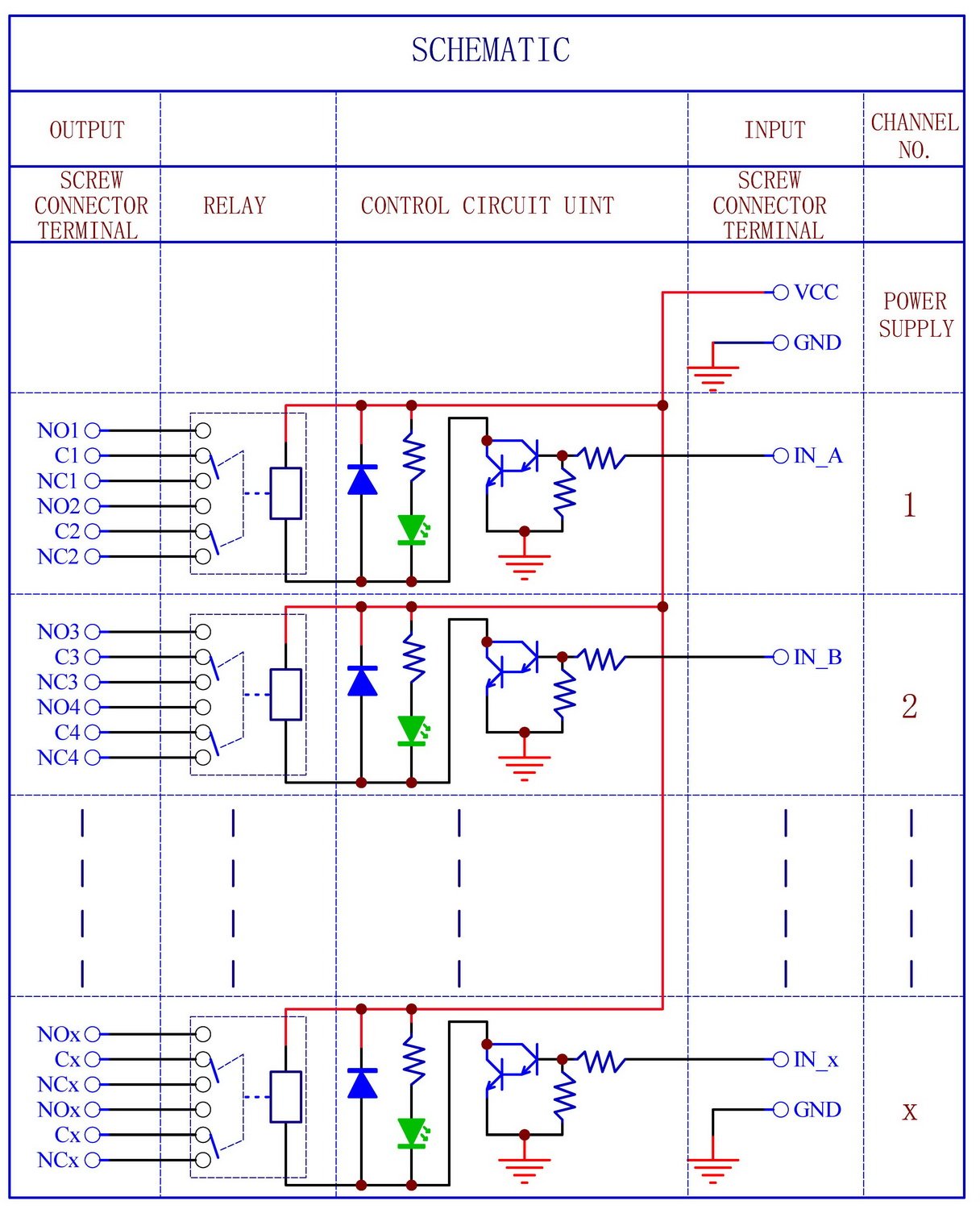

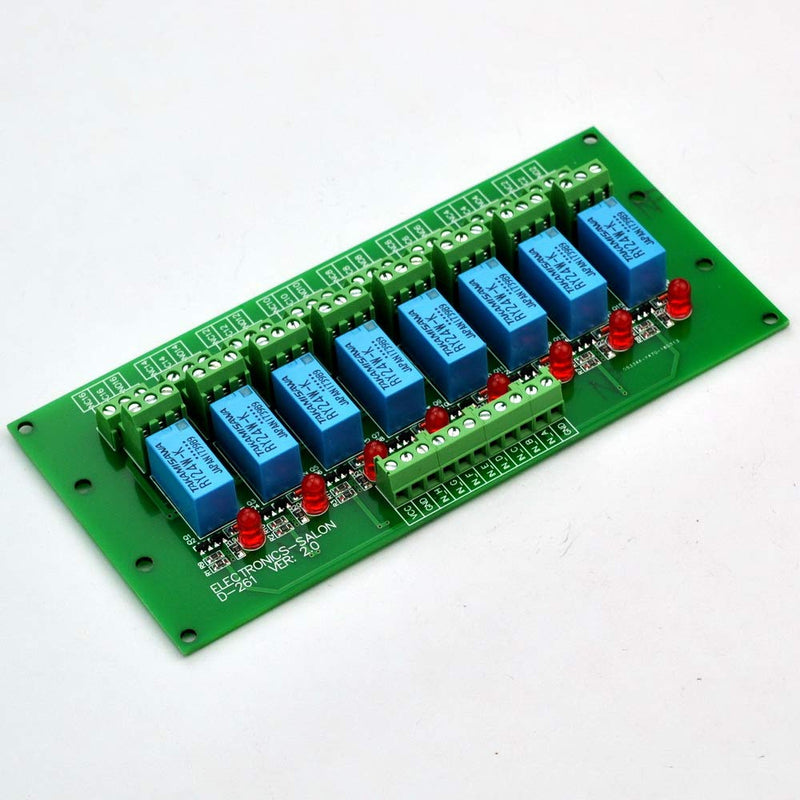

{"id":8050840535220,"title":"Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 24V) Operating Voltage: DC 24V","handle":"electronics-salon-8-channel-dpdt-signal-relay-module-board-operating-voltage-dc-24v-operating-voltage-dc-24v","description":"\u003ch3\u003eElectronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 24V)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e8 Channel DPDT Signal Relay Module Board, DC 24V Version. RY24W-K high quality\r\nsignal relays, LED indicator for each relay channel. Darlington transistors\r\ncircuit driving relay, improve the reliability of action. Pitch 3.81mm \/ 0.15\"\r\nscrew terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2\r\nslotted screw. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x\r\n150mm ( L x W ). Operating Voltage: DC 24V. Input control signal voltage: 0V -\r\n0.5Vdc, low level, relay not action. 2.5V - 24Vdc, high level, relay action.\r\nInput control signal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA.\r\n20V: 1.9mA Relay Spec: Relay Part Number: RY24W-K series. Contact Material:\r\nGold Overlay Silver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire\r\nconnection and PCB size: VCC: Power supply input. GND: Power supply ground and\r\ncontrol signal ground. IN-X: Control signal input, Low: relay not action,\r\nHigh: relay action. COM \/ NO \/ NC: Control signal state low, the relay OFF,\r\nCOM - NO disconnected, COM - NC connected. Control signal stage high, the\r\nrelay ON, COM - NO connected, COM - NC disconnected. This is a very simple\r\nmodule board, no paper specifications, any questions, feel free to tell me.\r\nDatasheet\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e8 Channel DPDT Signal Relay Module Board, DC 24V Version.\u003c\/li\u003e\r\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x 150mm ( L x W ).\u003c\/li\u003e\r\n \u003cli\u003eRY24W-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\r\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-04T18:05:01+10:00","created_at":"2026-05-04T18:04:57+10:00","vendor":"Electronics-Salon","type":"Electromechanical Relays","tags":["industrial_April2026"],"price":19800,"price_min":19800,"price_max":19800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44214959767732,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07CLHX4VV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 24V) Operating Voltage: DC 24V","public_title":null,"options":["Default Title"],"price":19800,"weight":136,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-D261N Panel Mount Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07CLHX4VV.jpg?v=1777993668","\/\/auspowers.com\/cdn\/shop\/files\/71uRDjRR0eL.jpg?v=1777881900","\/\/auspowers.com\/cdn\/shop\/files\/71uj5AQFUEL.jpg?v=1777881900","\/\/auspowers.com\/cdn\/shop\/files\/61v6r5FbhzL.jpg?v=1777881900","\/\/auspowers.com\/cdn\/shop\/files\/61DVUVV0unL.jpg?v=1777881899","\/\/auspowers.com\/cdn\/shop\/files\/71ZzuGcaU6L.jpg?v=1777881900","\/\/auspowers.com\/cdn\/shop\/files\/61ITXi_01wL.jpg?v=1777881900"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07CLHX4VV.jpg?v=1777993668","options":["Title"],"media":[{"alt":null,"id":32911596519604,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07CLHX4VV.jpg?v=1777993668"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07CLHX4VV.jpg?v=1777993668","width":1000},{"alt":null,"id":32911596552372,"position":2,"preview_image":{"aspect_ratio":0.811,"height":1500,"width":1216,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71uRDjRR0eL.jpg?v=1777881900"},"aspect_ratio":0.811,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71uRDjRR0eL.jpg?v=1777881900","width":1216},{"alt":null,"id":32911596585140,"position":3,"preview_image":{"aspect_ratio":1.992,"height":753,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71uj5AQFUEL.jpg?v=1777881900"},"aspect_ratio":1.992,"height":753,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71uj5AQFUEL.jpg?v=1777881900","width":1500},{"alt":null,"id":32911596617908,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61v6r5FbhzL.jpg?v=1777881900"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61v6r5FbhzL.jpg?v=1777881900","width":1000},{"alt":null,"id":32911596650676,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61DVUVV0unL.jpg?v=1777881899"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61DVUVV0unL.jpg?v=1777881899","width":1000},{"alt":null,"id":32911596683444,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZzuGcaU6L.jpg?v=1777881900"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZzuGcaU6L.jpg?v=1777881900","width":1000},{"alt":null,"id":32911596716212,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ITXi_01wL.jpg?v=1777881900"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ITXi_01wL.jpg?v=1777881900","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 24V)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e8 Channel DPDT Signal Relay Module Board, DC 24V Version. RY24W-K high quality\r\nsignal relays, LED indicator for each relay channel. Darlington transistors\r\ncircuit driving relay, improve the reliability of action. Pitch 3.81mm \/ 0.15\"\r\nscrew terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2\r\nslotted screw. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x\r\n150mm ( L x W ). Operating Voltage: DC 24V. Input control signal voltage: 0V -\r\n0.5Vdc, low level, relay not action. 2.5V - 24Vdc, high level, relay action.\r\nInput control signal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA.\r\n20V: 1.9mA Relay Spec: Relay Part Number: RY24W-K series. Contact Material:\r\nGold Overlay Silver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire\r\nconnection and PCB size: VCC: Power supply input. GND: Power supply ground and\r\ncontrol signal ground. IN-X: Control signal input, Low: relay not action,\r\nHigh: relay action. COM \/ NO \/ NC: Control signal state low, the relay OFF,\r\nCOM - NO disconnected, COM - NC connected. Control signal stage high, the\r\nrelay ON, COM - NO connected, COM - NC disconnected. This is a very simple\r\nmodule board, no paper specifications, any questions, feel free to tell me.\r\nDatasheet\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e8 Channel DPDT Signal Relay Module Board, DC 24V Version.\u003c\/li\u003e\r\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x 150mm ( L x W ).\u003c\/li\u003e\r\n \u003cli\u003eRY24W-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\r\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
