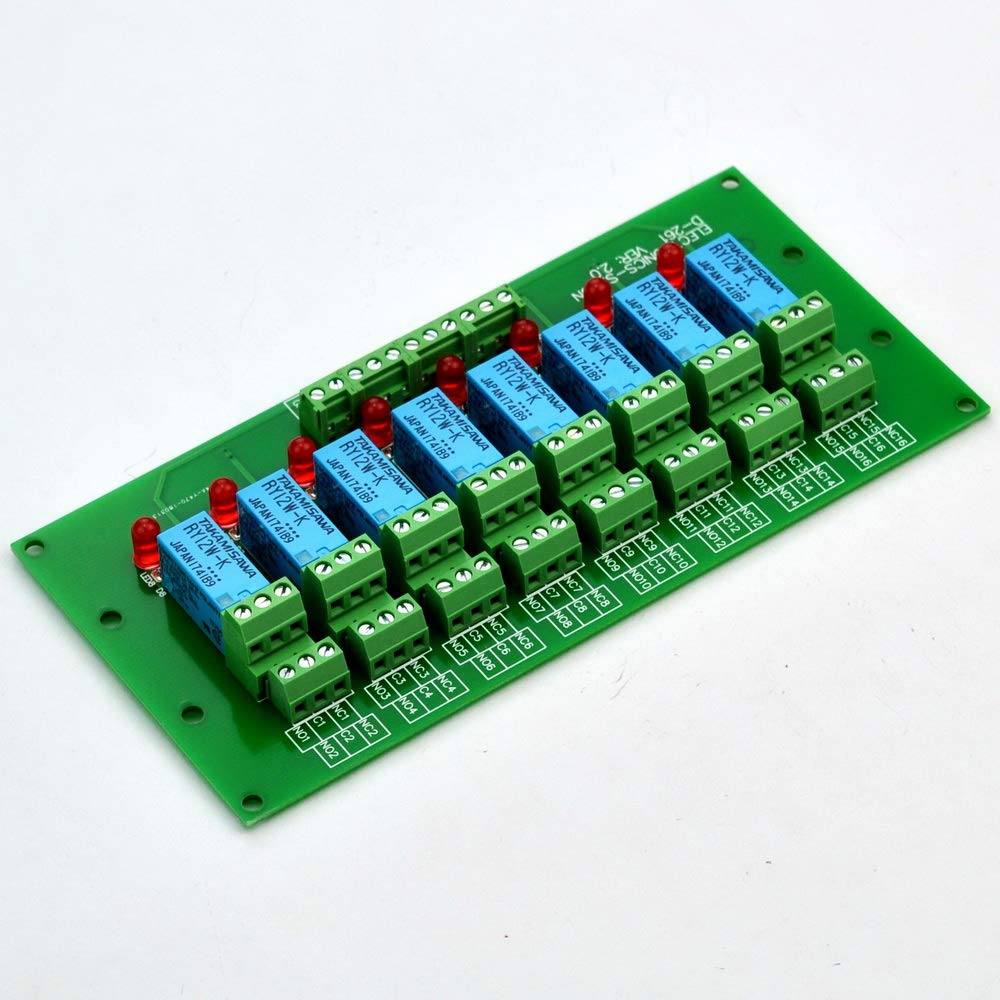

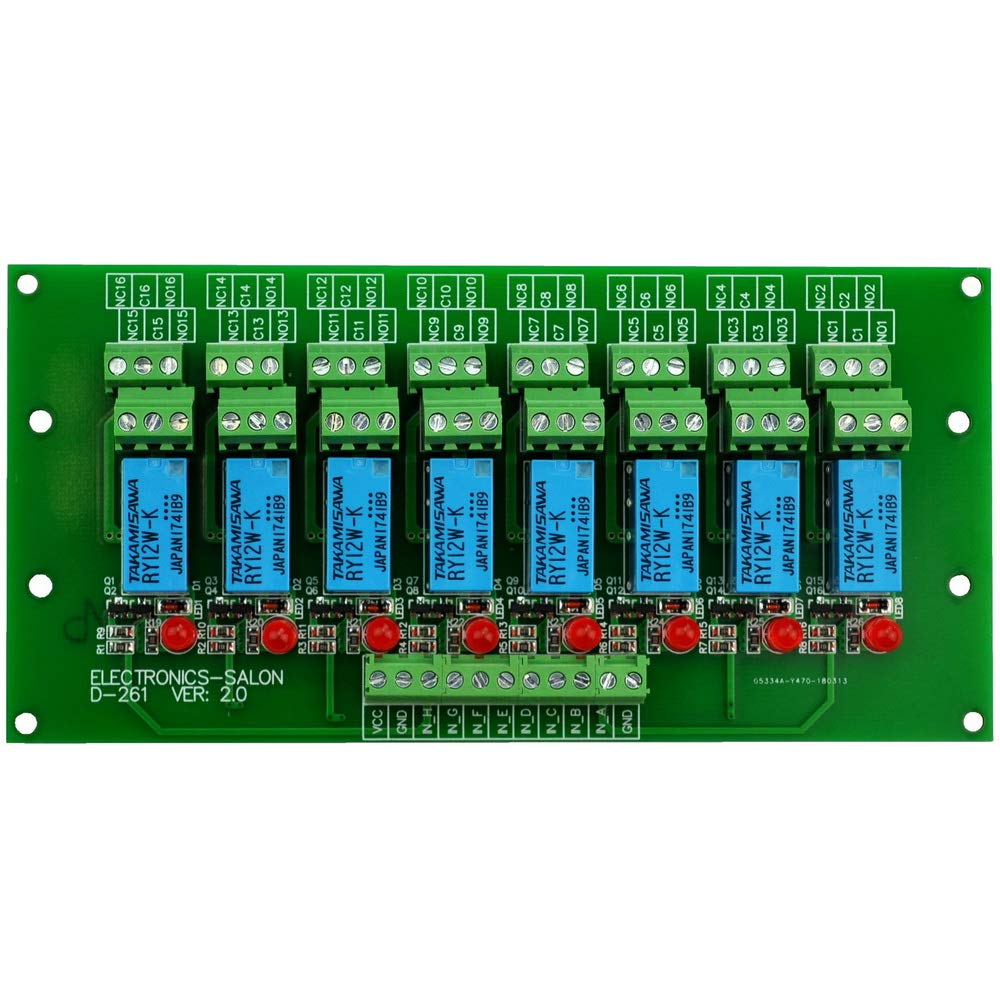

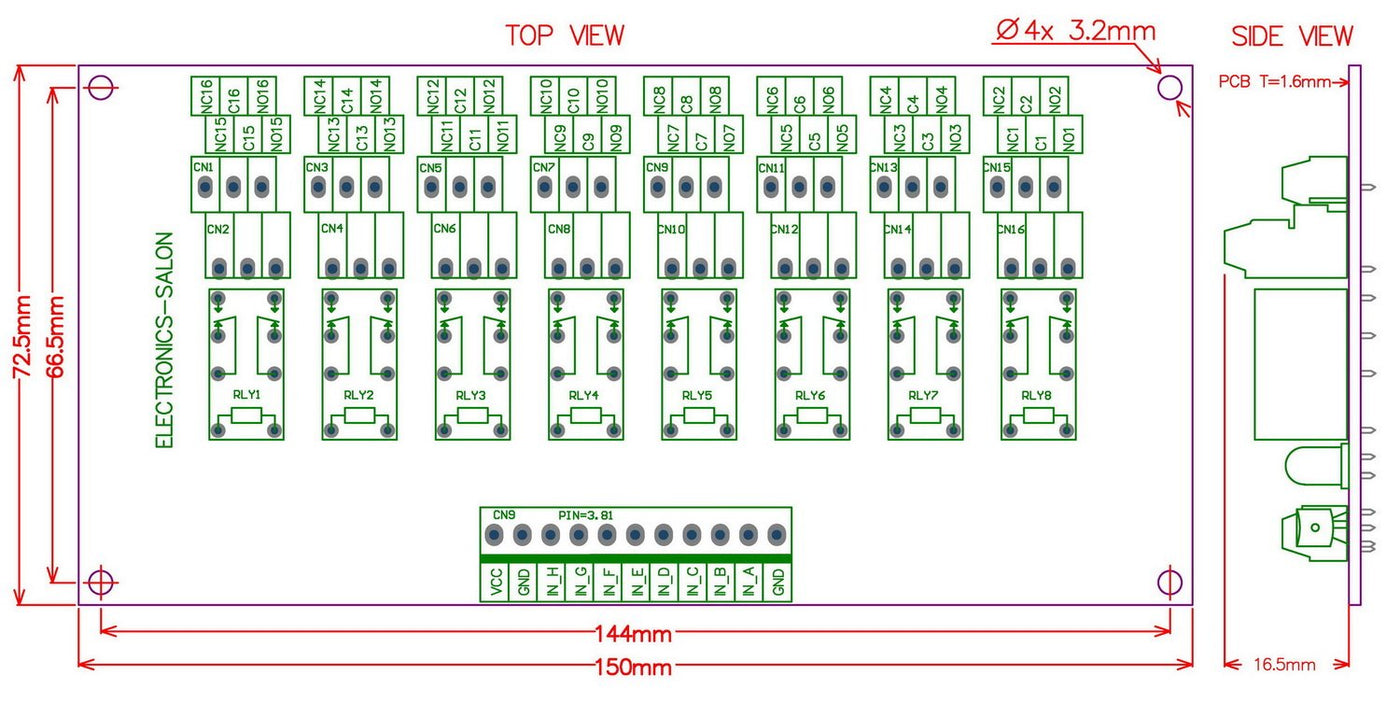

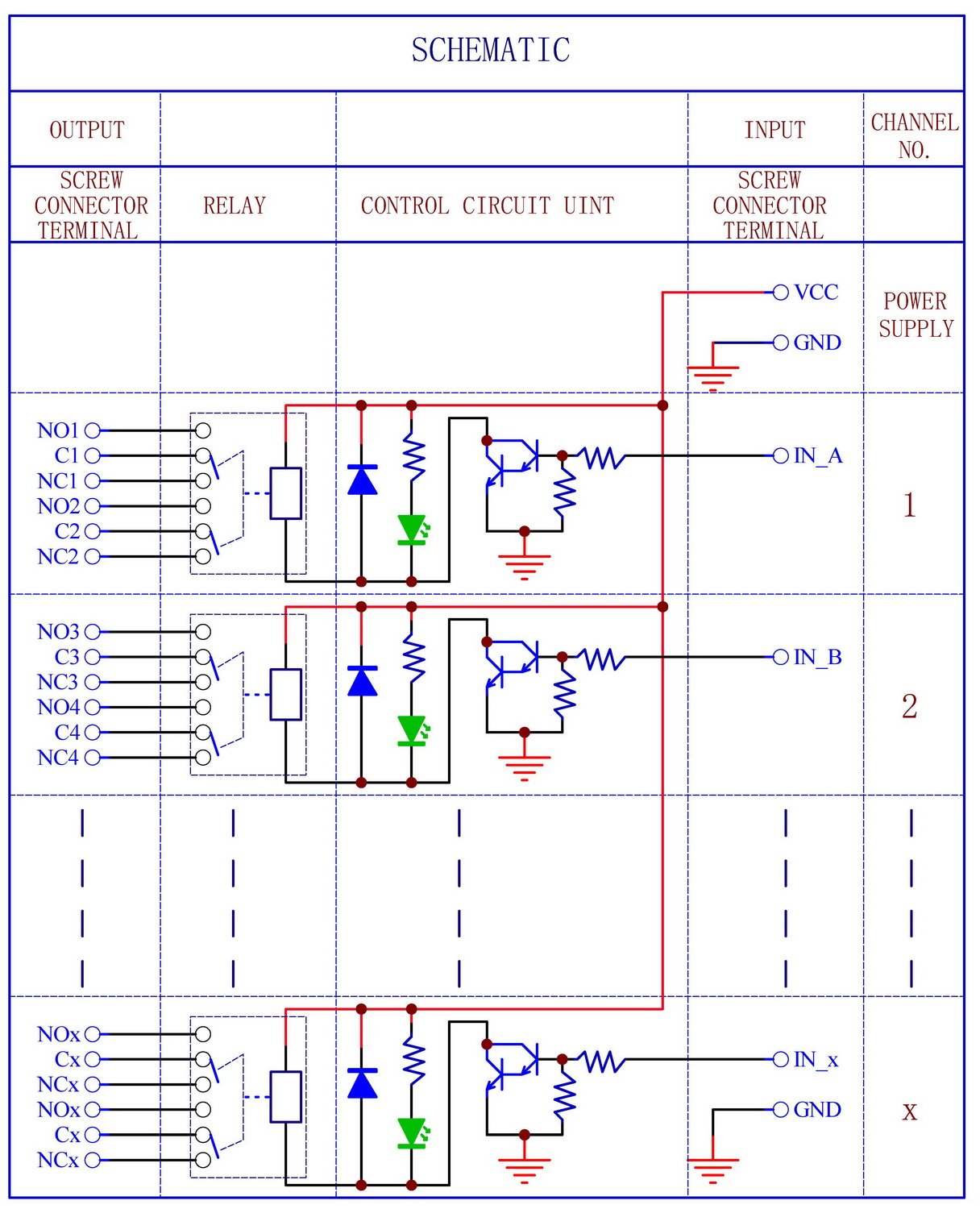

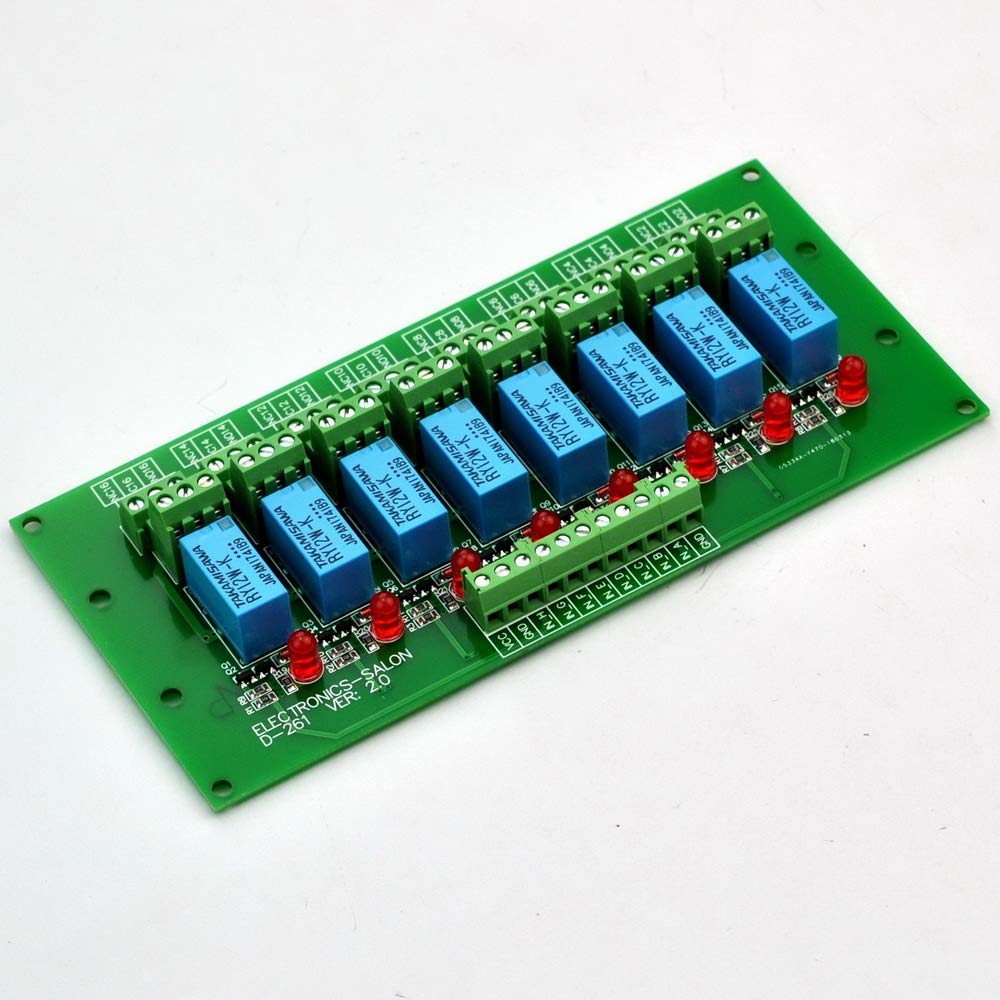

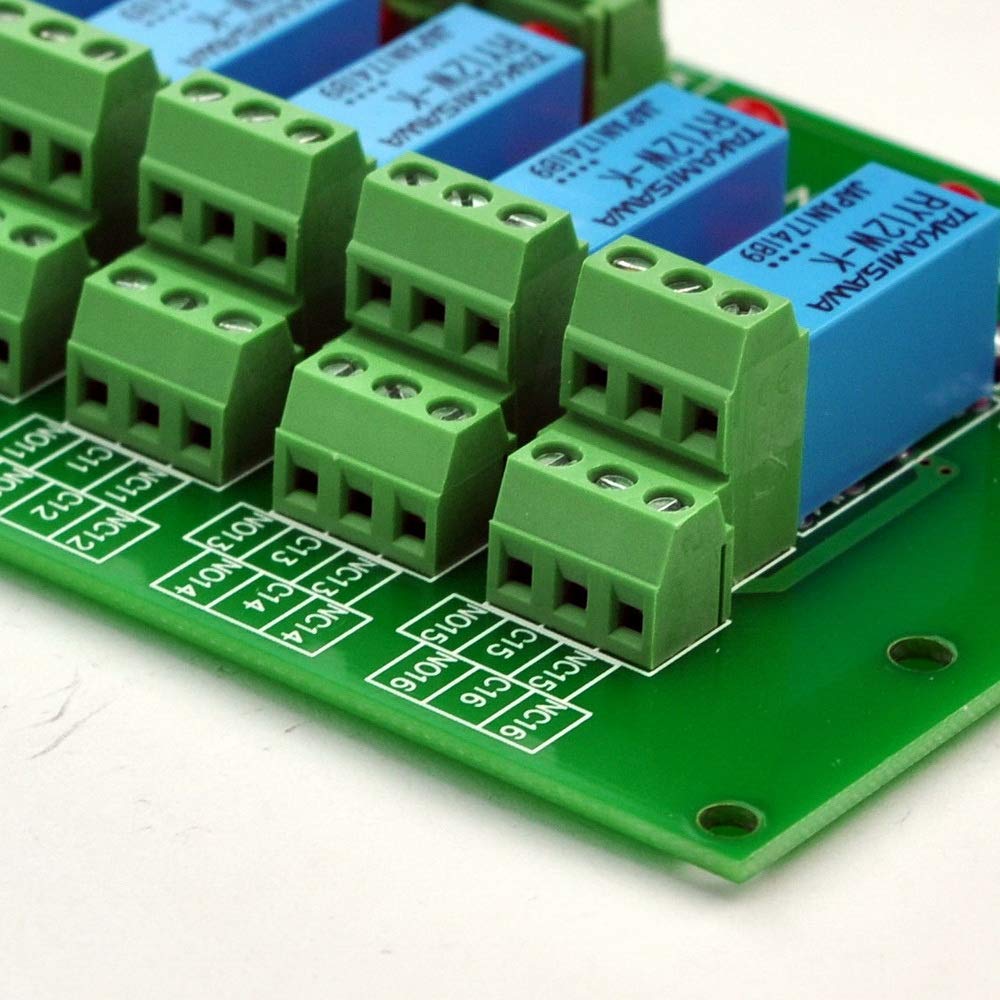

{"id":7167485771956,"title":"Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V","handle":"electronics-salon-8-channel-dpdt-signal-relay-module-board-operating-voltage-dc-12v-operating-voltage-dc-12v","description":"\u003ch3\u003eElectronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e8 Channel DPDT Signal Relay Module Board, DC 12V Version. RY12W-K high quality\nsignal relays, LED indicator for each relay channel. Darlington transistors\ncircuit driving relay, improve the reliability of action. Pitch 3.81mm \/ 0.15\"\nscrew terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2\nslotted screw. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x\n150mm ( L x W ). Operating Voltage: DC 12V. Input control signal voltage: 0V -\n0.5Vdc, low level, relay not action. 2.5V - 24Vdc, high level, relay action.\nInput control signal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA.\n20V: 1.9mA Relay Spec: Relay Part Number: RY12W-K series. Contact Material:\nGold Overlay Silver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire\nconnection and PCB size: VCC: Power supply input. GND: Power supply ground and\ncontrol signal ground. IN-X: Control signal input, Low: relay not action,\nHigh: relay action. COM \/ NO \/ NC: Control signal state low, the relay OFF,\nCOM - NO disconnected, COM - NC connected. Control signal stage high, the\nrelay ON, COM - NO connected, COM - NC disconnected. This is a very simple\nmodule board, no paper specifications, any questions, feel free to tell me.\nDatasheet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8 Channel DPDT Signal Relay Module Board, DC 12V Version.\u003c\/li\u003e\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x 150mm ( L x W ).\u003c\/li\u003e\n \u003cli\u003eRY12W-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-24T15:51:14+10:00","created_at":"2022-06-24T15:51:21+10:00","vendor":"Electronics-Salon","type":"Relays","tags":["industrial"],"price":23500,"price_min":23500,"price_max":23500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41604603052212,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07CLBWR5S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V","public_title":null,"options":["Default Title"],"price":23500,"weight":159,"compare_at_price":null,"inventory_management":null,"barcode":"6954525554620","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07CLBWR5S.jpg?v=1656055088","\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_e6337c67-ce4f-4ba9-b30a-cb78f0d948f2.jpg?v=1656049881","\/\/auspowers.com\/cdn\/shop\/products\/71uj5AQFUEL.jpg?v=1656049881","\/\/auspowers.com\/cdn\/shop\/products\/61NoRv8CYLL.jpg?v=1656049881","\/\/auspowers.com\/cdn\/shop\/products\/61OfKKFtYRL.jpg?v=1656049881","\/\/auspowers.com\/cdn\/shop\/products\/71KCDnGVRzL.jpg?v=1656049881","\/\/auspowers.com\/cdn\/shop\/products\/617juiCRSML.jpg?v=1656049881"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07CLBWR5S.jpg?v=1656055088","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268872671412,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07CLBWR5S.jpg?v=1656055088"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07CLBWR5S.jpg?v=1656055088","width":1000},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106260660,"position":2,"preview_image":{"aspect_ratio":0.811,"height":1500,"width":1216,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_e6337c67-ce4f-4ba9-b30a-cb78f0d948f2.jpg?v=1656049881"},"aspect_ratio":0.811,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71uRDjRR0eL_e6337c67-ce4f-4ba9-b30a-cb78f0d948f2.jpg?v=1656049881","width":1216},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106293428,"position":3,"preview_image":{"aspect_ratio":1.992,"height":753,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71uj5AQFUEL.jpg?v=1656049881"},"aspect_ratio":1.992,"height":753,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71uj5AQFUEL.jpg?v=1656049881","width":1500},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106326196,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61NoRv8CYLL.jpg?v=1656049881"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61NoRv8CYLL.jpg?v=1656049881","width":1000},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106391732,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61OfKKFtYRL.jpg?v=1656049881"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61OfKKFtYRL.jpg?v=1656049881","width":1000},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106424500,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71KCDnGVRzL.jpg?v=1656049881"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71KCDnGVRzL.jpg?v=1656049881","width":1000},{"alt":"[Australia - AusPower] - Electronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V) Operating Voltage: DC 12V ","id":26268106457268,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/617juiCRSML.jpg?v=1656049881"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/617juiCRSML.jpg?v=1656049881","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectronics-Salon 8 Channel DPDT Signal Relay Module Board (Operating Voltage: DC 12V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e8 Channel DPDT Signal Relay Module Board, DC 12V Version. RY12W-K high quality\nsignal relays, LED indicator for each relay channel. Darlington transistors\ncircuit driving relay, improve the reliability of action. Pitch 3.81mm \/ 0.15\"\nscrew terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2\nslotted screw. FR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x\n150mm ( L x W ). Operating Voltage: DC 12V. Input control signal voltage: 0V -\n0.5Vdc, low level, relay not action. 2.5V - 24Vdc, high level, relay action.\nInput control signal high level current: 2.5V: 0.1mA. 5V: 0.35mA. 12V: 1.1mA.\n20V: 1.9mA Relay Spec: Relay Part Number: RY12W-K series. Contact Material:\nGold Overlay Silver-Palladium. Contact Rating: 120VAC \/ 0.5A, 24VDC \/ 1A. Wire\nconnection and PCB size: VCC: Power supply input. GND: Power supply ground and\ncontrol signal ground. IN-X: Control signal input, Low: relay not action,\nHigh: relay action. COM \/ NO \/ NC: Control signal state low, the relay OFF,\nCOM - NO disconnected, COM - NC connected. Control signal stage high, the\nrelay ON, COM - NO connected, COM - NC disconnected. This is a very simple\nmodule board, no paper specifications, any questions, feel free to tell me.\nDatasheet\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8 Channel DPDT Signal Relay Module Board, DC 12V Version.\u003c\/li\u003e\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers. Dimensions: 72.5mm x 150mm ( L x W ).\u003c\/li\u003e\n \u003cli\u003eRY12W-K high quality signal relays, LED indicator for each relay channel. Darlington transistors circuit driving relay, improve the reliability of action.\u003c\/li\u003e\n \u003cli\u003ePitch 3.81mm \/ 0.15\" screw terminal block, wire range 26-16AWG, strip length 5mm \/ 0.2\", Metric M2 slotted screw.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
