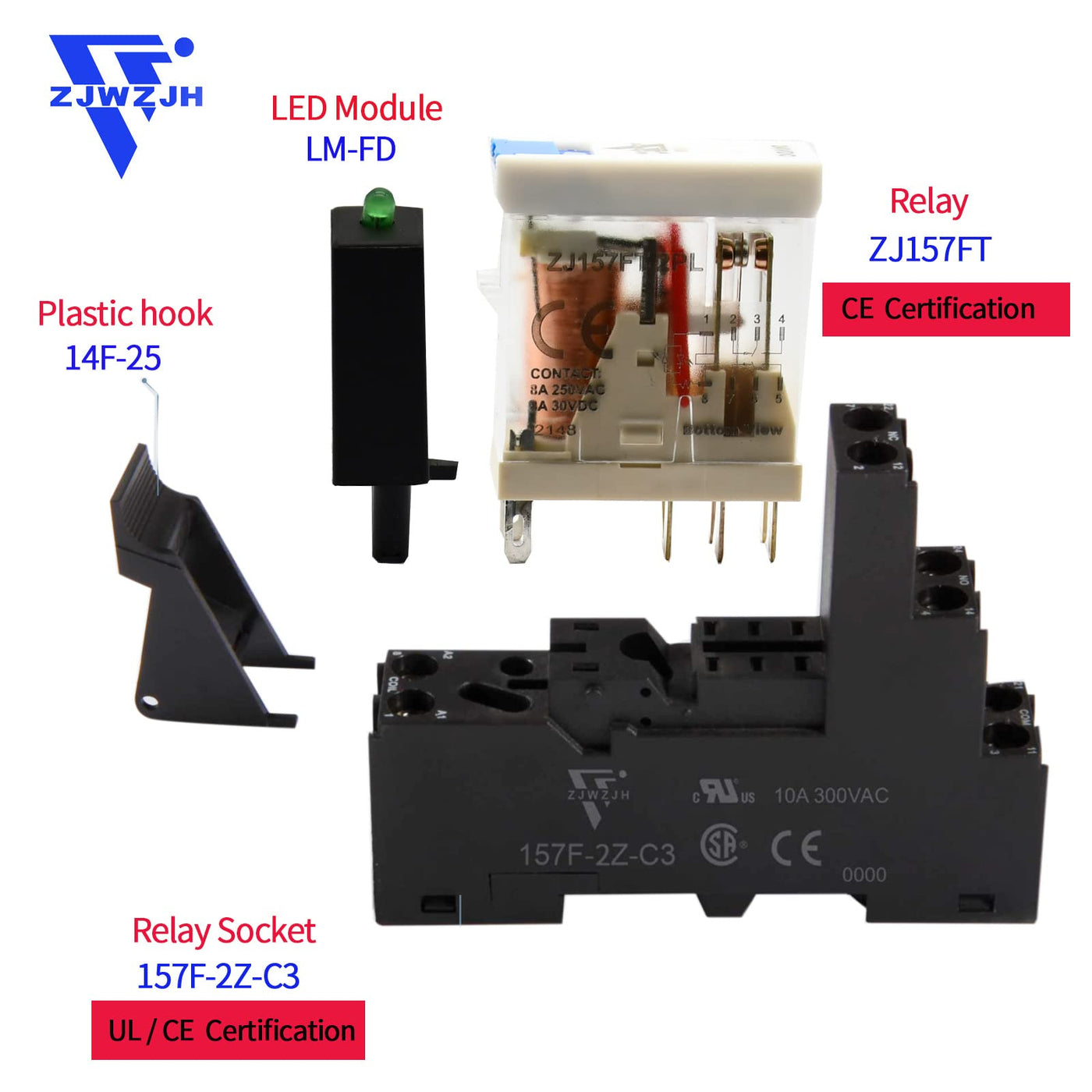

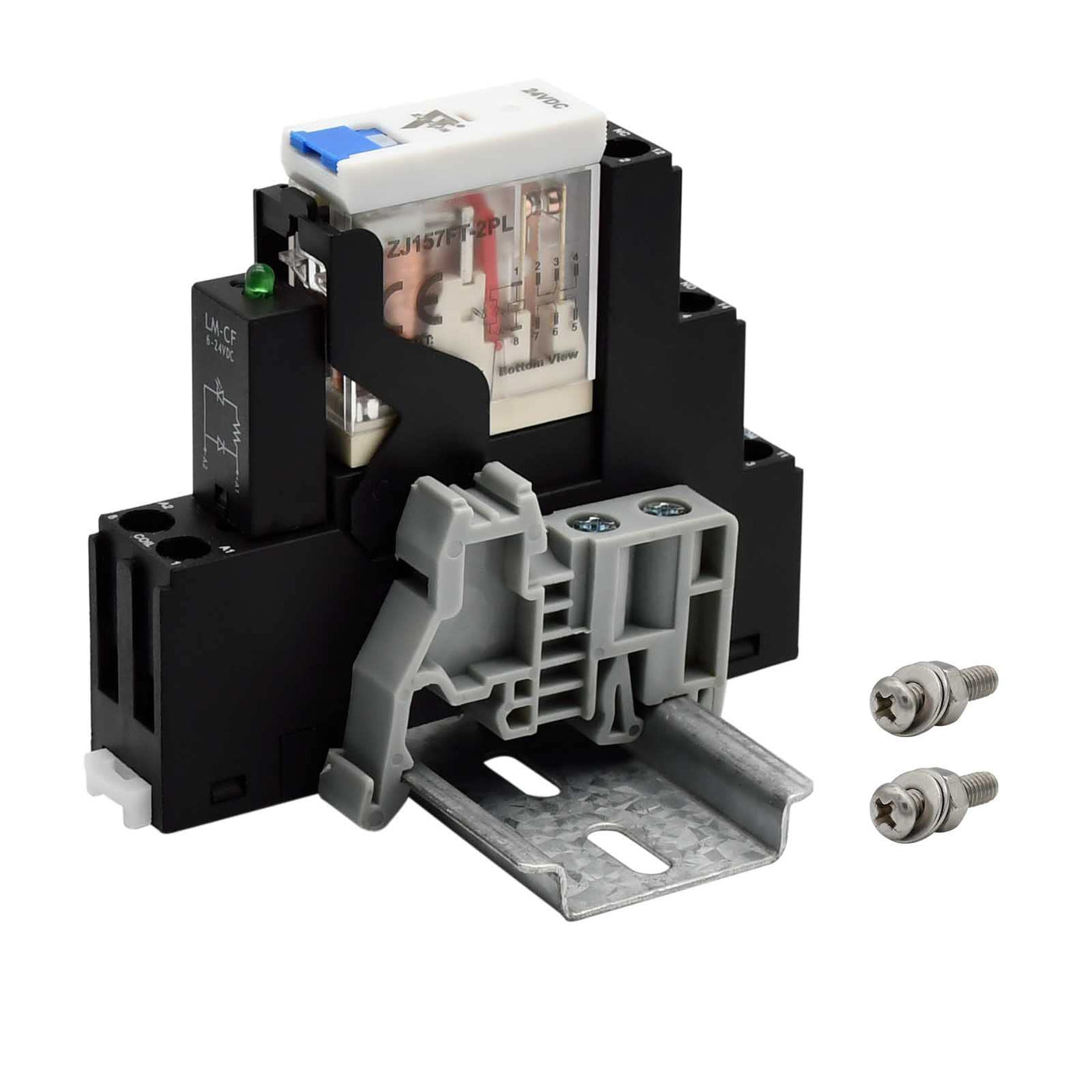

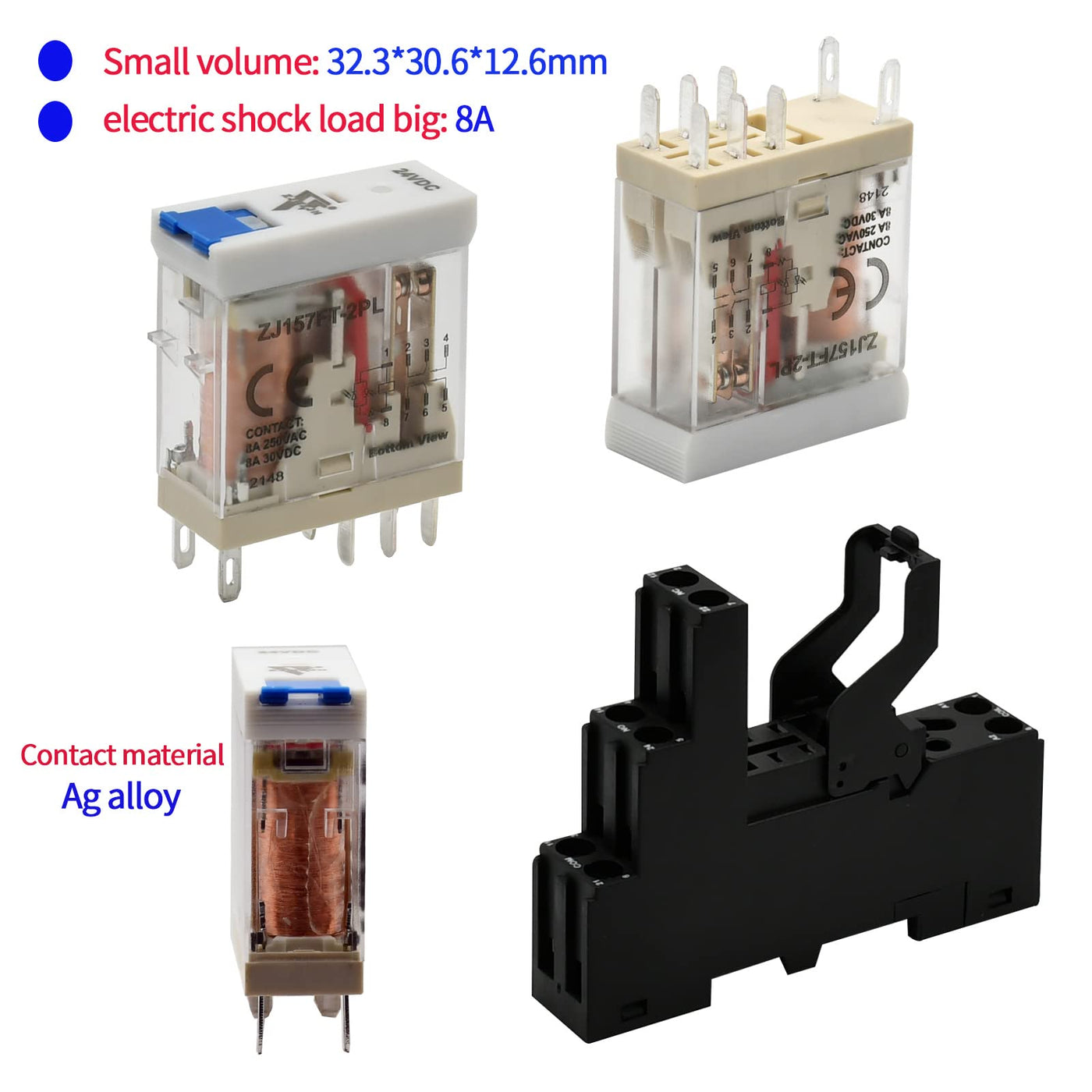

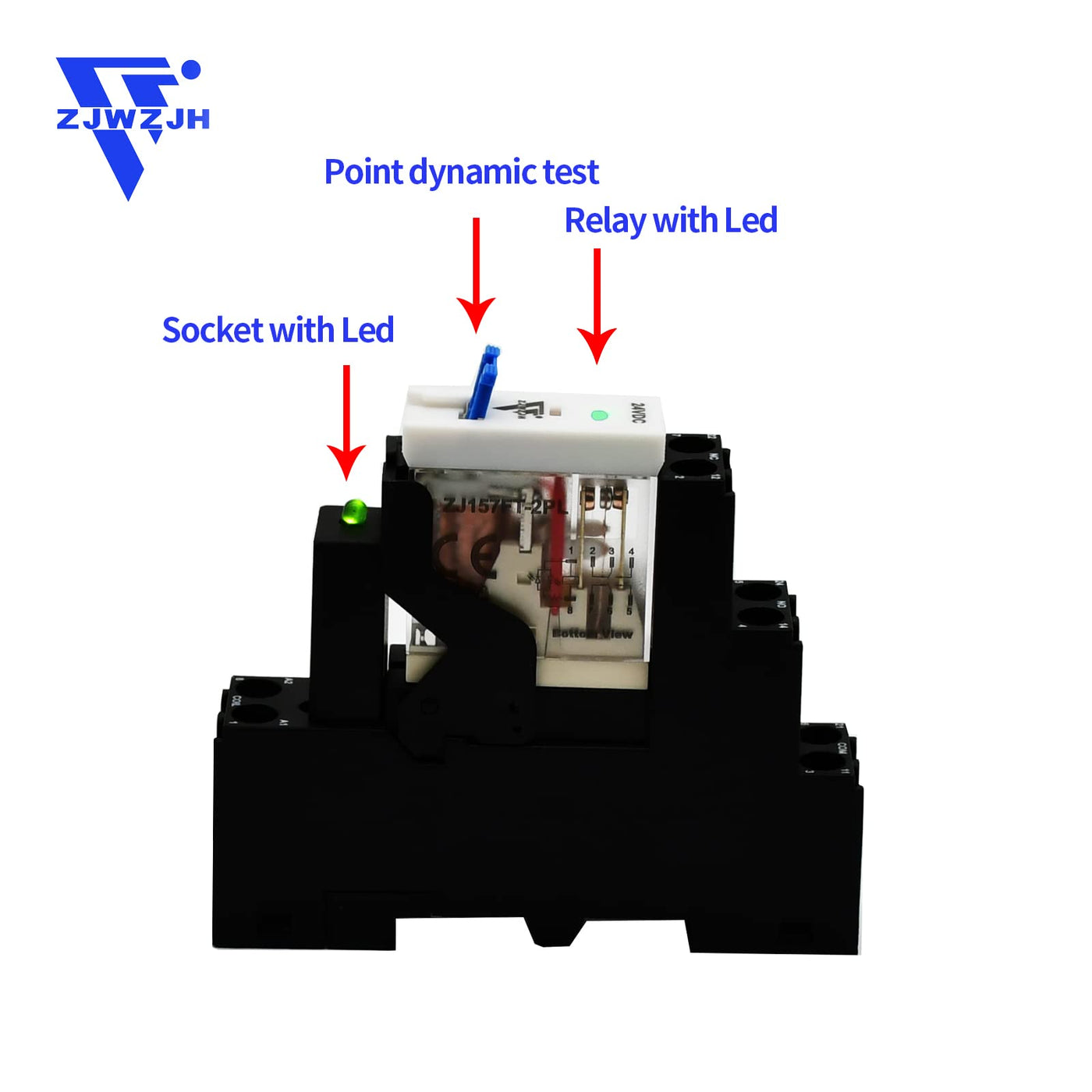

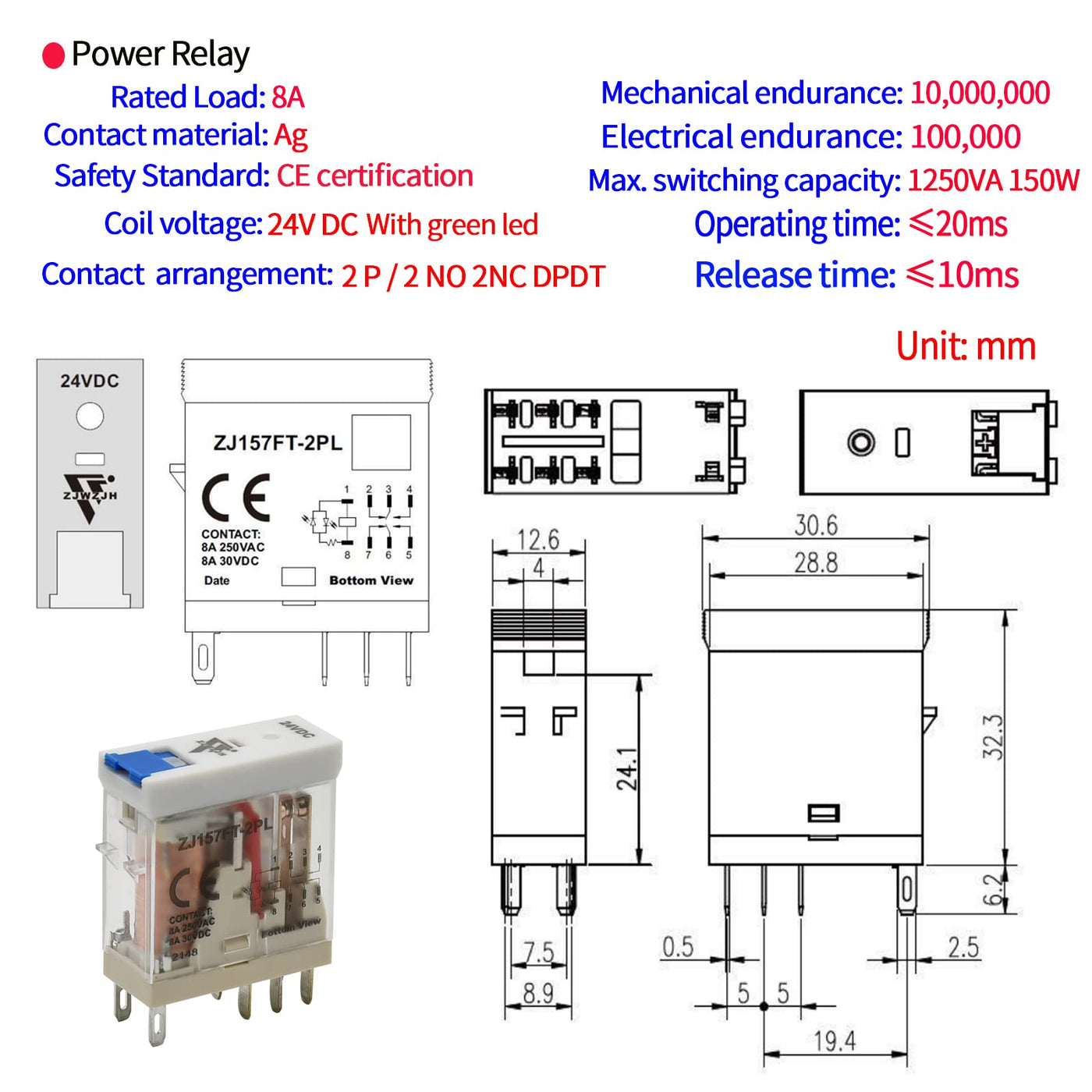

{"id":7170947940532,"title":"Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A","handle":"electromagnetic-power-relay-miniature-coil-24v-8a-8-pins-2pdt-2no-2nc-with-indicator-light-and-socket-base-8-pin-5a-dc-24v-8-pin-5a","description":"\u003ch3\u003eElectromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\"Package include : Package Content : 1 x Electromagnetic Relay ,1 x Socket, 2\nx Fixing clamp , 1 x DIN Rail, 2 x Screws. Relay Features 1.Small volume, Easy\ninstallation 2.Get an electric shock load big: 8A3.High sensitivity,Contact\nmaterial：Ag alloy4.Point dynamic test and self-locking function5.LED indicator\nlight windowContact DataRated Load:2NO 2NC DPDT,8A 250VAC \/8A 30VDCMechanical\nendurance:10,000,000 Times;Electrical endurance:100,000 TimesRated carry\ncurrent:8 AmpsMax. contact voltage:AC250V,DC30VMax. contact current:10AMax.\ncontact voltage:AC250V,DC30VMax. contact current:10AMax. switching capacity:\n1250VA 150WCharacteristicsOperating time ≤20msRelease time ≤10msInsulation\nresistance ≥1000mΩ （500VDC)Ambient operating temperature:-40℃～+70℃Weight:\n123gAmbientl humidity:5%～85%RH\"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMiniature PCB Power Relay have point dynamic test and self-locking function.Contact:2NO2NC DPDT 2 Poles.\u003c\/li\u003e\n \u003cli\u003eHigh sensitivity.Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Termination: Screw terminal; Mounting DIN rail\u003c\/li\u003e\n \u003cli\u003eSocket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.815.761.2mm;Number of plugin and drawout 500 times .\u003c\/li\u003e\n \u003cli\u003ePackage Content : 1 x Electromagnetic Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times\u003c\/li\u003e\n \u003cli\u003eIf you need to order in large quantities, please contact us by email, and we will give you a discount price.Warranty for two years.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-27T20:45:22+10:00","created_at":"2022-06-27T20:45:29+10:00","vendor":"ZJWZJH","type":"Electromechanical Relays","tags":["industrial"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41611502878900,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09PZ9MJ96","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A","public_title":null,"options":["Default Title"],"price":13200,"weight":68,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B09PZ9MJ96.jpg?v=1656399549","\/\/auspowers.com\/cdn\/shop\/products\/61nDCfVH5aL.jpg?v=1656326729","\/\/auspowers.com\/cdn\/shop\/products\/61tSyJB_rWL.jpg?v=1656326729","\/\/auspowers.com\/cdn\/shop\/products\/71V_3QoTAKL.jpg?v=1656326729","\/\/auspowers.com\/cdn\/shop\/products\/71ma2YZgu2L.jpg?v=1656326729","\/\/auspowers.com\/cdn\/shop\/products\/51EP5ld-yxL.jpg?v=1656326729","\/\/auspowers.com\/cdn\/shop\/products\/51y6MZPdTdL.jpg?v=1656326729"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B09PZ9MJ96.jpg?v=1656399549","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26320557834420,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B09PZ9MJ96.jpg?v=1656399549"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B09PZ9MJ96.jpg?v=1656399549","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306918875316,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61nDCfVH5aL.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61nDCfVH5aL.jpg?v=1656326729","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306918908084,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61tSyJB_rWL.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61tSyJB_rWL.jpg?v=1656326729","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306918940852,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71V_3QoTAKL.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71V_3QoTAKL.jpg?v=1656326729","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306918973620,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71ma2YZgu2L.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71ma2YZgu2L.jpg?v=1656326729","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306919006388,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51EP5ld-yxL.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51EP5ld-yxL.jpg?v=1656326729","width":1600},{"alt":"[Australia - AusPower] - Electromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V) 8 Pin- 5A ","id":26306919039156,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51y6MZPdTdL.jpg?v=1656326729"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51y6MZPdTdL.jpg?v=1656326729","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eElectromagnetic Power Relay Miniature Coil 24V 8A 8 Pins 2PDT 2NO 2NC with Indicator Light and Socket Base (8 Pin- 5A, DC 24V)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\"Package include : Package Content : 1 x Electromagnetic Relay ,1 x Socket, 2\nx Fixing clamp , 1 x DIN Rail, 2 x Screws. Relay Features 1.Small volume, Easy\ninstallation 2.Get an electric shock load big: 8A3.High sensitivity,Contact\nmaterial：Ag alloy4.Point dynamic test and self-locking function5.LED indicator\nlight windowContact DataRated Load:2NO 2NC DPDT,8A 250VAC \/8A 30VDCMechanical\nendurance:10,000,000 Times;Electrical endurance:100,000 TimesRated carry\ncurrent:8 AmpsMax. contact voltage:AC250V,DC30VMax. contact current:10AMax.\ncontact voltage:AC250V,DC30VMax. contact current:10AMax. switching capacity:\n1250VA 150WCharacteristicsOperating time ≤20msRelease time ≤10msInsulation\nresistance ≥1000mΩ （500VDC)Ambient operating temperature:-40℃～+70℃Weight:\n123gAmbientl humidity:5%～85%RH\"\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMiniature PCB Power Relay have point dynamic test and self-locking function.Contact:2NO2NC DPDT 2 Poles.\u003c\/li\u003e\n \u003cli\u003eHigh sensitivity.Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Termination: Screw terminal; Mounting DIN rail\u003c\/li\u003e\n \u003cli\u003eSocket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.815.761.2mm;Number of plugin and drawout 500 times .\u003c\/li\u003e\n \u003cli\u003ePackage Content : 1 x Electromagnetic Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times\u003c\/li\u003e\n \u003cli\u003eIf you need to order in large quantities, please contact us by email, and we will give you a discount price.Warranty for two years.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
