efuturetime Anderson Plug 175A 600V Battery Connector Grey Pack of 2 | Battery Quick Disconnect Plug, High Current Plug for Cars, Caravans, Boats and Solar Systems 175A-Grau
efuturetime Anderson Plug 175A 600V Battery Connector Grey Pack of 2 | Battery Quick Disconnect Plug, High Current Plug for Cars, Caravans, Boats and Solar Systems
- Anderson High Current Quick Connectors are specially designed for quick connection and disconnection of electrical devices. - Flame retardant PC shell, wear-resistant and high temperature resistant, safe and reliable. - Zinc plated connectors with purple copper surface, highly conductive, easy to solder and crimp. - Non-slip design on the side, inner shrapnel made of high-precision manganese steel, full elasticity. - Widely used in battery connectors, caravans, forklifts, boats, solar panels, generators, motorcycles, solar boxes, etc. Tips: 1. Please check the size of the product before placing your order, thank you. 2. Since the size of the product is measured by hand, there may be a slight deviation of 1-3 mm, thanks for your understanding. 3. Due to differences between monitors, mobile phone pixels and light, slight colour differences are inevitable. The colour of the product is subject to the actual product you receive. If you are dissatisfied or have any suggestions about our products, please contact us and we will give you a satisfactory answer and solution.
Product Features

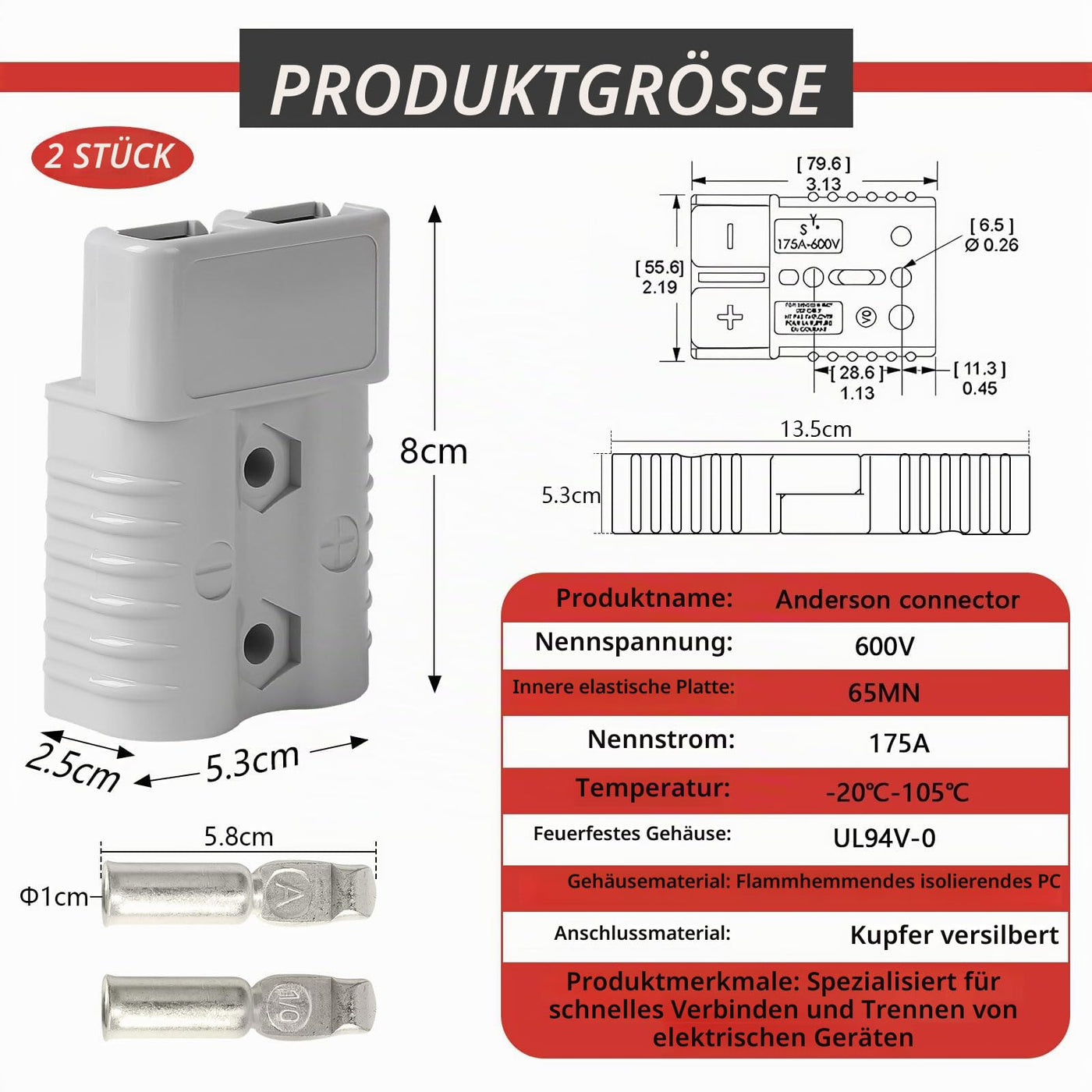

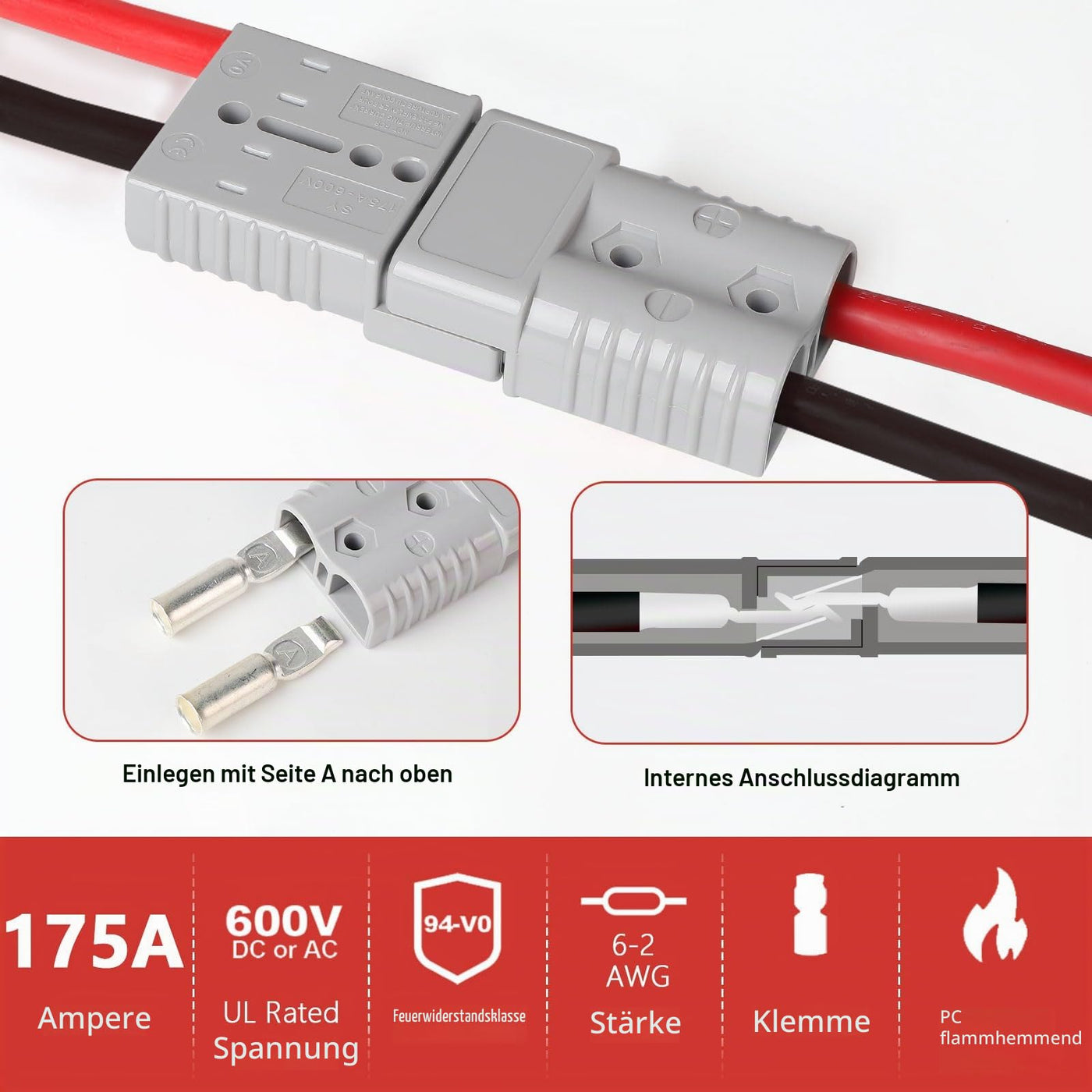

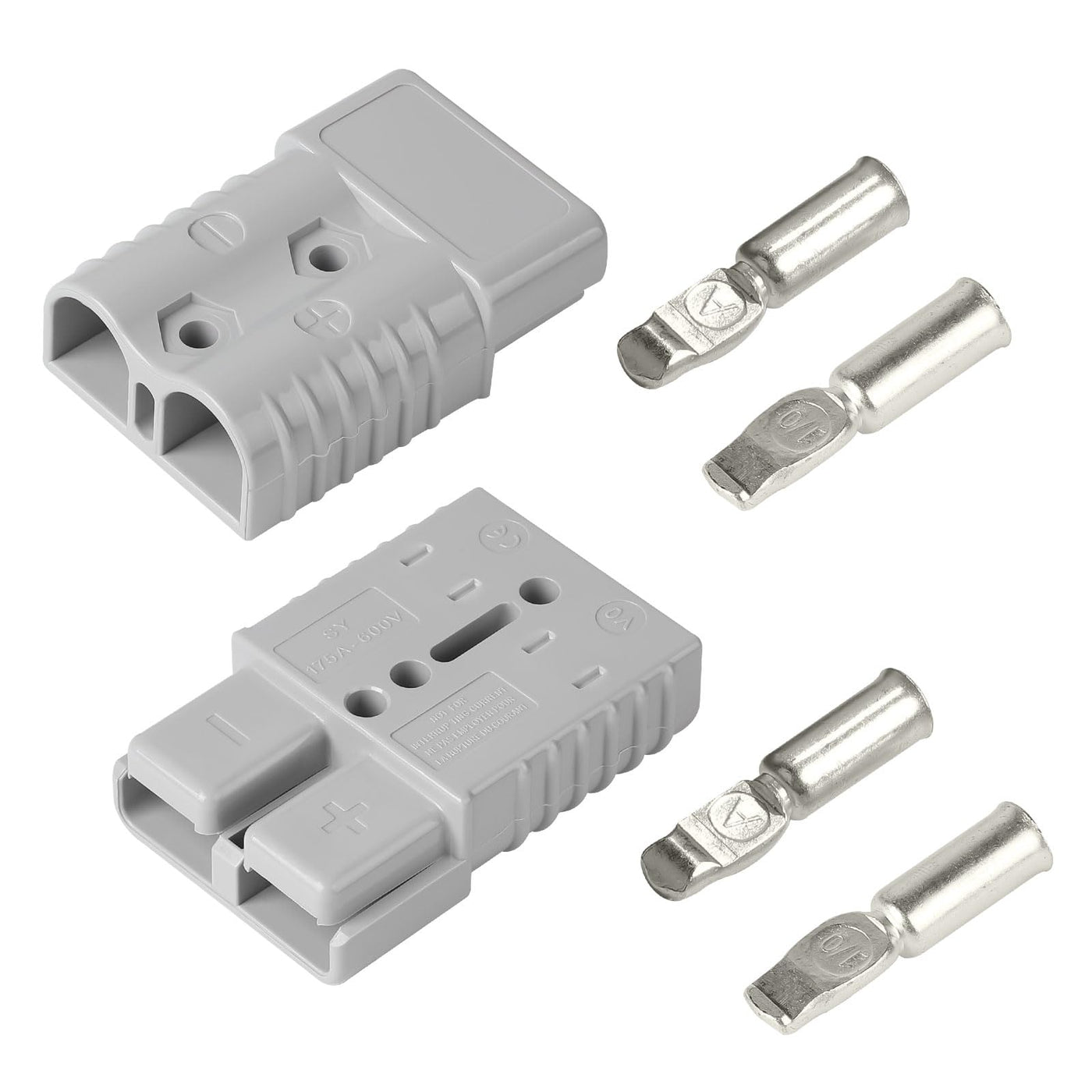

- Includes - 2 x Anderson connectors | Rated current 175 A | Rated voltage 600 V | 4 x silver plated copper terminals 1/0 AWG | Fire protection class UL94V-0 | Internal spring 65 Mn | Wiring size 6-2 AWG | Specialized in the fast connection and disconnection of electrical devices.

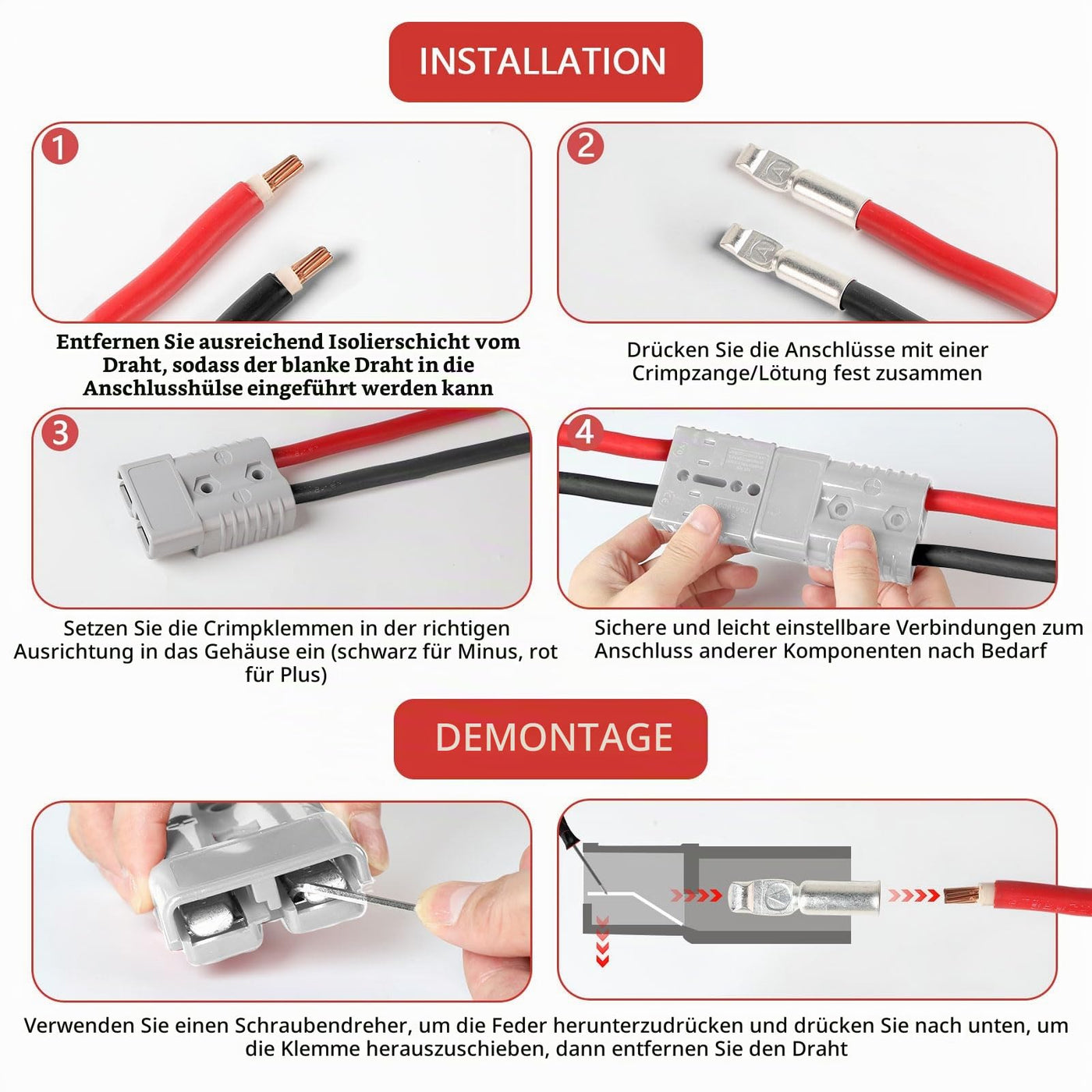

- Instructions for use: After stripping part of the wire, solder or crimp the bare wire into the metal connector and snap it into place in the right direction with a clear "click".

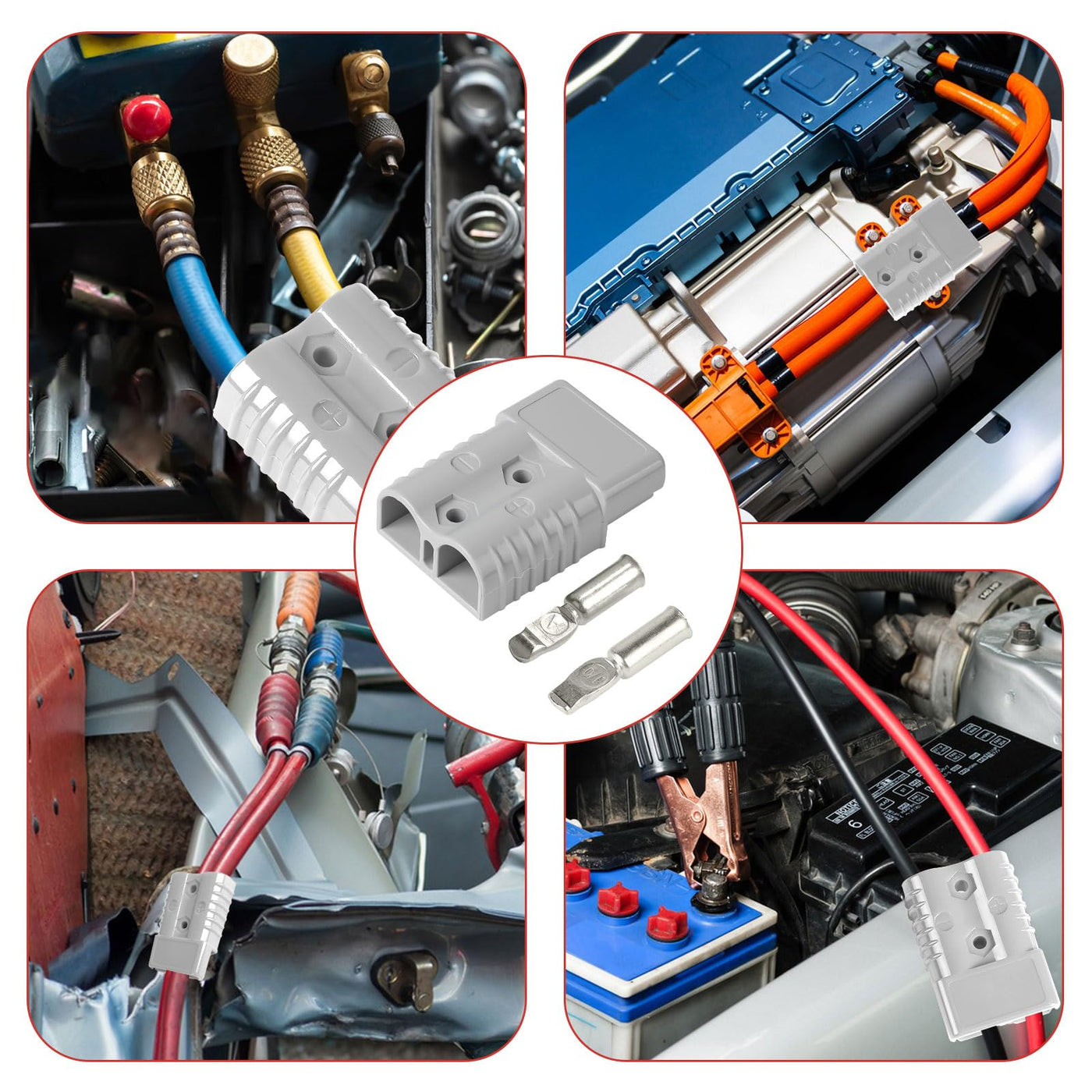

- Applications: solar boxes for caravans, trucks, electric scooters, inverters, solar panels, boats, lawn mowers, quick connectors for batteries on motor boats, etc.

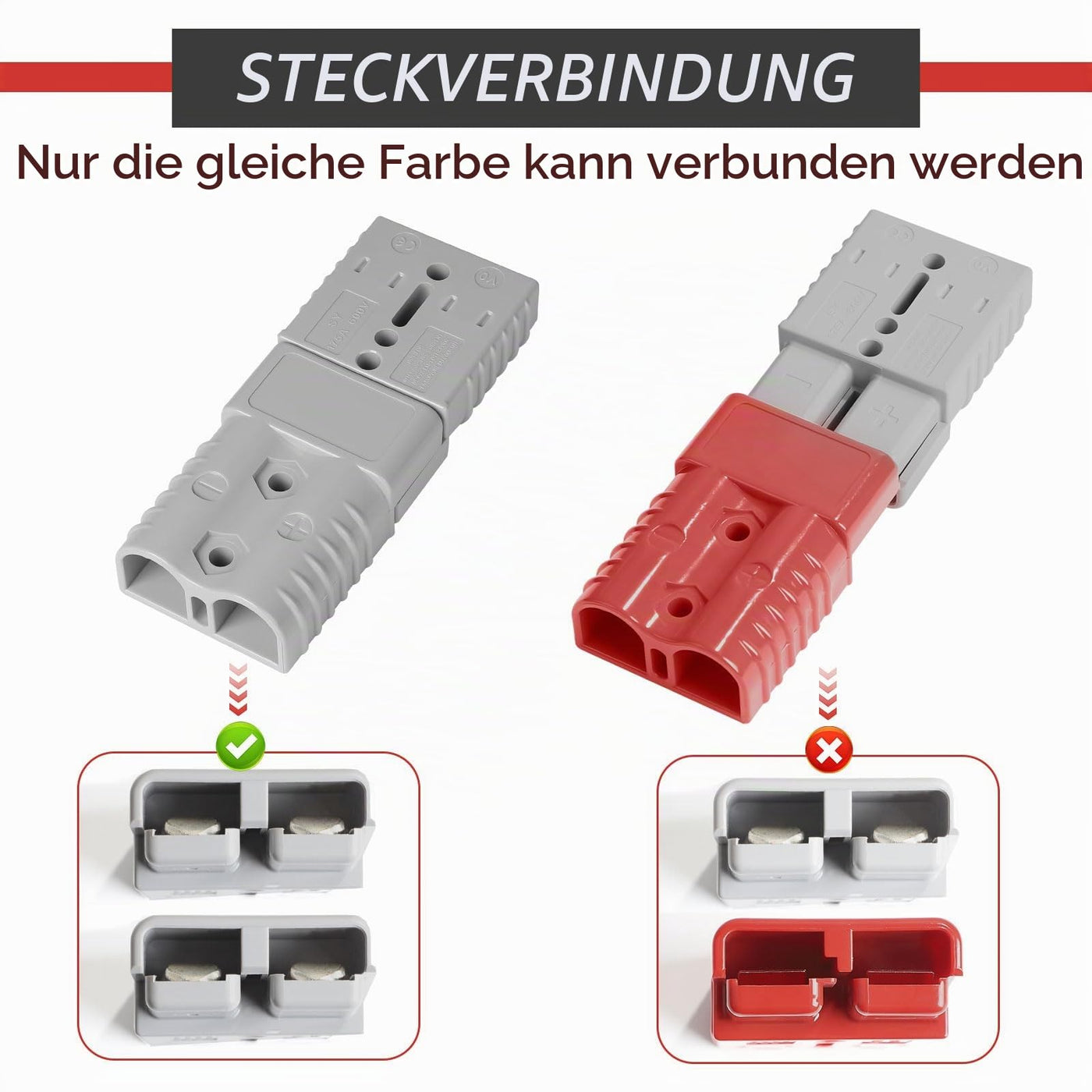

- Please note: only plugs with the same colour may be connected. If the diameter of the wire core is too small to fill in the connection hole, the core can be bent and inserted back into the connection hole.
- OUR SERVICE - If you have any dissatisfaction or suggestions about our products, please feel free to contact us and we will give you a satisfactory answer and solution.
