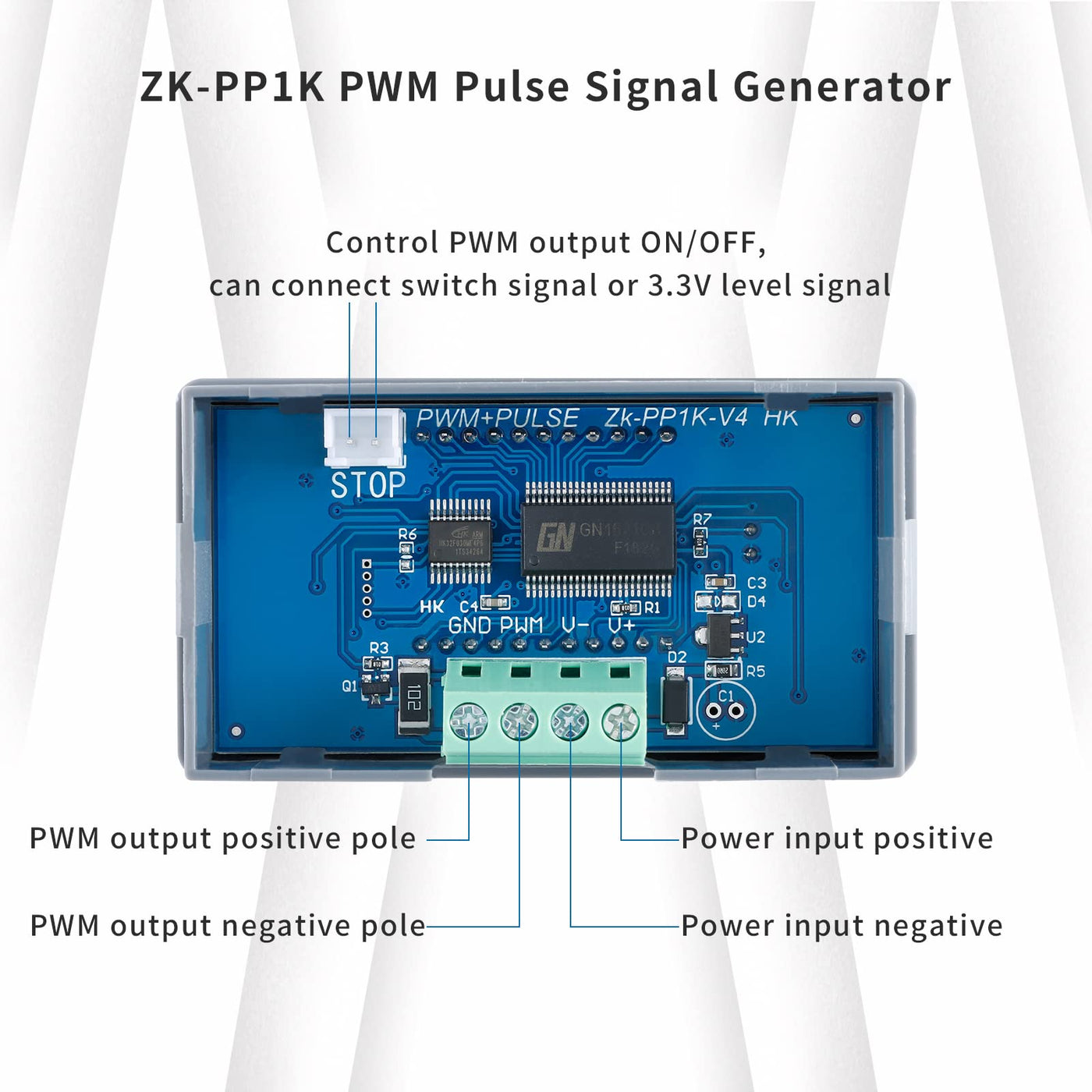

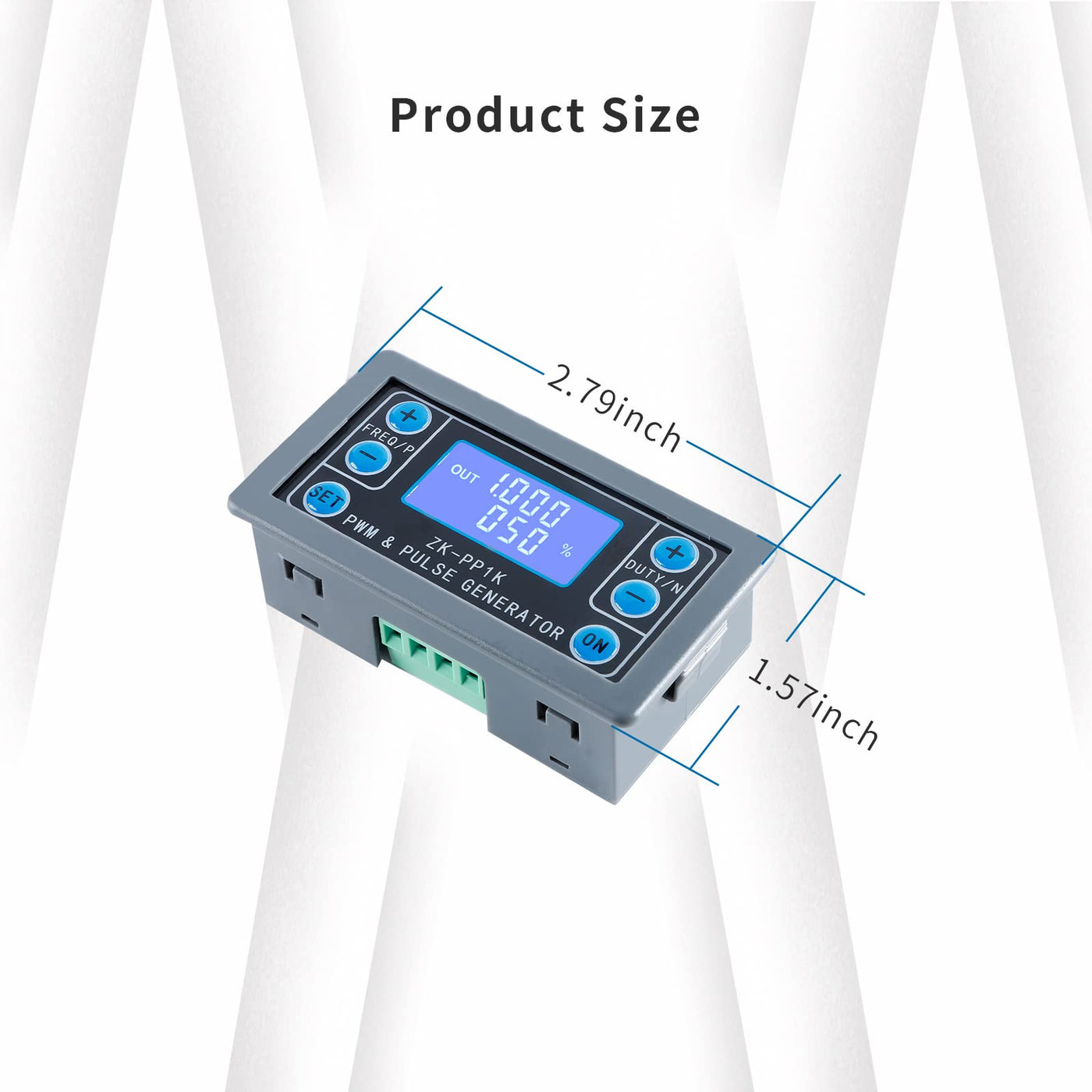

{"id":7358817173684,"title":"EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator","handle":"ec-buying-zk-pp1k-pwm-pulse-signal-generator-frequency-generator-pwm-pulse-number-and-frequency-duty-cycle-adjustable-led-display-with-shell-module-square-wave-rectangular-wave-signal-generator","description":"\u003ch3\u003eEC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct introduction: This series of products are PWM and pulse signal generators. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time.\u003c\/li\u003e\n \u003cli\u003eFeatures: 1. Two modes can be selected: PWM mode - frequency (continuous), duty cycle. The number of pulses is not adjustable, and the waveform is continuously sent; PULSE pulse mode - positive pulse width time, negative pulse width time, delay start time, and the number of pulses are adjustable. 2. With the start and stop button (ZK-PP1K can be connected to an external switch to control the output signal ON\/OFF). 3. Wide voltage input 3.3V-30V, with anti-reverse connection protection.\u003c\/li\u003e\n \u003cli\u003eProduct Specifications: 1. Working voltage: 3.3V~30V, with anti-reverse polarity protection 2. Frequency range: 1Hz~150KHz, the accuracy is about 1% 3. Duty cycle range: 0-100%, 1% step 4. Number of pulses: 1-9999, or infinite (display '----' means infinite) 5. Delay output time: 0.000s-9999s, the minimum can be set to 1ms 6. Positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms 7. Signal carrying capacity: ZK-PP1K: less than 30mA\u003c\/li\u003e\n \u003cli\u003eOperation explanation: 1. There is an output waveform when powered on; 2. Waveform amplitude = power supply voltage; 3. When the number of output pulses reaches the set value, the output will be automatically stopped, and 'OUT' will disappear; 4. Press the ON key to control the presence or absence of the waveform, the disappearance of OUT means that there is no output waveform, and the output is 0; 5. Power on and restart or ON key to turn on the output, and recalculate the number of pulses;\u003c\/li\u003e\n \u003cli\u003eApplication scenarios: 1. PWM signal generator, square wave rectangular wave signal generator. 2. It is used to generate square wave and rectangular wave signals to control DC motor or stepper motor driver; it is used for servo motor, stepper motor, electric gripper, replace PLC pulse, etc. 3.ZK-PP1K can be matched with drivers to realize dimming, speed regulation, control solenoid valves, etc., but cannot directly drive loads such as electric light motor solenoid valves, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-03-03T02:09:45+11:00","created_at":"2023-03-03T02:09:54+11:00","vendor":"EC Buying","type":"","tags":["industrial_Dec2022"],"price":13800,"price_min":13800,"price_max":13800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42196280705204,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B396Q9ZD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator","public_title":null,"options":["Default Title"],"price":13800,"weight":41,"compare_at_price":null,"inventory_management":null,"barcode":"ZK-PP1K PWM","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0B396Q9ZD.jpg?v=1677827959","\/\/auspowers.com\/cdn\/shop\/products\/71-EugTDqEL.jpg?v=1677769795","\/\/auspowers.com\/cdn\/shop\/products\/81mbwEbE-8L.jpg?v=1677769795","\/\/auspowers.com\/cdn\/shop\/products\/71TCRP9ZOZL.jpg?v=1677769795","\/\/auspowers.com\/cdn\/shop\/products\/71wNtV8x0rL.jpg?v=1677769795","\/\/auspowers.com\/cdn\/shop\/products\/61ZLJ0RAMQL.jpg?v=1677769795","\/\/auspowers.com\/cdn\/shop\/products\/71gy_srckBL.jpg?v=1677769795"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0B396Q9ZD.jpg?v=1677827959","options":["Title"],"media":[{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28320508149940,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0B396Q9ZD.jpg?v=1677827959"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0B396Q9ZD.jpg?v=1677827959","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521496756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71-EugTDqEL.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71-EugTDqEL.jpg?v=1677769795","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521529524,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81mbwEbE-8L.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81mbwEbE-8L.jpg?v=1677769795","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521562292,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71TCRP9ZOZL.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71TCRP9ZOZL.jpg?v=1677769795","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521595060,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71wNtV8x0rL.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71wNtV8x0rL.jpg?v=1677769795","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521627828,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61ZLJ0RAMQL.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61ZLJ0RAMQL.jpg?v=1677769795","width":1600},{"alt":"[Australia - AusPower] - EC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator ","id":28316521660596,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71gy_srckBL.jpg?v=1677769795"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71gy_srckBL.jpg?v=1677769795","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEC Buying ZK-PP1K PWM Pulse Signal Generator, Frequency Generator PWM Pulse Number and Frequency Duty Cycle Adjustable LED Display with Shell Module, Square Wave Rectangular Wave Signal Generator\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eProduct introduction: This series of products are PWM and pulse signal generators. There are PWM mode and pulse mode. Only one mode can be used at a time, but the two modes can be switched at any time.\u003c\/li\u003e\n \u003cli\u003eFeatures: 1. Two modes can be selected: PWM mode - frequency (continuous), duty cycle. The number of pulses is not adjustable, and the waveform is continuously sent; PULSE pulse mode - positive pulse width time, negative pulse width time, delay start time, and the number of pulses are adjustable. 2. With the start and stop button (ZK-PP1K can be connected to an external switch to control the output signal ON\/OFF). 3. Wide voltage input 3.3V-30V, with anti-reverse connection protection.\u003c\/li\u003e\n \u003cli\u003eProduct Specifications: 1. Working voltage: 3.3V~30V, with anti-reverse polarity protection 2. Frequency range: 1Hz~150KHz, the accuracy is about 1% 3. Duty cycle range: 0-100%, 1% step 4. Number of pulses: 1-9999, or infinite (display '----' means infinite) 5. Delay output time: 0.000s-9999s, the minimum can be set to 1ms 6. Positive and negative pulse width length: 0.000s-9999s, the minimum can be set to 1ms 7. Signal carrying capacity: ZK-PP1K: less than 30mA\u003c\/li\u003e\n \u003cli\u003eOperation explanation: 1. There is an output waveform when powered on; 2. Waveform amplitude = power supply voltage; 3. When the number of output pulses reaches the set value, the output will be automatically stopped, and 'OUT' will disappear; 4. Press the ON key to control the presence or absence of the waveform, the disappearance of OUT means that there is no output waveform, and the output is 0; 5. Power on and restart or ON key to turn on the output, and recalculate the number of pulses;\u003c\/li\u003e\n \u003cli\u003eApplication scenarios: 1. PWM signal generator, square wave rectangular wave signal generator. 2. It is used to generate square wave and rectangular wave signals to control DC motor or stepper motor driver; it is used for servo motor, stepper motor, electric gripper, replace PLC pulse, etc. 3.ZK-PP1K can be matched with drivers to realize dimming, speed regulation, control solenoid valves, etc., but cannot directly drive loads such as electric light motor solenoid valves, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
