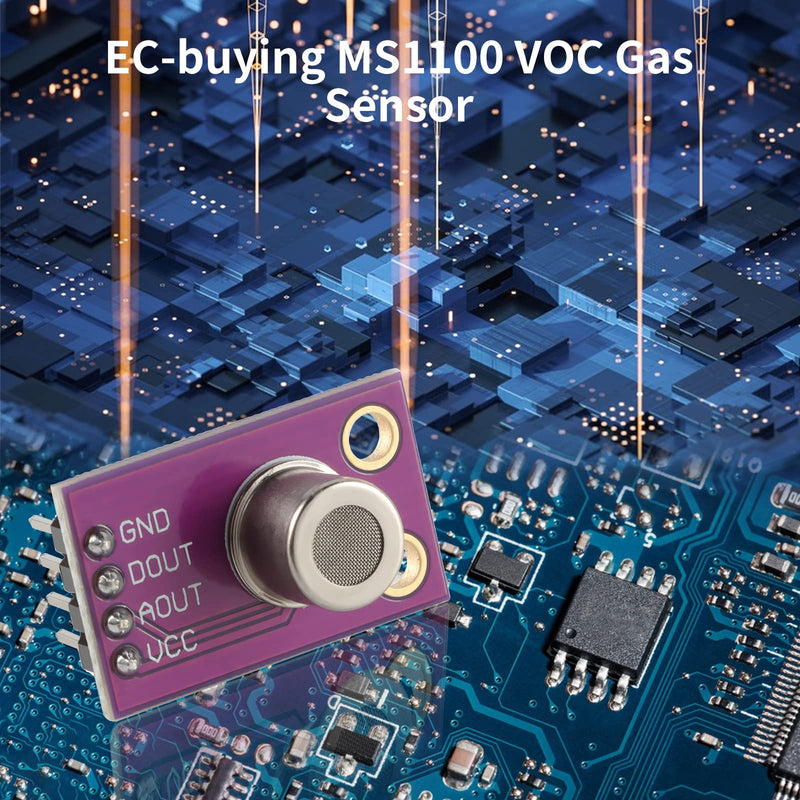

{"id":7358492868788,"title":"EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C","handle":"ec-buying-ms1100-gas-sensor-vocs-sensor-for-air-quality-carbon-dioxide-formaldehyde-monitoring-tvoc-co2-gas-sensor-module-sensor-arduino-i2c","description":"\u003ch3\u003eEC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInstructions for use: 1. Power supply voltage: +5V 2. AOUT: Analog output,\nvoltage value change corresponding to gas quantity detected by chip, single\nchip can connect directly using ADC. 3. DOUT: Digital output is the result of\ncomparing the output voltage values of AOUT and adjustable resistor, output\nsemaphores 0 and 1. 4. Adjust the adjustable resistor of the module. When the\noutput voltage of the adjustable resistor is less than AOUT, the output of\nDOUT is high level, while the LED lamp is on; On the contrary, DOUT output is\nlow and the LED lamp is off. 5. Variable resistance value: 4K ohms 6. Voltage\nin clean air:\u0026lt;1V 7. response speed:\u0026lt;5S 8. Working temperature: -10 ? ~ 60 ? 9.\nWorking humidity: 90% RH 10. Size: 1.5mm X2.5 mm Precautions for module use:\nWhen it needs to be used, the module needs to be preheated for 3-5 minutes\nbefore relevant measurements are made. Pin Description: VCC:5V GND:GND AOUT:AD\ninput pin. DOUT: Any available pins\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication; The sensor outputs a calibrated digital signal in standard I 2C format.\u003c\/li\u003e\n \u003cli\u003eThe CJMCU-1100 is equipped with a newly designed ASIC-specific chip,an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element.\u003c\/li\u003e\n \u003cli\u003eUsed for the detection of household environment and other air. Application and detection concentration range of kitchen equipment: qualitative inspection of 0~1000ppm gas. This product has high sensitivity and stability, and can detect gases above 0.1ppm.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: DC 5V; Working current: 100mA; Output analog signal: 2.6-5V. The sensitivity can be adjusted, and you can set the sensor threshold. It can be directly connected to the microcontroller.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-03-01T19:48:07+11:00","created_at":"2023-03-01T19:48:17+11:00","vendor":"EC Buying","type":"","tags":["industrial_Dec2022"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42195143327924,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BF4JDW26","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C","public_title":null,"options":["Default Title"],"price":10700,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":"MS1100","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0BF4JDW26.jpg?v=1677738930","\/\/auspowers.com\/cdn\/shop\/products\/81exh15mMZL.jpg?v=1677660497","\/\/auspowers.com\/cdn\/shop\/products\/71OaQ3UU7LL.jpg?v=1677660497","\/\/auspowers.com\/cdn\/shop\/products\/713olTWm2uL.jpg?v=1677660497","\/\/auspowers.com\/cdn\/shop\/products\/71cPsoqJyxL.jpg?v=1677660497","\/\/auspowers.com\/cdn\/shop\/products\/61s4sxP9fnL.jpg?v=1677660497","\/\/auspowers.com\/cdn\/shop\/products\/61x9v6va4fL.jpg?v=1677660497"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0BF4JDW26.jpg?v=1677738930","options":["Title"],"media":[{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28314698580148,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0BF4JDW26.jpg?v=1677738930"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0BF4JDW26.jpg?v=1677738930","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511616180,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81exh15mMZL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81exh15mMZL.jpg?v=1677660497","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511648948,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71OaQ3UU7LL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71OaQ3UU7LL.jpg?v=1677660497","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511681716,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/713olTWm2uL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/713olTWm2uL.jpg?v=1677660497","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511714484,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71cPsoqJyxL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71cPsoqJyxL.jpg?v=1677660497","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511747252,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61s4sxP9fnL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61s4sxP9fnL.jpg?v=1677660497","width":1600},{"alt":"[Australia - AusPower] - EC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C ","id":28310511780020,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61x9v6va4fL.jpg?v=1677660497"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61x9v6va4fL.jpg?v=1677660497","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eEC Buying MS1100 Gas Sensor, VOCs Sensor for Air Quality, Carbon Dioxide Formaldehyde Monitoring TVOC CO2 Gas Sensor Module, Sensor Arduino I2C\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInstructions for use: 1. Power supply voltage: +5V 2. AOUT: Analog output,\nvoltage value change corresponding to gas quantity detected by chip, single\nchip can connect directly using ADC. 3. DOUT: Digital output is the result of\ncomparing the output voltage values of AOUT and adjustable resistor, output\nsemaphores 0 and 1. 4. Adjust the adjustable resistor of the module. When the\noutput voltage of the adjustable resistor is less than AOUT, the output of\nDOUT is high level, while the LED lamp is on; On the contrary, DOUT output is\nlow and the LED lamp is off. 5. Variable resistance value: 4K ohms 6. Voltage\nin clean air:\u0026lt;1V 7. response speed:\u0026lt;5S 8. Working temperature: -10 ? ~ 60 ? 9.\nWorking humidity: 90% RH 10. Size: 1.5mm X2.5 mm Precautions for module use:\nWhen it needs to be used, the module needs to be preheated for 3-5 minutes\nbefore relevant measurements are made. Pin Description: VCC:5V GND:GND AOUT:AD\ninput pin. DOUT: Any available pins\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Precision Digital Temperature and Humidity Sensor Measurement Module I2C Communication; The sensor outputs a calibrated digital signal in standard I 2C format.\u003c\/li\u003e\n \u003cli\u003eThe CJMCU-1100 is equipped with a newly designed ASIC-specific chip,an improved MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element.\u003c\/li\u003e\n \u003cli\u003eUsed for the detection of household environment and other air. Application and detection concentration range of kitchen equipment: qualitative inspection of 0~1000ppm gas. This product has high sensitivity and stability, and can detect gases above 0.1ppm.\u003c\/li\u003e\n \u003cli\u003eWorking voltage: DC 5V; Working current: 100mA; Output analog signal: 2.6-5V. The sensitivity can be adjusted, and you can set the sensor threshold. It can be directly connected to the microcontroller.\u003c\/li\u003e\n \u003c\/ul\u003e"}
