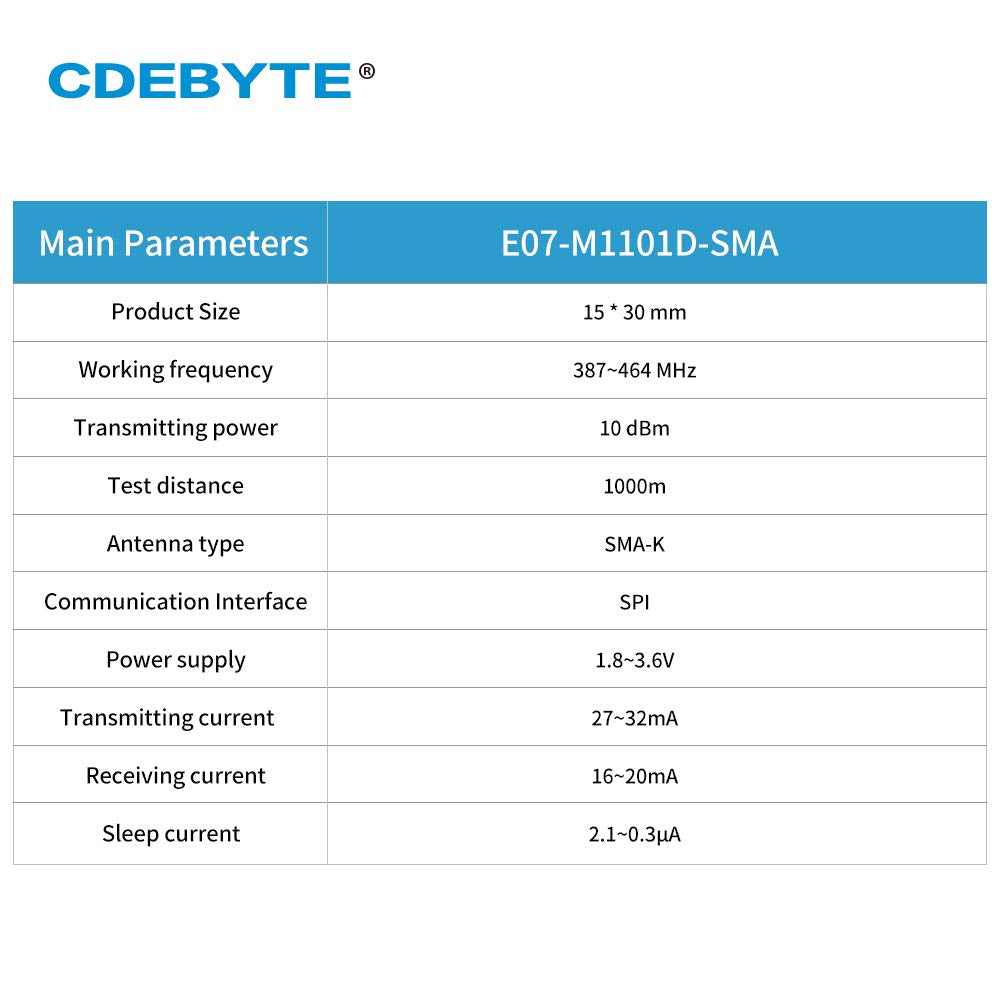

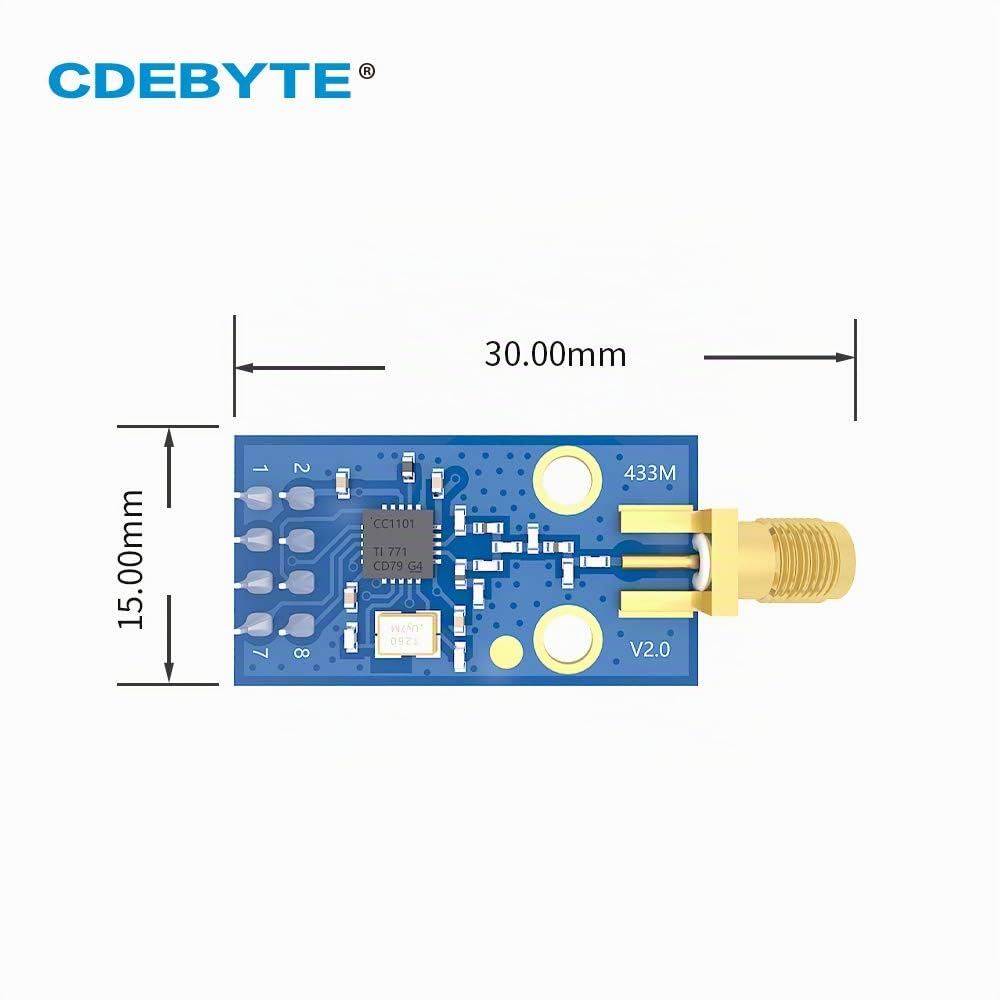

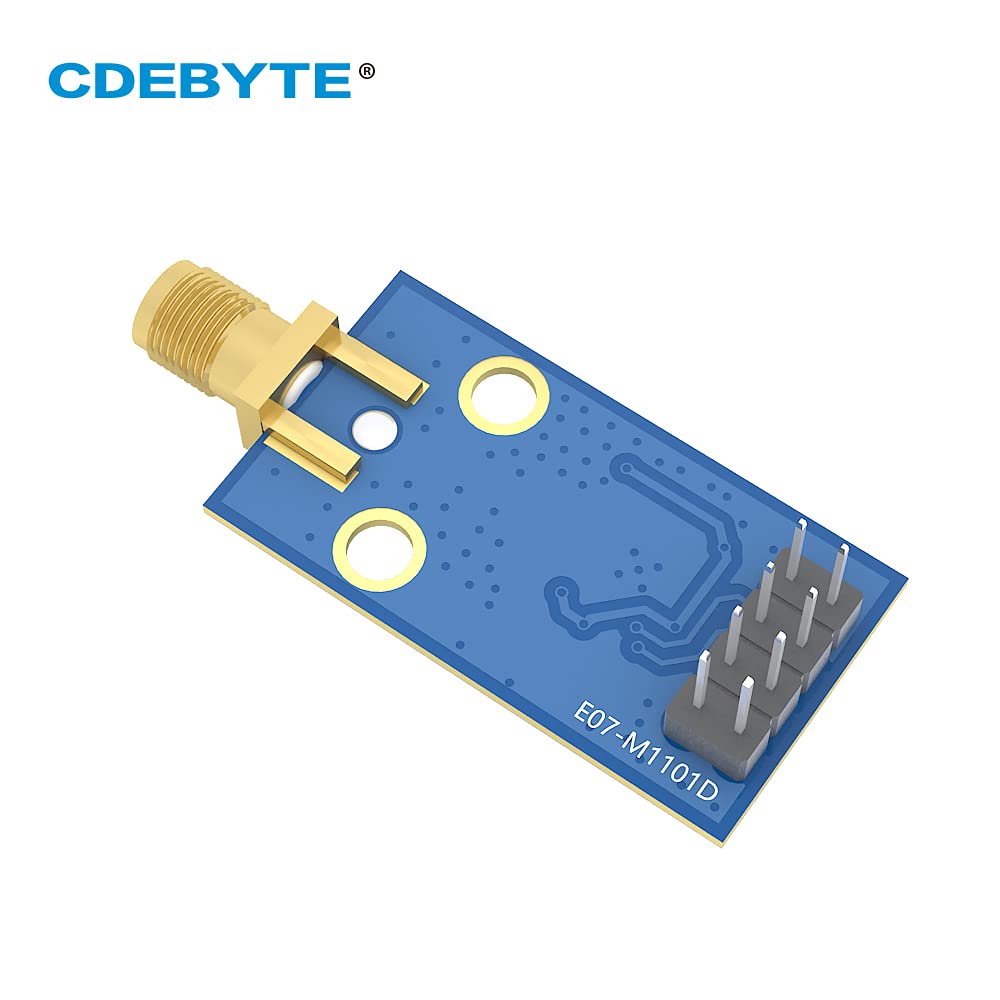

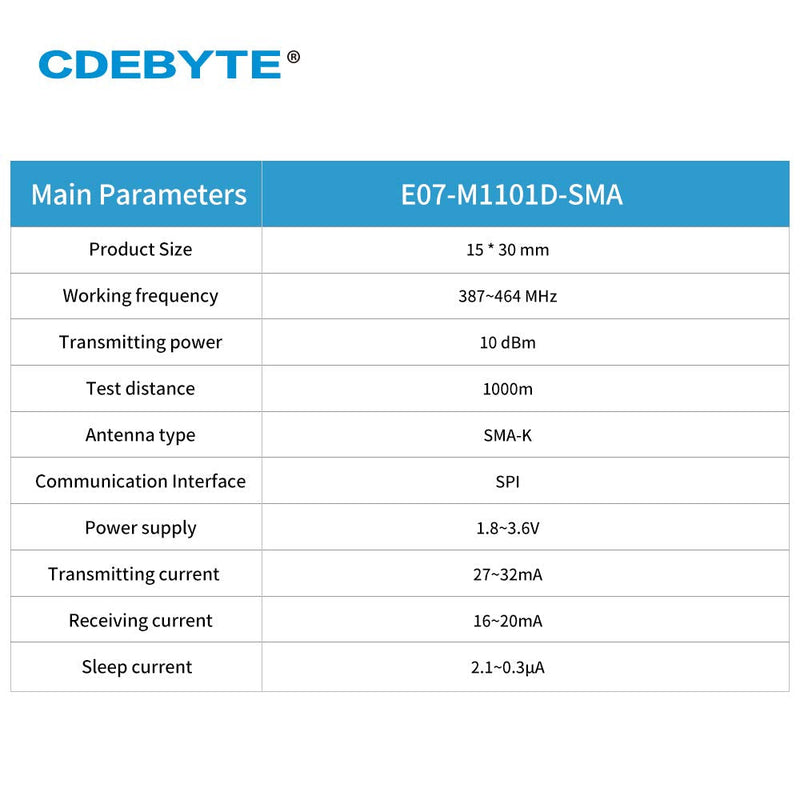

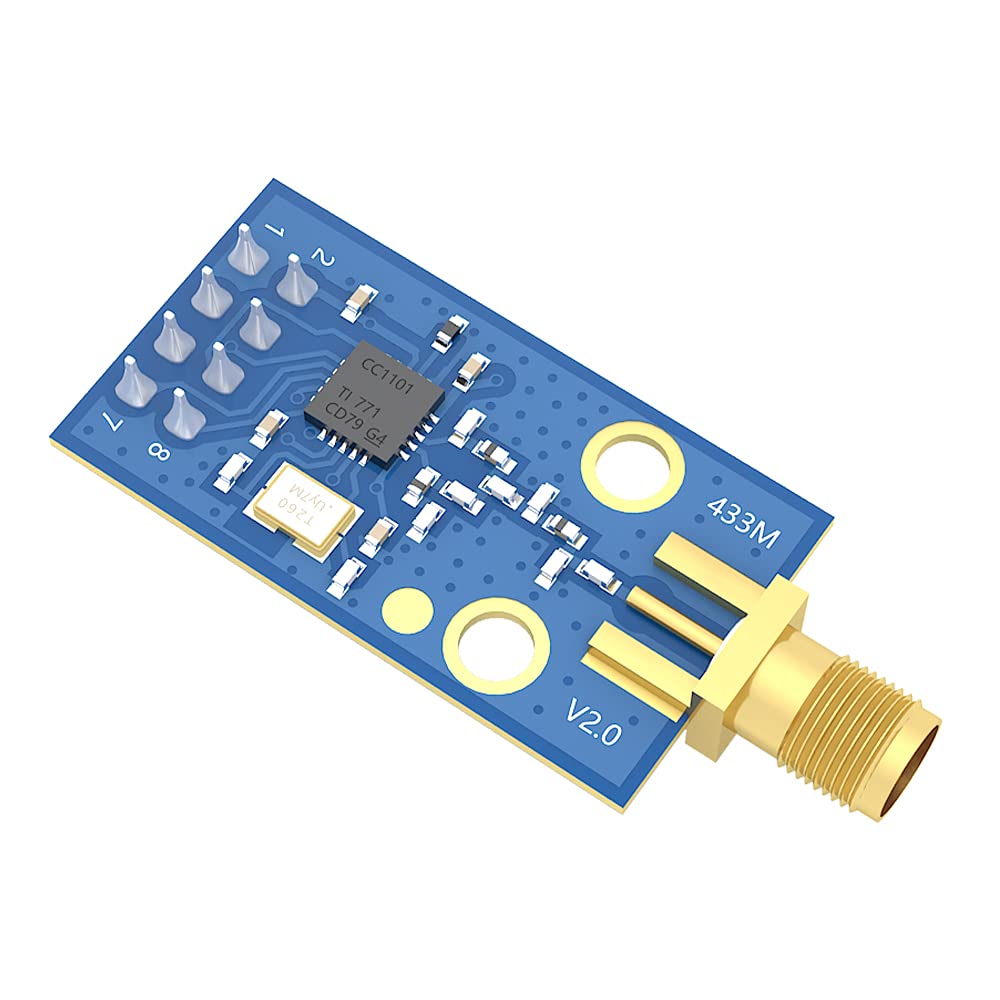

{"id":8115145932980,"title":"E07-M1101D-SMA CC1101 433MHz RF Module Transceiver Remote Transmission CC1101 433MHz Receiver and Transmitter E07-M1101D-SMA","handle":"e07-m1101d-sma-cc1101-433mhz-rf-module-transceiver-remote-transmission-cc1101-433mhz-receiver-and-transmitter-e07-m1101d-sma","description":"\u003ch3\u003eE07-M1101D-SMA CC1101 433MHz RF Module Transceiver Remote Transmission CC1101 433MHz Receiver and Transmitter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e[IC] : CC1101 [Frequency]: 387~464MHz [Power]: 10dBm [Distance]: 0.6km\n[Interface]: SPI [Introduction]: E07-M1101D-SMA is a self-developed small\n433MHz DIP wireless module with a maximum TX power of 10mW bass. . on CC110 1\nfrom Texas Instruments. By adopting the very mature CC1101 as a core chip, its\nstability is widely praised by the user. The module is mainly used in smart\nhome, industry, scientific research and medicine, as well as short-range\nwireless communication devices. Since the RF performance and component\nselection are in accordance with industry standards, and the product has\nreceived FCC, CE, RoHS and other international authority certifications, users\ndo not need to worry about its performance. Extensive hardware support for\npacket processing, data buffering, burst transmission, reception signal\nstrength display (RSSI), clear channel assessment (CCA), link quality\nindication, and wireless wake-up (WOR) is available. It uses a high-precision\n26 MHz crystal. Since the module is an RF transceiver module, the user must\nuse an MCU to drive or use a dedicated SPI debug tool. [Application] Widely\nused in various occasions, meter, industrial wireless control, smart lock home\nremote control, temperature\/humidity sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eApplication:Home Security Alarm \u0026amp; Keyless Remote Control;Wireless Alarm Security System;Building Automation Solutions;Industrial Grade Wireless Remote Control;Health Products;Advanced Meter Reading Architecture (AMI)Applications in Automotive Industry\u003c\/li\u003e\n \u003cli\u003eThe measured communication distance can reach 1 km; maximum transmission power of 10 mW, software multi-level adjustable;\u003c\/li\u003e\n \u003cli\u003eSupports the globally license-free ISM 433 MHz band; supports air date rate of 0.3 kbps ~ 500 kbps; supports multiple modulation modes (OOK, ASK, GFSK, 2-FSK, 4-FSK and MSK); independent 64-byte RX FIFO and TX FIFO\u003c\/li\u003e\n \u003cli\u003eSupport 1.8V~3.6V power supply, power supply over 3.3V can guarantee the best performance; Industry standard design, support -40~85C for working over a long time; IPEX and stamp hole optional, good for secondary development and integration;\u003c\/li\u003e\n \u003cli\u003eSupports RSSI (receive signal strength display) and LQI (link quality indicator); it connects to MCU via 4-wire SPI interface and provides two universal digital output pins with adjustable functions.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:04:43+10:00","created_at":"2026-09-01T22:49:00+10:00","vendor":"EBYTE","type":"Radio Frequency Transceivers","tags":["industrial_DE_Aug2026"],"price":9400,"price_min":9400,"price_max":9400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374861611188,"title":"E07-M1101D-SMA","option1":"E07-M1101D-SMA","option2":null,"option3":null,"sku":"de-B07P8S9M4W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"E07-M1101D-SMA CC1101 433MHz RF Module Transceiver Remote Transmission CC1101 433MHz Receiver and Transmitter E07-M1101D-SMA - E07-M1101D-SMA","public_title":"E07-M1101D-SMA","options":["E07-M1101D-SMA"],"price":9400,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"E07-M1101D-SMA","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07P8S9M4W.jpg?v=1788266942","\/\/auspowers.com\/cdn\/shop\/files\/51hVtlsz-2S.jpg?v=1788266942","\/\/auspowers.com\/cdn\/shop\/files\/51yc68NGouL.jpg?v=1788266942","\/\/auspowers.com\/cdn\/shop\/files\/61KFFDG0UJL.jpg?v=1788266942","\/\/auspowers.com\/cdn\/shop\/files\/51iFjnRCyYL.jpg?v=1788266942","\/\/auspowers.com\/cdn\/shop\/files\/619xM_IWedL.jpg?v=1788266942"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07P8S9M4W.jpg?v=1788266942","options":["Colour Name"],"media":[{"alt":null,"id":33272376393908,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07P8S9M4W.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07P8S9M4W.jpg?v=1788266942","width":1000},{"alt":null,"id":33272376426676,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51hVtlsz-2S.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51hVtlsz-2S.jpg?v=1788266942","width":1000},{"alt":null,"id":33272376459444,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51yc68NGouL.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51yc68NGouL.jpg?v=1788266942","width":1000},{"alt":null,"id":33272376492212,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61KFFDG0UJL.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61KFFDG0UJL.jpg?v=1788266942","width":1000},{"alt":null,"id":33272376524980,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51iFjnRCyYL.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51iFjnRCyYL.jpg?v=1788266942","width":1000},{"alt":null,"id":33272376557748,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/619xM_IWedL.jpg?v=1788266942"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/619xM_IWedL.jpg?v=1788266942","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eE07-M1101D-SMA CC1101 433MHz RF Module Transceiver Remote Transmission CC1101 433MHz Receiver and Transmitter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e[IC] : CC1101 [Frequency]: 387~464MHz [Power]: 10dBm [Distance]: 0.6km\n[Interface]: SPI [Introduction]: E07-M1101D-SMA is a self-developed small\n433MHz DIP wireless module with a maximum TX power of 10mW bass. . on CC110 1\nfrom Texas Instruments. By adopting the very mature CC1101 as a core chip, its\nstability is widely praised by the user. The module is mainly used in smart\nhome, industry, scientific research and medicine, as well as short-range\nwireless communication devices. Since the RF performance and component\nselection are in accordance with industry standards, and the product has\nreceived FCC, CE, RoHS and other international authority certifications, users\ndo not need to worry about its performance. Extensive hardware support for\npacket processing, data buffering, burst transmission, reception signal\nstrength display (RSSI), clear channel assessment (CCA), link quality\nindication, and wireless wake-up (WOR) is available. It uses a high-precision\n26 MHz crystal. Since the module is an RF transceiver module, the user must\nuse an MCU to drive or use a dedicated SPI debug tool. [Application] Widely\nused in various occasions, meter, industrial wireless control, smart lock home\nremote control, temperature\/humidity sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eApplication:Home Security Alarm \u0026amp; Keyless Remote Control;Wireless Alarm Security System;Building Automation Solutions;Industrial Grade Wireless Remote Control;Health Products;Advanced Meter Reading Architecture (AMI)Applications in Automotive Industry\u003c\/li\u003e\n \u003cli\u003eThe measured communication distance can reach 1 km; maximum transmission power of 10 mW, software multi-level adjustable;\u003c\/li\u003e\n \u003cli\u003eSupports the globally license-free ISM 433 MHz band; supports air date rate of 0.3 kbps ~ 500 kbps; supports multiple modulation modes (OOK, ASK, GFSK, 2-FSK, 4-FSK and MSK); independent 64-byte RX FIFO and TX FIFO\u003c\/li\u003e\n \u003cli\u003eSupport 1.8V~3.6V power supply, power supply over 3.3V can guarantee the best performance; Industry standard design, support -40~85C for working over a long time; IPEX and stamp hole optional, good for secondary development and integration;\u003c\/li\u003e\n \u003cli\u003eSupports RSSI (receive signal strength display) and LQI (link quality indicator); it connects to MCU via 4-wire SPI interface and provides two universal digital output pins with adjustable functions.\u003c\/li\u003e\n \u003c\/ul\u003e"}
