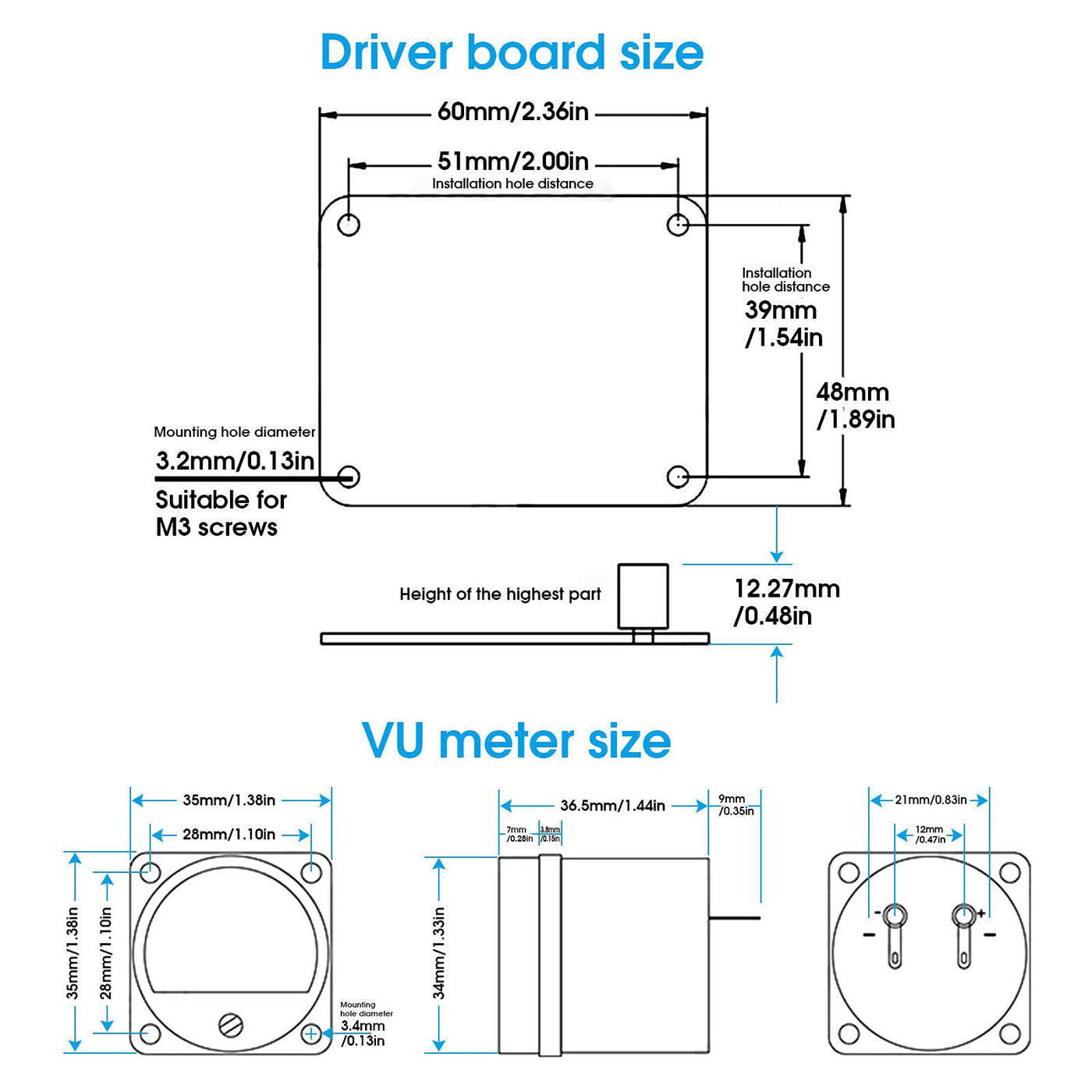

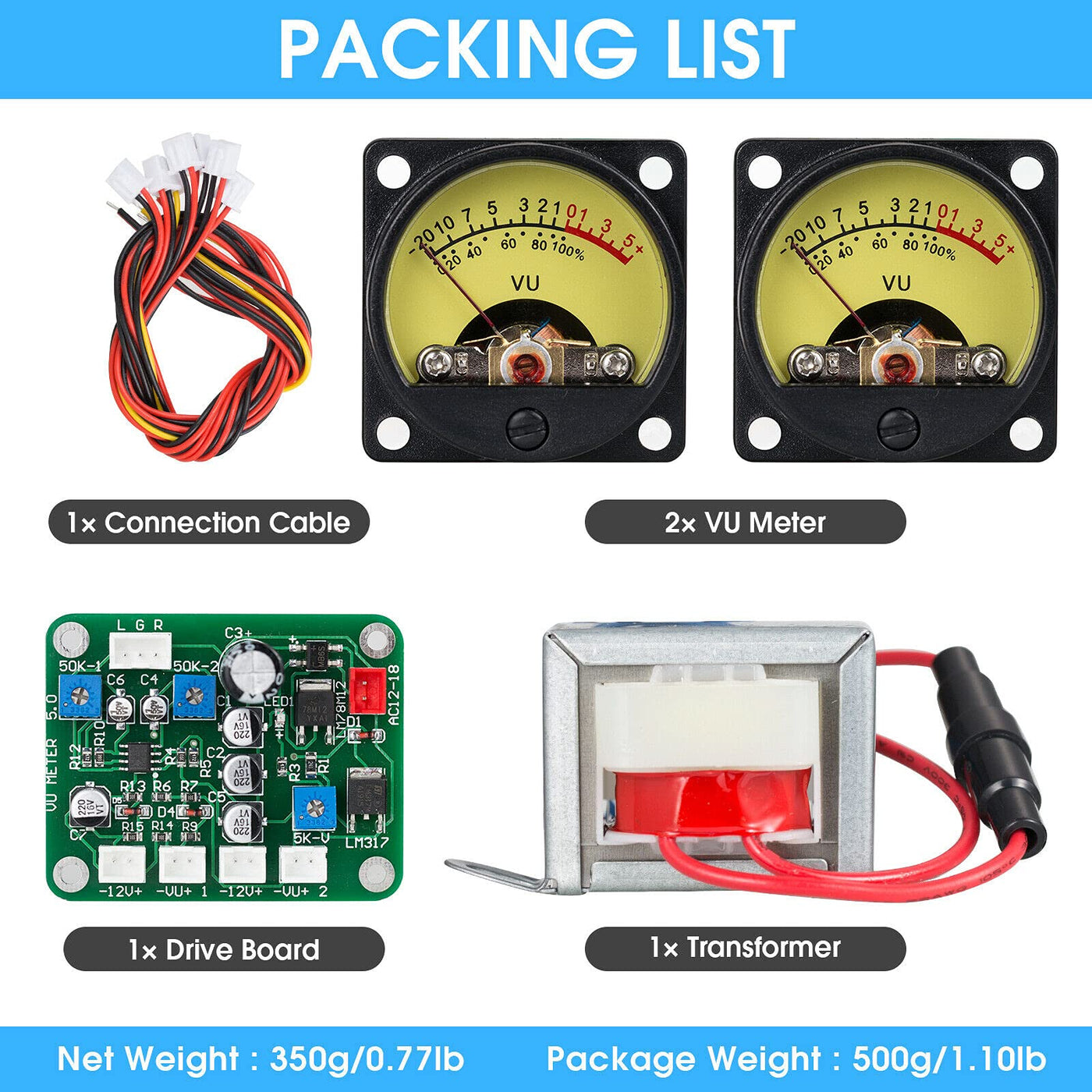

{"id":7991576592564,"title":"Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier","handle":"dual-analogue-vu-meter-db-panel-sound-level-indicator-with-driver-board-for-diy-amplifier","description":"\u003ch3\u003eDual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters VU meter Measuring range: 0-500uA ±10%. Internal resistance: 650Ω ±\n10%. Calibration position: full scale. LED backlight voltage: AC\/DC 6-12V\n40mA. Dimensions(WDH): 3536.534mm \/ 1.381.441.33in Driver Board Power\nsupply: ≥5W AC\/DC 12-15V. Input sensitivity: 200mV. Drive VU meter: ≤1MA.\nBacklight power output: DC12V 50mA. Dimensions(WDH): 604812.27mm \/\n2.361.890.48in Packing list: 2 x VU meters. 1 x drive board. 1 x connection\ncable. 1 x transformer.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIntroduction of VU Meter: 1. Adopting LED backlight, lower consumption and longer service life. 2. Stable and reliable performance, high-precision display. 3. The lighting is uniform and full, the brightness is consistent and can be adjusted by driver board.\u003c\/li\u003e\n \u003cli\u003eIntroduction of Driver Board: 1. Inspired by classical meter drive circuit, using professional op amp. 2. Sensitivity of left and right channel can be adjused independently. 3. The brighness of backlight LED can be adjusted to provide both better visual effects and longer service. 4. Using anti-interference design to prevent the pointer bottoming when VU meter starts.\u003c\/li\u003e\n \u003cli\u003eThe item is DIY Kit, need you to have electric knowledge and welding ability to finish its assembly.\u003c\/li\u003e\n \u003cli\u003ePerfect DIY kits, the best choise to DIY VU meter for all kinds of headphone amp, preamp, amplifier etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:28:45+10:00","created_at":"2025-09-23T00:28:42+10:00","vendor":"Nobsound","type":"Sound Level Meters","tags":["industryDE_Sep2025"],"price":33000,"price_min":33000,"price_max":33000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047744630964,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B097PP1DTV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier","public_title":null,"options":["Default Title"],"price":33000,"weight":370,"compare_at_price":null,"inventory_management":"shopify","barcode":"PJ653-Y+B","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B097PP1DTV.jpg?v=1775767662","\/\/auspowers.com\/cdn\/shop\/files\/710tvxOfWLS.jpg?v=1758551325","\/\/auspowers.com\/cdn\/shop\/files\/81BPtzbI31S.jpg?v=1758551324","\/\/auspowers.com\/cdn\/shop\/files\/61KmepzeFoS.jpg?v=1758551325","\/\/auspowers.com\/cdn\/shop\/files\/61WYDsVbEMS.jpg?v=1758551325","\/\/auspowers.com\/cdn\/shop\/files\/61e6j_hArFS.jpg?v=1758551324","\/\/auspowers.com\/cdn\/shop\/files\/61gl8NloZXS.jpg?v=1758551324"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B097PP1DTV.jpg?v=1775767662","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184605933748,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B097PP1DTV.jpg?v=1775767662"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B097PP1DTV.jpg?v=1775767662","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184605966516,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/710tvxOfWLS.jpg?v=1758551325"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/710tvxOfWLS.jpg?v=1758551325","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184605999284,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81BPtzbI31S.jpg?v=1758551324"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81BPtzbI31S.jpg?v=1758551324","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184606032052,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61KmepzeFoS.jpg?v=1758551325"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61KmepzeFoS.jpg?v=1758551325","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184606064820,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61WYDsVbEMS.jpg?v=1758551325"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61WYDsVbEMS.jpg?v=1758551325","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184606097588,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61e6j_hArFS.jpg?v=1758551324"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61e6j_hArFS.jpg?v=1758551324","width":1600},{"alt":"[Australia - AusPower] - Dual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier ","id":32184606130356,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61gl8NloZXS.jpg?v=1758551324"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61gl8NloZXS.jpg?v=1758551324","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDual Analogue VU Meter DB Panel Sound Level Indicator with Driver Board for DIY Amplifier\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters VU meter Measuring range: 0-500uA ±10%. Internal resistance: 650Ω ±\n10%. Calibration position: full scale. LED backlight voltage: AC\/DC 6-12V\n40mA. Dimensions(WDH): 3536.534mm \/ 1.381.441.33in Driver Board Power\nsupply: ≥5W AC\/DC 12-15V. Input sensitivity: 200mV. Drive VU meter: ≤1MA.\nBacklight power output: DC12V 50mA. Dimensions(WDH): 604812.27mm \/\n2.361.890.48in Packing list: 2 x VU meters. 1 x drive board. 1 x connection\ncable. 1 x transformer.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIntroduction of VU Meter: 1. Adopting LED backlight, lower consumption and longer service life. 2. Stable and reliable performance, high-precision display. 3. The lighting is uniform and full, the brightness is consistent and can be adjusted by driver board.\u003c\/li\u003e\n \u003cli\u003eIntroduction of Driver Board: 1. Inspired by classical meter drive circuit, using professional op amp. 2. Sensitivity of left and right channel can be adjused independently. 3. The brighness of backlight LED can be adjusted to provide both better visual effects and longer service. 4. Using anti-interference design to prevent the pointer bottoming when VU meter starts.\u003c\/li\u003e\n \u003cli\u003eThe item is DIY Kit, need you to have electric knowledge and welding ability to finish its assembly.\u003c\/li\u003e\n \u003cli\u003ePerfect DIY kits, the best choise to DIY VU meter for all kinds of headphone amp, preamp, amplifier etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
