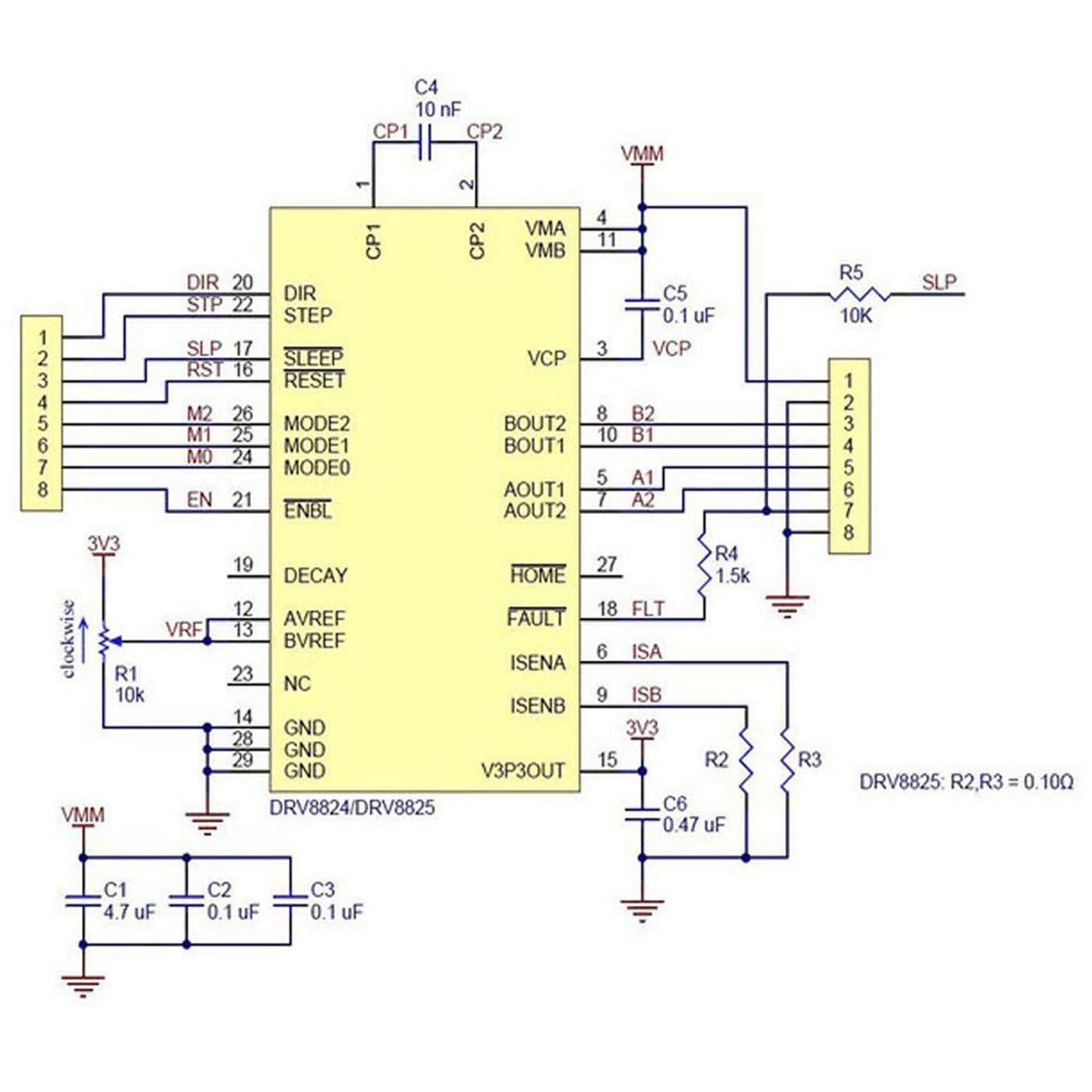

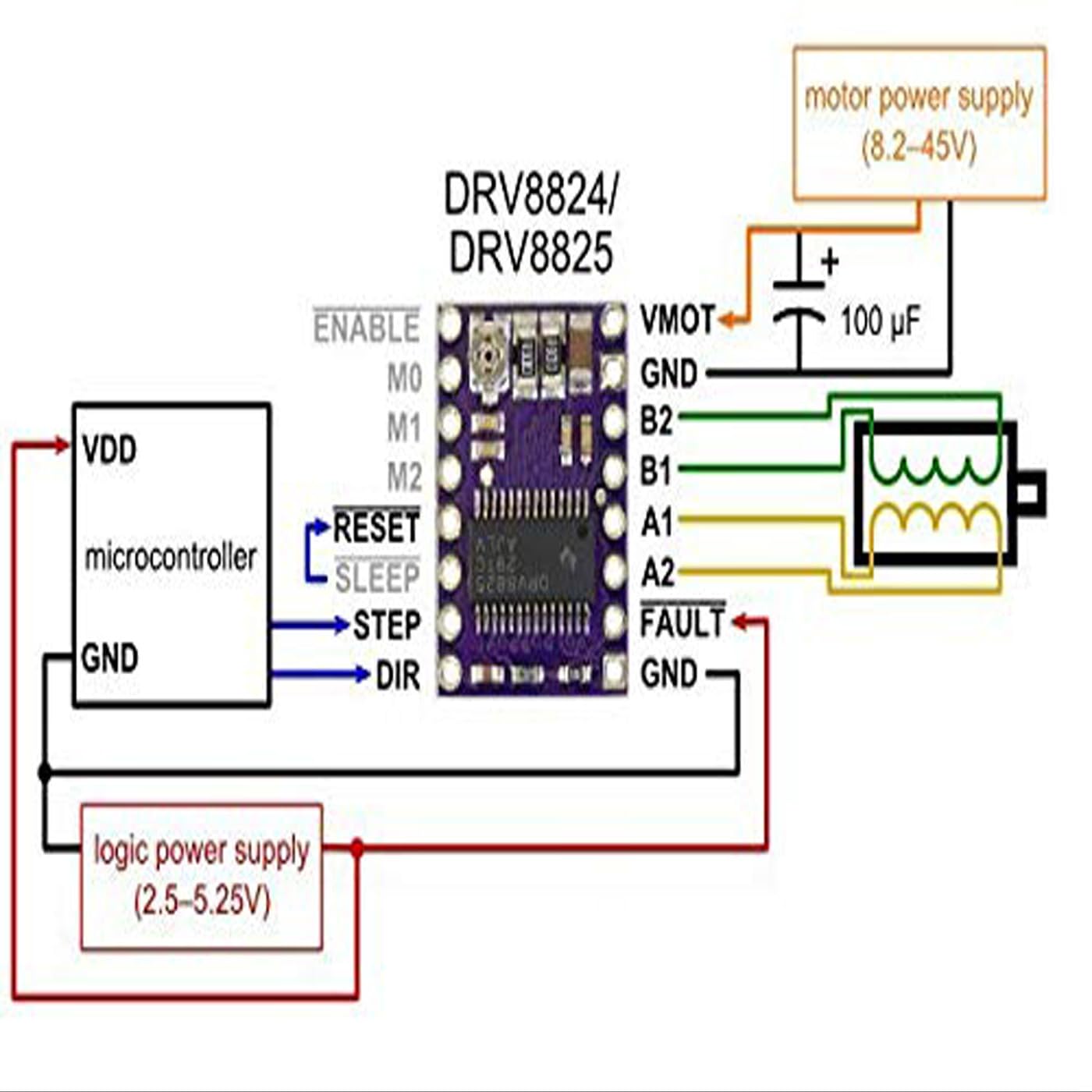

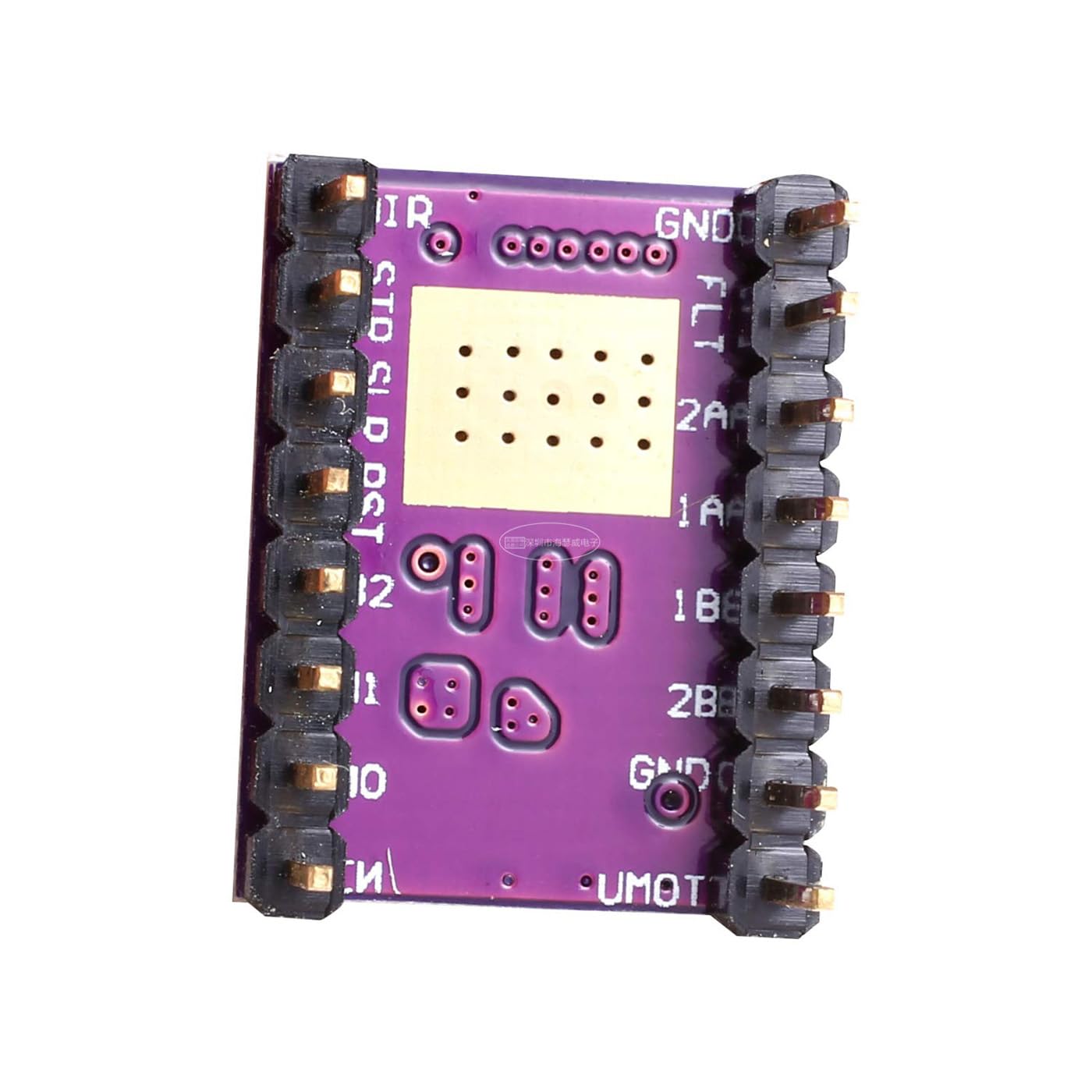

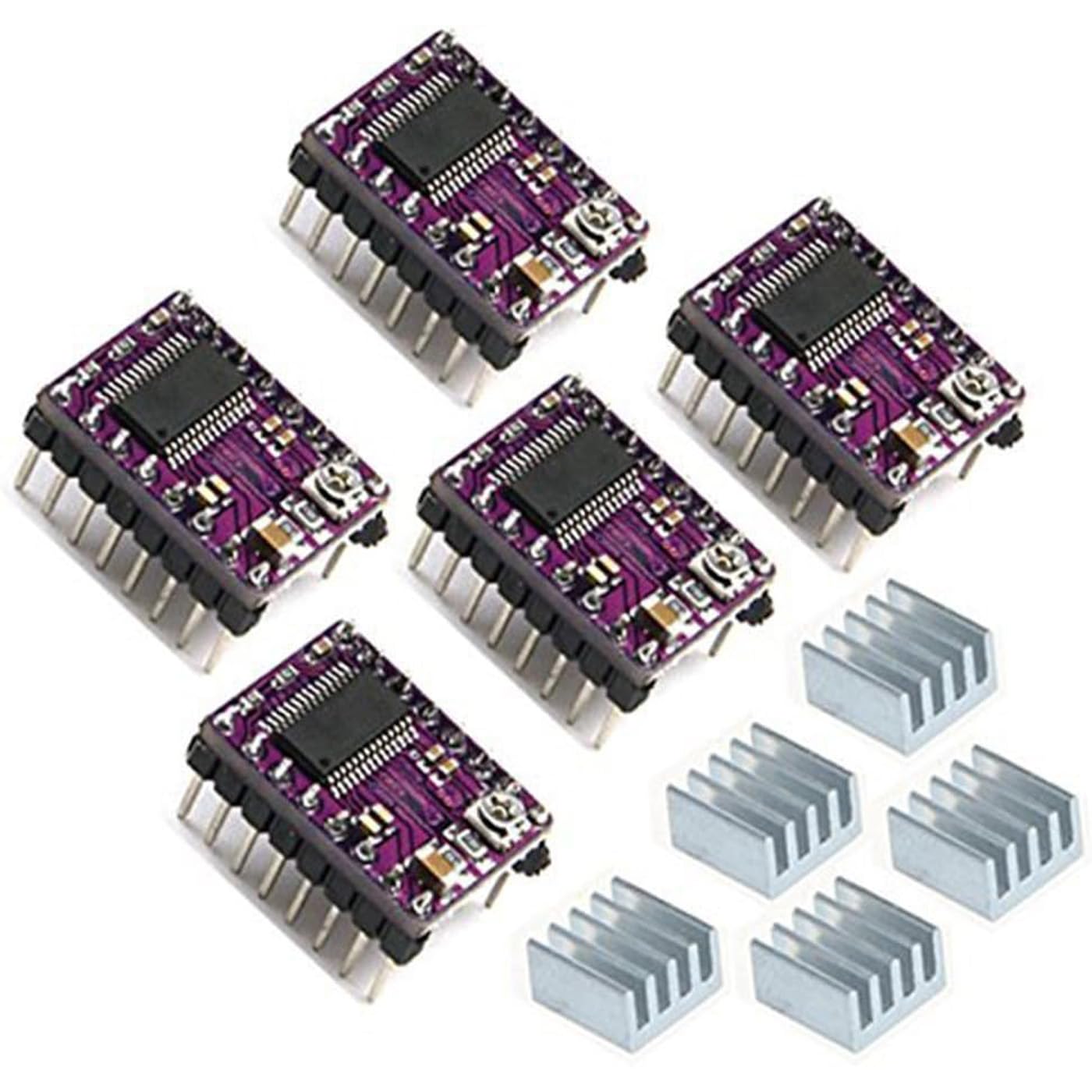

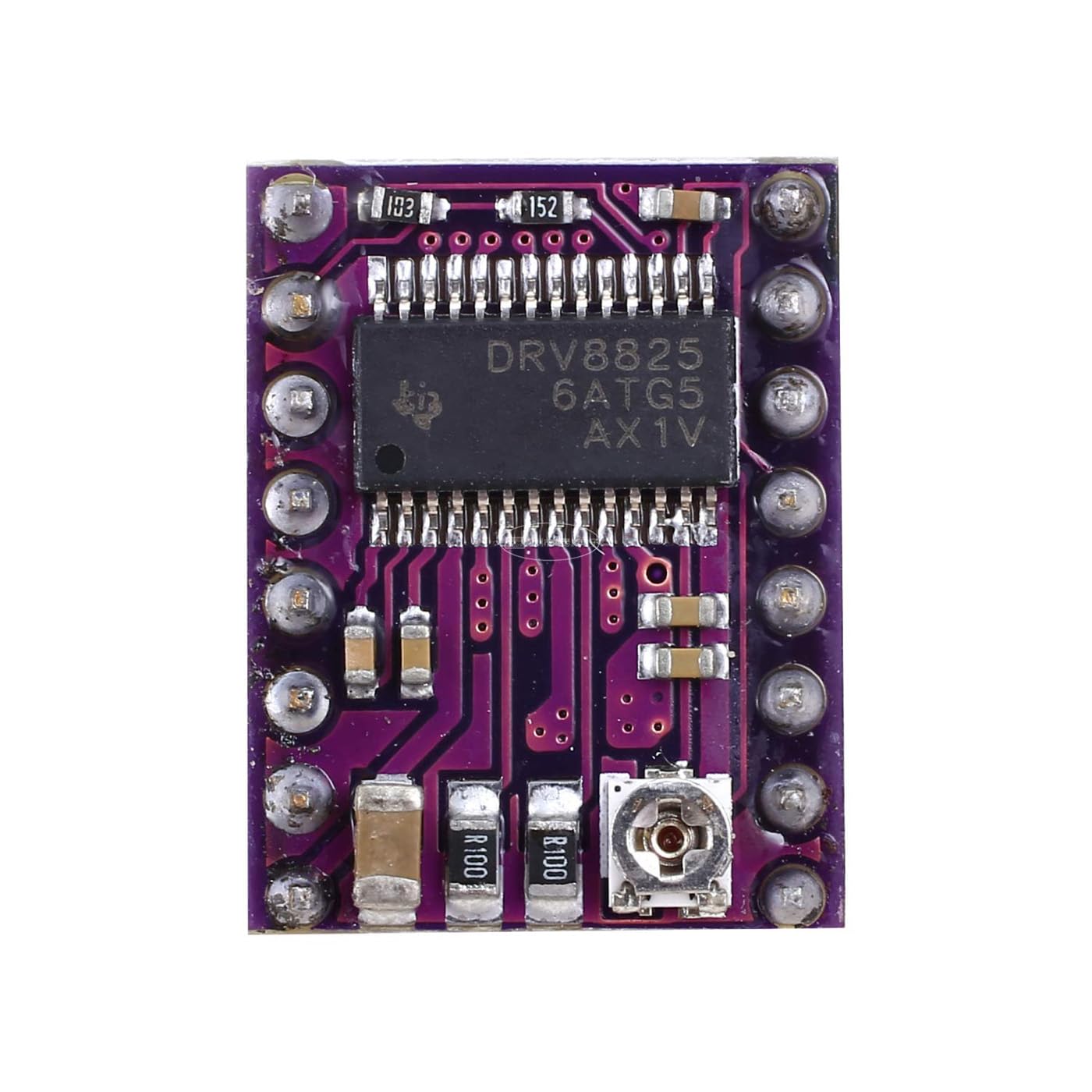

{"id":7807385567412,"title":"DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs","handle":"drv8825-stepper-motor-driver-module-for-3d-printer-reprap-4-ramps1-4-stepstick-5pcs","description":"\u003ch3\u003eDRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: The DRV8825 stepper motor driver carrier is a breakout board\nfor DRV8825 microstepping bipolar stepper motor driver. The module has a\npinout and interface that are nearly identical to those of our A4988 stepper\nmotor driver board, so it can be used as a higher-performance drop-in\nreplacement for those boards in many applications. The DRV8825 features\nadjustable current limiting, overcurrent and overtemperature protection, and\nsix microstep resolutions (down to 1\/32-step). It operates from 8.2 ¨C 45 V\nand can deliver up to approximately 1.5 A per phase without a heat sink or\nforced air flow (rated for up to 2.2 A per coil with sufficient additional\ncooling). Features: Simple step and direction control interface Six\ndifferent step resolutions: full-step, half-step, 1\/4-step, 1\/8-step,\n1\/16-step, and 1\/32-step Adjustable current control lets you set the maximum\ncurrent output with a potentiometer, which lets you use voltages above your\nstepper motor rated voltage to achieve higher step rates 45 V maximum supply\nvoltage Built-in regulator (no external logic voltage supply needed) Can\ninterface directly with 3.3 V and 5 V systems Over-temperature thermal\nshutdown, over-current shutdown, and under-voltage lockout Short-to-ground\nand shorted-load protection 4-layer, 2 oz copper PCB for improved heat\ndissipation Exposed solderable ground pad below the driver IC on the bottom\nof the PCB Module size, pinout, and interface match those of our A4988\nstepper motor driver carriers in most respects (see the bottom of this page\nfor more information) Package included: 5DRV8825 Stepper Motor Driver Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDRV8825 Stepper Motor Driver Module\u003c\/li\u003e\n \u003cli\u003e45 V maximum supply voltage\u003c\/li\u003e\n \u003cli\u003e4-layer, 2 oz copper PCB for improved heat dissipation\u003c\/li\u003e\n \u003cli\u003eCan interface directly with 3.3 V and 5 V systems\u003c\/li\u003e\n \u003cli\u003eSimple step and direction control interface\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-01T23:54:09+10:00","created_at":"2024-08-01T23:54:09+10:00","vendor":"DUTTY","type":"3D Printer Interface \u0026 Driver Modules","tags":["industrial_Aug2024_update"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43449056755892,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CFZRG9QG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs","public_title":null,"options":["Default Title"],"price":11900,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"733805324148","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CFZRG9QG.jpg?v=1722581041","\/\/auspowers.com\/cdn\/shop\/files\/61QYzwdOLFL.jpg?v=1722520461","\/\/auspowers.com\/cdn\/shop\/files\/61HQUdyqaPL.jpg?v=1722520461","\/\/auspowers.com\/cdn\/shop\/files\/61FE7DkbV1L.jpg?v=1722520461","\/\/auspowers.com\/cdn\/shop\/files\/61l3gd64NiL.jpg?v=1722520461","\/\/auspowers.com\/cdn\/shop\/files\/61xw7kdfR0L.jpg?v=1722520461"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFZRG9QG.jpg?v=1722581041","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30556366930100,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFZRG9QG.jpg?v=1722581041"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CFZRG9QG.jpg?v=1722581041","width":1400},{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30552878284980,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61QYzwdOLFL.jpg?v=1722520461"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61QYzwdOLFL.jpg?v=1722520461","width":1400},{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30552878317748,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HQUdyqaPL.jpg?v=1722520461"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HQUdyqaPL.jpg?v=1722520461","width":1400},{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30552878350516,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61FE7DkbV1L.jpg?v=1722520461"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61FE7DkbV1L.jpg?v=1722520461","width":1400},{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30552878383284,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61l3gd64NiL.jpg?v=1722520461"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61l3gd64NiL.jpg?v=1722520461","width":1400},{"alt":"[Australia - AusPower] - DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs ","id":30552878416052,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1400,"width":1400,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61xw7kdfR0L.jpg?v=1722520461"},"aspect_ratio":1.0,"height":1400,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61xw7kdfR0L.jpg?v=1722520461","width":1400}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 StepStick 5pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: The DRV8825 stepper motor driver carrier is a breakout board\nfor DRV8825 microstepping bipolar stepper motor driver. The module has a\npinout and interface that are nearly identical to those of our A4988 stepper\nmotor driver board, so it can be used as a higher-performance drop-in\nreplacement for those boards in many applications. The DRV8825 features\nadjustable current limiting, overcurrent and overtemperature protection, and\nsix microstep resolutions (down to 1\/32-step). It operates from 8.2 ¨C 45 V\nand can deliver up to approximately 1.5 A per phase without a heat sink or\nforced air flow (rated for up to 2.2 A per coil with sufficient additional\ncooling). Features: Simple step and direction control interface Six\ndifferent step resolutions: full-step, half-step, 1\/4-step, 1\/8-step,\n1\/16-step, and 1\/32-step Adjustable current control lets you set the maximum\ncurrent output with a potentiometer, which lets you use voltages above your\nstepper motor rated voltage to achieve higher step rates 45 V maximum supply\nvoltage Built-in regulator (no external logic voltage supply needed) Can\ninterface directly with 3.3 V and 5 V systems Over-temperature thermal\nshutdown, over-current shutdown, and under-voltage lockout Short-to-ground\nand shorted-load protection 4-layer, 2 oz copper PCB for improved heat\ndissipation Exposed solderable ground pad below the driver IC on the bottom\nof the PCB Module size, pinout, and interface match those of our A4988\nstepper motor driver carriers in most respects (see the bottom of this page\nfor more information) Package included: 5DRV8825 Stepper Motor Driver Board\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDRV8825 Stepper Motor Driver Module\u003c\/li\u003e\n \u003cli\u003e45 V maximum supply voltage\u003c\/li\u003e\n \u003cli\u003e4-layer, 2 oz copper PCB for improved heat dissipation\u003c\/li\u003e\n \u003cli\u003eCan interface directly with 3.3 V and 5 V systems\u003c\/li\u003e\n \u003cli\u003eSimple step and direction control interface\u003c\/li\u003e\n \u003c\/ul\u003e"}
