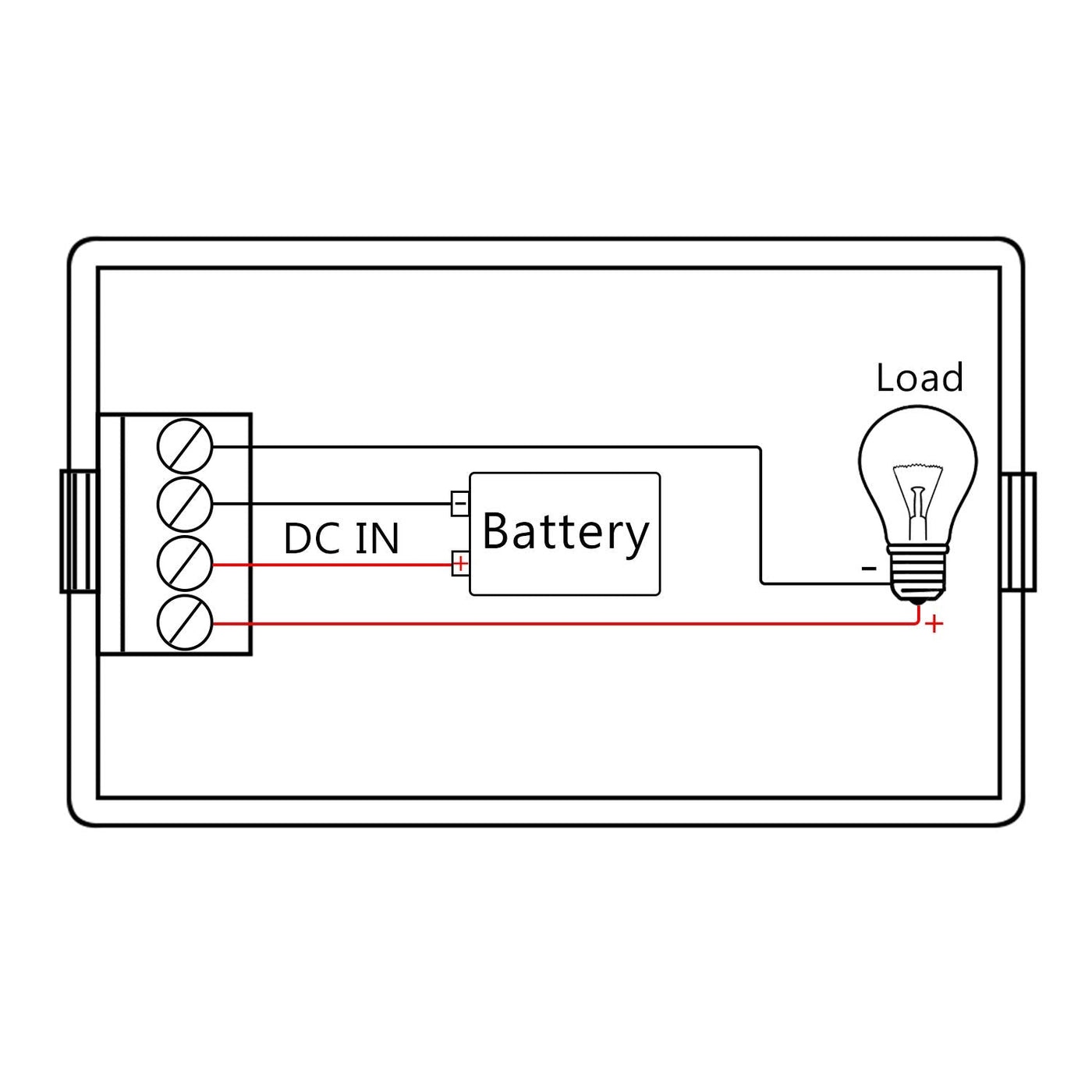

{"id":8013220774068,"title":"DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic","handle":"drok-digital-multimeter-dc-6-5-100v-20a-voltage-amperage-power-energy-meter-dc-volt-amp-tester-gauge-monitor-lcd-digital-display-with-built-in-shunt-classic","description":"\u003ch3\u003eDROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eParameters: Working Voltage: 6.5~100VDC; Measuring Range: 6.5~100VDC; Rated\r\nPower: 20A\/2000W; Measuring Accuracy: 1.0 grade. Test range and display\r\nformat: Power Range: 0~2kW within 1kW, display 0.0~999.9W; above 1kW, display\r\n1000~2000W. Energy Range: 0~9999kWh within 10KWh, display 0~9999Wh; above\r\n10kWh, display 10~9999kWh. Voltage Range: 6.5~100V(display 6.50~99.99V),\r\nCurrent Range: 0~20A(display 0.00~20.00A). Note: This module is suitable for\r\nindoor, please do not use outdoor. Applied load should not exceed the rated\r\nvoltage or current. Wiring order can't be wrong. Package Includes: 1x DC Power\r\nMultimeter.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe portable multi-meter has a Large-screen LCD, can display voltage, current, power, energy at the same time, bright and easy to read.\u003c\/li\u003e\r\n \u003cli\u003eVoltage test range: DC 6.5~100V; Current test range: 0~20A; Power test range: 0~2KW; Energy test range: 0~9999kWh.\u003c\/li\u003e\r\n \u003cli\u003eMultifunctional: the accumulated energy can be reset by button; Store data when power off; Voltage alarm function (over voltage alarm threshold, backlight and voltage will flash to alarm).\u003c\/li\u003e\r\n \u003cli\u003eEasy to hook up: with built-in shunt, 2 wires in (DC + and -) and 2 wires out (The Load), all connections are via a 4 point terminal strip(has a wiring diagram on its back).\u003c\/li\u003e\r\n \u003cli\u003eThe blue backlight can be turned on\/off by the front accessible recessed switch located on the right side bezel.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T19:59:18+11:00","created_at":"2025-12-07T19:59:15+11:00","vendor":"DROK","type":"Multi Testers","tags":["industrial_selected_Nov2025"],"price":12400,"price_min":12400,"price_max":12400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102881444020,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B017FSED9I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic","public_title":null,"options":["Default Title"],"price":12400,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"200139US","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B017FSED9I.jpg?v=1775782478","\/\/auspowers.com\/cdn\/shop\/files\/71gD6f6EsaL.jpg?v=1765097957","\/\/auspowers.com\/cdn\/shop\/files\/614E4cYEnGL.jpg?v=1765097957","\/\/auspowers.com\/cdn\/shop\/files\/61uMZ_T4JEL.jpg?v=1765097957","\/\/auspowers.com\/cdn\/shop\/files\/61qpc2ZmVIL.jpg?v=1765097958","\/\/auspowers.com\/cdn\/shop\/files\/61w0yy-LZoL.jpg?v=1765097957","\/\/auspowers.com\/cdn\/shop\/files\/61XJmMBniKL.jpg?v=1765097957","\/\/auspowers.com\/cdn\/shop\/files\/71to3xFwdbL.jpg?v=1765097958"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B017FSED9I.jpg?v=1775782478","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925292724,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B017FSED9I.jpg?v=1775782478"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B017FSED9I.jpg?v=1775782478","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925325492,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71gD6f6EsaL.jpg?v=1765097957"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71gD6f6EsaL.jpg?v=1765097957","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925358260,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/614E4cYEnGL.jpg?v=1765097957"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/614E4cYEnGL.jpg?v=1765097957","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925391028,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61uMZ_T4JEL.jpg?v=1765097957"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61uMZ_T4JEL.jpg?v=1765097957","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925423796,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61qpc2ZmVIL.jpg?v=1765097958"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61qpc2ZmVIL.jpg?v=1765097958","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925456564,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61w0yy-LZoL.jpg?v=1765097957"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61w0yy-LZoL.jpg?v=1765097957","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925489332,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61XJmMBniKL.jpg?v=1765097957"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61XJmMBniKL.jpg?v=1765097957","width":1500},{"alt":"[Australia - AusPower] - DROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt Classic ","id":32452925522100,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71to3xFwdbL.jpg?v=1765097958"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71to3xFwdbL.jpg?v=1765097958","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDROK Digital Multimeter DC 6.5-100V 20A Voltage Amperage Power Energy Meter, DC Volt Amp Tester Gauge Monitor LCD Digital Display with Built-in Shunt\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eParameters: Working Voltage: 6.5~100VDC; Measuring Range: 6.5~100VDC; Rated\r\nPower: 20A\/2000W; Measuring Accuracy: 1.0 grade. Test range and display\r\nformat: Power Range: 0~2kW within 1kW, display 0.0~999.9W; above 1kW, display\r\n1000~2000W. Energy Range: 0~9999kWh within 10KWh, display 0~9999Wh; above\r\n10kWh, display 10~9999kWh. Voltage Range: 6.5~100V(display 6.50~99.99V),\r\nCurrent Range: 0~20A(display 0.00~20.00A). Note: This module is suitable for\r\nindoor, please do not use outdoor. Applied load should not exceed the rated\r\nvoltage or current. Wiring order can't be wrong. Package Includes: 1x DC Power\r\nMultimeter.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe portable multi-meter has a Large-screen LCD, can display voltage, current, power, energy at the same time, bright and easy to read.\u003c\/li\u003e\r\n \u003cli\u003eVoltage test range: DC 6.5~100V; Current test range: 0~20A; Power test range: 0~2KW; Energy test range: 0~9999kWh.\u003c\/li\u003e\r\n \u003cli\u003eMultifunctional: the accumulated energy can be reset by button; Store data when power off; Voltage alarm function (over voltage alarm threshold, backlight and voltage will flash to alarm).\u003c\/li\u003e\r\n \u003cli\u003eEasy to hook up: with built-in shunt, 2 wires in (DC + and -) and 2 wires out (The Load), all connections are via a 4 point terminal strip(has a wiring diagram on its back).\u003c\/li\u003e\r\n \u003cli\u003eThe blue backlight can be turned on\/off by the front accessible recessed switch located on the right side bezel.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
