Door Hinge Jig, Door Hinge Router Template,Door Hinge Mortiser, Hinge Installation Kit Fits 3” to 5” Length and 1/4” or 5/8” Thickness Door Hinge, Blue A-Blue

In Stock. Leaves warehouse within 2 - 3 business days

$176.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

Door Hinge Jig, Door Hinge Router Template,Door Hinge Mortiser, Hinge Installation Kit Fits 3” to 5” Length and 1/4” or 5/8” Thickness Door Hinge, Blue

Product Features

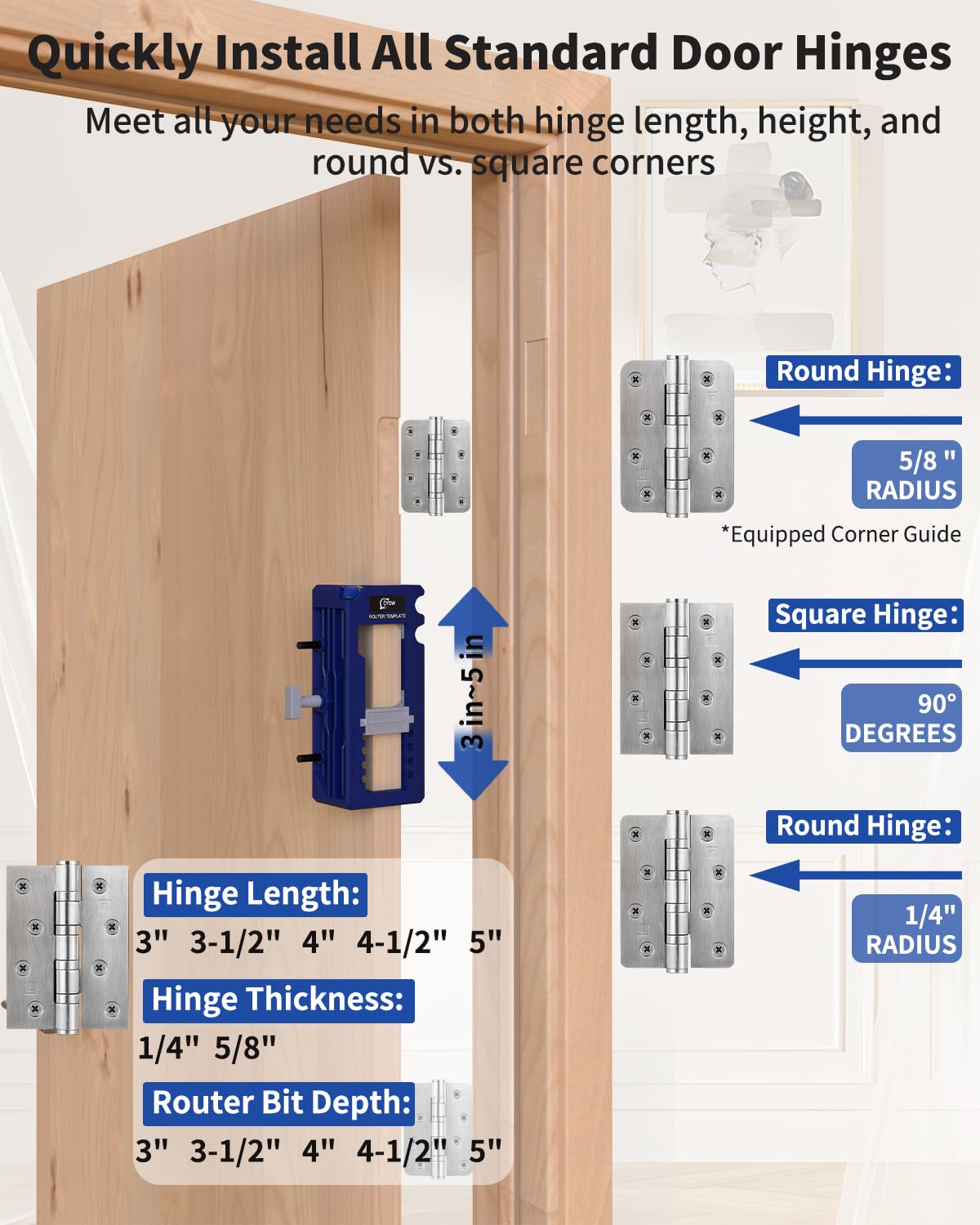

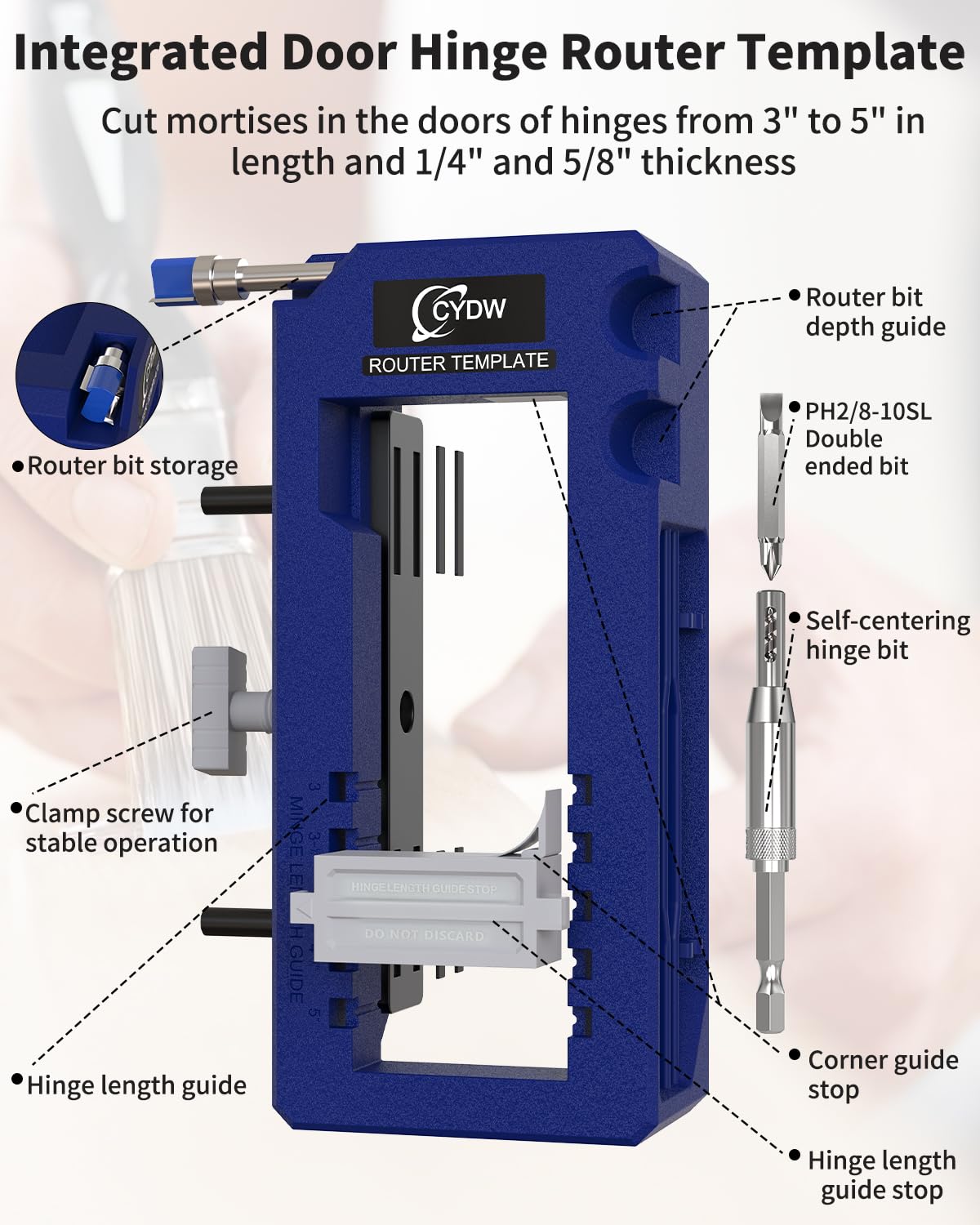

  • Intergrated Door Hinge MortiserQuickly Install All Standard Door Hinges. Cut mortises in the doors of hinges from 3" to 5" in length and 1/4" and 5/8" in thickness. Meet all your needs in both hinge length, height, and round vs. square corners.

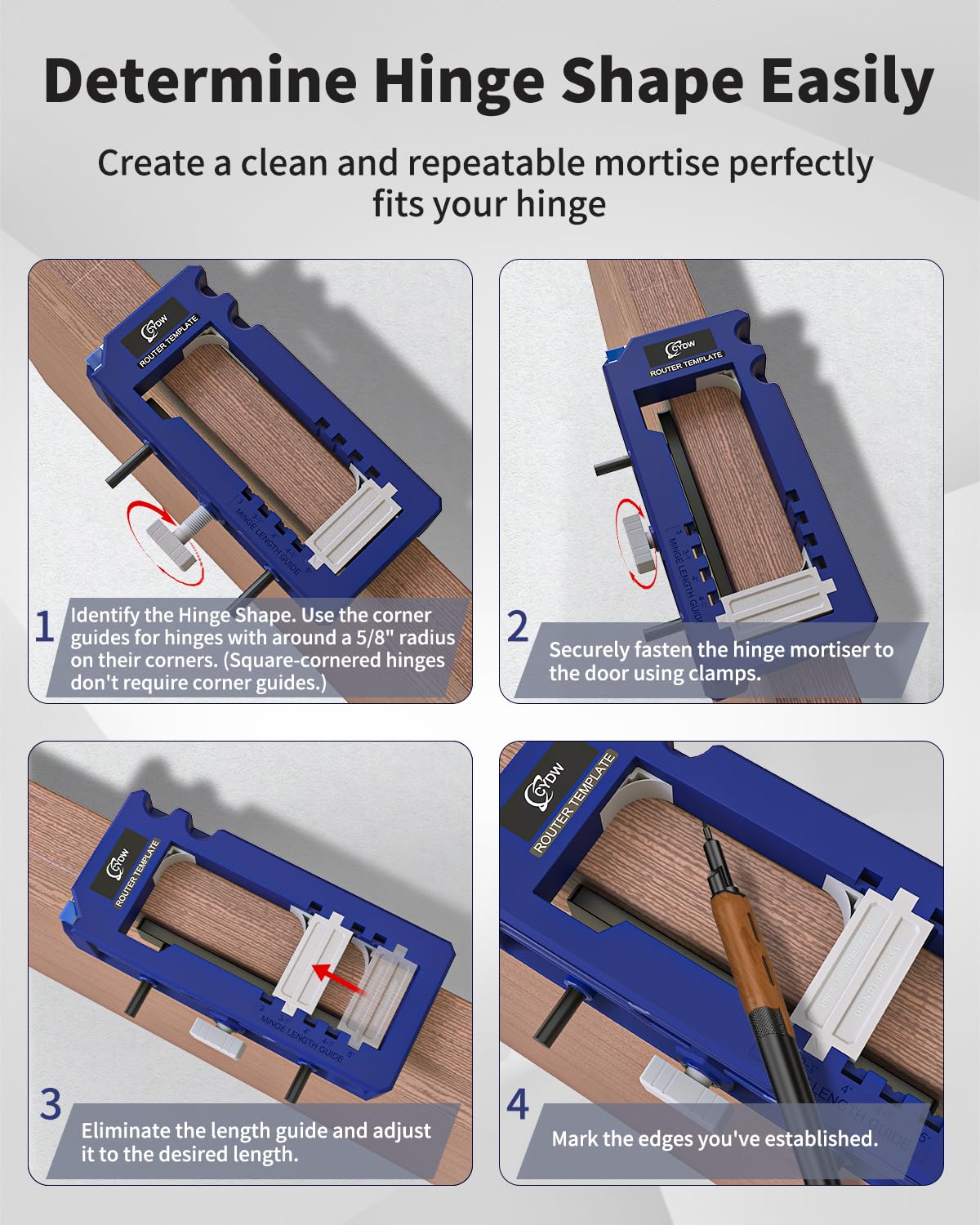

  • Determine Hinge Shape Easily Step 1: Identify the Hinge Shape. Use the corner guides for hinges with around a 5/8" radius on their corners. (Square-cornered hinges don't require corner guides.)Step 2: Securely fasten the hinge mortiser to the door using clamps.Step 3: Eliminate the length guide and adjust it to the desired length.Step 4: Mark the edges you've established.

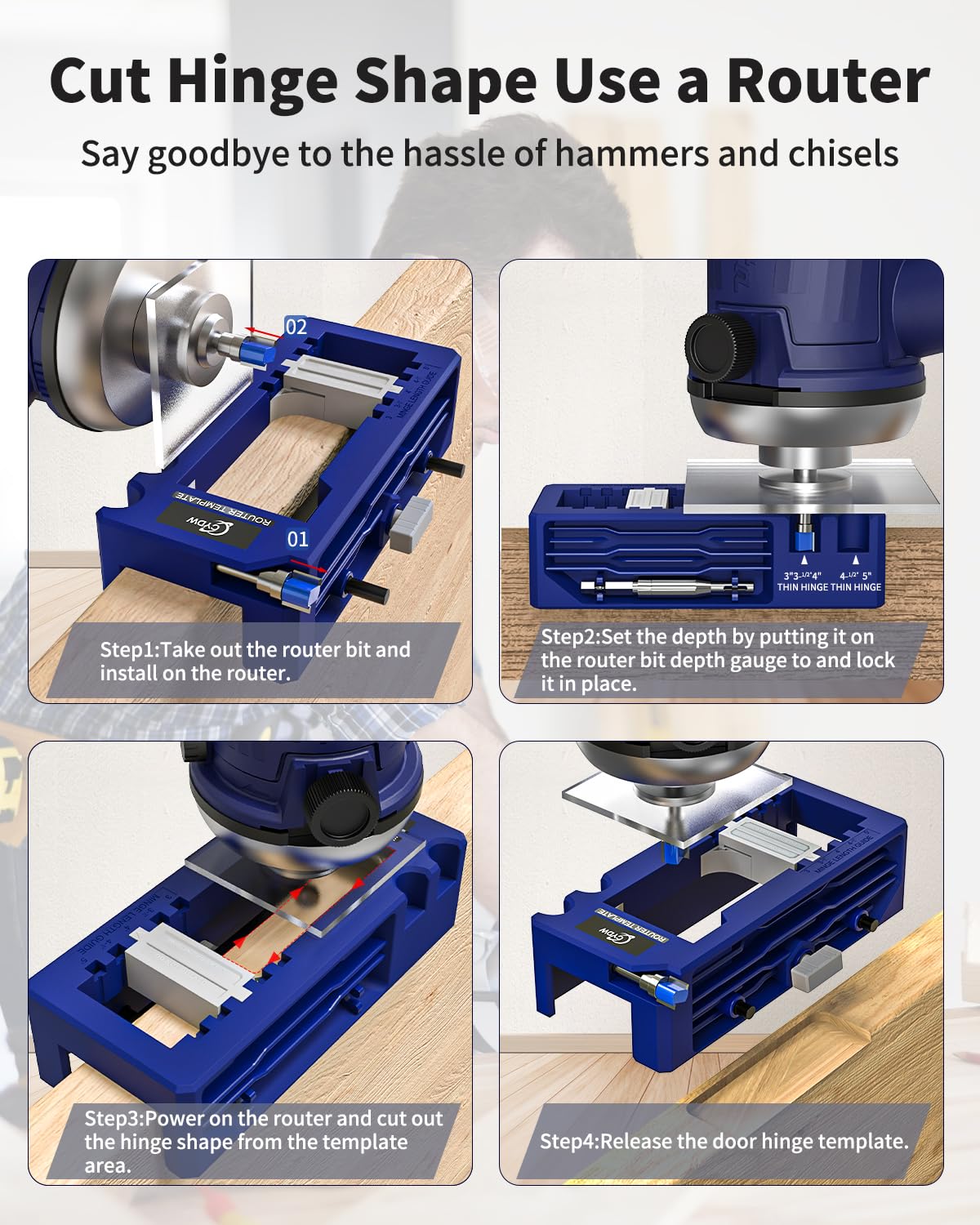

  • Cut Hinge Shape Use a Router Say goodbye to the hassle of hammers and chisels.Step 1: Take out the router bit and install on the router.Step 2: Set the depth by putting it on the router bit depth gauge to and lock it in place.Step 3: Power on the router and cut out the hinge shape from the template area.Step 4: Release the door hinge template.

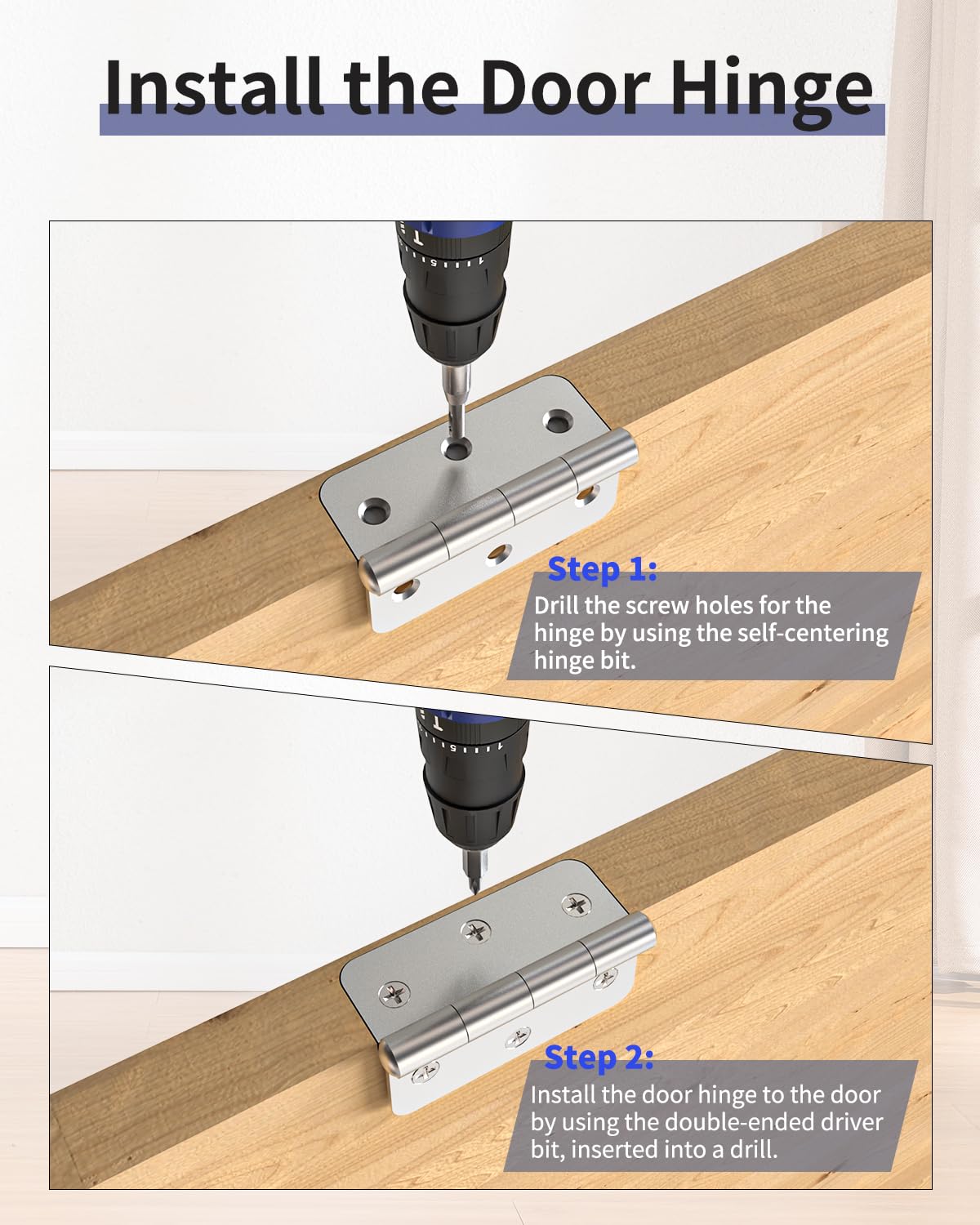

  • Install the Door HingeStep 1: Drill the screw holes for the hinge by using the self-centering hinge bit .Step 2: Install the door hinge to the door by using the double-ended driver bit, inserted into a drill.

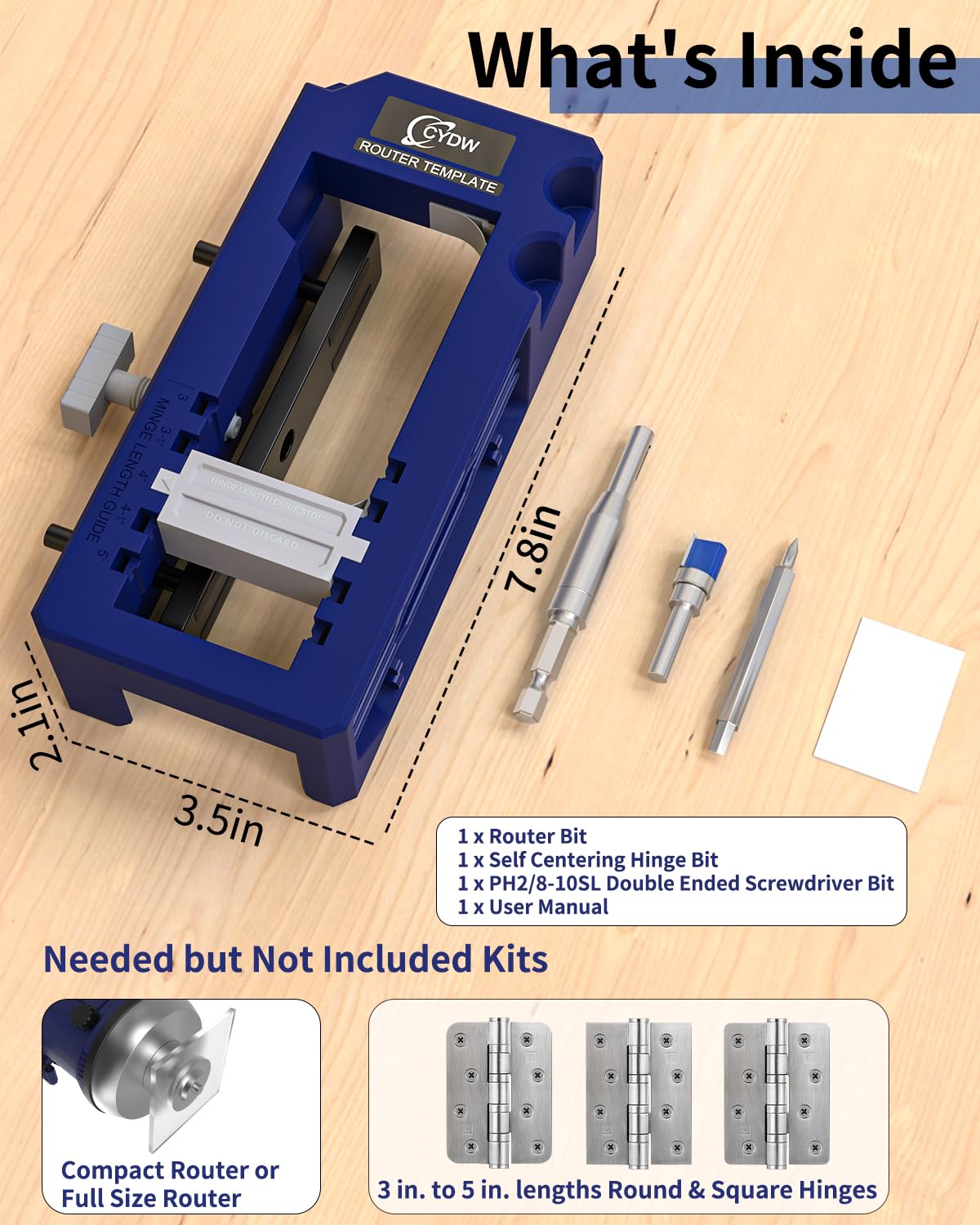

  • Package Included1 Door Hinge Mortiser, 1 User Manual and 3 Included Bits 1x Router Bit, 1x Self Centering Hinge Bit, 1x PH2/8-10SL Double Ended Screwdriver Bit.
