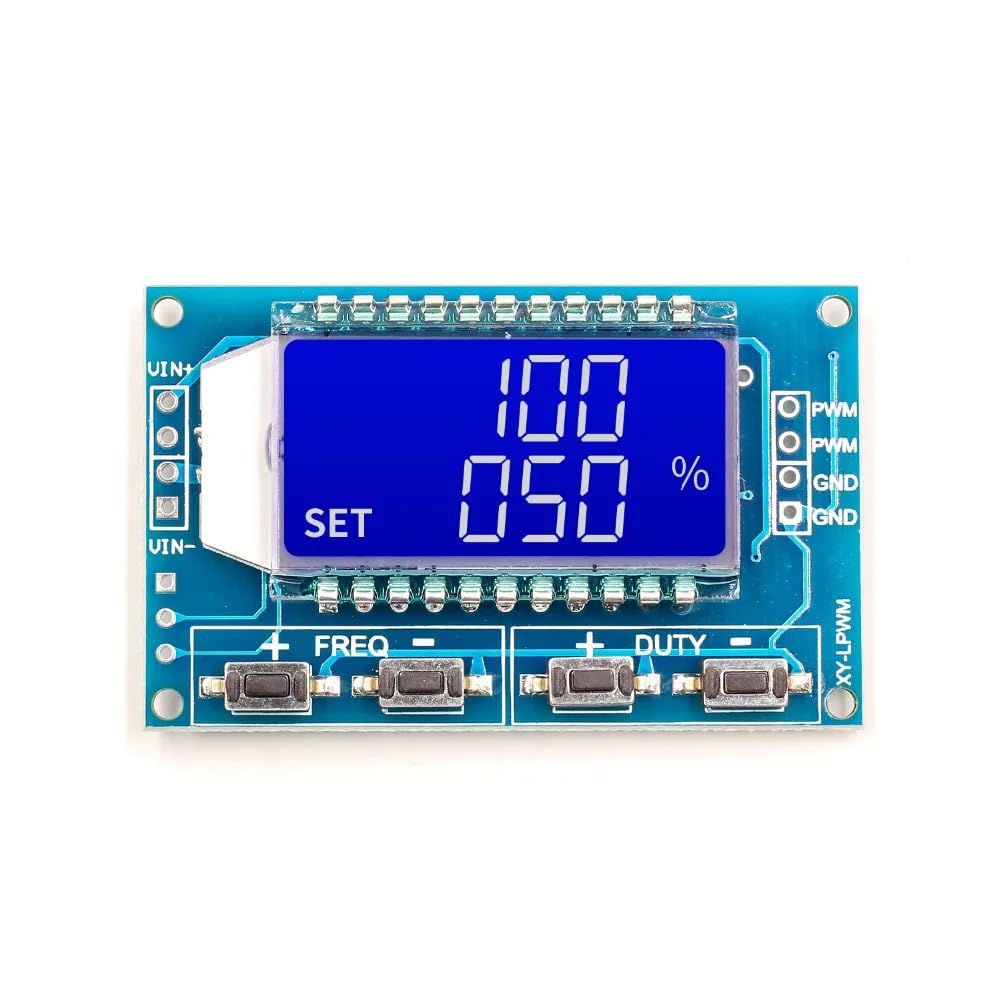

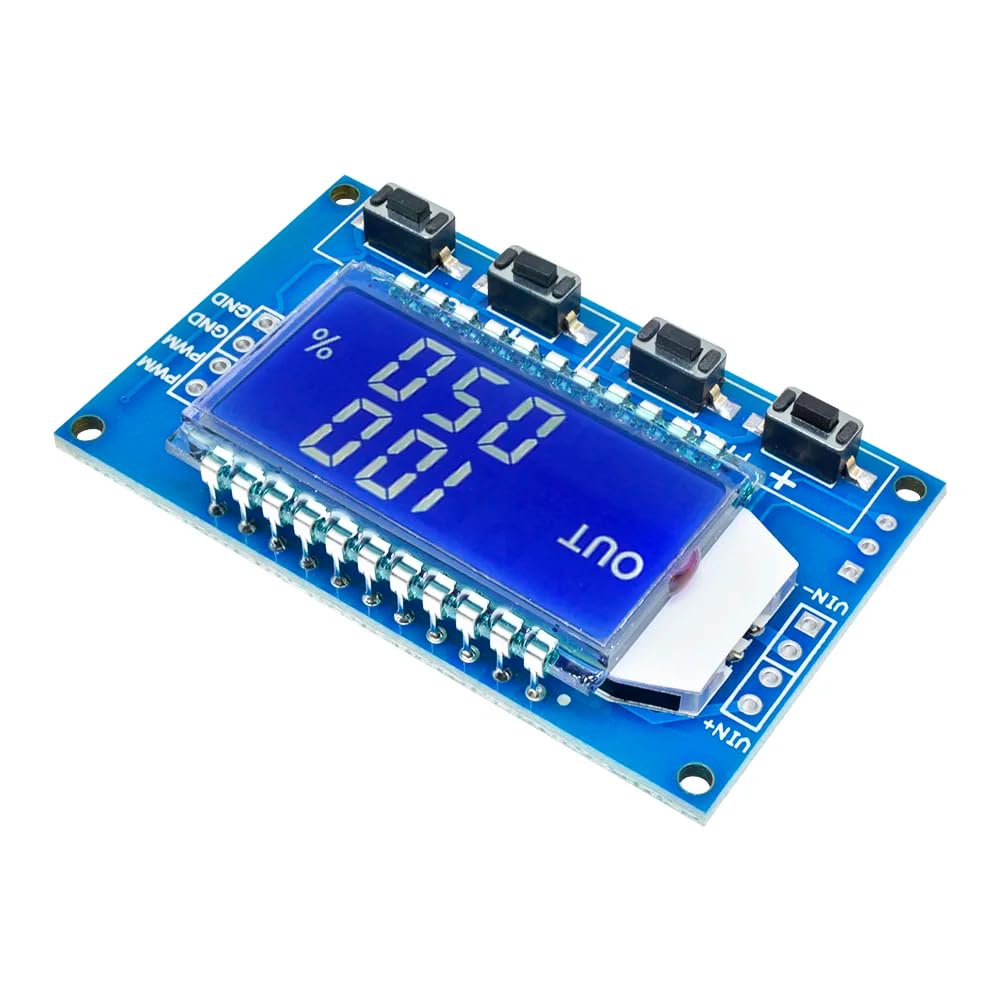

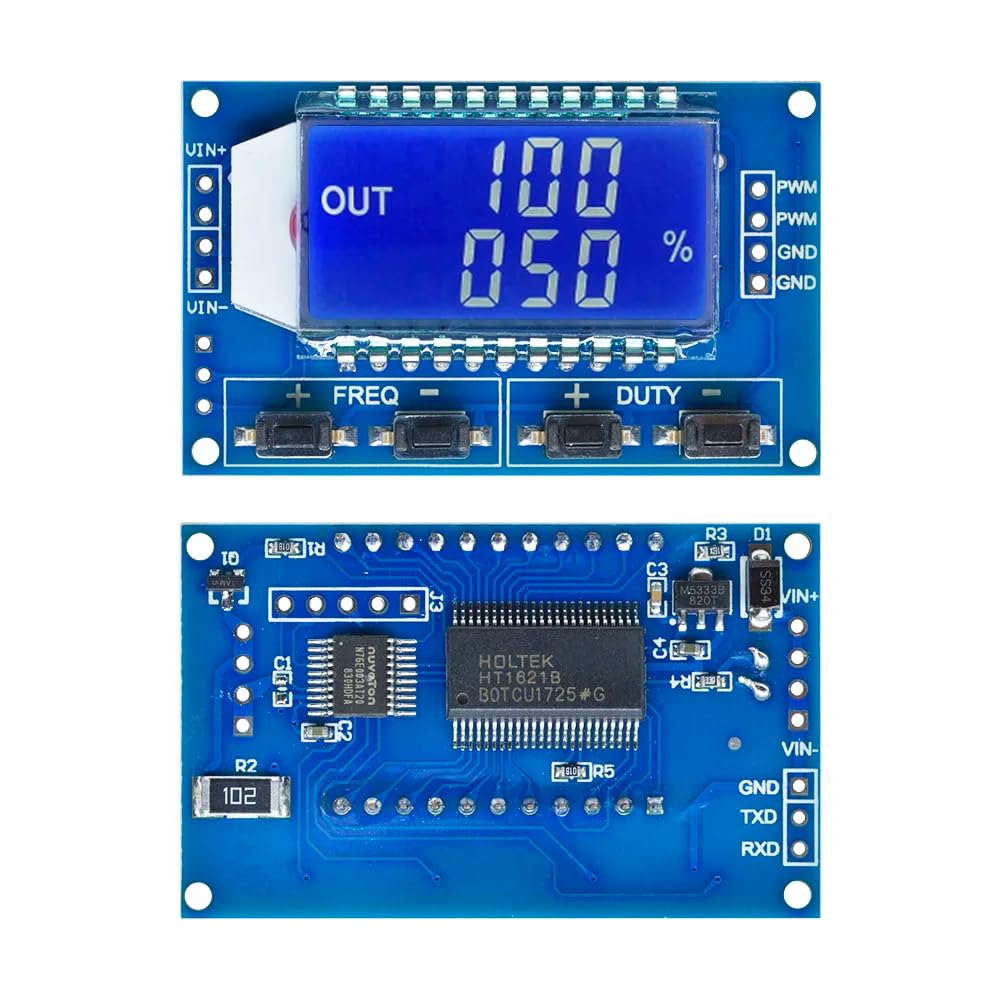

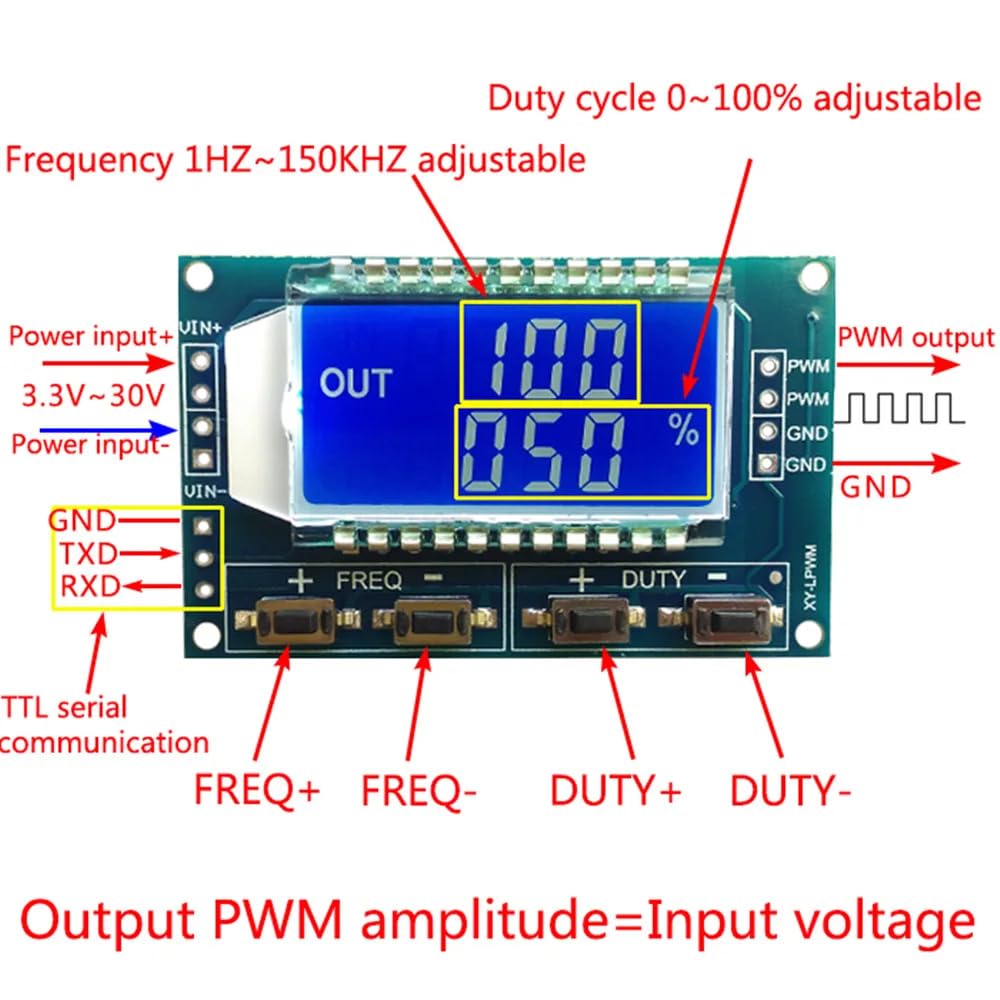

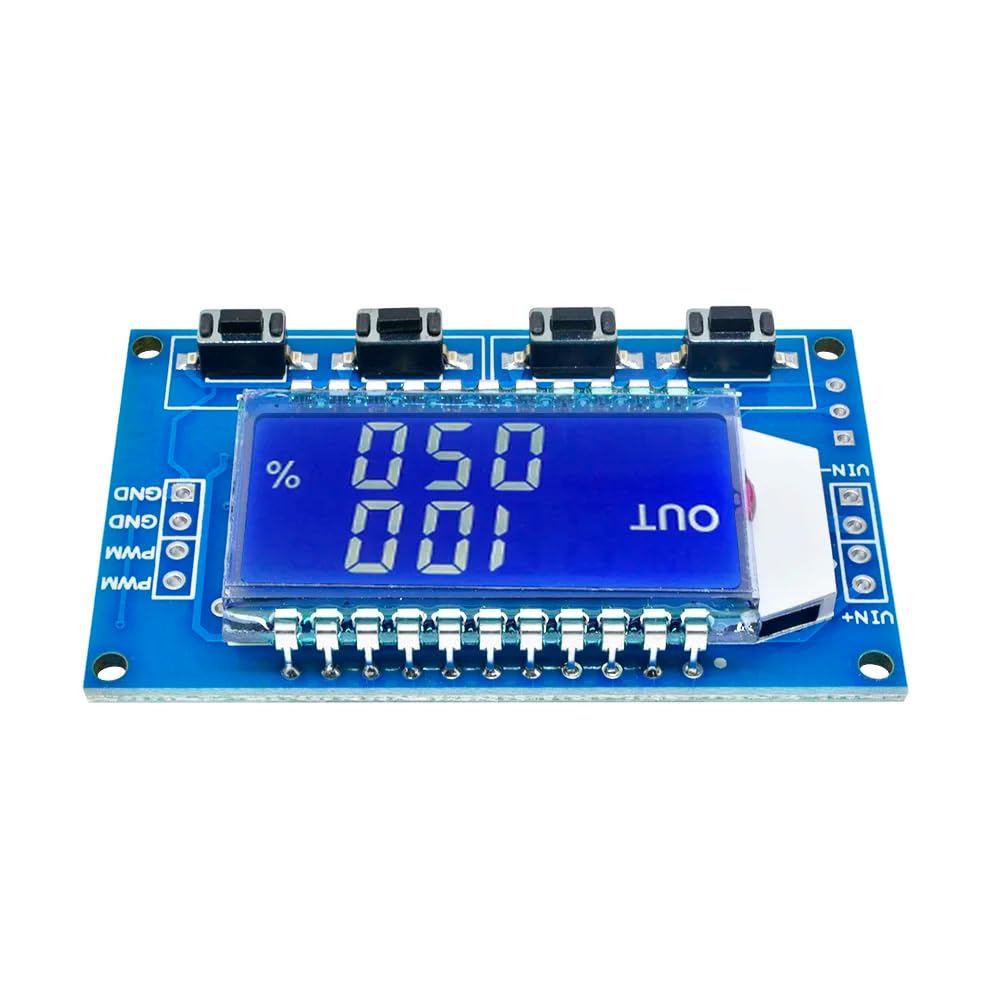

{"id":7992772886708,"title":"DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM","handle":"dollatek-pwm-pulse-rate-switch-on-module-rectangular-wave-signal-generator-xy-lpwm","description":"\u003ch3\u003eDollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The module has four independent buttons that can be used to\nadjust the frequency and the working cycle, short press (enlarge or decrease a\nunit) and the long press (quickly increase or decrease), very easy. Set the\nparameters automatically, power failure. Specifications Working voltage: 3.3 ~\n30 V. Frequency range: 1Hz ~ 150KHz; Frequency Accuracy The accuracy in each\nrange is about 2%. Signal load capacity: the output current can be about\n5~30mA; Output amplitude: PWM amplitude equal to the supply voltage; Ambient\ntemperature: -20 to +70 °C. Material: metal. Size: 52 x 32 mm. Colour: blue.\nQuantity: 1 piece. Box contents: 1 x rectangular signal generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLCD liquid crystal display frequency and duty cycle, very clear, PWM output can be set frequency and working cycle separately.\u003c\/li\u003e\n \u003cli\u003eThe module has four independent buttons that can be used to adjust the frequency and the working cycle, short press (enlarge or decrease a unit) and the long press (quickly increase or decrease), very easy. Set the parameters automatically, power failure.\u003c\/li\u003e\n \u003cli\u003eGenerates a rectangular signal generator for experimental development and use.\u003c\/li\u003e\n \u003cli\u003eUsed to create a rectangular signal that controls the motor driver. Generate an adjustable pulse for using the MCU.\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: 3.3~30V; Frequency Range: 1Hz ~ 150KHz; Frequency Accuracy: Accuracy in each range is about 2%.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T01:38:18+10:00","created_at":"2025-09-27T01:38:14+10:00","vendor":"DollaTek","type":"Frequency Counters \u0026 Pulse Generators","tags":["industryDE_Sep2025"],"price":12400,"price_min":12400,"price_max":12400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053704638644,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07PMGHGX6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM","public_title":null,"options":["Default Title"],"price":12400,"weight":12,"compare_at_price":null,"inventory_management":"shopify","barcode":"725835035750","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07PMGHGX6.jpg?v=1775772281","\/\/auspowers.com\/cdn\/shop\/files\/519QwofALxL.jpg?v=1758901145","\/\/auspowers.com\/cdn\/shop\/files\/615EZvgXNML.jpg?v=1758901145","\/\/auspowers.com\/cdn\/shop\/files\/61RFkGSesAL.jpg?v=1758901145","\/\/auspowers.com\/cdn\/shop\/files\/616IN0CIlRL.jpg?v=1758901097"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07PMGHGX6.jpg?v=1775772281","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM ","id":32206462353588,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07PMGHGX6.jpg?v=1775772281"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07PMGHGX6.jpg?v=1775772281","width":1000},{"alt":"[Australia - AusPower] - DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM ","id":32206462386356,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/519QwofALxL.jpg?v=1758901145"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/519QwofALxL.jpg?v=1758901145","width":1000},{"alt":"[Australia - AusPower] - DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM ","id":32206462419124,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/615EZvgXNML.jpg?v=1758901145"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/615EZvgXNML.jpg?v=1758901145","width":1000},{"alt":"[Australia - AusPower] - DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM ","id":32206462451892,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61RFkGSesAL.jpg?v=1758901145"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61RFkGSesAL.jpg?v=1758901145","width":1000},{"alt":"[Australia - AusPower] - DollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM ","id":32206462484660,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/616IN0CIlRL.jpg?v=1758901097"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/616IN0CIlRL.jpg?v=1758901097","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek PWM pulse rate switch-on module rectangular wave signal generator XY-LPWM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The module has four independent buttons that can be used to\nadjust the frequency and the working cycle, short press (enlarge or decrease a\nunit) and the long press (quickly increase or decrease), very easy. Set the\nparameters automatically, power failure. Specifications Working voltage: 3.3 ~\n30 V. Frequency range: 1Hz ~ 150KHz; Frequency Accuracy The accuracy in each\nrange is about 2%. Signal load capacity: the output current can be about\n5~30mA; Output amplitude: PWM amplitude equal to the supply voltage; Ambient\ntemperature: -20 to +70 °C. Material: metal. Size: 52 x 32 mm. Colour: blue.\nQuantity: 1 piece. Box contents: 1 x rectangular signal generator\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLCD liquid crystal display frequency and duty cycle, very clear, PWM output can be set frequency and working cycle separately.\u003c\/li\u003e\n \u003cli\u003eThe module has four independent buttons that can be used to adjust the frequency and the working cycle, short press (enlarge or decrease a unit) and the long press (quickly increase or decrease), very easy. Set the parameters automatically, power failure.\u003c\/li\u003e\n \u003cli\u003eGenerates a rectangular signal generator for experimental development and use.\u003c\/li\u003e\n \u003cli\u003eUsed to create a rectangular signal that controls the motor driver. Generate an adjustable pulse for using the MCU.\u003c\/li\u003e\n \u003cli\u003eWorking Voltage: 3.3~30V; Frequency Range: 1Hz ~ 150KHz; Frequency Accuracy: Accuracy in each range is about 2%.\u003c\/li\u003e\n \u003c\/ul\u003e"}
