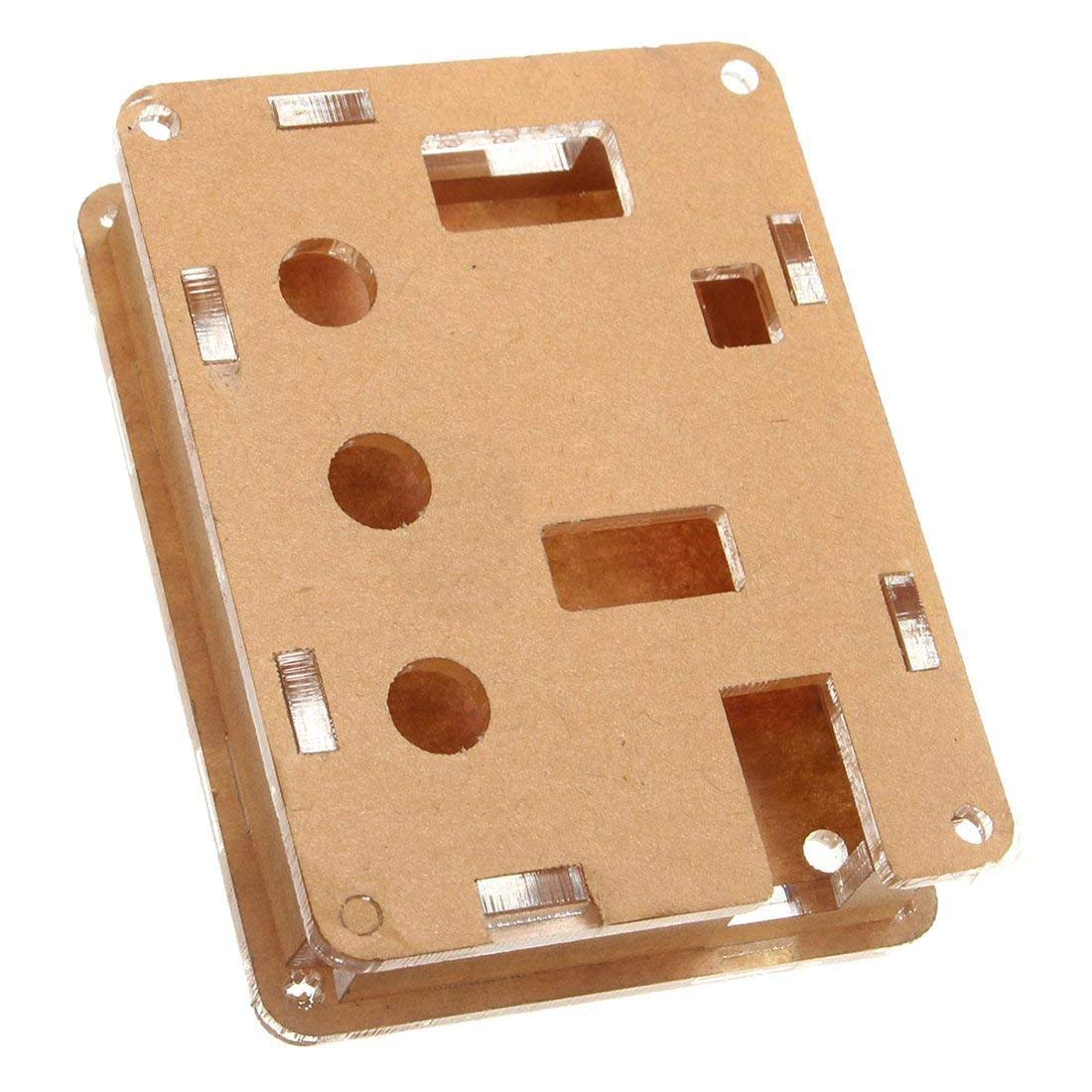

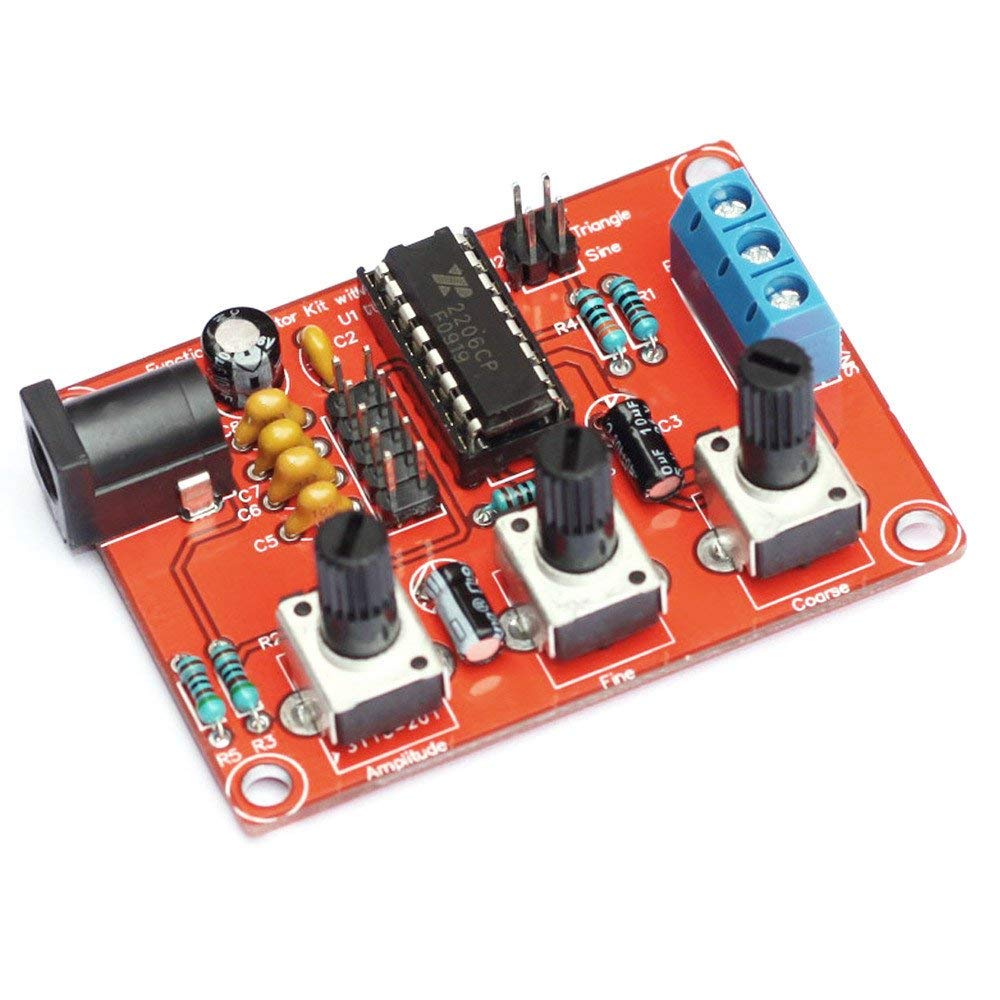

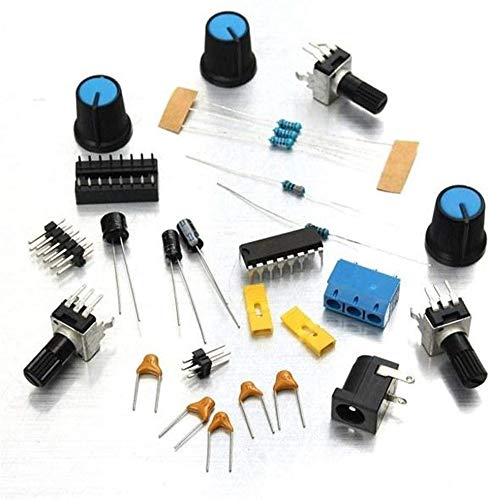

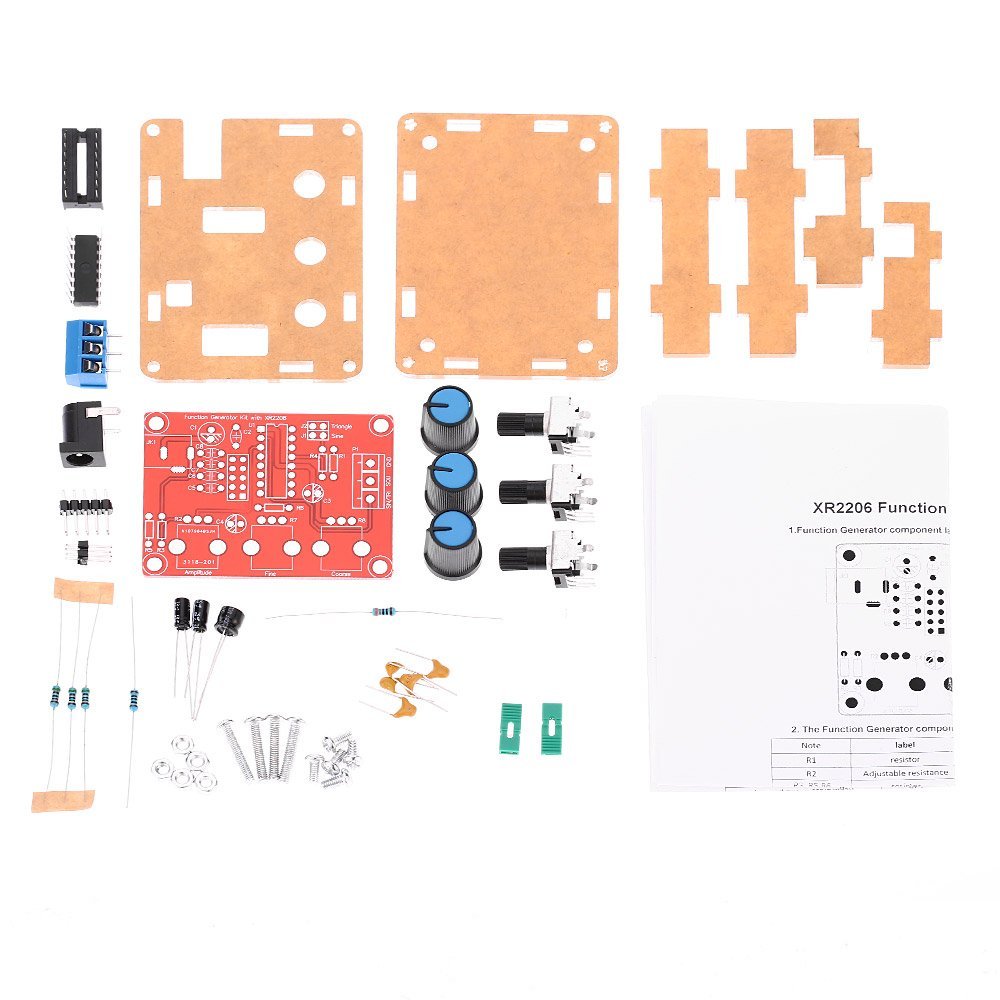

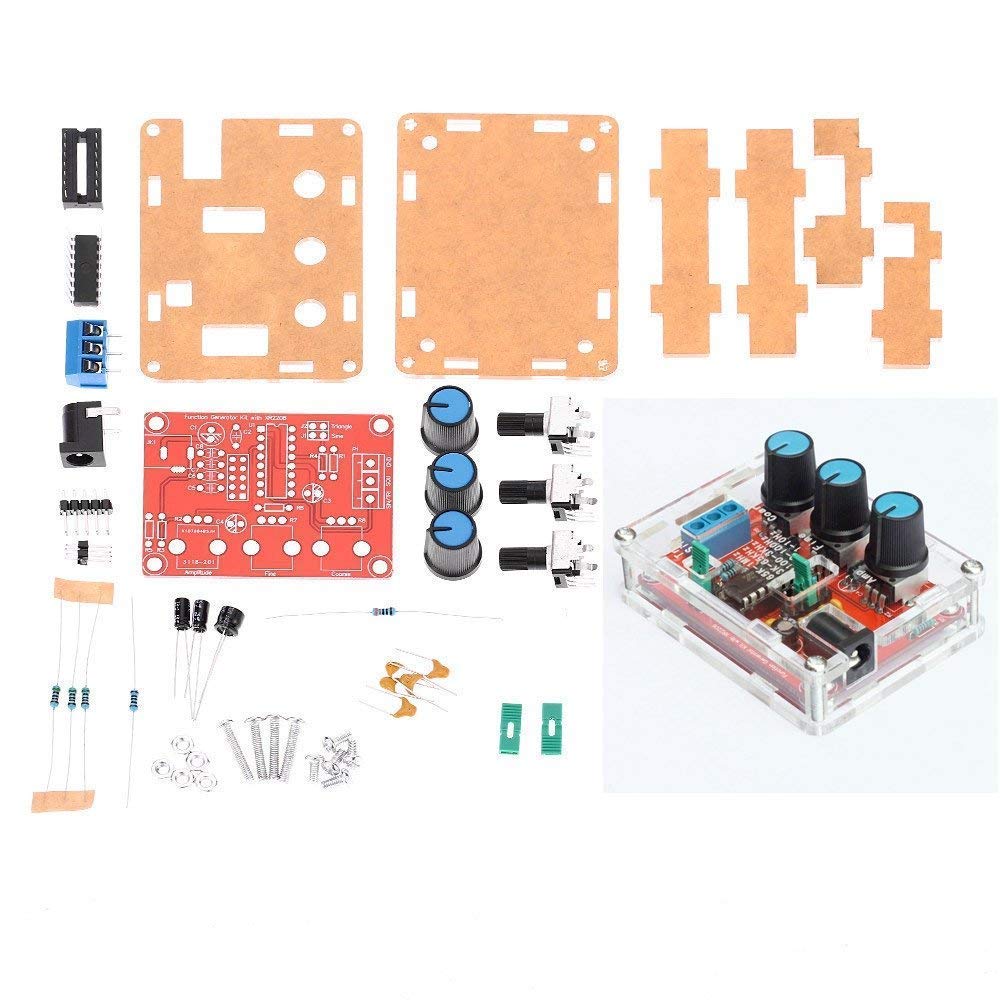

{"id":7991786111156,"title":"DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz","handle":"dollatek-diy-xr2206-function-signal-generator-kit-sine-triangle-square-output-1hz-1mhz","description":"\u003ch3\u003eDollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: Power supply: 9-12V DC input. Waveforms: square, sine and triangle.\nImpedance: 600 Ohm + 10%. Frequency: 1 Hz - 1 MHz. Frequency, amplitude\nadjustable. Five-digit precision resolution The frequency can be adjusted\ncoarse and fine. Wide range power supply, can use an external power supply\n9-12V or 9V battery. Sinus: Amplitude: 0-3V @ 9V DC input Distortion: less\nthan 1% (at 1 kHz). Flatness: +0.05 dB 1 Hz - 100 kHz. Rectangular\noscillation: Amplitude: 8V (without load) at 9V DC input Rise Time: Less than\n50ns (at 1kHz) Drop time: less than 30 ns (at 1 kHz). Symmetry: less than 5%\n(at 1 kHz). Triangular shaft: Amplitude: 0-3V @ 9V DC input Linearity: less\nthan 1% (up to 100 kHz) 10 mA Note: This version does not include the case.\nPackage includes: 1 x XR2206 function signal generator kit\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: 9-12V DC input\u003c\/li\u003e\n \u003cli\u003eWaveforms: square, sine and triangle\u003c\/li\u003e\n \u003cli\u003eImpedance: 600 Ohm + 10%\u003c\/li\u003e\n \u003cli\u003eFrequency: 1 Hz - 1 MHz\u003c\/li\u003e\n \u003cli\u003eFrequency, amplitude adjustable\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:09:54+10:00","created_at":"2025-09-24T01:09:51+10:00","vendor":"DollaTek","type":"Function Generators","tags":["industryDE_Sep2025"],"price":13500,"price_min":13500,"price_max":13500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048580640948,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B081JP347K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz","public_title":null,"options":["Default Title"],"price":13500,"weight":66,"compare_at_price":null,"inventory_management":"shopify","barcode":"725835040792","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B081JP347K.jpg?v=1775768647","\/\/auspowers.com\/cdn\/shop\/files\/61Ykwi4J0mL.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/41IhNog4VNL.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/51hjsPGQMmL.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/61dSNjgGT4L.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/61FmHaXJfAL.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/61Bt3ZOQP4L.jpg?v=1758640193","\/\/auspowers.com\/cdn\/shop\/files\/61pJXk0IpSL.jpg?v=1758640194"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B081JP347K.jpg?v=1775768647","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178020020,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B081JP347K.jpg?v=1775768647"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B081JP347K.jpg?v=1775768647","width":1000},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178052788,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Ykwi4J0mL.jpg?v=1758640193"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Ykwi4J0mL.jpg?v=1758640193","width":1000},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178085556,"position":3,"preview_image":{"aspect_ratio":0.978,"height":500,"width":489,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41IhNog4VNL.jpg?v=1758640193"},"aspect_ratio":0.978,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41IhNog4VNL.jpg?v=1758640193","width":489},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178118324,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51hjsPGQMmL.jpg?v=1758640193"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51hjsPGQMmL.jpg?v=1758640193","width":1000},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178151092,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61dSNjgGT4L.jpg?v=1758640193"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61dSNjgGT4L.jpg?v=1758640193","width":1000},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178183860,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61FmHaXJfAL.jpg?v=1758640193"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61FmHaXJfAL.jpg?v=1758640193","width":1000},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178216628,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Bt3ZOQP4L.jpg?v=1758640193"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Bt3ZOQP4L.jpg?v=1758640193","width":1100},{"alt":"[Australia - AusPower] - DollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz ","id":32189178249396,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61pJXk0IpSL.jpg?v=1758640194"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61pJXk0IpSL.jpg?v=1758640194","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek DIY XR2206 Function Signal Generator Kit Sine Triangle Square Output 1HZ-1MHz\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeature: Power supply: 9-12V DC input. Waveforms: square, sine and triangle.\nImpedance: 600 Ohm + 10%. Frequency: 1 Hz - 1 MHz. Frequency, amplitude\nadjustable. Five-digit precision resolution The frequency can be adjusted\ncoarse and fine. Wide range power supply, can use an external power supply\n9-12V or 9V battery. Sinus: Amplitude: 0-3V @ 9V DC input Distortion: less\nthan 1% (at 1 kHz). Flatness: +0.05 dB 1 Hz - 100 kHz. Rectangular\noscillation: Amplitude: 8V (without load) at 9V DC input Rise Time: Less than\n50ns (at 1kHz) Drop time: less than 30 ns (at 1 kHz). Symmetry: less than 5%\n(at 1 kHz). Triangular shaft: Amplitude: 0-3V @ 9V DC input Linearity: less\nthan 1% (up to 100 kHz) 10 mA Note: This version does not include the case.\nPackage includes: 1 x XR2206 function signal generator kit\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: 9-12V DC input\u003c\/li\u003e\n \u003cli\u003eWaveforms: square, sine and triangle\u003c\/li\u003e\n \u003cli\u003eImpedance: 600 Ohm + 10%\u003c\/li\u003e\n \u003cli\u003eFrequency: 1 Hz - 1 MHz\u003c\/li\u003e\n \u003cli\u003eFrequency, amplitude adjustable\u003c\/li\u003e\n \u003c\/ul\u003e"}
