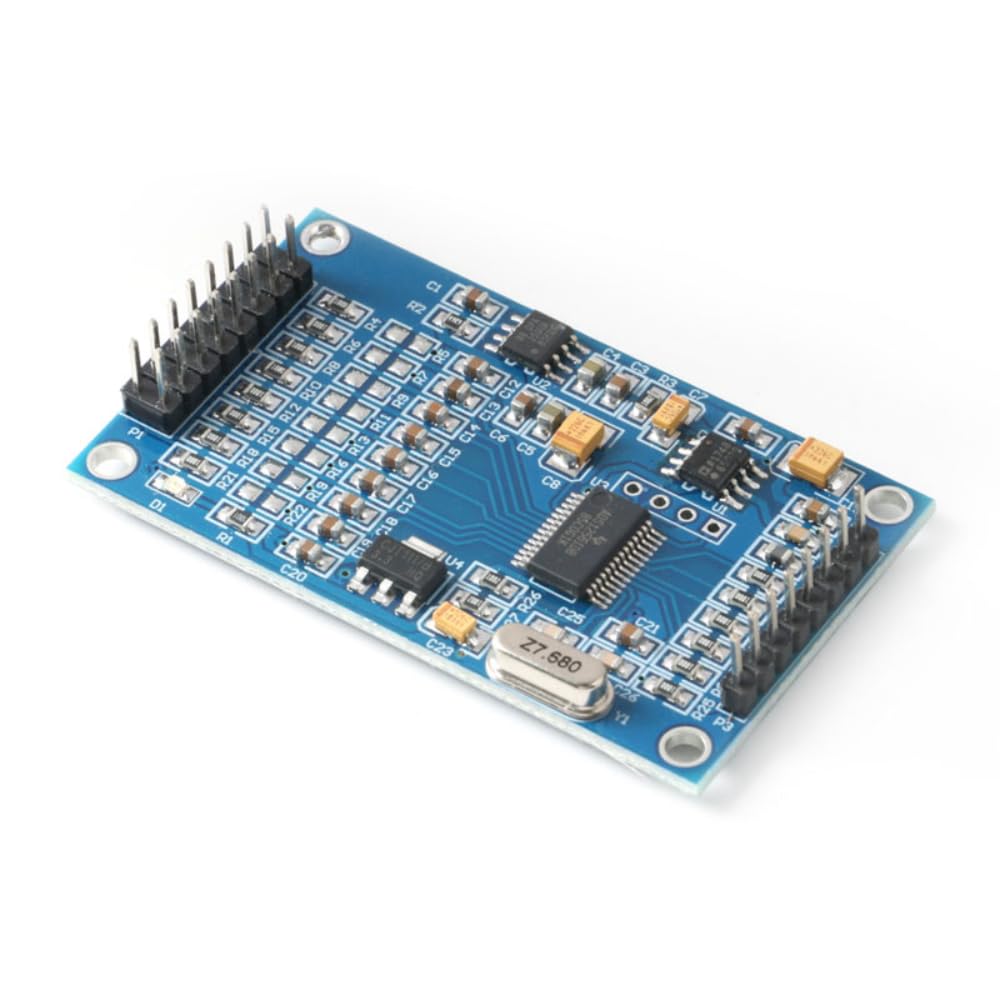

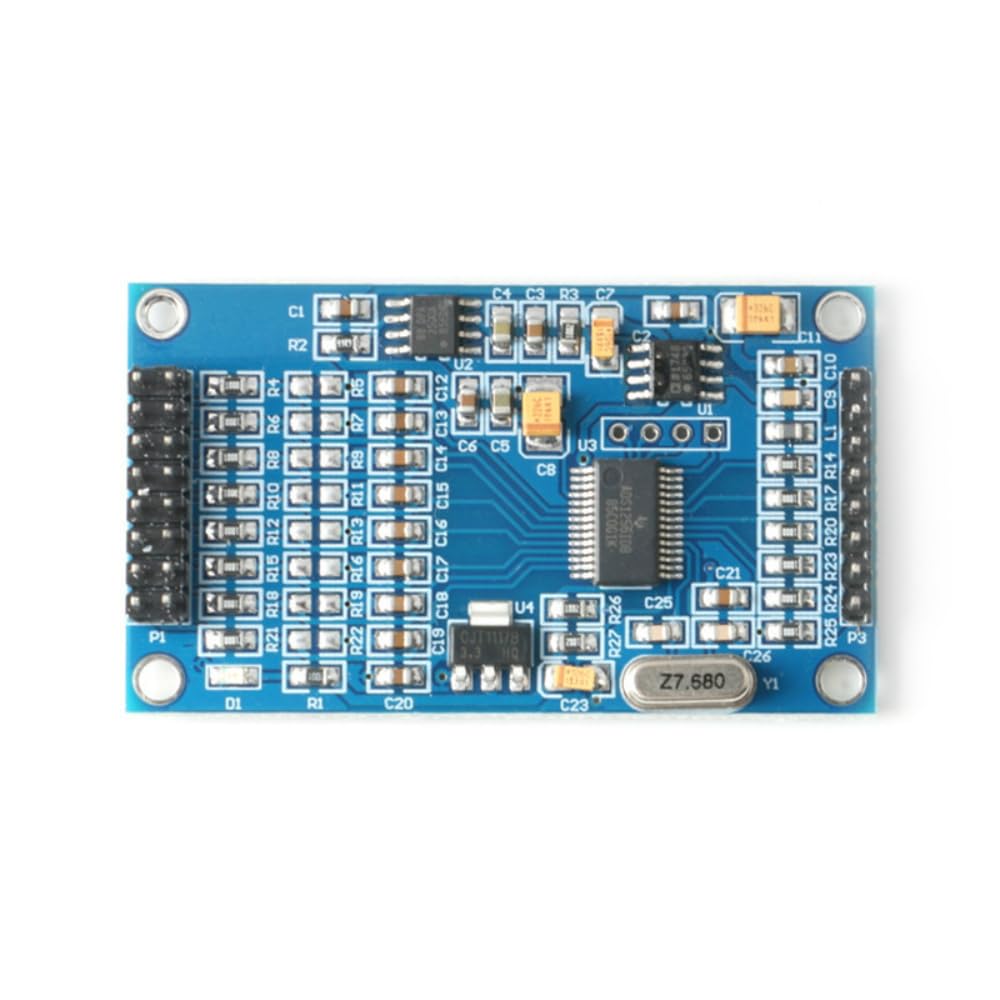

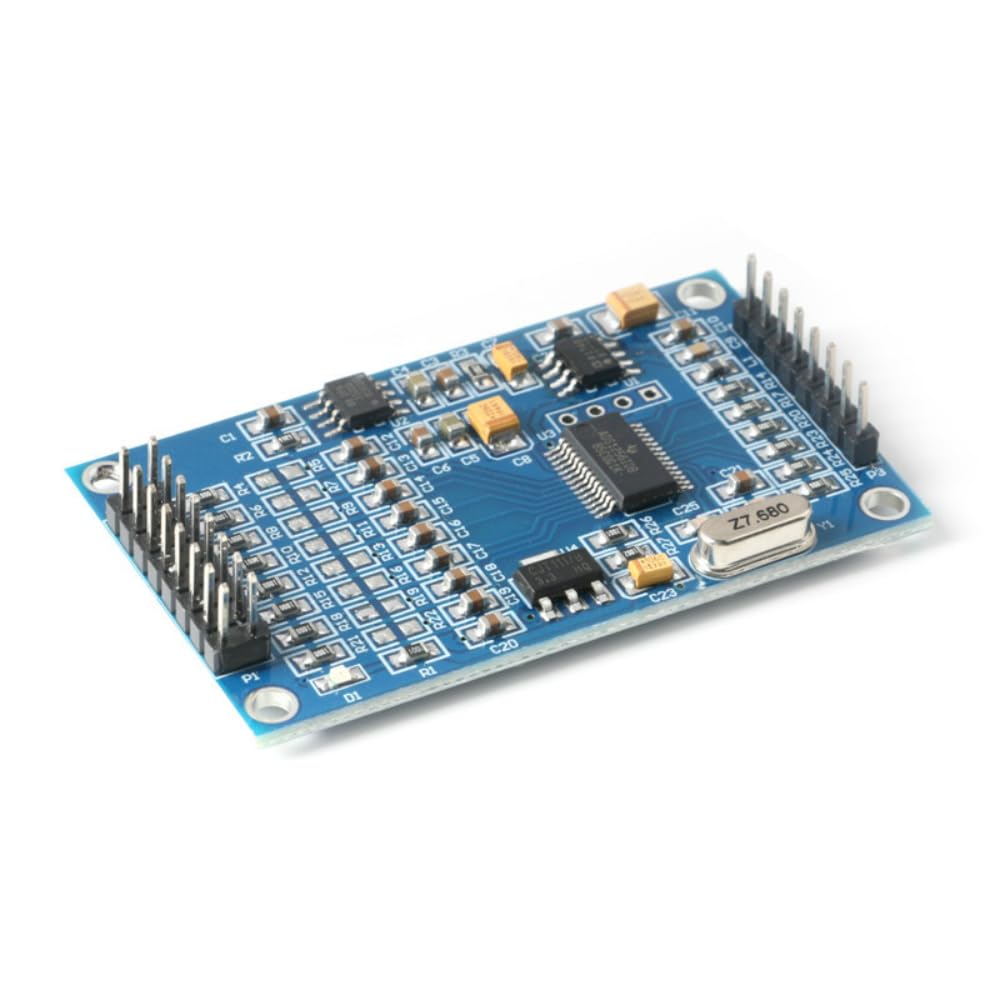

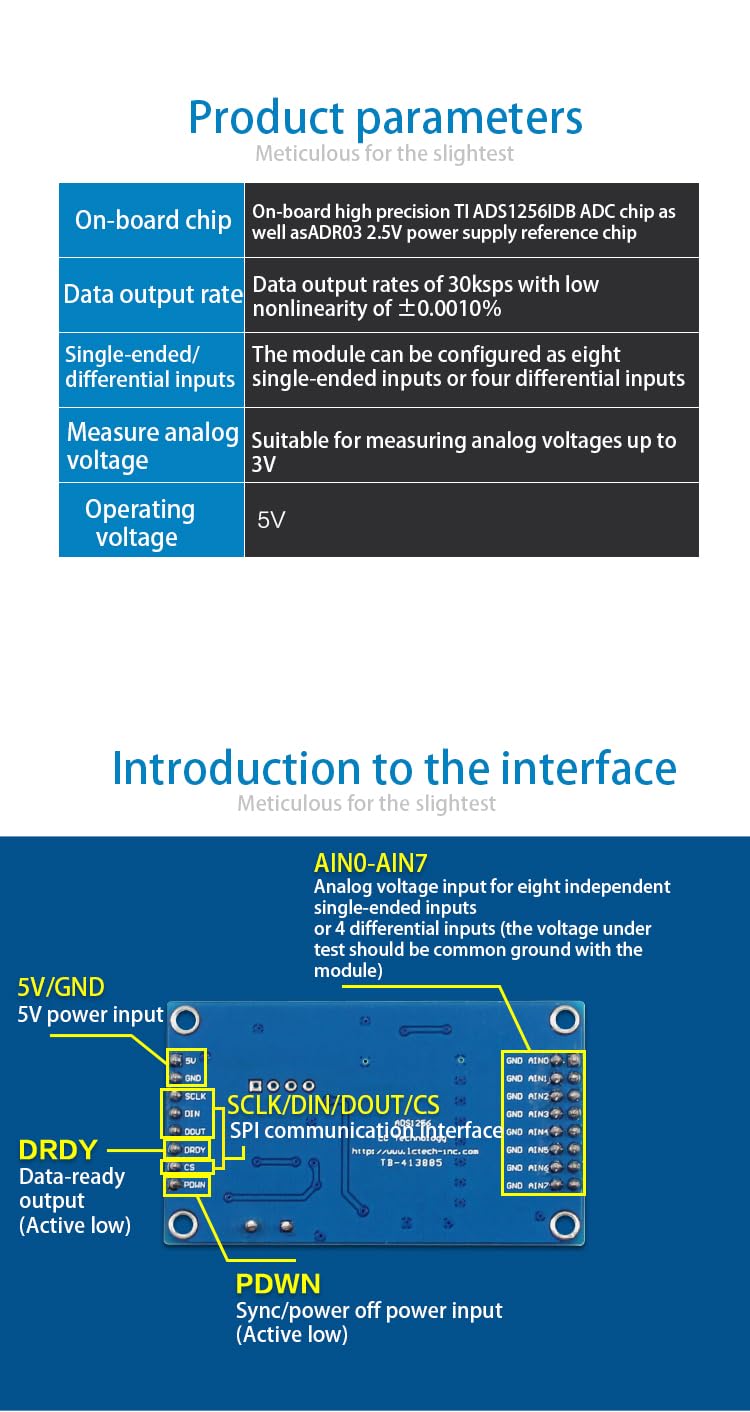

{"id":7991783751860,"title":"DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data","handle":"dollatek-ads1256-24bit-8channel-adc-ad-module-high-precision-adc-acquisition-data","description":"\u003ch3\u003eDollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark reg.NO:013726393 DollaTek ADS1256 24bit 8channel ADC AD\nModule High Precision ADC Capture Data Overview: ADS1256 8 street 24-bit ADC\nmodule mounted TI ADS1256IDB, minimum power consumption, high-precision ADC\nchips and 2.5V zero point source, with SPI interface communication protocol,\ndata output rates up to 30ksps, support single-ended input and differential\ninput. Instructions: 5 V, GND: 5 V power consumption. SCLK, DIN, DOUT, CS: SPI\ncommunication interface DRDY: ADS1256 data are ready output (Active Low Level)\nPDWN: ADS1256 Sync \/ Power Off (Active Low Level) AIN0-AIN7: Analog voltage\ninput, can be configured as 8 single-ended inputs or 4 differential inputs\n(the measured voltage should be shared with the module) Interface description:\nVCC, RXD, TXD, GND: UART interface VCC, SDA, SCL, GND: I2C interface. MISO,\nMOSI, SCK, CS2, CS1, CS0, GND, VCC: SPI interface Precautions: Since the\nvoltage of ADS1256 is 5V and the measured voltage is 2V below the supply\nvoltage, the module is only suitable for measuring analogue voltages within\n3V. Box contents: 1 x DollaTek ADS1256 24bit 8channel ADC AD module high-\nprecision ADC acquisition data\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOn-board high precision TI ADS1256IDB ADC chips\u003c\/li\u003e\n \u003cli\u003eOn-board ADR03 2.5V date source source chips\u003c\/li\u003e\n \u003cli\u003eData output rates up to 30ksps, non-linearity is low to 0.0010%\u003c\/li\u003e\n \u003cli\u003eThe module can be configured as either 8 single-ended inputs or 4 differential inputs. ADS1256 module is suitable for measuring the analogue voltage within 3 V\u003c\/li\u003e\n \u003cli\u003eModule operating voltage is 5 V. Size: 35 x 60 mm\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-24T01:05:34+10:00","created_at":"2025-09-24T01:05:30+10:00","vendor":"DollaTek","type":"Function Generators","tags":["industryDE_Sep2025"],"price":18700,"price_min":18700,"price_max":18700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44048575824052,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B07DK5GC9H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data","public_title":null,"options":["Default Title"],"price":18700,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"742548979577","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1775768547","\/\/auspowers.com\/cdn\/shop\/files\/51Ppi15OC2L.jpg?v=1758639933","\/\/auspowers.com\/cdn\/shop\/files\/51QbTDQ1A9L.jpg?v=1758639933","\/\/auspowers.com\/cdn\/shop\/files\/515IoxSY1sL.jpg?v=1758639933","\/\/auspowers.com\/cdn\/shop\/files\/611joQ5dSuL.jpg?v=1758639933","\/\/auspowers.com\/cdn\/shop\/files\/71b8sXsqNgL.jpg?v=1758639933"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1775768547","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189158883508,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1775768547"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B07DK5GC9H.jpg?v=1775768547","width":1000},{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189158916276,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51Ppi15OC2L.jpg?v=1758639933"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51Ppi15OC2L.jpg?v=1758639933","width":1000},{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189158949044,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51QbTDQ1A9L.jpg?v=1758639933"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51QbTDQ1A9L.jpg?v=1758639933","width":1000},{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189158981812,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/515IoxSY1sL.jpg?v=1758639933"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/515IoxSY1sL.jpg?v=1758639933","width":1000},{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189159014580,"position":5,"preview_image":{"aspect_ratio":0.531,"height":1412,"width":750,"src":"\/\/auspowers.com\/cdn\/shop\/files\/611joQ5dSuL.jpg?v=1758639933"},"aspect_ratio":0.531,"height":1412,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/611joQ5dSuL.jpg?v=1758639933","width":750},{"alt":"[Australia - AusPower] - DollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data ","id":32189159047348,"position":6,"preview_image":{"aspect_ratio":0.647,"height":1159,"width":750,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71b8sXsqNgL.jpg?v=1758639933"},"aspect_ratio":0.647,"height":1159,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71b8sXsqNgL.jpg?v=1758639933","width":750}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek ADS1256 24bit 8channel ADC AD Module High Precision ADC Acquisition Data\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDollaTek trademark reg.NO:013726393 DollaTek ADS1256 24bit 8channel ADC AD\nModule High Precision ADC Capture Data Overview: ADS1256 8 street 24-bit ADC\nmodule mounted TI ADS1256IDB, minimum power consumption, high-precision ADC\nchips and 2.5V zero point source, with SPI interface communication protocol,\ndata output rates up to 30ksps, support single-ended input and differential\ninput. Instructions: 5 V, GND: 5 V power consumption. SCLK, DIN, DOUT, CS: SPI\ncommunication interface DRDY: ADS1256 data are ready output (Active Low Level)\nPDWN: ADS1256 Sync \/ Power Off (Active Low Level) AIN0-AIN7: Analog voltage\ninput, can be configured as 8 single-ended inputs or 4 differential inputs\n(the measured voltage should be shared with the module) Interface description:\nVCC, RXD, TXD, GND: UART interface VCC, SDA, SCL, GND: I2C interface. MISO,\nMOSI, SCK, CS2, CS1, CS0, GND, VCC: SPI interface Precautions: Since the\nvoltage of ADS1256 is 5V and the measured voltage is 2V below the supply\nvoltage, the module is only suitable for measuring analogue voltages within\n3V. Box contents: 1 x DollaTek ADS1256 24bit 8channel ADC AD module high-\nprecision ADC acquisition data\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eOn-board high precision TI ADS1256IDB ADC chips\u003c\/li\u003e\n \u003cli\u003eOn-board ADR03 2.5V date source source chips\u003c\/li\u003e\n \u003cli\u003eData output rates up to 30ksps, non-linearity is low to 0.0010%\u003c\/li\u003e\n \u003cli\u003eThe module can be configured as either 8 single-ended inputs or 4 differential inputs. ADS1256 module is suitable for measuring the analogue voltage within 3 V\u003c\/li\u003e\n \u003cli\u003eModule operating voltage is 5 V. Size: 35 x 60 mm\u003c\/li\u003e\n \u003c\/ul\u003e"}
