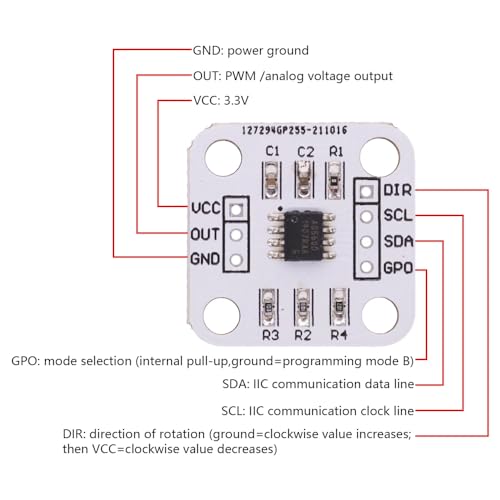

{"id":8115563856052,"title":"DollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision","handle":"dollatek-2pcs-as5600-magnetic-encoder-magnetic-induction-angle-measurement-sensor-module-12bit-high-precision","description":"\u003ch3\u003eDollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInterface description: VCC: 3.3 V GND: Power Ground Out: PWM \/ analog voltage\noutput DIR: Rotational direction (grounding=clockwise value increases ;\nConnect to VCC =Clockwise values decreased) SCL: IIC communication clock line\nSDA: IIC communication data line GPO: Mode selection (internal pull-up,\nground=Programming mode B) Feature: 1.It is made of KB-A grade FR-4 glass\nfiber board with a thickness of 1.6mm. The board surface is flat and not easy\nto be bent. Each PCB board has been tested by flying probes before leaving the\nfactory, and the quality is worth relying on. 2.Non-contact magnetic induction\nangle measurement module. High precision, multiple output modes, IIC, PWM,\nvoltage, etc. 3.AS5600 is also equipped with an intelligent low power\nconsumption mode, which automatically reduces power consumption. The input pin\n(DIP) selects the output polarity rotation direction. Package includes: 2 x\nAS5600 Magnetic Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor.\u003c\/li\u003e\n \u003cli\u003eAS5600 magnetic encoder high precision, a variety of output modes: IIC , PWM and voltage. Non-contact magnetic induction angle measurement module.\u003c\/li\u003e\n \u003cli\u003eMade of high quality material, the module is durable and has long service life.\u003c\/li\u003e\n \u003cli\u003eIt is made of KB-A grade FR-4 glass fiber board with a thickness of 1.6mm. The board surface is flat and not easy to be bent.\u003c\/li\u003e\n \u003cli\u003eAS5600 is also equipped with an intelligent low power consumption mode, which automatically reduces power consumption. The input pin (DIP) selects the output polarity rotation direction.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:47:37+10:00","created_at":"2026-09-02T20:04:57+10:00","vendor":"DollaTek","type":"Switch Encoders","tags":["industrial_UK_Aug2026"],"price":9400,"price_min":9400,"price_max":9400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375652663476,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B0BGPF3WT3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision","public_title":null,"options":["Default Title"],"price":9400,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"CP018624","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B0BGPF3WT3.jpg?v=1788343499","\/\/auspowers.com\/cdn\/shop\/files\/41JncFR9FoL.jpg?v=1788343499","\/\/auspowers.com\/cdn\/shop\/files\/41-1RHUAVkL.jpg?v=1788343499","\/\/auspowers.com\/cdn\/shop\/files\/412ATnSoRRL.jpg?v=1788343499","\/\/auspowers.com\/cdn\/shop\/files\/31tPWV_yExL.jpg?v=1788343499","\/\/auspowers.com\/cdn\/shop\/files\/41oplDSG8IL.jpg?v=1788343499"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0BGPF3WT3.jpg?v=1788343499","options":["Title"],"media":[{"alt":null,"id":33276337750196,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0BGPF3WT3.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B0BGPF3WT3.jpg?v=1788343499","width":500},{"alt":null,"id":33276337782964,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41JncFR9FoL.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41JncFR9FoL.jpg?v=1788343499","width":500},{"alt":null,"id":33276337815732,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41-1RHUAVkL.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41-1RHUAVkL.jpg?v=1788343499","width":500},{"alt":null,"id":33276337848500,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/412ATnSoRRL.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/412ATnSoRRL.jpg?v=1788343499","width":500},{"alt":null,"id":33276337881268,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31tPWV_yExL.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31tPWV_yExL.jpg?v=1788343499","width":500},{"alt":null,"id":33276337914036,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41oplDSG8IL.jpg?v=1788343499"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41oplDSG8IL.jpg?v=1788343499","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDollaTek 2Pcs AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eInterface description: VCC: 3.3 V GND: Power Ground Out: PWM \/ analog voltage\noutput DIR: Rotational direction (grounding=clockwise value increases ;\nConnect to VCC =Clockwise values decreased) SCL: IIC communication clock line\nSDA: IIC communication data line GPO: Mode selection (internal pull-up,\nground=Programming mode B) Feature: 1.It is made of KB-A grade FR-4 glass\nfiber board with a thickness of 1.6mm. The board surface is flat and not easy\nto be bent. Each PCB board has been tested by flying probes before leaving the\nfactory, and the quality is worth relying on. 2.Non-contact magnetic induction\nangle measurement module. High precision, multiple output modes, IIC, PWM,\nvoltage, etc. 3.AS5600 is also equipped with an intelligent low power\nconsumption mode, which automatically reduces power consumption. The input pin\n(DIP) selects the output polarity rotation direction. Package includes: 2 x\nAS5600 Magnetic Encoder\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module is mainly placed behind the stepper motor to obtain the rotation angle of the stepper motor.\u003c\/li\u003e\n \u003cli\u003eAS5600 magnetic encoder high precision, a variety of output modes: IIC , PWM and voltage. Non-contact magnetic induction angle measurement module.\u003c\/li\u003e\n \u003cli\u003eMade of high quality material, the module is durable and has long service life.\u003c\/li\u003e\n \u003cli\u003eIt is made of KB-A grade FR-4 glass fiber board with a thickness of 1.6mm. The board surface is flat and not easy to be bent.\u003c\/li\u003e\n \u003cli\u003eAS5600 is also equipped with an intelligent low power consumption mode, which automatically reduces power consumption. The input pin (DIP) selects the output polarity rotation direction.\u003c\/li\u003e\n \u003c\/ul\u003e"}
