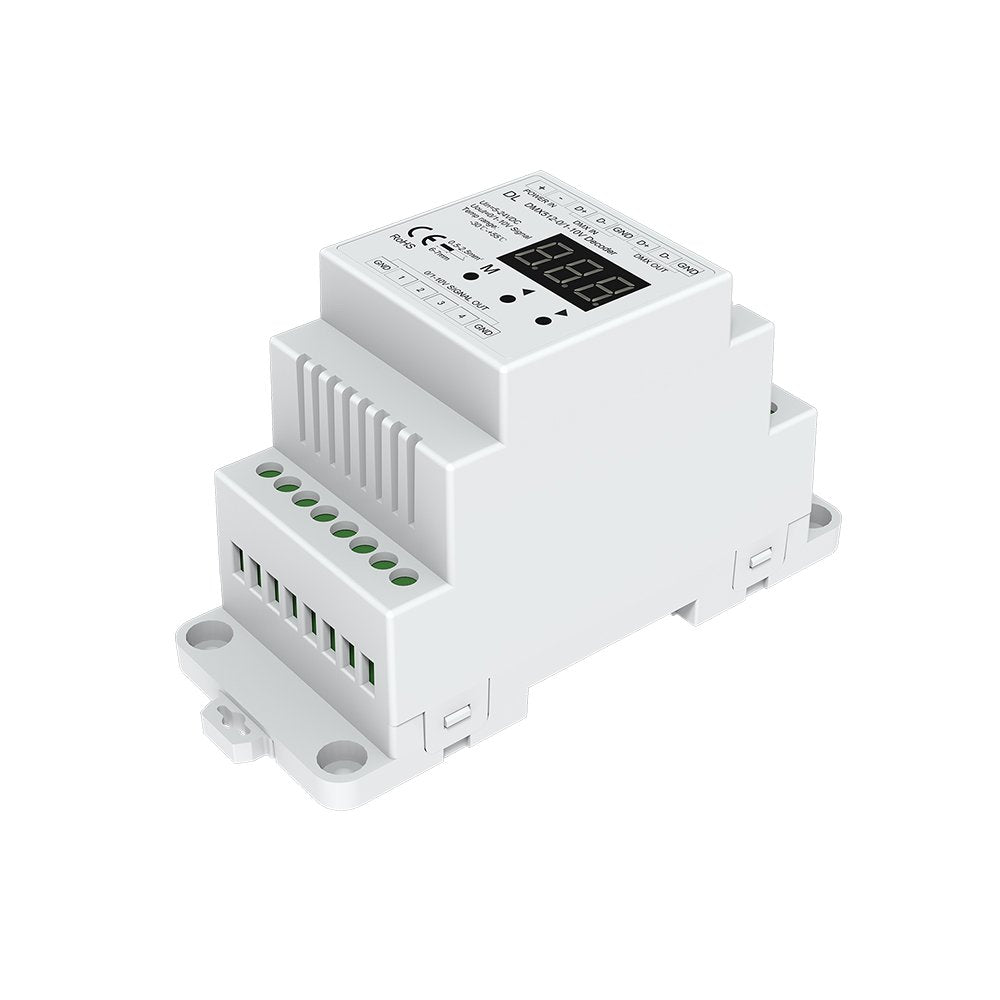

DMX512 to 4CH 0-10V Decoder 0-10V LED Dimmer DMX512 Signal to 0-10V Signal RGB/RGBW Controller 4 Channel Dimmer 5-24V Dl

In Stock. Leaves warehouse within 2 - 3 business days

$192.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

DMX512 to 4CH 0-10V Decoder 0-10V LED Dimmer DMX512 Signal to 0-10V Signal RGB/RGBW Controller 4 Channel Dimmer 5-24V

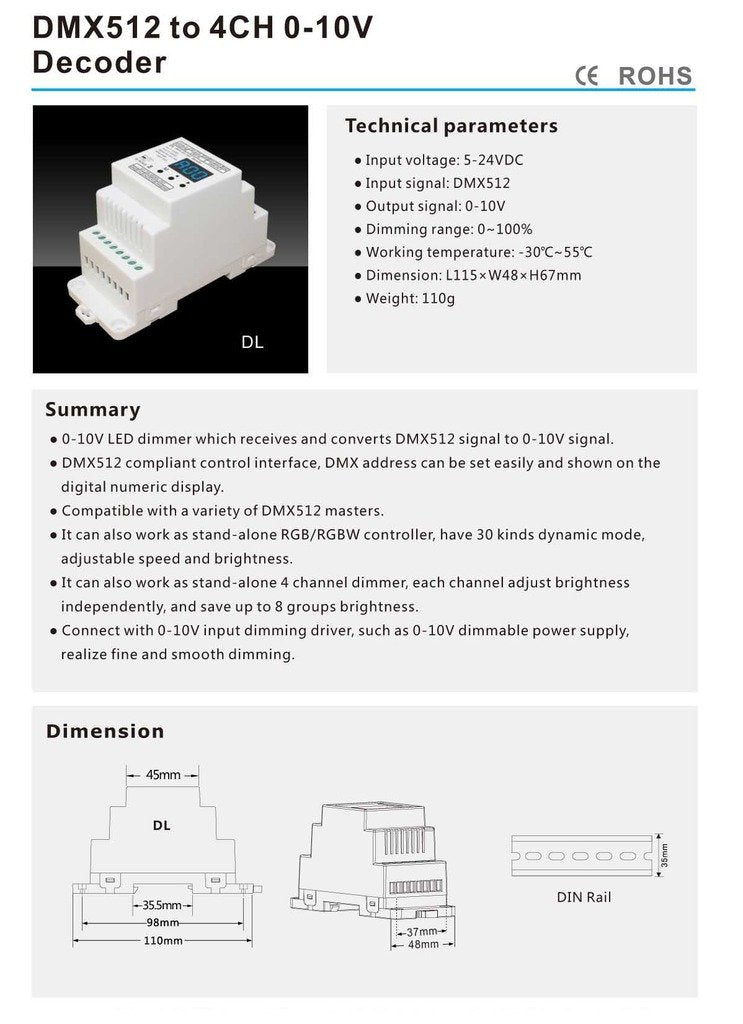

Technical parameters Input voltage: 5-24VDC Input signal: DMX512. Output signal: 0-10V Dimming range: 0-100% Working temperature: -30¡æ~55¡æ Dimension: L115¡ÁW48¡ÁH67mm Summary Compatible with a variety of DMX512 masters. 0-10V LED driver which receives and converts DMX512 signal to 0-10V signal. DMX512 compliant control interface, DMX address can be set easily and shown on the digital numeric display. It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness. It can also work as stand-alone 4 channel dimmer, each channel adjust brightness independently, and save up to 8 groups brightness. Connect with 0-10V input dimming driver, such as 0-10V dimmable power supply,realize fine and smooth dimming.

Product Features

  • Compatible with a variety of DMX512 masters.
  • 0-10V LED driver which receives and converts DMX512 signal to 0-10V signal
  • DMX512 compliant control interface, DMX address can be set easily and shown on the digital numeric display.
  • It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.
  • It can also work as stand-alone 4 channel dimmer, each channel adjust brightness independently, and save up to 8 groups brightness. Connect with 0-10V input dimming driver, such as 0-10V dimmable power supply,realize fine and smooth dimming.
